Brother NV950 / Innov-is 990D Operation Panel: The Settings That Save Needles, Time, and Your Sanity

Mastering the Brother NV950: The Field Manual for Settings, Safety, and Hooping Logic

If you have ever stared at your Brother NV950 (or the similar Innov-is 900/990D series) screen thinking, "I know this machine can do it, but I can’t find the setting," you are battling cognitive friction, not a lack of talent.

Computerized combo machines are engineering marvels, but their screens often hide critical functions behind layers of digital menus. However, after training hundreds of operators, I can tell you that real productivity doesn't happen on the touch screen. It happens through muscle memory applied to the stationary operation panel and a rigorous understanding of physical setups.

This guide rebuilds the navigation shown in the overview video but upgrades it with 20 years of shop-floor experience. We will move beyond "what buttons do" and focus on workflow physics: preventing needle deflection, managing hoop tension without hand strain, and knowing exactly when to upgrade your tools for commercial viability.

The "Cockpit Controls": Why Stationary Buttons Beat the Touchscreen

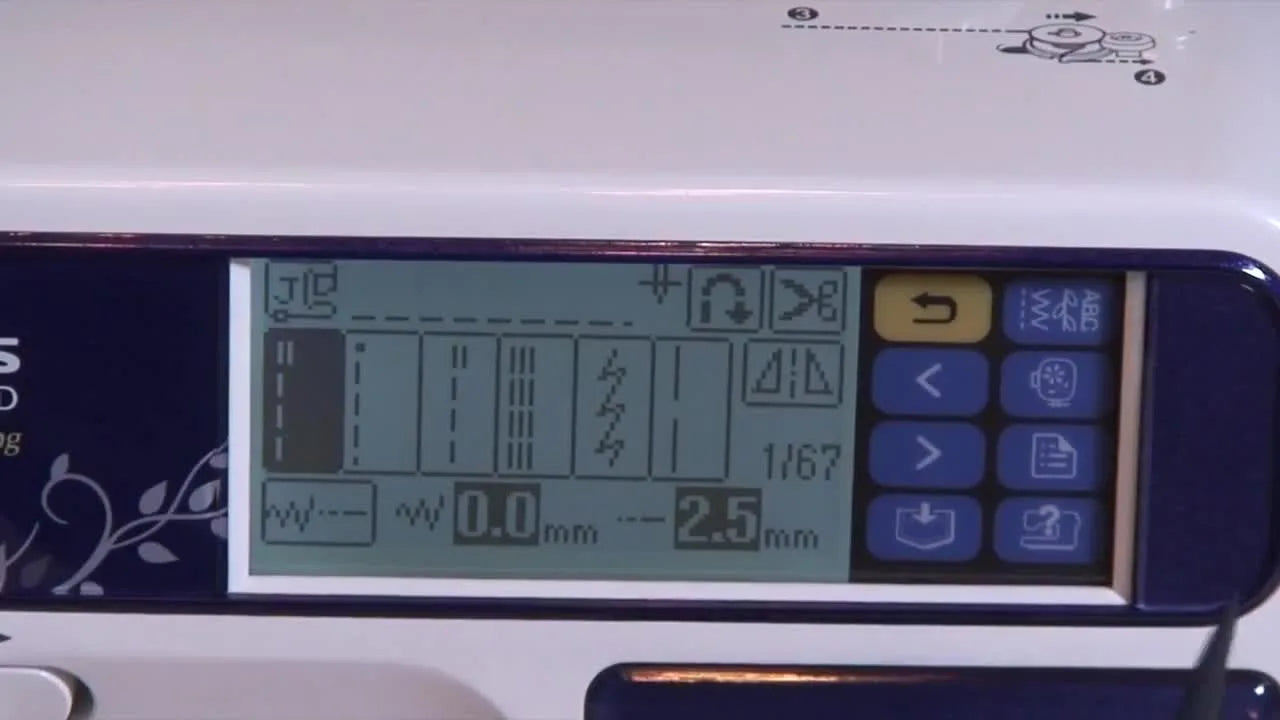

The right-side buttons on the Brother NV950 operation panel are "stationary," meaning they remain active regardless of which digital menu you are navigating. In high-pressure environments, relying on these tactile buttons is safer than tapping a screen.

The Tactile Advantage

• Return/Back Button: Provides a tactile "click" to confirm you have exited a menu.
• Navigation Arrows (Scroll): Essential for fine-tuning selection without blocking your view of the screen with your hand.

Expert Habit: When scrolling through hundreds of stitch designs, do not swipe the screen. Use the physical arrows. It prevents accidental selection (which forces you to back out and lose your place) and keeps the screen free of oils from your fingers.

The "Save Your Sanity" Button: Memory Pockets

The "Pocket" button allows you to save stitch adjustments. Most beginners ignore this, but it is the secret to consistency.

When to use Memory Pockets:

1. Satin Stitch Density: If you find the perfect density (usually 0.40mm - 0.45mm) that covers the fabric without creating a "bulletproof" stiffness, save it.
2. Specialty Fabric Settings: If you have dialed in the tension for a tricky knit, save that profile.

The Commercial Reality Check: The NV950 is excellent for custom one-offs. However, if you find yourself needing 50 different memory slots because you are actively producing team uniforms or batch orders, you have likely outgrown the machine's onboard memory. This is usually the trigger point where workshops upgrade to a SEWTECH multi-needle embroidery machine. Multi-needle machines allow for massive design storage and color management that single-needle machines simply cannot handle efficiently.

The Decorative Shortcut: Accessing Stitches Without Menu Diving

The video highlights the direct access button for decorative stitches. Here is the critical distinction for beginners:

• Sewing Mode Lettering: These are small (approx. 7mm), basic fonts built into the sewing feeds. They are ideal for quilt labels or name tags on ribbon.
• Embroidery Mode Lettering: These are larger, scalable, and density-compensated designs that require the hoop.

Common Pitfall: Beginners often try to make large monograms using the sewing mode lettering. It won't work. The feed dogs cannot replicate the precision of the pantograph (embroidery unit). For professional monograms, always switch to Embroidery Mode.

The Hooping Friction Point: Why the "Hoop Icon" Fails

Lindy points to the embroidery icon (hoop and needle) and notes: You cannot enter embroidery mode unless the embroidery unit is attached.

But let's talk about the physics of the hoop itself. The standard hoop relies on friction and screw tension to hold fabric.

• The Problem: To get fabric "drum-skin tight" (the industry standard for good registration), you often have to torque the screw hard, which can cause "hoop burn" (crushed fibers) on delicate velvets or distortion on stretchi t-shirts.
• The Fatigue: If you are hooping 20 shirts, your wrists will ache from fighting the inner ring.

The Tool Upgrade: Magnetic Hoops

This is where professionals diverge from hobbyists. We often swap standard hoops for magnetic embroidery hoops.

• How it works: Instead of friction, powerful magnets clamp the fabric.
• The Benefit: There is zero "tug-of-war" with the fabric. You simply lay the fabric over the bottom frame and snap the top magnet down. This eliminates hoop burn and dramatically speeds up the workflow.
• Compatibility: For the NV950/990D, look specifically for a compatible brother 5x7 magnetic hoop (or the 4x4 equivalent) that fits your specific attachment arm.


Pre-Flight sequence: The Hidden Prep Checklist

Before you touch a single setting, you must perform a physical "Pre-Flight Check." 80% of failures (birdnesting, broken needles) happen because the machine was set up for one task and asked to do another.

🟢 PREP CHECKLIST (Required before Power-On)

• [] Unit Check: Is the embroidery unit attached? (Listen for the distinct click of the release connector engaging).
• [] Foot Check: Is the "Q" foot installed for embroidery, or the "J" foot for sewing?
• [] Needle Check: Run your fingernail down the needle shaft. If you feel a catch, replace it.
  • Standard: 75/11 usually works.
  • Denim/Canvas: Use 90/14.
  • Silk/Satin: Use 70/10 or Microtex.
• [] Bobbin Check: Visually inspect the bobbin. Is the thread criss-crossed? If so, re-wind it. A messy bobbin causes tension variation.
• [] Essential Consumables: Do you have your stabilizer and temporary adhesive spray (like 505) ready? You cannot rely on hoop tension alone.

A note on silk (addressed in the video comments): Silk is unforgiving. If you are using a brother sewing and embroidery machine for silk, you must stabilize it heavily. Do not rely on the fabric's own strength. Use a soft sheer cutaway stabilizer to prevent the stitches from pulling the delicate fibers apart.

Width Control: Turning the Speed Slider into a Precision Dial

In the Settings menu, toggling Width Control to ON changes the function of the speed slider.

• Normal Mode: Slider controls Speed (SPM from approx. 70 to 710).
• Width Mode: Slider controls Zig-Zag Width.

The "Why": This is used for "Satin tapering." Imagine sewing a leaf shape; you can manually widen the stitch at the center of the leaf and narrow it at the tip without stopping. It requires practice, but it creates an organic, hand-embroidered look that software cannot easily replicate.

🟡 SETUP CHECKLIST (Width Control)

• [] Slider Function: Verify if the slider is currently set to SPEED or WIDTH.
• [] Test Run: On a scrap piece, move the slider. Does the machine speed up, or does the stitch get wider?
• [] Clearance: Ensure your presser foot has a wide enough opening. If you widen a stitch to 7mm but are using a straight-stitch foot, the needle will strike the foot.

Warning: Physical Danger. When testing Width Control, keep your fingers at least 2 inches away from the foot. If the needle strikes the metal foot due to excessive width, it can shatter. Needle shards can fly at high velocity toward your eyes. Always wear glasses or use the safety shield if equipped.

Buzzer Logic: Decoding the "Double Beep"

The machine communicates via sound.

• Single Beep: "Affirmative. Command accepted."
• Double Beep: "Negative. Safety lockout."

Expert Insight: The double beep is not an error; it is a safety interlock. It usually means you are trying to select a stitch that is incompatible with the current mode (e.g., trying to pick a 9mm wide decorative stitch when the specific twin-needle mode is active). Do not force it. Read the screen.

The "Time Saver" Protocol: Disabling the Opening Screen

Lindy toggles Opening to OFF.

• The Gain: Saves roughly 8-12 seconds per startup.
• The Scale: If you sew once a week, this doesn't matter. If you run a small business doing 5 batches a day, this saves you nearly an hour of waiting per month. Efficiency is about aggregate marginal gains.


Maximum Severity Risk: The "Initial Position" Trap

This is the single most critical setting for preventing catastrophic machine damage.

The Scenario: You are using a Quarter-Inch Piecing Foot. This foot has a single, small round hole in the center to prevent fabric from getting sucked into the needle plate.

The Danger: The Brother NV950 defaults to a Left Needle Position for general sewing.

1. You attach the Center-Hole Foot.
2. The machine tries to lower the needle in the Left position.
3. IMPACT: The needle strikes the steel foot with full motor torque.

The Fix: You must change Initial Position to Center in the settings before attaching this foot.

Warning: Needle Strike Hazard. If you hear a loud "CRUNCH" or "SNAP," hit the Stop button immediately. Do not try to reverse. Turn the machine power OFF. Remove the needle clamp screw, remove the fragments, and inspect the bobbin case for needle marks. A burr on the bobbin case will cut your thread forever until polished out.

Service Info: Odometer for Your Machine

Lindy shows the Service Information screen (Software Version & Stitch Count).

Maintenance Rule of Thumb:

• 1 Million Stitches: Time for a deep clean (remove covers, vacuum lint).
• 3-5 Million Stitches: Time for professional service (motor brush check, timing belt adjustment).

If you are buying a used machine, this screen is your "Carfax" report.

The Help Menu: Your Onboard Technician

The "?" icon is not just for total novices. It contains threading diagrams that are crucial when you are tired.

• Sensory Check: When threading, rely on tension. When you pull the thread through the tension discs (step 3), you should feel a slight resistance, like flossing your teeth. If it slides freely, you missed the discs. The Help screen diagrams show the exact path.




Decision Tree: Fabric, Stabilizers, and Hooping Strategy

The number one question I get isn't about buttons; it's "Why did my embroidery pucker?" The answer is almost always the Fabric-Stabilizer-Hoop triad.

Use this decision logic before you start:

1. Is the fabric stable (Denim, Canvas, Cotton)?

• Yes: Use Tear-Away Stabilizer.
• Hooping: Standard hoop is usually fine, tighten until "drum-skin" sound is achieved when tapped.

2. Is the fabric unstable/stretchy (T-Shirt, Jersey, Minky)?

• Yes: You MUST use Cut-Away Stabilizer. Tear-away will result in gap-osis (separation of outline and fill).
• Hooping: This is tricky. You cannot stretch the fabric, or it will snap back later and pucker. This is a primary use case for embroidery magnetic hoops. They hold the sandwich flat without pulling the fabric grain.

3. Is the item circular or difficult to hoop (Sleeves, Socks, Onesies)?

• Yes: A standard flat hoop is a nightmare here.
• The Pro Solution: A hooping station for machine embroidery allows you to pre-align the garment on a fixture. Combined with specific small hoops, this ensures the logo is straight every time.

The Growth Trajectory: When to Switch to Multi-Needle

Understanding your current machine is vital, but so is knowing its limits.

• Thread Changes: The NV950 is a single-needle machine. To sew a 6-color logo, you must manually change the thread 5 times.
• The Math: If a thread change takes you 2 minutes, and you do 10 shirts with 6 colors, you spend 100 minutes just tying knots.

If you are serious about production, you will eventually research how to use magnetic embroidery hoop videos and realize that speed comes from continuous operation.

• Level 1 Upgrade: Magnetic Hoops on your current machine (Faster hooping).
• Level 2 Upgrade: SEWTECH Multi-Needle Machine (Zero thread change time).

Troubleshooting: Structured Logic

When things go wrong, do not guess. Follow this "Low Cost to High Cost" logic.

Symptom: Birdnesting (Thread looping on the bottom)

• Likely Cause: Top Tension is zero. The thread jumped out of the take-up lever.
• The Fix: Raise the presser foot (this opens tension discs). Rethread completely. Ensure the thread is seated deeply.

Symptom: Needle Breaks Instantly

• Likely Cause: Wrong Initial Position setting vs. Foot (as discussed above) OR Needle is too fine for the fabric density.
• The Fix: Check standard Alignment. Switch to a #90/14 Titanium needle for thick layers.

Symptom: Hoop Burn (Shiny rings on fabric)

• Likely Cause: Excessive friction pressure from standard hoops.
• The Fix: Steam the fabric to relax fibers (do not iron directly). For prevention, many professionals search for brother 5x7 magnetic hoop options to eliminate the friction ring entirely.

🔵 OPERATION CHECKLIST (The "Go" Button Routine)

• [] Presser Foot: Down? (Green light should be on).
• [] Clearance: Is the fabric clear of the carriage arm?
• [] Sound: Listen to the first 100 stitches. A rhythmic thump-thump is good. A harsh clack-clack means the needle is blunt or hitting something.
• [] Speed: Start slow. If the machine vibrates excessively, reduce speed.

Warning: Magnetic Field Safety. If you upgrade to magnetic hoops, be aware they use high-gauss magnets. Keep them away from pacemakers, insulin pumps, and credit cards. Also, watch your fingers—when the magnets snap together, the force is strong enough to cause a painful blood blister.

Creating Your Workflow

Mastering the Brother NV950 is about respecting the machine's physics. By using the stationary buttons for reliability, setting safe needle positions, and understanding that hooping is 50% of the battle, you move from "operator" to "craftsperson."

And remember, when the physical frustration of hooping or the slowness of thread changes becomes your bottleneck, that is not a failure—it is the signal that your business simply needs the right tools, be it a magnetic hoop or a multi-needle workhorse, to handle the load.

FAQ

• Q: Why does the Brother NV950 refuse to enter Embroidery Mode when the hoop icon is pressed?
  A: Attach the Brother NV950 embroidery unit first—Embroidery Mode is locked out until the unit is physically connected.
  • Attach: Slide the embroidery unit on until the release connector fully engages.
  • Confirm: Power on and try the hoop/needle icon again only after the unit is seated.
  • Success check: A distinct “click” is felt/heard during attachment and Embroidery Mode becomes selectable without a double beep.
  • If it still fails: Remove and reattach the embroidery unit carefully and check the screen message instead of forcing the selection.
• Q: What is the Brother NV950 “Pre-Flight Check” to prevent birdnesting and broken needles before power-on?
  A: Do a quick physical setup audit—most Brother NV950 failures start with the wrong foot, a damaged needle, or a bad bobbin.
  • Verify: Embroidery unit attached (for embroidery) and the correct foot installed (Q foot for embroidery / J foot for sewing).
  • Inspect: Run a fingernail down the needle; replace the needle if any catch is felt and choose the needle type for the fabric (75/11 general, 90/14 denim/canvas, 70/10 or Microtex for silk/satin).
  • Check: Look at the bobbin wind; if the thread is criss-crossed/messy, rewind the bobbin.
  • Success check: The machine starts smoothly without immediate looping underneath or needle “clacking.”
  • If it still fails: Recheck threading and stabilizer choice—do not rely on hoop tension alone for tricky fabrics.
• Q: How do I stop Brother NV950 birdnesting (thread looping on the bottom) during embroidery?
  A: Rethread the Brother NV950 top thread completely—birdnesting usually means the top thread is not seated in the tension path or take-up lever.
  • Raise: Lift the presser foot first to open the tension discs.
  • Rethread: Thread from scratch and make sure the thread is seated deeply through the intended path.
  • Restart: Begin again at a controlled speed and watch the first stitches.
  • Success check: The underside shows a clean, consistent stitch pattern instead of loose loops piling up.
  • If it still fails: Stop immediately, remove the tangled thread, and recheck the bobbin wind for uneven winding that can cause tension variation.
• Q: How do I prevent Brother NV950 needle breakage caused by the “Initial Position” setting when using a center-hole foot?
  A: Set Brother NV950 Initial Position to Center before attaching a foot with a single round hole (such as a quarter-inch piecing foot).
  • Change: Open settings and switch Initial Position from Left to Center before lowering the needle with that foot installed.
  • Test: Hand-check clearance by slowly moving into the first stitch position (do not force the pedal if anything looks off).
  • Success check: The needle drops cleanly through the center hole without impact or a “crunch/snap.”
  • If it still fails: Power off, remove needle fragments safely, and inspect the bobbin case for needle marks/burrs that can keep cutting thread.
• Q: How do I safely test Brother NV950 Width Control without striking the presser foot?
  A: Treat Width Control testing on the Brother NV950 as a clearance test—confirm the slider mode and keep hands clear because a needle strike can shatter the needle.
  • Verify: Confirm whether the speed slider is currently controlling SPEED or WIDTH.
  • Test: On scrap fabric, move the slider and observe whether speed changes or stitch width changes.
  • Check: Ensure the presser foot opening matches the width you plan to use (do not widen to 7mm with a straight-stitch foot).
  • Success check: Stitch width changes smoothly without metal-on-metal clicking and without the needle contacting the foot.
  • If it still fails: Reduce width immediately and swap to a foot with adequate opening before continuing.
• Q: How can I stop hoop burn and wrist fatigue when hooping delicate fabric on a Brother NV950 standard hoop?
  A: Reduce friction pressure—Brother NV950 standard hoops can require high screw torque, which can crush fibers and strain wrists; magnetic hoops are often the next-step tool upgrade.
  • Avoid: Do not over-torque the hoop screw just to chase “drum-skin tight” on delicate or stretchy fabrics.
  • Recover: Use steam to relax hoop marks (avoid ironing directly on the damaged area).
  • Upgrade: Consider a compatible magnetic hoop to clamp fabric without the tug-of-war of friction hooping.
  • Success check: The fabric sits flat without shiny rings, and the design registers without distortion from overstretching.
  • If it still fails: Re-evaluate stabilizer choice—stretchy fabrics typically need cut-away support to prevent distortion.
• Q: What stabilizer and hooping strategy should I use on the Brother NV950 to prevent puckering on T-shirts vs. denim?
  A: Match the Brother NV950 fabric-stabilizer-hoop “triad”—stable fabrics usually tolerate tear-away, but stretchy fabrics generally require cut-away and careful hooping to avoid snap-back puckers.
  • Choose: Use tear-away stabilizer for stable fabrics like denim/canvas/cotton; use cut-away stabilizer for unstable/stretchy fabrics like T-shirts/jersey/minky.
  • Hoop: For stable fabric, a standard hoop is often fine; for stretchy fabric, avoid stretching the garment during hooping.
  • Consider: Use magnetic hoops for stretchy items to hold the sandwich flat without pulling the fabric grain.
  • Success check: The embroidery lies flat after unhooping, with outlines and fills staying aligned (no separation between them).
  • If it still fails: Increase stabilization (especially on unforgiving fabrics like silk) rather than tightening the hoop harder.
• Q: What are the magnetic field safety rules when using magnetic embroidery hoops with a Brother NV950 workflow?
  A: Treat magnetic hoops as high-strength tools—keep them away from medical devices and magnetic-sensitive items, and protect fingers during clamping.
  • Keep away: Do not bring magnetic hoops near pacemakers, insulin pumps, or credit cards.
  • Handle: Keep fingertips out of the pinch zone when the magnets snap together.
  • Store: Separate and store hoops so magnets cannot slam together unexpectedly.
  • Success check: The hoop closes with controlled alignment (no finger pinches) and the work area remains free of magnet-sensitive items.
  • If it still fails: Switch to slower, two-handed placement and reposition the fabric before snapping the top frame down.
