Brother PE500 From Etsy Download to Clean Appliqué: The Beginner Workflow That Prevents 90% of First-Day Mistakes

If you just unboxed (or were gifted) a Brother PE500 and you’re staring at the hoop, the USB cord, and a downloaded design thinking, “I’m going to mess this up,” take a breath—you’re exactly where every good embroiderer starts. I have spent 20 years in this industry, and I can tell you: the machine smells fear. But it respects process.

This post rebuilds the full workflow shown in the video, but refined through the lens of professional production standards. We will cover buying a design on Etsy, grabbing the correct DST file (the industry standard), transferring it, loading your bobbin and top thread with tactile precision, and executing a flawless appliqué.

I’ll also fold in the real beginner questions—Wi-Fi myths, software needs, and supply realities—plus the “old hand” sensory checks that prevent puckering, shifting fabric, and that dreaded first-day frustration.

Buy the Right Etsy DST File (and Avoid the “Wrong Folder” Trap)

The video starts where most beginners start: Etsy. You search for an embroidery design, purchase it, and download it. But here is where the "Digital Hygiene" of professional embroidery begins.

When you download a zip file from Etsy, you aren't just getting one picture; you are getting a package of machine languages. The Brother PE500 creates stitches based on coordinates. While .PES is Brother’s native format, the industry standard used in the video—and by most professionals—is .DST (Data Stitch Tajima).

Why this distinction matters: DST files are purely command-based (X, Y coordinates). They are robust and rarely corrupt.

In the video, the creator specifically selects the 4x4 DST file. This is critical. Trying to load a 5x7 file into a machine with a 4-inch stitch field limit isn't just an error; on older machines, it could cause the carriage to strike the frame limits.

If you’re brand new and you’re shopping for your first machine, keep this in mind: the PE500 is a dedicated embroidery machine. It’s a solid embroidery machine for beginners choice because it forces you to learn this file-handling discipline early, which pays off when you eventually upgrade to multi-needle commercial equipment.

Transfer a 4x4 DST From Mac Finder to the “NO NAME” USB Drive Without Guessing

Once the machine is connected to your Mac, it appears like an external drive. In the video, it shows up as a white drive icon labeled “NO NAME.”

The transfer method shown is simple, but let’s look at the underlying logic to ensure data safety:

1. Locate Source: Open Downloads on your Mac and find the unzipped folder.
2. Verify File Size: A 4x4 DST file is usually tiny (10kb - 50kb). If you see 0kb, the download failed.
3. The Drag-and-Drop: Drag the 4x4 DST file onto the “NO NAME” drive.
4. The Safety Step (Vital): Always "Eject" the drive on your computer before unplugging the USB cable. Corrupted headers from unsafe ejections are the #1 cause of "Machine Won't Read File" errors.

A common comment question is: “Do I need Wi-Fi?” For the workflow shown, the answer is no. This is an "Air-Gapped" transfer—secure and reliable. Wi-Fi only matters for your computer's internet access to get the design initially.

Load the Design on the Brother PE500 Touchscreen (The Pocket Icon Matters)

After the file is copied over, the video shows moving to the PE500 touchscreen to load it.

The sequence shown:

• Tap the file area so you can see the design name (the example shown is “MERMAID”).
• Tap the icon that looks like a pocket. Instructor Note: This icon represents the machine's "Internal Memory." You are moving the file from the temporary USB stick into the machine's brain.
• The Auditory Check: Wait for the machine to beep or the processing bar to finish.
• When the outline becomes solid, tap again to load.

This is one of those steps that feels “mysterious” the first time, but once you’ve done it twice, it becomes muscle memory.

The “Open the Box” Prep Nobody Regrets: Thread, Backing, Scissors, and a Cleanup Plan

A viewer asked for a true start-from-the-beginning list of what to buy. The creator replied with a basic list, but I am going to upgrade this to a "Zero-Fail Kit". These are the consumables that bridge the gap between "homemade" and "pro-made."

Prep Checklist (Do this before you power on)

• Stabilizer (Backing): Tear-away (for stable woven fabrics) and Cut-away (essential for knits/polos—see the Decision Tree below).
• Needles: Do not use the one that came installed forever. Have a pack of 75/11 Embroidery Needles ready. A dull needle causes 50% of thread shreds.
• Thread: 40wt Polyester embroidery thread (like the gold Gütermann shown).
• Bobbin: 60wt or 90wt Bobbin thread (thinner than top thread).
• Hidden Consumable 1: Curved Embroidery Scissors (Double-Curved or Duckbill). These allow you to trim appliqué without stabbing the fabric.
• Hidden Consumable 2: Temporary Spray Adhesive (e.g., Gunold KK100 or 505). This prevents fabric from "floating" or bubbling in the hoop.
• Lint Roller: For post-trimming cleanup.

If you’re planning to stitch on tricky items, your stabilizer choice becomes the difference between “cute” and “why is it puckering?”—more on that in the hooping section.

Bobbin Loading on the Brother PE500: Follow the Printed Diagram, Then Trust the Cutter

The video shows bobbin loading as “super simple,” and it is—if you follow the geometry of the machine.

The "P" for Perfect Rule: When you hold the bobbin up, the thread should lay off the left side, making the shape of the letter "P". If it looks like a "q", flip it over.

What’s shown:

• Place the bobbin into the bobbin area.
• Sensory Check: As you pull the thread through the slit, listen for a tiny click or feel a slight snap. That is the thread entering the tension spring. If you don't feel that tension, your stitch quality will fail immediately.
• Wrap it around the small loop/guide.
• Pull it into the cutter so the excess is trimmed.
• Replace the plate/cover.

A comment asked whether you need to change bobbin thread color. The expert consensus: No. Standard white (or black for dark garments) bobbin thread is 60wt-90wt, which is thinner than top thread. This weight difference helps pull the top thread down for a crisp look. Stick to dedicated bobbin thread.

Threading the Brother PE500 (1–7) Without Fighting the Needle Threader

The video is clear about the path, but beginners often miss the most critical physical requirement: The Presser Foot MUST be UP.

When the presser foot is up, the tension discs open (like opening a door). When the foot is down, they close. If you thread with the foot down, the thread sits on top of the discs, zero tension is applied, and you will get a "bird's nest" of thread under your fabric instantly.

The Sensory Threading Path (1-7):

• Step 1-3: With the foot UP, guide the thread down the right channel.
• Step 4 (The Check): As you come up the left channel, hold the thread near the spool with your right hand and pull the thread near the machine with your left. You should feel smooth drag, like flossing teeth.
• Step 5 (The Take-Up Lever): Hook the thread at the top guide. Ensure it slides fully into the eye of the lever.
• Step 6: Hook behind the needle bar guide.
• Step 7: Pull up to the notch/cutter.

Then the key move: push the left-side lever down to engage the automatic needle threader. The video shows a loop appearing through the needle eye; then you pull the thread from the back.

Warning: Mechanical Safety. Keep fingers, loose sleeves, and long hair away from the needle area when the machine is powered on. Embroidery machines move on X and Y axes rapidly. Also, when trimming appliqué, cut AWAY from the stitches—one slip can nick the satin border or snap a needle, sending metal shards flying.

Read the Design Color Chart PDF So Tiny Details Don’t Surprise You Mid-Stitch

The video shows that some designs include a PDF that acts like a step-by-step color chart. This matters more than beginners realize.

Why it helps:

• Sequence Management: You can anticipate thread changes.
• Scale Context: You can understand what each “little bitty” section is (the video mentions tiny areas like eyes).
• Applique Planning: Machines don't know "Pink Fabric" vs "Gold Thread." They only know "Stop." The PDF tells you why it stopped (e.g., "Place Fabric Now").

This is also where you start thinking like a production embroiderer: you’re not just “pressing start,” you’re managing a sequence.

Hooping Fabric + Tear-Away Stabilizer in a Brother 4x4 Hoop Without Puckers or Hoop Burn

The video uses tear-away stabilizer and shows a standard plastic 4x4 hoop with a tightening screw. This is the hardest physical skill to master in embroidery.

The process shown:

1. Place tear-away stabilizer and fabric over the outer hoop.
2. Align the top arrows on the hoop pieces.
3. Press the inner hoop into the outer hoop.
4. Tighten the bottom screw while pulling the fabric edges.

Expert Calibration: "Snug but not Tight" The video aims for “snug but not tight.” Let’s define that with sensory data.

• The Tap Test: Tap the hooped fabric with your fingernail.
  • Sound like a dull thud? Too loose. Outline alignment will fail.
  • Sound like a high-pitched snare drum? Too tight. You have stretched the fabric fibers. When you unhoop, the fabric will relax and the embroidery will pucker.
  • Sound like a cardboard box? Perfect.

"Hoop Burn" (the shiny ring left on fabric) is caused by the friction of the plastic inner ring against the outer ring. This is a major pain point. If you tackle hooping for embroidery machine projects on sensitive velvet or performance knits, the standard plastic hoop is often too aggressive.

Decision Tree: Stabilizer Choice When the Video Says “T-Shirts or Fabric, It Does Not Matter”

The video demonstrates tear-away stabilizer as the easiest option. In real life, physics dictate that your stabilizer must match the stretch of your fabric.

• Scenario A: Non-Stretch Woven (e.g., Denim, Canvas, Quilting Cotton)
  • Stabilizer: Tear-away.
  • Why: The fabric supports itself; the stabilizer just adds temporary rigidity.
• Scenario B: Stretchy Knits (e.g., T-shirts, Polos, Hoodies)
  • Stabilizer: Cut-away. (Absolute Requirement)
  • Why: Knits stretch. Tear-away dissolves/tears, leaving the heavy embroidery on stretchy fabric, leading to sagging and holes. Cut-away remains forever to support the stitches.
• Scenario C: High-Pile (e.g., Towels, Fleece)
  • Stabilizer: Tear-away (Back) + Water Soluble Topping (Front).
  • Why: The topping prevents the stitches from sinking into the fluff.

Generally, your machine manual and stabilizer supplier guidance should be your final reference, but this decision tree will save you a lot of “why did it warp?” moments.

Setup Checklist (Right before you attach the hoop)

• Hoop Tension: Cardboard box sound tap test passed?
• Vector Check: Inner and Outer hoop arrows aligned?
• Clearance: Excess fabric is rolled/pinned so it won’t catch on the back of the machine carriage?
• Tools: Appliqué scissors within reach?

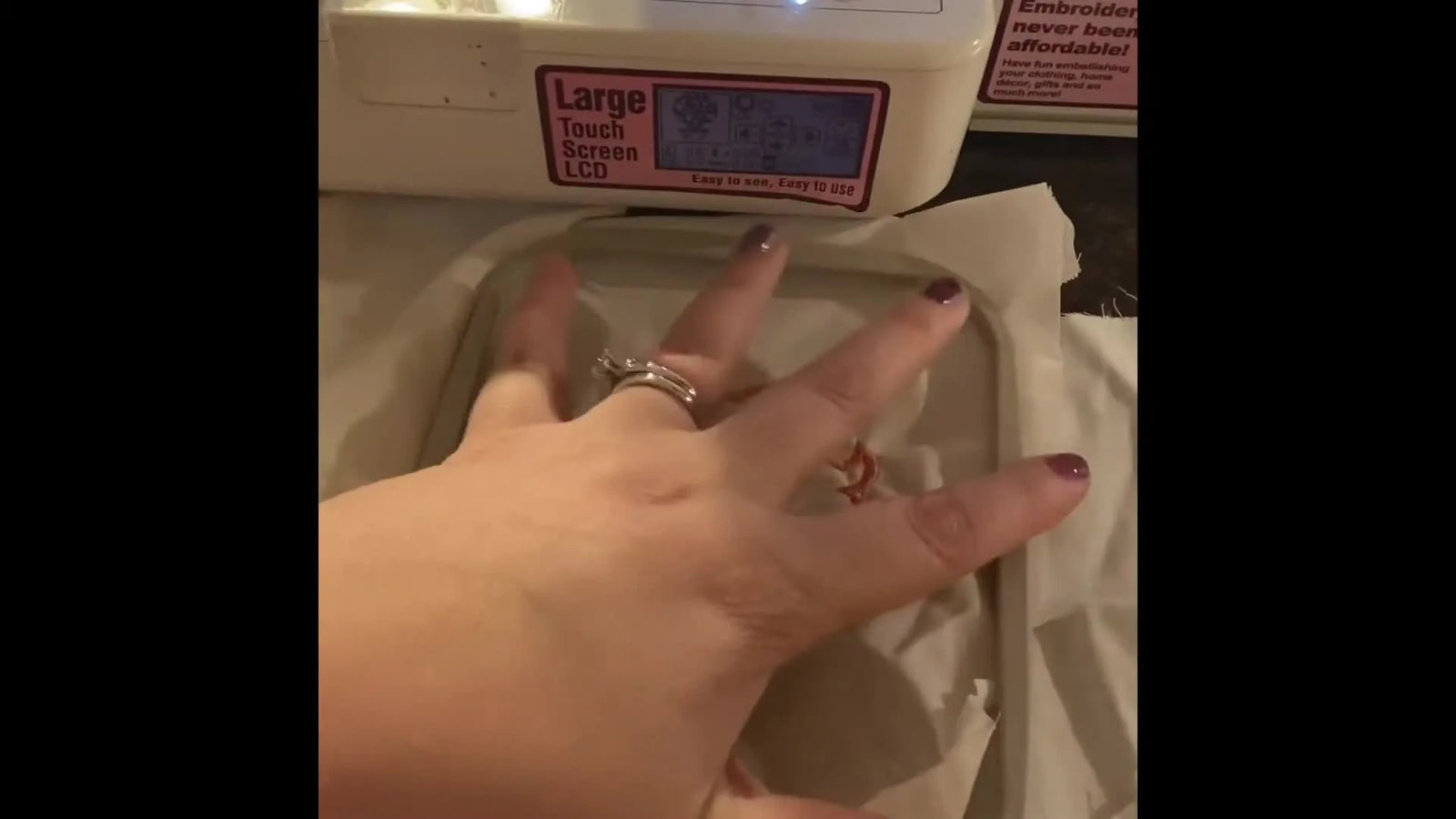

Lock the Brother PE500 Hoop Into the Carriage, Lower the Foot, Then Trust the Green Light

The video shows sliding/locking the hoop into the carriage arm on the machine. Listen for the distinct click of the engagement pin.

Once it’s seated, the creator notes:

• Thread is loaded.
• Bobbin is loaded.
• Hoop is loaded.
• Put your foot down. (The machine will flash red and refuse to sew if the foot is up).

Then the start button lights green.

If you are shopping for accessories, this is where people start searching for brother pe500 hoops because the standard screw hoop works—but it’s slow, and it’s physically demanding to get the tension right every time.

Appliqué on the Brother PE500: Placement Line, Tack-Down Line, Then Trim Like a Surgeon

The video demonstrates an appliqué workflow that beginners can absolutely handle. This adds texture and value to a garment while saving stitch counts.

What’s shown:

1. Placement Line: The machine stitches a running stitch outline on the stabilizer/base fabric. Stop.
2. Fabric Lay: You lay the appliqué fabric (pink) over the placement area. Tip: A shot of temporary adhesive spray helps here.
3. Tack-Down Line: The machine stitches a second line to secure the fabric. Stop.
4. The Trim: You remove or slide the hoop out so you can trim.
5. The Finish: The final satin stitch covers the raw edge.

The "Surgeon's Cut" Technique: The creator’s key tip is gold: trim as close as possible. To do this safely: Lift the excess fabric up and glide your scissors flat against the stabilizer layer. This tension allows you to cut practically against the thread without cutting it. If you leave too much fabric, the final satin stitch will have "whiskers" of pink fabric poking through.

Warning: Hoop Discipline. When trimming, never pop the fabric out of the hoop. If you unhoop the fabric now, you will never get it back in perfect alignment. Trimming must happen while hooped.

Clean Jump Threads and Tear Away the Backing Without Distorting the Stitching

The video calls out “cross threading” (jump threads) as normal.

What’s shown:

• After the design is complete, use small snips to cut the travel threads connecting different letters or objects.
• Then rip the tear-away backing off the back.

Expert Technique: When tearing stabilizer, place your thumb on the stitches to support them, and tear the paper away from your thumb. Do not just rip it like a Band-Aid, or you might distort the design you just spent 30 minutes creating.

The Beginner Problems Hiding in the Comments (and the Fixes That Save Your Weekend)

“Can this machine do straight stitch and zigzag?”

No. The video demonstrates embroidery-only operation. The PE500 has no "feed dogs" to move fabric for sewing. It is a specialist tool.

“I don’t have software—what do I download?”

In the video, the workflow uses Etsy downloads and Mac Finder. No digitizing software (like PE-Design or Hatch) is required for stitching. You only need software if you want to create designs from scratch. For now, being a "Design User" is perfectly fine.

“My file won’t download even though I extracted/zipped.”

A reply suggests double-checking that you’re downloading DST files. Also, check the capacity of your USB drive. Ideally, use a USB stick smaller than 4GB formatted towards FAT32. Large, modern 64GB drives often confuse these simpler machine operating systems.

“What is the big white piece called?”

A reply identifies the white piece surrounding the needle and bobbin area as an “embroidery supply assembly” or, more commonly, the Embroidery Unit.

When the Screw Hoop Becomes the Bottleneck: A Calm Upgrade Path That Actually Pays Off

If you’re only stitching occasionally, the standard brother 4x4 embroidery hoop shown in the video is perfectly workable.

However, the "Hooping Station" is where 80% of production errors happen (crooked designs, hoop burn, wrist fatigue). If you find yourself doing any of these:

• Hooping multiple items in a row (e.g., 10 shirts for a family reunion).
• Fighting hoop marks (“hoop burn”) on delicate fabrics that screw hoops pinch too hard.
• Struggling to hooping thick towels or stiff canvas.

…then it’s time to consider a tool upgrade.

Professionals solve this with Magnetic Hoops. Terms like magnetic embroidery hoops refer to frames that use powerful magnets to sandwich the fabric rather than friction screws. This eliminates "hoop burn" and reduces wrist strain significantly because you are simply snapping magnets into place.

For a Brother PE500 user, finding a compatible magnetic hoop for brother can transform the experience from "fighting the plastic" to a smooth assembly line workflow.

And if you’re building toward small-batch production—logos, team items, or repeat orders—and the color changes on a single-needle machine are slowing you down, that is the clear signal to look at the SEWTECH multi-needle ecosystem. This is where time savings become real profit, while reliable magnetic hooping keeps the quality consistent.

Warning: Magnetic Safety. These are not fridge magnets. Magnetic hoops use industrial-grade neodymium magnets. Keep them away from pacemakers, implanted medical devices, and mechanical watches. Do not let fingers get pinched between the magnetic ring and frame—the force is significant.

Operation Checklist (The “Don’t Ruin It” Final Review)

• File Check: Is it the 4x4 DST version? (Not the 5x7 PES version).
• Bobbin: Seated in the "P" shape + passed the tactile click test?
• Top Thread: Threaded with the Presser Foot UP?
• Hoop: "Cardboard Box" tap sound verified?
• Safety: Clearance check around the carriage arm?
• Appliqué: Trimming scissors are sharp and ready?

FAQ

• Q: Which embroidery design file format should a Brother PE500 beginner choose from an Etsy download: 4x4 DST or something else?
  A: Choose the 4x4 DST file when the design set includes multiple formats, because the workflow depends on loading a size your Brother PE500 can stitch reliably.
  • Verify the folder label includes 4x4 and select the .DST version shown in the download package.
  • Avoid selecting a larger size (for example a 5x7 option) when the stitch field is limited to 4x4.
  • Success check: The design loads on the Brother PE500 screen and displays correctly instead of refusing to open.
  • If it still fails: Re-download and unzip the Etsy file again and confirm the chosen file is not a 0kb download.
• Q: How do you transfer a 4x4 DST file from a Mac to the Brother PE500 “NO NAME” USB drive without corrupting the design?
  A: Drag the unzipped 4x4 DST onto the “NO NAME” drive and always Eject the drive before unplugging to prevent corrupted headers.
  • Locate the unzipped design folder in Downloads and select the 4x4 DST file.
  • Check file size (a small DST is commonly 10kb–50kb; avoid anything showing 0kb).
  • Drag-and-drop the DST file to NO NAME, then use Eject on the Mac before disconnecting.
  • Success check: The Brother PE500 can see the design name on the touchscreen and loads it without a “won’t read file” type failure.
  • If it still fails: Try a smaller USB drive (often under 4GB, FAT32) because some large modern drives can confuse simpler machine systems.
• Q: How do you stop bird’s nests under the fabric when threading a Brother PE500 for embroidery?
  A: Thread the Brother PE500 with the presser foot UP, because the tension discs must be open during threading to apply correct tension.
  • Raise the presser foot fully before following the numbered thread path.
  • Re-thread step-by-step and make sure the thread seats into the take-up lever and guides.
  • Success check: You feel a smooth, consistent “floss-like” drag when you pull the thread through the path, and stitching does not pile up underneath.
  • If it still fails: Re-check the bobbin is seated correctly and that the bobbin thread was pulled through the slit into tension before cutting.
• Q: What is the correct Brother PE500 bobbin loading method, including the “P” rule and the tactile click test?
  A: Load the bobbin so the thread forms a “P” shape and pull the thread through the slit until you feel/hear the tiny click/snap of the tension spring engaging.
  • Hold the bobbin in hand first: thread should come off to the left like a P (if it looks like a “q,” flip it).
  • Insert the bobbin, then pull the thread firmly through the slit and into the guide path.
  • Pull into the cutter to trim the excess, then replace the cover.
  • Success check: You feel slight resistance (tension) after the click/snap, not a free-spinning, loose pull.
  • If it still fails: Remove the bobbin and repeat the seating step slowly—most first-time failures are simply missing the tension spring engagement.
• Q: How tight should fabric be hooped in a Brother 4x4 screw hoop to prevent puckers and hoop burn on a Brother PE500?
  A: Aim for snug, not stretched, and use the tap-sound test to set hoop tension without over-tightening.
  • Hoop stabilizer and fabric together, align hoop arrows, and tighten while gently pulling fabric edges flat.
  • Use the tap test: dull thud = too loose; high-pitched snare = too tight; cardboard box sound = correct.
  • Success check: Fabric sits flat with no ripples, and after stitching the design does not pucker when removed from the hoop.
  • If it still fails: Match stabilizer to fabric type (tear-away for stable wovens; cut-away for knits) and avoid over-tightening that causes hoop burn.
• Q: What stabilizer should be used on a Brother PE500 for T-shirts, polos, towels, or fleece if tear-away causes puckering or distortion?
  A: Use stabilizer based on fabric behavior: cut-away for knits, and topping for high-pile, because tear-away alone often fails on stretchy or fluffy materials.
  • Choose tear-away for non-stretch wovens (denim, canvas, quilting cotton).
  • Choose cut-away for stretch knits (T-shirts, polos, hoodies) to prevent sagging, holes, and long-term distortion.
  • Choose tear-away backing + water-soluble topping for towels/fleece so stitches don’t sink.
  • Success check: The finished embroidery stays flat after unhooping and does not tunnel, ripple, or sink into pile.
  • If it still fails: Re-check hoop tension with the tap test and consider temporary spray adhesive to prevent fabric “floating.”
• Q: When should a Brother PE500 user upgrade from a screw hoop to a magnetic hoop, and when is it time to move up to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: first optimize technique, then consider magnetic hoops for repeatable hooping and less hoop burn, and move to a multi-needle machine when single-needle color changes become the production bottleneck.
  • Level 1 (technique): Re-check presser-foot-up threading, bobbin click test, stabilizer choice, and hoop tap-sound tension.
  • Level 2 (tool): Use a magnetic hoop if hoop burn, wrist fatigue, thick items, or inconsistent hoop tension keeps causing crooked designs and rework.
  • Level 3 (capacity): Consider a SEWTECH multi-needle machine if frequent color changes and repeat orders make the single-needle workflow too slow.
  • Success check: Hooping becomes consistent and faster, and repeat jobs stop failing due to alignment/marking issues.
  • If it still fails: Pause and standardize one variable at a time (same stabilizer, same fabric type, same design size) to isolate whether the issue is hooping, threading, or materials.
