Brother PE540D vs SE400 vs PE770: Pick the Right Hoop Size, Speed, and Workflow (Without Buyer’s Remorse)

Affordable Brother machines can absolutely produce professional-looking embroidery—if, and only if, you match the machine to the way you actually work.

I’ve watched thousands of home embroiderers make the same expensive mistake: they buy based on a list of "features," then discover their real bottleneck is hooping speed, fabric control, and the physical reality of managing thread tension. The Brother PE540D, Brother SE400, and Brother PE770 are all capable entry-level machines, but they serve three very different realities: Disney-first fun, sew-and-embroider versatility, and bigger-field productivity.

Below is a practical, white-paper-level breakdown based strictly on what’s shown in the video—plus the "why it matters" experience that keeps you from wasting stabilizer, snapping needles, or fighting puckers.

Calm the Panic: What These Brother PE540D / SE400 / PE770 Machines Are (and Aren’t)

If you’re new to this, it’s normal to feel like you need the "most machine" to get good results. You don’t. What you need is the right workflow.

From the video specifications:

• Brother PE540D is embroidery-only, featuring 100 built-in designs (including 35 Disney designs), a 4" x 4" embroidery area, a touchscreen, an automatic needle threader, and a max speed of 400 stitches per minute.
• Brother SE400 is a hybrid combo (sewing + embroidery), offering 67 sewing stitches, 70 built-in embroidery designs, 120 frame pattern combinations, 5 fonts, a 4" x 4" embroidery area, quick-change feet, and a Quick-Set top drop-in bobbin.
• Brother PE770 is an embroidery-only step-up with a 5" x 7" embroidery area, 136 built-in designs, 10 frame designs, 6 fonts, a larger backlit LCD, USB import capability, and a faster 650 stitches per minute.

Here’s the veteran truth: the "best" machine is the one that matches your required hoop size, your tolerance for setup time, and how often you need to import custom logos.

Brother PE540D + Disney Designs: The Fastest Way to Start Stitching (If 4x4 Fits Your World)

The PE540D is engineered for one specific goal: getting you embroidering quickly with minimal cognitive friction.

In the video, you see the PE540D’s touchscreen used to select Disney designs (Mickey is the obvious example). This matters because beginners don’t just struggle with stitching—they struggle with decision fatigue. Having safe, pre-digitized designs removes a massive layer of complexity.

If you are shopping because you want a simple, dedicated machine for kids' clothes or patches, this is the lane where people often search for the best embroidery machine for beginners—and the PE540D’s "start fast" experience is exactly why.

The “Hidden” Prep Before You Touch the Screen (What Keeps 4x4 Embroidery Looking Clean)

The video mentions stabilizer and shows embroidery on items like towels and denim. The machine executes the stitches, but the fabric system dictates whether your result looks crisp or wavy.

Think in a simple formula: Fabric + Stabilizer + Thread Path + Hooping Tension = Stitch Quality

On a 4x4 field, small distortions are highly visible because designs are often dense and centered.

Prep Checklist (Vital Pre-Flight Checks):

• Hoop Confirmation: Verify you have the correct hoop size (4" x 4" for PE540D/SE400; 5" x 7" for PE770).
• Stabilizer Pairing: Match the backing to the fabric (see the Decision Tree below).
• Consumables Check: Ensure you have spare needles (Size 75/11 is a good visual start) and temporary spray adhesive or basting spray if floating fabric.
• Needle Audit: Rub your fingernail down the needle tip. If it catches or feels rough, replace it immediately. A burred needle will shred thread.
• Hoop Hygiene: Wipe the inner ring of the hoop with a damp cloth to remove old adhesive or lint that causes slippage.

Warning: Keep fingers, hair, and loose sleeves away from the needle area when the machine is running or when you trigger the automatic threader. Needle strikes happen instantly, and a broken needle can become a sharp projectile capable of causing injury.

PE540D Needle Threading: One Lever, but Don’t Force It

The video demonstrates the advanced needle threading system: you guide the thread through the numbered path and push down the side lever to hook the thread through the needle eye.

Sensory Check:

• Tactile: You should feel a smooth glide. If the thread feels like it is "sawing" against plastic, re-thread.
• Visual: When the lever releases, look for a small loop of thread passing through the eye.
• Method: Do not force the lever down. If it jams, the needle position is likely wrong. Raise the needle to its highest point (rotate handwheel toward you) and try again. Forcing it bends the delicate internal hook.


Brother SE400 Combo Workflow: Sewing Today, Embroidery Tonight (Without Relearning Everything)

The SE400’s tangible value is its ability to transition between sewing and embroidery "in minutes." This isn’t just convenience—it’s a project multiplier.

If you are making zipper pouches, baby bibs, or small-batch products, the SE400 allows you to construct the item and then decorate it without changing rooms or investing in two separate footprints.

SE400 One-Step Buttonhole + Presser Feet: The Practical Advantage

The video highlights:

• Sewing mode buttonholes using the dedicated buttonhole foot.
• Quick foot changes by pressing the black button on the back of the ankle holder so the foot drops off, then snapping a new foot in place.

This matters because many embroidery "failures" are actually construction failures. If your tote bag seam allowance is bulky or your garment is twisted, the embroidery will suffer regardless of the machine's precision.

SE400 Quick-Set Top Drop-In Bobbin: The Time Saver (and the Trap)

The video shows removing the clear cover, placing the bobbin horizontally, and guiding the thread through the slit and cutter path indicated by arrows.

Expected Outcome: The bobbin thread seats in the tension spring, and the cover slides back on without pinching the thread.

The "Hidden" Trap: If the bobbin thread isn’t fully clicked into the tension spring channel (usually a 6 o'clock to 9 o'clock movement), you will get zero bottom tension. The result is a birdnest of loops on the underside of your fabric.

• Listen: Listen for a faint click or feel a slight "pop" as the thread enters the tension leaf.
• Test: Pull the thread gently; you should feel resistance similar to pulling dental floss, not loose air.


Setup Checklist (SE400-Specific):

• Mode Switch: Physically remove the embroidery unit when switching to sewing (as shown in the video).
• Foot Security: Confirm the presser foot is snapped in and the ankle screw is tight.
• Bobbin Seat: Verify the bobbin is spinning counter-clockwise (p-shape) and thread is in the tension slot.
• Tutorials: Use the on-screen help guides if you forget a threading step—it’s faster than guessing.
• Latch Check: For embroidery, ensure the embroidery arm connector clicks firmly into place.

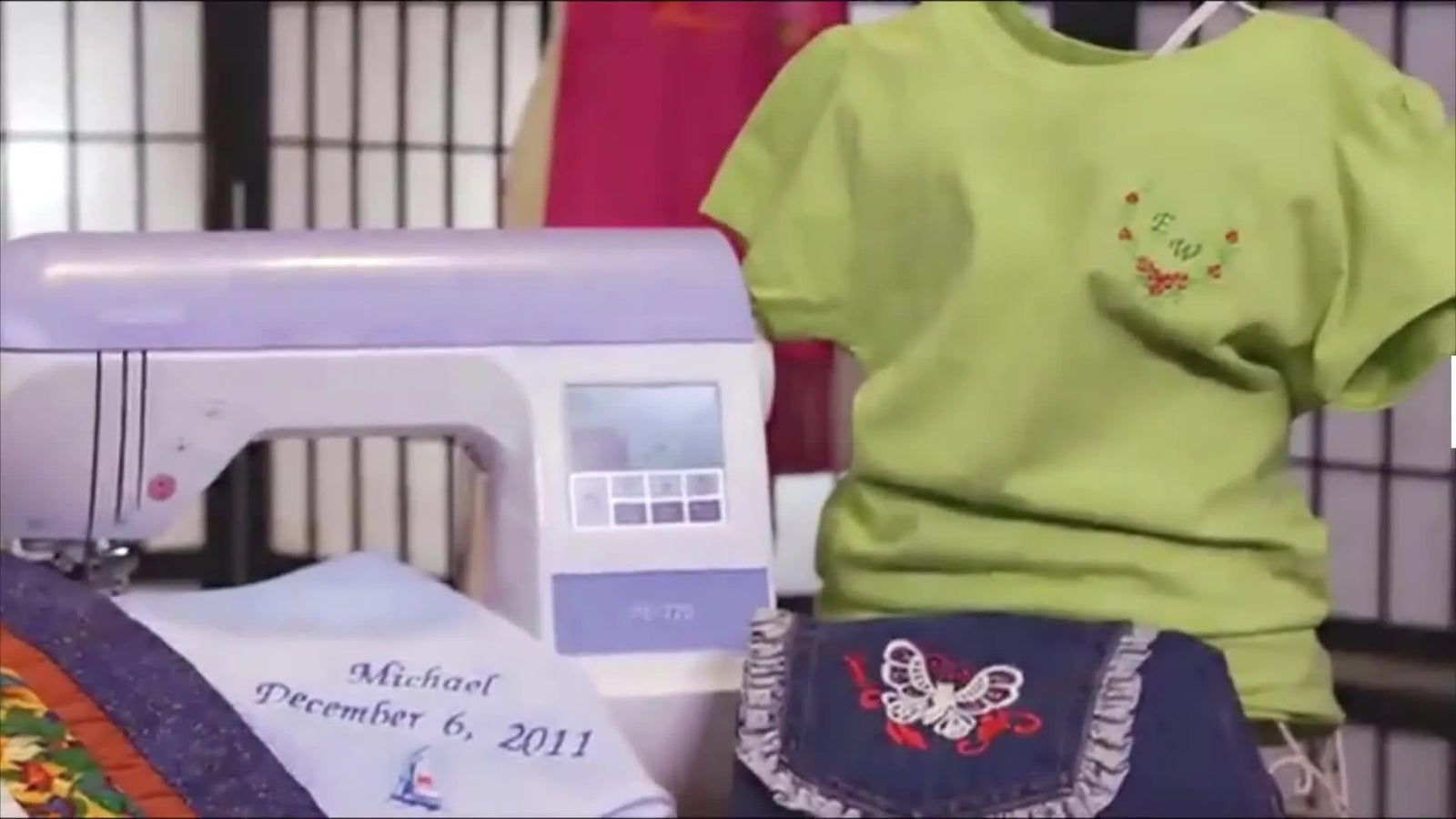

Brother PE770 5x7 Field: Where “Hobby” Starts Looking Like Production

The PE770 is the first machine in this trio that meaningfully changes your production potential.

The video highlights the 5" x 7" embroidery area and the slide-on hoop mechanism. That larger field acts as a risk reducer: it allows for larger designs without splitting them, which eliminates the headache of re-hooping and manual alignment.

If you have ever tried to squeeze a 4.5" design into a 4" field and ended up shrinking it until the density ruined the fabric, you understand why users graduate to this tier and specifically search for the brother 5x7 hoop.

PE770 Speed: 650 SPM Is Great—If Your Hooping and Stabilizer Can Keep Up

The video shows the PE770 running at 650 stitches per minute on textured fabric. Speed is leverage, but it amplifies errors.

• Physics: Higher speed = higher vibration and needle heat.
• Risk: Poorly hooped fabric will shift faster at 650 SPM than at 400 SPM.

Pro Strategy: Treat max speed as a capability, not a default settings. If working with delicate metallic threads or slippery satin, slow the machine down to 400-500 SPM to ensure stitch accuracy.

USB Import on the PE770: Simple Transfer, Big Creative Freedom

The video demonstrates inserting a USB drive into the side port to retrieve files.

Expected Outcome: The screen recognizes the drive, and you can select your .pes files. Workflow Tip: Don't treat your USB drive as a storage archive. Keep it lean—only load the files you need for the current session. This reduces screen lag and prevents selecting the wrong version of a file.

The Real Comparison That Matters: 4x4 vs 5x7, Touchscreens, and Design Sources

Let’s translate the video’s features into usage scenarios.

Hoop Size Reality Check (4x4 vs 5x7)

• 4x4 (PE540D/SE400): Ideal for left-chest logos, monograms, baby onesies, and quilt patches.
• 5x7 (PE770): Required for jacket backs (small), tote bags, extensive floral sprays, and "in-the-hoop" projects that require zipper insertion.

If you find yourself constantly rotating designs or shrinking them, you aren't facing a skill issue—you are facing a hardware limitation. While a brother 4x4 embroidery hoop is standard, understanding its physical limits prevents frustration.

Built-In Designs vs Imported Designs

• Built-in: Immediate gratification, zero cost, guaranteed to stitch well.
• Imported: Infinite variety, essential for business/customization, requires a computer to manage files.

Editing on the Screen: Helpful, Not Magic

The PE770 segment shows on-screen rotation and resizing. Expert Note: You can safely resize a design by about 10-20% on the machine. Beyond that, the stitch density does not recalculate, leading to gaps (if up-sizing) or bulletproof stiffness (if down-sizing). For major changes, use software on your PC.

The Hooping Bottleneck: Why Most Beginners Struggle (Even With a Great Brother Machine)

The video is promotional, so it glides over the hardest part of embroidery: Hooping.

Most quality issues—puckering, outlines not matching (registration errors)—trace back to two physical realities:

1. Fabric Distortion: Stretching the fabric "drum tight" deforms the weave; when you unhoop, it snaps back, ruining the design.
2. Hoop Burn: The friction of standard hoops can crush the nap of velvet or leave shiny rings on dark cotton.

This struggle is why experienced users eventually search for better brother embroidery hoops or alternative clamping methods.

Decision Tree: Fabric → Stabilizer Strategy (So You Stop Guessing)

Use this logic gate before every project:

1. Is the fabric stretchy (T-shirt, Jersey, Knit)?

• Yes: You MUST use Cutaway stabilizer. Tearaway will eventually blow out, causing the design to distort during washing.
• No: Proceed to step 2.

2. Is the fabric stable (Denim, Canvas, Cotton)?

• Yes: Tearaway stabilizer is usually sufficient.

3. Is the fabric "lofty" or textured (Towel, Fleece, Velvet)?

• Yes: Use a Water Soluble Topper (like Solvy) on top to prevent stitches from sinking, AND a stabilizer on the back.

4. Is the design extremely dense (Photostitch, Heavy patch)?

• Yes: Double the stabilizer or switch to a heavy-weight Cutaway.

Where Time Disappears: Setup and Hooping Efficiency (and How to Buy Your Time Back)

If you embroider once a month, standard plastic hoops are fine. If you embroider weekly—or sell your work—hooping becomes a "tax" on your time and wrists.

Upgrade Path (Natural, Not Pushy): When to Consider Magnetic Hoops

When standard hooping becomes painful or leaves marks on sensitive fabrics, many users upgrade to Magnetic Hoops.

• The Benefit: They hold fabric firmly without "forcing" it into a ring, reducing hoop burn and wrist strain.
• The Compatibility: For the Brother PE770 specifically, users often look for a magnetic embroidery hoops for brother pe770 to speed up production on 5x7 items like towels.

Warning: Magnetic Safety
Magnetic hoops use powerful neodymium magnets.
* Pinch Hazard: They snap together instantly—keep fingers clear.
* Device Safety: Keep them away from pacemakers, insulin pumps, and magnetic storage media (credit cards, old hard drives).

When a Hooping Station Makes Sense

If you are doing repeat placement—like the same left-chest logo on 20 shirts—eyeballing it is risky. This is where a hooping station adds value by ensuring every shirt is hooped in the exact same spot. Terms like machine embroidery hooping station signify a move from "crafting" to "production."

For serious bulk work, professionals often compare systems like a hoop master embroidery hooping station to ensure standardized placement, though for single-needle machines, simple alignment jigs often suffice.

Operating Like a Pro: A Simple Run Sequence That Prevents Most “Mystery Problems”

The video shows smooth stitching, but real life includes thread breaks. Follow this sequence to stay in control.

1. Field Check: Confirm the design fits the hoop and the arm has clearance to move (no walls/coffee mugs behind the machine).
2. Stable Hooping: Lay the inner hoop on the stabilizer/fabric sandwich. Press down evenly. Tighten the screw. Do not pull on the fabric corners after tightening.
3. Thread Pathing: Thread with the presser foot UP (opens tension discs), then lower it to stitch.
4. The "First Minute" Rule: Watch the first 100 stitches. Most failures (birds nests, fabric creep) happen immediately. Catching them now saves the garment.

Operation Checklist (Post-Run Habits):

• Trim: Clip jump threads immediately while you can see them clearly.
• Inspect: Check the back. Is the bobbin tension even (1/3 white in the center)?
• Clean: Remove the bobbin case and brush out lint every 3-5 bobbins. Lint buildup causes tension inconsistency.
• Rest: Un-tension the hoop if you are leaving a project overnight to prevent permanent fabric marking.

The “Which One Should I Buy?” Answer—Based on Projects, Not Marketing

Choose the machine that fits your output goals, not just your budget:

• Pick the Brother PE540D if you want a dedicated, reliable machine for children’s items, simple personalization, and Disney themes within a 4x4 limit.
• Pick the Brother SE400 if you need a space-saving "Jack of all trades" for mending, garment construction, and occasional embroidery decoration.
• Pick the Brother PE770 if your focus is home décor, larger tote bags, or selling items where the 5x7 field is mandatory for professional sizing.

The Future Path: When your order volume grows beyond what a single-needle machine can handle (e.g., 50+ shirts a week), or if color changes become your primary bottleneck, that is the trigger to look at Multi-Needle Machines (like SEWTECH solutions). Until then, mastering one of these Brother single-needle workhorses is your best education.

The Clean Finish Standard: What “Good” Looks Like Before You Gift or Sell

The video shows stacks of finished products. To achieve that commercial look:

• Top: Smooth satin columns, no gaps, no bobbin thread showing on top.
• Back: Stabilizer cut cleanly around the design (leaving 1/4"), no long thread tails.
• Surface: No puckering or wrinkles around the design perimeter.

If you respect the capabilities of these machines and feed them the right combination of stabilizer and thread, any of the three can produce results that look like they came from a factory.

FAQ

• Q: What stabilizer should be used on stretchy T-shirt fabric to prevent puckering on Brother PE540D, Brother SE400, and Brother PE770 embroidery?
  A: Use cutaway stabilizer for knits; it is the reliable choice for preventing long-term distortion on stretchy fabric.
  • Use: Hoop the knit with cutaway stabilizer underneath; add a water-soluble topper if the surface is lofty or textured.
  • Avoid: Do not rely on tearaway on T-shirts because the design may blow out over time after washing.
  • Success check: The fabric stays flat during stitching and the design perimeter does not ripple after unhooping.
  • If it still fails: Re-check hooping tension (do not stretch “drum tight”) and consider slowing stitch speed on delicate fabrics/threads.
• Q: How can Brother SE400 top drop-in bobbin threading be fixed when loops or birdnesting appears on the underside of the fabric?
  A: Reseat the Brother SE400 bobbin thread into the tension spring channel; most underside looping happens when the thread is not fully clicked in.
  • Remove: Take off the clear cover and reinsert the bobbin horizontally in the correct direction shown on the machine.
  • Guide: Pull the thread through the slit and into the cutter path exactly as indicated by the arrows.
  • Success check: A faint click/pop is felt or heard and gentle thread pull has resistance (not “loose air”).
  • If it still fails: Re-thread the upper path with the presser foot UP first, then lower the foot to stitch and watch the first 100 stitches.
• Q: What is the correct way to use the Brother PE540D automatic needle threader lever without bending the hook or jamming it?
  A: Do not force the Brother PE540D needle threader lever; raise the needle to the highest position and retry if it feels stuck.
  • Rotate: Turn the handwheel toward you to bring the needle to its highest point before engaging the threader.
  • Thread: Follow the numbered thread path and push the lever down smoothly—stop immediately if it resists.
  • Success check: A small loop of thread is visibly pulled through the needle eye when the lever releases.
  • If it still fails: Re-thread from the start and replace a rough/burred needle that may be snagging the thread.
• Q: How can hoop burn and fabric marking be reduced when using standard Brother embroidery hoops on velvet, dark cotton, or delicate fabrics?
  A: Use firm-but-not-forced hooping and keep the hoop clean; hoop burn is usually friction + over-tightening + residue.
  • Clean: Wipe the inner hoop ring to remove old adhesive and lint that causes slipping and over-tightening.
  • Hoop: Press fabric/stabilizer evenly and tighten the screw; do not pull fabric corners after tightening.
  • Success check: The fabric surface shows minimal shiny ring after unhooping and the design stays registered (outlines still align).
  • If it still fails: Consider upgrading to a magnetic hoop system when marking or wrist strain becomes a repeat problem.
• Q: How should Brother PE770 embroidery speed be adjusted to reduce shifting, vibration issues, or thread problems on textured fabric at 650 stitches per minute?
  A: Treat 650 SPM as a maximum capability, not a default; slow down for delicate threads or slippery/unstable setups.
  • Reduce: Run around 400–500 SPM when using metallic thread, satin, or any fabric that tends to creep in the hoop.
  • Stabilize: Confirm the project is hooped securely and the stabilizer choice matches the fabric type before increasing speed.
  • Success check: The design stitches cleanly without fabric drifting and without frequent thread breaks in the first minute.
  • If it still fails: Re-check hooping (avoid “drum tight” distortion) and verify the needle is not damaged or rough.
• Q: What are the most important needle and cleaning checks to prevent thread shredding and tension inconsistency on Brother PE540D, Brother SE400, and Brother PE770?
  A: Replace questionable needles immediately and remove lint regularly; most “mystery” thread issues start with a rough needle or lint buildup.
  • Inspect: Rub a fingernail down the needle tip; replace the needle if it catches or feels rough.
  • Stock: Keep spare needles available (size 75/11 is a safe visual starting point for many home embroidery tasks; follow the machine manual for specifics).
  • Clean: Remove the bobbin area/bobbin case and brush out lint every 3–5 bobbins.
  • Success check: Thread stops fraying/shredding and stitch formation becomes consistent from start to finish.
  • If it still fails: Re-thread the machine with the presser foot UP, then lower the foot to stitch and monitor the first 100 stitches.
• Q: What safety steps should be followed to avoid needle injury and magnetic pinch hazards when using Brother embroidery machines and magnetic embroidery hoops?
  A: Keep hands and loose items away from the needle area, and treat magnetic hoops as snap-shut tools that can pinch instantly.
  • Prevent: Keep fingers, hair, and sleeves clear during stitching and when using the automatic needle threader; needle strikes happen fast.
  • Control: Stop the machine before reaching near the needle or hoop area for trimming or adjustments.
  • Separate: Keep magnetic hoops away from pacemakers/insulin pumps and away from magnetic storage items like credit cards.
  • Success check: Hoop magnets are joined without pinched fingers and hands never enter the needle zone while the machine is running.
  • If it still fails: Slow down the workflow—set trimming and checks into a “machine stopped” routine before every reach-in action.
