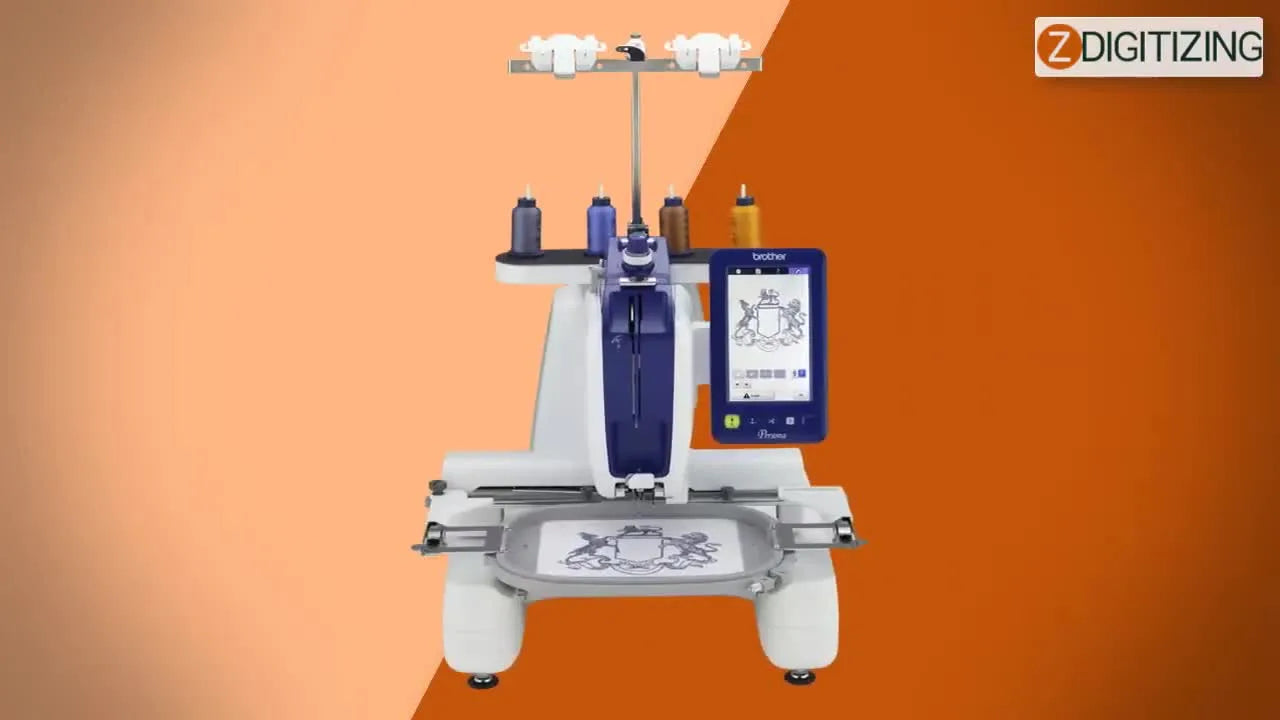

Brother Persona PRS100 Troubleshooting That Actually Works: Fix Misaligned Designs, Needle Changes, and Needle Breaks Without Guessing

When your Brother Persona PRS100 starts throwing thread-check messages, randomly shifting a design, or snapping needles with a sickening crack, it feels personal. Especially if you’re mid-order and the customer is waiting.

The panic sets in. You wonder if the timing is off. You wonder if the board fried.

Stop.

After 20 years on production floors, I can tell you: 95% of "catastrophic" PRS100 failures are not valid mechanical breakdowns. They are silent setup errors—variables like hoop tension, needle seating, or stabilizer mismatches—that have stacked up against you.

This guide rebuilds the standard troubleshooting process into a sensory-based, expert workflow. We aren’t just fixing the error code; we are fixing the process so it doesn’t happen again.

The Calm-Down Check: What a Brother Persona PRS100 Embroidery Machine Is *Really* Telling You

When you see “Check upper thread” or experience a sudden stop on your brother persona prs100 embroidery machine, do not assume the machine is broken. Treat the machine as a sensitive partner saying, "I am feeling resistance where there shouldn't be any."

The machine doesn't know what is wrong; it only knows the tension sensors are reporting bad data.

The "Golden Rule" of Troubleshooting

Before you grab a screwdriver, adopt this mindset:

1. One symptom, many lies: A "thread break" error often isn't a break at all—it’s a snag, a burr, or a needle installed slightly too low.
2. Software is innocent (usually): Don't change your density or speed settings yet. The problem is almost always physical.
3. The "Click" Test: If you didn't hear a distinct click when seating the bobbin or threading the tension disks, you haven't done it yet.

Warning: Mechanical Safety
Always power the machine OFF before working near the needle bar, presser foot, or hook assembly. If your foot hits the start button or your elbow nudges the carriage while your fingers are near the needle, the machine’s torque can drive a needle through your finger or shatter the needle into your eyes. Never troubleshoot a live machine.

The “Hidden” Prep Pros Never Skip: Tweezers, Stabilizer Size, and a 60-Second Needle Reality Check

Most failures are baked in before you even press "Start." We need to sanitize your environment using the "Pilot's Walkaround" method.

Required "Hidden" Consumables

Don't start without these next to your machine:

• Precision Tweezers: For fishing out thread tails from the bobbin case without scratching the sensor.
• New Needles (Size 75/11 & 90/14): Needles are cheap; designs are expensive.
• Flat Surface (mirror or glass table): For the roll test.

The 60-Second Needle Roll Test

You cannot see a 1-degree bend with your naked eye, but your machine will feel it.

1. Remove the current needle.
2. Place it flat-side down on your phone screen or a glass table.
3. Tap the tip. If the tip rocks or if you see an uneven gap of light under the shaft, it is trash.
4. Touch the tip to your fingernail. If it snags or scratches your nail, it has a burr. Throw it away.

Prep Checklist: The "Go/No-Go" Standard

• Tactile Check: Run your finger along the needle tip; zero burrs allowed.
• Visual Check: Stabilizer extends at least 1 inch past the hoop edge on all sides.
• Clearance Check: No scissors, magnetic dishes, or fabric bulk in the carriage travel path.
• Tool Check: Tweezers are within reach for thread snags.

Stop Design Misalignment on the PRS100: Hooping, Stabilizer, and Carriage “Memory” in Plain English

Design shifting (registration loss) is the most frustrating issue because it ruins the garment permanently. It happens for one of two reasons: Fabric Drift or Mechanical Collision.

1) The Physics of Hoop Tension

The video advises hooping "drum tight," but what does that mean?

• The Sound Test: Tap the fabric in the hoop. It should sound like a dull thud (thump-thump), not a flappy ripple.
• The Push Test: Push your finger into the center. If the fabric creates a "bowl" and doesn't spring back instantly, it is too loose. The needle will push the fabric down before penetrating, causing flagging and misalignment.

The "Hoop Burn" Dilemma: Achieving this tension on delicate fabrics often requires aggressive clamping, which leads to "hoop burn" (permanent crushing of fibers). If you are struggling with hooping for embroidery machine tasks on velvet or performance wear, or if your wrists ache from fighting the clamps, this is a hardware signal.

• The Upgrade Trigger: If you are producing 10+ items a day or ruining expensive shirts with clamp marks.
• The Solution: Consider Magnetic Hoops. They use vertical magnetic force to hold fabric without the friction-burn of traditional inner/outer rings. This eliminates the "wrestling match" and guarantees even tension.

Warning: Magnetic Safety
If you upgrade to magnetic embroidery hoops, treat them with extreme caution. The magnets are industrial-strength.
* Pinch Hazard: Keep fingers clear of the snapping zone. They can crush skin instantly.
* Medical Risk: Keep magnets away from pacemakers, insulin pumps, and credit cards.

2) Stabilizer: The Structural Foundation

Refuse to embroider on hope. The stabilizer provides the structure; the fabric is just the paint.

Decision Tree: Which Stabilizer?

Follow this logic path for every job. If you deviate, you risk failure.

• Is the fabric stretchy (T-shirt, Polo)?
  • Yes: MUST use Cut-Away stabilizer. (Tear-away will disintegrate and designs will distort).
• Is the fabric unstable/loose knit?
  • Yes: MUST use Cut-Away.
• Is the fabric stable (Denim, Canvas)?
  • Yes: Tear-Away is acceptable.
• Are you sewing a Cap?
  • Yes: Heavyweight Tear-Away (2.5oz - 3oz).

3) Size Matters (A Lot)

Never use a scrap of stabilizer smaller than your hoop. If the stabilizer isn't gripped by the hoop frames, it isn't stabilizing anything—it's just floating.

4) The "Carriage Memory" Reset

Did you accidentally bump the arm while hooping? The machine uses stepper motors that count steps from a "home" position. If you nudge the arm, the physical location changes, but the computer doesn't know.

• The Fix: If the carriage or frame hits anything (a wall, a mug, a thread stand), or if you bump it:
  1. Stop.
  2. Power OFF. (Wait 5 seconds).
  3. Power ON. The machine will recalibrate its home position.


5) The "Pinch" Check

Ensure the excess shirt material isn't getting caught under the frame or between the arm and the bed.

• The Sound: A grinding noise usually means fabric is bunched in the mechanism.

6) Frame Sizing

Don't use an 8x8 hoop for a 2x2 logo. The excess fabric in the gap acts like a trampoline, bouncing the needle and causing skipped stitches. Use the smallest hoop that fits the design.

7) Connection Security

If you are using standard brother persona prs100 hoops, ensure the pins on the frame holder lock into the hoop brackets with a solid sensation. Wiggle it. If it rattles, it’s loose.

The Needle Change That Saves Your Needle Bar: Brother PRS100 Needle Changing Tool + Allen Screwdriver Method

Most timing issues on the PRS100 start with a bad needle change. If the needle isn't inserted to the absolute top, the hook point will miss the thread loop.

The Sensorial Installation Protocol

1. Verification: Perform the "Roll Test" on the old needle. If it was bent, inspect your needle plate for scratches immediately.

2. Safety First: Power OFF.

3. Removal:

• Hold the needle with your left hand.
• Use the Allen screwdriver (not a coin, not a random knife) to loosen the screw.
• Do not over-loosen: You don't want the screw falling into the machine internals.


4. The "Seating" (Crucial Step):

• Orientation: Flat side of the shank faces the BACK of the machine.
• Insertion: Use the white needle changing tool supplied with the machine. It allows you to push upward with force without slipping.
• The Stop Point: Push up until you feel a hard metallic "thud." That is the stopper.
• The Twist Check: While holding it up against the stopper, try to rotate the needle slightly. It should not rotate if the flat side is correctly against the bar.

5. Torque Profile: Tighten the screw firmly, but don't crank it like a lug nut. Over-tightening can strip the aluminum needle bar threads ($$$ repair). Tighten until you feel firm resistance, then give it a tiny 1/8th turn nip.

Checklist: Needle Installation

• Needle is new and straight.
• Flat side faces the BACK.
• Needle hits the top stopper (verified by feel).
• Screw is snug (not stripped).

Needle Keeps Breaking on the PRS100? Here’s the Real Diagnostic Order (and When to Stop)

Needle breaks are violent and dangerous. When one happens, do not just put in a new one and hit start. You must investigate the "Crime Scene."

Follow this diagnostic path from Lowest Cost to Highest Risk.

Level 1: User Logic (The Free Fixes)

1. Re-Installation: 80% of breaks happen because the needle slipped down 1mm. Loosen, push up, tighten.
2. The "Twisted" Culprit: Did the needle rotate during installation? If the eye isn't perfectly centered, the thread chafes and snaps the needle.

Level 2: The Physical Path

1. Thread Path Drag:
   • The "Floss Test": Thread the machine. Before threading the needle eye, pull the thread. It should flow with consistent, smooth resistance (like pulling dental floss).
   • If it jerks or snags: You missed a guide, or the thread has cut a groove into the plastic pathway.
2. Tension Excessive:
   • If your top tension is cranked to the max, the thread acts like a steel cable, bending the needle until it snaps. Lower it to neutral.
   • [FIG-17]

Level 3: The "Hard Stop" Damage Indicators

If Level 1 and 2 don't fix it, inspect the metal.

1. Needle Plate Trauma:


   Take the needle plate off. Look at the hole. Are there needle strikes (burrs) on the edges? These sharp burrs will shred thread and deflect needles.
   • Action: If significantly damaged, replace the plate. Sanding it is a temporary, risky fix.
2. Bobbin Case Alignment:


   Remove the bobbin case. Clean the area. Re-seat it.
   • The Sound: When you put the bobbin case back in, wiggle it slightly. It should have a tiny bit of "play" but stay seated.

Level 4: The Danger Zone

1. Striking Metal: If the needle is hitting the presser foot or the plate without fabric, your rod timing or bar height is likely off. STOP. Do not run another test. Call a technician.

The “Why” Behind These Fixes: Hooping Physics, Digitizing Tweaks, and Repeatable Production Habits

You aren't just an operator; you are a production manager. Understanding the "Why" moves you from guessing to knowing.

The Physics of Pull Compensation

The video mentions misaligned outlines. Why does this happen? Thread has tension. When it stitches a fill, it pulls the fabric fibers inward. This makes the object narrower than it looks on screen.

• The Fix: Professional digitizers add "Pull Compensation" (making the object fatter) to account for this.
• The Reality Check: If your outlines don't line up, it might not be the machine. It might be a poorly digitized file on stretchy fabric.

The Production Bottleneck: Hooping

If you find yourself dreading the hooping process, analyze your workflow.

• Scenario: You have an order for 50 left-chest logos.
• Pain Point: Manual hooping takes 2 minutes per shirt. Wrist fatigue sets in at shirt #15. Quality drops.
• The Upgrade: A hooping station for embroidery machine combined with magnetic hoops ensures every logo is in the exact same spot on every shirt, reducing hooping time to 30 seconds.

Comment-Driven Fixes: “Needle Won’t Catch Thread,” Color-Change Thread Errors, and the Hook Timing Rabbit Hole

Let's address the specific cries for help found in the community comments.

Symptom: "The needle won't catch the bobbin thread."

The Fear: "My timing is off." The Likely Truth: Your needle is too high, or your thread tail is too short.

1. Thread Tail Check: Hold the needle thread tail taut when you take the first stitch. If it's loose, the hook misses it.
2. Needle Depth: If the needle isn't fully seated UP, the loop forms too low. Alternatively, if you are using the wrong system of needle (too short), it won't reach the hook. Verify you have the correct needle system for the PRS100 (usually HAx130EBBR or HLx5—check your manual).

Symptom: "Error happens immediately after color change."

This screams "Thread Path Failure." When the machine trims and moves to needle bar 2, 3, or back to 1 (conceptually, on a multi-needle, but here on the single-needle PRS100 during a manual change), the thread often jumps out of the take-up lever.

• The Fix: Do the "Floss Test" immediately after re-threading. Ensure the thread is deeply seated in the tension discs.

Symptom: "Bobbin Winder isn't engaging."

The Rule: Keep the case closed. Unless you are a certified technician, opening the chassis voids warranties and risks crushing ribbon cables. If the bobbin winder is glitchy:

1. Use pre-wound bobbins (Standard L-style or specific PRS100 bobbins). They hold more thread and have consistent tension anyway.
2. Buy a standalone sidewinder. It saves wear on your main machine’s motor.

The Upgrade Path That Makes Sense: Fix Today’s PRS100 Problem, Then Remove the Bottleneck

Once you have stabilized your PRS100 using the checklist above, you might realize your struggles aren't failures of skill—they are limitations of tools.

Productivity Ladder:

1. Level 1: Stability (Consumables)
   Use the right stabilizer (Cut-Away for knits) and high-quality thread. This solves 50% of breaks.
2. Level 2: Efficiency (Hooping)
   If you spend more time hooping than sewing, or if you struggle with thick jackets using standard brother prs100 hoop sizes, upgrade to Magnetic Hoops. They snap on instantly, hold thick seams without pain, and eliminate hoop burn.
   • Pro Tip: For hats, if the standard driver is struggling, look into a dedicated cap hoop for embroidery machine system designed for high-profile caps.
3. Level 3: Capacity (Machinery)
   The PRS100 is a fantastic machine, but it is a single-needle workhorse. Every color change requires you.
   • The Trigger: If you are turning down orders because you can't babysit the machine for 45 minutes per logo.
   • The Solution: Move to a Multi-Needle Machine (like our SEWTECH commercial lines). Set up 12 colors once, press start, and walk away. That is how a hobby becomes a business.

Don't let frustration beat you. Calibrate your process, verify your tools, and respect the physics of the machine. You've got this.

FAQ

• Q: What should be on the table before starting a Brother Persona PRS100 embroidery machine job to prevent thread-check errors and stops?
  A: Set up a small “pilot’s walkaround” kit before pressing Start; most PRS100 stoppages begin with missing tools or a rushed setup.
  • Place precision tweezers, new needles (75/11 and 90/14), and a flat glass/mirror surface within reach.
  • Check stabilizer size before hooping; cut stabilizer so it extends at least 1 inch past the hoop edge on all sides.
  • Clear the carriage travel path; remove scissors, dishes, and bulky fabric that could snag or collide.
  • Success check: The work area is clear, tools are reachable without walking away, and stabilizer clearly exceeds the hoop edge all around.
  • If it still fails… Run the needle “roll test” and re-check threading and bobbin seating before changing any design settings.
• Q: How do you do the 60-second needle roll test for a Brother Persona PRS100 embroidery machine, and what counts as a failed needle?
  A: Replace the needle immediately if the needle rocks, shows uneven light under the shaft, or snags a fingernail—don’t try to “use it up.”
  • Remove the needle and place it flat-side down on a phone screen or glass table.
  • Tap the tip and watch for rocking or a changing gap of light under the needle shaft.
  • Drag the tip lightly across a fingernail to feel for a burr.
  • Success check: The needle lies perfectly flat with no rocking and the tip glides on a fingernail without scratching.
  • If it still fails… Inspect the needle plate for scratches/strikes, because a damaged plate can keep ruining good needles.
• Q: How tight should hooping be on a Brother Persona PRS100 to prevent design shifting (registration loss) without guessing?
  A: Hoop to a consistent “drum-tight” standard using sound and push tests; loose fabric causes flagging and drift.
  • Tap the hooped fabric and listen for a dull thud (not a flappy ripple).
  • Push a finger into the center; avoid a “bowl” that stays depressed—fabric should spring back quickly.
  • Keep stabilizer properly captured by the hoop and oversized beyond the hoop edge.
  • Success check: The fabric makes a thump-thump sound and rebounds immediately after a push, with no slack waves.
  • If it still fails… Reset the carriage by powering OFF for 5 seconds, then ON, especially if the arm/frame was bumped.
• Q: What stabilizer should be used on different fabrics for Brother Persona PRS100 embroidery to reduce distortion and shifting?
  A: Match stabilizer to fabric behavior—knits and unstable fabrics need cut-away; stable wovens can use tear-away.
  • Use cut-away for stretchy fabrics (T-shirts, polos) and for unstable/loose knits.
  • Use tear-away for stable fabrics like denim or canvas.
  • Use heavyweight tear-away (2.5oz–3oz) for caps.
  • Success check: The hooped area feels structurally supported (not “floating”), and the stabilizer is gripped by the hoop rather than sitting as a small scrap.
  • If it still fails… Increase stabilizer coverage (never smaller than the hoop) and re-evaluate hoop size (use the smallest hoop that fits the design).
• Q: What is the correct Brother Persona PRS100 needle installation method to stop “needle won’t catch bobbin thread” and prevent timing-like symptoms?
  A: Seat the needle fully to the top stopper and lock the flat side to the back; most “timing” scares are needle seating errors.
  • Power OFF before touching the needle area.
  • Insert the needle with the flat side facing the BACK and push up using the white needle changing tool until a hard metallic “thud” is felt.
  • Hold the needle fully up and tighten the screw firmly (snug plus a small nip), without over-cranking.
  • Success check: The needle cannot rotate during the “twist check,” and it clearly hits a solid top stop by feel.
  • If it still fails… Confirm the needle system matches the PRS100 requirements listed in the PRS100 manual and hold the needle thread tail taut on the first stitch so the hook can grab it.
• Q: What is the safest diagnostic order when a Brother Persona PRS100 needle keeps breaking during embroidery?
  A: Stop immediately and work from the cheapest causes to the dangerous ones—reinstalling correctly fixes most breaks.
  • Reinstall the needle: loosen, push fully UP, confirm it did not rotate, then tighten.
  • Check thread path drag: pull thread before the needle eye; it should feel smooth and consistent (like dental floss), not jerky.
  • Reduce excessive top tension back toward neutral if it was cranked high.
  • Success check: With fabric hooped, the machine runs without a sharp “strike” sound and the needle no longer snaps within the first few stitches.
  • If it still fails… Inspect for needle plate burrs and bobbin case seating; if the needle hits metal even without fabric, STOP and contact a technician (possible timing/bar height issue).
• Q: What are the most important safety rules when troubleshooting a Brother Persona PRS100 embroidery machine and when using magnetic embroidery hoops?
  A: Power OFF for any work near the needle/hook area, and treat magnetic hoops as pinch hazards with medical-device risks.
  • Turn the PRS100 OFF before working near the needle bar, presser foot, or hook assembly.
  • Keep fingers away from the needle path and avoid testing with hands near moving parts.
  • Handle magnetic hoops carefully; keep fingers out of the snap zone and keep magnets away from pacemakers/insulin pumps and credit cards.
  • Success check: Adjustments are made with the machine unpowered, and hands remain clear before powering back ON.
  • If it still fails… Do not “test through” violent needle breaks or metal strikes; stop and escalate to qualified service.
