Brother PR1055X Live Camera Placement, Free Arm, and 10-Needle Workflow: The Fastest Way to Stop Guessing and Start Stitching

The "Zero-Anxiety" Guide to the Brother PR1055X: From Unboxing to Production Proficiency

If you’ve ever stared at an embroidery hoop, holding your breath, thinking, “If I stitch this 2mm to the left, I’m going to ruin a $60 hoodie,” you are not alone. That specific anxiety is the barrier between a hobbyist and a professional.

The Brother PR1055X was designed specifically to dismantle that fear. Its free arm architecture and live camera placement aren’t just "premium features"—they are the difference between guessing and knowing.

In this guide, based on real-world demonstration and decades of production floor experience, we will walk through a clean, beginner-friendly path: converting to free-arm mode, mastering camera alignment, and managing the 10-needle workflow. We will also address the "invisible" factors—stabilizers, hooping physics, and sensory checks—that turn a gamble into a guarantee.

The Calm-Down Moment: What the Brother PR1055X Actually Solves (Before You Touch a Hoop)

The Brother PR1055X is a 10-needle embroidery machine designed to make multi-color embroidery linear rather than interrupt-driven. In the workshop, the “why” is clear: it is versatile enough to handle items that are traditionally miserable on a flatbed—backs of hoodies, sleeves, and structured hats—because you can remove the extension table and use the free arm.

If you’re coming from a single-needle home machine, the emotional shift is real. You stop "babysitting" every color change and start thinking in batches. That’s why people searching for a brother 10 needle embroidery machine are usually not just shopping for features—they’re shopping for fewer interruptions, lower blood pressure, and fewer ruined blanks.

The Free-Arm Switch That Saves Hoodies and Hats: Removing the Extension Table Safely

Megan demonstrates the conversion in seconds: lift the large white extension table up and pull it away, revealing the narrow cylindrical free arm underneath. That free arm lets you slide a tubular or bulky item around the machine bed instead of forcing the item to lay flat.

Why this matters (The Physics of Fabric Drag)

Hard-to-hoop items fight you for two physical reasons:

1. Bulk and seams create uneven pressure in the hoop area, causing the inner ring to pop out.
2. Tubular shapes twist (torque) when you force them flat, pulling the fabric off-grain.

A free arm doesn’t magically “fix hooping,” but it reduces the friction coefficient. By allowing the weight of the garment to hang naturally, you eliminate the drag that causes design distortion (where the outline doesn't match the fill).

Warning: Mechanical Safety. When you’re working around the free arm, keep fingers, hoodie drawstrings, and loose jewelry away from the needle area—especially once you enter camera/scan mode or start stitching. The pantograph (the arm moving the hoop) moves faster and with more force than a domestic machine.

When a magnetic hoop becomes the smarter move (The Tool Upgrade Path)

If your pain point is “I can’t hoop this thick hoodie seam without my wrists hurting,” the free arm is Step One. Step Two is acknowledging that traditional screw-tightened hoops have physical limits.

In real shops, hooping time is the "hidden tax" on your profit. If you are repeatedly fighting thick Carhartt jackets or delicate velvet that crushes under a standard frame, magnetic hoops/frames are the industry standard upgrade.

• Level 1 (Standard): Good for cotton sheeting and flat items.
• Level 2 (Magnetic Upgrade): Essential for production. They reduce clamp force variability (no more "screw burn" marks) and speed up loading by 30-40%.

For users specifically researching magnetic embroidery hoops for brother, use this simple diagnostic: If you have to re-hoop an item more than once to get it straight, or if you avoid thick items because you can't close the hoop, you are losing money that a magnetic upgrade would save in highly efficient batches.

The “Hidden” Prep Pros Do Before They Tap the Screen (Sensory Checks & Consumables)

The video shows white fabric hooped with white stabilizer and a 10-spool thread setup. That’s enough for a demo. But in the real world, your results depend on the "Pre-Flight Ritual."

Here is the preparation routine I teach to ensure safety and quality:

The "Must-Have" Consumables Kit

Don't start without these hidden essentials nearby:

• New Needles: 75/11 Sharp (for wovens) or Ballpoint (for knits). Rule of thumb: Change needles every 8-10 production hours.
• Temporary Spray Adhesive (e.g., 505): Crucial for floating fabric.
• Precision Tweezers: For grabbing that short thread tail.
• Appliqué Scissors: For trimming jumps safely.

Prep Checklist: The "Go/No-Go" Decision

• Fabric/Stabilizer Match: verify the "Decision Tree" (see below).
• Bobbin Check: Open the bobbin case. Is it full? Is the tension right? Sensory Check: Perform the "Drop Test." Hold the bobbin thread; the case should hold its weight but drop a few inches when you wrist-flick gently.
• Upper Thread Path: Run your fingers along the thread. Is it caught on a cone stand? Is it seated deep in the tension disks?
• Clearance: Check the back of the machine. Is the garment going to hit the wall when the hoop moves back?
• Hoop Lock: Auditory Check: Listen for the solid CLICK when snapping the hoop onto the machine arm. If it doesn't click, it will fly off at 1000 SPM.

Picking a Built-In Monogram on the Brother PR1055X Touchscreen (Without Getting Lost)

Megan’s on-screen path is straightforward and reliable for high-pressure situations:

1. From the Home screen, tap the Monogram icon.
2. Choose a monogram category (she selects a floral style).
3. Select the letter “M”.
4. Press Set to place it onto the design canvas.




A practical note on built-in tools vs. software

The video mentions two creation/transfer routes:

• Built-in categories and the Brother My Design Center.
• Wireless transfer from PE-Design 11.

Megan’s take is correct: specialized software does a better job for serious custom digitizing, but built-in tools are superior for "on-the-spot" personalization without turning on a computer.

If you are the person who constantly misplaces USB drives, the wireless angle is not a gadget—it’s a workflow safety net. That’s why brother pr1055x owners who operate in high-volume retail environments rely on wireless transfer to prevent version control errors (stitching "Final_File_v2" instead of "Final_File_v3").

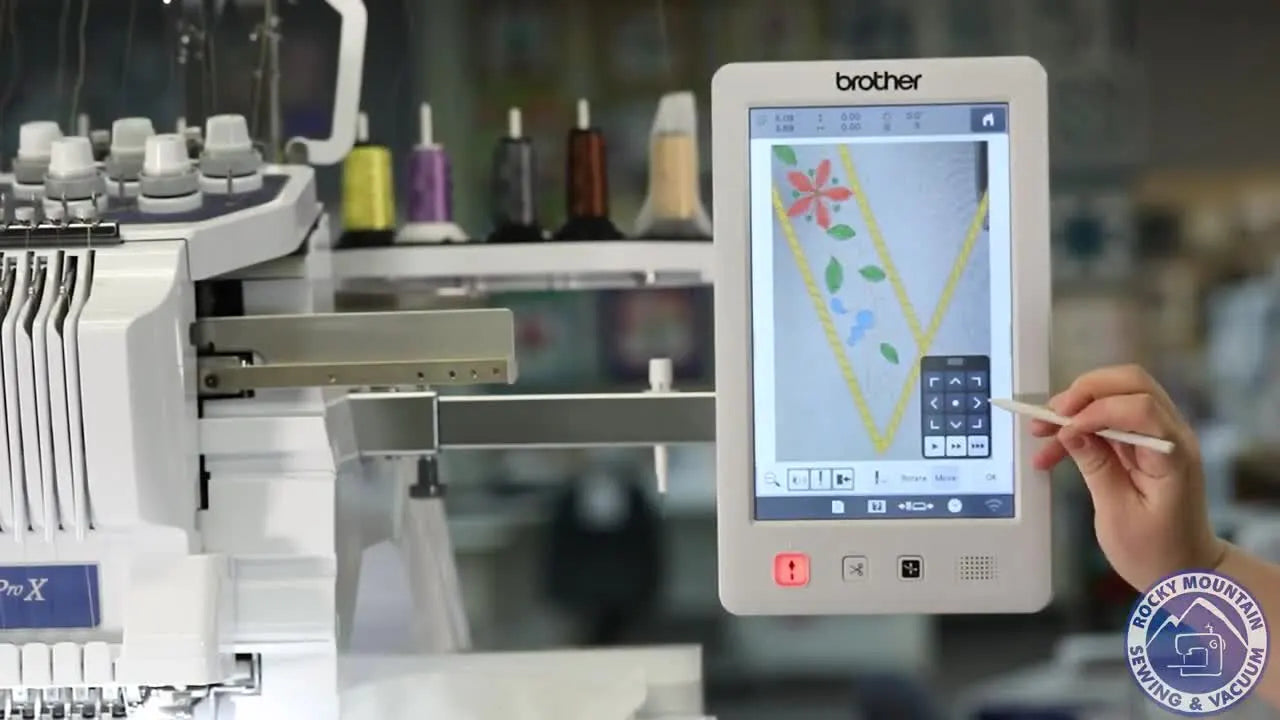

The Placement Screen Magic: Using the Brother PR1055X Live Camera + Zoom to Nail Alignment

This is the star of the demo. Megan calls it the placement screen, and she’s right: it is where expensive mistakes are prevented. On a 10-needle machine, you don't look through the needle; you look at the screen.

Her workflow:

1. Attach the hoop back onto the machine.
2. Tap the Camera icon (magnifying glass).
3. Confirm the safety warning (the machine will move rapidly).
4. Use Zoom to get a pixel-perfect live view of the fabric fibers.
5. Drag the design on-screen with the stylus until it aligns.






Pro Placement Habits (The "Center Seam" Rule)

Megan mentions caps: the camera helps you line up with the center seam. That is the correct instinct.

Here is the habit that prevents 80% of crooked logos:

• Ignore the hoop's center markings.
• Find a physical reference on the garment (center seam, pocket edge, placket line, or a drawn chalk crosshair).
• Use the camera zoom to align the design’s centerline to that physical reference.
• Parallax Check: Look at the needle from the side, not just the screen, to ensure the presser foot isn't sitting on a thick seam that will cause a flag.

If you are shopping for a cap solution like a brother pr1055x hat hoop, the camera feature becomes critical because cap drivers have a curved field of view that can be deceptive to the naked eye. The camera flattens the image for accurate registration.

Warning: Magnetic Field Safety. If upgrading to magnetic frames, be aware they use industrial-strength magnets (often N52 neodymium).
* Pinch Hazard: Keep fingers clear when the frame snaps closed.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers or ICDs.
* Electronics: Store away from credit cards and screens.

Thread Color Control Without Rethreading: Swapping Needle Assignments on the PR1055X

One of the most "production-minded" capabilities is the virtual needle swap.

Megan’s example:

• Needle 1 is metallic.
• She doesn’t want metallic on the border.
• She reassigns the border to Needle 5 via the screen.


The "Color Grouping" Strategy

On a 10-needle machine, the time saved isn't just about threading. It's about Needle Dedication.

• Needles 1-7: Standard colors (Black, White, Red, Blue, etc.).
• Needle 8: Specialty (Metallic).
• Needle 9: Thin thread (60wt) for small text.
• Needle 10: Empty or dedicated bobbin thread for freestanding lace.

By using the swap feature, you never have to unthread your "Standard Seven." This consistency keeps your tension settings stable and reduces thread breaks caused by frequent handling.

Setup That Prevents Mid-Run Drama: Stabilizer Decision Tree & Safety Checks

Before you hit start, you must respect the physics of the machine. The PR1055X can stitch up to 1000 stitches per minute (SPM). At that speed, physics is unforgiving.

The Stabilizer Decision Tree

Choose wrong, and the design will pucker.

• Is the fabric stretchy (T-shirts, Hoodies, Polos)?
  • NO: Use Tearaway (Standard). Two layers if the design is dense (>10k stitches).
  • YES: Use Cutaway (Non-negotiable). Tearaway will disintegrate under the needle, causing the knit to stretch and the outline to misalign.
• Is the fabric textured (Towels, Velvet, Fleece)?
  • YES: Add a Water Soluble Topping so the stitches sit on top of the pile rather than sinking in.
• Is the item impossible to hoop (Bags, Collars)?
  • YES: Use Filoplast (Sticky Backing) or a specialized clamp frame.

This is exactly where hoop choice becomes a business decision. If you’re constantly fighting clamp marks on delicate polos, a magnetic hoop for brother allows you to hold the fabric utilizing force distributed evenly across the frame, rather than concentrated pinch points.

Setup Checklist: The Final Countdown

• Hoop Seated: Did you hear the click?
• Clearance: Is the garment sleeve tucked away so it won't stitch to the body?
• Reference Check: Is the design aligned to the chalk mark/seam?
• Speed Limit: Beginner Tip: Lower the speed to 600 SPM for the first run. Speed kills quality until you are confident.
• Needle Check: Is the correct needle (Sharp vs Ballpoint) installed?

The Stitch-Out Routine: Unlock, Start, and Let the PR1055X Run

Megan’s start sequence is:

1. Press Unlock (Screen turns green).
2. Press the physical Start/Stop button (flashing green).








"Walk-away" Embroidery: The Monitoring App

The Brother monitoring app is excellent, but beginners should not rely on it immediately.

The "1-Minute Rule": Never walk away during the first minute of a design. This is when 90% of disasters happen (birdnesting, needle breaks on start-up).

1. Watch: The first tie-in stitches.
2. Listen: Auditory Check: A smooth "thump-thump-thump" is good. A harsh "clack-clack" or grinding noise means STOP immediately (check the bobbin area).
3. Confirm: Once the underlay is down and the satin stitching begins smoothly, then you can rely on the app.

Operation Checklist (During Stitching)

• Sound Check: Maintain awareness of the machine's rhythm.
• Fabric Flagging: Watch the fabric in the hoop. Is it bouncing up and down (flagging)? If so, your hooping is too loose, or you need a magnetic hoop for better hold.
• Completion: Wait for the trim sound before reaching for the hoop.

“Why Did That Happen?” Common PR1055X Pitfalls (And Quick Fixes)

Troubleshooting is 80% observation and 20% mechanics.

Symptom table

Troubleshooting Specifics

• The "Impossible" Hoop: If you simply cannot get a sleeve straight, stop fighting physics. A magnetic hooping station provides a solid third hand to hold the garment while you place the magnet, ensuring consistent tension every time.
• Small tubular items: For cuffs or baby onesies, consider a specialized sleeve hoop or fast frame that fits inside tight diameters.

The Upgrade Conversation: Moving from Hobby to Production

The PR1055X demo makes one thing obvious: Multi-needle isn’t just about "more needles"—it’s about Workflow Velocity.

Here is the honest decision matrix for upgrading your toolkit:

1. The Machine: If you stitch 3+ hours a day or tackle paid orders, the 10-needle automation saves roughly 30% of labor time versus a single needle.
2. The Hooping: This is the force multiplier. If your bottleneck is loading garments—especially slippery performance wear or thick jackets—your best ROI comes from minimizing the "fight" with the fabric.
   • Upgrade 1: Magnetic Hoops (Speed + Safety).
   • Upgrade 2: Hooping Station (Consistency).


Megan holds up a clean, floral "M." That is the benchmark. Not just a finished product, but a finished product achieved without frustration. By combining the PR1055X's camera tech with the right physical tools (stabilizers and upgraded hoops) and a sensory-aware workflow, you move from "hoping it works" to "knowing it will."

FAQ

• Q: What consumables should be next to the Brother PR1055X before starting an embroidery run to prevent mid-run failures?
  A: Keep a small “pre-flight” kit at the machine so you can fix problems immediately without disturbing the hoop.
  • Prepare: New needles (75/11 Sharp for wovens, Ballpoint for knits) and change needles every 8–10 production hours as a safe starting point.
  • Prepare: Temporary spray adhesive (e.g., 505), precision tweezers, and appliqué scissors for jump trims.
  • Check: Confirm the correct stabilizer is hooped with the fabric before you load the hoop onto the arm.
  • Success check: You can complete the first minute of stitching without thread tangles, missed trims, or emergency stops.
  • If it still fails… Stop and re-check upper threading and bobbin condition before re-running at full speed.
• Q: How do you check Brother PR1055X bobbin tension using the “drop test” before stitching?
  A: Use the bobbin case drop test to confirm the bobbin tension is in a usable range before you waste a garment.
  • Open: Remove the bobbin case and hold it by the bobbin thread tail.
  • Test: Let the case hang—then wrist-flick gently to see if it drops a few inches.
  • Decide: If it free-falls, tension is too loose; if it will not drop at all, tension is too tight.
  • Success check: The bobbin case holds its weight and only drops a few inches with a gentle wrist-flick.
  • If it still fails… Replace the bobbin or re-seat the bobbin correctly, then repeat the drop test.
• Q: How do you prevent a Brother PR1055X embroidery hoop from flying off at 1000 SPM when attaching the hoop?
  A: Always seat the hoop until the hoop lock clicks before entering camera mode or starting the design.
  • Attach: Slide the hoop onto the machine arm deliberately—do not “half-seat” it.
  • Listen: Confirm the solid CLICK of the hoop lock before you press Unlock/Start.
  • Verify: Tug the hoop lightly to confirm it is mechanically latched.
  • Success check: You hear a clear CLICK and the hoop does not shift when gently pulled.
  • If it still fails… Remove and reattach the hoop; do not run the machine until the click is consistent.
• Q: How do you use the Brother PR1055X live camera and zoom to align an embroidery design to a hoodie center seam instead of hoop markings?
  A: Align to a physical garment reference (center seam/pocket edge) using the live camera zoom, not the hoop’s printed center marks.
  • Mark: Identify a real reference line on the garment (center seam, pocket edge, placket, or a chalk crosshair).
  • Scan: Tap the Camera icon, confirm the safety warning, then use Zoom for a close live view.
  • Adjust: Drag the design on-screen until the design centerline matches the garment reference.
  • Success check: The on-screen design centerline visually sits on the seam/mark, and a side-view parallax check shows the presser foot is not riding a thick seam.
  • If it still fails… Re-hoop using the seam/mark as the target, then re-scan; do not “force” alignment by pulling fabric.
• Q: What stabilizer should be used on the Brother PR1055X for hoodies, towels, and dense designs to prevent puckering and misalignment?
  A: Match stabilizer to fabric behavior: cutaway for stretch, tearaway for stable wovens, and add topping for pile.
  • Choose: Use Cutaway for stretchy items (T-shirts, hoodies, polos); tearaway may disintegrate and allow shifting.
  • Reinforce: Use Tearaway for non-stretch wovens; use two layers if the design is dense (over about 10k stitches).
  • Add: Use a water-soluble topping on towels/velvet/fleece so stitches do not sink into the pile.
  • Success check: After the first underlay and early satin stitches, the fabric stays flat with minimal puckering around edges.
  • If it still fails… Slow the first run and reassess hooping firmness and stabilizer coverage under the full design area.
• Q: How do you stop Brother PR1055X birdnesting (thread wad under the throat plate) caused by incorrect upper threading?
  A: Re-thread the Brother PR1055X with the presser foot UP so the thread seats into the tension disks.
  • Stop: Hit stop immediately, cut away the nest, and clear loose thread from the bobbin/throat area.
  • Re-thread: Lift the presser foot and “floss” the upper thread firmly into the tension disks along the full path.
  • Restart: Run the first minute at a reduced speed to confirm stable tension before returning to normal speed.
  • Success check: The machine forms clean tie-in stitches without looping on the underside and the stitch sound returns to a smooth rhythm.
  • If it still fails… Open the bobbin area to remove trapped thread and re-check bobbin seating/tension before continuing.
• Q: What safety checks should be followed on the Brother PR1055X when using free-arm mode and when upgrading to magnetic embroidery frames?
  A: Treat free-arm work and magnetic frames as pinch-and-impact hazards and set a “hands-clear” routine before any movement.
  • Prevent: Keep fingers, drawstrings, and loose jewelry away from the needle area—especially during camera/scan mode and stitching.
  • Control: Keep hands off the table while stitching; pulling fabric is a common cause of needle breaks.
  • Protect: Keep fingers clear when closing magnetic frames; the snap force can pinch.
  • Success check: The hoop area stays clear during movement and the machine runs without sudden clacks, stalls, or needle strikes.
  • If it still fails… Stop immediately and re-check garment clearance behind the machine and around the moving hoop path before restarting.
