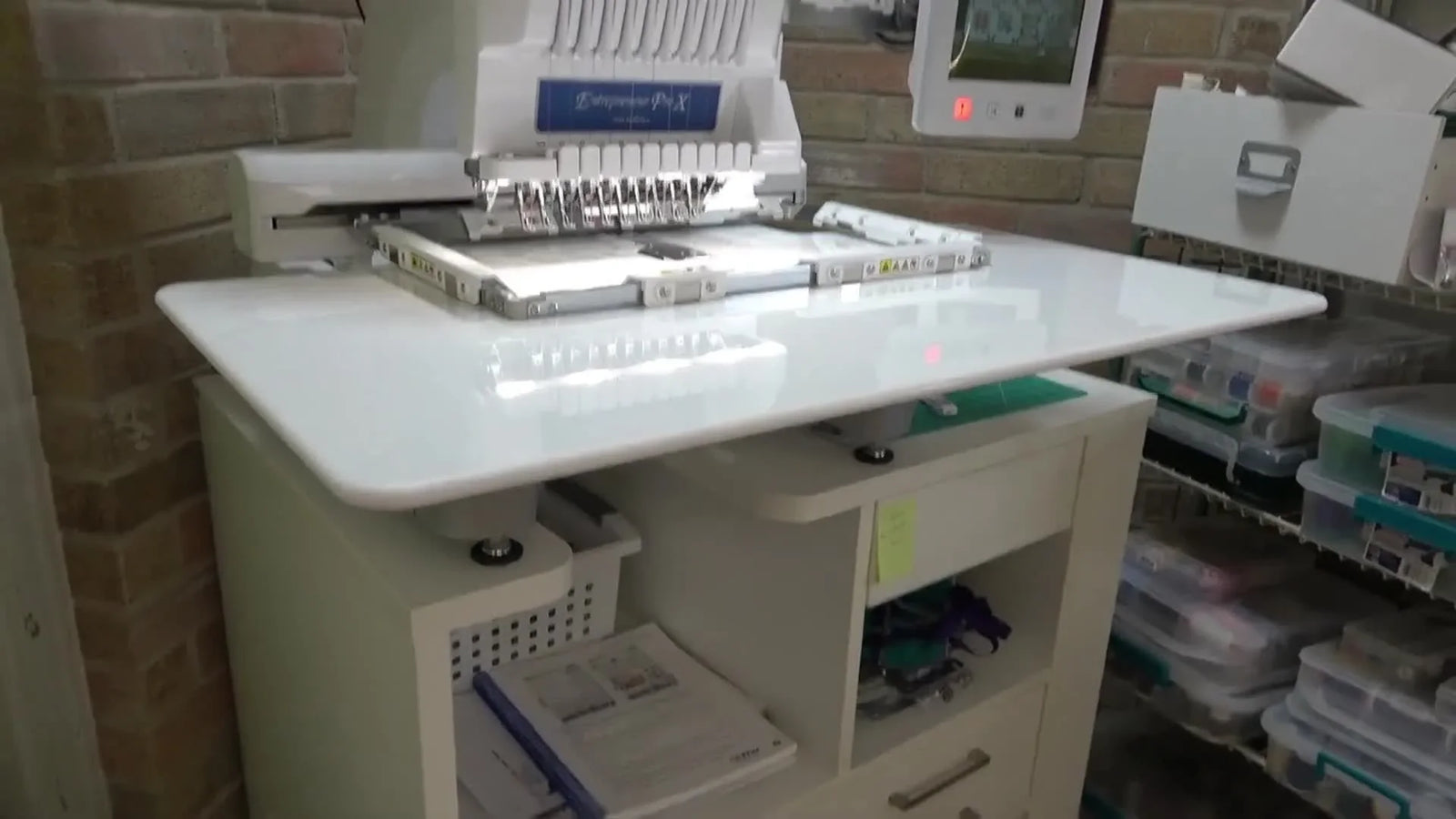

Brother PR1055X Wide Table + Magnetic Sash Frame Install: The “6 & 3” Alignment Trick That Saves Your Sanity

The Definitive Guide to Installing the Wide Table & Magnetic Sash Frame on the Brother PR1055X

If you’ve ever unboxed a new accessory for a high-end multi-needle machine and thought, “This piece of metal costs as much as a laptop—why does installing it feel like I’m wrestling a shopping cart wheel?”, you are not alone. Machine intimidation is real, especially when you are dealing with the precision engineering of a Brother PR1055X.

On this machine, the Wide Quilting Table and the Magnetic Sash Frame are genuinely quick to install—if you respect two critical factors: (1) the specific bracket geometry hidden under the table, and (2) the "6-and-3" hole-matching logic on the magnetic frame bar.

This guide rebuilds the standard installation demo into a shop-floor standard operating procedure (SOP). We aren’t just going to tell you what to do; we are going to explain the specific physics of why, adding sensory checks (what should it sound like? what should it feel like?) so you can install these components without the fear of stripping a screw or ruining a project.

The Calm-Down Check: Your Machine Isn’t “Missing Parts”—It’s Just Modular

The PR1055X is designed around a modular chassis. When you remove the standard tubular arms (the "A-frame" arms used for t-shirts and caps), the machine base looks exposed, industrial, and unfinished. This is normal.

A lot of new owners panic right here, thinking they have disassembled too much. They start turning the nearest large screw they see. Stop. The installation process relies almost entirely on hand-tightening and leverage alignment. You rarely need torque.

The Mental Anchor: Think of this like changing a lens on a camera. It feels scary the first time, but once you understand the mounting point, it’s a 10-second muscle memory action.

The “Hidden” Prep Pros Do First: Mise-en-place for Mechanics

Before you touch a single screw, we need to "clear the deck." In 20 years of embroidery consulting, I have seen more machines damaged by stray screws falling into the bobbin area than by actual operation errors.

1. Isolate the Power: Turn the machine off. We will be working near the needle bars; you do not want an accidental button press to cycle the needles while your hands are in the strike zone. 2. The Catch Tray: Place a magnetic bowl or a small tray to the right of the machine. You will be removing thumb screws that look identical to others; lose one, and your production stops for a week. 3. The "Hidden" Consumables:

• Microfiber cloth: Wipe the bracket arms before install. Dust here causes slip.
• Lighting: Ensure you can see under the table. Use your phone flashlight if needed.

If you are building a workflow for frequent swaps (e.g., table ON for Tuesday Quilting, table OFF for Wednesday Caps), this is where efficiency is won or lost. This is also the stage to evaluate your tooling. If you find yourself dreading this setup because your current hoops are hard to align, investigate a magnetic frame for embroidery machine setup. A well-designed magnetic ecosystem reduces the "fiddle factor" significantly, turning a 15-minute struggle into a 2-minute click-and-go.

Prep Checklist (Go/No-Go):

• Power Check: Machine is OFF.
• Clearance: Needle area is empty; no fabric or old hoops attached.
• Hardware: You have the Wide Table, Magnetic Frame, and the correct flat thumb screws staged in a tray.
• Visibility: You have identified the U-shaped groove under the machine arm (use a flashlight to locate it now, before the table blocks your view).
• Reference: Take a photo of the "A-frame" arms before removal for future reference.


Step 1: Remove the A-Frame Arms (The "Do Not Touch" Rule)

This is the single most common mistake point. Look at the arm bracket area on the machine. You will see:

1. Two small thumb screws (usually black or silver with knurled edges).
2. One or more larger, structural screws (often Phillips head or hex).

The Rule: Only loosen the two small thumb screws by hand. The Trap: Do not touch the large structural screws. These hold the main X-axis alignment. If you loosen them, your machine may require professional recalibration.

Action Sequence:

1. Locate: Identify the two small thumb screws.
2. Loosen: Turn counter-clockwise. You should feel moderate resistance, then they should spin freely.
3. Remove: Slide the metal A-frame arms straight off the machine operator-ward.
4. Store: Place the screws immediately in your catch tray.

Warning: Pinch Point Hazard. When sliding the metal arms off, keep your fingers on the outside edges. The gap between the arm and the machine body acts like a scissor. Never force the arms; if they don't slide, the thumb screws aren't loose enough.

Step 2: Determine the Pin-to-Hole Alignment

The wide table isn’t held on by friction or hope—it utilizes a positive-lock "Pin-and-Hole" system.

• On the Table: Look at the inner edge (the side that touches the machine). There is a small metal rod (pin).
• On the Machine: Look at the base bracket. There is a receiving hole.

The Sensory Check: When you mate these two, you should feel a dull "thud" or solid stop. You should not be able to wiggle the table left or right more than a millimeter once the pin is engaged.

1. Slide the table onto the machine base.
2. Align the pin into the hole visually.
3. Push gently until flush.






Step 3: The Under-Table Lock (The "U-Groove" Secret)

This is the step everyone skips. If you skip this, your table will vibrate during stitching, causing registration errors (gaps in your embroidery).

Underneath the table are mounting thumb screws. The geometry here is tricky: the screw must travel into a U-shaped slot on the machine bracket.

The Counter-Intuitive Move: most people try to tighten the screws immediately. Don't. You must loosen them first to create clearance.

Action Sequence:

1. Loosen: Unscrew the under-table thumb screws about 5–6 full turns. You need a gap between the screw head and the table bottom.
2. Lift & Slide: As you push the table back toward the machine, lift the front edge of the table upward by about 1 inch. This angle helps the screw head clear the lip of the bracket.
3. The Drop: Once the table touches the machine face, lower the table.
4. The Sensory Lock: You should feel the screw shaft settle into the U-groove. It will feel like the table "sits down."
5. Tighten: Now, reach under and finger-tighten the screws.

How tight is "tight"? Turn until it stops, then give it one firm 1/8th turn of torque. It needs to be tight enough to resist the vibration of a machine running at 1000 SPM (Stitches Per Minute), but not so tight you need pliers to remove it.

Why this lock matters (The Physics of Drag)

A wide table isn’t just a "shelf." It is a drag-reduction device.

In commercial embroidery, Gravity is the Enemy. If you are stitching a heavy quilt or a large jacket back, the weight of the fabric hangs off the hoop. This weight creates "drag" on the pantograph (the moving arm). Drag causes the hoop to slip slightly, ruining your design registration.

The table supports that weight, neutralizing gravity. But if the table itself is loose (because you missed the U-groove), the table vibrates, creating new drag. A properly locked table is essential for heavy projects.

Setup Checklist 2: Table Integrity

• Table pin is fully seated in the bracket hole.
• Table edge is flush against the machine body (no visible gap).
• Under-table screws were loosened first, then seated.
• You have physically checked (by touch) that the screw is inside the U-groove, not resting on the edge.
• Table does not rattle when you tap it lightly.

Step 4: The "6 & 3 Rule" for the Magnetic Sash Frame

Now for the magnetic frame install. This intimidates people because there are 7 holes on the frame bar but only 2 pins on the machine. Which ones do you use?

The Mnemonic: "Big Six, Little Three."

On the frame back bar, count the holes from the right-hand side (or simply look for the shapes).

• Hole #6 is usually shaped like a Rounded Rectangle (oval).
• Hole #3 is a standard circle.

This setup allows for thermal expansion and slight tolerance differences. The oval hole (#6) anchors the frame while allowing micro-adjustments; the round hole (#3) locks the angle.

If you’re shopping or comparing systems, this precision fit is exactly why professionals search for specific brother magnetic sash frame schematics—using a generic frame with incorrect hole spacing will bind the machine arms, potentially burning out the X-Y pulse motors.

Step 5: Install the Frame (The Sequence Matters)

Do not try to catch both pins at once. Use this pivot method:

1. Anchor the Back: Place Hole #6 (the cylinder/oval) over the Back Pin on the drive arm.
2. Pivot to Front: Rotate the frame until Hole #3 drops over the Front/Left Pin.
3. Insert Screws:
   • Insert a flat thumb screw into Hole #7 (locking the back).
   • Insert a flat thumb screw into Hole #4 (locking the front).

The Check: The frame should sit dead flat. If it rocks like a wobbly restaurant table, you picked the wrong holes. Remove and verify "6 and 3."

For high-volume shops, this is the moment of truth. If you are doing repeated setups, standardizing on magnetic embroidery frames becomes a massive productivity lever. You eliminate the variable of "did I hoop this tight enough?"—the magnets dictate the tension, and the frame mount dictates the alignment.

Warning: Magnetic Field Safety
Commercial magnetic frames use industrial-grade neodymium magnets.
1. Pacemakers: Keep a safe distance (6 inches+) if you have a medical implant.
2. Pinch Hazard: These magnets snap together with >10lbs of force. Do not place fingers between the top and bottom frames.
3. Electronics: Do not place credit cards or phones directly on the magnets.

Troubleshooting: When It Doesn't Feel Right

Symptom: The Table "Wobbles"

• Likely Cause: The under-table screw is resting on top of the U-bracket rim, not inside it.
• The Fix: Loosen the screw 5 full turns. Lift the table nose up, push back, and lower it again. You must feel it drop.

Symptom: Frame Screws Won't Thread

• Likely Cause: You are in the wrong holes (e.g., Hole 5 instead of 6), so the alignment is off by 2mm.
• The Fix: Don't force it! You will strip the thread on the drive arm ($$$ repair). Remove the frame. Locate the Oval Hole (#6). Start there.

Real-World FAQ (The "Experience" Data)

Q: Do I need to change software settings for the wide table?

• A: On the PR1055X, strictly speaking, the table is a passive support. However, always check your machine settings under the "Frame/Table" menu. Some firmware versions have a "Table On" toggle that limits the pantograph speed or range to prevent collisions. Rule of thumb: Check the manual, but usually, the machine protects itself via the hoop sensor.

Q: Can I embroider on the Wide Table, or is it just for quilting?

• A: You absolutely should embroider on it, especially for heavy items like Carhartt jackets or horse blankets. The table supports the weight. If a jackets hangs off the arm, it pulls the design down, leading to oval circles and poor registration.

Q: Why did my quilt fall out of the standard hoop?

• A: Hoop Burn vs. Grip. Thick quilts force standard hoops open. This is the scenario where upgrading to magnetic hoops for brother pr1055x is a game changer. They clamp vertically rather than relying on friction output, holding thick sandwiches secure without leaving ring marks.

Decision Tree: When to Upgrade Your Workflow?

You have the machine. When do you need the accessories?

• Scenario A: "I have 'Hoop Burn' (shiny rings) on velvet or performance polos."
  • Immediate Fix: Use a textured backing.
  • Tool Upgrade: Magnetic Hoops. They prevent burn by avoiding the "friction ring" mechanism entirely.
• Scenario B: "My designs are outlined poorly (gap between fill and border) on heavy items."
  • Immediate Fix: Increase pull compensation in software.
  • Tool Upgrade: Wide Table. The issue is likely gravity dragging the fabric. Support the weight, stop the drag.
• Scenario C: "I spend more time hooping than stitching."
  • Tool Upgrade: SEWTECH Magnetic Frames + Hooping Station. If you are doing volume, the ROI on faster changeovers is immediate.

Operation Check: Safe to Stitch?

Before you hit "Start" on that 50,000-stitch design, do the "jiggle test."

Operation Checklist 3 (Pre-Flight):

• Table Check: Push down on the table corners. No movement? Good.
• Frame Check: Lift the magnetic frame gently. It should move the entire machine arm, not wiggle independently.
• Clearance: Run a "Trace" (Trial) on the screen. Watch the pantograph move. Ensure the frame does not hit the table edges.
• Organization: No loose screws in the catch tray? (If there are, where did they come from?)


Final Thoughts: The ROI of Proper Setup

Installing the wide table and magnetic sash frame isn't just about adding real estate to your machine; it's about stabilizing your substrate.

1. Don't touch the big screw (protect your alignment).
2. Seat the U-Groove (protect against vibration).
3. Use Holes 6 and 3 (protect against binding).

Once you master this, you move from "Operator" to "Production Manager." You stop fighting the machine and start managing the workflow. If you find that stabilizing fabric is still your biggest bottleneck, look into the specific tool solutions—whether that’s specialized stabilizers or the speed of magnetic hoops for brother pr1055x—to match the professional capability of the machine you now know how to set up perfectly.

FAQ

• Q: How do I safely remove the A-frame arms on a Brother PR1055X without losing X-axis alignment?
  A: Only loosen the two small thumb screws by hand and never touch the large structural screws.
  • Locate the two small knurled thumb screws near the arm bracket and turn them counter-clockwise.
  • Slide the metal A-frame arms straight off toward the operator side; do not twist or pry.
  • Store the thumb screws immediately in a catch tray so nothing drops into the bobbin/needle area.
  • Success check: the arms slide off smoothly and the large structural screws remain fully untouched.
  • If it still fails: stop forcing the arms and re-loosen the small thumb screws until the arms release.
• Q: What prep checklist prevents dropped screws and installation mistakes when installing a Brother PR1055X Wide Quilting Table?
  A: Do a quick “mise-en-place” setup first—most problems come from poor staging, not the table itself.
  • Power off the Brother PR1055X before working near the needle bars.
  • Place a magnetic bowl or small tray on the right side to catch and separate thumb screws.
  • Wipe bracket/arms with a microfiber cloth and use a phone flashlight to identify the U-shaped groove under the arm before the table blocks the view.
  • Success check: the U-groove and receiving hole are clearly visible and all hardware is accounted for in the tray.
  • If it still fails: take a reference photo of the arm area and re-check that the correct flat thumb screws are staged.
• Q: How do I confirm the Brother PR1055X Wide Quilting Table pin-and-hole alignment is fully seated (and not “almost” installed)?
  A: Seat the table using the pin-and-hole stop—there should be a solid “thud” and almost no side wiggle.
  • Slide the wide table onto the machine base and visually line up the table pin with the receiving hole on the machine bracket.
  • Push gently until the table sits flush against the machine body.
  • Success check: the table hits a solid stop and left-right movement is under about 1 mm.
  • If it still fails: pull the table back off and re-approach squarely—don’t tighten anything until the pin is correctly engaged.
• Q: How do I stop a Brother PR1055X Wide Quilting Table from wobbling during stitching using the under-table U-groove lock?
  A: Loosen first, then seat the screw into the U-groove—tightening too early is what causes wobble.
  • Loosen the under-table thumb screws 5–6 full turns to create clearance.
  • Lift the front edge of the table about 1 inch while sliding the table back, then lower it once the table meets the machine face.
  • Finger-tighten only after you feel the screw shaft settle into the U-shaped slot; finish with one firm 1/8 turn.
  • Success check: the table “sits down” into place and does not rattle when tapped lightly.
  • If it still fails: loosen again and repeat the lift-slide-drop motion—usually the screw head is riding on the bracket rim, not inside the groove.
• Q: Which holes should be used to mount a Brother PR1055X Magnetic Sash Frame, and what does the “6 and 3 rule” mean?
  A: Use Hole #6 (oval/rounded rectangle) and Hole #3 (round) on the sash frame bar to match the two machine pins.
  • Count holes from the right-hand side and find the oval/rounded rectangle hole for #6 and the standard circle for #3.
  • Place Hole #6 on the back pin first, then pivot the frame so Hole #3 drops onto the front/left pin.
  • Success check: the sash frame sits dead flat and does not rock like a wobbly table.
  • If it still fails: remove the frame and re-identify the oval Hole #6—using the wrong hole can shift alignment enough to block screw threading.
• Q: What should I do if Brother PR1055X Magnetic Sash Frame thumb screws won’t thread onto the drive arm?
  A: Do not force the screws—re-seat the frame using the correct holes, then insert the locking screws in the correct positions.
  • Remove the sash frame completely to avoid cross-threading.
  • Re-install using the pivot method: Hole #6 on the back pin first, then Hole #3 onto the front/left pin.
  • Insert flat thumb screws into Hole #7 (lock the back) and Hole #4 (lock the front).
  • Success check: screws start by hand smoothly with no binding and the frame remains flat.
  • If it still fails: stop and re-check hole selection (common mistake is using Hole #5 instead of #6, causing a small but critical offset).
• Q: What magnetic safety rules should be followed when using a Brother PR1055X Magnetic Sash Frame or other embroidery magnetic frames?
  A: Treat the magnets like industrial tools—prevent pinch injuries and keep magnets away from medical implants and sensitive items.
  • Keep magnets at least 6 inches away from pacemakers or medical implants.
  • Keep fingers out of the closing path; magnets can snap together with strong force and pinch skin.
  • Keep phones and credit cards off the magnets to avoid potential damage.
  • Success check: the frame halves come together under control (no “snap” onto fingers) and the work area stays clear of electronics.
  • If it still fails: slow down the handling and separate the pieces fully before repositioning—never “walk” magnets together with fingertips between them.
• Q: How do I choose between technique fixes, a magnetic hoop upgrade, or a wide table upgrade on a Brother PR1055X when embroidery results look bad on heavy garments?
  A: Match the symptom to the cause: adjust technique first, then upgrade the tool that removes the root problem.
  • If hoop burn/shiny rings appear on velvet or performance polos: start with a textured backing; consider magnetic hoops to avoid friction-ring pressure.
  • If outlines mis-register on heavy items (gaps between fill and border): increase pull compensation, then add the wide table to reduce gravity drag.
  • If hooping time is longer than stitching time in repeat jobs: consider a magnetic frame workflow to reduce alignment “fiddle.”
  • Success check: after the change, the fabric no longer drags off the arm and the design traces cleanly without shifting.
  • If it still fails: run a trace/trial again and verify table lock and frame flatness before changing additional settings.
