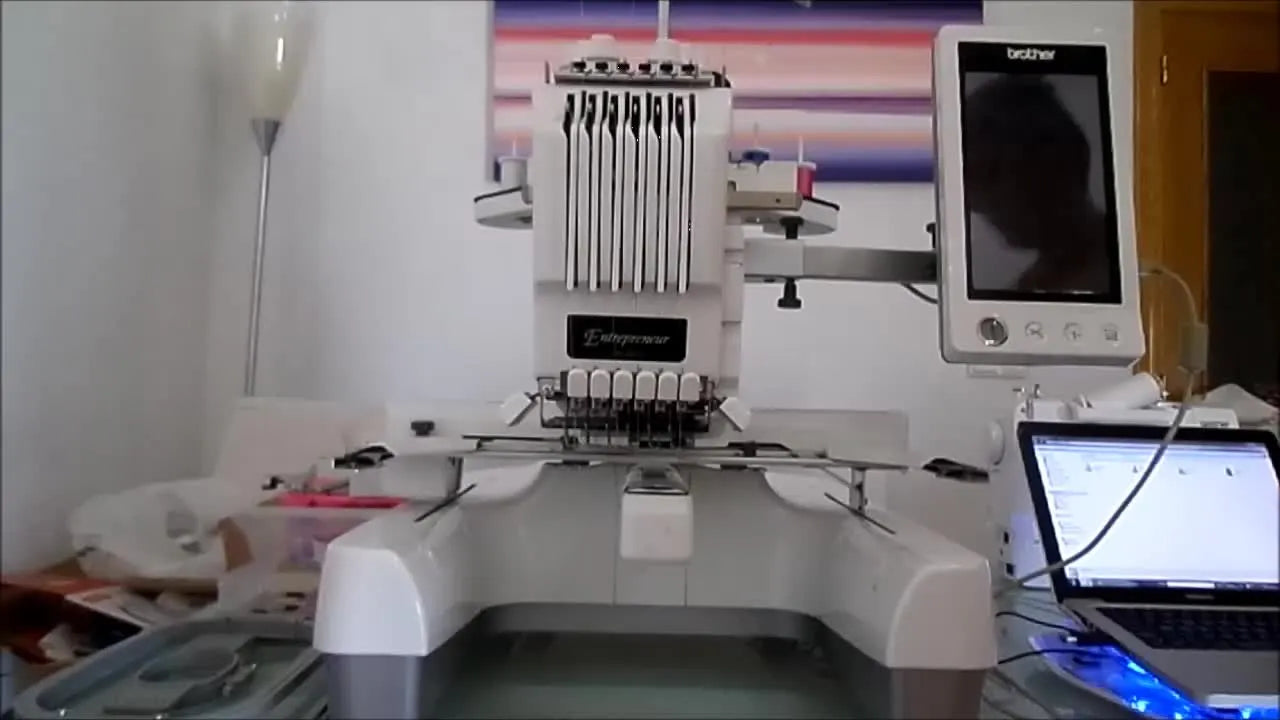

Brother PR650 Setup That Actually Sticks: Daily Oiling, Hoop Display, Needle Anchors, and USB File Transfer (Without the Usual Headaches)

If you have just unboxed a Brother PR650 or purchased one second-hand, the first power-on sequence can feel less like a creative milestone and more like a bomb disposal operation. The arm moves unexpectedly, the screen is cluttered with icons, and the manual is often too thick to digest in one sitting.

As someone who has trained hundreds of operators on multi-needle platforms over the last twenty years, I can tell you this: fear of the machine is the number one cause of operator error. When you are afraid, you hesitate. When you hesitate, you get birdnests.

The Brother PR650 (and its specialized successors in the Sewtech line) is a workhorse, not a wild animal. This guide transforms the standard "screen tour" into a sensory-based production workflow. We will move beyond simply "what button to press" and focus on how it should feel, sound, and look when you are running a professional-grade embroidery cycle.

1. The Startup Ritual: Power, Calibration, and the "Sound" of Health

When you flip the power switch on the right side of the machine, the PR650 creates immediate movement. This is your first test of nerves.

The Calibration Dance

Upon startup, the screen displays a safety warning. Acknowledge it. The embroidery arm will then travel to its X/Y origin.

• The Rookie Mistake: Trying to mount a hoop while the machine is booting up.
• The Pro Habit: Hands off. Stand back. Let the machine "stretch" its muscles.




The Daily Oil: The "One Drop" Rule

The screen will flash a maintenance reminder for the hook race. Do not ignore this.

• The Physics: The rotary hook spins at up to 1,000 revolutions per minute. Metal-on-mental friction generates heat, which shreds thread and causes tension issues.
• The Sensory Check:
  • Visual: Remove the bobbin case. Look for lint buildup.
  • Action: Place one single drop of high-quality sewing machine oil on the hook race.
  • Auditory Test: Run the machine empty for 10 seconds. It should emit a rhythmic, low hum. If you hear a high-pitched "chatter" or metallic "hiss," it is still dry.

Warning: Never reach your hands into the needle bar area or near the pantograph arm during the startup calibration sequence. The motors have high torque and can pin fingers against the frame instantly.

2. Visual Alignment: Calibrating the Frame Display to Reality

The PR650’s screen does not automatically know which hoop you have physically verified. You must tell it. This disconnect is responsible for 30% of needle strikes (where the needle hits the plastic hoop).

In the settings menu (the paper icon), you can cycle through frame display options. This changes the grey box on your screen to represent your working area.

The Standard Hoop Arsenal

• Extra Large: 8 x 12 in (200x300mm) – Ideal for jacket backs.
• Large: 5 x 7 in (130x180mm) – The standard for left-chest logos.
• Medium: 4 x 4 in (100x100mm) – For pocket toppers.
• Small: 2.5 x 1.5 in – For monograms/cuffs.

The "Safety Buffer" Illusion: You will notice the on-screen box looks slightly smaller than the physical key. This is intentional. The machine software reserves a margin to ensure the presser foot never collides with the plastic frame.

Pro-Tip on Asset Management: When you are expanding your kit and searching for brother pr 650 hoops, ensure you are buying frames compatible with the specific PR mounting arm. Not all "generic" hoops fit the specific click-lock mechanism of the 6-needle series.

3. The Hidden Prep: What Pros Do Before Touching the Screen

Before we dive into the digital menus, we must address the physical variables. You cannot program your way out of a bad physical setup.

The Paper Test for Tension

Do not just trust the tension is "correct." Feel it.

• Action: Pull the top thread through the needle eye (manual pull).
• Sensory Anchor: It should feel like pulling dental floss through teeth—consistent resistance, but smooth. If it jerks, your thread path is tangled. If it falls loose, your tension discs are open or clogged with lint.

The Stabilizer Decision Matrix

The comment section of the source video correctly identified a major pain point: "What stabilizer do I use for shirts?"

• The Law of Knits: If the fabric stretches (T-shirts, Polos, Hoodies), you must use Cutaway stabilizer.
• The "Why": Tearaway stabilizer disintegrates when perforated by the needle. Once it tears, the stretchy fabric returns to its natural state, distorting your perfect circle into an oval. Cutaway remains permanent, holding the stitches in place for the life of the garment.

Prep Checklist (Pre-Power On)

• Lint Check: Blow out the bobbin case with non-canned air or a brush.
• Needle Integrity: Run your fingernail down the needle tip. If it catches, the needle is burred. Replace it naturally.
• Bobbin Thread: Ensure you have a full bobbin. A mid-design bobbin change on a complex logo without a break-point is a headache you don’t need.
• Thread Path: Verify the thread is seated deep inside the pre-tension discs. You should hear a faint "click" as it seats.
• Consumables: Have a fresh sheet of Cutaway stabilizer and temporary spray adhesive (e.g., 505) ready.

4. System Configuration: Making the Machine Work for *You*

Head into the settings menu to customize the machine’s behavior for a production environment.

Critical Settings

1. Thread Trimming = ON:
   • Logic: Manual trimming adds 2-5 minutes of labor per garment. In a 50-shirt run, that is over 2 hours of lost time. Let the machine do the work.
2. Thread Sensor = ON:
   • Logic: This saves your garment. If the bobbin runs out and the sensor is OFF, the machine keeps punching holes in your fabric without sewing, potentially ruining the fiber structure.
3. Speaker Volume: Set to 5.
   • Sensory: In a noisy shop, you need to hear the error chime over the sound of the HVAC or radio.
4. Basting Function (Hidden Gem): While not explicitly in the main menu, look for the basting stitch option in the edit screen. It creates a temporary box of stitches to secure the fabric to the stabilizer before the main design begins—crucial for slippery fabrics.

5. The "Anchor" Technique: Reducing Thread Change Fatigue

Multi-needle machines like the PR650 allow you to assign specific colors to specific needle bars permanently. This is called "Anchoring."

The Efficiency Logic

If 90% of your jobs involve Black text and White backgrounds, why re-thread needles 1 and 6 every time?

• Setup: Assign Needle 6 to White (Madeira 1001) and Needle 3 to Black (Madeira 1000).
• The Result: An anchor icon appears. The machine will now automatically map any black section of a design to Needle 3, regardless of where it is in the digitizing sequence.

Commercial Insight: This feature is a game-changer for speed. If you run a brother pr650 embroidery machine for corporate orders, effective anchoring can save you 15 minutes of setup time per day. Over a year, that is 60 billable hours recovered.

6. Pre-Flight Visualization: The Realistic Preview

Using the built-in Tiger design as an example, we see how to prevent the dreaded "Design too Large" error.

The "Grey Out" Safety Net

When you select a design (e.g., the 3.59" x 3.76" tiger), the PR650 immediately calculates compatibility.

• Visual Logic: Look at the hoop icons at the bottom of the screen. If the icon is greyed out, that hoop is physically too small.
• Safety Protocol: Do not try to bypass this. If the machine says it won't fit in the small hoop, believe it.




The 1:1 Preview

Tap the magnifying glass/preview button. This renders the stitches on screen inside the chosen hoop boundary.

• Step: Check the edges. Is the design centered?
• Nuance: If you have rotated the design 90 degrees, ensure you have rotated the hoop orientation on screen to match.

For those using a standard brother 4x4 embroidery hoop, this preview is critical because you have very little margin for error. A design that is 3.9" wide in a 4" hoop must be perfectly centered.

7. The Great Hooping Bottleneck: When to Upgrade Your Tools

We must discuss the elephant in the room. The video explains the software side of hoops, but the physical act of hooping is where 80% of beginners fail.

The Problem: Standard hoops require two hands, significant wrist strength, and screw adjustments. If you screw it too tight, you get "hoop burn" (permanent crush marks on the fabric). If too loose, the fabric puckers.

The Sensory Check for Hooping:

• Tap the fabric in the hoop.
• Sound: It should sound like a dull thud (like a ripe watermelon), NOT a high-pitched ping (like a snare drum).
• Touch: It should be taut, but you should be able to pinch a tiny bit of fabric. If it's a drum skin, you have over-stretched the knit, and the shirt will pucker when removed.

The Commercial Solution: Magnetic Technology

If you find yourself dreading the hooping process, or if you are doing runs of 20+ items, this is the trigger point for a tool upgrade.

• Trigger: Wrist fatigue or inconsistent fabric tension.
• Upgrade Path: Many pros switch to magnetic embroidery hoops for brother.
• Why: These hoops use powerful magnets to clamp the fabric instantly without screws. They self-adjust to different fabric thicknesses, virtually eliminating hoop burn and reducing hooping time from 60 seconds to 10 seconds.

For generic left-chest work, a dedicated brother 5x7 magnetic hoop is often the single highest ROI accessory you can buy. It turns a chore into a reliable, repeatable click.

Warning: Magnetic Safety
Commercial magnetic hoops use industrial-grade neodymium magnets.
1. Pinch Hazard: Do not get your fingers caught between the magnets; they snap together with crushing force.
2. Medical Safety: Keep strictly away from pacemakers and insulin pumps. The magnetic field is strong enough to disrupt medical devices.

8. Troubleshooting: The "Why Did It Stop?" Guide

When the machine stops and beeps, do not panic. Use this logic tree.

Scenario A: The "Wiper Error" or Mechanical Grind

• Symptom: Loud grinding noise, screen shows "Wiper Error" or "Main Motor Error."
• Immediate Action: Hit the big Emergency Stop button.
• Likely Cause: A birdnest (tangle of thread) has formed in the bobbin area, trapping the hook.
• Fix: Do not pull the fabric. reach under, cut the birdnest with scissors, remove the throat plate, and gently clear the jam.

Scenario B: The "Ghost" Stop

• Symptom: Machine stops, no error message, or claims thread break when thread is fine.
• Likely Cause: The thread path is too loose, failing to trigger the check spring.
• Fix: Re-thread the machine. Ensure the thread is flossing correctly through the tension disks.

Scenario C: Jump Stitches Everywhere

• Symptom: The machine leaves long threads between letters.
• Fix: Go to Settings -> Thread Trimming. Is it ON? If yes, check the Jump Stitch Trim Length. Set it to roughly 5mm-10mm. If set too high, it won't trim short jumps.

9. File Transfer: The Digital Handshake

Connecting your computer to the PR650 is straightforward.

When connected via USB, the machine appears as a removable drive (e.g., Drive F:).

• Protocol: Simply drag and drop .PES files into the drive.
• Constraint: Do not treat the machine as a hard drive. It has limited memory. Store your files on your PC or cloud, and only load what you are stitching today.

10. The Production Mindset: Decision Logic for New Owners

You are not just an operator; you are a production manager. To move from "hobbyist" to "pro," you need standardized decision making.

The Decision Tree: Wearable vs. Flat Goods

Use this flow before every job to determine your setup.

1. Identify the Substrate:
   • Is it a Knit (Stretchy)? -> Go to Path A
   • Is it a Woven (Stable, Canvas, Denim)? -> Go to Path B
2. Path A (Knits/Wearables):
   • Stabilizer: CUTAWAY (2.5oz or 3.0oz). No exceptions.
   • Hooping: Gentle tension. Use spray adhesive to bond fabric to stabilizer to prevent shifting.
   • Needle: Ballpoint (75/11 BP) to slide between fibers.
3. Path B (Wovens/Hats):
   • Stabilizer: TEARAWAY is acceptable here.
   • Hooping: Firmer tension allowed.
   • Needle: Sharp (75/11) to pierce thick canvas.
4. Evaluate Pain Points:
   • Is hooping taking too long? -> Investigate a hooping station for embroidery to guarantee placement accuracy.
   • Are you getting "Hoop Burn" on dark fabrics? -> Switch to a magnetic hoop for brother.
   • Is the Single-Head PR650 too slow for your volume? -> If you are turning away orders, it is time to look at SEWTECH Multi-Needle Machines to parallelize your production (running two machines is better than one fast machine).

Setup Checklist (The "Go/No-Go" Gauge)

• Visual: Frame display matches physical hoop.
• Mechanic: Hook race oiled (1 drop).
• Digital: Thread Trimming ON; Thread Sensor ON.
• Physical: Needle path is clear; fabric is distinct from the arm.

Operation Checklist (The Final 10 Seconds)

• Preview shows design fully inside the grey box.
• Confirm bobbin has at least 50% thread remaining.
• Safety verify: Sleeves and loose hair are tied back/rolled up.
• Press Start. Watch the first 100 stitches intimately. If it sounds right, it is right.

Embroidery is a game of variables. By locking down your startup routine, your hooping method, and your settings, you eliminate the variables that cause failure. Treat the machine with respect, listen to its audio cues, and it will run for thousands of hours.

FAQ

• Q: Is it safe to hoop fabric while a Brother PR650 embroidery machine is powering on and calibrating?
  A: No—keep hands off the hoop and needle/arm area until the Brother PR650 finishes the X/Y calibration movement.
  • Wait: Acknowledge the safety warning, then physically step back during the startup “calibration dance.”
  • Avoid: Do not reach near the needle bar area or pantograph/embroidery arm while motors are moving.
  • Success check: The arm stops moving and the machine settles into an idle state with no unexpected travel.
  • If it still fails: If movement seems abnormal or you hear harsh mechanical noise during startup, power down and inspect for thread jams before continuing.
• Q: How much oil should be applied to the Brother PR650 hook race, and how can lubrication be confirmed by sound?
  A: Use the Brother PR650 “one drop” rule—apply one single drop of sewing machine oil to the hook race, then confirm a smooth low hum.
  • Remove: Take out the bobbin case and visually check for lint buildup first.
  • Apply: Place exactly one drop of high-quality sewing machine oil on the hook race.
  • Run: Operate the machine empty for about 10 seconds.
  • Success check: A rhythmic, low hum indicates healthy lubrication; high-pitched chatter or a metallic hiss suggests the area is still dry.
  • If it still fails: Clean lint again and re-check; follow the machine manual’s maintenance guidance if noise persists.
• Q: How can Brother PR650 upper thread tension be checked using the “paper test” feel method before stitching?
  A: Do a manual pull test on the Brother PR650 top thread—tension should feel smooth and consistently resistant, like dental floss.
  • Pull: Manually pull the top thread through the needle eye.
  • Compare: Look for consistent resistance without jerking or slipping loose.
  • Re-seat: Verify the thread is seated deep in the pre-tension discs (a faint “click” can be felt/heard as it seats).
  • Success check: The pull feels steady and smooth, not grabby and not loose.
  • If it still fails: Re-thread the full path and inspect for lint or mis-routing through the tension discs.
• Q: What stabilizer should be used for T-shirts and polos on a Brother PR650 embroidery machine to prevent distortion?
  A: For knit wearables on a Brother PR650, use cutaway stabilizer (not tearaway) to keep stitches stable for the life of the garment.
  • Choose: Select cutaway stabilizer for any fabric that stretches (T-shirts, polos, hoodies).
  • Bond: Use temporary spray adhesive to hold fabric to stabilizer to reduce shifting during stitching.
  • Hoop: Use gentle hoop tension to avoid overstretching the knit.
  • Success check: Circles and lettering stay true (not turning into ovals) after the garment is removed from the hoop.
  • If it still fails: Add a basting box stitch first to secure the layers before the design begins.
• Q: How can correct hooping tension on a Brother PR650 be verified to avoid hoop burn and puckering?
  A: Hoop the garment on the Brother PR650 so it is taut but not drum-tight—use the tap sound and pinch test as the standard.
  • Tap: Tap the hooped fabric to assess tension.
  • Pinch: Pinch a tiny bit of fabric; it should give slightly instead of being stretched like a drum skin.
  • Adjust: Loosen if the fabric is over-tensioned (a common cause of hoop burn and post-hoop puckering).
  • Success check: The tap sounds like a dull thud (not a high-pitched ping), and the fabric is smooth without strain marks.
  • If it still fails: Reduce tightening further and secure fabric to stabilizer with temporary spray adhesive to prevent shifting without over-stretching.
• Q: What should be done when a Brother PR650 shows “Wiper Error” or “Main Motor Error” with a loud grinding noise?
  A: Stop immediately—on a Brother PR650, a “Wiper Error” or “Main Motor Error” with grinding usually indicates a birdnest jam in the bobbin/hook area.
  • Press: Hit the Emergency Stop button right away.
  • Cut: Do not pull the fabric; reach under and cut the tangled thread (birdnest) with scissors.
  • Clear: Remove the throat plate and gently clear the jam from the hook area.
  • Success check: The hook area turns freely and the machine runs without grinding after the jam is cleared.
  • If it still fails: Re-check for hidden thread wrapped in the hook area and confirm the machine is properly oiled before restarting.
• Q: When should Brother PR650 owners upgrade from standard screw hoops to magnetic embroidery hoops, and what safety rules apply?
  A: Upgrade to magnetic hoops when hooping causes wrist fatigue, inconsistent tension, hoop burn, or slow cycle prep—then follow strict pinch and medical-device safety.
  • Diagnose: If hooping takes too long or tension varies from item to item, treat hooping as the bottleneck.
  • Upgrade: Use magnetic hoops to clamp fabric quickly without screw pressure and reduce hoop burn risk.
  • Protect: Keep fingers clear—magnets snap together with crushing force.
  • Success check: Hooping time drops dramatically and fabric tension becomes repeatable without crush marks.
  • If it still fails: Re-check hooping technique (tap/pinch test) and keep magnetic hoops away from pacemakers and insulin pumps at all times.
