Brother PRS100 Persona Threading That Actually Works: The “Snap” Points, the Auto-Threader, and the Fix for That Scary Upper-Thread Message

Mastering the Brother PRS100: The Definitive Threading & Setup Guide for Frustration-Free Embroidery

If you’ve ever stared at your Brother PRS100 (Persona) and felt a rising wave of panic thinking, “I’m going to break something,” let me validate that feeling immediately. You are not alone. In my 20 years of training staff on embroidery floors, I’ve watched beginners buy high-end machines, run them once, and then let them gather dust simply because the threading process felt like a high-stakes bomb disposal operations.

Here is the truth that manuals rarely tell you: The Brother PRS100 is an engineering marvel, but it is tactile-dependent. It doesn't rely on visual routing alone; it relies on seating—the physical sensation of thread snapping into tension discs.

If you merely "pass" the thread through the guides, you will get the dreaded "Check Upper Thread" error. If you seat the thread, this machine becomes a workhorse.

This industry-level white paper rebuilds the threading path using the "Sensory Teaching" method. We will move beyond "put thread here" and focus on what you should feel and hear at every critical junction.

Meet the Brother PRS100 Persona: Why This Single-Needle Machine Loves Garments (But Demands Precision)

The brother prs100 embroidery machine fills a unique gap in the market. It is a single-needle machine, but it features a tubular free-arm. Unlike flatbed machines that require you to turn a t-shirt inside out and pray you don't stitch the front to the back, the PRS100 allows the garment to hang freely.

However, this design means gravity is constantly pulling on your garment. Because the machine is designed for "finished" items (hoodies, caps, tote bags), the tension system is calibrated to be sensitive.

The Golden Rule of the Persona: Threading is not a visual task; it is a mechanical one. You are engaging a tension system, not just drawing a line with string.

The “Hidden” Prep Pros Do First: Consumables and The 30-Second Reality Check

Before you touch the thread, we must eliminate the variables that cause 90% of "machine failure." Most failures are actually "setup failures."

The "Hidden" Consumables

Novices often miss these essential items. Ensure you have them within arm's reach:

• Non-permanent fabric marker/chalk: For marking center points.
• Tweezers: For grabbing short thread tails.
• Adhesive Spray (Temporary): Crucial for applique or float methods.
• Quality Stabilizer: Generic backing often leads to puckering.
• Correct Needles: The PRS100 typically uses HAx130 EBBR (Organ) or HLx5 (Schmetz). Do not use standard sewing machine needles.

Prep Checklist: The "Pre-Flight" Inspection

(Perform this before every thread change)

1. Check the Thread Path for Debris: Inspect Guide #2 (Pre-tension). Use a quick blast of canned air or a small brush to remove lint. Even a microscopic piece of fuzz can hold the tension disc open, causing looping.
2. Verify Needle Installation: Ensure the flat side of the needle shank faces the back. Push it all the way up until it hits the stop bar. Tighten the screw firmly.
   • Why? If the needle is 1mm too low, the auto-threader will miss the eye, bending the hook.
3. Spool Mechanics: Pull 18 inches (45cm) of thread. It should unwind with consistent resistance. If the spool has a jagged edge catching the thread, flip the spool or use a spool cap/net.
4. Confirm Machine Status: Ensure the presser foot is UP.
   • Physics: When the foot is up, the tension discs are open, accepting the thread. If the foot is down, the discs are closed, and the thread will never seat.

Warning: Physical Safety Hazard
Always keep fingers clear of the needle area when using the automatic needle threader or cutter. Embroidery needles are sharp and move effectively instantly. A sudden mechanism movement can puncture skin. Never hold the thread tightly against the needle clamp while the machine is cycling.

Spool Stand to Guide #1: The Geometry of Flow

Mount your spool securely. We recommend high-quality polyester thread (like Glide, Madeira, or SEWTECH private label) for the best sheen and strength.

Route the thread from behind through the hole marked “1” on the thread mast.

The "Why": Routing from behind aligns the thread with the vertical axis of the machine. If you route from the front, the thread enters the next guide at an acute angle, adding unnecessary friction (drag) before the tension system even begins.

The Make-or-Break Moment: Snapping into Guide #2 (The "Seatbelt" Rule)

Bring the thread down to the hole engraved “2” on the blue housing. This is the single most common failure point for beginners.

The Action:

1. Pass the thread through the hole.
2. Two-Hand Technique: Hold the thread tail with your left hand and the thread above the guide with your right hand. Floss it taut.
3. Pull the thread firmly under the silver metal tab.


Sensory Anchor (Auditory & Tactile):

• Hear: A sharp CLICK.
• Feel: A distinct "snap" as the thread bypasses the retention clip.
• Test: If the thread feels "floaty" or loose, you missed it. It should feel captured, like a seatbelt locked in place.

If you skip this, the machine’s sensors will think the thread is broken, resulting in the "Check Upper Thread" error loop.

The Tension Wheel Canal Test: Engaging the Clutch

Follow the arrow around the large blue tension knob.

The Action: Route the thread deeply into the groove (canal) of the tension wheel.

Sensory Anchor (Visual): Pull the thread gently. Watch the small inner silver wheel inside the blue knob.

• Success: The inner wheel rotates with your pulling motion.
• Failure: The inner wheel stays static. This means the thread is riding on the rim, not in the groove. You will have zero tension control.

The Post-Tension Snap: Stabilizing the Flow

Immediately after the wheel, there is another silver clip (Guide #3 area).

The Action: Again, use two hands to snap the thread under this metal tab.

The "Why": This tab acts as a refined guide to ensure the thread enters the take-up lever at a consistent angle, preventing the thread from jumping out of the tension disc during high-speed (1000 SPM) stitching.

Guide #4, The U-Turn, and The Take-Up Lever: The Slack Managers

Pull the thread down the right channel (Guide #4), follow the printed hook icon for the U-turn, and bring it up to the Take-Up Lever.

The Action: Thread the Take-Up Lever eye from Right to Left.

Sensory Anchor (Visual): Ensure the thread is fully inside the eyelet of the lever. The Take-Up Lever is the "heartbeat" of the machine—it pulls the stitch tight. If the thread slips out of this lever, you will get massive birdnests (thread tangles) instantly.

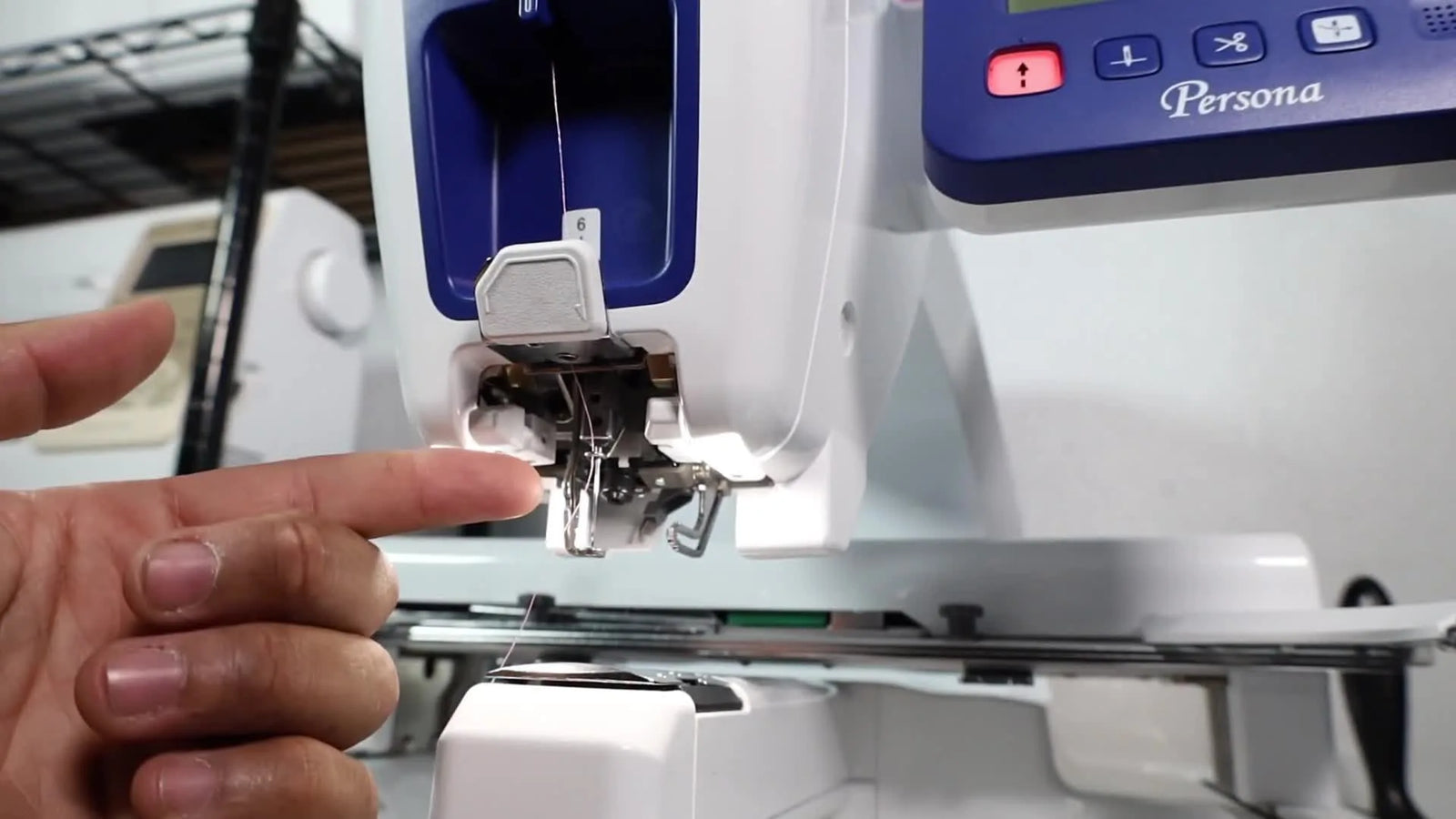

Guide #6 and The Needle Bar: The Final Approach

Bring the thread down the central channel to Guide #6 (the hole just above the needle).

The Pro Tip: Pull about 6 inches of slack through Guide #6. Do not keep the thread tight here; you need loose thread for the automatic threader to function.

The White Tool Trick: Mastering the Wire Guide

Use the included white accessory tool. Place the thread in the fork and push it behind the small horizontal wire loop directly above the needle clamp.

Sensory Anchor (Tactile): You should feel the thread slip behind the wire. This wire keeps the thread close to the needle shaft so the auto-threader hook can grab it. Without this, the auto-threader will swing into empty air.

The Automatic Needle Threader: The 4-Step Waltz

Press the "Automatic Threading" button once to lower the mechanism.

The Action:

1. Hook: Guide the thread under the large right prong.
2. Catch: Pull the thread across into the guide crevice.
3. Cut: Pull the thread up through the side cutter to trim the tail.
4. Execute: Press the button again.






Success Metric: You see a loop of thread sticking out of the back of the needle eye. Gently pull this loop to free the tail.

If you are new to the brother persona embroidery machine, repeat this physical sequence 5 times before starting your project. Build the muscle memory.

Decision Tree: Fabric, Stabilizer, & Needle Logic

Threading is only 50% of the equation. The other 50% is the interaction between your materials. Use this logic tree to prevent puckering and holes.

Note: For high-volume production, consider upgrading to commercial-grade stabilizers (like SEWTECH pre-cuts) to ensure consistent density support.

Troubleshooting: The "Why Won't It Work" Matrix

When frustration hits, stop. Do not adjust the tension knob randomly. Follow this Low Cost → High Cost troubleshooting path.

Symptom: "Check Upper Thread" Error (False Alarm)

• Likely Cause: Thread missed the "Click" at Guide #2.
• Fix: Remove thread completely. Re-thread using the "Two-Hand Dental Floss" technique at Guide #2.

Symptom: Birdnesting (Tangle underneath fabric)

• Likely Cause: Zero top tension (Thread missed the Tension Wheel).
• Fix: Ensure thread is in the tension groove and the presser foot was UP during threading.

Symptom: Needle Breaks Loudly

• Likely Cause: Needle deflection or wrong needle type.
• Fix: Verify you are using embroidery needles (flat back), not universal sewing needles. Check if the needle is hitting the hoop (design not centered).

Symptom: Auto-Threader Misses the Eye

• Likely Cause: Needle bent or not inserted fully.
• Fix: Replace the needle. Ensure it is pushed to the absolute top of the stopper.

The Business of Hooping: Upgrading Your Workflow

Once you master threading, your next bottleneck will be hooping. The standard plastic hoops included with the machine are functional but can be slow and physically demanding to use on thick garments like Carhartt jackets or heavy hoodies.

Many beginners experience "Hoop Burn"—permanent rings left on delicate fabrics by the friction of standard plastic hoops. Furthermore, the repetitive motion of tightening screws can lead to wrist strain in a production environment.

Criteria for Upgrade: If you find yourself:

1. Struggling to hoop thick seams.
2. Ruining garments with hoop marks.
3. Spending more than 3 minutes hooping a single shirt.

It is time to consider magnetic embroidery hoops. These use powerful magnets to sandwich the fabric without forcing it into a ring, virtually eliminating hoop burn and reducing hooping time to seconds. Professionals combine these with a hooping station for machine embroidery to ensure perfect placement every time.

For the PRS100, specific magnetic frames (compatible with the tubular arm) are a game-changer for anyone looking to move from "hobbyist" to "side hustle."

Warning: Magnetic Field Hazard
SEWTECH Magnetic Hoops contain powerful neodymium magnets.
* Pinch Hazard: Handles clips with care; they can snap together with enough force to injure fingers.
* Medical Devices: Keep at least 6 inches away from pacemakers or other implanted medical devices.
* Electronics: Keep away from credit cards and smartphones.

Setup Checklist: The "Go/No-Go" Sequence

Print this out and tape it to your wall.

Setup Checklist

• Thread: Secured on stand, routed from behind.
• Guide 2: "CLICK" sound confirmed.
• Tension: Thread in canal, inner wheel rotates.
• Take-Up: Threaded R-to-L, fully in eyelet.
• Needle: Thread behind the wire guide.
• Bobbin: Area clean, bobbin case seated correctly.
• Hoop: Attached firmly, fabric is taut (free of wrinkles), arms of shirt are clear of the needle path.

Operation Checklist: The First 100 Stitches

Do not walk away after pressing start.

Operation Checklist

• Speed: For your first test, set the machine speed to 600 SPM (Stitches Per Minute). Max speed (1000 SPM) is for when everything is perfect.
• Sound: Listen. A happy machine makes a rhythmic, sewing-machine hum. A loud "THUMP-THUMP" means the needle is dull or hitting something.
• Sight: Watch the first color block. If you see loops on top, stop immediately—your top tension is loose.

Conclusion: From Fear to Production

Mastering the Brother PRS100 is about respecting the physics of the machine. It is a precision instrument that rewards precision inputs. By focusing on seating the thread rather than just routing it, you eliminate the variable of "machine error."

Once your threading is rock-solid, your journey shifts to efficiency. Whether that means upgrading to SEWTECH Magnetic Hoops for speed, or eventually scaling up to a multi-needle machine for 6-color designs, the foundation remains the same: Quality input equals quality output.

Now, take a deep breath, listen for that click, and press start. You’ve got this.

FAQ

• Q: Which needles should be used on the Brother PRS100 Persona to avoid needle breaks and auto-threader misses?
  A: Use embroidery-system needles (not universal sewing needles) and install the needle fully to the top stop with the flat side facing the back.
  • Install: Insert the needle all the way up until it hits the stopper bar, then tighten the screw firmly.
  • Choose: Use HAx130 EBBR (Organ) or HLx5 (Schmetz) as the typical needle systems for Brother PRS100.
  • Replace: Swap in a new needle if the automatic needle threader starts missing the eye.
  • Success check: The auto-threader catches and pulls a loop cleanly through the needle eye.
  • If it still fails: Re-check the needle is not even 1 mm low and confirm the thread is positioned behind the small wire loop above the needle clamp.
• Q: How do I stop the Brother PRS100 “Check Upper Thread” error when the thread looks correctly routed?
  A: Re-thread and make sure the thread “clicks” into Guide #2 under the silver metal tab—this is the most common miss.
  • Raise: Put the presser foot UP before threading so the tension discs are open.
  • Re-thread: Remove the thread completely, then floss with two hands and pull firmly under the Guide #2 silver tab.
  • Confirm: Repeat the same snap-under action at the post-tension silver clip (Guide #3 area).
  • Success check: You hear a sharp “CLICK” and the thread feels captured (not floaty), like a seatbelt locking.
  • If it still fails: Inspect Guide #2 (pre-tension) for lint/debris and clean it with a small brush or canned air.
• Q: How do I fix birdnesting (thread tangles underneath the fabric) on a Brother PRS100 after re-threading?
  A: Birdnesting on the Brother PRS100 usually means the top thread is not seated in the tension wheel groove (zero usable top tension).
  • Re-thread: Thread with the presser foot UP, then route the thread deeply into the tension wheel canal.
  • Test: Gently pull the thread while watching the small inner silver wheel inside the blue knob.
  • Re-seat: If the inner wheel does not move, re-route the thread into the groove (it may be riding on the rim).
  • Success check: The inner silver wheel rotates when you pull the thread.
  • If it still fails: Verify the take-up lever is fully threaded (right-to-left) and the thread has not slipped out of the take-up lever eyelet.
• Q: What is the fastest pre-flight checklist on a Brother PRS100 to prevent puckering and false “machine problems”?
  A: Do a 30-second pre-flight: clean Guide #2, confirm correct needle orientation/height, verify spool unwind, and thread only with the presser foot UP.
  • Inspect: Check Guide #2 (pre-tension) for lint and clear it quickly (brush/canned air).
  • Verify: Confirm the needle flat side faces the back and the needle is pushed fully up to the stop.
  • Pull: Draw about 18 inches (45 cm) of thread from the spool; fix snaggy unwind by flipping the spool or using a spool cap/net.
  • Success check: Thread pulls with consistent resistance and the machine threads without immediate looping or “Check Upper Thread.”
  • If it still fails: Review stabilizer choice for the fabric type (cut-away for knits, tear-away for stable wovens) before touching tension settings.
• Q: How can I tell the Brother PRS100 top threading is truly correct before pressing start?
  A: Use three quick “success signals”: Guide #2 click, tension wheel inner-wheel rotation, and take-up lever fully captured.
  • Confirm: Listen/feel for the Guide #2 “CLICK” when snapping under the silver tab.
  • Watch: Pull thread gently and verify the inner silver wheel in the tension knob rotates.
  • Check: Ensure the take-up lever is threaded right-to-left and the thread is fully inside the lever eyelet.
  • Success check: The thread feels controlled (not loose/floaty) and the inner wheel turns when pulled.
  • If it still fails: Re-do the white tool step to place thread behind the horizontal wire loop above the needle clamp so the thread stays aligned for stitching and auto-threading.
• Q: What safety steps should be followed when using the Brother PRS100 automatic needle threader and cutter?
  A: Keep fingers completely clear of the needle area and never hold the thread tightly against the needle clamp while the machine cycles.
  • Position: Hold thread tails away from the needle path before pressing the automatic threading button.
  • Operate: Press once to lower the mechanism, route under the prong/into the crevice, trim with the side cutter, then press again to execute.
  • Release: Pull the resulting loop gently from the back of the needle eye—do not tug near the needle clamp.
  • Success check: A visible loop forms through the needle eye without any finger contact near moving parts.
  • If it still fails: Stop and replace a bent/dull needle before trying again (forcing the mechanism can cause damage or injury).
• Q: When should Brother PRS100 users upgrade from standard hoops to magnetic embroidery hoops for thick garments and hoop burn prevention?
  A: Consider magnetic embroidery hoops when hooping is slow, leaves permanent hoop marks, or struggles over thick seams—start with technique, then upgrade tools, then consider production scaling.
  • Level 1 (Technique): Reduce hoop burn by hooping correctly and keeping fabric taut without over-stressing delicate materials.
  • Level 2 (Tool): Switch to magnetic hoops if hooping thick hoodies/jackets is difficult, hoop marks are happening, or hooping a shirt routinely takes more than 3 minutes.
  • Level 3 (Capacity): If demand grows beyond efficient single-color workflows, a multi-needle setup may be the next step for faster color changes.
  • Success check: Hooping time drops to seconds and garments show minimal-to-no hoop rings after stitching.
  • If it still fails: Add a hooping station to improve placement consistency and reduce re-hooping caused by misalignment.
• Q: What magnetic field safety rules should be followed when using SEWTECH magnetic embroidery hoops?
  A: Treat SEWTECH magnetic hoops like power tools: avoid finger pinch points and keep magnets away from medical implants and sensitive electronics.
  • Handle: Keep fingers out of the closing area—magnets can snap together hard enough to injure skin.
  • Separate: Store magnets closed/controlled so they do not jump together unexpectedly.
  • Distance: Keep at least 6 inches away from pacemakers or other implanted medical devices.
  • Success check: The hoop closes without finger contact in the pinch zone and remains stable on the garment without sudden magnet movement.
  • If it still fails: Stop using the hoop until handling technique is controlled—unsafe handling is a process issue, not a strength issue.
