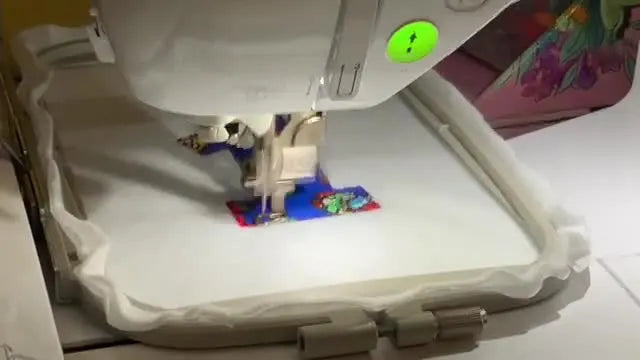

Brother SE1900 Appliqué That Actually Lines Up: The 3-Stop Method (Placement, Tack-Down, Satin) Without the Usual Headaches

Mastering Appliqué on the Brother SE1900: A Field Guide for Precision Results

Appliqué is deceptive. It looks like the easiest technique in embroidery—just "sew and cut"—until you are mid-stitch, your fabric shifts 2mm to the left, and your final satin stitch misses the raw edge completely. Suddenly, a $20 blank shirt is ruin, and you are left frustrated with a pile of thread nests.

If you are operating a Brother SE1900 and hunting for a verifiable, repeatable engineering process rather than "hope and pray," you are in the right place. Appliqué success isn't about luck; it is about respecting the physics of the specialized file type and mastering two specific variables: absolute hoop stability and surgical trimming.

The "3-Stop Physics" of Appliqué Files

Before we thread the machine, we must correct a common cognitive error. Beginners often try to "force" a standard embroidery file to become an appliqué by pausing it manually. This is a recipe for failure.

A true appliqué file is programmed with Machine Stops. It is designed to pause automatically at three critical junctures. In the Embrilliance simulator, Jeanette demonstrates this logic. When you load a file, you aren't just looking at the picture; you are looking for the Command Chain:

1. Placement Stitch (The Map): A running stitch that marks exactly where your fabric must go.
2. Tack-Down Stitch (The Anchor): A second running stitch (often zig-zag or double run) that locks the fabric to the stabilizer.
3. Satin Stitch (The Finish): A high-density column stitch that encases the raw edges.

Expert Rule of Thumb: If your machine doesn't stop automatically after the outline, you are likely using the wrong file type.

The Foundation: Prep, Stabilization, and "Invisible" Consumables

Jeanette demonstrates using white felt with tearaway stabilizer in a 5x7 hoop, using red thread for high contrast. This is excellent for a tutorial, but for your production environment, we need to calibrate for real-world variables.

Sensory Check: Hooping Tension

When you hoop your stabilizer, tap it with your finger. It should sound like a tight drum skin—a sharp thwack, not a dull thud. If the stabilizer is loose, the pull-compensation of the machine will distort your shape (circles become ovals; squares become rhombuses).

Consumables You Might Be Missing

While Jeanette uses felt (which clings well), if you are stitching on slippery cotton or knits, you need more than just the hoop:

• Temporary Spray Adhesive (e.g., KK100 or 505): A light mist prevents the fabric from bubbling during the tack-down.
• New Needle: Use a 75/11 Embroidery Needle. If the needle is dull, you will hear a "popping" sound as it punches through fabric, which can cause registration loss.

The Hoop Factor

If you plan to do volume, the hoop itself becomes a variable. Standard clamped hoops work, but they rely on hand strength. If you are researching embroidery hoops for brother machines, look for rigidity. Any flex in the outer ring during the satin stitch causes gaps.

Prep Checklist (Pre-Flight Protocol)

• File Validation: Confirm the design shows the 3-stop sequence (Placement → Tack-down → Satin).
• Stabilizer Selection: Hoop stabilizer drum-tight (listen for the thwack).
• Bobbin Check: Ensure the bobbin is full. Running out of bobbin thread mid-satin stitch is a nightmare repair.
• Machine Config: Set speed to Beginner Sweet Spot (350 - 600 SPM). High speed (850+) increases the risk of fabric shifting during the critical satin phase.
• Tool Station: Place duckbill scissors, tweezers, and snips within arm's reach.


The Simulation: Visualizing the Workflow

Jeanette uses Embrilliance Essentials to preview the "1" digit. This step is your mental rehearsal.

Why verify on screen? Brother machines read .PES files. However, sometimes file conversion errors occur. By running the simulator, you confirm that the "stop" commands are actual machine stops, not just color changes.

Data Point: Standard density for satin stitches is usually 0.4mm. If the simulator looks too dense (solid block of color) or too loose (you can see background), check the file properties now, not after you've ruined a shirt.

Phase 1: The Placement Stitch (The Blueprint)

Engage the machine for the first stop. The needle will draw a single outline on your stabilizer.

Success Metric:

• Visual: The line is crisp.
• Tactile: The stabilizer should not pucker or wrinkle around the needle penetration points.
• Troubleshooting: If the stabilizer wrinkles now, your hoop tension is too loose. Stop immediately. Re-hoop. If you continue, the final design will not align.


Phase 2: Fabric Placement & The "Directional Trap"

This is the most common failure point for intermediate users. Jeanette places a piece of Super Mario print cotton over the outline.

The "Cover Logic": Your fabric swatch must extend at least 0.5 to 1 inch past the placement line on all sides. Do not be stingy with scraps.

The Directional Hazard: Jeanette notes her Mario print ended up upside down.

• The Fix: Use a water-soluble pen or a piece of painter's tape to mark "TOP" on your fabric scrap before laying it down.
• Physics: Once the fabric is placed, do not stretch it. Lay it flat. If you stretch a knit fabric now, it will snap back later, creating puckers around the appliqué.


Phase 3: The Tack-Down Stitch (The Anchor)

Start the machine again. It will stitch the Tack-Down line, securing your fabric to the stabilizer.

Sensory Anchor: Watch the presser foot. It should glide over the fabric. If you see a "wave" of fabric building up in front of the foot (called "plowing"), pause the machine. Smooth the fabric (keep fingers away from the needle!) and restart. This is why a light mist of spray adhesive is often superior to just floating the fabric.

Setup Checklist (Before Trimming)

• Check the Anchor: Ensure the tack-down stitch is complete and has no skipped stitches.
• Workflow Safety: Lift the presser foot. Remove the hoop from the machine arm, but NEVER un-hoop the fabric from the ring.
• Environment: Move the hoop to a flat, well-lit surface/table. Do not trim on your lap; instability leads to accidents.


Phase 4: The Precision Trim (The High Stakes)

This is the skill that separates amateurs from pros. Jeanette uses duckbill scissors, and for good reason. The wide "bill" of the scissors separates the loose fabric (top) from the stabilizer/base (bottom), preventing you from cutting a hole in your project.

The Technique:

1. Pull Gently: Lift the excess fabric edge slightly with your non-cutting hand.
2. Glide: Rest the "bill" of the scissors flat against the tack-down stitch.
3. Cut: Trim as close to the stitch as possible—aim for 1mm to 2mm clearance.

Warning: Mechanical Hazard. Standard scissors have sharp points that easily snag the tack-down thread or puncture the stabilizer below. One snip of the tack-down thread destroys the anchor, and the satin stitch will later unravel. Approach this step with extreme patience.

Quality Control: If you leave too much fabric (3mm+), the satin stitch won’t cover it, and you'll have "whiskers" poking out. If you cut the stitches, the appliqué will fail in the wash.

The Re-Attachment Risk: Why Workflow Matters

After trimming, you must reattach the hoop to the SE1900.

The "Hoop Burn" Reality: If you are doing a single birthday shirt, a standard hoop is fine. However, if you are doing a production run (e.g., 20 team shirts), the constant friction of clamping and unclamping, plus the force required to keep fabric "drum tight," can leave permanent ring marks (hoop burn) on sensitive fabrics like velvet or performance wear.

The Industrial Solution: This is a diagnosing criterion for tool upgrades. If you find yourself struggling with bulky items (hoodies) or fearing hoop burn, professionals switch to a magnetic hoop for brother se1900.

• Why? Magnets clamp straight down, avoiding the "tug and screw" friction.
• Efficiency: It reduces the "remove-trim-reattach" cycle time significantly because the hoop slides back into the carriage with less structural wrestling.

Warning: Magnetic Safety. Industrial-strength magnets are powerful. They can pinch skin severely (blood blister hazard) and interfere with pacemakers. Keep credit cards and phones at least 12 inches away.

Phase 5: The Satin Stitch (The Finish)

Jeanette starts the final pass. The machine will execute a dense zig-zag column.

Speed Limit Recommendation: Even if the SE1900 can go 850 SPM, run your satin stitch at 400-500 SPM.

• Why? Satin stitches generate heat and friction. High speed increases thread tension, causing the fabric to curl (tunneling). Slower speeds yield a flatter, glossier finish.

The "Jump Thread" Protocol: As the machine travels from one section to another, it leaves "jump threads."

• Action: Pause the machine. Trim these tails closely immediately.
• Risk: If you wait, the satin stitch will sew over them, trapping an ugly loose thread permanently under your beautiful design.


Operation Checklist (Mid-Stitch)

• Monitor Edges: Watch the first 50 stitches. Is the satin column covering the raw edge?
• Trim Fuzz: If you see "whiskers" (fabric fibers) poking through the satin, pause. Use fine-point tweezers and snips to perform a micro-trim.
• Tension Check: Look at the back of the hoop later. You should see 1/3 white bobbin thread in the center of the satin column. If you see top thread looped on the bottom, your top tension is too loose.


Advanced Material Science: Beyond Cotton

Jeanette mentions Heat n Bond and Glitter Vinyl. Let's elevate this with material logic.

Visualizing the Stack:

• Heat n Bond Lite: Fusion adds weight to the appliqué fabric, reducing fraying. Highly recommended for cotton-on-cotton appliqué.
• Glitter Vinyl:
  • The Trap: Most vinyl comes with a clear plastic carrier sheet on top.
  • The Fix: You MUST peel this plastic layer before stitching. If you stitch through it, the needle will gum up, heat up, and potentially shred the thread.


Decision Tree: Selecting the Right Support System

Beginners often ask, "What stabilizer do I use?" The answer is never random; it is dictated by the Elasticity of the Base Fabric.

Use this logic to prevent "Nesting" and "Tunneling":

START: What is your Base Fabric?

• 1. Stable / Non-Stretch (e.g., Denim, Canvas, Felt, Towels)
  • Stabilizer: Tearaway.
  • Logic: The fabric supports itself; the stabilizer just adds temporary rigidity.
• 2. Unstable / Stretchy (e.g., T-Shirts, Hoodies, Baby Bodysuits, Performance Wear)
  • Stabilizer: Cutaway (Polymesh).
  • Logic: Non-negotiable. Knits stretch. A satin stitch is heavy. If you use tearaway, the stitches will pull the knitting together, creating a puckered tunnel. Cutaway stays forever to support the heavy embroidery for the life of the garment.
  • Adhesive: Use temporary spray adhesive to float the garment on the hooped cutaway.
• 3. Delicate / Easily Marred (e.g., Velvet, Silk)
  • Stabilizer: Cutaway or specialized soft backing.
  • Tooling: This is a prime scenario for brother se1900 hoops that utilize magnetic force, as they prevent the "crush marks" standard hoops leave on pile fabrics.


Troubleshooting: The "Why Did It Fail?" Matrix

Below are the symptoms Jeanette alludes to, verified against shop experience.

The Efficiency Frontier: When to Upgrade

Appliqué is a high-margin technique because it covers large areas with low stitch counts (saving machine time). However, it is labor-intensive due to the stops.

Diagnostic: Are you outgrowing your setup?

• Pain Point 1: Hand Fatigue & Hoop Burn.
  If you are producing 50+ shirts and your wrists ache from tightening standard hoop screws, or you are wasting time steaming out hoop marks, you have hit a hardware ceiling.
  • Solution: Professional studios switch to magnetic embroidery hoops. The magnetic force provides consistent, even tension without the manual torque, protecting both your wrists and the client's fabric.
• Pain Point 2: Calibration Time.
  For repeatable accuracy on items like left-chest logos or uniform numbers, eyeballing alignment is risky.
  • Solution: Integrating hooping stations ensures that every shirt is hooped in the exact same spot, reducing the reject rate ("seconds").
• Pain Point 3: The Single-Needle Bottleneck.
  The SE1900 is a fantastic machine, but it requires you to manually change threads for multicolor designs. If you are doing multi-color appliqué characters, 50% of your time is spent re-threading.
  • Solution: This is the trigger to look at Multi-Needle Machines (like SEWTECH models). They hold all colors simultaneously and often have dedicated "Appliqué Modes" that push the frame out for trimming automatically, removing the manual labor entirely.

Even if you stick with the SE1900, consider a repositionable embroidery hoop or simply a larger 5x12 multi-position hoop if you need to combine designs without re-hooping.

Final Word: Appliqué is a discipline of stops and starts. Respect the placement line, anchor the fabric securely (mechanically or chemically), and trim with the precision of a surgeon. Do this, and your SE1900 will produce results that rival industrial output.

FAQ

• Q: Brother SE1900 appliqué designs do not stop automatically after the placement outline—how can Brother SE1900 users confirm the correct appliqué file type?
  A: Use an appliqué-specific file that contains true machine stops (Placement → Tack-down → Satin), not manual pausing.
  • Preview the design in software and confirm the command chain shows three distinct stops, not just color changes.
  • Re-load the original file format the Brother SE1900 reads (.PES) if a conversion may have removed stop commands.
  • Slow the workflow down and verify the first stop happens right after the placement stitch completes.
  • Success check: The Brother SE1900 pauses automatically after the placement outline and again after the tack-down line.
  • If it still fails: Replace the design with a known appliqué file that is explicitly programmed for automatic stops.
• Q: How tight should stabilizer hooping feel on a Brother SE1900 5x7 hoop to prevent appliqué misalignment?
  A: Hoop the stabilizer “drum-tight”—loose hooping is a primary cause of shape distortion and registration shift.
  • Tap the hooped stabilizer with a finger before stitching.
  • Re-hoop immediately if the stabilizer sounds dull or feels springy.
  • Start the placement stitch and stop early if ripples form around needle penetrations.
  • Success check: The tap test produces a sharp “thwack,” and the placement line stitches crisp with no puckering.
  • If it still fails: Add temporary spray adhesive for slippery fabrics so the fabric does not bubble during tack-down.
• Q: Brother SE1900 appliqué satin stitch is missing the fabric edge—what is the fastest way to stop Brother SE1900 appliqué fabric shifting?
  A: Treat this as a stability problem: re-hoop drum-tight and secure the appliqué fabric before the tack-down stitch.
  • Re-hoop the stabilizer with firm, even tension (do not leave slack).
  • Apply a light mist of temporary spray adhesive to prevent fabric bubbling during tack-down.
  • Keep satin stitch speed conservative (about 400–500 SPM) to reduce pull and shifting during the dense finish.
  • Success check: In the first 50 satin stitches, the satin column consistently covers the raw edge all the way around.
  • If it still fails: Verify trimming was done after a complete tack-down line and the hoop was never un-hooped between trim and reattachment.
• Q: What trimming clearance should Brother SE1900 users leave when cutting appliqué fabric after the tack-down stitch to prevent “whiskers”?
  A: Trim very close—aim for about 1–2 mm outside the tack-down line, using duckbill scissors for control.
  • Remove the hoop from the machine arm but never un-hoop the fabric from the ring.
  • Glide the duckbill blade flat against the tack-down stitches and cut slowly around the shape.
  • Avoid pointed scissors that can snag the tack-down thread or puncture the stabilizer.
  • Success check: No raw fabric “whiskers” extend beyond the future satin coverage, and the tack-down stitches remain intact.
  • If it still fails: Pause during satin stitching and perform a micro-trim with tweezers/snips where fibers poke through.
• Q: What stabilizer should Brother SE1900 users choose for appliqué on T-shirts and hoodies to reduce puckering and tunneling?
  A: Use cutaway (polymesh) for stretchy knits—tearaway is a common cause of puckering under dense satin stitches.
  • Hoop cutaway stabilizer drum-tight and float the garment on top.
  • Use temporary spray adhesive to keep the knit from shifting during tack-down.
  • Avoid stretching the garment while positioning; lay it flat and neutral.
  • Success check: After stitching, the area around the appliqué lies flat without a raised “tunnel” ridge.
  • If it still fails: Re-check that the garment was not stretched during hooping and reduce speed during the satin phase.
• Q: What does correct Brother SE1900 satin stitch tension look like on the back of an appliqué, and how do Brother SE1900 users fix bobbin thread showing on top?
  A: Use the back-of-design check: a balanced satin stitch typically shows about 1/3 bobbin thread centered on the underside; visible white bobbin thread on top usually indicates tension or bobbin-area issues.
  • Inspect the underside of the satin column after stitching a test section.
  • Clean lint from the bobbin case area before chasing settings.
  • Adjust top tension slightly looser if the top tension is too tight (change in small steps).
  • Success check: The underside shows a centered bobbin “rail,” and the top surface looks smooth without bobbin thread peeking through.
  • If it still fails: Re-test after cleaning and confirm the machine is not running at high speed during the satin stitch.
• Q: What safety steps should Brother SE1900 users follow when trimming appliqué fabric to avoid cutting the tack-down stitches or injuring hands near the needle?
  A: Remove the hoop from the machine for trimming and use duckbill scissors—rushing this step is how tack-down stitches get cut.
  • Lift the presser foot and detach the hoop from the machine arm before any cutting.
  • Move to a flat, well-lit table; do not trim on your lap.
  • Keep fingers away from the needle area when smoothing fabric during stitching; pause the machine before repositioning fabric.
  • Success check: The tack-down stitch ring is continuous (not nicked) and the fabric is trimmed evenly without holes.
  • If it still fails: Re-stitching usually cannot “repair” a cut tack-down—restart the appliqué with a new placement/tack-down cycle.
• Q: When should Brother SE1900 users switch from a standard clamped hoop to a magnetic hoop for appliqué production, and what magnetic hoop safety rules matter most?
  A: Upgrade to a magnetic hoop when hoop burn, hand fatigue, or repeated reattachment time becomes the bottleneck—magnets clamp straight down with more consistent pressure.
  • Choose the upgrade when ring marks appear on delicate fabrics (velvet/performance wear) or when frequent clamping/unclamping slows production.
  • Use magnetic hoops to reduce “wrestling” the hoop during remove–trim–reattach cycles.
  • Follow magnetic safety: keep magnets away from pacemakers and keep phones/credit cards at least 12 inches away; handle carefully to avoid pinched skin.
  • Success check: Hooping is faster, fabric shows fewer clamp marks, and reattachment feels consistent without excessive force.
  • If it still fails: Treat persistent shifting as a stabilization/adhesive issue first, then consider workflow aids like consistent positioning tools for repeatability.
