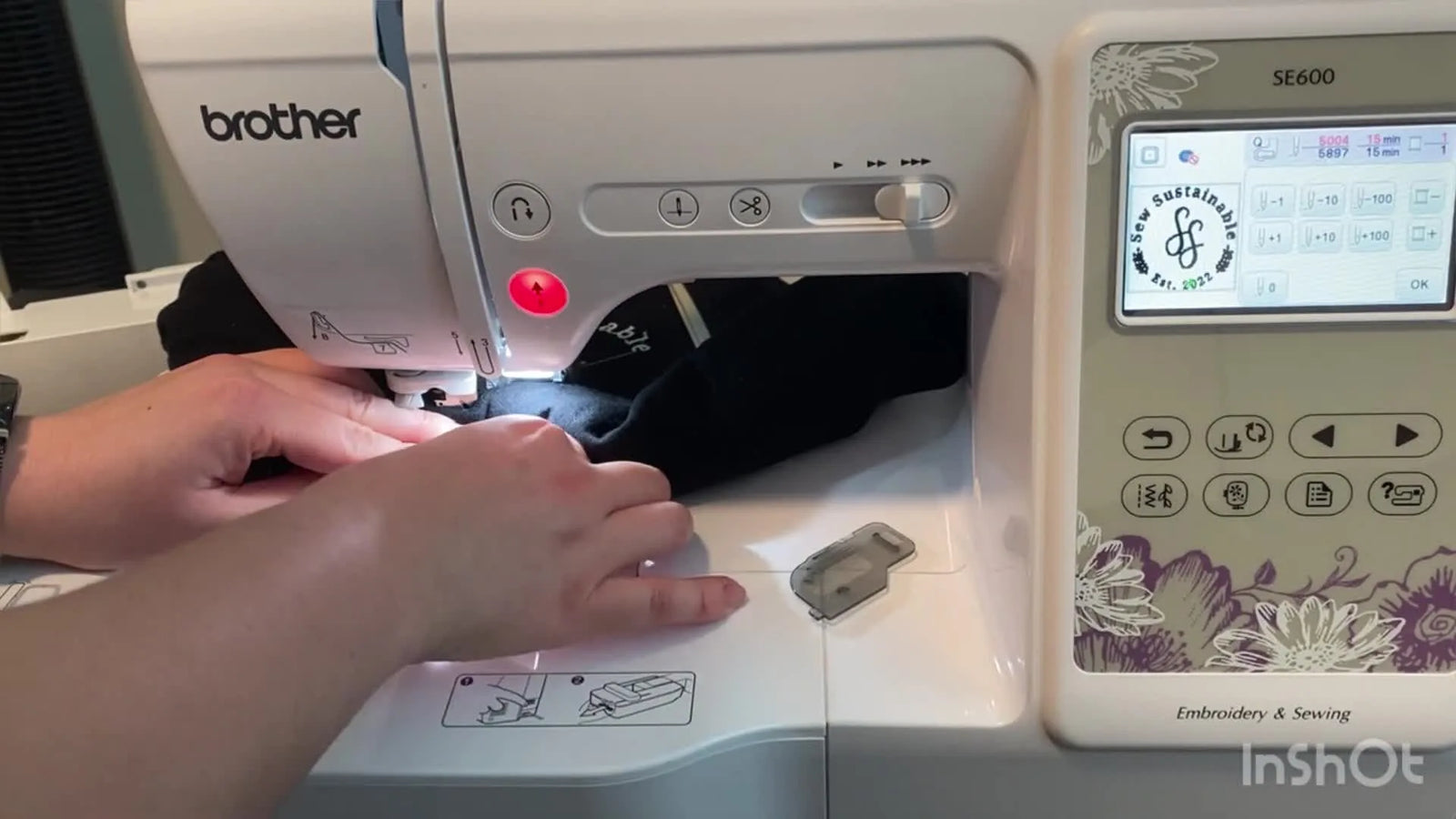

Brother SE600 Custom Logo on a T-Shirt: Clean Hooping, Fast USB Setup, and the “Safety Device Activated” Fix That Saves Your Stitch-Out

How to Embroider T-Shirts on a Brother SE600 Without Ruining Them: A Zero-Friction Guide

If you’ve ever stared at your Brother SE600 while it flashes the terrifying "Safety Device Activated" message, you aren’t "bad at embroidery." You are simply hitting the physical limits of physics and fabric.

Embroidery is a battle against tension. T-shirts want to stretch; stitches want to pull them together. Your job is to referee that fight.

In this guide, we will break down a real-world project: stitching a monochrome business logo (~5,900 stitches) on a black cotton jersey T-shirt. We will move beyond the basic manual to cover the sensory cues—the sounds and feelings—that tell you if your project is about to succeed or fail.

1. The "Don't Panic" Moment: Decoding Machine Errors

When your SE600 stops mid-stitch and locks up, it is not broken. It is protecting itself.

In this specific project, the machine stops on the dot of a lowercase "i." Why here?

• The Physics: Small dots require high-density stitching in one spot.
• The Failure: If the thread creates a "bird's nest" (tangle) underneath, the needle cannot penetrate. The machine feels this resistance and triggers the safety stop to prevent bending the needle bar.

The Expert Fix: Do not force the handwheel. If you hear a grinding noise before the error, your thread path is likely obstructed.

2. Professional Prep: The "Mise-en-place"

Before you even touch the machine, you must prepare your environment. The difference between a "homemade" look and a "pro" look is usually 90% preparation.

The Material Stack

• Fabric: Black Cotton Jersey T-Shirt (Stretchy).
• Stabilizer: The video uses Tearaway, but Expert Note: For wearables that touch skin, Polymesh (No-Show Mesh) Cutaway is the industry gold standard. It prevents the design from distorting after a wash. If you use Tearaway, ensure it is high quality.
• Needle: 75/11 Ballpoint Needle (Essential for knits to avoid cutting fabric fibers).
• Thread: 40wt Polyester (Top) + 60wt or 90wt Bobbin Thread.

The Hidden Consumables

• Lint Roller: Absolutely critical on black fabric. White lint stitched under your thread will peek through later.
• Curved Scissors: For precise trimming without snipping the shirt.

Commercial Insight: The Hoop Burn Problem

If you are struggling to hoop a thick shirt, or if you see a shiny "ring" (hoop burn) on the fabric after removal, your standard plastic hoop is crushing the fibers.

• Trigger: Cramping hands or fabric marks.
• Solution: Professionals switch to magnetic embroidery hoops. These hold the fabric with magnetic force rather than friction, eliminating hoop burn and reducing wrist strain.

Prep Checklist:

• Lint Roll: The entire chest area is free of dust.
• Needle Check: Run your fingernail down the needle tip. If it catches, throw it away. Install a fresh Ballpoint needle.
• Bobbin: Wind two bobbins. Embroidery consumes thread faster than sewing.
• File: Design is loaded on USB (ensure file format is .pes for Brother).


3. Hooping Physics: The "Tambourine" Rule

Hooping knits is tricky. Too loose, and you get gaps. Too tight, and the shirt puckers when removed.

The Process:

1. Sandwich: Place the outer hoop -> Stabilizer -> Shirt -> Inner Hoop.
2. Align: Use the plastic grid template to find your center.
3. Press: Push the inner hoop down.
4. Feel the Tension: Gently pull the fabric edges only to remove wrinkles, then tighten the screw.

Sensory Check:

• Touch: Tap the hooped fabric. It should have a slight bounce, like a distinct drum, but do not stretch it so tight that the jersey ribs distort. If the grid lines on the shirt look curved, you have over-stretched it.

Warning (Magnetic Safety): If you upgrade to a brother 4x4 embroidery hoop that uses magnets, keep them away from pacemakers and bank cards. The pinch force is strong—watch your fingers!

4. Machine Conversion: From Sewing to Embroidery

Transforming the SE600 requires a specific sequence to avoid sensor errors.

1. Remove Tray: Slide off the accessory compartment.
2. Attach Arm: Slide the embroidery unit on. Listen for a solid click. If it wiggles, it is not seated.
3. Foot Swap: Unscrew the 'J' foot; attach the 'Q' (Embroidery) foot.

Warning (Safety): Always turn the machine OFF when changing the foot. If your foot hits the Start/Stop button while your finger is under the needle, the needle will go through your finger.

5. The Digital Handshake: Loading & Tracing

Load your USB. Expert Tip: If you bought a digitizing file, do not resize it on the machine more than 10%. Scaling a design up spreads stitches too thin; scaling down clumps them causing needle breaks.

The "Trace" Save

Never press "Start" without tracing.

1. Load: Slide hoop onto carriage. Lock the grey lever.
2. Manage Excess: Roll the extra T-shirt fabric (neck/sleeves) tightly completely out of the way. Use clips if necessary.
3. Trace: Press the button with the square/arrow icon. Watch the needle move (without stitching).
4. Result: Does the needle verify the area without hitting the plastic hoop edge? Does it come close to a fold in the shirt?

If you plan to do batch production (10+ shirts), this is where a magnetic hoop for brother saves time. You trace once, then just slap the next shirt in the magnets without recalibrating every time.

Setup Checklist:

• Hoop Lock: Grey lever is down and locked.
• Clearance: No T-shirt fabric is tucked under the hoop sliding area.
• Foot: 'Q' Foot is installed.
• Speed: Set machine speed to medium/low (approx 400 stitches per minute) for t-shirts inside the settings menu. Speed kills knits.

6. The Stitch-Out: Managing the "Flow"

Embroidery is not "set it and forget it" for beginners. You must actively manage the start.

The "Pulse and Trim" Technique:

1. Start the machine.
2. Let it stitch 3 to 4 stitches.
3. STOP.
4. Trim the long top thread tail close to the fabric.
   • Why? If you don’t, the foot will drag this tail into the design, stitching over it and creating an ugly lump that is impossible to remove.


Troubleshooting: The "Safety Device" Error

If the machine errors out on a dense spot (like the 'i' dot):

1. Don't Pull: Do not rip the hoop off.
2. Verify: Check if the needle is bent.
3. Recover:
   • Clear the error message.
   • On the screen, use the +/- stitch keys to move forward (skip) about 10 stitches to get past the dense knot causing the friction.
   • Resume stitching.




7. Mid-Game Adjustment: Bobbin Chicken

When the "Bobbin Thread Low" warning appears, do not ignore it.

The Seamless Swap Method:

1. Cut top thread.
2. Unlock hoop and remove.
3. Replace bobbin. Drop Test: Hold the bobbin by the thread. It should drop slightly when you flick your wrist (yo-yo effect). If it slides down fast, it's too loose. If it doesn't move, it's too tight.
4. Re-insert hoop.
5. Critical Step: Back up the design 5-10 stitches using the touch screen.
6. Resume. This overlap ensures there is no gap in the design.


Operation Checklist:

• Sound Check: A rhythmic chug-chug is good. A high-pitched whine or clank means stop immediately.
• Visual: Is the fabric "flagging" (bouncing up and down with the needle)? If yes, your hoop is too loose for the speed. Pause and tighten (or slow down).

8. Finishing & Cleanup

1. Jump Threads: Trim the connecting threads between letters before removing the shirt from the hoop. The tension helps you cut close.
2. Un-hoop: Loosen the screw.
3. Stabilizer: Carefully tear away (or cut away if using mesh) the backing. Support the stitches with your thumb so you don't distort them while tearing.
4. Hoop Marks: Use a steam iron (hovering, not pressing hard) or a spritz of water to remove the indentation ring.








9. Troubleshooting Matrix: Symptom -> Cure

10. The Decision: When to Upgrade Your Gear?

You can make money with a Brother SE600, but labor is your enemy. Here is your growth roadmap.

Level 1: The Hobbyist

• Tool: Standard plastic hoop + Tearaway.
• Output: 1 shirt per hour. High physical effort.

Level 2: The Side Hustle (Optimized)

• Pain Point: Hooping takes too long; wrists hurt; hoop burn ruins shirts.
• The Upgrade: Magnetic Hoops.
• Why: You simply lay the shirt down and snap the magnet. Terms like embroidery hooping station become relevant here to ensure every logo is in the exact same spot on every shirt.

Level 3: The Business (Production)

• Pain Point: Changing thread colors 5 times per shirt; single needle is too slow.
• The Upgrade: SEWTECH Multi-Needle Machine.
• Why: You press start and walk away. Speed increases from 400 SPM to 1000 SPM.

Embroidery is a journey from "fear of breaking it" to "mastering the physics." Start with the right prep, listen to your machine, and upgrade your tools when the bottleneck becomes your time. Happy stitching!

FAQ

• Q: How do I clear the Brother SE600 “Safety Device Activated” error when embroidering dense details like a lowercase “i” dot on a T-shirt?
  A: Don’t force the handwheel; clear the jam cause and then skip forward a few stitches to get past the dense knot.
  • Stop the machine and do not rip the hoop off.
  • Check the needle for a bend and replace it if needed.
  • Clear the message, then use the on-screen +/- stitch keys to move forward about 10 stitches and resume.
  • Success check: The machine restarts without grinding noises and the needle penetrates smoothly through the dense area.
  • If it still fails: Re-thread the top thread completely and inspect for a thread path obstruction (often preceded by a grinding sound).
• Q: What stabilizer and needle combination is a safe starting point for embroidering a black cotton jersey T-shirt on a Brother SE600?
  A: Use a 75/11 ballpoint needle with Polymesh (No-Show Mesh) cutaway as the most reliable wearable setup.
  • Install a fresh 75/11 Ballpoint needle to avoid cutting knit fibers.
  • Pair 40wt polyester top thread with 60wt or 90wt bobbin thread.
  • Choose Polymesh (No-Show Mesh) Cutaway for better wash durability; use quality tearaway only if that’s what is available.
  • Success check: The design stays flat after unhooping, with minimal puckering around satin edges.
  • If it still fails: Reduce hoop stretch (don’t pull the jersey tight) and slow the machine speed to medium/low.
• Q: How tight should a Brother SE600 hoop be for a knit T-shirt, and what is the “tambourine” tension test?
  A: Hoop the T-shirt snug and flat, but never stretched; the hooped knit should feel like a slightly bouncy drum.
  • Place outer hoop → stabilizer → shirt → inner hoop, then press the inner hoop in evenly.
  • Pull fabric edges only enough to remove wrinkles, then tighten the screw—do not distort the jersey ribs.
  • Tap the hooped area to feel a slight drum-like bounce (not floppy, not over-stretched).
  • Success check: The shirt’s knit ribs/grid look straight (not curved) and the fabric does not “flag” excessively during stitching.
  • If it still fails: Tighten slightly or slow down; flagging plus noise often means the hoop is too loose for the current speed.
• Q: How do I prevent birdnesting (thread loops under the fabric) on a Brother SE600 during T-shirt embroidery?
  A: Re-thread the top thread with the presser foot raised so the thread seats in the tension discs.
  • Raise the presser foot before threading to open the tension discs.
  • Re-thread the entire top path and confirm the thread is not snagged anywhere.
  • Start stitching, then stop after 3–4 stitches and trim the top thread tail close to the fabric.
  • Success check: The underside shows clean bobbin lines without a tangled “nest,” and the machine sound stays rhythmic.
  • If it still fails: Remove the hoop and clear any tangled thread under the needle plate area before restarting.
• Q: What is the safest way to swap from sewing mode to embroidery mode on a Brother SE600 without triggering sensor errors or hurting fingers?
  A: Power off for the foot change, fully click in the embroidery unit, and confirm the unit is seated before starting.
  • Turn the machine OFF before swapping from the ‘J’ foot to the ‘Q’ embroidery foot.
  • Slide the embroidery unit on until a solid click is felt; do not proceed if the unit wiggles.
  • Lock the hoop with the grey lever and keep excess shirt fabric rolled up and clipped away from the carriage.
  • Success check: The embroidery unit moves freely during trace with no collisions and no sensor stops at startup.
  • If it still fails: Re-seat the embroidery arm and reattach the hoop; incomplete engagement commonly causes startup issues.
• Q: Why should Brother SE600 users always run “Trace” before pressing Start when embroidering a T-shirt, and what problems does it prevent?
  A: Tracing confirms clearance so the needle won’t hit the hoop edge or stitch into a folded T-shirt section.
  • Attach and lock the hoop, then roll/clip the neck and sleeves completely out of the carriage path.
  • Press the Trace function (square/arrow icon) and watch the needle travel the design boundary without stitching.
  • Adjust fabric positioning if the needle comes near hoop plastic or any fold/bulge.
  • Success check: The trace completes with visible clearance from hoop edges and no fabric is trapped under the sliding area.
  • If it still fails: Re-hoop flatter and remove bulk from the path; repeated near-hits often mean the shirt is not controlled around the hoop.
• Q: When should a Brother SE600 T-shirt embroiderer upgrade from a standard plastic hoop to a magnetic embroidery hoop, or from a single-needle machine to a multi-needle machine?
  A: Upgrade based on the bottleneck: technique first, magnetic hoop for hooping pain/marks, and multi-needle only when color changes and speed limit output.
  • Level 1 (technique): Improve prep, hooping tension, speed (medium/low), and thread management if results are inconsistent.
  • Level 2 (magnetic hoop): Switch if hooping is slow, wrists hurt, or plastic hoops leave shiny hoop burn rings on shirts.
  • Level 3 (multi-needle): Move up when frequent color changes and single-needle speed (e.g., ~400 SPM on knits) restrict production time.
  • Success check: Each upgrade removes a specific recurring failure (hoop burn, slow loading, too many stops) rather than “hoping it stitches better.”
  • If it still fails: Re-check stabilizer choice and design density first; many “upgrade” problems are actually prep or hooping physics.
