Brother SE630 + Magnetic Hoop Setup (Without Wasting Fabric): Hooping Stabilizer, Fixing the Red Light, and Stitching a Clean Monogram

Master Class: Calibrating the Brother SE630 & Magnetic Hooping Essentials

If your Brother SE630 is sitting there with a stubborn red Start/Stop light, or you just bought a professional-grade magnetic hoop and it feels "too strong" to handle, pause. Do not force the machine. Do not force the hoop. You are not behind; you are simply encountering the difference between "hobbyist guessing" and "operator protocol."

As someone who has trained hundreds of embroiderers, I see this specific anxiety constantly. The fear of breaking the machine or ruining the fabric freezes new users.

This guide is your "White Paper" for safe, effective machine setup. We will bypass the trial-and-error phase and move directly to industry-standard protocols. We will conduct a "Dry Run"—stitching on stabilizer only—to calibrate your hands to the machine's rhythm, the touchscreen logic, and the specific tactile feedback of a properly locked hoop.

The "Dry Run" Protocol: Eliminating Fear Before the First Stitch

The smartest technique demonstrated in our operational review creates a "zero-risk" environment. The setup uses two layers of Pellon Soft-N-Stay (Cutaway mesh) stabilizer: one layer acting as the "fabric" and the second acting as the actual stabilizer.

Why do we do this?

1. Cost Calibration: You are not risking a $20 blank shirt or a customer's jacket.
2. Process Isolation: If the thread breaks or the design puckers, we know it is a machine/tension issue, not a fabric grain issue.

In a professional shop environment, we call this "proofing." Never put a real garment under the needle until the workflow is proven on a scrap run. This separates process errors (wrong screen sequence, improper hooping) from skill errors.

The "Hidden" Prep: Consumables & Physical Safety Checks

Embroidery is 80% preparation and 20% execution. Beginners often skip the "Mise-en-place" (setup) and go straight to the screen. This is where needle breaks happen.

Before you touch the screen, you must stabilize your physical environment.

Essential Tool Kit (The "Hidden" Consumables)

• Stabilizer: Two sheets of Nylon Mesh (Pellon Soft-N-Stay or equivalent). Mesh is preferred here because it doesn't dull the needle as quickly as heavy tearaway.
• Needle: A fresh 75/11 Embroidery Needle. If you don't know how old your current needle is, throw it away. A burred needle causes 90% of thread shreds.
• Thread: 40wt Polyester embroidery thread (green is used in the demo for high visibility).
• The Foot: The "Q" Foot. This is non-negotiable for the Brother SE630. It has the correct clearance for the hoop movement.

Warning: Physical Safety
Once the machine is armed (green light on), keep fingers, scissors, and loose threads at least 4 inches away from the needle bar. The carriage moves rapidly and unpredictable X/Y jumps can drive a needle through a finger or pull scissors into the mechanism.

Pre-Flight Checklist (Do This Before Hooping)

• Needle Check: Run your fingernail down the needle tip. If you feel a "click" or catch, the point is burred. Replace it.
• Bobbin Area: Open the bobbin cover. Is there lint? A "dust bunny" here will mess up your bottom tension. Clean it.
• Foot Install: Visually confirm the Q foot is screwed on tightly. A loose foot will strike the needle clamp.
• Goal Set: We are testing three things: (1) Hoop Tension, (2) Frame Boundaries, (3) The "Red-to-Green" sequence.

Mastery of the Magnetic Hoop: Physics & Tactics

The demo utilizes a magnetic hoop system. This is a significant upgrade from the stock plastic hoops that come with the machine. Traditional plastic hoops rely on friction and screw tension, which can lead to "hoop burn" (crushed fabric fibers) and wrist strain.

However, terms like magnetic embroidery hoop often intimidate beginners because the magnets are powerful. The "snap" is immediate. This isn't a design flaw; it's the physics required for industrial-level holding power.

The "Drum Work" Principle

Your goal is not just to hold the fabric; it is to suspend it under tension.

• The Test: Tap the hooped stabilizer with your finger.
  • Sound A: A dull "thud" = Too loose. The needle will push the fabric down before penetrating, causing flagging and birdnesting.
  • Sound B: A crisp, drum-like "ting" = Perfect. This prevents micro-shifts during high-speed stitching (400+ stitches per minute).


Warning: Magnetic Field Safety
Magnetic hoops use strong Neodymium magnets.
1. Pinch Hazard: Never place your fingers between the top and bottom frames while lowering them. Hold the top frame by the handles/edges.
2. Device Safety: Keep these hoops at least 6 inches away from pacemakers, credit cards, and computerized machine screens/hard drives.

Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow to determine your setup for the SE630:

• Scenario A: Learning/Testing (The "Dry Run")
  • Material: No fabric.
  • Action: Hoop two layers of Cutaway Mesh.
  • Why: Mimics the density of fabric + stabilizer without the waste.
• Scenario B: Woven Fabric (Cotton, Canvas, Denim)
  • Material: Stable fabric.
  • Action: Hoop one layer of Tearaway (light) or Cutaway (heavy) with the fabric.
  • Tip: If using a magnetic hoop, you usually don't need spray adhesive for wovens; the magnets hold firm.
• Scenario C: Knits/Stretchy Fabric (T-shirts)
  • Material: Unstable fabric.
  • Action: Cutaway Stabilizer is mandatory. Do not use Tearaway.
  • Upgrade: If you struggle to keep the design straight, consider an embroidery hooping station. These fixtures hold the outer frame while you align the garment, ensuring perpendicular alignment every time.

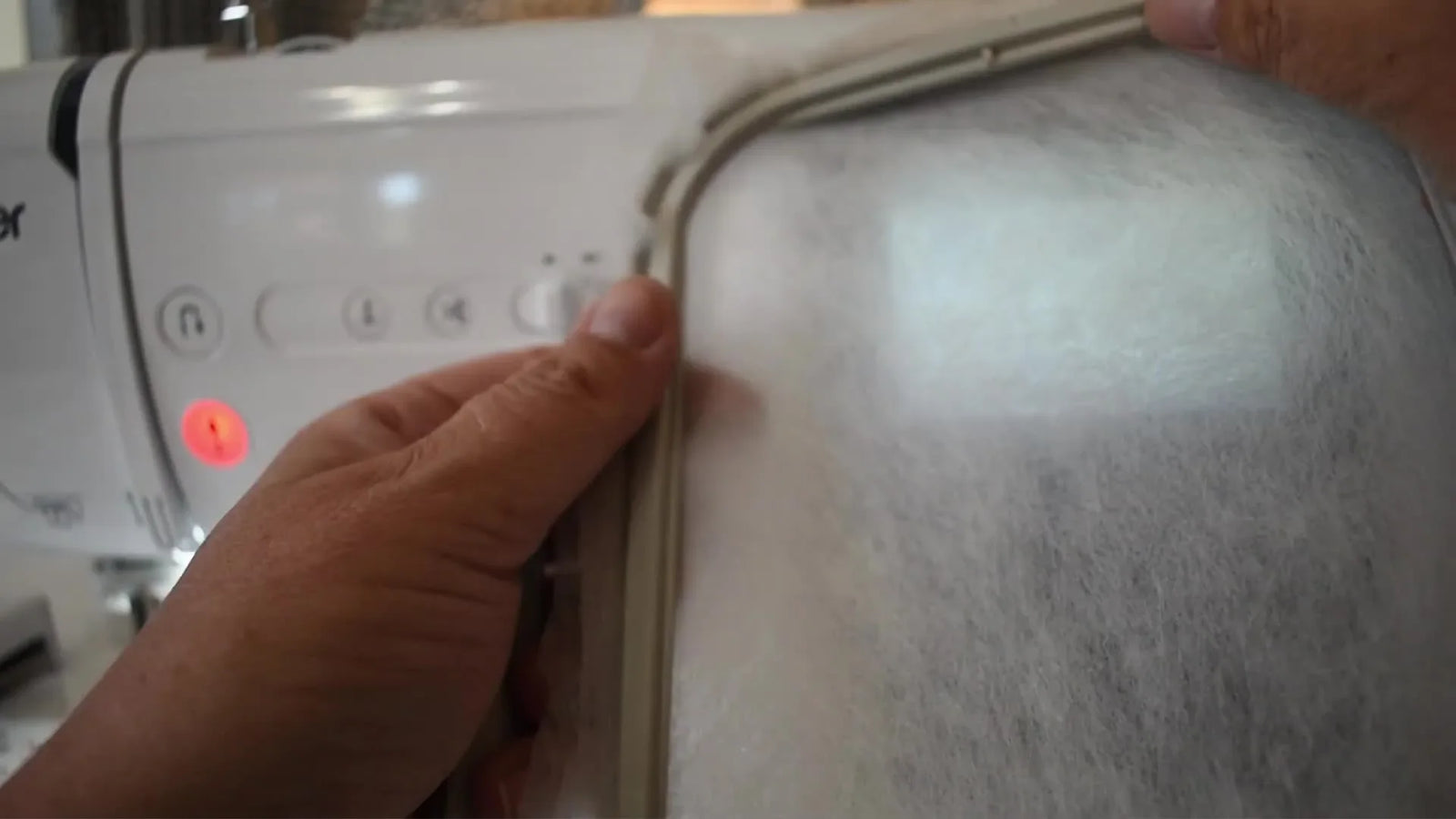

Loading the Machine: The Slide, Rock, and Click

Loading a magnetic hoop onto the Brother SE630 carriage arm requires a specific tactile technique. Do not shove it.

1. Slide: Lift the presser foot lever. Slide the hoop under the Q foot.
2. Align: Match the hoop's connector slots to the carriage knobs.
3. Rock: Apply a gentle twisting motion (rocking front-to-back) while pushing in.
4. Confirm: Listen for the Click.




The Tactile Check: Once locked, try to wiggle the hoop left and right without moving the carriage arm. There should be zero play between the hoop and the arm. If it wobbles, your design will register poorly (outlines won't match the fill).

Setup Stage Checklist (Post-Load)

• Clearance: Slide your hand under the hoop. Is the fabric caught on the bed?
• Obstruction: Is the machine behind the hoop clear? (Walls, coffee mugs, thread spools). The hoop moves backward rapidly; give it space.
• Tension Check: Is the stabilizer still "drum tight" after loading? If it loosened, re-hoop.

Navigating the Interface: The "Pattern Extends" Error

The Brother SE630 has a built-in safety protocol that frustrates users who don't understand the sensor logic.

When you select a design, the machine calculates the X/Y coordinates. If you simply type text without checking size, you will trigger the error: "Pattern extends to the outside of embroidery frame."

This isn't an error; it's a collision prevention system.

The Fix (Data from the Demo): The instruction shows resizing a decorative Monogram "D" to fit the proprietary 4x4 area.

• Original Size: 54.6 mm x 80.0 mm
• Resized: 49.0 mm x 72.0 mm




Pro-Tip on Resizing: Be careful when resizing standard designs down by more than 20%. The machine shrinks the size, but often keeps the stitch count similar, increasing the density. This can cause the thread to pile up and break. If you need a tiny letter, use a specifically digitized small font, not a shrunken large one.

If you consistently hit this size wall, you are likely outgrowing the standard hoop. Many users look for a brother 4x4 embroidery hoop upgrade or alternative, but realize physically the machine arm has hard limits. Knowing your stitch field limit (100mm x 100mm for the SE630) is crucial.

The "Red-to-Green" Sequence: Mode Switching

This is the #1 Tech Support question for this series: "Why is the light red?"

The Brother SE630 interface has two distinct states: Edit Mode and Embroidery Mode.

• Edit Mode: You can move, resize, and rotate. The machine is disarmed. (Light is Red).
• Embroidery Mode: The design is locked. The machine is armed. (Light is Green).

The Sequence:

1. Tap Edit End.
2. Tap Embroidery.
3. Visual Check: The physical Start/Stop button turns from Red to Green.




If the light is amber/orange, it usually means the bobbin winder is engaged (pushed to the right). Slide it back to the left.

The Stitch-Out: Sensory Monitoring & Speed Control

Once the light is green, press start. Do not walk away.

Speed Management: The machine can stitch up to 710 stitches per minute (SPM). For this test run on stabilizer, max speed is fine. However, if you are stitching on delicate fabric or using metallic thread, slow the machine down.

• Beginner Weakness: Max speed always.
• Expert Tactic: 400-600 SPM for higher precision and fewer thread breaks.








Operation Checklist (During Stitching)

• Auditory Check: Listen for a rhythmic "chug-chug-chug." A sharp "clack-clack" usually means the top tension is too tight or the needle is hitting a burr.
• Visual Check: Watch the thread path. Is the spool dancing continuously? If it creates a loop/puddle of thread, stop immediately (birdnesting).
• Stability: Place your hand gently on the table near the machine. Is it vibrating excessively? Excessive vibration causes skipped stitches.

Troubleshooting & The Upgrade Path: Moving from Hobby to Production

If you passed the "Dry Run," you are ready for fabric. But as you move into production—making 10 shirts instead of 1—you will encounter new bottlenecks. Here is how to diagnose when it’s time to upgrade your tools.

Visual Troubleshooting Guide

The Commercial Assessment: When to Upgrade

Struggling with standard tools is a rite of passage, but efficiency requires better equipment.

1. The Hooping Bottleneck:
   If you spend more time hooping than stitching, or if you are damaging customer garments with hoop burn, standard hoops are your enemy. This is the precise trigger to invest in magnetic embroidery hoops for brother. They float the fabric rather than crushing it, and the "snap" mechanism cuts hooping time by 50%.
2. The Size Bottleneck:
   If you constantly see "Pattern Extends Outside Frame," you are hitting the physical limits of the 4x4 field. You may look for a brother 5x7 magnetic hoop, but remember: a hoop cannot make the machine's carriage travel further than its mechanical limit. If you need 5x7 or larger, you need a machine chassis upgrade.
3. The "One-Needle" Bottleneck:
   The SE630 is a single-needle machine. Every color change requires you to stop, cut, re-thread, and restart.
   • The Pivot Point: If you are stitching logos with 3+ colors and doing runs of 10+ items, the single-needle process is costing you money.
   • The Solution: This is where SEWTECH Multi-Needle Machines enter the conversation. They hold 10-15 colors simultaneously, offer larger magnetic hoop compatibility, and stitch 2-3x faster than a domestic combo machine.

Final Experience Tip: Mastering the hooping for embroidery machine process safely on your SE630 is the foundation. If you can get a perfect "drum tight" hoop on this machine using the principles above, those skills transfer directly when you eventually upgrade to a commercial powerhouse. Start with the dry run, trust the physics, and let the green light guide you.

FAQ

• Q: What pre-flight checks should be done on a Brother SE630 before loading the hoop to prevent needle breaks and thread shredding?
  A: Do a 60-second pre-flight check before touching the touchscreen—most “mystery” breakages start here, and this is common.
  • Replace with a fresh 75/11 embroidery needle if the needle tip feels rough when you run a fingernail down it.
  • Open the bobbin area and remove lint; even a small lint clump can upset bottom tension.
  • Confirm the Brother SE630 “Q” foot is installed and tightened; a loose foot can cause a strike.
  • Success check: The needle tip feels smooth (no “click”), the bobbin area is visibly clean, and the Q foot does not wiggle.
  • If it still fails: Run a stabilizer-only “dry run” to separate setup/tension issues from fabric-related issues.
• Q: How do I run a stabilizer-only “dry run” on a Brother SE630 to calibrate tension and avoid wasting garments?
  A: Hoop two layers of cutaway mesh stabilizer and stitch the test design on stabilizer only—this creates a near zero-risk setup.
  • Hoop two layers of nylon mesh cutaway (Pellon Soft-N-Stay or equivalent), using one layer as the “fabric” and the second as stabilizer.
  • Stitch the test design at normal speed and watch for thread looping or puckering without involving real fabric.
  • Success check: The stitch-out looks stable on the mesh with no major puckering and no immediate thread puddling/birdnesting.
  • If it still fails: Re-check needle condition, clean the bobbin area again, and reduce top tension slightly if white bobbin thread is pulling to the top.
• Q: How can I tell if a magnetic embroidery hoop is correctly tensioned for Brother SE630 hooping?
  A: Use the “drum tight” test—magnetic hooping should feel firm, not soft, and you should not need to force anything.
  • Tap the hooped stabilizer/fabric to evaluate tension before stitching.
  • Re-hoop if the material relaxes after loading onto the Brother SE630 carriage.
  • Avoid overthinking magnet strength; the “snap” is normal physics for holding power.
  • Success check: The hooped surface makes a crisp, drum-like “ting” (not a dull “thud”) and does not feel spongy under the needle area.
  • If it still fails: Switch stabilizer type for the fabric (especially use cutaway for knits) and repeat the tap test.
• Q: What is the correct way to load a magnetic hoop onto the Brother SE630 embroidery arm without wobble or forced pressure?
  A: Use the “Slide, Rock, and Click” method—do not shove the hoop onto the carriage arm.
  • Slide the hoop under the Q foot with the presser foot lever lifted.
  • Align the hoop connectors to the carriage knobs, then rock gently front-to-back while pushing in.
  • Listen for the click and then perform a wiggle test.
  • Success check: The hoop has zero play against the arm when you try to wiggle it left/right without moving the carriage.
  • If it still fails: Remove the hoop and re-align; forcing the connection can cause poor registration and outline/fill mismatch.
• Q: How do I fix the Brother SE630 error “Pattern extends to the outside of embroidery frame” when adding text or a monogram?
  A: Resize the design to fit the Brother SE630 4x4 stitch field before switching into embroidery mode—this message is a collision-prevention safeguard.
  • Check the design dimensions on-screen and reduce size until it fits inside the frame boundary.
  • Avoid shrinking standard designs by more than about 20% because stitch density may increase and cause thread breaks.
  • Choose a properly digitized small font if small lettering is required instead of aggressively resizing a large design.
  • Success check: The Brother SE630 allows you to proceed without the “Pattern extends…” message and the frame boundary preview shows the design fully inside the hoop area.
  • If it still fails: Reconfirm the selected hoop/frame size on-screen and consider whether the design simply exceeds the SE630’s physical stitch field limit.
• Q: Why is the Brother SE630 Start/Stop light red or amber, and what is the correct “red-to-green” sequence to start stitching?
  A: Red means Edit Mode (disarmed) and amber often means the bobbin winder is engaged—follow the mode sequence to arm the machine safely.
  • Tap “Edit End,” then tap “Embroidery” to lock the design.
  • If the light is amber/orange, slide the bobbin winder shaft back to the left.
  • Keep hands and tools at least 4 inches away once the machine is armed.
  • Success check: The Start/Stop button turns green and the machine starts normally when pressed.
  • If it still fails: Re-seat the hoop and confirm the carriage area is clear so the machine can complete its safety checks.
• Q: What safety rules should beginners follow when using a Brother SE630 with a magnetic embroidery hoop to avoid finger injury and magnet hazards?
  A: Treat the needle area and the magnets as pinch hazards—this is common beginner anxiety, and careful hand placement prevents injuries.
  • Keep fingers, scissors, and loose thread at least 4 inches away from the needle bar once the Brother SE630 is armed (green light).
  • Lower magnetic hoop parts by holding the frame edges/handles; never place fingers between top and bottom frames.
  • Keep magnetic hoops at least 6 inches away from pacemakers, credit cards, and sensitive electronics.
  • Success check: Hands never enter the needle travel zone during stitching, and the hoop is assembled without any finger pinch points.
  • If it still fails: Pause the job, disarm the machine (red state), and reposition hands/tools before resuming.
• Q: When should a Brother SE630 owner upgrade from plastic hoops to magnetic hoops, and when is it time to consider a multi-needle embroidery machine for production runs?
  A: Use the bottleneck rule: fix technique first, then upgrade the hoop for hooping problems, and upgrade the machine when size limits or color-change time becomes the cost driver.
  • Level 1 (Technique): Improve hooping tension (“drum tight”), run dry runs, and manage speed (slow down for delicate/metallic thread).
  • Level 2 (Tool): Move to magnetic hoops when plastic hoops cause hoop burn, take too long to hoop, or strain wrists during repeated hooping.
  • Level 3 (Capacity): Consider a multi-needle machine when frequent 3+ color designs and runs of 10+ items make rethreading on a single-needle Brother SE630 the main bottleneck.
  • Success check: Hooping time drops, hoop burn decreases, and production flow improves without constant stops for rework.
  • If it still fails: If “Pattern extends outside frame” is constant, the limitation may be the SE630 stitch field—no hoop can exceed the machine’s mechanical travel.
