Brother VR Logo Stitching, Start to Finish: The Hooping Tension Details That Decide Whether Your “EVC” Looks Pro—or Wavy

If you’ve ever stood in front of a Brother VR with a hoop in one hand and a screwdriver in the other, you already know the feeling: the machine is ready, the customer deadline is real, and the only thing standing between you and a clean logo—or a bird’s nest of thread—is your setup process.

Embroidery isn’t just about pushing a button; it’s a tactile science. It’s about how the fabric sounds when you tap it, how the thread feels against your fingertip, and the rhythm of the machine. This guide rebuilds the workflow shown in the video, but adds the "Chief Education Officer" layer: the sensory checks, the safety margins, and the commercial logic that turns a struggle into a scalable business.

Don’t Panic at the Brother VR Hook-Oiling Screen—But Don’t Ignore It Either

The video starts the way many shifts start: you flip the side power switch, and the Brother VR boots straight to a maintenance screen. It’s a graphic of an oil bottle and the rotary hook.

To a beginner, this looks like a warning light. To a pro, it’s just the machine asking for breakfast.

The Physics of Friction: High-speed embroidery (up to 1,000 stitches per minute) creates immense heat in the rotary hook assembly. Without a microscopic layer of oil, the metal expands, and the thread sets—specifically polyester or rayon—start to melt or shred. If you hear a dry, metallic "hissing" sound rather than a smooth mechanical hum, you are already causing damage.

What the video shows (and what to do):

• Power on the machine.
• Acknowledge the on-screen safety/maintenance warning.

Expert Reality Check: Do not drown the hook. One single drop of sewing machine oil every 4 to 8 hours of active stitching time is the industry standard.

• The " Blot Test": After oiling, run a test stitch on a scrap piece of fabric for 30 seconds. This ensures any excess oil flings off onto the scrap, not your client’s expensive white polo shirt.

Warning: (Mechanical Safety) Keep fingers, tools, and loose sleeves/jewelry away from the needle area and the moving carriage arm. The Brother VR carriage can move suddenly and with significant torque when calibrating or positioning. Never place your hand inside the hoop area while the machine is "Live" (Green light).

USB Import on the Brother VR: Load the “EVC LOGO” and Confirm Size Before You Touch a Hoop

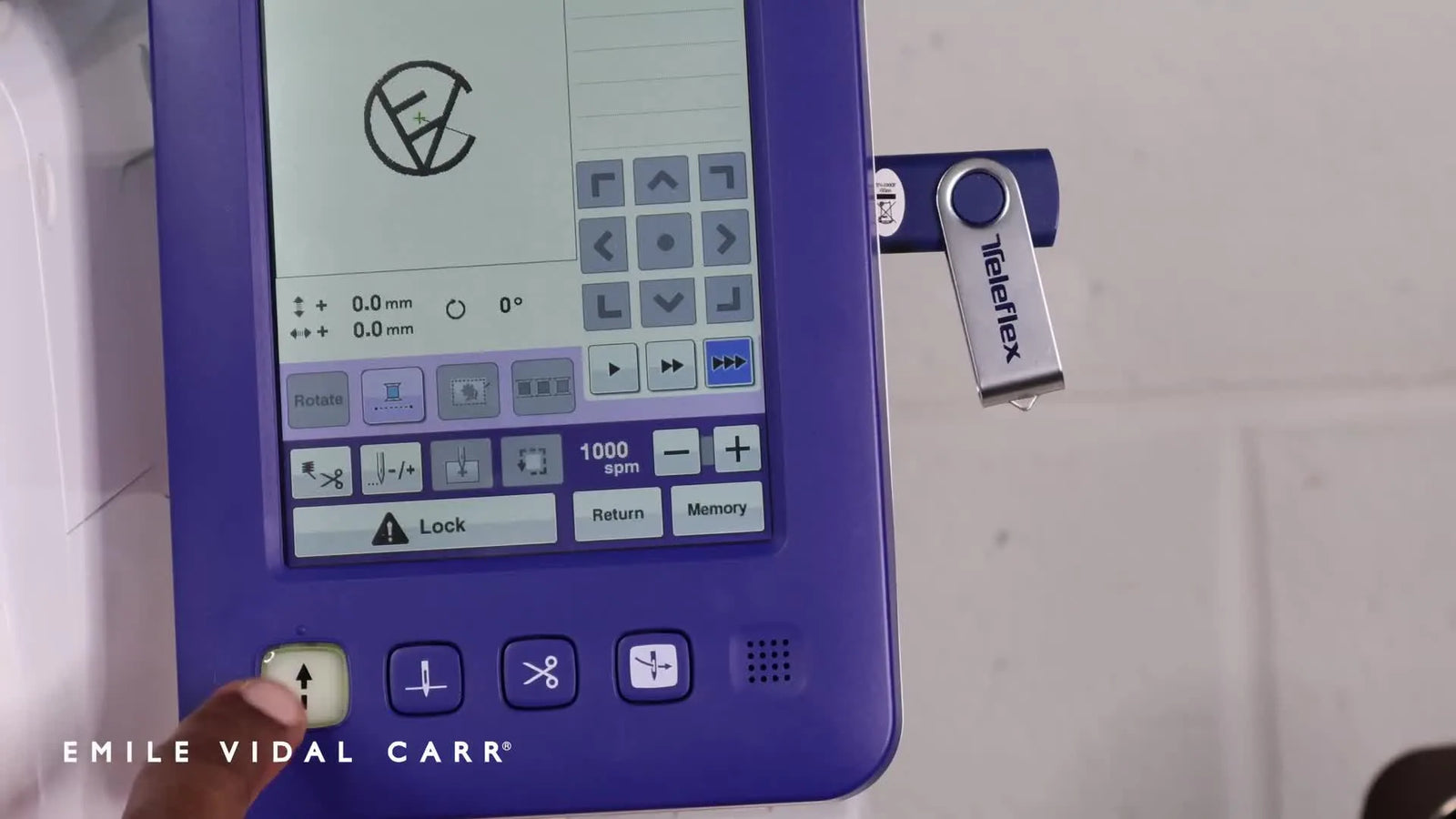

In the video, a USB drive is inserted into the control panel port. The stylus is used to navigate the file menu.

What the video shows (exact sequence):

1. Insert the USB drive into the side port.
2. Use the touchscreen (stylus) to navigate folders.
3. Select the file named “EVC LOGO.”
4. Confirm the design preview and dimensions shown on screen: 76.8 mm x 73.6 mm.

The "Pre-Flight" Mental Shift: Beginners check if the file loaded. Pros check if the physics work. Look at that size: 76.8mm. Now look at your hoop.

• Rule of Thumb: You need at least 15-20mm of clearance from the design edge to the hoop edge. If you are using a 100mm hoop (4x4), a 76mm design is safe. If you were using a smaller pocket hoop, you are in the danger zone.

If you are new to this platform, remember that brother vr embroidery machine workflows punish speed in the setup phase. Take 10 seconds here to save 10 minutes of picking out stitches later.

The Sliding Hoop-Holder Width on Brother VR: Set It Once, Lock It Hard, Avoid Hoop Drift

The video demonstrates adjusting the hoop-holder arms (E and F arms) to match the specific tubular hoop being used.

What the video shows:

• The hoop-holder spacing is adjusted by sliding the mechanism along the track.
• The grey locking knobs are tightened to secure the width.


The Sensory Check: Visual alignment isn't enough. You need to feel it.

1. Loosen the grey knobs.
2. Insert your empty hoop until it clicks.
3. Squeeze the arms gently against the hoop sides—not crushing it, just affirmative contact.
4. Tighten the knobs firmly.
5. The "Wiggle Test": Grab the hoop holder arm. Give it a gentle shake. If there is any "play" or rattling sound, retighten. Vibration at 1000 stitches per minute will turn a micro-gap into a slanted design.

The Hidden Prep Pros Do Before Hooping: Thread Path, Needle Choice, and Stabilizer Readiness

The video jumps into action, but let's pause. Hooping is the single most critical variable in embroidery. You cannot fix bad hooping with software settings.

The Hidden Consumables: The video shows the basics, but your kit should actally contain:

• Needles: 75/11 Ballpoint (for knits) or 75/11 Sharp (for wovens).
• Temporary Spray Adhesive (505 Spray): Essential for floating or stabilizing slippery fabrics.
• Tweezers: For threading and grabbing jump stitches.

This is the stage where many users start searching for brother vr setup hacks, but the secret is just material science.

Prep Checklist (Do this before you pick up the hoop)

• Design Validation: Does the screen show "EVC LOGO" and the correct rotation (0°)?
• Needle Check: Run your fingernail down the needle tip. If you feel a "catch" or scratch, throw it away. A burred needle shreds thread.
• Bobbin Check: Open the bobbin case. Ensure no lint is trapped under the tension spring. Blow it out.
• Thread Tension Feel: Pull 6 inches of top thread through the needle. It should feel like pulling dental floss through teeth—some resistance, but smooth. If it jerks, check the thread path.
• Consumable Match: Verify you have the right backing for the orange fabric (see Decision Tree below).

Hooping Orange Fabric + Black Cutaway: The Screwdriver Tightening Isn’t Optional—It’s the Whole Job

This is the heart of the video. The operator hoops the orange woven fabric with black cutaway stabilizer using a standard tubular hoop and a screwdriver.

What the video shows (exact hooping order):

1. Layer the orange fabric over the black cutaway stabilizer.
2. Place the outer hoop ring (loosened).
3. Insert the inner ring into the outer ring, sandwiching the material.
4. Use a flathead screwdriver to tighten the tension screw.


The "Experience" Gap: The video makes this look effortless. In reality, this is where beginners fail. They tighten the screw "finger tight" and stop. The result? The fabric "flags" (bounces up and down with the needle), causing skipped stitches and bird nesting.

The "Drum-Skin" Sensory Standard

How tight is "tight"?

• Tactile: Tap the hooped fabric with your index finger. It should feel taut, like a drum skin.
• Auditory: It should make a dull thud sound, not a flabby flap sound.
• Visual: The weave of the fabric should be open and straight, not distorted or pulled into a curve (which creates "smile" distortion on the logo).

Stabilizer Decision Tree (Stop Guessing)

The video uses black cutaway—a classic choice for dark garments. But why? Use this logic flow:

1. Is the fabric stretchy (T-shirt, Polo, Knit)?
   • YES: You MUST use Cutaway stabilizer. (Tearaway will tear during stitching and the design will warp).
   • NO: Go to step 2.
2. Is the fabric unstable or loose weave (Linen, Pique)?
   • YES: Use Cutaway.
   • NO: Go to step 3.
3. Is it a stable woven (Denim, Canvas, Twill)?
   • YES: You can likely use Tearaway for a cleaner back.
4. Pro Tip: For the orange fabric in the video (likely a polyester blend), the Black Cutaway is perfect because it prevents the white stabilizer from showing through the dark/bright fabric weave.

Mounting the Tubular Hoop on Brother VR: Listen for the Click, Then Use the Screen Like a Pilot

With the fabric hooped "drum-tight," the video shows sliding the hoop onto the machine arms.

The Auditory Anchor: You are listening for a sharp CLICK. If you slide the hoop on and it feels "mushy" or doesn't snap, do not press start. A hoop that isn't locked will fly off the machine at 600 SPM, breaking the needle and potentially ruining the rotary hook.

The "Trace" Feature: Once mounted, the operator uses the screen to position the design.

• Critical Step: Always press the "Trace" or "Check Size" button. Watch the hoop move.
• Visual Logic: Does the presser foot come dangerously close to the plastic hoop edge? If it's within 5mm, adjust the position.


The Unlock-to-Start Moment on Brother VR: Red to Green, Then Commit at 1000 SPM Only If Your Hooping Is Perfect

The operator presses the "Unlock" icon on the touchscreen. The physical button turns from Red to flashing Green.

The screen displays Max Speed: 1000 spm.

The Speed Trap: Just because the Ferrari goes 200mph doesn't mean you drive it that way in a school zone.

• Beginner Sweet Spot: 600 - 800 SPM.
• Why? At 1,000 SPM, friction and thread whip increase exponentially. If your tension isn't perfect, your thread will break. Start slow. Build confidence.

What the video shows (exact action):

1. Press Unlock on screen (red → green).
2. Press the physical Start button.


This mechanical button press is the point of no return.

Setup Checklist (The "Go/No-Go" Confirmation)

• Anchors Secured: Did you hear the hoop "Click" into the arm?
• Clearance: Is there excess fabric bunched behind the hoop? (This gets sewn to the back of the logo—a classic rookie mistake).
• Path Clear: Are cables/sleeves clear of the carriage?
• Lock-In: Is the hoop holder width knob tight (from step 3)?

Warning: (Magnet Safety) If you upgrade from standard hoops to magnetic embroidery hoops, act with extreme caution. These magnets (N52 Neodymium) are incredibly powerful. They can pinch skin severely and must participate in Pacemaker Safety Protocols (keep 6 inches away from medical implants).

Mid-Run Quality Check: What the Underlay Tells You in the First 10 Seconds

The machine begins stitching. The video highlights the white underlay forming the base of the "EVC LOGO."

Diagnose on the Fly: Do not walk away to get coffee. The first layer (Underlay) tells you the future.

• Visual: Is the underlay aligned? If the outline and the fill don't match, your hoop tension is too loose.
• Auditory: Listen.
  • Rhythmic hum: Good.
  • Chunky, loud "Thump-Thump": The needle is struggling to penetrate. Needle might be dull or hitting a seam.
  • Bird calling / Squeaking: Dry rotary hook. Stop and oil.

In the video, the satin fill on the letter "V" is solid. Satin stitches are the "truth serum" of embroidery—if the fabric slips, the edges look jagged (saw-toothed) instead of straight.

The “Why” Behind the Screwdriver Hoop: Hooping Physics, Hoop Burn, and When to Stop Fighting the Frame

We have to talk about the method shown: Specifcially, the screwdriver. Standard tubular hoops work, but they rely on friction. To get that "drum sound," you have to tighten that screw significantly.

The Trigger (Pain Points):

1. Repetitive Strain: Tightening that screw 50 times a day hurts your wrist.
2. Hoop Burn: To hold the fabric, you crush the fibers. On delicate materials (performance wear, uncontrolled velvet), this leaves a permanent "ring" mark known as hoop burn.
3. Slippage: Even with a screwdriver, thick jackets can pop out mid-stitch.

The Solution Ladder: This is where hooping for embroidery machine technique evolves into technology upgrades.

• Level 1 (Technique): Use "Magic Sizing" spray or starch to stiffen fabric before hooping.
• Level 2 (Tool Upgrade): Switch to Magnetic Hoops.
  • Reason: They automatically adjust to the fabric thickness. No screws. No crushed fibers. The magnets hold thick seams and thin tissue equally well.
  • Efficiency: You just "snap" and go. It cuts hooping time by 40%.
• Level 3 (Scale): If you are consistently running orders over 20 pieces, the Brother VR (Single Needle) becomes your bottleneck simply due to color changes (even though it's a 4-spool machine, it captures one needle thread at a time).

Common “Scary” Outcomes (and the Fix) on Brother VR Logo Runs

The video shows a perfect result. You might not get one on your first try. Here is your troubleshooting matrix.

The Upgrade Path That Actually Saves Time: From Screwdriver Hoops to Magnetic Frames (and When Multi-Needle Makes Sense)

The workflow in the video is foundational. It works. But if you are trying to turn a profit, time is your enemy.

If you find yourself dreading the specific action of tightening the hoop screw, or if you are rejecting orders because you can't hoop thick Carhartt jackets, you have hit a "Hardware Ceiling."

Decision Criteria:

• Volume: Are you doing 1-5 shirts a week? Stick with the technique in this guide.
• Volume: Are you doing 50 shirts a week? The screwdriver method is costing you hours.
  • Solution: MaggieFrame / Magnetic Hoops. This is the highest ROI accessory you can buy. Terms like snap hoop for brother usually refer to these magnetic upgrades. They eliminate hoop burn and clamp instantly.
• Complexity: Do your logos have 4+ colors and require frequent trim commands?
  • Solution: Consider looking at SEWTECH’s Multi-Needle range. Moving from a single needle (VR style) to a true multi-needle head eliminates the thread-change pause and increases daily output by 30-50%.

Finishing Standards: What to Inspect Before You Call It “Done”

The video concludes with a close-up of the finished white satin stirch logo.

The Quality Assurance Protocol: Don't just ship it. Inspect it.

1. The "Railroad" Check: Look at the satin columns. Are the edges straight like train tracks, or do they wobble? Smooth tracks = Good Hooping.
2. The Density Check: Bend the fabric slightly at the logo. Can you see the orange fabric through the white stitches? If yes, your density is too low (or underlay is insufficient).
3. The Backside: Is the bobbin thread roughly 1/3 of the width of the satin column (in the center)? That is balanced tension.

Operation Checklist (Post-Stitch)

• Trim Check: Are there long jump stitches that need manual trimming?
• Backing Removal: Cut the cutaway stabilizer close to the stitches (leaving 3-4mm), do not cut into the fabric!
• Hoop Mark Removal: If you used a standard hoop and see a ring, steam it gently. (Then consider magnetic hoops to stop this forever).

By mastering the sensory details—the click, the thump, and the drum-skin feel—you move from "operating a machine" to "crafting embroidery." Take your time on the setup, and the brother embroidery hoops will do exactly what you command.

FAQ

• Q: What should embroidery operators do when the Brother VR shows the rotary hook oiling screen at startup?
  A: Acknowledge the screen and apply a minimal amount of oil—then run a quick blot test so oil does not stain the garment.
  • Add: Place a single drop of sewing machine oil on the rotary hook area (do not flood it).
  • Run: Stitch on scrap for about 30 seconds to fling off excess oil before stitching the real item.
  • Success check: The machine sound shifts from a dry metallic “hiss” to a smooth mechanical hum, and the scrap shows any oil—not the garment.
  • If it still fails: Stop and inspect for thread debris/lint in the hook/bobbin area and follow the machine manual maintenance steps.
• Q: How can embroidery operators confirm a Brother VR USB design is safe for the selected hoop before hooping fabric?
  A: Verify the design name and dimensions on the Brother VR screen and ensure there is clearance to the hoop edge before touching a hoop.
  • Confirm: The correct file is selected and the preview matches the intended logo and orientation.
  • Compare: Check the on-screen dimensions against the hoop size and keep a safe margin from the design edge to the hoop edge (a safe starting point is 15–20 mm).
  • Success check: The design fits with visible “buffer” space on all sides so the stitch path will not approach the hoop wall.
  • If it still fails: Choose a larger hoop or resize/reposition the design before mounting anything.
• Q: How do embroidery operators stop Brother VR tubular hoops from drifting by setting the hoop-holder width correctly?
  A: Set the Brother VR hoop-holder arms to snug contact, lock the knobs firmly, and verify with a wiggle test before stitching.
  • Loosen: Open the grey locking knobs and slide the hoop-holder width to match the hoop.
  • Insert: Click the empty hoop into place, then gently squeeze the arms against the hoop sides (firm contact, not crushing).
  • Tighten: Lock the knobs hard and re-check after tightening.
  • Success check: The “wiggle test” shows no play or rattling in the hoop-holder arms when shaken by hand.
  • If it still fails: Re-seat the hoop and re-tighten; any micro-gap can become visible drift at high stitch speeds.
• Q: What is the fastest pre-hooping checklist for Brother VR to prevent thread breaks and bird nesting during a logo run?
  A: Do a quick needle, bobbin, and thread-path readiness check before picking up the hoop—this prevents most “mystery” failures.
  • Check: Feel the needle tip; replace immediately if a fingernail catches (burrs shred thread).
  • Clean: Open the bobbin area and remove lint under the tension spring (blow out debris).
  • Re-thread: Pull several inches of top thread through the needle; it should feel smooth with slight resistance (re-thread if it jerks).
  • Success check: The top thread pulls “floss-tight” and smooth, and the bobbin area is visibly lint-free.
  • If it still fails: Slow the stitch speed and re-check the entire thread path with the presser foot up, then test on scrap.
• Q: How tight should a Brother VR standard tubular hoop be when hooping woven fabric with cutaway stabilizer using a screwdriver?
  A: Tighten the screw until the fabric is drum-tight—finger-tight is usually not enough for stable stitching.
  • Layer: Place fabric over cutaway stabilizer, then assemble inner/outer rings evenly.
  • Tighten: Use a flathead screwdriver and tighten progressively while keeping fabric neutral (do not stretch).
  • Tap: Test tension by tapping the hooped fabric surface.
  • Success check: The fabric feels like a drum skin and makes a dull “thud,” not a loose “flap,” with weave remaining straight (not distorted).
  • If it still fails: Re-hoop without pulling fabric; loose hooping causes flagging, skipped stitches, and nesting.
• Q: How can embroidery operators use the Brother VR “Trace/Check Size” function to prevent needle strikes and hoop collisions?
  A: Always run Brother VR Trace/Check Size after mounting the hoop to confirm safe clearance before pressing Start.
  • Mount: Slide the hoop on and listen/feel for a sharp click that indicates a full lock.
  • Trace: Press Trace/Check Size and watch the hoop travel the design boundary.
  • Adjust: Reposition if the presser foot comes too close to the hoop edge (a safe starting point is keeping more than 5 mm clearance).
  • Success check: The trace path clears the hoop wall comfortably for the full design perimeter with no near-misses.
  • If it still fails: Stop and choose a larger hoop or reduce/reposition the design to restore clearance.
• Q: How do embroidery operators fix Brother VR bird’s nest thread nesting during a logo run?
  A: Stop, remove the nest carefully from underneath, and re-thread the Brother VR with the presser foot up so the thread seats in the tension discs.
  • Cut: Trim the tangled mass from the underside first to avoid bending the needle or pulling timing out.
  • Re-thread: Raise the presser foot and re-thread the top path completely (this helps the thread enter the tension discs).
  • Test: Run a short test stitch on scrap before returning to the garment.
  • Success check: The first underlay stitches form cleanly with no looping on the underside and a steady, smooth stitch sound.
  • If it still fails: Verify the thread did not jump out of the tension path again and inspect the bobbin area for lint or snags.
• Q: What safety rules should embroidery operators follow when using magnetic embroidery hoops near a Brother VR work area?
  A: Treat magnetic embroidery hoops as high-force tools—handle slowly, avoid pinch points, and keep magnets away from medical implants.
  • Separate: Open and close magnets with controlled motion; keep fingers out of the closing gap to prevent severe pinches.
  • Clear: Keep magnets away from the needle/carriage area when the machine is live (green light) to avoid sudden movement hazards.
  • Protect: Follow pacemaker safety protocols and keep strong magnets at least 6 inches from medical implants.
  • Success check: The magnetic frame closes without finger contact, and the operator maintains full clearance from moving parts during operation.
  • If it still fails: Switch back to a standard hoop for that job and re-train handling technique before resuming magnetic hoop use.
