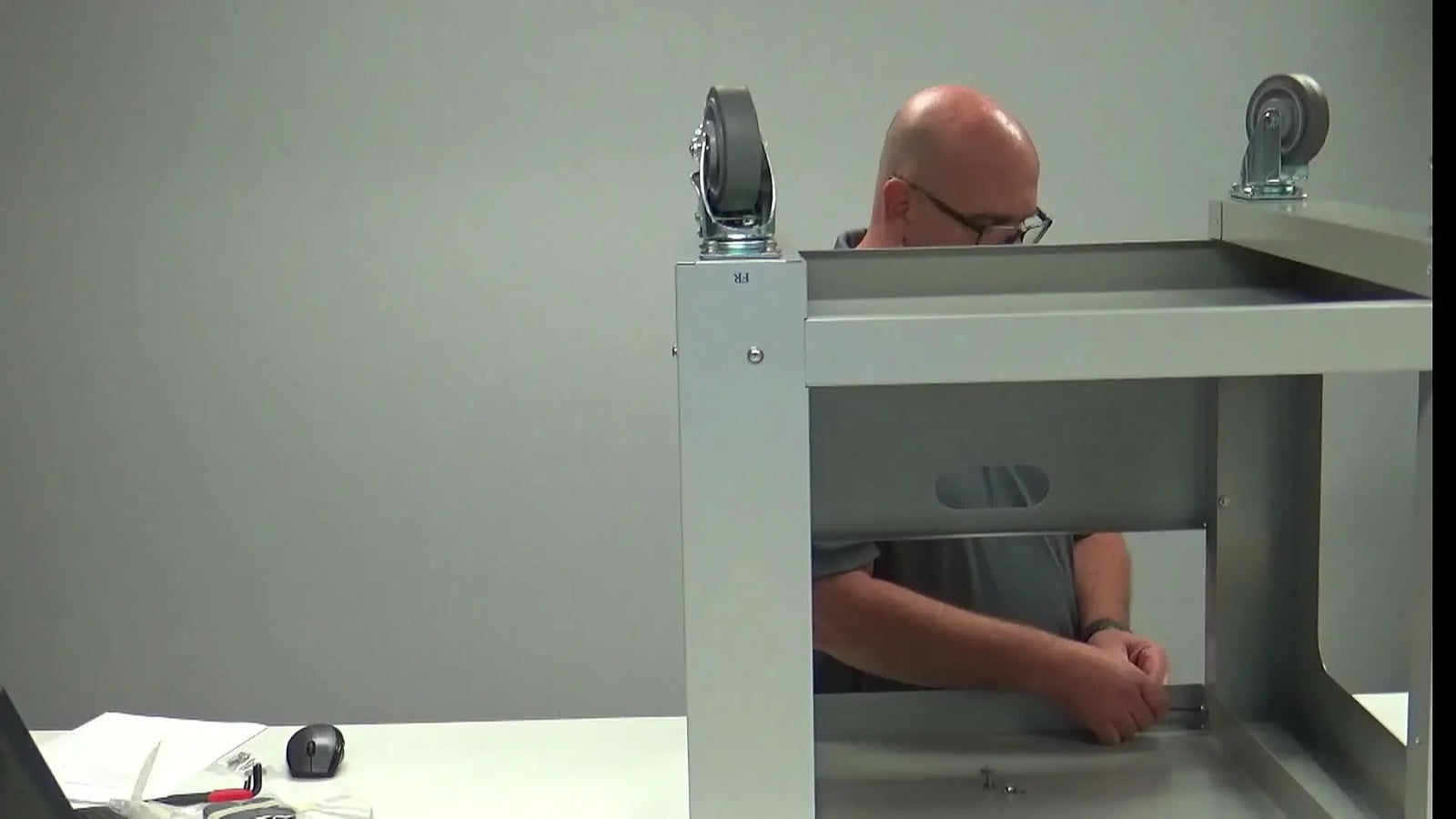

Build the Melco EMT16X Cart Without the Headache: A Shop-Pro Assembly Routine That Prevents Cross-Threading

If you’re assembling a cart for a commercial embroidery machine, you’re not “just building furniture.” You’re building the vibration-dampening foundation for a high-speed precision robot that will run at 1,000 stitches per minute.

A loose bolt here doesn’t just mean a wobbly table; it means flagging registration on your logos, thread breaks caused by excessive vibration, and a operator workflow that fights you every single day.

This guide rebuilds the standard Melco EMT16X cart assembly lesson, but with the “Shop Floor Reality” filter applied. We will cover what to lay out first, the sensory cues that tell you a bolt is seated correctly, and how to avoid the "20-minute mistakes" that plague new owners.

The Calm-Down Moment: Your Melco EMT16X Cart Kit Is Supposed to Feel Like “Too Many Parts”

When you open the box, your brain might trigger a "fight or flight" response. This is normal. The video starts correctly: Categorize before you construct. Do not start twisting bolts until you have taken inventory.

Spread everything out on a clean floor or large table. You should identify:

• 2x Side Frames: Check the wheels. Each frame has casters; ensure the locking mechanisms are functional.
• 1x Base Connector (Part C): This is the heavy steel bridge.
• 1x Rear Support Panel: Identify the cable routing hole.
• 1x Large Sheet Metal Shelf: Note the mounting holes.
• Hardware Bag: M6 × 12mm button head screws and flat washers.
• "The Decoys": A bag of black “pucks” (these are NOT used on the EMT16X—put them away so they don’t confuse you).

Hidden Consumables & Assets (Not in the box, but you need them):

• A Magnetic Parts Tray: To keep your washers from rolling under the sofa.
• A Towel or Rug: To protect the finish of the metal parts while working on the floor.
• Good Lighting: You need to see into threaded holes to avoid cross-threading.

If you are setting up a melco emt16x embroidery machine, this cart is your first lesson in "Machine Empathy." The rule is simple: Don’t tighten anything until the whole structure has found its natural alignment.

The “Hidden” Prep Pros Do: Find the 4mm Allen Wrench Before You Touch a Single Bolt

The presenter pulls the 4mm Allen wrench from the Machine Operator Kit (often tucked near the base of the embroidery head).

Why this matters: Do not use a random imperial hex key from your garage. A 5/32" key is close to 4mm, but it is loose enough that under torque, it will strip the head of the button screws. Once you strip a screw head inside a recessed hole, you are in for a bad day. Use the specific metric tool provided.

You’ll also see a “STOP” document. This is your chain of command. The video advises reading page one and jumping to the cart assembly section (page four).

Prep Checklist (Pre-Flight Safety Check)

• Inventory Count: Confirm M6 × 12mm screws and washers match the quantity in the manual.
• Tool Verify: Locate the 4mm Allen wrench. Check the tip—ensure it isn't rounded off.
• Orientation Check: Separate side frames. Identify the locking wheels.
• Positioning: Orient the frames so the wheel locks face FORWARD/AWAY from you (match the video perspective).
• Surface: Clear a 6x6 foot area. Using a raised table saves your back, but the floor prevents drop damage.

Warning: Pinch Point Hazard. When sliding heavy powder-coated metal parts together (especially the shelf), gravity can snap them into place faster than you expect. Keep fingers on the outside surfaces, never near the screw holes or seams.

The Base Frame “Finger-Taut” Routine: Assemble Part C Without Fighting the Holes

This is Stage 1: Connecting the two side frames using the base piece (Part C). This establishes the "squareness" of your machine's home.

The Critical Orientation Detail: Look at Part C. on the front, there are two holes—one on each front corner. These front-corner holes must face toward the locking wheels. If you get this backward, the machine won't mount correctly later.

How to install Part C (Base) - The Sensory Method

1. Stance: Set the two side frames in front of you. Locking wheels = Front.
2. Slide: Insert Part C into the side frames. Listen for metal-on-metal scraping—move slowly to avoid scratching the powder coat.
3. Align: Look through the bolt holes. You should see a clear "tunnel" of light, not a half-moon obstruction.
4. Insert: Place a washer on a bolt. Insert by hand.
5. The "Finger-Taut" Technique: Turn the bolt with your bare fingers. It should spin freely, like a volume knob, until it hits the washer. Do not use the wrench yet.


Expert Insight: What "Finger-Taut" Feels Like

• Correct: The heavy metal parts can still wiggle slightly. The bolt head touches the washer, but there is zero clamping pressure.
• Incorrect: You need the wrench to turn the bolt. This means you are fighting alignment tension, which leads to a warped cart.

From a production standpoint, this habit is non-negotiable. Whether you run single heads or a fleet of melco embroidery machines, alignment always comes before torque.

Expected Outcome (Stage 1)

• Part C is seated.
• Bolts are present but loose.
• The frame feels "floppy" but connected.


Tighten Like a Technician, Not Like a Weightlifter: Snug the Base Bolts

Once the geometry is settled, now you pick up the 4mm Allen wrench.

The Torque Standard: Tighten firmly, but stop when you feel the bolt stop.

• Auditory Cue: You might hear a slight "creak" as the washer compresses.
• Tactile Cue: Tighten until resistance spikes effectively stopping your hand. Do not use a "cheater bar" or extra leverage. Over-tightening can crush the tubing or strip the internal threads.

The Back Support Panel Trick: Gravity Is Your Third Hand

Stage 2 is the rear support panel. This piece provides shear strength—it stops the cart from swaying left to right during high-speed stitching.

The Setup:

• Hardware: 4x M6 × 12mm screws + washers.
• Orientation: Cable routing hole must face DOWN.




Step-by-Step Installation Algorithm

1. Prep: Put washers on all four bolts beforehand. Hold them in your pocket or tray.
2. Position: Slide the panel into the rear slots.
3. The Gravity Trick: Start the TOP TWO bolts first. Just get them threaded by 3-4 turns. This allows the panel to hang safely while you work on the bottom.
4. Bottoms Up: Insert and finger-tighten the bottom two bolts.
5. Float check: Wiggle the panel. If it moves freely within the bolt slack, it is aligned.
6. Finalize: Tighten all four bolts with the wrench.


Expected Outcome

• Panel is rigid.
• Cable hole is at the bottom (crucial for power cord management later; if it's at the top, cables will dangle awkwardly).

The Shelf Decision That Impacts Your Workflow: Lower Storage vs Higher “Support Table”

Stage 3 is the large sheet metal shelf. This isn't just storage; it's structural.

You have a choice:

• Lower Position: Maximum storage height for tall items (hoops, large cones).
• Higher Position: Creates a shelf closer to the machine bed.


Commercial Strategty: If you are building a commercial workflow around a melco embroidery machine, think about your back.

• Lower Shelf: Good for heavy stabilizer rolls and items you don't need every hour. Keeps the center of gravity low.
• Higher Shelf: Better for quick-grab items like spare bobbins, snips, or needles, reducing the distance you have to bend down.

Setup Checklist (Pre-Shelf)

• Decision Made: High vs. Low position chosen.
• Dry Fit: Slide the shelf in. Note: You may need to gently pull the legs apart or push them together to get the shelf to drop in. This tension is normal.
• Hardware Ready: 4x M6 bolts + washers.

The Cross-Threading “Red Flag” Test: If It Feels Sideways, It *Is* Sideways

The video highlights this because it is the #1 way to ruin the cart. Cross-threading happens when the hard steel bolt cuts new threads into the softer metal nut at an angle.

The "Reverse Turn" Trick

To absolutely guarantee you don't cross-thread:

1. Place the bolt in the hole.
2. Turn the bolt COUNTER-CLOCKWISE (left) first.
3. Sensory Cue: Listen/feel for a distinct "click". That is the start of the bolt thread jumping over the start of the hole thread.
4. Once you feel the click, immediately turn CLOCKWISE (right). It should spin in like butter.


Troubleshooting: The Cross-Thread Rescue Protocol

Expert Rule: If you have to use the wrench to start the bolt, you are doing it wrong. Hand start only.

The Spare Parts Reality Check: Why You’ll Have Extra Black Pucks

At the end, you will look at your pile and panic. "I have parts left over!"

Relax. The presenter explains that the EMT16X kit covers multiple bases.

• Black Pucks: Not used for this machine.
• Long Bolts: Not used.

Set them aside in a labeled Ziploc bag ("Cart Spares")—never throw away hardware in a commercial shop.

The Upgrade Mindset: From "Just a Cart" to Profit Center

You have built the skeleton. Now, look at the future of your production. The cart is stable, but your profitability depends on how fast you can get garments on and off that cart.

1. Workflow Friction Analysis

The cart holds the machine, but you hold the hoop. If you find yourself struggling with "hoop burn" (the ring marks left on fabric) or fighting to frame thick jackets, standard plastic hoops—even good ones—can be a bottleneck.

This is where the term hoops for melco embroidery machine becomes a financial calculation.

• Pain Point: Re-hooping a slippery polo shirt three times to get it straight.
• Solution: Magnetic Hoops (Level 2 Upgrade). They clamp instantly without brute force, reducing wrist strain and fabric damage.

Warning: Magnetic Field Safety. Commercial magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They can snap together with enough force to break a finger bone or stir blood blisters. handle with extreme care.
* Medical Device: Keep at least 6-12 inches away from pacemakers or insulin pumps.

2. Ergonomics & efficiency

A solid cart is step one. Step two is a dedicated hooping station. You cannot hoop effectively on your lap or a cluttered desk.

• Consider placing a small table perpendicular to your cart.
• Install a hooping station for machine embroidery fixture. This ensures every left-chest logo is in the exact same spot, reducing "placement anxiety."

3. Scaling Up: When One Head Isn't Enough

You are starting with a single head. That’s great. But as you master the melco hat hoop and flats, you will hit a ceiling where the machine is running 24/7 and you still can't fill orders.

• The Pivot: When you are turning away orders, it's time to look at multi-head solutions or dedicated workhorses like the SEWTECH multi-needle machines, which offer high scalability for growing shops.

Decision Tree: Post-Assembly Optimization

Use this logic flow to decide your next move after the cart is built:

START: Cart is built, bolts are tight.

• Q1: Does the cart rock on the floor?
  • YES: Adjust the leveling feet on the bottom of the casters. Ensure all four wheels touch ground.
  • NO: Proceed to Q2.
• Q2: Are you doing mostly Caps/Hats or Flats?
  • HATS: Ensure your cap driver is calibrated. Search for melco hat hoop tips to ensure your driver fits snugly on the new cart setup.
  • FLATS: Proceed to Q3.
• Q3: Are you worried about "hoop burn" on delicate corporate gear?
  • YES: Investigate hooping station for embroidery kits and Magnetic Hoops immediately. This saves money on ruined garments.
  • NO: Inspect your standard hoops for burrs and proceed with training.

Operation Checklist (Final Sign-Off)

Before you lift that heavy machine onto this cart:

• Torque Audit: Go over every single M6 bolt one last time with the 4mm wrench.
• Squareness: The cart looks visually symmetrical; no twisted legs.
• Cable Route: The rear panel hole is at the BOTTOM.
• Stability: Lock the front caster wheels. Push the cart. It should hold firm.
• Debris: Remove any loose washers or tools from the shelf so they don't rattle during operation.

A properly assembled cart is silent. It disappears. It lets you focus on the art of embroidery and the business of making money, rather than wondering why your machine is vibrating across the room. Build it right, build it once.

FAQ

• Q: During Melco EMT16X cart assembly, why should Melco EMT16X cart bolts stay “finger-taut” until the whole frame is aligned?
  A: Keep Melco EMT16X cart bolts finger-taut first to let the frame self-square before torque locks in misalignment.
  • Start every M6 × 12mm bolt by hand and stop as soon as the bolt head touches the washer.
  • Leave slight wiggle in the side frames and Part C until all base connections are started.
  • Tighten with the 4mm Allen wrench only after the cart “finds” its natural alignment.
  • Success check: Bolts spin easily by fingers at first, and the frame feels connected-but-still-movable before final tightening.
  • If it still fails: Loosen all cart bolts by about 2 turns to relax the frame, then re-align and restart finger-tightening.
• Q: On the Melco EMT16X cart, which way must Melco EMT16X Part C (base connector) face so the Melco EMT16X embroidery machine mounts correctly later?
  A: Install Melco EMT16X Part C with the two front-corner holes facing toward the locking wheels (the “front”).
  • Identify the locking casters on the side frames and treat that direction as the cart front.
  • Rotate Part C until its two front-corner holes are on the locking-wheel side.
  • Slide Part C in slowly to avoid scratching, then start bolts by hand with washers.
  • Success check: The bolt holes look like a clean “tunnel of light” (no half-moon obstruction) and bolts start easily by hand.
  • If it still fails: Pull Part C back out, re-check the locking-wheel orientation, and try again before tightening anything.
• Q: Why is using the Melco-supplied 4mm Allen wrench important for Melco EMT16X cart button-head screws instead of a 5/32" hex key?
  A: Use the Melco-supplied 4mm Allen wrench because a near-size 5/32" key can slip and strip Melco EMT16X cart button-head screws under torque.
  • Locate the 4mm Allen wrench from the Machine Operator Kit before starting assembly.
  • Inspect the wrench tip for rounding before applying force.
  • Stop immediately if the tool feels loose in the screw head and switch to the correct 4mm key.
  • Success check: The Allen key seats fully with minimal play, and screw heads stay crisp (no rounding).
  • If it still fails: Do not continue tightening a partially stripped screw; back it out and address the damaged fastener before proceeding.
• Q: During Melco EMT16X cart rear support panel installation, which direction must the Melco EMT16X cable routing hole face, and what is the “gravity trick” for starting bolts?
  A: Install the Melco EMT16X rear support panel with the cable routing hole facing DOWN, and start the top two bolts first so gravity holds the panel.
  • Pre-load washers onto all four M6 × 12mm bolts so nothing drops while positioning the panel.
  • Thread the top two bolts 3–4 turns only, letting the panel hang safely.
  • Start the bottom two bolts finger-tight, then tighten all four with the 4mm Allen wrench.
  • Success check: The panel feels rigid after tightening and the cable hole is clearly at the bottom for clean cord routing later.
  • If it still fails: Loosen the bolts, re-seat the panel in the rear slots, and restart with the top two bolts first.
• Q: How do I prevent cross-threading M6 × 12mm bolts during Melco EMT16X cart shelf installation, and what are the warning signs of cross-threading?
  A: Prevent Melco EMT16X cart cross-threading by using the reverse-turn “click” method and never using the wrench to start a bolt.
  • Turn the bolt counter-clockwise first until a distinct “click” is felt, then turn clockwise to thread in smoothly.
  • Hand-start every bolt; only use the 4mm Allen wrench after several easy hand turns.
  • Stop immediately if the bolt gets tight after about one turn and back it out.
  • Success check: The bolt threads in “like butter” by fingers and tightens normally only near the end.
  • If it still fails: Loosen other cart bolts by about 2 turns to release frame torque, then re-align holes and restart the bolt by hand.
• Q: If Melco EMT16X cart bolt holes are off by about 2mm during assembly, what is the correct fix without forcing the frame?
  A: Do not force Melco EMT16X cart bolts—relax the entire frame by loosening other bolts so the structure re-aligns naturally.
  • Back off all other cart bolts by about 2 turns to remove twist/tension.
  • Re-seat the part (base, rear panel, or shelf) and confirm holes visually align before inserting bolts.
  • Restart bolts using finger-taut technique, then tighten only after all fasteners are started.
  • Success check: Bolt holes line up without prying, and bolts start straight by hand with no side-load.
  • If it still fails: Re-check part orientation (especially Part C front-corner holes and the rear panel cable-hole-down requirement) and restart.
• Q: What safety hazards should operators watch for during Melco EMT16X cart assembly and when handling magnetic embroidery hoops for Melco-style workflows?
  A: Treat Melco EMT16X cart assembly as a pinch-point task and treat magnetic embroidery hoops as industrial pinch hazards that can snap together suddenly.
  • Keep fingers on outside surfaces when sliding heavy powder-coated parts together; avoid seams and screw-hole areas.
  • Move parts slowly and control gravity when fitting the shelf and rear panel.
  • Handle magnetic hoops with deliberate spacing; keep hands clear where magnets can clamp shut.
  • Success check: Hands never enter pinch zones, and parts are guided into place without sudden “snap” contact.
  • If it still fails: Pause the task, reset hand placement and workspace, and for magnetic hoops keep them 6–12 inches away from pacemakers or insulin pumps as a safety precaution.
