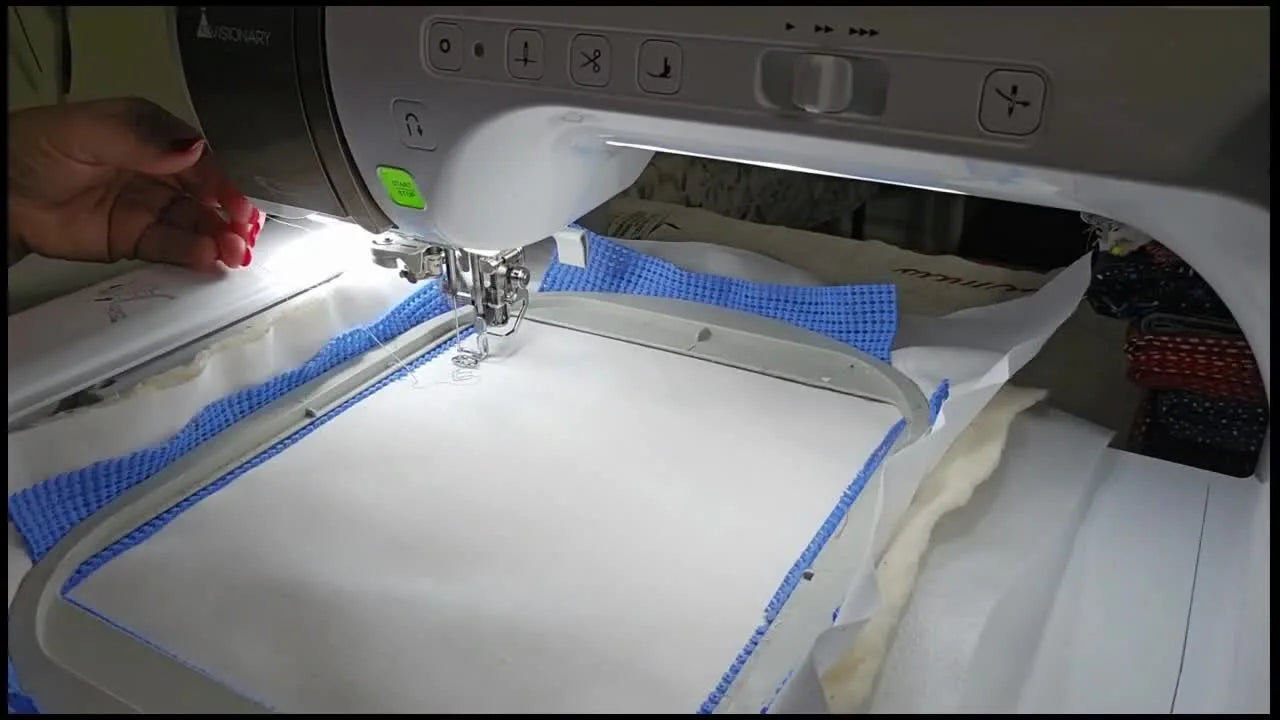

Butterflies & Hibiscus Edge-to-Edge Quilting on a Baby Lock: Clean Continuous Lines, Zero Surprise Cuts, and Perfect Re-Hoop Alignment

Mastering Edge-to-Edge Quilting in the Hoop: A Production-Grade Guide for Baby Lock & Palette 11 Users

Edge-to-edge (E2E) quilting in the hoop is a deceptively complex discipline. It sits precisely at the intersection of digital precision and analog resistance. When it works, it looks like magic: a continuous line flowing seamlessly across fabric. When it fails—usually due to a sudden thread trim, a bobbin run-out, or a misalignment—it feels personal and unforgiving.

If your machine suddenly stops, trims, and leaves unsightly tails where you expected a continuous flow, you are not "doing it wrong." You are fighting the inherent tension between a rigid embroidery file and a compressible, shifting quilt sandwich.

In this master class, we analyze Regina’s execution of the “Butterflies and Hibiscus” collection. She combines 4"x4" motifs into an 8"x8" block using Palette 11, then stitches it on a Baby Lock. But beyond the pretty pattern, she demonstrates something more valuable: active failure recovery.

We will break down how to stabilize, stitch, and recover like a veteran operator, moving you from "hoping it works" to "knowing it will."

The Digital Architecture: Making Quilting “Modular” in Palette 11

Before a single needle moves, the battle is won or lost in the software. Regina utilizes Palette 11 to create an 8"x8" layout by importing four separate 4"x4" designs. This isn't just about making the design bigger; it is about creating a modular system.

Think of this like laying tile. She treats each quadrant as an interchangeable component, using a naming convention like A+A, A+B, or A+C. This allows for complex visual variety without the need to re-digitize the entire quilt top.

The cognitive strategy for file setup:

1. Color Coding for Clarity: Regina keeps the colors distinct temporarily. This is a crucial visual aid. It allows you to see exactly where the connection paths run. If everything is one color, your eye cannot detect a gap in the pathing until the machine stops stitching.
2. Manual Grid Nudging: She relies on the grid for alignment.

Pro Awareness: If you lack software, you can mirror/flip on the machine screen, but software facilitates the "Macro View." You can verify the entry and exit points of the needle before committing to fabric.

The Physics of the "Sandwich": Why Hooping is Your Biggest Variable

In standard embroidery, we stabilize a single layer of fabric. In E2E quilting, we are stabilizing a dynamic sandwich.

Regina’s stack:

• Bottom: No-show mesh stabilizer (minimizes bulk).
• Middle: Batting (compressible loft).
• Top: Cotton fabric (woven, stable).

The Sensory Check: The "Drum Skin" Myth

With a quilt sandwich, you cannot achieve the "tight as a drum" tension used in standard embroidery without causing "hoop burn" (permanent ring marks) or distorting the batting.

• Tactile Check: The fabric should be taut and flat, but not stretched to the point where the weave distorts.
• Visual Check: Look at the grid of the fabric fibers. If they are bowing or curving near the hoop edge, you have over-tightened.




Regina uses variegated cotton quilting thread. Note on Physics: Cotton thread has a higher friction coefficient than polyester embroidery thread. It grabs the fabric. This means your tension settings and hooping stability must be precise.

The Friction Point: When Standard Hoops Fail

Standard double-ring hoops rely on friction and muscle power. When you are hooping a thick sandwich 20 or 30 times for a large quilt, two things happen:

1. Hand Fatigue: Your grip strength weakens, leading to inconsistent tension in later blocks.
2. Hoop Burn: The inner ring creates friction marks on the quilt top.

The Tool Upgrade Trigger: If you find yourself wrestling thick batting into the frame or seeing shiny friction marks on your fabric, this is the operational limit of friction hoops. Many production quilters switch to a magnetic hooping station. By using magnets rather than friction, you eliminate the "shove" required to lock the hoop, maintaining consistent pressure from the first block to the last without crushing the batting fibers.

Prep Checklist: The Pre-Flight Safety Routine

• Hardware Check: Insert a fresh Topstitch 90/14 or Quilting 75/11 needle. Standard embroidery needles may struggle to penetrate the sandwich cleanly.
• File Verification: Confirm the block size matches your hoop limit (Regina uses 8"x8").
• Layer Order: Mesh (Bottom) -> Batting -> Fabric (Top). Warning: Never float the stabilizer for E2E; it must be hooped for alignment.
• Speed Calibration: Set your machine to 600-700 SPM. Quilting requires heavy needle penetration; running at 1000 SPM increases the risk of thread breakage on thick layers.
• Consumable Check: Ensure you have enough variegated cotton thread for the entire quilt to avoid dye-lot mismatches.

The "Pull-Up" Technique: Preventing Nests at the Source

Regina demonstrates a start-up routine that is mandatory for clean quilting. E2E designs often begin with immediate movement. If the bobbin tail is loose underneath, it will create a bird's nest (tangled thread) on the underside of your quilt.

The Protocol:

1. Lower the presser foot to engage tension discs.
2. Holding the top thread, take one single stitch (Needle Down, Needle Up).
3. Raise the foot and pull the top thread. This brings the bobbin loop to the surface.
4. Grasp both tails (top and bobbin) and move them aside before hitting start.


Warning: Mechanical Safety
When performing the "one stitch" maneuver, keep fingers and tweezers at least 3 inches away from the needle bar. A slip on the "Start" button or foot pedal while your fingers are in the stitch zone can result in a severe puncture injury.

Setup Checklist: The "Go/No-Go" Decision

• Design orientation verified on screen (top is top).
• Presser foot height adjusted (raised slightly) to accommodate quilt thickness (check your machine manual for "Presser Foot Height").
• Bobbin pulled to the top surface.
• Bobbin Status: Use a full bobbin. Starting an E2E block with a partial bobbin is a gamble that rarely pays off.

The Continuous-Line Stitch-Out: Monitoring the Flow

As the machine runs, your job shifts from "operator" to "monitor." Regina’s file is designed for a single continuous path.

Sensory Monitoring:

• Sound: Listen for a rhythmic, soft thump-thump. A sharp slap or clatter indicates the thread is popping out of the tension disks or the needle is dull.
• Sight: Watch the travel loops. They should look intentional and smooth. Jerky movements suggest the hoop is dragging on the table surface (support the weight of the quilt!).




If you plan to scale this to a King or Queen size quilt, hoop stability becomes the primary bottleneck. The constant "un-hoop, re-hoop" cycle is where alignment errors creep in. This is where investing in embroidery magnetic hoops pays dividends. The ability to slide the quilt and snap the magnet frame in place without disturbing the layers significantly reduces the "distortion risk" that ruins connection points.

Troubleshooting: The "Phantom Trim" & The "Dead Bobbin"

Regina encounters two specific failures that terrify beginners. Here is how to fix them professionally.

Problem 1: The Unwanted Thread Cut

Symptom: The machine stops and trims threads between motifs, leaving ugly tails on the back. Root Cause: The file data contains "Stop" or "Trim" commands between the merged blocks. The machine is obeying instructions you didn't know were there. The Fix (Software): Regina returns to Palette 11. She selects all four quadrants and converts them to one color and ensures they are a continuous stitch path.

• Why this works: Machines interpret a color change as a "Stop." By unifying the color, you force the machine to treat the path as a single entity, creating travel stitches instead of trims.


Pro Tip: Always run a "Trace" or use the Simulator in your software before stitching. If the simulator stops, your machine will stop.

Problem 2: Bobbin Run-Out Mid-Block

Symptom: The bobbin empties while stitching block C or D. The Panic: "If I start over, I’ll have double stitches." The Fix (Stitch Navigation):

1. Replace the bobbin.
2. Do not start from stitch 1. Use the machine’s +/- Stitch or Sewing Order function.
3. Backtrack approximately 10-20 stitches before the run-out occurred.
4. Pull the bobbin thread up (again!).
5. Start stitching. The nice thing about cotton quilting thread is that overlap stitches blend well.




The Dark Art of Connection Points (Re-Hooping)

The true difficulty of E2E quilting isn't the stitching; it's the alignment of the next block. Regina points out the start/end points at the edge of the field.

The Workflow:

1. Stitch Block 1.
2. Un-hoop.
3. Slide quilt to Block 2 position.
4. Critical Step: Align the needle exactly over the endpoint of Block 1.








This step relies entirely on the fabric not shifting during the clamping process. If you push the inner ring of a traditional hoop and the fabric ripples 1mm, your butterflies won't connect.

Decision Tree: Stabilizer & Hoop Strategy

Use this logic flow to determine your setup based on materials.

• Scenario A: Standard Quilting Cotton (Medium Batting)
  • Stabilizer: Poly Mesh (No-Show).
  • Hoop: Standard or Magnetic.
  • result: Good stability, low bulk.
• Scenario B: Slinky/Stretchy Top Fabric (Minky or Knit)
  • Stabilizer: Fusible No-Show Mesh (prevents stretch).
  • Hoop: magnetic embroidery hoops for embroidery machines are highly recommended here to avoid stretching the knit during hooping.
• Scenario C: High-Loft Batting (Puffy)
  • Stabilizer: Heavy Weight Tea-Away (for stiffness) or Mesh.
  • Hoop: High-profile magnetic hoop. Standard hoops may pop open.

When evaluating efficiency, calculate the time spent struggling with hoops. If you save 2 minutes per block on a 30-block quilt using a hooping station for machine embroidery, you have saved an hour of labor—and likely saved your wrists from strain.

The Hidden Prep: What the Manual Doesn't Tell You

Before you blame the design, check these variables:

• Bobbin Tension: For quilting, loosen the bobbin tension slightly (Lefty-Loosey, 5 minutes on a clock face) if using thick cotton thread, so the knot buries in the batting layer.
• Hidden Consumables: Keep temporary adhesive spray (505 spray) or fabric-safe tape nearby. Taping the loose edges of the quilt prevents them from folding under the hoop and getting stitched to the back (a disaster known as "stitching the quilt to itself").
• Field Size Verification: Not all hoops fit all machines. Always check the babylock magnetic hoop sizes compatibility chart for your specific model before upgrading hardware.

Troubleshooting Index: Symptoms & Cures

A quick reference guide for when things go wrong.

The Production Mindset: From Hobby to Factory

If you are stitching a single baby quilt, standard tools are sufficient. However, if E2E quilting becomes a regular part of your workflow, you must treat it as a production process.

• Batching: Wind 10 bobbins before you start.
• Standardization: Use the same customized files (single color path) every time.
• Ergonomics: The repetitive motion of hooping heavy quilts is a leading cause of RSI (Repetitive Strain Injury) in embroiderers.

Tools like the baby lock magnetic memory hoops or similar industrial-grade magnetic systems are not just about speed; they are about preservation—preserving the quilt texture from hoop burn and preserving your body from fatigue.

Warning: Magnet Safety
Pro-grade magnetic hoops utilize Neodymium magnets with extreme clamping force.
* Pinch Hazard: Never place fingers between the brackets. They snap shut instantly.
* Medical Devices: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not rest the magnetic frame on your laptop or computerized machine screen.

Operation Checklist: Post-Block Protocol

1. Tail Management: Trim the start/end tails immediately. Do not let them accumulate.
2. Visual Scan: Check the back of the hoop for any loops or nests before un-hooping.
3. Marker Check: If you used water-soluble pen to mark connection points, ensure they are still visible for the next alignment.
4. Heat Management: After 4-5 blocks, check if your needle is getting hot (warm needles melt synthetic thread/batting). Pause if necessary.

By respecting the physics of the quilt sandwich and utilizing the right strategies—whether that is smart software editing or ergonomic magnetic hooping—you transform E2E quilting from a stressful gamble into a precise, rhythmic art form.

FAQ

• Q: How can Baby Lock edge-to-edge quilting in the hoop avoid hoop burn and batting distortion when hooping a quilt sandwich?
  A: Keep the quilt sandwich taut and flat, not “drum tight,” and use visual fiber cues to stop over-tightening.
  • Hoop on a flat surface and tighten only until the top fabric lays smooth.
  • Check the fabric weave/grid near the hoop edge and stop if fibers bow or curve.
  • Choose a low-bulk base like no-show mesh under batting when bulk is the limiter.
  • Success check: The surface looks flat with no shiny ring marks, and the fabric grain stays straight near the hoop edge.
  • If it still fails: Reduce hooping force consistency issues (hand fatigue) by switching from friction clamping to a magnetic hooping system.
• Q: How do Baby Lock users prevent bird’s nest tangles on the underside when edge-to-edge quilting in the hoop starts moving immediately?
  A: Use the pull-up routine before pressing Start so both thread tails are controlled from stitch one.
  • Lower the presser foot to engage the tension discs.
  • Take one single stitch (Needle Down → Needle Up), then raise the foot and pull the top thread to bring up the bobbin loop.
  • Hold both top and bobbin tails and move them aside before starting the design.
  • Success check: The underside shows no thread wad at the start point—only clean stitches with controlled tails.
  • If it still fails: Re-thread the top thread with the presser foot UP, then restart while holding both tails for the first few stitches.
• Q: Why does Baby Lock stop and trim threads between merged quilting motifs after combining 4"x4" blocks into an 8"x8" layout in Palette 11?
  A: The embroidery file likely contains Stop/Trim behavior triggered by color changes, so unify the merged blocks into one continuous color/path in Palette 11.
  • Select all quadrants and convert them to one color so the machine treats it as a single run.
  • Verify the stitch path is continuous so the connection uses travel stitches instead of trims.
  • Run a software trace/simulator before stitching; if the simulator stops, the machine will stop.
  • Success check: The stitch-out runs through motif connections without pausing to cut, and the back has no new trim tails between motifs.
  • If it still fails: Re-check for hidden stops/trims in the file and confirm the machine is not set to auto-trim behavior for that segment.
• Q: How can Baby Lock resume edge-to-edge quilting in the hoop after a bobbin runs out mid-block without doubling stitches?
  A: Replace the bobbin and restart using stitch navigation, backing up 10–20 stitches before the run-out for a clean overlap.
  • Replace the bobbin, then use the machine’s +/- Stitch or Sewing Order function (not stitch 1).
  • Backtrack approximately 10–20 stitches before the empty-bobbin point.
  • Pull the bobbin thread up again before restarting.
  • Success check: The restart blends into the existing line with no obvious gap; overlap is visually acceptable (often well-hidden with cotton quilting thread).
  • If it still fails: Start the block only with a full bobbin next time to avoid run-out during continuous-line sections.
• Q: What is the safe operating routine for Baby Lock edge-to-edge quilting in the hoop when doing the “one stitch” bobbin pull-up near the needle?
  A: Keep hands and tools well away from the needle zone during the one-stitch maneuver to prevent accidental puncture.
  • Keep fingers and tweezers at least 3 inches away from the needle bar area.
  • Use Needle Down/Up deliberately and do not touch the Start button/foot control while hands are near the needle.
  • Move both thread tails fully aside before starting the design run.
  • Success check: The machine begins stitching with no hands near the moving needle and no snagged tails.
  • If it still fails: Pause, reposition the quilt and tails, and only resume once the stitch zone is completely clear.
• Q: What magnet safety rules should Baby Lock users follow when using neodymium magnetic embroidery hoops for quilting in the hoop?
  A: Treat magnetic hoops as high-force clamps: avoid pinch points and keep magnets away from sensitive medical devices and electronics.
  • Keep fingers out of the closing gap; magnets can snap shut instantly.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Do not rest magnetic frames on laptops or computerized machine screens.
  • Success check: The frame closes without finger contact in the clamp area and the hoop is handled/stored away from electronics.
  • If it still fails: Slow down the clamping motion and reposition the quilt first so hands never need to guide inside the closing path.
• Q: When Baby Lock edge-to-edge quilting in the hoop keeps causing alignment errors at connection points after re-hooping, what is the best tiered fix: technique, magnetic hoops, or a production upgrade?
  A: Start with re-hooping control and endpoint alignment discipline, then upgrade to magnetic hooping for consistency, and only then consider higher-throughput production equipment if volume demands it.
  • Level 1 (Technique): Align the needle exactly over the previous block’s endpoint before stitching the next block, and support the quilt weight to prevent hoop drag during stitching.
  • Level 2 (Tool): Use a magnetic hooping system to reduce layer shift during clamping, especially when repeated un-hoop/re-hoop cycles cause 1 mm ripples that break connections.
  • Level 3 (Scale): If large quilts require 20–30+ hoopings and hooping time/strain becomes the bottleneck, consider a production-focused workflow upgrade (often paired with multi-needle capacity).
  • Success check: Connection points meet cleanly across blocks with no visible jump or offset at the seam line.
  • If it still fails: Re-check stabilizer choice and fabric behavior (stretchy tops may need fusible no-show mesh) and confirm the block size matches the hoop’s true stitch field.
