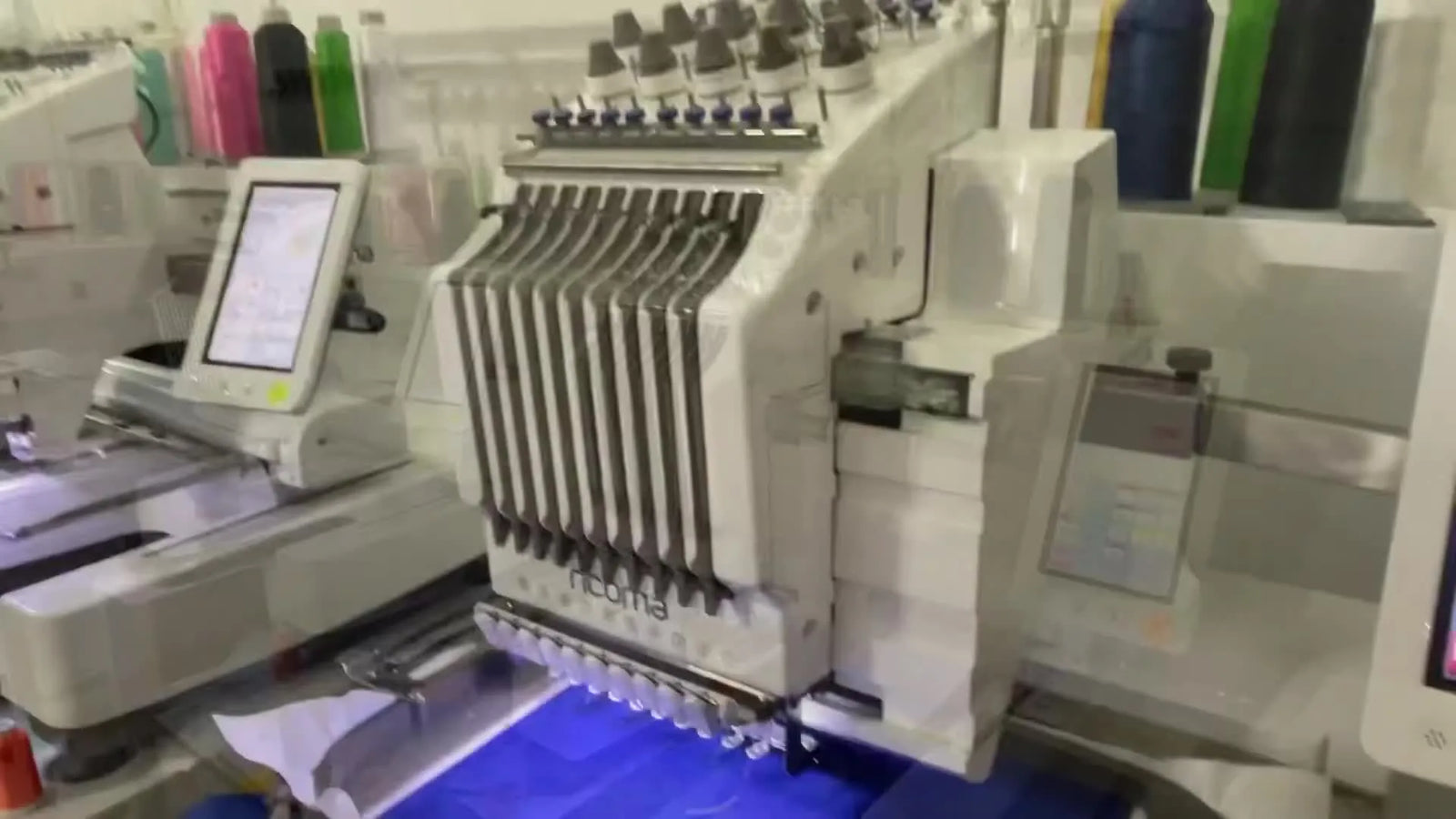

Candle Thread vs Madeira on a Ricoma EM-1010: The 5-Hour Patch Test (and the Hooping Bottleneck Nobody Talks About)

The Ultimate Bench Test: Production Patches, Budget Thread, and the Reality of Batch Stitching

If you have ever stared at a wall of thread prices and thought, "I’m not paying premium money just to HOPE it runs," you are not alone. Machine embroidery is an expensive game of variables.

This guide acts as a practical, production-style "stress test." We are pitting Candle polyester thread (budget-friendly) against Madeira Polyneon (industry standard), stitching high-density Houston Astros-style patches on a ricoma em 1010 embroidery machine.

The headline result? The budget thread survived a 5-hour batch run with zero breaks. However, success in embroidery is 20% materials and 80% physics. Below, we break down the exact workflow, the necessary safeguards, and the "hidden" prep work that separates a hobbyist from a profiting shop.

1. The Thread Audit: Candle vs. Madeira

The video begins with a visual comparison, not a spreadsheet fantasy.

The Economics:

• Candle Thread: ~$4.75 per 5,000m spool.
• Madeira Polyneon: ~$9.00+ per 5,000m spool.
• Specs: Both are 40 wt (standard), meaning no digitizing changes are needed to swap them.


The "Sheen Test" (Sensory Check)

Don't just look at the color; look at the light refraction.

1. Visual: Hold both spools under your shop's LED light.
2. Action: Rotate them slowly.
3. Result: Madeira often has a "smooth, satin" glow. Candle, in this gold-on-gold test, showed a slightly higher "sparkle" or "glitter" effect.




Pro Tip: If you sell patches to teams, "Warm Gold" vs. "Green Gold" matters more than price. Always stitch a physical sample before buying 100 spools.

2. Preparation: The "Hidden" Consumables Matrix

Patch work is unforgiving. Tatami fills (solid blocks of stitching) create immense tension that pulls fabric inward (the "push-pull" effect).

The Winning Formula:

• Substrate: Firm Felt (Stiff, craft-store grade).
• Backing: HeatnBond Ultra Hold (ironed onto the back before stitching).
• Hidden Consumable: Titanium Needles (75/11). The adhesive in HeatnBond can gum up standard needles; titanium resists heat and glue buildup.




The Template Check (avoiding the "Oval Circle" disaster)

Before stitching, the presenter places a printed paper template over the hooped felt to confirm the alignment of six patches.

PREP CHECKLIST: The "Zero-Fail" Protocol

• Material Check: Is the felt stiff? (It should support its own weight when held horizontally).
• Adhesion: Has HeatnBond been ironed to the back? Ensure no bubbles exist.
• Needle Inspection: Run your fingernail down the needle tip. If you feel a "catch," replace it immediately.
• Bobbin Inventory: Pre-wind at least 5 bobbins for a dense patch run.
• Template Match: Does the printed layout match the hoop's internal dimensions?

3. The Hooping Bottleneck: Where Profit Bleeds Out

The video uses standard plastic hoops. They work, but they are the single biggest cause of operator fatigue and registration errors.

The Physics of Failure: To hold thick felt + stabilizer, you must tighten the screw immensely. This often leads to:

1. Hoop Burn: Permanent rings left on the fabric (less of an issue on felt, fatal on polo shirts).
2. Wrist Strain: repetitive stress from tightening screws.
3. Slippage: The "drum skin" feel loosens mid-stitch, causing outlines to misalign.

The Compass: Do You Need to Upgrade?

If you are struggling with thick materials or repetitive batching, this is your trigger point.

• Trigger: "I spend more time hooping than stitching."
• Criteria: Are you doing 50+ items? Is the material thick (Cardhartt/Felt)?
• Solution: Industry leaders utilize magnetic embroidery hoops. Unlike screws, these use powerful magnets to clamp fabric instantly without force.

For owners of specific machines, searching for verified setups like mighty hoops for ricoma em 1010 can solve the slippage issue entirely. Treat a hooping station for machine embroidery + Magnetic Frame as a "Time Recovery Tool"—it pays for itself in labor savings within 5 large orders.

Warning: Magnet Safety
Multi-needle magnetic hoops utilize industrial-grade neodymium magnets.
* Pinch Hazard: They can snap together with crushing force. Keep fingers clear of the mating zone.
* Health Risk: Keep at least 6 inches away from pacemakers and insulin pumps.

4. Machine Setup & The "Tie-On" Method

The presenter saves time by tying the new thread to the old one and pulling it through.

The Safe Way to "Tie-On":

1. Cut the old thread at the spool.
2. Tie the new thread to the tail using a square knot (tight!).
3. Pull from the needle side.
4. Sensory Check: As the knot passes the tension discs, you will feel a hard resistance. STOP. Pinch the tension disc open manually to let the knot pass, or you risk damaging the tension spring.

5. The Stitch-Out: 5 Hours of Density

The machine runs a high-density blue Tatami fill. Total run time: 5 Hours. Result: Zero thread breaks. Reality Check: 4 Bobbin changes.

Speed & Tension Guidelines (The "Sweet Spot")

The video doesn't specify RPM, but for dense patches on a multi-needle machine:

• Beginner Speed: 600 - 700 SPM (Stitches Per Minute).
• Expert Speed: 800 - 900 SPM.
• Why slow down? Dictionary-thick friction heats up the needle. Heat melts the polyester thread and the adhesive backing. Sticking to ~700 SPM ensures safety.

SETUP CHECKLIST: Pre-Flight

• Hoop Security: Shake the hoop after attaching it to the machine arms. It should have zero "wiggle."
• Clearance: Rotate the handwheel manually (one full revolution) to ensure the needle doesn't hit the hoop frame.
• Tension Check: Pull the top thread gently. It should feel like pulling unwaxed dental floss—consistent resistance, not loose, not snapping tight.
• Bobbin Check: Ensure the bobbin case is blown out with air (no lint) before loading.

6. Materials Decision Tree

A common question in the comments: "What stabilizer do I use?" Use this logic flow to decide.

Decision Tree: Stabilizer Selection

1. Is the base material stable (e.g., Stiff Felt)?
   • YES: Use HeatnBond Ultra Hold (Iron-on) on the back. This provides enough rigidity.
   • NO: Go to step 2.
2. Is the design dense (15,000+ stitches)?
   • YES: You must use Cutaway Stabilizer (2.5oz). Secure it under the hoop. Tearaway will punch out and ruin the alignment.
   • NO: You might get away with Tearaway, but Cutaway is safer.

7. Finishing: The "Clean Edge" Secret

The finishing step distinguishes a "homemade craft" from a "store-bought patch." Trick: Leave the HeatnBond backing paper ON while cutting.

Why? The paper acts as a stiffener. When scissors shear through fabric, flexible fabric bends away from the blade. Paper forces the fabric to stay flat, resulting in a crisp edge.

• Tool: Use Appliqué Scissors (duckbill scissors) or precision curved snips.

8. Troubleshooting: The Bobbin Panic

One comment captures a universal fear: "Why did my bottom thread not catch?"

Troubleshooting Logic: Low Cost → High Cost

Warning: Physical Safety
Never place your hands near the needle bar while the machine is running. If trimming a thread, hit STOP first. A machine running at 800 SPM moves faster than your reflex reaction time.

9. Conclusion: The Verdict on Budget vs. Speed

The experiment proves that Candle Thread ($4.75) is a viable production option. It held up under stress and looked great.

However, the "hidden cost" was the 5-hour runtime and the manual labor of hooping six individual frames.

• Level 1 (Hobby): Optimize your settings and use good scissors.
• Level 2 (Pro): Upgrade to magnetic hoops for embroidery machines to solve the hooping bottleneck.
• Level 3 (Scale): If 5 hours for 6 patches hurts your profitability, look into multi-head solutions or faster commercial machines (like SEWTECH multi-needles) to multiply your output.

OPERATION CHECKLIST: Post-Run

• Sheen Inspection: Hold the patch at a 45-degree angle. Is the tatami smooth?
• Back Check: Is the bobbin thread showing about 1/3 width white in the center of the satin column? (This indicates perfect tension).
• Seal: After cutting, peel the backing paper and heat-press the patch onto the final garment/hat to activate the permanent bond.

FAQ

• Q: How do HeatnBond Ultra Hold patches avoid needle gumming and thread shredding during high-density tatami fills?
  A: Use a titanium 75/11 needle and slow the stitch speed so heat and adhesive do not build up at the needle.
  • Change: Install a Titanium 75/11 needle before stitching adhesive-backed felt.
  • Reduce: Run dense patch fills around 600–700 SPM as a safe starting point to limit friction heat (confirm with the machine manual).
  • Inspect: Replace the needle immediately if a fingernail test feels any “catch” on the tip.
  • Success check: The top thread runs smoothly without fuzzing, melting, or snapping, and the needle stays visibly clean.
  • If it still fails… Re-check top thread path and tension, and consider removing adhesive variables by testing on non-adhesive backing first.
• Q: What is the correct bobbin preparation and bobbin-loading method to prevent “bobbin not catching” on multi-needle patch runs?
  A: Start with a proper tail length and a clean, fully seated bobbin case—most “not catching” issues are loading or lint related.
  • Leave: Keep 3–4 inches of bobbin tail when loading.
  • Clean: Blow out lint from the bobbin case area before inserting the bobbin.
  • Seat: Reinsert the bobbin case firmly and listen/feel for a definite “click.”
  • Success check: The first stitches lock immediately and the bottom thread forms consistently without skipping.
  • If it still fails… Verify needle orientation (needle eye facing strictly forward, or slightly right depending on the specific model).
• Q: How can a shop verify hooping stability on thick felt patches to prevent outline misalignment and mid-run slippage with standard screw hoops?
  A: Hoop so the frame has zero movement on the machine arms—then confirm stability before running the design.
  • Tighten: Secure the hoop firmly; thick felt + stabilizer often requires more than finger-tight (use a screwdriver if needed).
  • Test: Shake the hooped frame after attaching it to the machine arms; eliminate any “wiggle.”
  • Confirm: Use a printed paper template over the hooped felt to verify patch layout and alignment before stitching.
  • Success check: The hooped material keeps a consistent “drum-skin” tension feel and outlines stay registered throughout the run.
  • If it still fails… Consider upgrading to a magnetic embroidery hoop system to reduce slippage and operator fatigue on repetitive batching.
• Q: What are the safest steps for using the “tie-on” thread change method on a multi-needle embroidery machine without damaging tension parts?
  A: Tie with a tight square knot, pull from the needle side, and stop the moment the knot hits resistance at the tension discs.
  • Cut: Cut the old thread at the spool, not near the needle.
  • Tie: Join old-to-new thread with a tight square knot.
  • Pull: Pull from the needle side and watch/feel the knot approaching the tension discs.
  • Success check: The knot passes through without a hard “snap” or grinding feel, and thread tension feels consistent like unwaxed dental floss.
  • If it still fails… Manually pinch/open the tension discs to guide the knot through, or rethread normally to avoid stressing the tension spring.
• Q: How can an operator confirm correct thread tension on dense patch satin columns during a long batch run?
  A: Use a simple pull-test before stitching and a backside inspection after stitching to confirm balanced tension.
  • Feel: Pull the top thread gently before the run; aim for consistent resistance (not loose, not snapping tight).
  • Inspect: After stitching, check the back of satin columns for bobbin thread showing about 1/3 width centered in the column.
  • Adjust: Make small tension changes only after confirming needle condition and cleanliness first.
  • Success check: The satin columns look smooth on top, and the bobbin thread “center line” is visible and consistent on the back.
  • If it still fails… Clean the bobbin case area again and re-check needle orientation before chasing tension settings.
• Q: What safety rules reduce injury risk when using industrial-strength magnetic embroidery hoops and running a multi-needle machine at 700–900 SPM?
  A: Treat magnets and needles as pinch-and-impact hazards—keep hands clear, stop the machine before touching threads, and keep magnets away from medical devices.
  • Keep clear: Never place hands near the needle bar while the machine is running; press STOP before trimming threads.
  • Avoid pinch: Keep fingers out of the mating zone when closing magnetic hoops; magnets can snap together with crushing force.
  • Maintain distance: Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Success check: Hoop attachment happens without finger pinches, and all thread handling occurs only when the machine is fully stopped.
  • If it still fails… Slow down the workflow and set a repeatable loading routine so safety steps are not skipped during batch pressure.
• Q: When should a patch shop upgrade from technique tweaks to magnetic hoops, and when does upgrading to a faster commercial multi-needle machine make sense for batch stitching?
  A: Use a three-level decision: optimize settings first, upgrade hooping next if labor is the bottleneck, and upgrade the machine when runtime limits profit.
  • Level 1 (Technique): Slow to ~600–700 SPM for dense patches, use titanium needles with adhesive backings, and pre-wind multiple bobbins for long runs.
  • Level 2 (Tooling): Upgrade to magnetic hoops if hooping time, wrist strain, or slippage is causing misregistration or slowing batching.
  • Level 3 (Capacity): Consider a higher-output commercial multi-needle setup if a single run (e.g., multiple dense patches) ties up the machine for hours and blocks new orders.
  • Success check: The shop spends more time stitching than hooping, registration stays consistent, and batch orders finish with fewer stops.
  • If it still fails… Time a full job (hooping + stitch + bobbin changes); whichever step consumes the most labor cost is the correct upgrade target.
