From Scraps to Precision: The Master Class on ScanNCut Appliqué Prep

(And How to Transition to Production-Ready Embroidery)

If you have ever stared at a chaotic pile of fabric scraps and thought, "I know the perfect shovel shape is hiding in here somewhere… but I refuse to hand-cut eight tiny rake tines," you have arrived at the right terminal.

Machine embroidery is an engineering challenge disguised as an art form. The difference between "homemade" and "professional" often comes down to tolerance management. If your appliqué fabric is cut with microscopic precision (CanvasWorkspace → ScanNCut), your satin stitches will cover the raw edges perfectly every time. If you hand-cut, you are fighting a losing battle against gap alignment before you even press the start button on your embroidery machine.

This guide documents the "Industrial-Lite" workflow for preparing appliqué parts (specifically for projects like Lori Holt’s Calico Garden shovel and rake blocks). We will move from digital precision to mechanical cutting, and finally, help you bridge the gap to the actual embroidery stitch-out.

1. Calm the Panic: Understanding Adhesion Mechanics

The moment fabric shifts on a cutting mat, the average user assumes they made a mistake. They freeze. They panic.

As a veteran of the industry, let me tell you the truth: Mats lie.

A cutting mat is a consumable tool with a decaying friction coefficient. It loses tack from dust, fiber lint, and skin oils. The video host correctly identifies that "’tis the nature of mats." Your job is not to trust the mat blindly; your job is to manage Shear Force (the lateral pressure of the blade against the fabric).

Sensory Check: The "Palm Test"

Before you load material, perform this sensory check:

• Tactile: Place your clean palm on the mat and lift. The mat should lift slightly with your hand before falling. If it feels like cheap office paper, it has zero tack.
• Visual: Look for gray fuzz. Fiber buildup acts like ball bearings, letting your fabric slide under the blade.

Warning: Mechanical Safety. The precise blade of a ScanNCut moves with rapid acceleration. Keep fingers clearly away from the mat feeding slot and the carriage path. Never attempt to smooth down lifting fabric while the machine is in motion—Hit Pause First.

2. Digital Prep in CanvasWorkspace: The Clean Room

We begin in the web version of Brother CanvasWorkspace. Think of this as your "Clean Room." Any mess you leave here (stray nodes, double lines) will become a disaster on the cutting table.

We are pulling specific shapes from the Calico Garden project (CG 70–79).

Step-by-Step: Sanitation Protocol

1. Log in to CanvasWorkspace and navigate to My Projects.
2. Load the Calico Garden project file (CG 70–79).
3. Isolate the target vectors: Shapes 70, 71, 72, 73, and 75 (Shovel and Rake components).
4. Purge the noise: Drag a selection box over everything else and hit Delete.
5. Refine: Zoom in and delete the interior "number" cut lines.
   • Why? If you leave these, the machine will cut the number "7" right out of the middle of your fabric shovel. We want a solid shape, not a stencil.

Pro Tip: If you are tracing physical templates instead of using a digital file, use a black Crayola marker on plain white printer paper. High contrast is the key to a clean auto-trace.

Phase 1 Prep Checklist (Software)

• Project ID Verified: Are you in file CG 70–79?
• Noise Removed: Have all non-essential shapes been deleted?
• Interior Lines Cleared: Are the shapes solid outlines only (no interior numbers)?
• Scale Strategy: Have you decided on a 12x12 or 12x24 mat layout?
• Grouping Check: Are shapes separated enough to allow for scrap placement later?


3. Engineering Precision: Building Rectangles That Work

Beginners eyeball measurements. Pros use the Properties panel.

Appliqué handles (for shovels or rakes) require exact geometric integrity. If a handle is 0.55" instead of 0.50", it won't fit under the pre-digitized embroidery stitches, forcing you to re-do the work later.

The Handle Protocol (Shovel)

1. Select the Basic Shapes menu.
2. Drag a generic Rectangle to the canvas.
3. Open the Properties tab.
4. Critical Step: Uncheck "Maintain aspect ratio." (If you miss this, changing width will warp your height).
5. Input Data: Width = 0.50" | Height = 8.75".
6. Orientation: Rotate to 90°.

The Secondary Handle

• Width: 0.50"
• Height: 8.00"
• Rotation: 90°

The Rake Tine Correction

The video demonstrates a classic "Iterative Design" moment. Initially creating a tine at 0.25" x 2.5", the host realizes the error and corrects usage to 0.75" length.

• Lesson: Do not fear mid-flight corrections. It is cheaper to fix pixels here than to cut fabric twice.
• Batching: Create one correct tine, then Right Click → Duplicate until you have 8 identical clones. Use the Align tool (Top Align) to organize them.


4. The Transfer Protocol: The "Grouped" Trap

When exporting via ScanNCut Transfer, you simply click Download → ScanNCut Transfer. However, there is a hidden software behavior that causes frustration at the machine: Hard Grouping.

If you send items as a "Group" in CanvasWorkspace, they often arrive at the machine welded together logically. You cannot nudge just the rake handle to fit a scrap of brown fabric if it is electronically glued to the shovel head.

• Best Practice: Ungroup components before transfer if you plan to use scraps. Keep them independent so you can map them to specific coordinates on the fabric.


5. Physical Setup: Tape is Your Seatbelt

The video features the Brother Low Tack Adhesive Mat (12x12). Ideally, for fabric with HeatnBond, a Standard Tack mat is preferred. However, real-world shops use what they have.

The host uses Painter's Tape (or Masking Tape) to secure all four edges of the fabric.

The Physics of Taping

This is not a "hack"; it is Shear Control. When the blade engages the fabric, it exerts horizontal force. Even with HeatnBond (which stiffens the fabric like cardstock), a low-tack mat cannot resist 100% of that force.

• The Tape's Job: It acts as a mechanical anchor, preventing the "creeping" drift that ruins sharp corners.

Hidden Consumable Alert: Always keep a roll of Painter's tape, a can of Sulky KK2000 (Temporary Adhesive Spray), and a Brayer (Roller) in your station. These are the "fixers" for non-ideal mat conditions.

6. Material Science: HeatnBond Orientation

A user asked: "Should the fabric be Face Up or Face Down?" The answer involves a trade-off between Adhesion and Surface Integrity.

The Decision Logic

• Scenario A: Brand New, Super-Sticky Mat
  • Action: Place Fabric Face Down (Paper side up).
  • Requirement: You MUST Mirror the design in software.
  • Why: If you put fabric face up on a super-sticky mat, peeling it off might fray the edges or separate the fibers.
• Scenario B: Well-Used, Lower-Tack Mat (Video Context)
  • Action: Place Fabric Face Up.
  • Requirement: Do NOT Mirror.
  • Why: The mat isn't strong enough to damage the fabric, and Face Up allows you to match the pattern (fussy cutting) visually.


7. The Background Scan: Turning Scraps into Inventory

This is the "Killer App" feature of the Brother ScanNCut system (SDX325). It allows you to use oddly shaped leftovers with zero waste.

The Placement Routine

1. Retrieve Data → Cloud on the machine screen.
2. Load Mat: Insert your mat containing the random fabric scraps.
3. Engage Sensor: Tap the Blue Scan Icon (not the main scan menu) → Scan Mat.

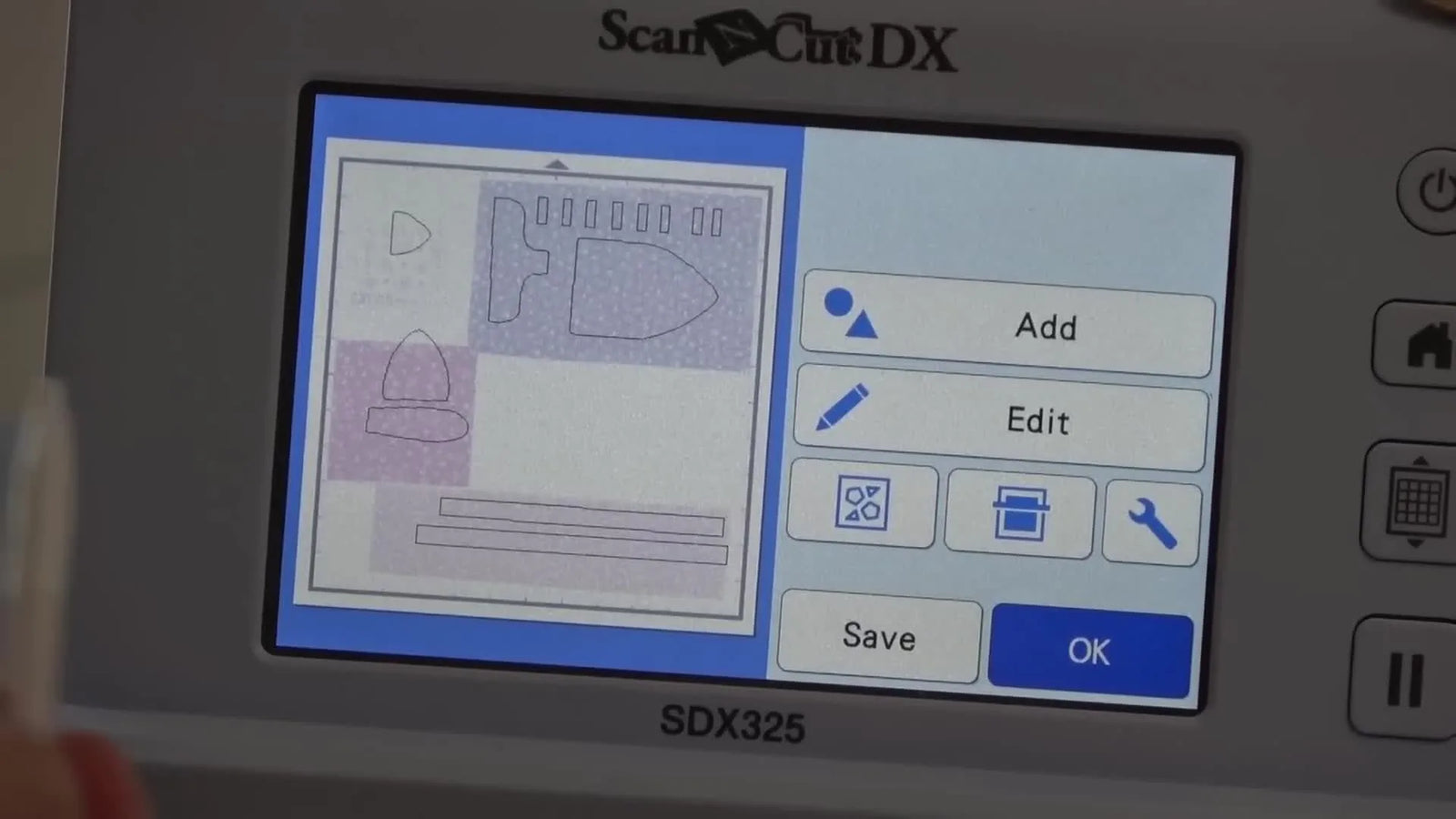

4. Visualization: The screen now displays a photo of your actual mat with the vectors overlaid.
5. Manipulation: Use the stylus to drag the shovel head vector onto the silver fabric scrap.
6. Precision: Do not rely on your finger. Use the Edit screen and the Directional Arrows to nudge the shape pixel-by-pixel until it sits safely inside the fabric boundaries.


8. Hard Constraints: 12x24 Scaling Limitations

If you are using an entry-level model like the SDX85, know your hardware limits.

• Cutting: Yes, it can drive the blade down a 24-inch mat.
• Scanning: No, the optical scanner often only covers the 12x12 area (model dependent).

Implication: If your workflow relies on Background Scan to place parts on scraps, restrict yourself to the top 12 inches of the mat. Do not put critical scraps at the bottom 12 inches unless you are measuring blindly.

9. Failure Management: The "Lift and Fix" Procedure

During the cut, the worst happens: A corner of the fabric lifts. The blade catches it. Do not watch it fail.

The Emergency Protocol

1. STOP: Hit the Pause button immediately.
2. LIFT: Gently lift the flapping fabric section.
3. SPRAY: Apply a short burst of Sulky KK2000 to the back of the HeatnBond/Fabric.
4. PRESS: Use firm finger pressure (or a brayer) to bond it back to the mat.
5. RESUME: Continue the cut.

KK2000 is a temporary adhesive that becomes tacky, then evaporates over 24-72 hours. It is the "Undo Button" for bad adhesion.

Verification: Does the blade sound rhythmic (thump-thump-thump) or like it is tearing (craaack)? A tearing sound demands an immediate pause.

10. Phase 2 Setup Checklist (Hardware)

Before you press "Start," run this pre-flight check to prevent material waste.

• File Retrieval: Data loaded from Cloud successfully.
• Mat Seating: Mat loaded straight and level.
• Background Scan: Scanned successfully; fabric scraps are visible on screen.
• Vector Placement: All cut lines are strictly within fabric borders (check edges!).
• Adhesion Security: Tape applied to all four corners/edges.
• Emergency Kit: KK2000 spray can is within arm's reach.
• Blade Check: Remove the blade holder cap—is there a tiny piece of vinyl/fabric stuck inside? Blow it out.


11. Decision Tree: The Fabric-Mat Strategy

Use this logic flow to determine your setup parameters.

Variable 1: Mat Condition

• Is Mat High-Tack (New)?
  • YES → Go to A.
  • NO → Go to B.

Variable 2: Fabric Orientation Strategy

• A (High Tack):
  • Place Fabric Face Down.
  • MUST Mirror Pattern.
  • Benefit: Protects fabric surface.
• B (Low Tack/Standard):
  • Place Fabric Face Up.
  • Do NOT Mirror.
  • MUST Tape Edges.
  • Benefit: Visual pattern matching enabled.

Variable 3: Stability Check

• Is Fabric < 2 inches wide?
  • YES → Apply KK2000 reinforcement regardless of mat condition. Small pieces have less surface area for friction.


12. Troubleshooting Matrix

Diagnose issues by symptom, not by guess.

13. The Bridge to Embroidery: Upgrading Your "Stitch-Out" Game

You now have perfectly cut fabric parts. This is where most beginners relax—and precisely where they fail. Cutting is just Prep. Embroidery is Production.

The transition from a sticky mat to an embroidery hoop is dangerous. If you hoop your base fabric loosely, or if your machine lacks precision, those perfect cuts will not align with the satin stitch borders. You will end up with "gapping" (fabric showing where it shouldn't) or "fringing" (raw edges exposed).

The Hooping Bottleneck

If you are working on a single project, standard hooping is fine. But if you are scaling up—making 20 quilt blocks or 50 team shirts—manual hooping becomes a physical strain and an accuracy liability. This is known as "Hoop Burn" (friction marks) or "Hooper’s Wrist."

Professional shops solve this with two tools:

1. Stationary Fixtures: Using a hooping station ensures that every garment or block is hooped at the exact same coordinate, every single time.
2. Magnetic Technology: Unlike screw-tightened hoops which distort fabric, magnetic frames hold material flat with even downward pressure.

The Upgrade Path: Leveling Up Your Studio

If you find yourself fighting the hoop, consider these industry-standard upgrades:

• For Consistency: A hooping station for machine embroidery acts as a jig. It holds the hoop bottom and stabilizes the garment, allowing you to "load" the fabric rather than "wrestle" it. This is critical for appliqué where placement is everything.
• For Brother Users: Specific hooping station for brother embroidery machine setups are available that mate perfectly with the unique attachment heads of Brother single-needle or multi-needle machines.
• For Volume: If you are moving from hobby to side-hustle, products like the hoopmaster system or a hoop master compatible fixture are the gold standard for repeating logos or blocks rapidly. For home studios, the hoopmaster home edition brings that industrial repeatability to a smaller footprint.

Warning: Magnetic Safety. Keep magnetic hoops away from pacemakers and magnetic media (credit cards/hard drives). The clamping force is significant—watch your fingers to avoid pinching (Pinch Hazard).

The Final Commercial Reality: Manual appliqué on a single-needle machine requires a stop/start for every color and placement line. It is slow. If you love the result but hate the pace, this is the trigger point to look at SEWTECH Multi-Needle Machines. By designating a machine that can hold 6-10 thread colors and run faster (800-1000 SPM) with high-torque magnet frame compatibility, you stop being a machine operator and start being a designer.

14. Operation Checklist: The Final Run Sheet

Execute this sequence for every batch.

• Load & Scan: Mat loaded, Background Scan complete.
• Placement: Vectors aligned to scraps using Crosshair tool.
• Adhesion: All edges taped. KK2000 applied if fabric feels "dry."
• Blade Clearance: Area around machine is clear of coffee cups/scissors.
• Watch the Start: Eyes on the machine for the first 10 seconds of cutting.
• Pause/Fix: If lift occurs, intervene immediately.
• Unload: Peel fabric gently to avoid curling.
• Hoop Prep: Transfer base fabric to your hoop (or magnetic frame) instantly to maintain grain alignment.

Cutting is the science; embroidery is the art. Master the science here, and your art will stand the test of time.

FAQ

• Q: How do I check whether a Brother ScanNCut Low Tack Adhesive Mat still has enough tack before cutting appliqué fabric with HeatnBond?
  A: Do a quick palm-and-visual check first; mats lose tack over time and slipping usually comes from low shear resistance, not user error.
  • Press a clean palm onto the mat and lift: the mat should lift slightly with the hand before dropping back.
  • Inspect the mat surface for gray fuzz/lint buildup that can act like “ball bearings.”
  • Clean the surface (remove lint) and plan to add painter’s tape on edges if the mat feels weak.
  • Success check: fabric stays put when you lightly rub it sideways; it should not “creep” on the mat.
  • If it still fails: reinforce with a temporary adhesive spray (e.g., KK2000) and use a brayer/firm pressure to re-seat the fabric.
• Q: How do I stop fabric shifting or lifting on a Brother ScanNCut SDX325 during Background Scan appliqué cutting on a low-tack mat?
  A: Anchor the fabric mechanically—tape the edges and control shear force before the blade starts pushing the fabric.
  • Tape all four edges/corners with painter’s tape or masking tape.
  • Brayer/press the fabric down firmly to improve contact with the mat.
  • Pause immediately if a corner lifts, then re-secure before continuing.
  • Success check: corners remain flat through the first 10 seconds of cutting (no rippling or lifting).
  • If it still fails: apply a short burst of temporary adhesive (KK2000) to the back, press down again, and resume.
• Q: Should HeatnBond appliqué fabric be placed face up or face down on a Brother ScanNCut adhesive mat, and when do I need to mirror the design?
  A: Choose orientation based on mat tack—new high-tack mats favor face down (mirror needed), while lower-tack mats often work best face up (no mirror).
  • If the mat is brand new/high-tack: place fabric face down (paper side up) and mirror the design in software.
  • If the mat is well-used/lower-tack: place fabric face up and do not mirror so you can visually align patterns.
  • Tape edges when using a lower-tack mat to prevent drift during cutting.
  • Success check: the cut shape matches the intended orientation and sits cleanly within the fabric scrap boundaries.
  • If it still fails: switch orientation based on tack level and re-check whether mirroring was applied correctly.
• Q: What should I do if appliqué fabric lifts mid-cut on a Brother ScanNCut and the blade starts catching the corner?
  A: Pause immediately and perform a lift–spray–press rescue; do not let the machine keep cutting while fabric is flapping.
  • Hit Pause/Stop right away.
  • Gently lift only the loose section and spray a short burst of temporary adhesive (KK2000) on the back.
  • Press firmly with fingers or a brayer, then resume the cut.
  • Success check: the cutting sound returns to a steady, rhythmic pattern (not tearing/cracking).
  • If it still fails: stop and re-tape edges, then inspect the blade holder for stuck debris before restarting.
• Q: Why do Brother CanvasWorkspace appliqué shapes arrive “welded together” after using ScanNCut Transfer, and how do I prevent it?
  A: Ungroup in CanvasWorkspace before transfer; grouped items often import as a locked unit that cannot be nudged separately on the machine.
  • Return to CanvasWorkspace and ungroup the shovel/rake parts before sending.
  • Transfer again via Download → ScanNCut Transfer.
  • On the machine, move each vector independently onto the correct scrap area after Background Scan.
  • Success check: the rake handle (or any component) can be moved without dragging the other shapes with it.
  • If it still fails: re-open the file and confirm items are not grouped before exporting again.
• Q: What is the mechanical safety rule when securing lifting fabric on a Brother ScanNCut while the blade carriage is moving?
  A: Never reach into the machine path while it is moving—pause first, then adjust; this is a common safety hazard for new users.
  • Keep fingers away from the mat feed slot and carriage path during operation.
  • Hit Pause before smoothing, taping, or re-pressing fabric.
  • Clear the area around the machine so nothing can snag the mat during loading/unloading.
  • Success check: adjustments are done with the machine fully paused and the fabric lies flat before resuming.
  • If it still fails: stop the job completely and restart after the fabric is fully secured and the mat is seated straight.
• Q: How do I reduce hoop burn and placement misalignment when moving from ScanNCut-cut appliqué pieces to machine embroidery hooping for batch production?
  A: Start with hooping consistency improvements, then consider magnetic hoops/frames for even pressure; upgrade to a multi-needle machine only when speed and repeatability become the bottleneck.
  • Level 1 (technique): hoop the base fabric firmly and consistently so the satin border covers the appliqué edge without gapping.
  • Level 2 (tool): use a hooping station to repeat the same placement coordinates, and consider magnetic hoops/frames to reduce distortion and hoop burn.
  • Level 3 (capacity): if frequent stop/start and color changes are slowing production, consider moving to a SEWTECH multi-needle embroidery machine for higher throughput.
  • Success check: satin stitches fully cover the raw edge with no visible fabric gaps and no friction marks from over-tightening.
  • If it still fails: reassess hooping tightness and stabilization first, then move to a fixture (hooping station) before changing machines.
