Cap Embroidery on the Baby Lock Intrepid: The No-Panic Setup That Stops Sweatband Sew-Through, Driver Binding, and “Pop-Off” Frames

Master the Baby Lock Cap Driver: A Zero-Fear Guide for Intrepid & Alliance Users

If you’ve ever stared at your Baby Lock cap driver and thought, “One wrong move and I’m going to break a needle, scratch the machine, or sew the sweatband shut,” you’re not alone. Cap embroidery feels unforgiving because it relies on "physics over software." The workpiece is curved, the sewing field is tight, and the frame is a complex mechanical system—not a flat hoop you can simply muscle into place.

But here is the truth from 20 years on the production floor: The machine is not judging you; it is just waiting for precise alignment.

The workflow is consistent. Once you learn the few non-obvious sensory checkpoints (the "clicks" and "slides" experienced operators feel automatically), your hats stop fighting you.

This article rebuilds the exact workflow demonstrated on the Baby Lock Intrepid (6-needle) and applies to the standard cap setup used on most Baby Lock 6- and 10-needle models (Alliance, Valiant, Enterprise). We will also fold in the "Rescue Protocol"—solutions for bobbin showing, driver binding, needle breaks, and that terrifying scratching sound.

Calm the Panic First: What “Normal” Feels Like on a Baby Lock Intrepid Cap Driver

Cap embroidery has two "Sensory Truths" that matter more than any digital setting. Before you start, memorize what success feels like:

1. The "Gliding" Touch: The driver must slide left-to-right on the rail with the resistance of a well-oiled drawer. If it binds, grinds, or requires force, you aren’t "almost there"—you are set up for a collision.
2. The "Audible" Lock: The cap frame must mount with a specific, sharp mechanical CLICK. If you don't hear that sound, the frame is floating. This causes needle deflection (breaks) and registration loss.

When those two sensory checks pass, everything else is just tuning.

The Hidden Prep Pros Do Automatically (Before You Touch a Screw)

Amateurs rush to unscrew the table. Pros set the stage to avoid losing parts. Before you remove the table or loosen anything, setup your "surgery table."

Hidden Consumables You Need:

• Magnetic Parts Dish: For the two tiny screws (they love to fall into the machine chassis).
• Short-handled Screwdriver: For tight clearances.
• Painter's Tape: Useful for holding sweatbands back if you don't have clips.

**Phase 1: Preparation Checklist**

• POWER OFF: Confirm machine is powered down. Moving the pantograph manually while powered on can damage stepper motors.
• Zone Defense: Identify the three setups: (1) A-Frame Table, (2) Cap Driver Ring, (3) Cap Frame.
• Hardware Check: Loosen tight hat hardware on the bench, not the machine. New cap clamps can feel incredibly stiff.
• Stage the Materials: Buckle your hats open. If you are doing a run of 50, messing with buckles at the machine adds 30 minutes of wasted labor.


Remove the Baby Lock A-Frame (Flat Table) Without Touching the Wrong Screw

The video shows a simple removal, but here is the "gotcha" that sends machines to the repair shop: removing the pivot screw instead of the lock screw.

1. Identify the Screw: Look for the medium knob/screw on the left of the A-Frame attachment.
2. Remove & Store: Unscrew fully and place in your magnetic dish immediately.
3. The Rail Screw: Remove the small screw on the right side of the A-arm track.
4. Do NOT Touch: Leave the large main pivot screw alone.
5. The Lift: Lift the plastic table straight up vertically. Do not angle it.

Success Indicator: The A-Frame comes off without friction, revealing the "free arm" (cylinder bed).

Warning (Physical Safety): Keep fingers clear of pinch points around the arm and carriage. Never power the machine on while your hands are inside the driver track area. Cap drivers move fast and have high torque; a needle strike or carriage pinch can cause serious injury.

Pre-Adjust the Cap Driver Ring So It Installs Easily (Without Stripping Screws)

This is an "Old Hand" technique. Metal expands and contracts, and manufacturing tolerances vary. If you try to force a tight driver onto the rail, you risk stripping the soft aluminum threads.

1. Disassemble: Remove the two distinct screws from the driver adapter (same size as the A-Frame screws).
2. The "Breathing Room" Trick: Locate the mounting screws on the driver ring itself. Slightly loosen them (turn left 1/4 to 1/2 turn).
3. Constraint: Do not remove them. Just give the metal ring enough slack to flex.

Why this works: Loosening lets the ring expand just enough to slide onto the arm and "seat" into the correct rail detents without you having to hammer it with your palm.

Install the Baby Lock Cap Driver on the Correct Rail Indentations (This Prevents Binding)

This is the #1 cause of "My driver won't center" or "It sounds scratchy."

1. The Slide: Slide the driver over the free arm gently.
2. The Release: Lift the back lever so the hoop mechanism can slide backward, clearing the needle plate.
3. The Alignment (Crucial): Align the driver’s mounting points with the specific indentations on the machine’s rail.
   • Note: The Intrepid/Alliance rails usually have multiple holes. You are aiming for the REAR set of holes/indentations for the cap driver (refer to your specific model manual if unsure, but standard practice is rear).
4. Finger Tighten First: Insert the two small screws. Spin them in by hand to ensure no cross-threading.
5. Final Torque: Tighten securely with a screwdriver.

Visual Check: The driver ring should sit flush and look "nested" into the track, not perched at an angle.

The Smoothness Test: Your Best Insurance Against Needle Breaks and “Scratchy Noise”

STOP. Do not skip this step. Do not turn the machine on yet.

1. Grab the Driver Bar: Hold the metal bar of the installed driver.
2. The Simulated Run: Manually slide it fully left and fully right.
3. The Sensory Audit:
   • Feel: Is there consistent resistance? (Good) Or does it grab/stick? (Bad).
   • Sound: Is it silent? (Good) Or do you hear metal-on-metal scraping? (Bad).

The Fix: If it isn't smooth, loosen the screws, wiggle the driver to seat it deeper into the detents, and retighten. Do not run the machine if this test fails.

The Sweatband Trick That Saves Hats: Prep the Cap Frame and Hat the Right Way

Embroidery creates a permanent bond between layers. If the sweatband is inside, you will sew the hat permanently closed.

1. Open Up: Unlatch the side clip and swing the metal strap open. Unbuckle the back.
2. The Flip: Flip the sweatband down and out of the hat body.
3. The Sandwich: Place the sweatband so it sits between the hat frame and the hat fabric.
   • Visual Check: The sweatband should look like a "collar" underneath the metal rim of the frame.

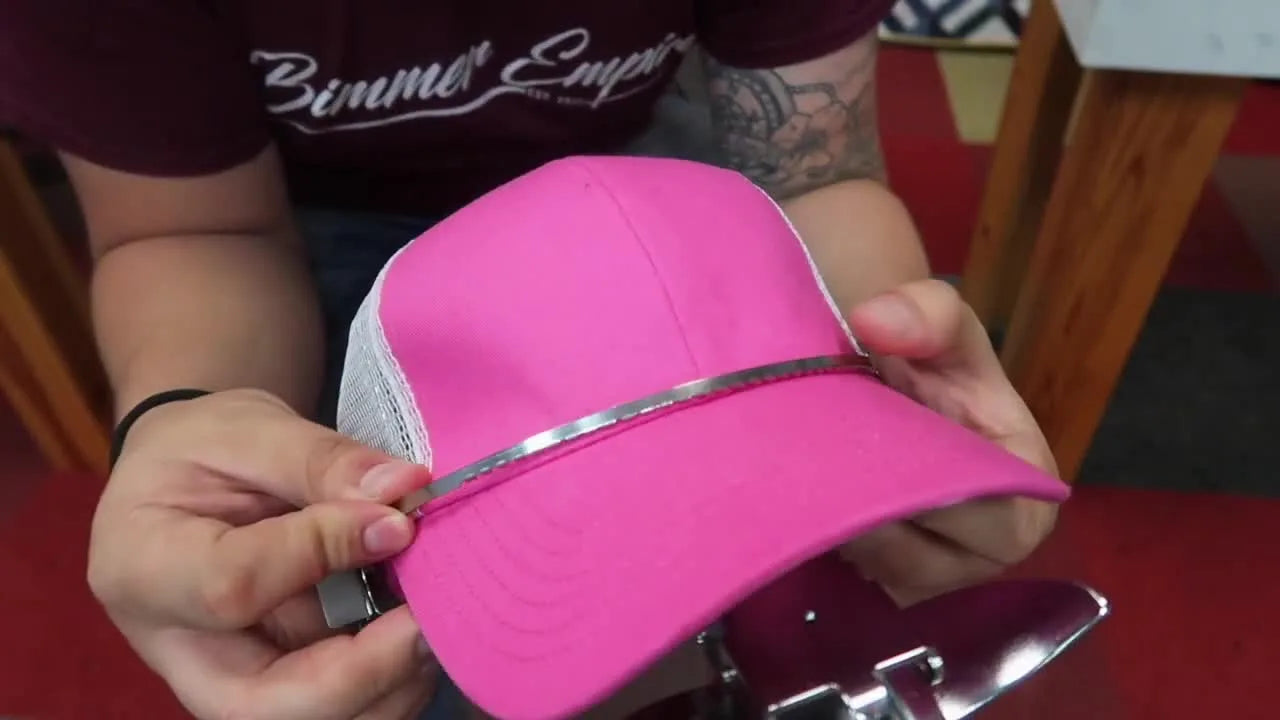

Hoop the Hat on the Standard Cap Frame: Centering, Clamping, and Getting Low Near the Bill

Hooping caps is a physical skill, like riding a bike. It requires controlled force.

1. Slide: Slide the hat onto the frame gauge.
2. Strap: Bring the metal strap (bill clamp) over the brim.
3. The "Sweet Spot": Push the hat forward. Align the metal strap as close to the crown/bill seam as possible.
   • Why: The closer to the bill, the more stable the front panel is.
4. Lock: Engage the latch hook.
5. Smooth: Push the bill holder down against the brim until tight. Smooth the fabric from center to sides.
   • Tactile Check: The front panel should feel tight, like the skin of a drum.

Business Insight: If you are hooping 50+ hats, your wrists will hurt. This physical fatigue is where errors happen. In a production environment, professionals often look for tools to reduce this strain. While standard frames are necessary for caps, for flat items like bags or patches, switching to magnetic hoops for babylock embroidery machines can save your energy for the difficult cap work.

The Center Seam + Red Line Check: Your Fastest Placement Reference (No Guessing)

How do you know it's straight without measuring every time?

• Reference A: Hat Center Seam (Physical Center).
• Reference B: Clamp Red Line (Machine Center).

The Rule: When Red Line = Center Seam, you are centered.

If the red line is to the left of the seam, your design will sew off-center. Adjust the hat in the clamp now, not via software later.

Mount the Hooped Hat to the Machine: The 90° Insert and the “Click” That Matters

This is the "moment of truth" for machine safety.

1. Approach: Insert the hooped hat sideways (90 degrees) to clear the needle bar.
2. Rotate: Rotate it upright once under the needles.
3. Align: Match the rollers on the frame with the square openings on the driver.
4. The Action: Push firmly.
5. THE SOUND: Listen for the CLICK.

Troubleshooting: If you can pull the frame off without pressing the release tabs, it was not locked. Push harder.

Digital Setup on Baby Lock Firmware: Why the Design Flips 180° and How to Move It Toward the Bill

Modern Baby Locks are smart. When you select specific startup modes or attach the driver, the sensors know.

1. Format: Load your design (PES/DST).
2. Auto-Flip: The machine will automatically rotate the design 180° (upside down).
   • Note: This is correct. You are sewing on the hat "upside down" relative to the operator.
3. Positioning: Manually drag the design to the bottom centered position on the screen.
   • Geometry: On the screen, "Bottom" = "Closest to the Bill" (because of the 180° flip).

Terms like hooping for embroidery machine often imply flat hoops, but cap hooping requires you to think in 3D. Trust the machine's orientation logic.

Setup Checklist: The “Before You Stitch” Cap Embroidery Safety Pass

Do not press the green button until you pass this flight check.

**Phase 2: Pre-Flight Checklist**

• Driver Integrity: Driver passed the "Smoothness Test" (no grinding).
• Lock Confirmation: Cap frame clicked in distinctively.
• Sweatband Protocol: Sweatband is flipped OUT and clamped down (not loose under the needle plate).
• Orientation: Design is flipped 180° on screen.
• Placement: Design is centered left/right and positioned near the bottom (bill).
• Needle Clearance: Manually lower the needle (handwheel) to ensure it doesn't hit the metal clamp.
• Speed Limiter: Set speed to 600 SPM for the first run. (Standard caps can run 800-1000, but start slow to verify safety).

The “Why” Behind the Workflow: Tension, Curvature, and Why Caps Punish Small Mistakes

Caps are "hostile terrain" for needles.

1. Flagging: The fabric bounces up and down because it's suspended in air (unlike flats on a needle plate).
2. Variable Density: The center seam is thick; the side panels are thin.
3. Registration: As the cap rotates, the physics change.

This is why unstructured "dad hats" are harder than stiff truckers. They flag more.

The Production Bottleneck: If you run a mixed shop (hats and flats), you will notice that hooping takes the most time.

• For Hats: You must master the standard cap driver described above.
• For Flats: If you are struggling with traditional hoop burn or stiff fabrics, upgrading to baby lock magnetic hoops for your flat work (jackets, pockets) creates a faster workflow. Magnetic frames snap on instantly, reducing wrist strain and prep time, allowing you to focus your technical skill on the profitable cap orders.

Decision Tree: Stabilizer Choices for Structured vs Unstructured Hats

"Do I need backing?" This is the most common newbie question. Use this logic flow:

The "Insurance" Policy: If you are unsure, add one layer of medium tearaway. It rarely hurts, and often helps.

When volume increases, consistency is king. Using a hoop master embroidery hooping station can help standardize where the backing is placed every single time.

Troubleshooting: Symptoms → Likely Cause → Fix (The Rescue Protocol)

If things go wrong, do not panic. Follow this diagnostic path (Low cost -> High Cost).

If you are running a 6 needle babylock embroidery machine, remember that a "Needle Break" error often requires you to re-calibrate the needle case if the hit was hard enough. Avoid the hit by doing the Smoothness Test first.

Operation Checklist: Run Caps Like a Shop, Not Like a One-Off Craft

Phase 3: The "Go" Checklist

• Final Visual: Sweatband is safe?
• Trace: Run the "Trace" function. Watch the presser foot. Does it hit the clamp?
• Auditory Monitor: Listen to the first 100 stitches.
  • Thump-Thump: Good rhythmic sound.
  • Click-Clack: Metal hitting metal. STOP.
• Post-Run: Inspect the inside. Did the bobbin tension hold?

The Upgrade Path (Without the Hard Sell): When Better Tools Pay for Themselves

You can make money with the standard tools. But as your volume grows from 10 hats to 100 hats, "Time" becomes your most expensive material.

Trigger: Hand fatigue or "Hoop Burn" on delicate flat items.

• Diagnosis: Traditional hoops require force and friction.
• Solution Level 1: Use backing to cushion the fabric.
• Solution Level 2 (Tooling): Switch to Magnetic Hoops. They hold thick jackets and delicate performance wear without the "crush" marks of standard hoops. Many professionals search for magnetic embroidery hoop solutions specifically to solve the "hooping thick items" pain point. (See our SEWTECH compatible range for cost-effective options).

Trigger: You are turning down orders because you can't stitch fast enough.

• Diagnosis: Single-head capacity limit.
• Solution Level 3 (Scale): If your Baby Lock is running 24/7, it's time to add heads. A generic multi-needle or a specialized production machine (like SEWTECH models) reduces your cost-per-stitch.

Warning (Magnetic Safety): If you upgrade to magnetic frames, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They snap together instantly—keep fingers clear.
* Medical Safety: Keep away from pacemakers/ICDs (at least 6-12 inches).
* Electronics: Do not place directly on top of USB drives or LCD screens.

Quick Answers to the Most-Asked Comment Questions

• “Can you embroider on the side or back?”
  • Answer: The standard Baby Lock cap frame allows roughly 270° rotation, so "ear-to-ear" is possible. However, true "back of cap" usually requires un-clipping and re-hooping the back specifically, or using a specialized clamp.
• “Will this work on other Baby Lock models?”
  • Answer: Yes. This Intrepid workflow applies to the Alliance, Valiant, Enterprise, and Endurance series using the standard "Class 1" or "Class 2" cap drivers.
• “What is the frame part number?”
  • Answer: Usually identified as the EPCF3 set in the Baby Lock catalog.
• “Why is my design crooked?”
  • Answer: If the Red Line matches the Center Seam and it's still crooked, the hat itself was sewn crookedly at the factory (very common). You must visually compensate by rotating the design 1-2 degrees on screen.

If you are researching babylock magnetic embroidery hoops, note that while they are amazing for flats, hats usually still require the mechanical cap driver system described in this article due to the extreme curvature.

Final Reality Check: If It’s Not Smooth and It Didn’t Click, Don’t Stitch

Cap embroidery rewards preparation and punishes impatience.

1. Smoothness Test (Machine OFF).
2. The Click (Mounting).
3. The Sweatband (Out of the way).

Do those three things, and you will move from "praying it works" to "knowing it will work." That confidence is the difference between a hobbyist and a professional.

FAQ

• Q: What hidden prep tools should be on the bench before installing a Baby Lock Intrepid cap driver?
  A: Prepare a small “cap driver surgery kit” before removing any screws to prevent lost hardware and rushed mistakes.
  • Gather: magnetic parts dish (for the two tiny screws), short-handled screwdriver, and painter’s tape (to hold sweatbands back if needed).
  • Power off: confirm the Baby Lock Intrepid is OFF before manually moving the pantograph/driver.
  • Stage work: unbuckle caps and loosen stiff cap hardware at the bench, not at the machine.
  • Success check: both cap-driver screws are accounted for in the parts dish and nothing is being “held” by fingertip pressure during install.
  • If it still fails… re-start the setup with everything laid out; missing screws and forced angles are a common cause of stripped threads and misalignment.
• Q: How do you remove the Baby Lock Intrepid A-Frame (flat table) without loosening the wrong screw?
  A: Remove only the lock/track screws and lift the A-Frame straight up—do not touch the large main pivot screw.
  • Identify: locate the medium knob/screw on the left of the A-Frame attachment and remove it fully.
  • Remove: take out the small screw on the right side of the A-arm track.
  • Lift: pull the plastic table straight up vertically (do not angle it).
  • Success check: the A-Frame comes off with no friction and the free arm (cylinder bed) is exposed cleanly.
  • If it still fails… stop and re-check which screw is being loosened; forcing the table off at an angle can create binding and damage.
• Q: How do you stop a Baby Lock Intrepid cap driver from making a scratchy/grinding sound after installation?
  A: Do not run the machine—reseat the cap driver into the correct rail detents until the manual slide is smooth and quiet.
  • Power off: keep the Baby Lock Intrepid OFF for this test.
  • Test-slide: grab the driver bar and manually slide fully left/right.
  • Reseat: loosen the driver screws, wiggle/seat the ring deeper into the rail indentations, then re-tighten (finger-tight start to avoid cross-threading).
  • Success check: the driver “glides” like a well-oiled drawer with no sticking and no metal-on-metal scraping.
  • If it still fails… verify the driver is aligned to the correct rail indentations (commonly the rear set on Intrepid/Alliance-style rails) and reinstall.
• Q: Why does a Baby Lock Intrepid cap frame not “click” into the cap driver, and how do you fix it safely?
  A: A missing click usually means the cap frame is not locked—remove it and remount until a sharp mechanical CLICK is heard.
  • Insert correctly: mount the hooped cap frame sideways (about 90°), rotate upright under the needles, then align rollers to the square openings on the driver.
  • Push firmly: apply steady pressure until the lock engages.
  • Verify lock: confirm the frame cannot be pulled off without pressing the release tabs.
  • Success check: an audible CLICK happens and the frame feels solid (not floating or wobbly).
  • If it still fails… stop and inspect alignment; running “almost locked” is a common cause of needle deflection, registration loss, and needle breaks.
• Q: How do you prevent sewing a Baby Lock cap sweatband shut during cap embroidery on an Intrepid cap driver?
  A: Flip the sweatband down and out so it sits between the cap frame and the cap fabric before mounting the frame.
  • Open: unlatch the side clip, swing the metal strap open, and unbuckle the cap back.
  • Flip: pull the sweatband down and OUT of the hat body.
  • Sandwich: place the sweatband between the hat frame and the hat fabric so it’s trapped safely under the rim.
  • Success check: the sweatband looks like a “collar” under the metal rim and is not loose near the needle plate path.
  • If it still fails… pause and re-hoop; using a seam ripper is the recovery, but prevention is the only reliable fix.
• Q: Why does a Baby Lock Intrepid cap embroidery design flip 180° on the screen, and where should the design be moved for the bill area?
  A: The 180° auto-flip is normal for the Baby Lock cap driver orientation—move the design to the bottom-centered position to sew closer to the bill.
  • Load: import the design file (PES/DST) as usual.
  • Accept flip: do not “fight” the auto-rotation; it is expected in cap mode.
  • Position: drag the design to bottom center on the screen (bottom = closest to the bill after the flip).
  • Success check: the preview shows the design located low in the field and centered left/right before stitching.
  • If it still fails… run a Trace and watch for clamp clearance; if clearance is tight, reposition slightly and re-check.
• Q: What is a safe first-run speed for cap embroidery on a Baby Lock Intrepid cap driver, and what should be checked before pressing start?
  A: Start at 600 SPM for the first cap run and only stitch after a full pre-flight safety check.
  • Confirm: the cap driver passes the smoothness test (no grinding) and the cap frame locks with a distinct click.
  • Verify: sweatband is flipped OUT and clamped safely (not near the needle plate path).
  • Check clearance: manually lower the needle (handwheel) and ensure it will not strike the metal clamp; then run Trace.
  • Success check: the first stitches sound like steady “thump-thump” rhythm—any “click-clack” metal contact means stop immediately.
  • If it still fails… slow down further and re-check centering (red line vs center seam) and frame locking before attempting another run.
