Cap Embroidery That Doesn’t Break Needles: Hooping Dad Caps, Snapbacks, Richardson 112s, and Foam Truckers Like a Pro

Cap embroidery is one of those skills that feels “easy” right up until the first needle snaps with a sickening crack, the bill smacks the back plate during a trace, or your crisp foam trucker logo sinks in and looks fuzzy. Take a breath—none of that means you’re bad at embroidery. It usually means the cap style, the structure, and the support underneath weren’t matched correctly.

As someone who has trained hundreds of shop operators, I can tell you that caps are a game of physics and clearance. Unlike flat shirts, you are sewing on a 3D object that is actively fighting to retain its curved shape.

In this shop-style walkthrough, we’ll rebuild the exact workflow shown in the demonstration (structured vs. unstructured caps, five cap styles, stabilizer and needle choices, and the critical 180° flip). I will also overlay the “old hand” sensory details—the sounds and feelings—that keep you out of trouble, especially when you’re doing this for customers and not just for fun.

Read the Cap Before You Stitch: Buckram, Panel Count, and Why “Structured” Changes Everything

A cap isn’t just “a hat.” Before you even look at your machine, you need to diagnose the patient. For embroidery, the two big variables are structure and panel layout.

Structured caps have buckram behind the front panels—usually cotton or polyester with a light plastic coating—so the crown holds a firm, upright shape. You can test this by feel: pinch the front panel. If it resists and springs back like cardstock, it’s structured. Unstructured caps don’t have that rigid support; they are typically low-profile and often made of cotton. When you put them on the table, the crown collapses.

Panel count is your second diagnostic check:

• A 5-panel cap has a single continuous front panel (no center seam), folded to shape. This is an unbroken canvas for embroidery.
• A 6-panel cap has a center seam running vertically down the middle of the front.


Why you should care (The "Why" behind the physics):

• Deflection Risk: The more rigid the cap (structured), the more likely the needle is to hit the buckram and flex slightly. This leads to needle breaks and deflection (where the needle hits the throat plate).
• Sinking Risk: The softer the cap (especially foam), the less resistance it offers. Stitches will sink and disappear unless you build a foundation.
• Alignment Difficulty: A center seam is a visual anchor. It must be aligned correctly, or your design will look “crooked” even when your file is technically perfect.

If you are serious about production, using a machine embroidery hooping station isn't just a luxury; treat it like a caliper or a measuring tool. Repeatable, locked-in placement is what separates "I hope this works" hobby results from "Here is your invoice" paid-order results.

The “Hidden Prep” That Saves Orders: Needles, Backing, and a Quick Reality Check on Cap Designs

Before you hoop anything, set yourself up so the machine doesn’t become the teacher. Most rookie mistakes happen here, before the machine is even turned on.

What the demonstration uses (and the logic behind it)

• Tearaway stabilizer (backing):
  • Two sheets for the unstructured Dad Cap. Why? Unstructured cotton needs an artificial "spine" to prevent distortion.
  • One sheet for the softer structured polyester cap. Why? The cap has its own structure; one sheet facilitates smooth feeding.
  • No additional stabilizer for the very rigid snapback. Why? The buckram is cement-hard. Adding stabilizer makes it too thick to hoop.
  • Two sheets for the foam trucker cap. Why? You need bulk to stop the foam from collapsing.
• Needles:
  • 75/11 Sharp is the standard choice shown. This is the "Sweet Spot" for detail.
  • 80/12 is essential if you experience needle breaks on very rigid structured caps (like Richardson 112s). It has a thicker shaft to resist deflection.

Design height rule of thumb (pre-assembled caps): about **2.5 inches tall**

The “don’t skip this” cap design check

Caps are curved and pre-assembled, so you don’t have infinite real estate. The video’s 2.5-inch height guideline is a smart baseline because it keeps you in the safer stitch zone on most fronts. Going higher risks hitting the curve where the cap meets the bill—a guaranteed needle break zone.

Pro tip from production floors: Even with a good height, overly dense fills can punish rigid caps. If a design has a fill density of less than 0.4mm spacing, loosen it up. If a design is heavy, slow your machine down. For beginners, I recommend a speed cap of 600 SPM (Stitches Per Minute) until you are confident.

Warning: Cap needles break with explosive force because of the tension involved. Always execute a "Safety Stop" plan: Stop the machine before your hands go near the needle area. Wear eye protection if you are troubleshooting repeated breaks on rigid caps—shrapnel is real.

Prep Checklist (end-of-prep)

• Cap Diagnosis: Confirmed structure (soft/rigid) and panels (5/6).
• Needle Audit: Installed a fresh 75/11 (or 80/12 for rigid). Checked that the eye is facing forward.
• Stabilizer Staging: Tearaway sheets precut and within arm's reach.
• Design Specs: Height < 2.5", Density checked.
• Consumables: Have temporary spray adhesive or masking tape ready if needed to hold backing.

Hooping an Unstructured 6-Panel Dad Cap: The Notch-and-Seam Alignment That Keeps Logos Straight

Unstructured Dad Caps are popular for a reason: they wash well and fit everyone. However, their floppiness makes them a nightmare to hoop straight without a system.

The demonstration's hooping sequence is simple—but the notching detail is the secret sauce.

What you do (Action-First steps)

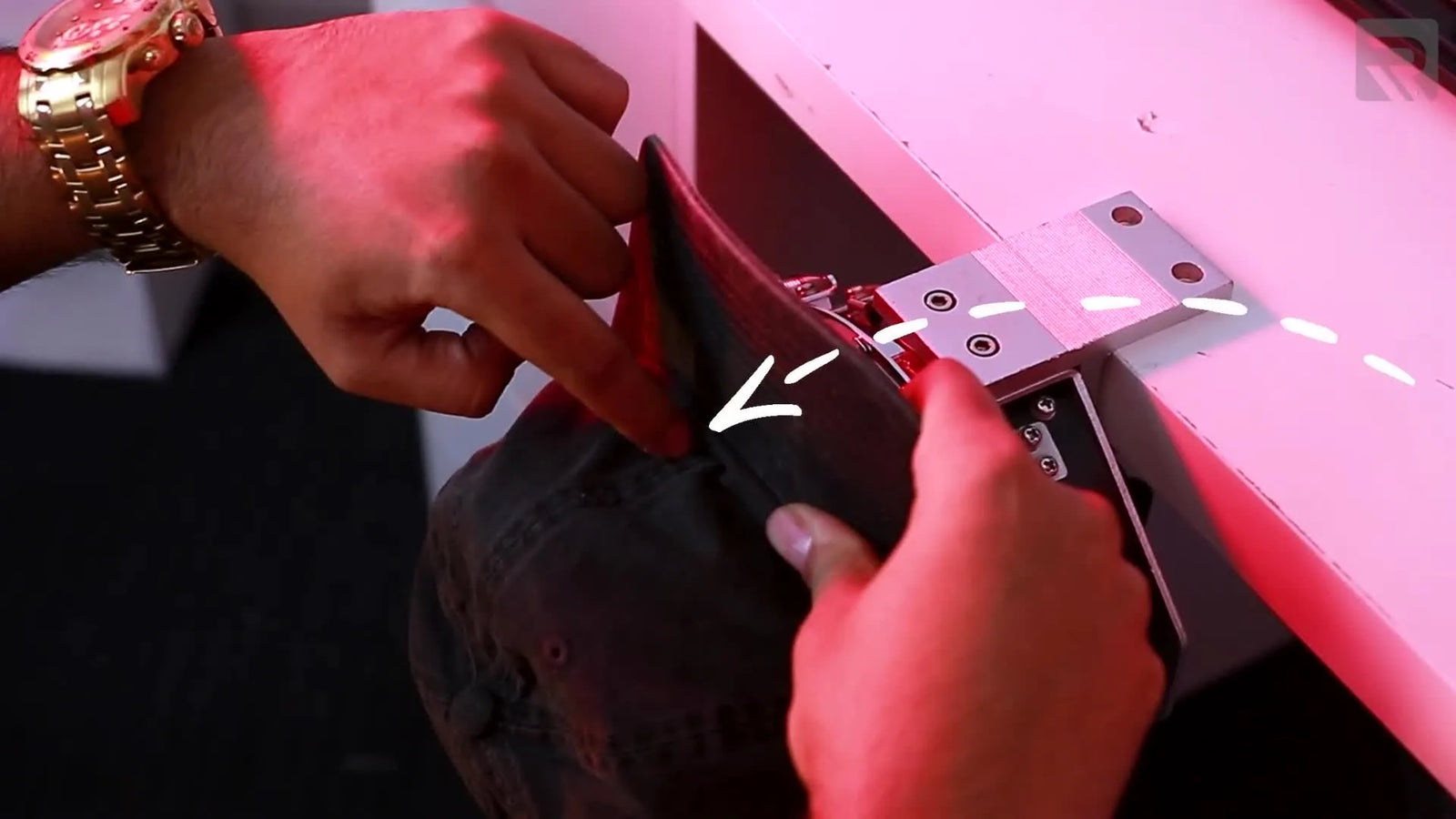

1. Engage the Ring: Insert the cap ring into the station. Sensory Check: Listen for a sharp mechanical click. If it doesn't click, it will wobble later.
2. Layer the Backing: Place two sheets of tearaway stabilizer over the ring/gauge.
3. Slide the Cap: Slide the cap over the ring while holding the stabilizer in place with one hand inside the crown.
4. The Critical Alignment: Align the notch on the metal plate perfectly with the cap’s center seam.
5. Lock and Load: Pull the strap tight (like tightening a belt) and latch it.




Checkpoints (what “right” looks and feels like)

• The Drum Test: Tap the front of the hooped cap. It should sound slightly hollow and feel tight, like a drum skin, but not so tight that the fabric grain is warping.
• The Seam Line: The center seam is dead-on with the V-notch. No "eyeballing" allowed.
• The Sweatband: Lift the back. The sweatband should be flipped out and cleared from the sewing field.

Expected outcome

When you stitch, the design sits square to the cap’s centerline. If you skip the notch alignment, your design will drift 3-5 degrees off-center—invisible on the screen, but glaringly obvious when worn.

Watch out (Sensory troubleshooting): If you are fighting the cap strap or struggling to get it latched, the cap might be too small for the setting, or the backing is bunching. Don't force it. Unlatch, smooth the backing, and try again.

If you’re currently fighting slow hooping and inconsistent placement, this is where professional-grade hooping stations pay for themselves. The investment isn't about speed; it's about eliminating the "human error" variable of holding a floppy hat with just two hands.

The Control-Panel Move That Prevents Upside-Down Hats: Flip the Design 180° for Cap Frames

Cap frames stitch in a completely different physical orientation than flat hoops. On a flat hoop, top is "away" from you. On a cap driver, top is "towards" the machine body, meaning the cap is essentially loaded upside down relative to a flat shirt.

What you do (Step-by-Step)

1. Select: Load your design file on the machine interface.
2. Colorize: Pre-select your thread colors in sequence.
3. Edit: Enter the design settings/edit mode.
4. Rotate: Find the rotate icon and flip the design 180° (upside down). Some modern machines automatically do this when you select "Cap Frame," but never trust the auto-setting. Verify it visually.

Setup Checklist (end-of-setup)

• Visual Confirmation: Does the design look upside down on the screen? (It should).
• Cap Driver Mode: Is the machine set to "Cap" mode? (This limits the X/Y travel to prevent frame collisions).
• Trace Plan: Determine if you need to hold the bill (see Section 7) before you press start.

Load, Trace, Stitch: The Calm Routine That Catches 90% of Cap Mistakes Before Thread Is Wasted

Once hooped, the cap is mounted onto the machine’s driver. This is the "Point of No Return."

The Mindset: Tracing is not a formality or a loading screen. It is your last safe checkpoint. Pro tip (from real shops): If you’re doing customer caps, trace twice.

• First Trace: Fast check for general centering.
• Second Trace: Slow/Manual trace to confirm the needle bar clears the bill and the sweatband isn't creeping into the stitch path.

Operation Checklist (end-of-operation)

• The "Snap": Cap driver snapped securely onto the machine arm.
• Clearance Audit: Look at the gap between the cap bill and the machine head. It should be at least 2cm.
• The Trace: Completed without the needle bar or presser foot touching the bill or the hoop strap.
• Auditory Monitor: Listen to the first 30 seconds. A rhythmic thump-thump is normal. A sharp clack-clack means the needle is hitting the needle plate (deflection). Stop immediately.

Structured Polyester Low-Profile Baseball Caps: When “One Sheet” Is the Smart Middle Ground

The walkthrough's second cap is a structured 6-panel low-profile baseball cap (100% polyester). It’s structured, but not "cardboard rigid" like a pro-style wool cap.

The key takeaway: Because it has some structure, you don't need to rebuild the wall (like with Dad caps), but you still want a foundation.

Why this works (Expert layer): A single sheet of tearaway adds just enough friction stability. Caps are slippery. The stabilizer prevents the fabric from sliding under the presser foot (flagging), which causes birdnesting. Using too much stabilizer here (e.g., two sheets) creates a "cardboard sandwich" that is too thick for the needle to penetrate cleanly, leading to thread shredding.

If you are looking for compatible accessories, standard ricoma embroidery hoops generally work well for this style of cap as long as your latch tension is dialed in correctly.

Rigid Snapbacks and Flat Bills: The “Push the Bill During Trace” Trick That Prevents Plate Strikes

Snapbacks (flat bills) are high-profit items, but they induce panic in operators. The bill is flat, rigid, and sits dangerously close to the machine arm.

In the demo, this cap is very rigid, so no stabilizer is used (the buckram itself is the stabilizer). The critical technique happens during the trace and sew:

• The Problem: As the machine moves Y-axis (front to back), the flat bill might rub or slam into the machine head or the back plate behind the cap driver.
• The Fix: Andrew manually pushes/bends the bill slightly forward and down while the machine traces.




Checkpoints

• Hands: Keep your fingers on the tip of the bill, far away from the needle bar.
• Tension: Apply just enough downward pressure to curve the bill slightly, creating clearance.
• Observation: Watch the back of the cap frame. Ensure the buckles aren't hitting the pantograph arm.

Expected outcome

No collisions during trace. You avoid the "mystery" needle breaks that happen when the bill nudges the machine head, vibrating the whole assembly just as the needle enters the fabric.

Needle-break fix: If you begin experiencing needle breaks on these very rigid caps, standard needles will flex and snap. Switch from 75/11 to the thicker 80/12.

Compatibility Note: If you are exploring upgrades, you may see discussions about mighty hoops for ricoma em 1010. Always verify that the magnet clearance works with your specific machine's throat width, as rigid caps are unforgiving of space constraints.

Richardson 112 Trucker Caps (Mesh Sides, Very Rigid Front): How to Stop Needle Breaks Without “Babying” the Machine

The Richardson 112 is the industry standard for truckers, but it is notorious for breaking needles. The front panels are stiff, and the mesh sides offer zero tension support.

The big reality: Rigid fronts increase Needle Deflection. The needle hits the hard buckram and bends slightly. When it goes down through the throat plate hole, it's now misaligned and hits the metal. Snap.

Expert layer (The Fix):

1. Needle Up: Go straight to an 80/12 sharp. Do not pass Go.
2. Slow Down: Drop your speed to 500-600 SPM.
3. Hooping: Ensure the band is extremely tight. If the cap moves inside the hoop, the deflection gets worse.

Business-minded note: If you’re doing batches of rigid truckers (50+), the time lost to broken needles destroys your margin. This is where a productivity upgrade path makes sense: A commercial multi-needle machine (like the SEWTECH multi-needle lineup) creates a steadier production rhythm and handles the torque of rigid caps better than lighter hybrid machines.

Foam Trucker Caps: Two Sheets of Tearaway, Plus the Topper Trick That Stops Designs From Sinking

Foam trucker caps have a thick, soft foam front. The challenge here isn't breaking needles—it's quality. The foam offers no resistance, so stitches sink deep into the abyss, making your crisp lettering look thin and jagged.

In the demo:

• Stabilizer: Use two sheets of tearaway stabilizer to give the needle something to grab.
• Needle: Use a 75/11 (standard) because the foam is soft.




The "Old Hand" Secret (High Value): Simply backing it isn't enough. You need surface tension. Place a piece of Water Soluble Topper (Solvy) over the front of the cap before sewing.

• Why: The topper holds the stitches up on a platform, preventing them from crushing the foam.
• Result: The embroidery looks 3D and premium, not sunken and cheap.

Watch out: Someone asked about "double heavyweight" stabilizer. The video confirms doubling up (two sheets) of standard tearaway. Putting cardboard-thick stabilizer on a foam cap will make it impossible to hoop. Stick to two layers of standard tearaway + a topper.

If you are trying to speed up hooping on soft caps or reduce the "hoop burn" clamp marks on the foam, magnetic embroidery hoops are a massive upgrade. They hold the cap gently but firmly without the crushing mechanical force of a standard clamp.

Warning: Magnetic Safety
Magnetic frames use industrial-grade neodymium magnets. They are powerful enough to pinch fingers severely. Keep them away from pacemakers. If you have medical implants, check with your doctor before handling magnetic hoops.

A Simple Decision Tree: Pick Stabilizer Support by Cap Style (So You Stop Guessing)

Stop guessing every time you pick up a hat. Use this physics-based logic flow.

Decision Tree (Cap → Support Choice):

1. Is the front panel soft foam?
   • YES: Use 2 Sheets Tearaway + Water Soluble Topper. (Goal: Prevent sinking).
   • NO: Go to step 2.
2. Is the cap unstructured and floppy (Dad Cap)?
   • YES: Use 2 Sheets Tearaway. (Goal: Create artificial structure).
   • NO: Go to step 3.
3. Is it structured/rigid?
   • YES (Standard Poly): Use 1 Sheet Tearaway. (Goal: Smooth feeding).
   • YES (Concrete Rigid/Snapback): 0 Sheets or 1 Sheet. (Goal: Minimize thickness). Critical: Change needle to 80/12.

Troubleshooting Cap Embroidery Fast: Symptom → Cause → Fix

When caps go wrong, they go wrong instantly. Here is your structured triage table.

The Upgrade Path: When Better Tools Actually Save Money

If you’re doing one cap a month, you can muscle through with standard tools. But if you are doing 50 caps for a local team, Fatigue and Time become your enemies.

Here is the brutal truth about production:

1. If your wrists hurt: You are fighting the manual clamps. A magnetic hooping station setup reduces the physical force needed to hoop, saving your joints over thousands of hats.
2. If you have "Hoop Burn": Traditional clamps leave shiny rings on dark hats. Magnetic frames eliminate this because they distribute pressure evenly.
3. If you are slow: If precise placement takes you 5 minutes per hat, you are losing money. Professional operators search for terms like ricoma mighty hoop starter kit or 8 in 1 hoop ricoma because these systems allow for rapid, 10-second hooping.

The Ultimate Bottleneck Breaker: If you find yourself perfectly hooping hats but waiting 20 minutes for a single-needle machine to finish a 3-color logo, your machine is the bottleneck. Moving to a SEWTECH Multi-Needle Machine solves this by eliminating thread change pauses and offering a more robust cylindrical arm designed specifically for the heavy torque of cap embroidery.

Final Wisdom: Cap embroidery is 10% art and 90% Preparation. If you get the Needle, Backing, and Alignment right (The Holy Trinity), the machine will do the rest beautifully. If you skip the prep, no amount of machine settings will save the hat. Happy stitching.

FAQ

• Q: Which needle size should be used for cap embroidery on a commercial multi-needle cap frame when needles keep breaking on rigid buckram snapbacks or Richardson 112 trucker caps?
  A: Switch from a 75/11 sharp to an 80/12 sharp and slow the machine down to reduce needle deflection on rigid buckram.
  • Change: Install a fresh 80/12 sharp needle (especially on very rigid structured caps).
  • Reduce: Drop speed to about 500–600 SPM for rigid caps.
  • Re-check: Ensure the cap is hooped extremely tight so it cannot shift in the frame.
  • Success check: The first 30 seconds sound like a steady thump-thump, not a sharp clack-clack (metal strike).
  • If it still fails: Stop and verify clearance during trace (bill/back plate contact can trigger “mystery” breaks).
• Q: What stabilizer setup should be used for an unstructured 6-panel Dad Cap on a cap hooping station to prevent crooked designs and distortion?
  A: Use two sheets of tearaway stabilizer and align the station’s metal notch exactly to the cap’s center seam before latching.
  • Layer: Place 2 sheets of tearaway over the cap ring/gauge.
  • Align: Match the metal V-notch to the cap center seam—no eyeballing.
  • Tighten: Pull the strap tight and latch; re-smooth backing if it bunches.
  • Success check: The hooped front feels tight like a drum (firm, not warped), and the seam is dead-on with the notch.
  • If it still fails: Unlatch and re-hoop—most “crooked logo” problems are alignment, not the design file.
• Q: How do you verify correct cap hooping tension on a cap frame to avoid cap “flagging” and bobbin birdnesting during embroidery?
  A: Hoop the cap tight enough to pass the drum test and add the appropriate tearaway layer to stop the fabric from bouncing under the presser foot.
  • Tap: Perform the “drum test” on the hooped front panel.
  • Add: For a structured polyester low-profile cap, use 1 sheet tearaway as the “middle ground” support.
  • Inspect: Flip the sweatband out of the sewing field so it cannot creep into stitches.
  • Success check: During tracing and the first stitches, the cap does not visibly bounce, and the machine runs without sudden thread piling under the fabric.
  • If it still fails: Re-check strap tightness and stabilizer thickness—too thick can cause shredding; too loose can cause flagging.
• Q: Why must a cap embroidery design be rotated 180° on the machine control panel when using a cap driver, and how do you confirm it is correct before stitching?
  A: Flip the design 180° (upside down) because cap frames load in a different physical orientation than flat hoops, and visually verify the screen preview before starting.
  • Load: Select the design file and enter edit/rotate.
  • Rotate: Flip 180° even if the machine offers an automatic cap setting—verify manually.
  • Set: Confirm the machine is in “Cap” mode to limit travel and reduce collision risk.
  • Success check: The design preview looks upside down on the screen (that is correct for cap-frame stitching).
  • If it still fails: Run a trace (twice for customer orders) to confirm the stitch path matches the cap’s actual placement.
• Q: How do you prevent a snapback flat bill from hitting the machine head or back plate during cap frame trace on a rigid structured cap?
  A: During trace and sew, gently push/bend the flat bill forward and down to create clearance while keeping hands safely away from the needle area.
  • Trace: Start a trace and watch the bill-to-head gap closely.
  • Hold: Place fingers on the tip of the bill (far from the needle bar) and apply slight downward/forward pressure.
  • Observe: Ensure the back of the cap frame and any buckles do not contact moving parts.
  • Success check: The trace completes with no rubbing or impact, and the bill clears by roughly 2 cm at the closest point.
  • If it still fails: Stop and re-evaluate design height/placement—going too high toward the bill curve is a common strike zone.
• Q: What stabilizer and topper combination should be used for foam trucker cap embroidery to stop stitches from sinking and looking fuzzy?
  A: Use two sheets of tearaway stabilizer plus a water-soluble topper over the foam to keep stitches sitting on the surface.
  • Back: Hoop with 2 sheets of tearaway (standard tearaway doubled).
  • Cover: Place water-soluble topper (Solvy) on top of the cap front before sewing.
  • Stitch: Use a 75/11 sharp as a standard needle choice on soft foam fronts.
  • Success check: Lettering stays crisp and visible on top of the foam instead of sinking and turning jagged.
  • If it still fails: Re-check design density and slow down—overly dense fills can crush soft materials.
• Q: What are the key safety steps when troubleshooting repeated cap needle breaks on a multi-needle embroidery machine cap frame, and when using magnetic embroidery hoops?
  A: Stop the machine before placing hands near the needle area, use eye protection during repeated breaks, and treat magnetic hoops as pinch hazards that must be kept away from pacemakers.
  • Stop: Hit stop before reaching into the needle zone—cap needle breaks can eject fragments.
  • Protect: Wear eye protection when diagnosing repeated breaks on rigid caps.
  • Handle: Keep fingers clear when closing magnetic frames; magnets can pinch hard.
  • Success check: You can trace and stitch without any contact with moving parts, and handling frames does not risk finger pinch.
  • If it still fails: Reduce speed and switch to 80/12 on rigid caps; confirm cap mode and run a slow/manual trace for clearance.
