Clean Lettering on Caps in Threads Embroidery Software: Manual Pathing, Smart Trims, and a 55 mm Reality Check

Caps Are Unforgiving: How to Master Lettering Digitizing & Fix Jump Stitches in TES

Embroidering on a flat t-shirt gives you a margin of error. Embroidering on a curved, structured cap does not.

If you have ever watched your machine finish a beautiful letter "M," only to drag a long, ugly thread across the fabric to start the letter "P," you know the feeling of frustration. On a cap, that travel line isn't just an annoyance; it’s a rejection. It can pull the fabric, create a "bird's nest," or simply look amateurish.

In this masterclass workflow, we are going to look at digitizing lettering in Threads Embroidery Software (TES) through the eyes of a production professional. We will move beyond just "typing text" to understanding how to control entry points, exit points, and the crucial "Trim" command.

Whether you run a single-needle home machine or a commercial multi-needle workhorse, the logic remains the same: You must tell the machine exactly when to cut the thread.

Don’t Panic When Lettering “Jumps”: Understanding the "Travel Line"

If you are seeing a line "walking" or looping between letters (the classic example we see is the bridge between M and P), your machine isn’t broken. It is simply obedient.

In digitizing software like TES, if you draw a continuous path without inserting a specific command to stop, the software assumes you want the machine to keep sewing to get from Point A to Point B. It generates "Travel Stitches" (also known as Jump Stitches).

The Reality Check:

• On Flat Goods: Sometimes these get buried in the nap of a towel.
• On Caps: They float above the surface like a suspension bridge, ruining the design.

The fix is fast, but it requires you to stop thinking like a graphic designer and start thinking like a machine operator.

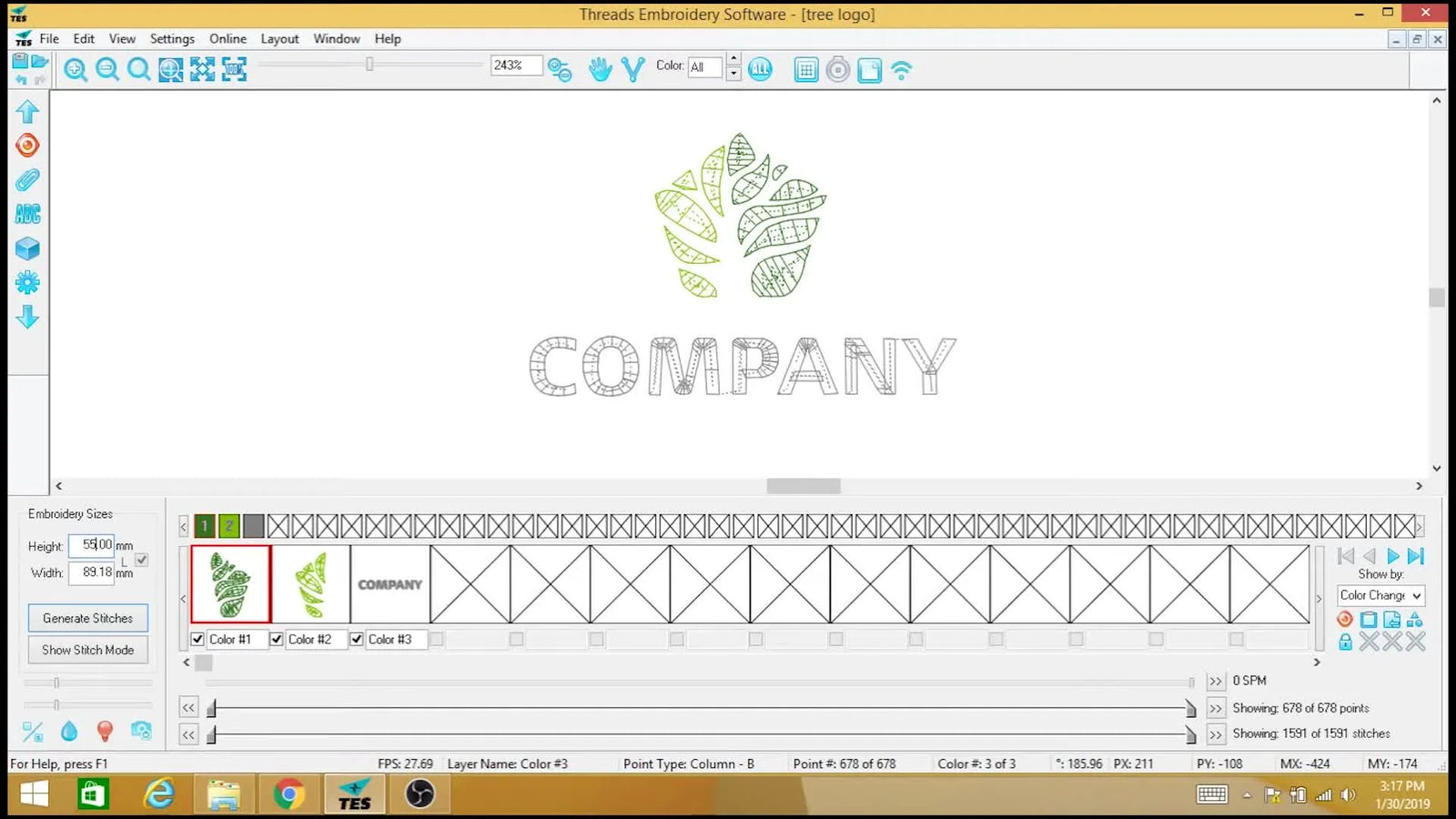

The "Pilot's Cockpit": Setting Up Your TES Workspace for Visibility

Before you place a single digitization node, you need to set up your cockpit. Trying to digitize without seeing the "wireframe" (the skeleton) versus the "stitches" (the body) is like trying to build a house in the dark.

The video highlights two critical keyboard shortcuts in TES that every user should memorize immediately:

1. Press 'S' (Stitch View Toggle): This switches between the realistic stitch view (what the client sees) and the wireframe view (what the digitizer controls).
   • Sensory Check: In wireframe (Stitch Off), you should see clean lines and nodes. In Stitch On, you should see the texture and density.
2. Press 'B' (Background Toggle): This turns the workspace background on or off, helping you contrast your design against your canvas.

Why this prevents failure: When adjusting a connection between letters, the "Stitch View" often hides the tiny node you need to click. You must toggle 'S' to see the skeleton, make the surgery, and then toggle back to verify the patient is healthy.

Prep Checklist: The "Pre-Flight" Routine

• Control Check: Tap 'S' and 'B' to ensure your toggles are responsive.
• Zoom Factor: Zoom in until the letter fills at least 50% of your screen. If you can't see the individual needle penetrations, you aren't close enough.
• Mental Pathing: Before digitizing, trace the path with your finger. Where does the needle enter the "N"? Where must it leave to jump to the next letter efficiently?
• Consumable Check: Ensure you have sharp curved embroidery scissors and a lighter nearby for finishing touches on test runs.

Manual Letter Digitizing: Building Structure with Intention

The tutorial demonstrates building the letter N manually. Why manually digitize text when there are fonts? Because pre-digitized fonts often have "average" settings. Custom logos require specific densities and underlay settings to survive on cap canvas.

The Construction Logic

1. Structure First: Use the Column A Tool to build the vertical legs.
2. Point Input: Use the Point Input Tool for the diagonal connection.
3. Density & Underlay:
   • Experience Data: For standard cap lettering (~55mm height), a density of 0.40mm is the "Sweet Spot." Anything over 0.60mm may show the hat fabric through the thread.
   • Underlay: Always ensure an Edge Run or Center Run underlay is active to stabilize the fabric before the satin stitch hits.


The "Cap Curve" Expert Habit

When digitizing for a hat, remember the Center Seam Rule: The center seam of a cap is thick and bumpy.

• Action: If your letter falls directly over the center seam, slightly increase the pull compensation (to about 0.4mm or 0.5mm) or bump the density up by 5-10%. This prevents the thread from sinking into the seam gap.
• Safety: Ensure your start/end points are not exactly on a thick seam, which can cause needle deflection.


Control the Stitch Path: Walking Stitch vs. Jump Stitch

The tutorial shows the digitizer creating a walking stitch path to travel from the bottom of one leg of the "N" to the top.

The Golden Rule of Travel Stitches:

• Use a Walking Stitch (Travel): ONLY when the path will be covered by later stitches (underlay) or is structurally necessary to get from the bottom to the top of a contiguous letter.
• Use a Trim (Jump): When moving between separate letters or elements where the fabric shows.


The "Hoop Burn" Reality

Caps interact with hoops differently than shirts. Because the cap front is stiff (buckram), using a standard clamp can sometimes leave marks or fail to hold tension evenly. If you are planning to stitch on a cap and you’re already thinking about upgrading to a dedicated cap hoop for embroidery machine, remember that better hoops allow for tighter registration. This means your travel stitches and alignments must be precise, as the distortion will be minimal, exposing any digitizing errors.

The 55mm Moment: Resizing with Intent

Resizing is where most designs fail. The video shows resizing the design from 40mm to 55mm.

Be careful. In many software packages, dragging a handle to resize spreads the stitches out (same stitch count, larger area), which kills density.

The Right Way: Input the numeric value (e.g., 55mm) and ensure the "Recalculate Stitches" or "Processor" is active. TES handles this well, but always double-check.

Setup Checklist: The "Resize Safety" Protocol

• Visual Density Check: After resizing to 55mm, look at the screen. Do the satin columns look "loose"?
• Measurement: Use the ruler tool. If a satin column is wider than 7mm, standard home machines will slow down or utilize "split satin" stitches. If it's wider than 10-12mm, you risk loops that snag.
• Underlay Adjustment: A 55mm letter needs a stronger foundation than a 25mm letter. Ensure you have at least a dual-layer underlay (e.g., Edge Run + ZigZag).

Decision Tree: Stability & Hooping Strategy

Caps are the hardest substrate to master. Use this logic to choose your consumables and tools.

1. Scenario: Structured Cap (Hard front buckram)
   • Stabilizer: Tearaway (2 layers usually best). The cap provides its own structure.
   • Needle: Titanium Sharp 75/11. You need to pierce the hard buckram.
2. Scenario: Unstructured "Dad Hat" (Floppy front)
   • Stabilizer: Cutaway (Must use!). The fabric will distort without it.
   • Needle: Ballpoint or Sharp works, but Cutaway is non-negotiable.
3. Scenario: High-Volume Production (50+ hats)
   • Bottleneck: Hooping speed.
   • Solution: A manual station is slow. Integrating a hooping station for embroidery machine creates a repeatable physical template, ensuring every logo lands 20mm above the brim.
4. Scenario: The "Pinch" Struggle
   • Pain Point: Traditional hoop rings slipping on thick seams.
   • Solution: Professionals often swap standard frames for a magnetic embroidery hoop. The vertical clamping force holds thick seams without "hoop burn" or slipping.

Warning: Physical Safety Alert. When stitching caps, the rotary hook is very close to the brim structure. Never put your fingers inside the cap while the machine is running to "smooth it out." A moving needle at 800 SPM is invisible and can cause severe injury.

The Fix: Inserting the Trim Command (The Secret Sauce)

Here is the core lesson of the video. You have an unwanted thread connecting M and P. Here is exactly how to remove it in TES without guessing.

The Workflow:

1. Toggle Off Stitches (Press 'S'): You must see the nodes.
2. Zoom In: Go directly to the connector line between the two letters.
3. Point Edit Mode: Right-click to enter editing mode.
4. Isolate the Node: Find the specific black square (node) acting as the bridge.
5. The Command: Right-click that node and select Trim.

Sensory Feedback: When you do this correctly, a small "Scissors" icon or marker usually appears on the screen. When you toggle Stitches ('S') back on, the line should vanish.

Expert Tip: The "Tie-Off" Critical Step

A trim command cuts the thread. But if you cut the thread without "locking" it first, your embroidery will unravel in the wash.

• Auto-Lock: Most modern software (including TES) adds tie-offs automatically with a trim.
• Manual Check: Ensure there are small, tight stitches (under 1mm) just before the trim and just after the entry of the next letter. This is your insurance policy.

The 3D Preview: Saving Your Garment

Never send a file to the machine immediately after editing. The video shows the digitizer toggling back to a 3D visualizer.

What to look for:

• Thickness: Does the font look bold enough to stand out against the texture of the hat?
• Gaps: Are the letters too close? On a curved hat, letters fan out at the top and pinch at the bottom.
• The "Ghost": Look for any faint hairlines you missed.


Operation Checklist: Final "Green Light" Protocol

• Trim Verification: Can you see the trim codes (often little triangles or scissors) on the screen?
• Bobbin Check: Is your bobbin full? Caps use a lot of thread due to density.
• Needle Check: Is the needle straight? Roll it on a flat surface to check. A bent needle on a cap center seam = shattered metal.
• Speed Setting: For your first test run, reduce machine speed to 600 SPM (Stitches Per Minute). Speed kills quality on caps until you are confident.

The Business of Efficiency: Why Trims Matter

In a commercial environment, time is currency.

• Manual Trimming: 30 seconds per hat.
• Auto Trimming (Digitized Correctly): 2 seconds per hat.

If you do 100 hats, that is nearly an hour of labor saved just by clicking "Trim" in the software.

Furthermore, efficiency isn't just software. If you find yourself fighting tight hoops or struggling to align logos straight, your software isn't the problem—your hardware is. Integrating an embroidery hooping station allows you to pre-stage garments while the machine is running. For multi-needle setups, a hoop master embroidery hooping station is often the industry standard for perfect placement.

Warning: Magnetic Hoop Safety. If you upgrade to magnetic frames, be aware they use high-power neodymium magnets. They can pinch fingers severely and effectively destroy mechanical watches or damage pacemakers. Handle with extreme respect.

Quick Troubleshooting Table: Symptoms & Solutions

The Upgrade Path: When to Scale Up

You have optimized your file. You use the right trims. But you are still exhausted after 10 hats. This is the natural ceiling of equipment, not skill.

1. Level 1: The Stability Upgrade
   If your issue is fabric slipping or "hoop burn," consider a magnetic embroidery hoop. They attach faster and hold gentler but firmer.
2. Level 2: The Alignment Upgrade
   If your logos are crooked, invest in a hooping station for embroidery. Consistency pays better than speed.
3. Level 3: The Production Upgrade
   If you are turning down orders because you can't stitch fast enough, or the single-needle color changes take too long, it is time to look at SEWTECH multi-needle machines. They run faster, hold more colors, and handle caps with significantly better stability than flat-bed machines.

Digitizing is just the blueprint. It takes the right combination of software smarts, precise hooping, and reliable machinery to build a business that lasts.

FAQ

• Q: How do I remove the visible travel line (jump stitch) between letters in Threads Embroidery Software (TES) lettering on caps?
  A: Insert a Trim command on the connector node so TES stops traveling and cuts the thread between letters.
  • Toggle to wireframe: Press S to turn stitches off so nodes are visible.
  • Zoom in: Focus on the connector line between the two letters.
  • Edit the connector: Right-click to enter Point Edit mode, then right-click the bridging node and choose Trim.
  • Success check: A small scissors/trim marker appears, and the connector line disappears when stitches are toggled back on with S.
  • If it still fails… Re-check that the Trim is placed on the correct node (the bridge), not on a satin column node inside the letter.
• Q: What is the correct TES setup to clearly see nodes and fix lettering connections before stitching a cap design?
  A: Use TES view toggles to switch between stitch preview and wireframe so edits happen on the correct nodes.
  • Toggle visibility: Press S to switch Stitch On/Off (stitches vs. skeleton).
  • Improve contrast: Press B to toggle the background for easier viewing.
  • Zoom aggressively: Enlarge until the letter fills at least ~50% of the screen before editing.
  • Success check: In Stitch Off, nodes and clean lines are easy to click; in Stitch On, the stitched texture matches the expected lettering shape.
  • If it still fails… Toggle S again—tiny connector nodes are often hidden when Stitch On is enabled.
• Q: In cap lettering digitizing in TES, when should a walking stitch travel be used instead of a Trim (jump) between elements?
  A: Use a walking stitch travel only when later stitches will cover it; use Trim when the fabric will be visible between separate letters.
  • Choose walking stitch travel: Use it for movement inside a contiguous letter or under areas that will be covered by underlay/satin.
  • Choose Trim: Insert Trim when moving between separate letters or separate design elements on a cap front.
  • Success check: Covered travel stitches are not visible after the next satin/underlay sews; between letters, no floating bridge thread remains.
  • If it still fails… Add a Trim between letters and re-check in 3D preview for any faint “ghost” hairlines.
• Q: What density, underlay, and pull compensation settings are a safe starting point for satin cap lettering in TES around 55mm height?
  A: Start with ~0.40 mm density plus Edge Run or Center Run underlay, and increase pull compensation over a cap center seam if needed.
  • Set density: Use 0.40 mm as the baseline “sweet spot” for standard cap lettering around 55 mm height.
  • Confirm underlay: Enable Edge Run or Center Run to stabilize before satin stitches hit.
  • Handle the center seam: If a letter sits on the seam, increase pull compensation to about 0.4–0.5 mm (and/or bump density by 5–10%).
  • Success check: Letters look filled (not “thin”), and the seam area does not swallow stitches or show gaps.
  • If it still fails… Move start/end points off the thick seam area and slow the machine down for the test sew-out.
• Q: How do I resize a cap lettering design in Threads Embroidery Software (TES) from 40mm to 55mm without losing density?
  A: Resize using the numeric value and ensure stitches are recalculated so density is preserved.
  • Enter the size: Input 55 mm rather than only dragging a corner handle.
  • Recalculate stitches: Confirm the “Recalculate Stitches/Processor” option is active after resizing.
  • Re-check satin width: Inspect satin columns—very wide columns (over ~7 mm) may force split satin behavior on many home machines.
  • Success check: Satin columns do not look “loose” after resizing, and the 3D preview shows solid coverage with no see-through fabric.
  • If it still fails… Manually increase density (reduce spacing) to around 0.38–0.40 mm and strengthen underlay (e.g., dual-layer underlay).
• Q: What stabilizer and needle combination should be used for structured caps vs. unstructured dad hats to reduce distortion and gaps?
  A: Match stabilizer and needle to cap structure: structured caps usually like tearaway + sharp needle; unstructured hats require cutaway.
  • Structured cap (hard buckram): Use tearaway (often 2 layers) and a Titanium Sharp 75/11 needle to pierce the buckram.
  • Unstructured “dad hat”: Use cutaway (must use); needle may be ballpoint or sharp depending on fabric.
  • Success check: The cap front stays stable with minimal shifting, and lettering edges do not gap or wave during stitching.
  • If it still fails… Increase pull compensation slightly and verify hooping tension—distortion is often a stabilization/holding issue, not a digitizing issue.
• Q: What are the safety risks when embroidering caps at high speed, especially near the brim and center seam?
  A: Keep hands out of the cap while stitching and slow down for test runs to prevent severe needle injuries and needle breakage.
  • Keep hands clear: Never put fingers inside the cap to “smooth it out” while the machine runs; the needle path is too close and too fast.
  • Reduce speed for testing: Start around 600 SPM for the first test run; slow further (about 500 SPM) when crossing a thick center seam.
  • Inspect the needle: Check that the needle is straight (a bent needle + center seam can cause shattered metal).
  • Success check: Stitching over the seam sounds steady (no repeated loud impacts), and needle breaks stop occurring.
  • If it still fails… Switch to a larger needle (e.g., 90/14) and confirm start/end points are not placed directly on the thick seam.
