Clean, Sturdy DIY Patches with Outdoor Polyester Fabric: The Magnetic Hoop Workflow That Actually Holds Up

If you have ever finished a patch that looked crisp in the digital preview—but turned into a fuzzy, fraying, thread-dot mess the moment you trimmed it—you are not alone. In my 20 years of embroidery experience, I have seen more patches ruined in the final five minutes of finishing than in the hour of stitching. Patch making is a battle of physics: you are fighting fabric distortion, fraying edges, and thermal dynamics.

In this workflow, we analyze a "Marine-Grade" method. The maker uses 100% polyester outdoor furniture fabric (the tough, coated canvas style), stabilizes it with a heavy duty sandwich of two layers of cutaway backing, trims with curved appliqué scissors, clears jump stitches from the back to preserve the face, and heat-seals the edge for a pro-level finish.

The Patch Base That Doesn’t Feel Flimsy: Outdoor Polyester Fabric + Cutaway Backing That Holds Shape

The fabric choice here is the quiet hero: 100% polyester outdoor furniture fabric. In the video, you can observe it has a much tougher "hand" than typical cotton twill. The back often features a PVC or polyurethane coating that gives it a "plastic-like" feel.

Why this matters:

1. Melting Point: Because it is polyester, it melts rather than burns (unlike cotton). This is crucial for the heat-sealing step.
2. Beam Strength: It is stiff enough to support heavy satin columns without buckling.




The stabilizer stack is non-negotiable here. The creator uses two layers of cutaway backing (likely 2.5oz or 3.0oz each) under the outdoor fabric.

The Physics of the "Double Cutaway": A single layer of stabilizer often isn't enough to counteract the "pull compensation" required for a heavy satin border. By using two layers, you create a composite material that resists the needle's attempt to pull the edges inward. This prevents the dreaded "taco effect" (where the patch curls up) and ensures the satin border stays supported during trimming.

One comment reaction nailed the end goal: “It looks so sturdy and more like a patch should.” That sturdiness is rarely an accident—it is the result of increasing the Grams per Square Meter (GSM) of your base stack until it defeats the tension of the thread.

If you are building patches as a product (not just a hobby), this creates a new problem: clamping three thick layers (fabric + 2x backing) into a standard plastic hoop is physically difficult. This is where a magnetic embroidery hoop earns its keep. Thick, coated fabrics fight against standard inner rings, leading to "hoop burn" (shiny crush marks) or uneven tension. A magnetic system clamps from the top down, securing the thick stack without crushing the fibers or straining your wrists.

The “Hidden” Prep Before You Stitch: Hooping Tension, Backing Stack, and a Sanity Check for Thick Fabric

This is the part most tutorials skip: the prep that prevents 80% of finishing headaches. If your tension is wrong here, no amount of trimming skill will save the border.

The video’s physical stack is simple but robust:

• Layer 1 & 2: Two sheets of Cutaway Backing (Note: Use "Soft" cutaway if you want flexibility, or "Stiff" for a rigid badge feel).
• Layer 3: One layer of Outdoor Polyester Furniture Fabric.
• Hoop: Hooped in a 5.5" x 5.5" magnetic hoop.


The "Drum Skin" Test (Sensory Check): Before you slide that hoop onto the machine, tap the fabric.

• Sound: You should hear a dull thump, like tapping a heavy cardboard box.
• Touch: The fabric should be taut but not stretched to the point of distorting the weave.

The "Oil-Canning" Risk: With stiff outdoor fabrics, if you hoop too loosely, the fabric will pop up and down like an old oil can as the needle penetrates. This causes flag-waving, limits machine speed, and breaks needles. You need high clamping force to prevent this.

If you are currently fighting hoop burn, hand fatigue, or "oil-canning," swapping to a magnetic hoop is the logical tool upgrade. It provides consistent perimeter pressure that standard screwed hoops struggle to achieve on canvas-like materials. For home single-needle users, this also saves your thumbs from the pain of tightening screws on thick stacks repeatedly.

Prep Checklist (Do this BEFORE you stitch)

• Hidden Consumables: Ensure you have a new Topstitch 90/14 or 75/11 Titanium needle installed. Coated fabrics dull needles quickly.
• Size Check: Confirm patch target size (Example is 5.5" x 5.5").
• Stack Build: Cut two pieces of cutaway backing larger than the hoop area.
• Grain Alignment: Place outdoor fabric on top; keep the weave straight/level.
• Tactile Check: Hoop the stack. Run your fingers along the inner edge. Is the backing smooth? Is the fabric "drum tight"?
• Clearance: Ensure the hoop arms are firmly attached to the pantograph.

The Hooping Strategy That Saves Your Wrists: 5.5" Magnetic Hoop Control on Thick Patch Stacks

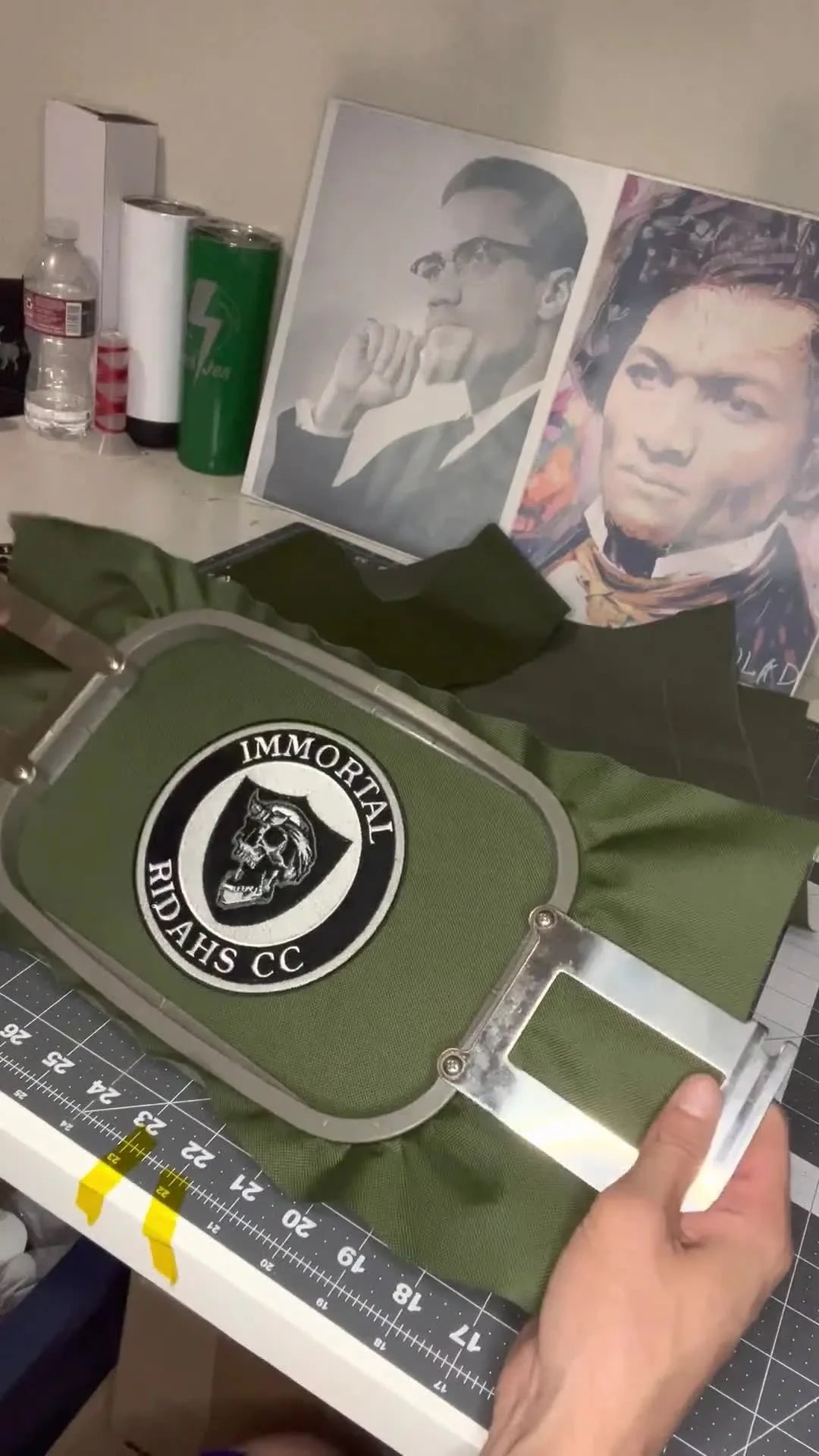

The video demonstrates a 5.5" x 5.5" magnetic hoop holding the patch material securely. Why this specific size for patches? Because the closer the hoop walls are to the design, the more stable the embroidery.

If you are making patches for clients (logos, clubs, teams), your enemy is variable quality. You cannot afford for Patch #1 to be perfect and Patch #50 to be warped.

Scaling Up (The Business Perspective): A magnetic hoop setup becomes vital when you move from making 5 patches to 500:

1. Speed: You eliminate the "unscrew-loosen-push-tighten-screw" cycle. It's just "open-place-snap."
2. Safety: Standard hoops can fly apart if the screw strips under the pressure of thick fabric. Magnets hold instantly.
3. Ergonomics: It significantly reduces the risk of repetitive strain injury (RSI) for the operator.

If you are building a dedicated workflow, pairing a magnetic frame with a magnetic hooping station is the secret weapon for alignment. It holds the backing and fabric in place while you drop the top magnet, ensuring every patch is centered exactly the same way—crucial for batch production.

Warning (Magnetic Safety): SEWTECH magnetic hoops use industrial-strength magnets. They are incredibly powerful. Never place your fingers between the top and bottom frames when snapping them together—pinch hazards are real. Keep them away from pacemakers and magnetic media.

The Curved Appliqué Scissors Move: Rocking the Blade for a Clear Sightline

The trimming technique in the video is specific and disciplined. It is not about chopping; it is about gliding.

The Technique:

• Tool: Curved Appliqué (Duckbill or Double-Curved) Scissors.
• Approach: Get close to the satin border, but do not cut the threads.
• Motion: Rock your hand slightly so you can see under the blade.
• Action: Use short, choppy cuts (snip-snip-snip) rather than long shears.






Sensory Feedback:

• Visual: You should see a uniform 1mm to 2mm flange of fabric remaining.
• Auditory: The scissors should make a crisp snip sound. If you hear a gnawing or tearing sound, your scissors are dull, or the fabric is folding over.

Why Short Cuts? Long cuts feel faster, but on a curve, a long blade will inevitably cut closer at the fulcrum and farther at the tip (or vice versa), leading to a jagged edge. Short cuts allow you to pivot around the patch shape (circles, shields, rockers) with high precision.

Setup Checklist (Right BEFORE trimming)

• Hidden Consumables: Have a "trash bowl" ready for scraps.
• Tool Check: Ensure scissors are sharp. Dull scissors chew polyester, leaving hairy edges that don't melt well.
• Linkage Check: Inspect the satin border. Is it solid? Any gaps?
• Lighting: Turn on a bright task light so you can distinguish dark thread from dark fabric.
• Margin Plan: Intentionally leave a tiny margin (1-2mm). Do not try to cut flush to the thread—the heat will handle the rest.

The “No Dots on the Front” Trick: Removing Jump Stitches from the Back Side of the Patch

This is the "Black Belt" tip of the video. The creator points out a jump stitch (a travel thread) and explains a common amateur mistake: cutting it from the front.

The Mechanical Problem: When you pull a thread on the front and snip it, the "knot" or lock stitch typically retracts slightly into the fabric or stays visible as a tiny colored dot (pepper dot) on the contrast background.

The Expert Solution:

1. Identify the jump/travel location.
2. Flip the patch over.
3. Cut the connecting thread on the bobbin side (the white thread underneath).
4. Flip back to the front and pull the top thread. It should slide out completely, knot and all.






Expert Note: This works because the tension is usually balanced to pull the top thread slightly to the back. By severing the anchor (the bobbin thread), the top thread loses its grip and can be removed cleanly.

If you are doing your own digitizing, you can avoid this by setting "Trims" after every object. However, if you are running a single-needle machine, excessive trims slow you down. If you are upgrading your business, this is a strong argument for SEWTECH

FAQ

• Q: How do I hoop a thick patch stack (outdoor polyester fabric + two layers of cutaway backing) without hoop burn or uneven tension on a home single-needle embroidery machine?
  A: Use a magnetic embroidery hoop to clamp the thick stack from the top down so the fabric stays tight without crushing or wrist-straining screw pressure.
  • Build the stack: Place two full-size pieces of cutaway backing under one layer of outdoor polyester furniture fabric, then hoop as one unit.
  • Tap-test before stitching: Use the “drum skin” check and adjust until the stack is taut (not stretched).
  • Run a finger check: Slide fingertips along the inner hoop edge to confirm the backing is smooth and not rippled.
  • Success check: The hooped surface gives a dull “thump” (not a loose flap), and there are no shiny crush marks from over-tightening.
  • If it still fails… Reduce bulk where possible (trim backing outside the hoop area later) and re-hoop to remove wrinkles or uneven clamping.
• Q: What is the “drum skin” test for patch hooping tension on stiff outdoor polyester fabric, and what should the fabric feel and sound like?
  A: The correct hooping tension sounds like a dull thump and feels taut without distorting the weave—this prevents most finishing and border problems.
  • Tap the hooped fabric: Listen for a dull “thump,” like tapping heavy cardboard.
  • Press lightly with a finger: Confirm the fabric is firm but not stretched into distortion.
  • Re-check the edges: Feel around the hoop’s inner perimeter for slack spots that can cause movement.
  • Success check: The fabric stays flat when tapped and does not bounce or “pop” during handling.
  • If it still fails… Re-hoop with higher, more even clamping force (magnetic hoops help) because stiff coated fabrics can shift even when they look “okay.”
• Q: Why does stiff outdoor polyester patch fabric “oil-can” (pop up and down) while stitching, and how do I stop oil-canning before it breaks needles?
  A: Oil-canning usually means the fabric is hooped too loosely for a stiff coated material—increase clamping force and stabilize the stack.
  • Re-hoop tighter: Aim for firm, even tension across the entire hoop area.
  • Stabilize as shown: Use two layers of cutaway backing under the outdoor polyester fabric.
  • Confirm hoop mounting: Make sure the hoop arms are firmly attached so the frame cannot flex or shift.
  • Success check: The fabric no longer pops up/down when the needle penetrates and the surface stays stable at normal running speed.
  • If it still fails… Slow down and inspect for looseness at the hoop/frame connection or uneven pressure around the hoop perimeter.
• Q: What needle should I install before stitching coated outdoor polyester patch fabric, and why do needles dull so fast on this material?
  A: Start with a fresh Topstitch 90/14 or 75/11 Titanium needle because coated fabrics dull needles quickly and amplify thread issues.
  • Install new needle first: Don’t troubleshoot trimming or borders with an already-dulled needle.
  • Replace sooner than usual: Coated, canvas-like polyester can degrade needle sharpness faster than cotton twill.
  • Test-stitch a small area: Confirm clean penetration and stable stitching before committing to a full patch run.
  • Success check: The machine stitches smoothly without excessive popping, skipped-looking areas, or unusual resistance.
  • If it still fails… Re-check hooping stability (oil-canning) and confirm the backing stack is truly two layers of cutaway.
• Q: How do I trim patch edges cleanly with curved appliqué scissors without cutting the satin border threads?
  A: Use curved appliqué scissors with short, controlled snips and intentionally leave a 1–2 mm fabric margin instead of cutting flush.
  • Position for visibility: Rock your hand slightly so you can see under the blade and track the border edge.
  • Snip in short cuts: Follow curves with “snip-snip-snip” rather than long shears to avoid jagged edges.
  • Leave a small flange: Keep a uniform 1–2 mm margin so the border stays protected during finishing.
  • Success check: The edge shows an even, narrow fabric flange and the cut line looks smooth—not chewed or hairy.
  • If it still fails… Sharpen/replace scissors; dull blades can tear polyester and create fuzzy edges that finish poorly.
• Q: How do I remove jump stitches from a patch without leaving tiny colored “pepper dots” on the front of the embroidery?
  A: Cut the jump stitch from the back (bobbin side) first, then pull the top thread out from the front so the lock/knot doesn’t stay visible.
  • Locate the travel thread: Identify the jump stitch point on the front, then flip the patch over.
  • Cut on the bobbin side: Snip the connecting thread underneath (typically the white bobbin thread).
  • Pull from the front: Flip back and gently pull the top thread so it slides out cleanly.
  • Success check: The front surface has no tiny colored dot where the jump stitch used to be.
  • If it still fails… Check tension balance; if the knot is sitting on top, the thread may not release cleanly and you may need to re-evaluate stitch settings in the design.
• Q: What magnetic embroidery hoop safety rules should operators follow when snapping strong magnetic frames during patch production?
  A: Keep fingers completely clear when closing the hoop and keep magnetic hoops away from pacemakers and magnetic media—pinch hazards are real.
  • Hold by safe edges: Grip the frame so fingers never cross the closing gap.
  • Close deliberately: Lower and “snap” the top frame straight down—do not let it slam unpredictably.
  • Control the workspace: Keep the hoop away from items sensitive to magnets and from anyone with a pacemaker.
  • Success check: The hoop closes without finger contact in the clamping zone and the stack is held evenly around the perimeter.
  • If it still fails… Use a hooping station to control alignment and closing motion so the magnet doesn’t jump or twist during placement.
• Q: When thick patch stacks keep causing hoop burn, hand fatigue, or inconsistent patch quality, what is the practical upgrade path: technique changes vs magnetic hoops vs multi-needle production?
  A: Start by tightening prep and checks, then upgrade to magnetic hoops for consistent clamping, and consider multi-needle production when trims and repetition become the bottleneck.
  • Level 1 (technique): Standardize the stack (outdoor polyester + two cutaway layers) and pass the drum-skin test every time before stitching.
  • Level 2 (tool): Switch to magnetic hoops to reduce hoop burn, improve perimeter pressure on thick coated fabrics, and eliminate repeated screw tightening.
  • Level 3 (capacity): Move to multi-needle workflows when jump-stitch trimming and frequent color changes slow output or cause operator fatigue.
  • Success check: Patch #1 matches Patch #50 in border stability, trimming cleanliness, and handling stiffness without extra re-hooping.
  • If it still fails… Audit where variability enters (hooping tension, dull needles, trimming method, jump-stitch cleanup) and lock one variable at a time before scaling batch size.
