Click-to-Design Advanced in Janome Digitizer MB: Turn Clip Art into Clean Stitches (and Fix the “Missing Cloud” Trap)

Auto-digitizing is supposed to feel like magic—until it deletes a cheek, eats your cloud, or buries travel stitches under a “background” you never wanted.

In this lesson, you’ll build a stitch file from clip art using Digitizer MB / EasyDesign and Click-to-Design Advanced. We are going to move beyond the "one-click wonder" myth and teach you the exact edits that separate “it stitched… technically” from “I’d sell this on a product.”

You’ll unlock three production-grade skills:

1. High-Speed Triage: How to import and preview images without bogging down.
2. Strategic Reduction: How to reduce colors to prevent thread-break nightmares without ruining the design.
3. The "Surgical Strike": How to omit a background without accidentally killing necessary details (like the cloud), and then how to restore them cleanly.


Calm the Panic: What Click-to-Design Advanced *Really* Does in Janome Digitizer MB

First, let's demystify the tool. Click-to-Design is an automatic digitizing workflow: you start with a raster image (pixels), the software simplifies it, and then generates stitch objects (fills and outlines).

Most beginners click "Instant" and hope for the best. Do not do this.

The “Advanced” option is your safety net. It gives you control over stitch types and color handling before the software makes mistakes. If you are coming from the machine side—especially if you utilize a janome mb-7 embroidery machine or a similar multi-needle workhorse—you know that preparation is cheaper than repair. Think of this as the digitizing equivalent of checking your bobbin tension before a 50,000-stitch run: you are deciding exactly what becomes a fill, what becomes an outline, and what gets ignored.

Import the Clip Art Image (and Use Thumbnail View So You Don’t Waste Time)

The efficiency of your workflow starts before you place a single node.

1. Navigate: Go to the Main Menu and choose Image > Insert Image.
2. Unhide Your Assets: In the Open dialog, change Files of type to All Files. If you leave this on default, many perfectly usable JPEGs or bitmaps might remain hidden.
3. Visual Scan: Switch the view to Thumbnails (View menu). Do not waste time clicking file names blindly. Visual identification reduces cognitive load.
4. Load: Select the image and click Open.

Visual Check: You should see the image placed inside your hoop boundary. It will have black bounding boxes around it. If it is outside the hoop, resize or move it now. In the resequence/sequence view, look for the "picture" icon confirming it is loaded as artwork, not stitches.

Pro tip (time saver)

If you’re building a small library of clip art for quick projects, thumbnail view is the difference between “I’ll digitize one today” and “I’ll digitize five before lunch.”

The “Color Reduction” Moment: Accept 6 Colors—But Know What You’re Sacrificing

Next comes Image Preparation. This is where novices get scared, but pros get strategic.

1. Initiate: Click the Image Preparation icon.
2. The Recommendation: The program will analyze the image and recommend reducing it, usually to around 6 colors.
3. The Trade-off: Compare the processed preview to the original. In this specific example, the reduction removes the pink cheek and a green detail on the hat.
4. The Decision: Accept the recommendation (click OK).

Why do we accept a "worse" image? This is a calculated risk. If you force the software to keep every tiny gradient and pixel variation, it will generate hundreds of "confetti stitches" (tiny, dangerous stitches that cause thread breaks and bird nests). By accepting 6 colors, you force the software to create clean, solid blocks. We can easily add a pink circle back manually later. We cannot easily fix 500 bad stitch segments.

Watch out: “Lost colors” isn’t a bug—it’s the deal you just made

When you reduce colors, you’re telling the software to simplify. Small accents are usually the first to disappear. Plan ahead: if the missing element is a simple shape (circle cheek, small band, highlight), it’s a good candidate to add back manually.

Prep Checklist (before you generate stitches)

• Hoop Check: Is the image fully contained within the Hoop RE (140 x 200) boundary? (Visual: Give yourself 5mm margin from the edge).
• Color Strategy: Did you agree to sacrifice minor details (cheek/green bands) for cleaner blocks?
• The "White" Trap: Did you identify elements that match the background color? (e.g., A white cloud on a white background).
• Consumables Prep: Do you have your water-soluble marking pen or printed template ready to mark your fabric for when this file is done?

Click-to-Design Advanced Settings: Pick Weave Fill for Big Areas and Satin Lines for Outlines

Now you generate stitches using Click-to-Design Advanced.

1. Access: Click the small arrow on the Click-to-Design icon.
2. Select: Choose Click-to-Design Advanced.
3. Fills: For large colored areas, set Fill Stitch Type = Weave.
   • Expert Note: "Weave" (often called Tatami) is your structural foundation. For standard graphics, a density/spacing of 0.40mm is the industry "sweet spot." Tighter than 0.35mm risks bulletproof stiffness; looser than 0.45mm risks fabric showing through.
4. Outlines: For detail lines, choose Satin Lines.

Why Satin Lines? Satin Lines are editable vector objects. A "Satin FIll" is a shape; a "Satin Line" is a stroke. You can thicken, thin, or change a Satin Line to a Run Stitch later. This keeps your options open.

The Background Trap: Omit the White Color Chip to Prevent Hidden Travel Stitches

Inside Click-to-Design Advanced, you see color chips arranged in columns. This is your primary defense against "Bulletproof Chest Patches"—embroidery so dense it feels like cardboard.

1. Locate: Find the white color chip in the Fill Colors column.
2. Action: Drag that white chip into Omit Colors.

The Logic: If you don't omit the background, the machine will stitch a massive white square behind your design. Worse, it will tack down "travel stitches" (movement lines) under that white fill, which create lumps in your final product.

The Catch: In this design, the cloud is also white. By omitting the "White" category, we just deleted the cloud. The Solution: Do it anyway. It is cleaner to rebuild one cloud manually than to delete 10,000 stitches of background noise.

Warning: Auto-digitizing can create stitches you don’t notice until you stitch out—especially hidden travel stitches under a background. Always preview the generated objects in the sequence view before you export a file.

Generate the Design, Then Read the Stitch Sequence Like a Technician (Not a Tourist)

Click OK. The software now "thinks" and generates the stitches.

Now, stop everything and look at the Stitch Sequence Viewer (usually on the right).

• Visual Logic: Look for the “kidney bean” icons. These indicate weave fill objects.
• Outline Logic: You should see satin line objects (often thin zig-zags).

Sensory Check: If you see hundreds of tiny objects for a simple cartoon, the "Color Reduction" step wasn't aggressive enough. If the sequence is clean—Large Fill, Large Fill, Outline, Outline—you are on the path to success.

Unlock the Outline: Use Edit > Ungroup So Object Details Actually Works

Here is a common frustration point: You click an outline to change its width, but the software selects every outline in the design. This is because Auto-Digitizing groups everything by color.

The Fix:

1. Select: Click the outline object.
2. Action: Go to Edit > Ungroup (or press Ctrl+U / Cmd+U).
3. Verify: Watch the sequence view. The single "Outline Cluster" should split into individual line objects.
4. Refine: Now, with pieces selected individually, open Object Details.

In Object Details, you can check your Pull Compensation.

• Industry Standard: For Satin columns, start with 0.20mm to 0.40mm pull compensation. Without this, your outlines will look skinny and may not cover the edges of the fill, leaving ugly gaps (registration errors).




Expert insight: why ungrouping matters for stitch quality

Grouped objects are convenient for moving artwork, but they hide the levers you need for production-quality control. Ungrouping lets you adjust critical physics settings (like underlay and pull comp) for specific areas rather than applying a blanket setting to the whole map.

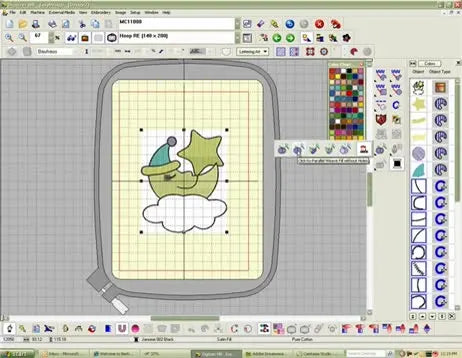

Restore the Missing White Cloud: Click-to-Parallel Weave Fill (One Click, Clean Result)

Because you omitted white to kill the background, your cloud is gone. Let's bring it back, but cleaner.

1. Select Tool: Open the Click-to-Fill flyout menu.
2. Choose Methodology: Select Click-to-Parallel Weave Fill.
3. Execute: Move your cursor over the empty cloud area in the background image and left-click once.

The cloud fills instantly. This object is now mathematically generated based on the boundary, free of the "background noise" we deleted earlier.

Watch out: “Omit Colors” is not “Delete Background Only”

Omitting a color omits everything in that color family. If you omit "Black" to remove a border, you also remove black eyes and text. Always audit your design to see what you lost.

Fix the Stitch Order: Resequence the White Cloud to Stitch First (Background)

Physics Alert: In embroidery, we must lay down the carpet before we put down the furniture. Currently, your new manual cloud is at the bottom of the stitch list (last to stitch). It will sew on top of the outlines, looking messy and unprofessional.

1. Mode Switch: Go to the stitch sequence area and switch to Color mode (blocks of color vs. individual objects).
2. Select: Click the white block (your cloud).
3. Action: Drag it to the very top/first position.

Success Metric: The cloud should now sit "behind" or "under" the adjacent outlines in the preview.

Expert insight: resequencing prevents registration heartbreak

Fabric moves. It is an unstable medium. As you stitch, the fabric pushes and pulls (the "push-pull effect"). If you stitch outlines first and fills later, the fabric will have shifted, and your outlines won't match. Always stitches largest fills first, details second, outlines last.

Quick Color Edits: Make the Hat and Star Read Better Without Redigitizing

The software isn't an artist; you are. The tutorial notes the star and moon might have merged, or the hat lost its green band.

1. Select: Click the hat object.
2. Modify: Click a new color from the bottom palette.

This implies a physical change: changing the color on the screen forces a Stop Command (or needle change) on the machine. Use this to add contrast without re-digitizing shapes.

Add the Pink Cheek Back: Parallel Weave Fill Circle (Click, Drag, Done)

The missing cheek is a simple geometric shape. Do not try to auto-trace it.

1. Select Tool: Choose the Circle tool flyout.
2. Type: Select Parallel Fill Circle (Not Satin—Satin is too dense for a large wide circle and will snag).
3. Draw: Left-click the center of the cheek, drag outward to set radius, then click to set.
4. Refine: Use the Select tool to nudge it into place.
5. Color: Click the pink swatch.


Pro tip: keep manual fixes simple on purpose

When repairing auto-digitized art, Primitive Shapes (circles, ovals) are superior to complex traced paths. They have perfect mathematical edges and stitch out smoother with fewer needle penetrations.

Decision Tree: When to Omit Background Colors vs. Keep Them

Novices guess; experts follow protocols. Use this tree before dragging any chip to "Omit":

Step 1: Is the "Background" color used for vital objects (Eyes, Clouds, Text)?

• NO: Safe to Omit. Proceed to Step 3.
• YES: Proceed to Step 2.

Step 2: Are the vital objects complex shapes?

• Simple (Circles/Squares): Omit the color, then manually rebuild the simple shapes (Cleaner result).
• Complex (Detailed silhouettes/faces): DO NOT OMIT. Keep the color, generate the design, and then manually delete the large background block in the editor.

Step 3: What is your fabric substrate?

• T-Shirt/Knit: Omit background. Large dense backgrounds cause "bulletproof" patches and heavy puckering on knits.
• Canvas/Denim/Twill: You can keep the background if you want a patch-like effect.

The “Hidden” Setup That Makes Stitch-Outs Look Professional

You now have a clean file. But even a perfect file will fail if the physical execution is flawed. Auto-digitized files often have high stitch counts in fill areas, which creates tension on the fabric.

The Physical Variables:

1. Stabilizer: For this design (Weave fills), you must use Cutaway stabilizer if stitching on a wearable. Tearaway will disintegrate under the thousands of needle penetrations, causing the cloud and hat to shift (registration error).
2. Hooping: If you see gaps between your clouds and outlines, it is 90% likely a hooping issue, not a software issue. The fabric is slipping.

Scaling Up: If you start doing this for money, hooping becomes your bottleneck.

• Scenario A: You are struggling to hoop thick hoodies or have "hoop burn" (shiny ring marks) on delicate polos. This is where professionals search for a hooping station for machine embroidery to standardize placement.
• Scenario B: For repetitive stress on your wrists or difficulty clamping thick seams, Magnetic Hoops are the industry standard upgrade. They hold fabric firmly without the "tug of war" of screw-tightened hoops.
• Scenario C: If you own a janome mb 7 seven-needle embroidery machine or similar, pairing it with consistent hooping gear ensures that the machine's speed doesn't outpace your ability to load garments.

Warning: Magnetic Hoop Safety. These are not fridge magnets. They use industrial neodymium magnets. They can pinch fingers severely and interfere with pacemakers. Slide them apart; never pry them.

Troubleshooting: Symptoms → Likely Cause → Fix

If your sew-out fails, don't panic. Diagnose it using this "Low Cost to High Cost" logic.

The Upgrade Path: From “One-Off Fun” to Repeatable Production

Once you master this software workflow, the limitation stops being the computer and starts being the physics of production.

If you find yourself spending 15 minutes hooping for a 5-minute stitch-out, your economics are broken.

• Level 1 (Consumables): Use temporary spray adhesive (like 505) to hold stabilizers firm.
• Level 2 (Hardware): Switch to Magnetic Hoops. They self-level and reduce "hoop burn," saving you from steaming garments later. These are essential for anyone using generic or embroidery machine hoops that struggle with thick seams.
• Level 3 (Machine): If you are tired of changing threads manually for every color block (the 6-color limit we discussed!), this is when upgrading to a multi-needle machine (like the SEWTECH architecture or similar production models) changes your business model.

Setup Checklist (Software Phase)

• Action: Fills set to Weave (0.40mm spacing).
• Action: Outlines set to Satin Line (Width 2.5mm - 3.0mm, Pull Comp 0.30mm).
• Check: Background color is Omitted.
• Check: Missing Details (Cloud/Cheek) restored manually.
• Sequence: Backgrounds Top, Details Middle, Outlines Bottom.

Operation Checklist (Physical Phase)

• Stabilizer: Cutaway loaded for knits/wearables?
• Bobbin: Is the bobbin thread showing 1/3 in the center (calibrated tension)?
• Hoop: Tap the huge fabric. Sound Check: Does it sound like a drum? (Tight is right).
• Needle: Is the needle fresh? (A burred needle shreds auto-digitized fills).

By following this protocol, you turn the "randomness" of auto-digitizing into a predictable, engineered process.

FAQ

• Q: In Janome Digitizer MB / EasyDesign, why should Click-to-Design Advanced be used instead of Click-to-Design Instant for clip art auto-digitizing?
  A: Use Click-to-Design Advanced because it lets Janome Digitizer MB control stitch types and color handling before auto-digitizing mistakes are baked in.
  • Select: Click the small arrow on the Click-to-Design icon and choose Click-to-Design Advanced.
  • Set: Choose Weave (Tatami) for large fills and Satin Lines for outlines before generating stitches.
  • Preview: Audit the Stitch Sequence Viewer immediately after generation.
  • Success check: The sequence looks “clean” (large fill objects + logical outlines), not hundreds of tiny fragments.
  • If it still fails… Re-do Image Preparation with a stronger color reduction to prevent confetti stitches.
• Q: In Janome Digitizer MB Click-to-Design Advanced, how do you omit a white background without creating hidden travel stitches under a large fill?
  A: Drag the white chip from Fill Colors to Omit Colors to prevent a big white background block and hidden travel stitches.
  • Locate: Find the white color chip in the Fill Colors column.
  • Drag: Move that white chip into Omit Colors before clicking OK.
  • Inspect: After generation, check the Stitch Sequence Viewer for any large background fill objects.
  • Success check: No huge white “background square” exists behind the design in the sequence/preview.
  • If it still fails… Look for “data under data” (background fills hidden under objects) and remove those background objects before exporting.
• Q: In Janome Digitizer MB, why did omitting the white color chip delete the white cloud, and how do you restore the cloud cleanly?
  A: This is common—omitting “white” omits everything in that color family, so rebuild the cloud manually with Click-to-Parallel Weave Fill.
  • Choose: Open the Click-to-Fill flyout and select Click-to-Parallel Weave Fill.
  • Click: Left-click once inside the missing cloud area to generate a clean fill object.
  • Resequence: Switch to Color mode and drag the white cloud block to the very top so it stitches first (as background).
  • Success check: The cloud stitches visually behind adjacent outlines (not on top of them).
  • If it still fails… Re-check that the cloud color block is above the outline blocks in the stitch sequence.
• Q: In Janome Digitizer MB auto-digitizing, why do all outlines select together, and how do you edit one outline width or pull compensation?
  A: Auto-digitizing groups objects by color, so use Edit > Ungroup to unlock individual outline objects for Object Details adjustments.
  • Select: Click the outline, then go to Edit > Ungroup (Ctrl+U / Cmd+U).
  • Verify: Confirm the outline “cluster” splits into separate line objects in the sequence view.
  • Adjust: Open Object Details and set pull compensation (a safe starting point is 0.20–0.40 mm for satin columns; verify with machine/material).
  • Success check: The outline covers the fill edges without skinny gaps (no visible registration gaps).
  • If it still fails… Increase pull compensation toward 0.35 mm and re-check hooping/stabilization for fabric slip.
• Q: In Janome Digitizer MB Image Preparation, why does reducing to 6 colors remove small details (pink cheek/green band), and what is the fastest fix?
  A: Accepting 6 colors is a trade-off to avoid confetti stitches, then add simple missing accents back manually (circle cheek is the classic fix).
  • Accept: Use Image Preparation and approve the recommended reduction (often ~6 colors) to simplify stitch generation.
  • Add: Use the Circle tool with Parallel Fill Circle to redraw the missing cheek, then recolor it pink.
  • Avoid: Do not auto-trace tiny gradients if the goal is stable stitching.
  • Success check: The design preview shows clean solid blocks and the missing accent is restored without messy micro-objects.
  • If it still fails… Re-import and try 8–10 colors (risk: a messier file with more tiny segments and higher break risk).
• Q: For dense Weave (Tatami) auto-digitized fills in Janome Digitizer MB, what stabilizer and hooping standards prevent gaps and registration errors on wearables?
  A: Use cutaway stabilizer for wearables and hoop firmly because most outline gaps come from fabric slip, not software.
  • Choose: Use cutaway stabilizer for Weave-fill designs on wearables; avoid tearaway that can break down under heavy penetration.
  • Hoop: Tighten the hoop so the fabric is stable and does not creep during stitching.
  • Check: Confirm bobbin tension is calibrated (bobbin thread shows about 1/3 in the center as a practical visual standard).
  • Success check: Tap the hooped fabric—drum-tight sound + outlines align with fills (no shifting gaps).
  • If it still fails… Ungroup outlines and increase pull compensation, then re-evaluate hooping technique.
• Q: What safety precautions are required when using magnetic embroidery hoops for garment hooping efficiency and reduced hoop burn?
  A: Treat magnetic hoops as industrial neodymium magnets—slide them apart and keep fingers and pacemakers safe.
  • Slide: Separate magnetic hoop parts by sliding, never prying straight up.
  • Protect: Keep fingers out of pinch zones during closing.
  • Warn: Do not use near pacemakers or sensitive medical devices.
  • Success check: The hoop closes securely without a “snap pinch,” and the fabric is held evenly without over-tightening marks.
  • If it still fails… If thick seams won’t clamp evenly, switch to a more suitable hoop size/fixture or standardize placement with a hooping station.
