Make Create Outlines Behave: Ripples, Spacing, Cascade vs Spiral (Hexagon Demo)

Let’s look at the first tool: Create Outlines. Think of this as the "Broad Brush." It’s fast and simple, but it lacks finesse.

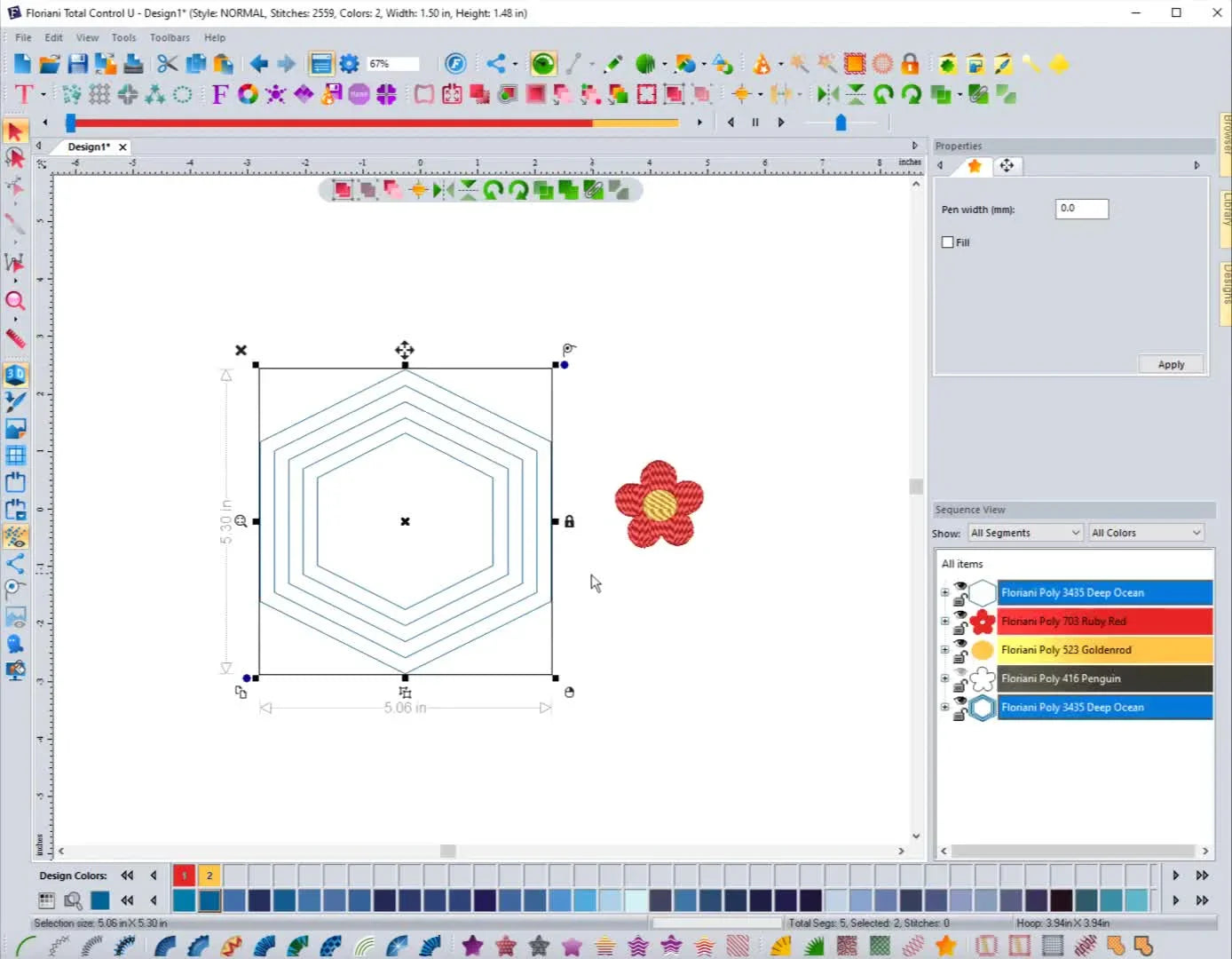

In the standard training, we start with a hexagon.

The Baseline Settings (Beginner Safe Zone)

• Ripples: 2 (This creates two rings of stitching)
• Spacing: 0.25 inches (6.35mm)
• Style: Cascade

The Visual Check: When you hit OK, notice the corners. The original hexagon is sharp, but the outline is rounded. This is the default behavior of "Create Outlines." It softens geometry. If you are doing a sports logo that demands aggression and precision, this is the wrong tool.

Cascade vs. Spiral

• Cascade: Creates separate, concentric rings. This is the production standard because it allows for clean jumps and trims between rings.
• Spiral: Creates one continuous long line that spirals out.
  • Warning: While "Spiral" sounds cool, it is a nightmare for registration on stretchy fabrics. As it spirals, it pushes fabric like a snowplow, creating a bubble in the center. Avoid "Spiral" for heavy satin borders unless you are doing a deliberate artistic effect.


The “Remove Selection” Switch: When Deleting the Source Object Saves You (and When It Bites You)

There is a small checkbox labeled Remove Selection.

• Checked: FTC-U creates the border and deletes the original shape.
• Unchecked: The original shape stays.

Professional Advice: Keep it UNCHECKED until the very end. Why? Because once you delete the source object, you lose your geometric reference. If the customer comes back and says, "Make the border 1mm wider," and you’ve deleted the source, you have to redraw it from scratch.

Beginner Sweet Spot: Stick to 2–3 ripples maximum. If you go higher (like 10 ripples), you create a dense mat of thread that can make your embroidery stiff "bulletproof vest" armor.

Switch to Contour When Corners Matter: Outside/Inside/Both + Miter/Bevel/Round (Hexagon Demo)

Now, let's swap the "Broad Brush" for the "Scalpel." This is Contour.

If you are digitizing patches, name tags, or technical logos, this is your primary tool. It offers two critical controls: Where the line goes, and How the corner turns.

Outside + Miter (The "Clean" Look)

• Location: Outside
• Corner Type: Miter (Sharp Point)
• Ripples: 4
• Spacing: 0.25 inches (6.35mm)

Sensory Check: Look at the screen. The corners are razor-sharp. When stitched, a "Miter" corner allows the needle to turn cleanly, reflecting light beautifully on rayon thread. This is the hallmark of professional digitization.

Inside Contours and the “It Won’t Fit” Reality: Why FTC-U Ignores Extra Ripples

You can also ask Contour to go Inside the shape.

The Physics Constraint: If you have a 1-inch box and you ask for 10 ripples spaced at 0.25 inches, the math doesn't work. The software isn't broken; it's just ignoring the commands that physically won't fit inside the box.

• Note: When using "Inside," the options for Bevel and Round are grayed out. You are forced to use Miter. This is to prevent the internal geometry from collapsing on itself.


Both (Inside + Outside) Isn’t Symmetrical—And That’s a Good Thing

When you select Both, you get an echo inside and outside.

The "Odd" Behavior: You might select "Round" corners, but you'll notice the inside lines stay straight/mitered, while the outside lines round off.

Why? If the inside lines rounded off, they would quickly turn into circles, losing the relationship to the original shape. FTC-U keeps the core (inside) anchors stable so the eye tracks the shape correctly.

Warning: Be very careful using "Remove Selection" here. If you delete the source object with inside/outside stitching, you are left with a floating "donut" of stitches with no center using an empty void. On unstable fabric (like pique polo shirts), that center void can distort into an oval.

Bevel vs Round Corners: Pick the Look That Matches the Brand (Not Your Mood)

Your choice of corner dictates the "vibe" of the garment.

• Miter (Sharp): Technical, masculine, aggressive. Best for: Sports teams, security badges, tech companies.
• Bevel (Chopped/Flat): Sturdy, industrial. Best for: Workwear, bold fonts, patches with heavy borders.
• Round (Soft): Organic, gentle. Best for: Baby clothes, floral motifs, bridal items.

The "Thread Break" Factor: Miter corners (sharp) build up high density at the tip. If your machine is stalling or shredding thread at the corners, switch to Bevel. The chopped corner reduces the needle penetration count in that single spot, relieving stress on the thread.

Outlining a Real Embroidery Design (Flower): The Settings That Work—and Why It Takes Longer

We've used a hexagon (vector art). Now, let's look at a Flower (embroidery stitch file).

The Processing Lag: When you apply Contour to a group of 5,000 stitches, the computer has to calculate the perimeter of every single needle penetration on the edge. You will see a spinning wheel. Do not force quit.

Recommended Settings for Stitch Groups:

• Contour: Outside
• Spacing: Increase this! Use 0.15 inches (3.8mm) minimum.
  • Why? If the spacing is too tight on a stitch file, the outline might accidentally sew over a stray jump stitch or loose loop, creating a snag. Give the design room to breathe.

Production Tip: If you are running high volumes of these floral borders on tricky garments (like towels), the thickness of the fabric adds another variable. Standard hoops pop open on towels. Often, shops will use a setup involving magnetic embroidery hoops to secure the heavy terry cloth without crushing the loop pile, ensuring the border sits on top of the loops rather than burying into them.

The Crash-Proof Border Method: Trace One Clean Vector, Close It, Then Contour That

Here is the secret handshake of expert digitizers. We rarely contour the stitches directly. It’s too risky.

The Fail-Safe Workflow:

1. Load your complex embroidery design.
2. Select your Vector Line tool.
3. Manually Trace a rough shape around the design (it doesn't have to be perfect).
4. Close the Shape.
5. Apply Contour to your new Vector Line.

Why this is better:

• Zero processing lag (calculating 1 line vs 5,000 stitches).
• Zero random spikes.
• Perfect control over the offset.


Kill the “Spike” Artifact: Open Shapes, Twisted Nodes, and the One Fix That Actually Works

The Symptom: You generate a border and suddenly there is a massive line shooting off into the distance like a lightning bolt.

The Cause:

• Open Shape: The start and end points of your vector aren't connected.
• The "Bowtie" Twist: Two nodes have crossed over each other, creating a microscopic figure-8 loop.

The Fix:

• Zoom In: Go to 600% zoom.
• Shape Tool: Select the nodes.
• Untwist: Pull the nodes apart so the line flows smoothly.
• Close: Right-click and select "Close Shape."


Turn a Plain Outline into a Motif Border: The Fastest Way to Make a Design Look “Finished”

A single run-stitch line looks cheap. It disappears into the nap of a polo shirt. To make it professional, turn it into a Motif Run.

How to do it:

1. Select your new outline.
2. Go to Properties.
3. Change stitch type from "Run" to "Motif."
4. Select a pattern (e.g., small circles or a rope chain).

Hidden Consumable Alert: Motif runs eat up thread and bobbin. Ensure your bobbin is full before starting a motif border run.

Production Stability: When running a motif border around a large design, the registration (alignment) is critical. If the garment shifts 1mm, the border looks off-center. This is another reason why professionals use a hooping station for embroidery to guarantee the placement is mathematically centered on the chest before it even gets to the machine. Stabilizers alone aren't enough; the starting geometry must be perfect.

The Decision Tree I Use in Production: Which Tool, Which Workflow, Which Corner Style?

Don't guess. Use this logic flow to pick the right tool every time.

Decision Tree: The FTC-U Border Selector

1. What is the Source?
   • Simple Vector Art? → Proceed to Step 2.
   • Complex Stitch File? → STOP. Trace a vector boundary first. Then Proceed to Step 2.
2. What is the Goal?
   • Simple, Quick, Soft Echo? → Use Create Outlines.
   • Precision, Geometric, Professional? → Use Contour.
3. Do you need Sharp Corners?
   • Yes: Use Contour (Miter).
   • No, I want soft/round: Use Create Outlines OR Contour (Round).
4. Are you stitching on unstable fabric (Knit/Pique)?
   • Yes: Increase Spacing > 0.15". Use Cutaway stabilizer. Consider hoopmaster station kit aids for consistent placement.
   • No (Denim/Twill): Spacing > 0.10". Tearaway is fine.

Setup Habits That Prevent Rework: Versioning, Spacing Discipline, and “Don’t Over-Ripple”

Habit 1: The "Safety Save" Always "Save As" (e.g., Logo_pre_border.waf) before generating complex contours. If FTC-U crashes during calculation, you haven't lost your morning's work.

Habit 2: The Spacing Sweet Spot

• 0.10 inch: Too tight for most knits (will get buried).
• 0.15 - 0.20 inch: The "Goldilocks" zone for garments.
• 0.25 inch+: Good for patches and distinct frames.

Troubleshooting the Two Scariest Problems: Freezing/Crashing and Ugly Artifacts

Here is your quick-reference guide when things go wrong.

The Upgrade Path That Actually Makes You Money: Digitizing Speed Is Great—Production Speed Pays

Mastering the "Contour" tool in FTC-U will make your designs look 50% better. But remember, digitizing is only the first half of the battle.

If you find yourself perfectly digitizing a border, only to have the fabric pucker or the hoop leave a permanent "burn" mark on delicate polyester, you are hitting a hardware limit, not a software limit.

1. Level 1 (Skill): Master the vector tracing, closed shapes, and corner styles we covered today.
2. Level 2 (Tool): Eliminate hoop burn and re-hooping fatigue by switching to magnetic hoops for embroidery machines. They are the industry standard for a reason—speed and safety.
3. Level 3 (Scale): If you are running 50+ shirts and your single-needle machine is slowing you down, you might be ready for a multi-needle setup.

Warning: Magnet Safety. If you step up to magnetic hoops, be aware they are powerful. Keep them away from pacemakers and cardiac devices. Watch your fingertips—they snap shut with significant force!

Final Operations Checklist (The "Green Light"):

• Is the source shape closed?
• Did you select "Contour" for precision or "Create Outlines" for speed?
• Have you checked the corner style (Miter vs Round)?
• Crucial: Did you preview the stitch-out on screen to ensure no spikes?
• Is your machine ready with a full bobbin and the right needle?

You now have the tools to turn a frustrating crash into a clean, profitable border. Go create something sharp.
