Creative DRAWings XI Quick Start That Actually Sticks: Fabric Presets, PaintStitch Limits, and a Sequence Manager Workflow That Prevents Bad Stitchouts

If you’ve ever stared at a fresh embroidery software screen and felt a mix of excitement and "please don't let me ruin this expensive jacket," you are not alone. Machine embroidery is 20% software design and 80% physical engineering. Creative DRAWings XI can feel deceptively simple, but the choices you make in the first 120 seconds—before you even draw a line—determine whether your machine hums a happy tune or crunches into a birdnest of thread.

This guide rebuilds the standard video tutorial into a "Field Manual" for the serious user. We aren't just clicking buttons; we are setting up a manufacturing workflow that protects your garments, your machine, and your sanity.

Start Strong in the Creative DRAWings XI Welcome Tab: Machine Brand, Hoop Size, and Fabric Presets That Save You Later

The Welcome Tab is your "Mission Control." It is tempting to rush past this, but the software uses these settings to calculate Needle Penetration and Pull Compensation. If you get this wrong here, no amount of stabilizer will fix the distortion later.

The interface allows you to:

• Create New/Open Existing: Standard file management.
• Import Artwork: Bringing in vector (SVG) or bitmap (JPG/PNG) files.
• Select Machine & Hoop: Crucial for staying within physical limits.
• Select Fabric: The most critical physics variable.


The Physics of the Fabric Grid (It’s Not Just a Menu)

When you select "pique" (polo shirt material) versus "denim," the software changes the Pull Compensation (often from 0.2mm to 0.4mm) and Underlay.

• Experience Tip: If you select a stable fabric like "Cotton" but stitch on a stretchy "Performance Knit," your circles will turn into ovals because the software didn't add the extra compensation needed for the stretch.

What to do (The "Safe" Workflow)

1. Machine Brand: Select your exact machine (e.g., Janome, Brother). This ensures the software knows your maximum field size.
2. Hoop Selection: Choose the actual hoop you own.
   • Safety Check: If the software selects a 200x200mm hoop but you only have a 140x140mm (Standard SQ14) attached, you risk a frame hit—where the needle strikes the plastic hoop, potentially breaking the needle bar or timing gear.
3. Fabric Selection: Be honest. If it’s a fluffy towel, choose "Terry." The software will automatically add a "Grid" or "Double Tatami" underlay to prevent the stitches from sinking into the pile.


Why this matters (The "Hoop Burn" Reality)

Software optimization assumes you are hooping perfectly. In the real world, "perfect" hooping is hard. If you choose the wrong hoop size here, you might be tempted to stretch fabric to fit a larger hoop, leading to "hoop burn" (permanent ring marks).

Prep Checklist (Pre-Flight):

• Inventory: Do I have the correct needles? (Blue Tip/Ballpoint for knits, Sharp/Denim for wovens).
• Bobbin: Is the bobbin case clean? Listen for a "click" when inserting the bobbin to ensure tension is engaged.
• Match: Does the screen hoop match the physical hoop on my desk?
• Goal: Is this a "One-off" or "Production"? (If production, Save As with a version number immediately).

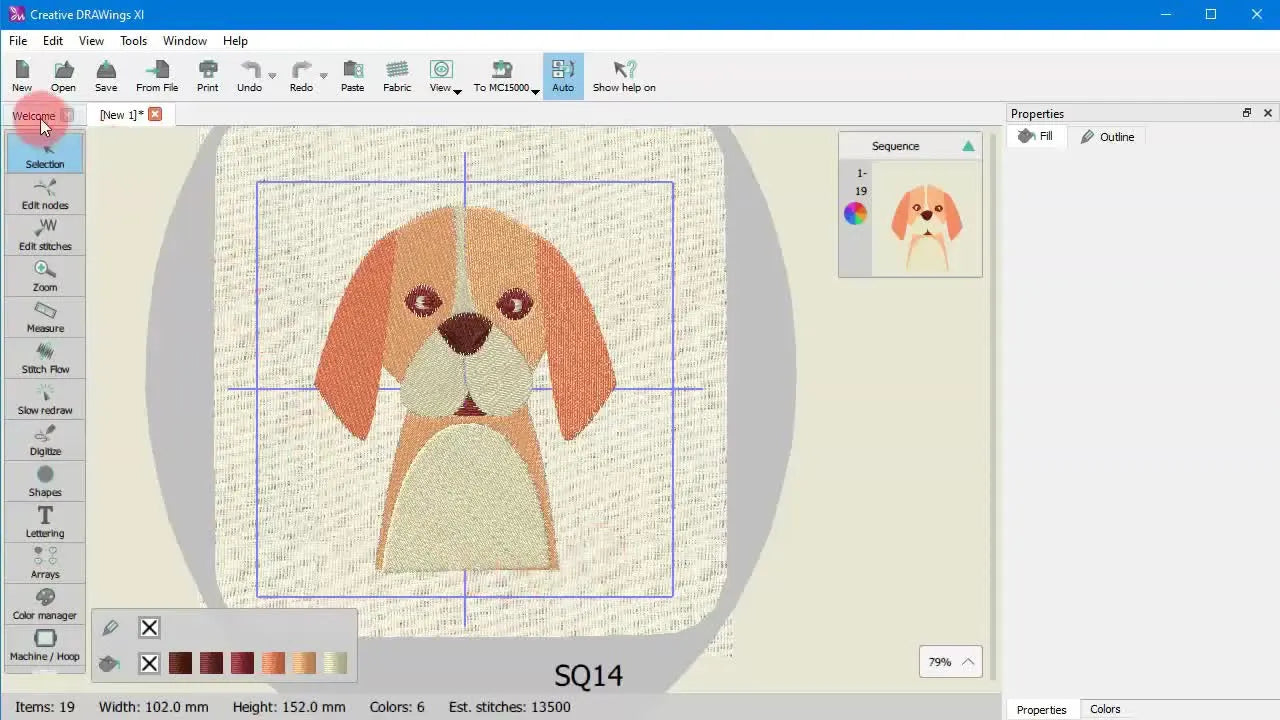

Read the Creative DRAWings XI Workspace Like a Pro: Context-Sensitive Toolbars and “Sticky” Tool Modes

The workspace is designed to reduce clutter. The top dropdowns hold the deep logic, while the left-side toolbar holds your creation tools (Edit Shape, Add Stitches, Text, etc.).

The "Sticky Tool" Danger Zone

In this software, creation tools are "Sticky." If you click the Text Tool, it stays active until you tell it to stop.

• The Frustration: Beginners often try to select a design to move it, but instead, they accidentally type "ABC" or draw a rogue node because the Text tool was still active.
• The Fix: Develop a "Home Base" habit. After every action, hit the ESC key or click the "Select/Edit" arrow (top left). Return to neutral before making your next move.

Make Clean Changes Fast with the Properties Bar: Switching Fill Types Without Guessing

Right-clicking an object and checking the Properties Bar is how you move from "Clip Art" to "Embroidery." The video demonstrates changing a heart from a Step Fill to a Satin Fill.

The "Satin vs. Step" Decision Matrix

Changing a fill type isn't just aesthetic; it changes the structural integrity of the patch.

1. Satin Stitch (The Shiny One):
   • Pros: Glossy, beautiful, high-value look.
   • Cons: Long threads can snag. High tension pulls the fabric edges in (puckering).
   • Safety Limit: Do not use Satin for widths greater than 7mm to 8mm unless your machine acts as a wide-format unit. Standard machines may struggle or leave loose loops on wide satins.
2. Step/Tatami Fill (The Flat One):
   • Pros: Extremely stable. locks the fabric down. Can cover huge areas without snagging.
   • Cons: Less shiny, higher stitch count.

Expert Reality Check: The Sound of Failure

When you switch a large area to Satin, listen to your machine during the stitchout.

• Good Sound: A consistent, rhythmic chug-chug-chug.
• Bad Sound: A slapping noise or a hollow thud. This means the satin stitches are too loose (width is too wide) or the tension is failing.

Stop Losing Designs: Use the Creative DRAWings Design Browser Like a Real Library, Not a Junk Drawer

We've all been there: digging through folders named "New Folder (2)" looking for an eagle design. The Browser is your visual database.

The Production Workflow

1. Filter Hard: If you are looking for artwork to digitize, uncheck "Embroidery." If you are ready to stitch, uncheck "Vector/Bitmap."
2. Scan Directory: This is powerful but misunderstood. It scans the top level you select.
3. Visual Sizing: Drag the sidebar to make icons huge. You need to see the detail without opening the file.


Hidden Consumable Note

While organizing files, organize your physical space. Keep a water-soluble pen and temporary spray adhesive (like 505) near your station. Great file organization doesn't help if you can't mark your center point on the fabric.

PaintStitch in Creative DRAWings XI: Respect the 16.5 cm Limit and Use Stitch Flow to Control Detail

PaintStitch converts photos into embroidery. It is impressive, but it is also the quickest way to break needles if you are careless.

The "Bulletproof" PaintStitch Rules

1. Size Limits:
   • Background: Max 29.5 cm.
   • PaintStitch Object: Max 16.5 cm (approx 6.5 inches).
   • Why? Photo-stitch generates thousands of tiny stitches. If you go too big, the file becomes unmanageable; too small, and the details vanish into a thread blob.


2. The "Machine Gun" Effect:
   PaintStitch creates dense layered stitching.
   • Sensory Warning: If you hear a loud, rapid-fire hammering sound (rat-a-tat-tat) and the needle gets hot, STOP. You are building up too much thread in one spot ("bulletproofing").
   • The Fix: Lower your stitch density or increase the "Blending" smoothening.


Stitch Flow: Directing the Eye

Use the Stitch Flow tool to circle the face or focal point. The software will prioritize detail there and relax the background. This saves thread and reduces the chance of thread breaks.

Warning (Mechanical Safety): High-density designs like PaintStitch generate significant friction heat. Use a Titanium-coated needle (size 75/11 or 90/14) to prevent the thread from melting and snapping. Keep your hands away from the moving hoop!

Take Back Control with the Creative DRAWings Sequence Manager: Manual Mode, Move Before/After, and Group by Color

Your machine stitches cleanly only if the path is logical. The Sequence Manager is where you fix "jump stitch nightmares."

The "Auto" Trap

"Auto" mode is fine for simple logos. For complex designs, switch to Manual.

• The Logic: Embroidery should run Center Out (to push ripples away) and Background to Foreground.
• The Fix: If you see the machine stitching a hat, then the shoes, then the shirt, drag the icons in the Sequence Manager to fix the flow.

Grouping Strategy

Use "Group by Color" to see if you have 15 color changes using only 3 colors. (e.g., Blue, Red, Blue, Red...).

• Optimization: Drag all Blues together and all Reds together (if the layering allows). This saves you physical time changing threads.




Setup Checklist (Sequencing):

• Travel Check: Do I have jumps longer than 5mm that aren't trimming?
• Layering: Are my underlays actually under the top stitches?
• Color Stops: Have I minimized thread changes or is the machine going to stop 20 times?

Convert Fill to Centerline in Creative DRAWings XI: The 1 mm Rule That Changes Your Line Type

This is a secret weapon for creating "Line Art" or "Redwork" style designs that stitch fast and look modern.

• The Rule:
  • Objects > 1mm width become Satin (Thick).
  • Objects < 1mm width become Running Stitch (Thin).

This allows you to control the visual "weight" of the design simply by resizing the vector width.

One-Click Convert to Redwork: Lightweight Line Art That Stitches Fast (But Has a Catch)

Redwork is continuous line stitching. It’s fast, low-stress on the fabric, and uses very little thread.

The Catch: No "Jump" Protection

Redwork tries to connect everything. Watch out for "travel lines" running through empty spaces where you didn't want them. You may need to manually cut the path if the software connects two distant points too aggressively.

The Fabric-to-Stabilizer Decision Tree (So Your Software Preset Matches Your Real Stitchout)

You selected "Fleece" in the software. Great. But if you hoop it wrong, the software settings won't save you. Use this decision tree to match your physical setup to the digital file.

Decision Tree: What goes under the hoop?

1. Is the fabric stretchy? (T-shirts, dry-fit, knits)
   • YES: You MUST use Cutaway Stabilizer. Tearaway will eventually pull apart and the design will distort.
   • NO: Go to step 2.
2. Is the fabric stable but thin? (Woven cotton, dress shirts)
   • YES: Tearaway Stabilizer is usually sufficient.
   • NO: Go to step 3.
3. Is the fabric textured/fluffy? (Towels, Fleece, Velvet)
   • YES: Use Tearaway or Cutaway on the bottom AND a Water Soluble Topper (Solvy) on top to keep stitches from sinking.

Sensory Check: When you hoop the fabric and stabilizer, tap it with your finger. It should sound like a drum (thump), not a loose sheet (flap). If it's loose, the pull compensation settings in the software will fail.

The Upgrade Path That Actually Makes Sense: When Better Hooping Tools Beat More Software Tweaks

Sometimes the problem isn't the software; it's the physical struggle of manufacturing. Beginners often fight with traditional plastic hoops, leading to wrist pain and "hoop burn" (shiny crushed fabric marks).

Here is how to diagnose when you need to upgrade your toolkit:

Trigger 1: The "Hoop Burn" Nightmare

If you are stitching on delicate performace wear or velvet, and the standard plastic hoop is leaving permanent "crushed" rings that won't steam out, your tool is too aggressive.

• The Solution: Many professionals switch to magnetic embroidery hoops. These use magnetic force to clamp the fabric without the friction-twist of a traditional hoop, eliminating hoop burn almost entirely.

Trigger 2: Production Velocity (The "Janome" Scenario)

If you own a Janome machine and find yourself spending 3 minutes hooping for a 2-minute stitch-out, your ratio is off.

• The Solution: Look for magnetic embroidery hoops for janome. Because they snap on rather than screw-tighten, you can reduce hooping time by 50% or more, doubling your output on small items.

Trigger 3: " crooked Logos" & Wrist Fatigue

If your logos are consistently 2 degrees crooked, or your wrists hurt after doing 10 shirts, manual hooping is the bottleneck.

• The Solution: A magnetic hooping station ensures the logo lands in the exact same spot on every shirt. For high-volume scaling, this is the bridge between "Hobbyist" and "Professional Shop." This is also the point where many users look at multi-needle machines (like SEWTECH models) to eliminate thread-change downtime.

Warning (Magnet Safety): High-quality magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely! Keep them away from pacemakers, credit cards, and hard drives.

The “Send to Machine” Moment: What to Verify Before You Commit Thread and Time

You’ve designed, assigned fabric, sequenced, and hooped. Before you press the green button:

Operation Checklist (The Final 30 Seconds):

• Clearance: Is the wall behind the machine clear? (The hoop moves back!).
• Thread Path: Is the thread seated in the tension disks? (Pull the thread near the needle; you should feel resistance like flossing teeth).
• Speed: For the first run of a new design, lower your machine speed (SPM) to 600-700 SPM. Speed kills quality on untested files.
• Observation: Watch the first 100 stitches. If the bobbin thread (white) is showing on top, stop immediately and check tension.

Creative DRAWings XI gives you the power to create professional designs, but your physical workflow ensures they stitch out perfectly. Combine smart software settings with the right stabilization and hooping tools, and you’ll stop hoping for good results and start manufacturing them.

FAQ

• Q: In Creative DRAWings XI Welcome Tab, how do I prevent a needle strike or frame hit caused by choosing the wrong hoop size on a Janome or Brother machine?
  A: Always match the on-screen hoop selection to the physical hoop that is actually installed before you start designing.
  • Select the exact machine brand/model profile first so the software enforces the correct stitch field limits.
  • Choose the exact hoop size you own and plan to mount (do not “design in a bigger hoop” and hope it fits later).
  • Re-check the hoop on the desk vs. the hoop shown on screen before saving/exporting.
  • Success check: the design boundary sits fully inside the selected hoop area with comfortable clearance, and the first test run shows no near-contact moments between needle area and hoop edge.
  • If it still fails: stop immediately and re-open the file to confirm the machine/hoop preset didn’t revert, then reduce design size or switch to the correct hoop.
• Q: When Creative DRAWings XI fabric preset is set to Cotton but the real garment is Performance Knit, how do I stop circles turning into ovals from wrong pull compensation and underlay?
  A: Re-select the correct fabric preset for the real material before digitizing so the software applies appropriate pull compensation and underlay.
  • Change the fabric choice to a knit/stretch-appropriate option before you draw or convert objects.
  • Rebuild or re-calculate stitch objects after changing the fabric preset (do not assume old objects “inherit” the new physics).
  • Add proper stabilization for stretchy garments (cutaway stabilizer is required for knits).
  • Success check: test-stitch a circle; it remains visually round and does not elongate along one axis after unhooping.
  • If it still fails: reduce stitch density and re-check hooping firmness (a loose hoop will defeat software compensation).
• Q: In Creative DRAWings XI, how do I stop the “sticky tool” problem where the Text Tool keeps typing or drawing when I am trying to move a design?
  A: Return to a neutral selection state after every action by pressing ESC or clicking the Select/Edit arrow.
  • Hit ESC immediately after placing text, nodes, or stitches.
  • Click the Select/Edit arrow (top-left) before attempting to move, resize, or select other objects.
  • Repeat this “home base” habit especially after using Text or creation tools.
  • Success check: clicking an object produces selection handles instead of new letters/nodes appearing.
  • If it still fails: look at the active tool icon and manually switch back to Select/Edit before continuing.
• Q: In Creative DRAWings XI, when should I choose Satin Fill vs Step/Tatami Fill, and how do I avoid wide satin problems beyond 7–8 mm?
  A: Use Satin for narrow, high-shine elements, and use Step/Tatami for large stable areas; avoid Satin widths over 7–8 mm.
  • Switch to Satin for borders and columns that stay within the safe width limit (7–8 mm).
  • Switch to Step/Tatami for big fills to prevent snagging, loose loops, and edge pull-in (puckering).
  • Listen during stitchout and stop if the sound changes from steady rhythm to slapping/hollow thuds.
  • Success check: the machine runs with a consistent “chug-chug” sound and the satin edges look smooth without loops or harsh puckering.
  • If it still fails: reduce the satin width by splitting the shape or convert the area to Step/Tatami for stability.
• Q: During “Send to Machine,” how can I verify embroidery machine thread tension and bobbin presentation before wasting a jacket, and what does bobbin thread showing on top mean?
  A: Do a slow first run and watch the first 100 stitches; if bobbin thread shows on top, stop and correct tension/thread path immediately.
  • Lower speed to 600–700 SPM for the first stitchout of any new design.
  • Confirm the thread is seated in the tension disks (you should feel resistance like flossing teeth when you pull near the needle).
  • Check the bobbin area is clean and the bobbin is inserted correctly (listen/feel for proper engagement as described by your machine’s setup).
  • Success check: the top thread dominates the top surface and bobbin thread does not visibly “crawl” onto the design face in the first 100 stitches.
  • If it still fails: rethread the top path completely, clean lint from the bobbin area, and re-test at low speed before increasing speed.
• Q: When using Creative DRAWings XI PaintStitch, how do I prevent needle heat, rapid “machine gun” hammering, and thread breaks on dense photo-stitch designs?
  A: Keep PaintStitch within size limits and reduce density/blending load if the stitchout sounds like rapid-fire hammering or the needle gets hot.
  • Keep the PaintStitch object at or under 16.5 cm, and keep backgrounds at or under 29.5 cm.
  • Stop immediately if you hear loud “rat-a-tat-tat” hammering or notice heat buildup; then lower stitch density or increase blending/smoothing.
  • Use a titanium-coated needle (75/11 or 90/14) as a safe choice for high-friction dense designs (confirm with the machine manual).
  • Success check: the machine sound is controlled (not explosive/hammering), and thread runs without repeated breaks in the same dense area.
  • If it still fails: simplify the image (less detail) and reassign Stitch Flow to prioritize the focal area while relaxing the background.
• Q: When do magnetic embroidery hoops and a hooping station make more sense than more Creative DRAWings XI tweaks for hoop burn, crooked logos, and slow production on Janome-style workflows?
  A: Upgrade hooping tools when the limiting factor is physical hooping (hoop burn, alignment drift, wrist fatigue, hooping time) rather than digitizing settings.
  • Level 1 (technique): correct fabric + stabilizer pairing and hoop “drum” tension before changing software settings.
  • Level 2 (tool upgrade): switch to magnetic embroidery hoops when plastic hoops cause hoop burn on delicate fabrics or when hooping time dominates stitch time.
  • Level 2 (repeatability): add a hooping station when logos land consistently crooked or placement must be repeatable across many garments.
  • Success check: hoop marks are minimized, placement repeatability improves (logos land consistently), and hooping time drops noticeably per item.
  • If it still fails: consider Level 3 productivity upgrades (multi-needle workflow to reduce thread-change downtime) and review the full physical workflow (stabilizer, speed, and sequencing).
• Q: What magnet safety rules should operators follow when using industrial-strength magnetic embroidery hoops to avoid finger pinches and device damage?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from sensitive medical devices and magnetic-stripe data.
  • Keep fingers clear when seating the magnetic ring; magnets can snap together unexpectedly.
  • Keep magnetic hoops away from pacemakers and avoid placing them near credit cards or hard drives.
  • Store magnetic components so they cannot slam together on the table or near tools.
  • Success check: operators can mount/unmount the hoop without hand pain or sudden snapping incidents, and the hoop closes smoothly under controlled placement.
  • If it still fails: slow down the mounting process and adjust the workstation layout so hands have clear approach paths and magnets are not stacked loosely.
