Crewneck Embroidery That Actually Lines Up: A Baby Lock Array Workflow with Mighty Hoops + Hoop Master Station

Machine embroidery is a deceptive art. It looks automated—"just press a button," they say—until you are staring at a puckered crewneck, a bird’s nest of thread under the needle plate, or a logo that is permanently crooked.

As someone who has trained thousands of shop owners over the last two decades, I can tell you this: The machine is 10% of the equation. The other 90% is physics and preparation.

The operators who succeed aren’t the ones with the most expensive software. They are the ones who treat embroidery like a science. They understand that fabric is fluid and unstabilized stitches are a recipe for disaster.

This guide reconstructs a professional crewneck workflow using a Baby Lock Array (6-needle), a Hoop Master station, and Mighty Hoops (magnetic hoops). However, we are going deeper than the video. We are going to apply commercial standards and safe "sweet spot" settings to ensure your first stitch-out looks like your fiftieth.

The Calm-Down Moment: Your Baby Lock Array Crewneck Can Stitch Cleanly (Even If You’re New)

If you are currently feeling "imposter syndrome" because your test runs look sloppy, stop. You are not untalented; you likely just lack a System.

Embroidery is a battle against two forces: Push (stitches pushing fabric out) and Pull (stitches pulling fabric in). To win, you need a repeatable workflow that neutralizes these forces.

The video demonstrates three pillars of a stress-free system:

1. Stabilization: Choosing the right "foundation" so the fabric cannot move.
2. Placement: Using a station so the logo lands in the same spot, every single time.
3. Tension: Measuring thread resistance numerically, rather than guessing.

Whether you are a hobbyist or running a fleet of SEWTECH multi-needle machines, consistency is the only metric that matters.

The “Hidden” Prep Pros Don’t Skip: Stabilizer, Thread, Bobbin, Oil, and a Clean Table

Before you even touch the garment, you must "pre-flight" your environment. A clean stitch-out starts with the right ingredients.

Stabilizer Basics (The Physics of Support)

Your stabilizer is the true hero. It must be stronger than the fabric's desire to stretch.

• Cutaway Stabilizer (2.5 - 3.0 oz): Mandatory for Crewnecks. As shown in the video, knits stretch. Cutaway provides a permanent suspension bridge for your stitches. If you use Tearaway on a sweatshirt, the stitches will break the stabilizer and the design will distort.
• Tearaway Stabilizer: For stable, woven fabrics like denim jackets or canvas bags. It offers temporary support but no long-term structural integrity.
• Water Soluble Stabilizer (Topper): Necessary for textured items like towels, beanies, or fuzzy fleece. It sits on top of the fabric to prevent stitches from sinking into the pile.

Thread & Bobbin Anatomy

• Polyester (40wt): The industry standard. It is colourfast, resists breaking at high speeds (800+ SPM), and has a nice sheen.
• Rayon: Beautiful and soft, but weaker. Use this only if you are comfortable managing lower tensions.
• Bobbin Thread: The host correctly uses Magna Glide pre-wound bobbins (60wt).
  • Sensory Check: A magnetic core bobbin should "snap" into the case and spin evenly, preventing the "backlash" (over-spinning) that causes birds-nests.

The "Hidden" Consumables

Beginners often miss these essentials until it’s too late:

• Machine Oil: One drop on the rotary hook race every 4-8 hours of running time (check your manual). A dry hook causes noise and thread breaks.
• 75/11 Ballpoint Needles: Sharp needles can cut knit fibers, leading to holes using a Ballpoint tip slides between the fibers.
• Spray Adhesive (Temporary): Essential for floating fabrics or keeping backing smooth.

Prep Checklist (Pre-Flight)

• Fabric Diagnosis: Is it stable (Denim) or stretchy (Crewneck)?
• Stabilizer Selection: Cutaway loaded for knits; Tearaway for wovens.
• Needle Inspection: Run your fingernail down the needle tip. If you feel a "catch" or burr, replace it immediately.
• Bobbin Check: Is the bobbin case clean of lint? Is the bobbin nearly full?
• Oil: Has the hook been oiled recently?
• Workspace: Clear the table of scissors or mugs that could snag the garment during movement.


Save Money Without Cutting Corners: Bulk Stabilizer, Bigger Spools, and Smarter Hoop Sizing

Embroidery is expensive, but there is "smart cheap" and "expensive cheap."

The "Bulk" Principle

Buying 50-yard rolls of stabilizer and cutting them yourself (using a rotary cutter and mat) is roughly 60% cheaper than buying pre-cut squares.

The "Flagging" Phenomenon & Hoop Sizing

A viewer asked about using smaller hoops to save stabilizer. The answer is valid, but the physics are more important.

• The Rule: Use the smallest hoop that fits the design while leaving adequate clearance for the presser foot.
• The Why: If you put a 2-inch design in an 8-inch hoop, the excess fabric in the middle bounces up and down with the needle. This is called "Flagging." It causes skipped stitches and poor registration.
• The Fix: match your hoop size to your design size to keep the fabric drum-tight.

The Smart Upgrade Path

If you are cutting stabilizer manually and it feels like a chore, you are hitting a production wall.

• Level 1 (Hobby): Pre-cut sheets save time but cost money.
• Level 2 (Pro): Using Magnetic Hoops (like Mighty Hoops) reduces the need for sticky sprays and sticky stabilizer, saving you consumable costs in the long run.


Single-Needle vs Multi-Needle Embroidery Machine: Decide Like a Business Owner, Not a Shopper

This is the most common dilemma in the comments: "Which machine should I buy?"

Let’s apply business logic rather than feature-listing.

The Single-Needle Reality (e.g., Flatbed machines):

• The bottleneck: You are the color changer. If a design has 6 colors, you stop 6 times. You cannot walk away.
• The risk: More handling means more chances to bump the hoop or mess up tensions.
• Best for: Hobbyists, one-off customization, quilt blocks.

The Multi-Needle Reality (e.g., Baby Lock Array, SEWTECH models):

• The efficiency: You program the colors, press start, and walk away to fold laundry or answer emails.
• The stability: These machines have a "free arm" (no flatbed), allowing you to slide tubular items (shirts, bags) on without bunching up the back.
• Best for: Anyone selling their work.

The Verdict: If you are doing production runs of 10+ shirts, a SEWTECH multi-needle embroidery machine isn't a luxury; it's a labor-saving device. It converts your time from "operator" to "manager."

Design Files Without Regret: Etsy Downloads, Hatch Embroidery 3, and Licensing Reality Checks

Garbage In, Garbage Out. A bad file will ruin a good shirt, no matter how good your stabilizer is.

Sourcing & Formats

1. Marketplaces (Etsy/Creative Fabrica): Great for beginners. Check the reviews for stitch-outs. If there is no photo of the stitched design, do not buy it.
2. Hiring a Digitizer (Fiverr/Upwork): The best option for custom logos.
3. DIY (Hatch/Wilcom): A steep learning curve, but total control.

The Format Trap

Do not just download "the file." You must use the specific language your machine speaks:

• DST: The industrial standard (Brother/Baby Lock/Tajima/SEWTECH). Does not save color data (screen will look weird, stitch-out will be fine).
• PES: Brother/Baby Lock home format. Saves color data.
• EXP: Bernina/Melco.

Pro Tip: Transferring designs wirelessly is great, but always keep a clean, small-capacity (under 8GB) USB drive as a backup.

The Placement Trick That Stops Crooked Logos: Chalk + Ruler “Impression Line” on a Crewneck

Crooked logos trigger refunds. This technique creates a physical guide on the fabric without ink.

The "Chalk Impression" Method

1. Fold: Fold the sweatshirt perfectly in half vertically.
2. Mark: Place a ruler along the fold.
3. Impress: Rub tailors' chalk heavily along the ruler's edge, creating a dotted line of chalk dust.
4. Crosshair: Measure down from the collar (standard left chest placement is usually 7-8 inches down from the shoulder seam equivalent) and make a horizontal mark.

You now have a crosshair that can be seen even under the dim lights of an embroidery machine.

Set Up the Hoop Master Station the Right Way: Stabilizer First, Then Garment

The Hoop Master Station is designed to remove human error. But you must load it in the correct order to respect the physics of the materials.

The Sequence

1. Fixture Setup: Ensure the Station is set for the specific hoop size (video uses 6.25 x 8.25).
2. Stabilizer Base: Place the 9 x 11 Cutaway Stabilizer on the bottom fixture first. Secure it with the magnetic flaps.
3. Why this matters: If you try to slide stabilizer under the shirt later, it will wrinkle. The stabilizer must be flat and taut against the station base.

Setup Checklist (Pre-Hoop)

• Station Stability: Is the Hoop Master on a non-slip surface?
• Fixture sizing: Does the fixture match the hoop size (e.g., 5.5" fixture for 5.5" hoop)?
• Backing Security: Is the stabilizer held firmly by the magnetic flaps?
• Garment Prep: Have you unzipped zippers or removed bulky items from pockets?

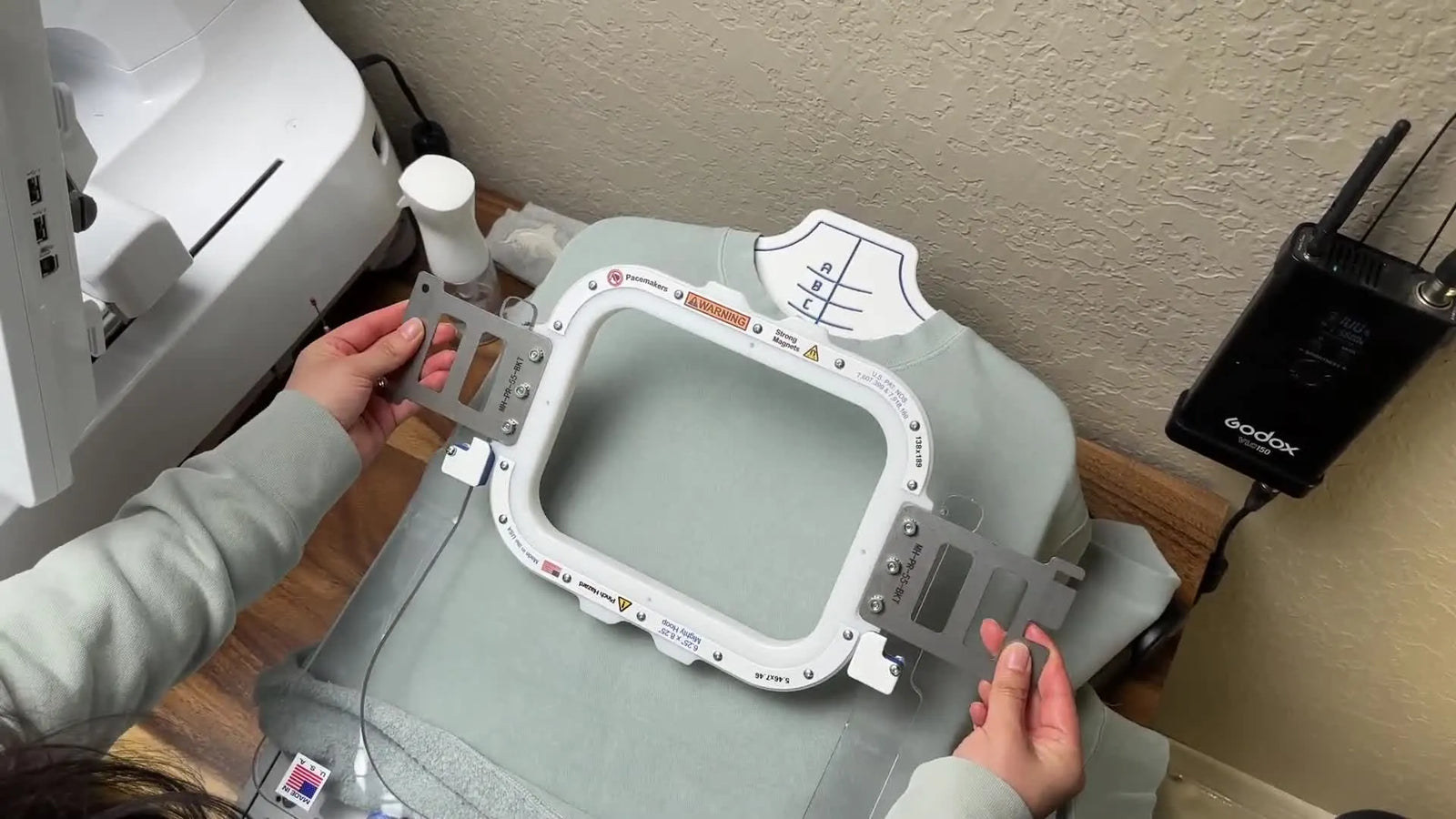

The “Snap” That Saves Your Wrist: Magnetic Hooping a Crewneck with Mighty Hoops

Traditional screw-tighten hoops are the enemy of productivity. They cause "hoop burn" (crushed fabric fibers) and repetitive strain injuries (Carpal Tunnel) for shop owners.

The Magnetic Advantage

The video shows the Mighty Hoop system. The top frame magnetically snaps to the bottom frame, sandwiching the garment.

• The Physics: Instead of stretching the fabric (which causes puckering when it relaxes), magnetic hoops clamp the fabric.
• The Sensory Check: You should hear a loud, solid CLACK. The fabric should be flat, but not stretched like a drum skin. Normal tension is fine.

Warning: Pinch Hazard. These magnets are industrial strength. Keep fingers away from the edges. Pacemaker Safety: Powerful magnets can interfere with medical devices. Keep them at a safe distance.

The Application

1. Slide the crewneck over the station.
2. Align your chalk crosshair with the Station's grid lines.
3. Smooth the fabric gently—do not pull!
4. Bring the top hoop down. Let the magnets do the work.

If you are struggling with wrist pain or hoop burn, searching for hoop master embroidery hooping station or compatible mighty hoops magnetic embroidery hoops is the logical next step for your business.

Load the Hoop on the Baby Lock Array Without Catching Fabric (and Use the Laser Crosshair Like a Pro)

The "Death Zone" in embroidery is the space between the hoop and the machine arm.

The "Trace" Protocol

1. Click it in: Slide the hoop onto the machine arm until it locks. Give it a gentle tug to ensure it is secure.
2. The "Under-Check": Reach your hand under the hoop. Feel for sleeves, drawstrings, or the back of the shirt bunching up. If the needle sews the front of the shirt to the back, the garment is ruined.
3. Laser Alignment: Use the machine's laser to align with your chalk crosshair.
4. Trace Border: Run the "Trace" function. Watch the needle position relative to the plastic hoop edge. You need at least 5mm of clearance.


Thread Breaks Aren’t Random: Measure Bobbin Tension with a Towa Gauge Instead of Guessing

If your thread snaps, it is not "bad luck." It is usually tension.

The Towa Gauge Method

The video correctly identifies that tension is a numerical value, not a feeling.

• The Tool: A Towa Digital or Analog Gauge.
• The Sweet Spot (Empirical Data):
  • Bobbin Case: Should read between 18g - 25g.
  • Top Thread: Should read between 100g - 130g (for rayon/poly).
• The "Floss" Test (Sensory): If you don't have a gauge yet, pull the thread through the needle. It should feel like pulling dental floss through tight teeth—resistance, but smooth. If it feels loose like a kite string, it's too loose. If it bends the needle, it's too tight.

Note on Technique: When using a gauge, pull slowly and at a consistent speed. Jerking the thread will give false high readings.

Run the Stitch-Out with Confidence: 800 SPM, App Monitoring, and the One-Color Advantage

Speed kills quality. Just because your car can go 150mph doesn't mean you should drive that fast in a school zone.

The Speed Limit

The Baby Lock Array can hit 1,000 SPM (Stitches Per Minute).

• The Recommendation: Cap your speed at 800 SPM for knits.
• The Why: Lower speeds reduce friction and thread vibration, resulting in cleaner text and fewer breaks.

Operation Checklist (The Green Light)

• Hoop Locked: Verified physically.
• Clearance Check: Nothing caught underneath.
• Trace Complete: Design fits inside the hoop.
• Color programmed: Machine knows to stop or change colors correctly.
• Speed: Set to 800 SPM or lower.


The Finishing Routine That Makes It Look Store-Bought: Torch the Fuzz, Then Trim Stabilizer the Safe Way

The difference between "Homemade" and "Handmade" is the finishing.

The "Burn and Trim"

1. Thread Burner: Use a heat tool (or carefully use a lighter) to singe any jump stitches or fuzz. Do not hold it in one spot; keep it moving.
2. Stabilizer Trim:
   • Lift the stabilizer away from the garment.
   • Use curved embroidery scissors (Double Curved are best).
   • Glide the scissors to cut a smooth circle about 1/4 inch from the stitches.
   • Crucial: Round the corners. Sharp stabilizer corners scratch the wearer's skin.

Warning: Be extremely careful when using open flames or heat tools near synthetic fabrics (polyester threads and fleece) as they melt instantly. Always cut stabilizer with the blade pointing away from the garment fabric.

Puckers, Sinking Stitches, Crooked Placement: A Troubleshooting Map You Can Use Mid-Order

When things go wrong, use this diagnostic map. Do not guess; isolate the variable.

The Stabilizer Decision Tree: Pick Backing Fast (Crewneck vs Denim vs Towels/Beanies)

Don't overthink it. Use this rule of thumb for 90% of projects:

1. Is the fabric stretchy? (T-shirt, Hoodie, Beanie)
   • YES: Use Cutaway. (It provides permanent stability).
   • NO: Proceed to 2.z
2. Is the fabric unstable/loose weave? (Loose linen, knit)
   • YES: Use Cutaway.
   • NO: Proceed to 3.
3. Is the fabric stable and woven? (Denim, Canvas, Twill)
   • YES: Use Tearaway.
4. Bonus: Is it fluffy? Add Water Soluble Topper.


The Upgrade That Pays You Back: When Magnetic Hoops and Multi-Needle Capacity Stop Being “Nice-to-Have”

You can build a business on a single-needle machine with standard plastic hoops. Tens of thousands of people have done it.

However, there comes a tipping point where your equipment costs you more in time than it saves in cash.

The "Pain Point" Audit:

• Are you rejecting orders because you can't hit the deadline?
• Are your wrists aching after hooping 20 shirts?
• Are you spending 50% of your time changing thread spools?

If you answered "Yes," you have graduated.

• Productivity Upgrade: A SEWTECH Multi-Needle Machine allows you to preset 10+ colors and run continuously.
• Ergonomic Upgrade: The magnetic design of mighty hoops magnetic embroidery hoops drastically reduces physical strain and hooping time.

Investing in tools like industrial magnetic hoops isn't about buying toys; it's about buying back your own time.

Keyword Notes for Readers Who Are Shopping Specific Tools

For those looking to replicate the exact setup in the video, terminology matters. The system relies on a reliable hoop master station, which serves as the docking base for alignment.

When searching for the frames themselves, users often look for mighty hoops for babylock to ensure compatibility with the specific mounting brackets of the machine. Depending on your region or supplier, these might also be listed as baby lock magnetic embroidery hoops.

If you are browsing general catalogs, look for magnetic embroidery hoops for babylock to filter out incompatible generic frames. Ultimately, whether you search for hooping station for embroidery or specific brands, the goal is finding a system that standardizes your placement.

The Final 60 Seconds: Fold, Tag, Bag—So Your Crewneck Ships Like a Real Brand

Perception is reality. If you hand a customer a wrinkled shirt in a grocery bag, it’s a hobby project. If you hand them a folded, tagged shirt in a poly bag, it’s a product.

1. Fold: Use a folding board for consistent width.
2. Tag: Use a pricing gun to attach care instructions to the label (never through the shirt fabric).
3. Bag: Slide into a clear self-sealing poly bag.

Sourcing Tip: The video mentions S&S Activewear (requires a tax ID/Resale cert) or Jiffy Shirts (no license needed) for acquiring blanks.

The “Do This Every Time” Recap: Your Repeatable Crewneck Embroidery Workflow

Success in embroidery is boring. It is the result of doing the same correct steps, in the same order, every time.

1. Prep: Oil the hook, check the needle, select Cutaway stabilizer.
2. Mark: Chalk the center lines on the garment.
3. Station: Load stabilizer on the Hoop Master Station first.
4. Hoop: Align garment, smooth (don't stretch), and snap the Mighty Hook shut.
5. Load: Check for clearance underneath, align laser.
6. Stitch: Run at 800 SPM. Watch the first 100 stitches.
7. Finish: Burn threads, trim backing, fold, and bag.

Follow this map, and you won’t just be making a sweatshirt; you’ll be building a reputation.

FAQ

• Q: What stabilizer should be used for a crewneck sweatshirt to prevent puckering on a Baby Lock Array 6-needle embroidery machine?
  A: Use 2.5–3.0 oz cutaway stabilizer for crewnecks; tearaway commonly causes distortion on knits.
  • Choose: Load cutaway backing as the default for stretchy sweatshirts.
  • Add: Place a water-soluble topper on top if the surface is fuzzy (fleece/texture) and stitches sink.
  • Hoop: Keep the garment flat but not stretched during hooping.
  • Success check: The stitched area stays flat after unhooping, with no ripples radiating around the design.
  • If it still fails: Re-check hooping (no stretching) and reduce speed toward 800 SPM for knits.
• Q: What is the correct Hoop Master Station loading order for a crewneck using Mighty Hoops magnetic embroidery hoops?
  A: Load stabilizer on the Hoop Master Station first, then load the garment; this prevents backing wrinkles that cause puckers.
  • Set: Confirm the station fixture matches the hoop size being used (example shown: 6.25" x 8.25").
  • Place: Lay the cutaway stabilizer flat on the bottom fixture and secure it with the magnetic flaps.
  • Slide: Put the crewneck over the station and align using your placement marks before closing the hoop.
  • Success check: The stabilizer is smooth (no waves) and stays taut against the station base when you touch the edges.
  • If it still fails: Re-seat the backing and remove any trapped folds before snapping the hoop closed.
• Q: What is the correct “CLACK” standard for Mighty Hoops magnetic hooping on a crewneck to avoid hoop burn and puckering?
  A: Close the Mighty Hoops top ring until it snaps with a solid “CLACK,” and clamp the fabric flat without stretching it drum-tight.
  • Smooth: Gently smooth the garment into position—do not pull to “tighten” the knit.
  • Close: Lower the top frame straight down and let the magnets clamp evenly.
  • Re-seat: If the hoop closes crooked, open and re-close instead of forcing it.
  • Success check: You hear/feel a firm snap, and the fabric surface looks flat with no stretched shine or crushed “hoop burn” rings.
  • If it still fails: Move to a hoop size closer to the design size to reduce flagging and bounce.
• Q: What safety precautions are required when using Mighty Hoops magnetic embroidery hoops (pinch hazard and pacemaker risk)?
  A: Treat Mighty Hoops magnets as industrial-strength tools—keep fingers clear of the closing edges and keep magnets away from pacemakers/medical devices.
  • Position: Hold the hoop by the outer edges and lower the top frame slowly and squarely.
  • Protect: Keep fingertips out of the gap where the frames meet to avoid pinch injuries.
  • Separate: Store hoops so they cannot snap together unexpectedly on the workbench.
  • Success check: The hoop closes without finger contact near the clamp zone, and handling feels controlled—not “slammed shut.”
  • If it still fails: Stop and change your hand placement before continuing production.
• Q: How do you prevent a Baby Lock Array 6-needle embroidery machine from stitching the front of a crewneck to the back when loading the hoop?
  A: Always do an under-hoop clearance check before starting; most ruined crewnecks come from caught fabric in the machine’s “death zone.”
  • Lock: Slide the hoop onto the arm until it clicks, then tug gently to confirm it is seated.
  • Feel: Reach under the hoop and pull away sleeves, drawstrings, and the back layer so nothing is trapped.
  • Trace: Run the machine’s Trace/Border function and confirm at least 5 mm clearance from the hoop edge.
  • Success check: Your hand can freely move under the hoop area with no fabric bunching, and the trace path clears the hoop.
  • If it still fails: Re-hoop with less bulk under the arm and re-check before the first stitch.
• Q: What bobbin and top thread tension numbers should be used as a safe starting point with a Towa tension gauge for machine embroidery thread breaks?
  A: Use a Towa gauge and start around 18g–25g for the bobbin case and 100g–130g for top thread (rayon/poly), then fine-tune.
  • Measure: Pull the thread slowly and consistently on the gauge—jerking creates false high readings.
  • Clean: Check the bobbin case for lint before adjusting, because lint can mimic “bad tension.”
  • Compare: Use the floss-feel test if no gauge is available (resistance but smooth, not loose and not needle-bending tight).
  • Success check: Stitching runs with fewer breaks and the thread path feels consistently resistant, not “grabby” or slack.
  • If it still fails: Re-thread the machine completely and confirm the thread is seated in the tension discs.
• Q: How do you stop a “bird’s nest” on the bottom of a Baby Lock Array embroidery design when stitching a crewneck?
  A: Stop immediately and re-thread the top thread path; bird’s nesting is most often an upper threading/path error.
  • Stop: Hit stop and do not keep sewing—nesting tightens quickly under the plate.
  • Remove: Cut the nest out carefully to avoid bending needles or damaging fabric.
  • Re-thread: Thread the top thread again from the start, with the presser foot UP so the thread seats correctly.
  • Success check: After restarting, the underside shows controlled bobbin stitching instead of a ball of loops.
  • If it still fails: Check the bobbin area for lint buildup and confirm the bobbin is installed correctly and spinning evenly.
• Q: When should a single-needle embroidery workflow be upgraded to magnetic hoops or a SEWTECH multi-needle embroidery machine for crewneck production runs?
  A: Upgrade when time loss becomes the real cost—wrist pain from hooping, missed deadlines, or spending half the job changing thread colors are clear triggers.
  • Level 1: Optimize the workflow first (cutaway on knits, correct hoop size to reduce flagging, cap speed around 800 SPM for knits).
  • Level 2: Add magnetic hoops to reduce hoop burn, reduce strain, and speed up consistent hooping.
  • Level 3: Move to a multi-needle machine when production runs (often 10+ items) are limited by manual color changes and constant supervision.
  • Success check: You can complete repeat orders with consistent placement and fewer interruptions per garment.
  • If it still fails: Track where time is actually lost (hooping, color changes, rework) and upgrade the bottleneck first.
