Curve Names Like a Pro on the Baby Lock Meridian: The Array Tool Trick for a Christmas (or Spooky) Family Tree

Mastering On-Screen Lettering: The Ultimate Guide to the Baby Lock Meridian Array Tool

Lettering projects look deceptively simple—until you hit the start button. You watch the machine stitch, and suddenly, the "easy" text is exactly where every wobble, pucker, and spacing error reveals itself. Lettering is the most unforgiving discipline in embroidery because we all know exactly what a letter should look like; the human eye detects even a millimeter of distortion.

The good news: The method demonstrated in this workflow is solid because it utilizes the machine’s native intelligence (no expensive external software required), specifically the underused Array function.

If you are feeling that familiar panic—"My names aren't centering, the curves look like a rollercoaster, and I'm about to waste a $10 canvas blank"—pause. You can achieve a shop-quality family tree design entirely on-screen, provided you respect the physics of the fabric and the geometry of the text.

The Cognitive Shift: Why "Array" Makes Text Look Designed, Not Typed

"Array" is technical jargon for curated curvature. On the Baby Lock Meridian (and similar high-end interfaces), the Array tool allows your lettering to Smile (curve upward) or Frown (curve downward).

Why does this matter? Because straight lines of text stacked on top of each other look like a grocery list. Curved text creates a visual container. It turns isolated names into a cohesive shape (a tree, a bell, a pumpkin).

The Sensory Check: When you apply a curve, don't just look at the letters. Look at the negative space between the lines. It should feel balanced, like stones resting in a neatly built wall. If the gaps feel erratic, the design will look "off" regardless of how perfect the stitching is.

The "Hidden" Prep: Physics Before Digital

A viewer asked the most critical question in the video comments: What fabric is this? The answer is Cotton Canvas.

Canvas is a "hero fabric" for beginners because it is stable, but it has a hidden enemy: Texture Drag. The rough surface can deflect the needle slightly, causing small text to look jagged. Before you touch the screen, you must stabilize the physical environment.

The "Pre-Flight" Protocol

Professional shops don't guess; they follow a recipe. Here is the verified setup for high-density lettering on canvas:

• Needle: Use a size 75/11 Embroidery Needle (Sharp or Universal tips work best on canvas). Avoid ballpoints here; you want a crisp penetration through the tight weave.
• Thread: Standard 40wt Polyester.
• The Hidden Consumable: Temporary Spray Adhesive (e.g., 505) or a fusible stabilizer. Floating the stabilizer isn't enough for dense lettering; the fabric and backing must move as one solid unit.

Prep Checklist (Complete BEFORE Hooping):

• Fabric Prep: Press the canvas with steam to pre-shrink it. Starch it lightly for extra crispness.
• Stabilizer Selection: Select Medium-weight Cutaway (2.5oz). Tearaway is risky for text; if the perforations break during stitching, the letters will shift.
• Visual Layout: Write the names on paper. Sort them by length. Longest name = Base. Shortest name = Top.
• Machine Check: Clean the bobbin area. Lint buildup causes tension loops on top of crisp lettering.
• Needle Check: Run your fingernail down the needle tip. If it catches, throw it away. A burred needle creates "hairy" text.


Navigating the Meridian: The "Zero-Distraction" Setup

On the Baby Lock Meridian, navigating to the font menu is intuitive, but the sequence matters. Do not try to curve the names as you type them. This creates cognitive overload.

The Action-First Workflow:

1. Input Only: Type every name into the machine first.
2. Stack: Arrange them roughly where they belong.
3. Edit Later: Only once the "raw data" is on screen do we switch to "Artist Mode."




The "Smile vs. Frown" Dynamic: Curving for Readability

The video simplifies the Array tool into two movements:

• Smile: The arc pushes the center down and the ends up.
• Frown: The arc pushes the center up and the ends down.


The Beginner's Trap: The most common mistake is Over-Curving. If you curve text too aggressively (beyond 30–40 degrees), the satin stitches on the inner curve become too dense (bulletproof), and the outer stitches become too long (loose loops).

• Rule of Thumb: A gentle arc suggests a shape; a deep arc distorts the font.
• Search Intent: If you are explaining this to a client, the industry term is simply Curved Lettering Embroidery, but the skill lies in the subtlety of the curve.

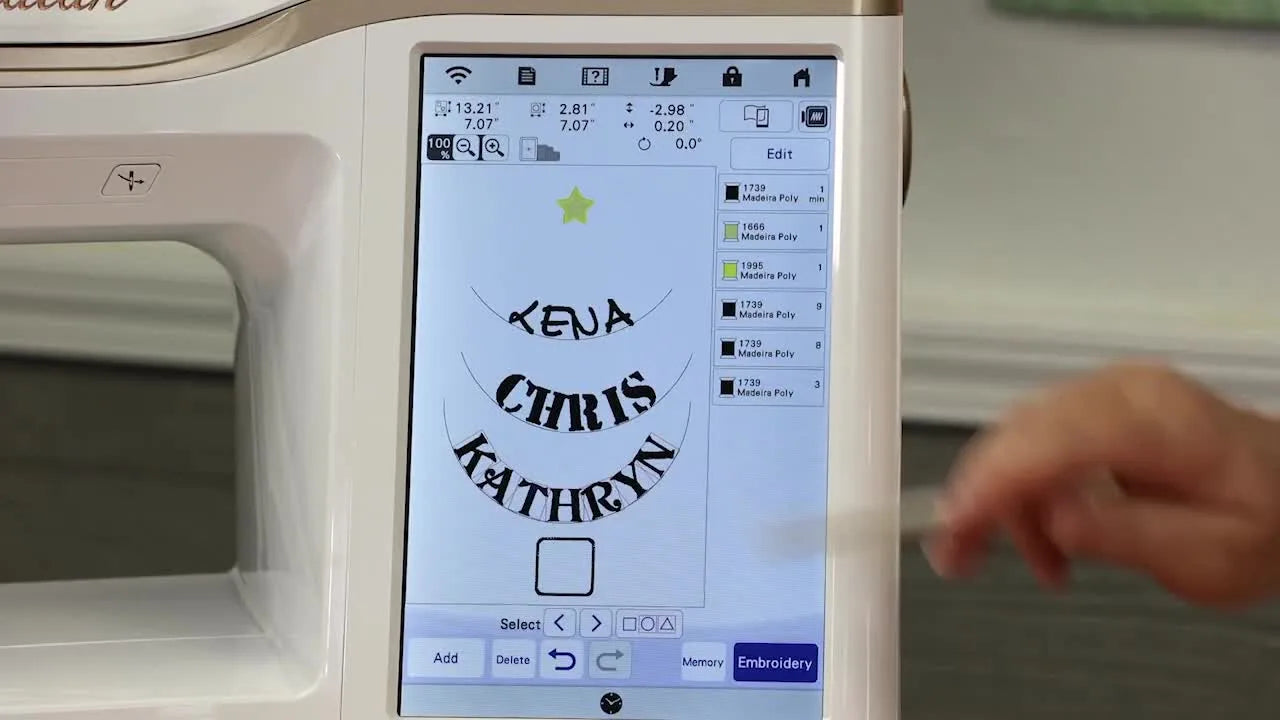

Step-by-Step: The "LENA" (Top Tier) Adjustment

In the example, the top name is LENA.

Action Steps:

1. Select LENA.
2. Tap Edit -> Array (curved text icon).
3. Tap Smile.
4. Critical Step: Tap the "Flatten" arrow (decrease curve) 3–4 times.

Visual Check: Does the name look like it's resting on a gentle hill, or does it look like a rainbow? You want the hill, not the rainbow.

Warning: Mechanical Safety
When editing on-screen, keep your hands entirely clear of the embroidery arm and needle area. If you accidentally hit "Start" or "Trace" while gesturing at the screen, the carriage moves instantly and with high torque. Always keep the 'Lock' mode on (if available) or hands clear when not actively stitching.

Step-by-Step: The "CHRIS" (Middle Tier) Nesting

The middle name requires Nesting. You aren't just curving the line; you are making it fit into the curvature of the name above it.

Action Steps:

1. Select CHRIS.
2. Test Frown vs. Smile. (For a tree shape, a slight smile usually mirrors the bottom branches).
3. Adjust the vertical position so the top of the "C" and "S" gently tuck under the "LENA" curve without touching.

The "Clean Gap" Rule: Leave at least 3mm to 5mm of vertical space between lines. If they are too close, the thread trims from the top line might get trapped under the stitching of the bottom line.

The Setup Reality Check: Alignment & Shapes

Once the text is stacked, the presenter adds the "Trunk" (Square) and "Topper" (Star) from the internal shapes library. This transforms a list of names into a recognizable object.

The Alignment Audit: Don't trust your eyes alone. Use the grid background on the screen.

• Does the center of the Star align with the center of the Trunk?
• Does the entire tree list to the left or right?


Setup Checklist (The "No-Regrets" Review):

• Spelling: Read the names backward (right to left). This forces your brain to see the letters, not the word, helping catch typos.
• Boundaries: Run a "Trace" or "Check Size" function. Does the foot stay well within the hoop?
• Obstructions: Ensure no loose straps from the tote bag are tucked under the hoop.
• Bobbin: Is the bobbin at least 50% full? running out of bobbin thread in the middle of a small letter is a nightmare to fix invisibly.


Hooping Physics: The Difference Between Professionals and Amateurs

You can have the perfect file, but if your hooping is mediocre, the result will be mediocre. Lettering exerts "pull compensation" forces—it literally tries to shrink the fabric as it stitches.

The Tactile Standard: When you hoop cotton canvas:

1. Tighten the screw finger-tight.
2. Pull the fabric edges gently to remove slack.
3. Tighten the screw further (use a screwdriver for the final turn).
4. The Test: Tap the fabric in the center. It should sound like a tight drum. If it sounds like a loose thud, it is too loose.

The Pain Point: "Hoop Burn" and Wrist Fatigue

Traditional clamping hoops are effective but aggressive. They require hand strength and can leave "shine" marks (hoop burn) on dark canvas that are hard to remove.

The Tool Upgrade: If you find yourself avoiding embroidery because wrestling with the hoop hurts your wrists, or if you struggle to get thick seams clamped, this is the specific scenario where magnetic embroidery hoops provide a measurable advantage.

• Why? They use vertical magnetic force rather than friction/screws. They clamp instantly over thick canvas seams without distortion.
• For Baby Lock Owners: ensuring you have compatible babylock magnetic embroidery hoop sizes is crucial—using a generic frame that doesn't trigger the machine's sensor correctly can lead to collisions.

Warning: Magnet Safety
High-quality magnetic hoops use industrial Neodymium magnets. They snap together with crushing force (approx 10-20 lbs of pressure).
* Pinch Hazard: Keep fingers away from the contact zone.
* Medical Risk: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

Stabilizer Decision Tree: The "Canvas Logic"

Do not ask "What stabilizer should I use?" Ask "What is the item's destiny?"

Stabilizer Decision Tree for Canvas Lettering:

1. Will the item touch human skin (e.g., clothing)?
   • Yes: Use a Fusible No-Show Mesh (soft) + simple tearaway.
   • No: Go to Step 2.
2. Is the design dense (heavy satin columns, bold fonts)?
   • Yes: Use Medium Weight Cutaway (2.5oz).
     • Why? The high stitch count will perforate tearaway, causing the design to separate from the backing mid-stitch. Cutaway provides permanent suspension.
   • No: Tearaway is acceptable (e.g., for a light outline design).
3. Is the fabric stretchy? (e.g., Jersey knit instead of Canvas)
   • Yes: STOP. You must use Cutaway and perhaps a temporary adhesive spray.
   • No: Proceed with standard wovens workflow.

The Spooky Variation: Scaling Your Skills

The video transitions from a Christmas Tree to a Halloween Tree (using a "Spooky" font). This highlights a massive commercial insight: The Technique is the Product.

Once you master the structure (Big Base -> Small Top + Array Curve), you can apply this to:

• Easter: Egg shape (Curve naming outward).
• Sports: Football shape (Curve naming outward).
• Patriotic: Flag waving shape.




The Production Bottleneck

If you decide to sell these totes, you will quickly hit a wall.

• Wall 1: Changing thread colors for every single line of text.
• Wall 2: Re-hooping takes longer than stitching.

This is where the hobbyist workflow differs from the pro workflow. If you are making 50 Christmas totes, a single-needle machine will require 500+ manual thread changes.

• Level 1 Upgrade: Use hooping stations to ensure every tote is hooped in the exact same spot, reducing "crooked design" waste.
• Level 2 Upgrade: Move to a multi-needle machine (like the SEWTECH commercial lines). This allows you to set up all 6-10 colors once and let the machine run the entire tree without stopping.

Operation Checkpoints: The First 500 Stitches

Do not walk away to get coffee when you press start. The first 30 seconds tell you everything.

Operation Checklist (Visual/Auditory):

• Sound Check: Listen for a rhythmic thump-thump. A sharp click-click often indicates the needle is hitting the needle plate or the hoop—STOP immediately.
• Fabric Watch: Look at the perimeter of the letter "L". Is the fabric rippling or "flagging" (bouncing up and down)? If yes, your hooping is too loose.
• Thread Path: Ensure the top thread isn't caught on a spool pin.
• Tension Check: Turn over the hoop after the first color. You should see 1/3 bobbin thread (white) in the center of the satin column. If you see only top color, your top tension is too loose.

Troubleshooting: Quick Fixes for Common Lettering Failures

If your result isn't perfect, match your symptom to this chart. Do not simply "try again" without changing a variable.

Final Thoughts: Tooling Up for Success

The Baby Lock Meridian’s Array tool eliminates the need for complex PC software for simple layout tasks. However, software is only half the battle.

To get professional results, you must marry digital precision with physical control.

1. Plan your curves so they smile, don't scream.
2. Stabilize for the density of the text, not just the fabric type.
3. Hoop with authority.

If you find yourself constantly battling positioning or wrist pain, investigate how tools like babylock hoops with magnetic mounting can standardize your output. And if understanding the physics of the hoop is your barrier, spend some time researching how to use magnetic embroidery hoop systems correctly—they are the secret weapon of high-production shops for a reason.

Go make that tree, and make it straight.

FAQ

• Q: What is the verified Baby Lock Meridian setup for high-density lettering on cotton canvas (needle size, thread, stabilizer, and adhesive)?
  A: Use a 75/11 embroidery needle, 40wt polyester thread, medium-weight 2.5oz cutaway stabilizer, and secure fabric-to-stabilizer with temporary spray adhesive (or fusible) so both layers move as one.
  • Press: Steam-press the canvas first (pre-shrink), and lightly starch for crispness.
  • Stabilize: Choose medium-weight cutaway for dense lettering; avoid relying on tearaway for heavy satin text.
  • Bond: Apply temporary spray adhesive (e.g., 505) or use fusible so the canvas cannot “walk” over the backing.
  • Inspect: Clean the bobbin area and replace any needle that feels burred when you run a fingernail down the tip.
  • Success check: Small letters stitch with clean edges (not jagged or shifting) and the fabric stays flat without ripples during stitching.
  • If it still fails… Reduce density/size of the font or (generally) test a smaller needle and thinner thread for very small text, then re-check stabilization.
• Q: How can Baby Lock Meridian users prevent over-curving when using the Meridian Array tool for curved lettering embroidery?
  A: Keep the curve gentle—over-curving (roughly beyond 30–40 degrees) can make inner curves too dense and outer curves too loose.
  • Apply: Select the name → Edit → Array → choose Smile or Frown.
  • Flatten: Tap the flatten/decrease-curve control several times (the example uses 3–4 taps) before committing.
  • Compare: Look at letter shape and spacing after each adjustment instead of trying to “nail it” in one move.
  • Success check: The name looks like it rests on a gentle hill (not a rainbow), and satin columns do not look “bulletproof” on the inside curve or loopy on the outside.
  • If it still fails… Back off the curve more and increase line spacing so the design reads cleanly even with a milder arc.
• Q: What is the correct hooping tightness standard for cotton canvas lettering to prevent puckering and shifting on an embroidery machine hoop?
  A: Hoop cotton canvas “drum tight” so the fabric cannot bounce or ripple under dense lettering.
  • Tighten: Screw finger-tight, gently pull fabric edges to remove slack, then tighten further (a screwdriver for the final turn is recommended in the workflow).
  • Secure: Keep fabric and stabilizer moving as one unit (spray adhesive helps) before hooping.
  • Verify: Tap the hooped fabric center to assess tension.
  • Success check: The fabric sounds like a tight drum when tapped; during stitching, the fabric does not “flag” (bounce) around letters.
  • If it still fails… Re-hoop with better bonding to the stabilizer and confirm the fabric grain is straight before clamping.
• Q: How do Baby Lock Meridian users check thread tension early when stitching satin-lettering so the back of the design looks correct?
  A: Stop after the first color and check the underside—proper tension shows about one-third bobbin thread in the center of the satin column.
  • Stitch: Run the first few hundred stitches and pause after the first color.
  • Flip: Turn the hoop over and inspect the satin columns.
  • Correct: If the top thread dominates the back, re-thread correctly and re-check the thread path.
  • Success check: The underside shows a balanced satin column with bobbin thread visible as a centered “rail” (about 1/3) rather than all top color.
  • If it still fails… Clean lint from the bobbin area and re-test; persistent tension issues may require tension adjustment per the machine manual (settings vary by machine).
• Q: How can Baby Lock Meridian users fix thread nests (birdnesting) at the start of lettering when the stitching suddenly tangles underneath?
  A: Re-thread the Baby Lock Meridian with the presser foot UP—this opens the tension discs and is the most common low-cost fix.
  • Stop: Hit stop immediately and remove the hoop if needed to clear thread safely.
  • Re-thread: Raise presser foot fully, re-thread the upper path from spool to needle, then lower the foot.
  • Check: Confirm the top thread is not caught on a spool pin and the bobbin area is clean.
  • Success check: Restart and watch the first stitches; the underside should form neat stitches without a thread “wad” building up.
  • If it still fails… Re-check bobbin insertion/orientation and clean lint buildup; then test again before returning to the project.
• Q: What minimum line spacing should Baby Lock Meridian users leave between curved name lines to prevent trims getting trapped and stitching lines colliding?
  A: Leave at least 3–5 mm of vertical space between lettering lines to keep trims from the top line from being caught under the next line.
  • Nest: Position the lower name so it tucks visually under the curve above without touching.
  • Adjust: Use the screen grid to keep alignment centered while spacing lines evenly.
  • Trace: Run a trace/check-size routine to confirm the stitch path stays safely within hoop boundaries.
  • Success check: Names read clearly with a consistent gap, and trims from the upper line do not get stitched down by the next line.
  • If it still fails… Increase spacing slightly and reduce curve intensity so the stitch paths do not crowd each other.
• Q: What safety rules should Baby Lock Meridian users follow when editing on-screen (Array, Trace, Check Size) to avoid embroidery arm collisions and injuries?
  A: Keep hands completely clear of the needle and embroidery arm whenever the machine could move—Trace/Start can move the carriage instantly with high torque.
  • Clear: Remove hands from the needle/arm area before tapping Trace, Check Size, or Start.
  • Lock: Use Lock mode if the machine provides it, or pause movement before reaching near the hoop.
  • Observe: Watch for any risk of the foot/needle approaching the hoop edge during trace.
  • Success check: The embroidery arm completes trace movements without contacting the hoop, fabric straps, or attachments.
  • If it still fails… Reposition the design, re-run trace, and remove any obstructions (like tote straps) before stitching.
• Q: When making 50 canvas tote curved-lettering designs, what is the practical upgrade path from technique tweaks to magnetic hoops to a SEWTECH multi-needle embroidery machine?
  A: Start by standardizing hooping and layout, then reduce re-hooping pain/marks with magnetic hoops, and move to a multi-needle machine when thread-change and re-hooping time becomes the bottleneck.
  • Level 1 (Technique): Use consistent hoop placement methods (often a hooping station) and run trace/check-size every time to reduce crooked placements and waste.
  • Level 2 (Tooling): Use magnetic hoops when wrist fatigue, thick seams, or hoop burn from clamp hoops slows production or damages dark canvas.
  • Level 3 (Capacity): Use a SEWTECH multi-needle machine when repeated single-needle thread changes dominate the schedule across many name lines and colors.
  • Success check: Production becomes predictable—less rework from crooked designs, fewer hoop-mark rejects, and fewer stop-start interruptions for thread changes.
  • If it still fails… Track where time is actually lost (thread changes vs. hooping vs. fixes) and upgrade the step that is consistently limiting output.
