Denim Buttonholes Without the Tilt: Clean Keyhole Results on a Baby Lock Valiant (No Buttonhole Foot Drama)

If you’ve ever tried to sew a buttonhole right where denim gets bulky—like the collar/neckline seam meeting the front placket—you already know the sinking feeling. The buttonhole foot tilts on the “hill” of the fabric, the stitch density goes weird, the needle deflects, and the result looks “homemade” in the worst possible way.

Here is the workaround that garment pros quietly love: stop fighting physics with a sewing machine foot and stitch the buttonhole as an embroidery design. In the walkthrough below, based on the video demonstration, the host uses a Baby Lock Valiant (10-needle). However, the principles of physics apply whether you are on a single-needle or a commercial beast.

This guide will break down the process with specific parameters and sensory checks to ensure your denim buttonholes are clean, consistent, and profitable.

The sanity check: why a Baby Lock Valiant embroidery buttonhole beats a tilted buttonhole foot on denim seams

The problem the host calls out is real: at the junction near the collar, you are stacking seam allowances. A traditional sewing machine foot relies on pressure and contact with the feed dogs. When the terrain is uneven, the foot slides off the "cliff," resulting in varied stitch lengths and potential birdnesting.

An embroidery machine changes the game because the fabric is suspended in a hoop. The needle bar moves independently of the fabric surface, forming a satin-stitched “frame” regardless of the lumpy landscape below.

If you are searching for a repeatable workflow for thick garments, this is exactly the kind of job where hooping for embroidery machine technique matters more than fancy sewing-machine attachments. By controlling the tension via the hoop (or stabilizer), you remove the variable of the presser foot slipping.

The “hidden” prep that makes denim buttonholes look expensive (sticky stabilizer, spray discipline, and a clean slit plan)

Before you touch the screen, set yourself up for a controlled stitch-out. The video uses a standard 5x7 manufacturer hoop and sticky-back tear-away stabilizer to "float" the denim.

Why float? Because forcing thick, seamed denim into a standard inner/outer ring setup requires immense hand strength and often causes "hoop burn" (shiny rings where fabric fibers are crushed).

What the video uses (and why each item is doing a job)

• 5x7 Manufacturer Hoop: Large enough to place multiple buttonholes without re-hooping.
• Sticky-back Stabilizer (Tear-away): Provides a firm adhesive surface. Pro Tip: Look for "heavy" sticky paper if you are doing jackets.
• Straight Pin: Used to score the paper backing without slicing the stabilizer mesh.
• Odif 505 Temporary Adhesive Spray: Used to bond the two denim layers together before they hit the stabilizer.
• White Polyester Embroidery Thread (40wt) on Needle #3: Polyester withstands the friction of denim better than Rayon.
• Fray Check / Fray Block: A cyanoacrylate-based sealant to lock the cut fibers.
• Buttonhole Cutter (Chisel): A 12mm or 18mm chisel gives a cleaner cut than scissors.
• Missing from video but recommended: A Sharp 75/11 or 80/12 Titanium Needle. Ballpoint needles can deflect off the tight denim weave; sharps pierce cleanly.

Why this prep works (expert insight you’ll feel in the stitch-out)

Denim is stiff, but it still distorts under push-pull compensation. When you hoop thick garments directly, you create a "trampoline" effect that bounces the needle.

Floating on sticky stabilizer avoids this. The stabilizer acts as a rigid floor. If you are currently fighting clamp pressure, hoop burn, or sore wrists, this is where sticky hoop for embroidery machine workflows shine—the goal is consistent hold without crushing the garment fibers.

Prep Checklist (Do this before you open the design)

• Hoop Check: Confirm you have the 5x7 hoop ready and free of old adhesive residue.
• Stabilizer: Cut a piece of sticky-back tear-away 1 inch wider than the hoop on all sides.
• Needle: Install a fresh Sharp 80/12 needle if the denim is over 12oz weight.
• Adhesion: Pre-spray your two denim layers with 505 (light mist from 12 inches away) and press them together firmly.
• Measurement: Measure your actual snap button hardware (e.g., 5/8").
• Tools: Place Fray Check and a buttonhole cutter on your table.


The hoop prep ritual: scoring sticky-back stabilizer in a 5x7 hoop so it peels clean (and stays truly sticky)

This is the part that separates a smooth day from a frustrating one. You need to expose the adhesive without compromising the structural integrity of the backing.

What the host does

1. Hoop the sticky-back stabilizer paper-side up in the 5x7 hoop. Make sure it sounds like a drum when tapped.
2. Use a straight pin to score around the inside edge of the hoop. Sensory Check: You should feel the pin gliding on the paper, not scratching the plastic hoop.
3. Slash an X in the center to create an easy peel point.
4. Peel away the paper backing.

The host notes this stabilizer has more stick than standard Filmoplast. For denim, you want high-tack adhesive.

Checkpoints (So you know you did it right)

• Visual: The exposed surface should look glossy and consistent.
• Auditory: When you peel the paper, listen for a sharp "zipping" sound. If it peels silently, the adhesive might be old or dry.
• Tactile: Touch a corner. It should grab your finger immediately.


Warning: Sharp Tool Safety. Pins and buttonhole chisels act differently on stabilizers than fabric. Keep sharp tools away from the magnetic throat plate area to avoid dropping them into the machine internals. Never reach under the presser foot area while the machine is powered on.

Floating denim the way production shops do it: 505 + firm hand pressure to prevent micro-shifts

The video floats two layers of denim onto the sticky stabilizer. The key detail usually missed by beginners: the layers are already secured together with 505 spray.

The "Hand Press" Technique

1. Place the denim layers gently on the sticky surface.
2. Using the heel of your hand or a brayer roller, press firmly across the entire surface.
3. Sensory Check: Lift the hoop slightly and give it a gentle shake. The denim should feel like it is one single unit with the hoop. If the edges flutter, you need more pressure or fresh spray.

If you’ve ever wondered whether floating embroidery hoop methods are secure enough for 14oz denim, the answer is yes—if your surface area of contact is large enough. The friction of the adhesive prevents the "flagging" (bouncing) that causes skipped stitches.

Button size first, design size second: choosing 5/8" vs 3/4" keyhole files so your snaps actually fit

Size matters, but clearance matters more. The host measures her silver denim snaps at 5/8". Logic suggests using a 5/8" file, but she wisely selects both a 5/8" and a 3/4" design to test.

Practical Sizing Tip (The "Tolerance Rule")

Physics dictates that the satin column adds thickness to the inside of the hole.

• The Rule: Always size your buttonhole file 2mm to 3mm larger than the rigid hardware button.
• A 5/8" snap often requires a 3/4" hole to pass through the stiff denim without tearing the fabric.
• The host confirms this: after testing, the 3/4" works beautifully allowing the snap to function without struggle.


On-screen setup on Baby Lock IQ: importing two buttonholes, spacing them, and forcing one needle color with Magic Wand

The video uses the Baby Lock interface to bring in two separate buttonhole files. Why two? Because changing threads takes time. We want to execute this in one color, in one pass.

Step-by-Step Screen Setup

1. Import: Insert USB and select the buttonhole design.
2. Duplication: Add/Import the second generic buttonhole.
3. Spacing: Use the on-screen arrow keys to separate them by at least 1 inch (or your required garment spacing).
4. Color Unification: Use the Edit / Magic Wand tool (or "Same Color" function) to assign both designs to Needle #3 (White).

Checkpoints (Avoid the "Stitch Over" disaster)

• Visual: Ensure there is a clear "safety gap" between the two icons on screen.
• Data: Check the stitch count. A standard buttonhole is roughly 800-1200 stitches. If you see 10,000, you have imported a massive file by mistake.

If you are doing this repeatedly for team jackets, the time spent manually aligning designs on-screen is lost profit. This is why pros eventually invest in a hooping station for embroidery—precisely aligning the garment physically is often faster than adjusting coordinates digitally.

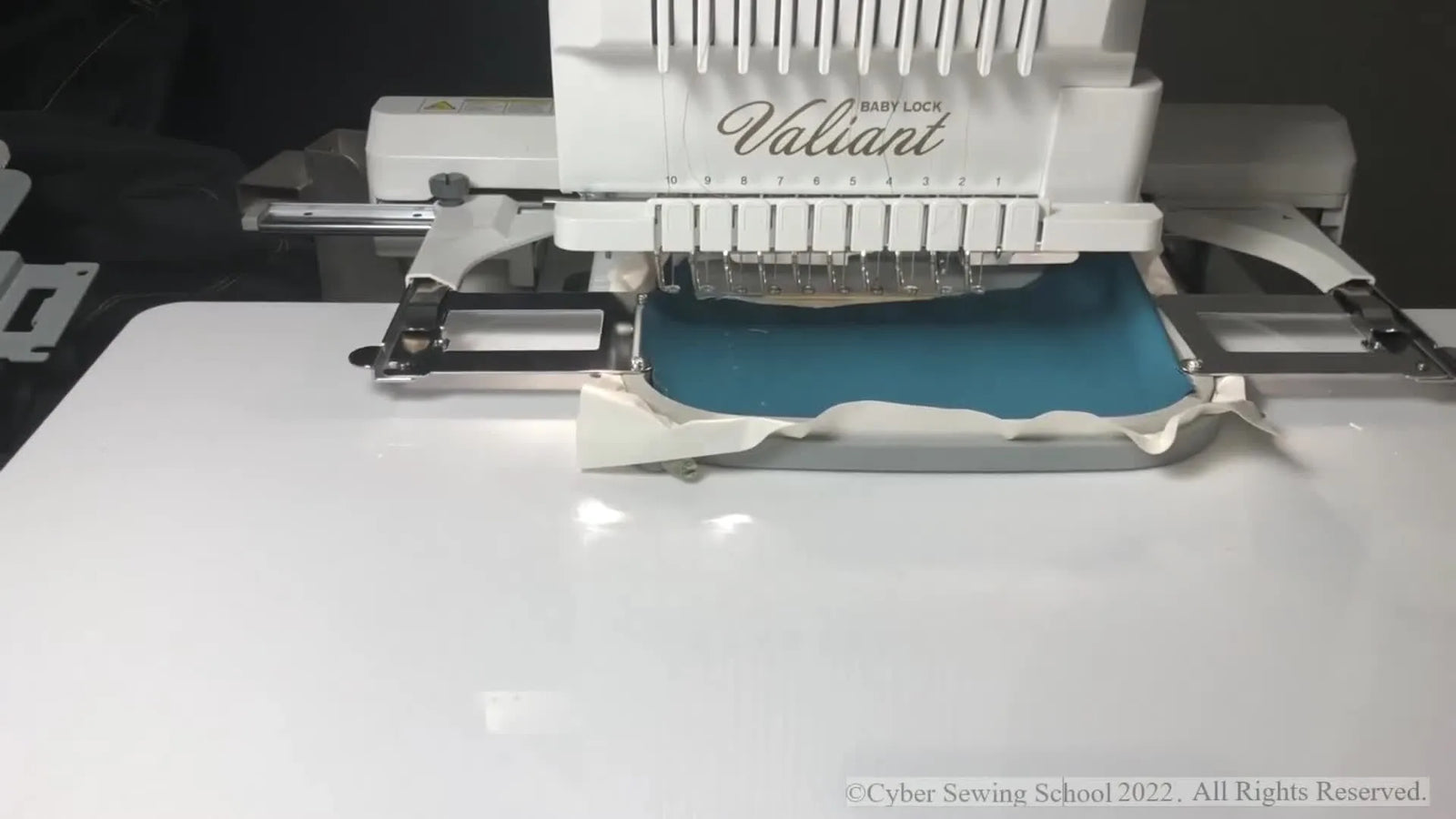

Stitch-out time: locking the 5x7 hoop on the Baby Lock Valiant and letting the satin do its job

Once the design is set, slide the hoop onto the machine arm. Ensure you hear the solid "Click" of the hoop lock engaging.

The "Sweet Spot" for Speed

While the Baby Lock Valiant can run at 1,000 SPM (Stitches Per Minute), satin stitches on thick denim generate heat and friction.

• Recommended Speed: 600 - 800 SPM.
• Why? Slower speeds reduce needle deflection and allow the thread tension to recover between penetrations, resulting in cleaner edges.

Sensory Feedback during Stitching

• Listen: You want a rhythmic, consistent "purr." If you hear a deep "thump-thump," your needle is struggling to penetrate. Change to a fresh Sharp needle immediately.
• Watch: Observe the denim edges. If they start to lift or curl up, pause and add painter's tape to the corners for emergency stabilization.


Operation Checklist (While it’s stitching)

• Needle Bar: Confirm Needle #3 is the one moving.
• Thread Path: Ensure thread is feeding smoothly from the cone (no tangles at the base).
• Fabric Watch: Watch the first 20 stitches. If the denim shifts at all, STOP immediately. It's better to waste stabilizer than a jacket.
• Hands Off: Keep hands clear of the pantograph arm.


Clean removal, clean finish: tearing stabilizer, sealing the slit with Fray Check, and testing the snap fit

After the machine signals "Finished," unlock the hoop.

The Finishing Workflow

1. Remove: Take the hoop off the machine.
2. Tear: Rip the stabilizer away from the back. It should tear cleanly along the perforation line created by the needle.
3. Seal: Apply Fray Check (or Fray Block) to the center channel before cutting.
4. Wait: Give it 5-10 minutes to dry. Cutting wet denim can fray the threads you just tried to seal.
5. Cut: Use the chisel/cutter to slice the opening between the satin columns.
6. Test: Push the snap through. It should be snug but not impossible.


The Fray Check Technique (Avoid the "Stain Ring")

The host is specific: place the applicator tip exactly in the center and do not squeeze until the tip is touching the fabric.

• Reason: Fray Check is a liquid glue. If it drips on the face of the dark denim, it leaves a permanent dark/shiny spot that looks like an oil stain.

Warning: Chemical Safety. Fray Check is flammable and can irritate eyes. Use in a ventilated area. Always test a drop on a scrap piece of denim first to see if it discolors the dye.

Why this method stays crisp for years: the real mechanics behind satin buttonholes on denim

A satin-stitched buttonhole is a structural "wall." On denim, the cut edge desperately wants to fray because the twill weave is under tension.

1. Stabilization: The sticky backing prevents the fabric from skewing on the bias during stitching.
2. Density: Embroidery machines lay down a higher density of thread than sewing machines, creating a physical barrier.
3. Sealant: The Fray Check fuses the raw cotton fibers inside that barrier.

Quick decision tree: which stabilizer/hooping approach should you use?

Use this logic to decide your setup instantly.

1. Is the buttonhole near a bulky seam (Collar, Waistband, Pocket)?

• YES: Use Sticky Stabilizer + Floating. Rigid clamping will fail here.
• NO: You can hoop standardly, but floating is still safer for avoiding hoop burn.

2. What is your production volume?

• One-off Custom: Sticky stabilizer (as shown). Low cost, low risk.
• Production Run (20+ Jackets): Sticky stabilizer is slow to peel and clean. Consider magnetic hoops for babylock embroidery machines. Magnets hold thick seams instantly without the need for adhesive spray or peeling paper.

3. What is the fabric elasticity?

• Rigid Denim: Tear-away Sticky (Perfect).
• Stretch Denim (e.g., Jeggings): Use Cut-away Sticky or fusible mesh. Tear-away will allow stretch denim to distort, turning your circle buttonhole into an oval.

The upgrade path I’d recommend in a real shop: faster hooping, fewer marks, and better throughput

The video demonstrates a perfect solution for the home hobbyist or boutique creator. However, if you start taking orders for team jackets, your "pain points" will shift from quality to speed.

Scenario-Triggered Upgrades

• Pain: "My wrists hurt from clamping thick denim."
  • Solution: Magnetic Hoops.
  • Why: babylock magnetic embroidery hoops use magnet force, not wrist strength. They clamp over zippers, seams, and pockets without leaving the dreaded "hoop burn" marks that ruin merchandise.
• Pain: "I can't get the buttonholes straight on every jacket."
  • Solution: Hooping Stations.
  • Why: Tools like the hoop master embroidery hooping station standardize placement. You set the fixture once, and every jacket lands in the exact same spot. This is critical for uniforms.
• Pain: "My single-needle machine takes too long for color changes."
  • Solution: Multi-Needle Machines.
  • Why: If your business grows, look into cost-effective multi-needle platforms like SEWTECH machines. They allow you to queue up multiple colors (or backup needles) and run faster for longer periods, essentially buying you time.

Common pitfalls (and how to avoid wasting a jacket)

Here is the "Shadow Data"—the mistakes that aren't in the video but happen on the shop floor.

Results you should expect (and why this beats buying a dedicated buttonholer)

The host points out that dedicated industrial buttonholers cost between $5,000 and $7,000. By utilizing the babylock valiant hoops and capabilities you already own, you achieve a result that is 95% of the industrial quality for $0 extra cost.

Embroidered buttonholes are a high-value skill. They turn a "craft project" into a "garment."

Final Pre-Flight Checklist

1. Design: 2mm larger than button hardware.
2. Stabilizer: Sticky Tear-away, drum tight.
3. Fabric: Pre-sprayed with 505, stuck firmly.
4. Machine: Speed set to 700 SPM.
5. You: Calm, ready to watch carefully.

Go make those jackets look pro.

FAQ

• Q: How do I float bulky denim seams for embroidered buttonholes on a Baby Lock Valiant 5x7 hoop without hoop burn?
  A: Use sticky-back tear-away stabilizer and float the denim instead of clamping the thick seam in the hoop.
  • Hoop sticky-back stabilizer paper-side up and tighten until it is drum-tight.
  • Score and peel the paper to expose adhesive, then place the denim on the sticky surface.
  • Pre-spray the two denim layers lightly with Odif 505 and press them together before sticking to the stabilizer.
  • Success check: Lift and gently shake the hoop—the denim should feel like one unit with no edge flutter.
  • If it still fails… replace old/dry sticky stabilizer and re-press firmly across the entire surface.
• Q: How do I score and peel sticky-back stabilizer cleanly in a 5x7 manufacturer hoop for denim buttonholes?
  A: Score only the paper layer with a straight pin, then peel from an X-slit so the adhesive stays intact.
  • Tap-test the hooped stabilizer first; tighten until it “sounds like a drum.”
  • Glide a straight pin along the inner hoop edge to score the paper (not the stabilizer mesh).
  • Cut a small X in the center and peel the paper backing off smoothly.
  • Success check: The exposed adhesive looks glossy and consistent, and peeling makes a sharp “zipping” sound.
  • If it still fails… the adhesive may be old or contaminated; re-hoop a fresh piece and ensure the hoop is free of residue.
• Q: What needle and thread setup helps prevent needle deflection and ugly satin edges when embroidering buttonholes on thick denim on a Baby Lock Valiant?
  A: Use polyester embroidery thread and switch to a fresh sharp needle when denim is thick or the needle starts “thumping.”
  • Run 40wt white polyester embroidery thread (as shown) and verify the thread path feeds smoothly.
  • Install a fresh sharp needle; a safe starting point is a Sharp 75/11 or 80/12 (follow the machine manual for needle system guidance).
  • Slow down if penetration sounds heavy to reduce deflection on bulky seam stacks.
  • Success check: The machine sounds like a steady “purr,” and satin columns look clean instead of jagged.
  • If it still fails… reduce speed further and replace the needle again if it may be burred.
• Q: What embroidery speed should I use on a Baby Lock Valiant for satin-stitched denim buttonholes to reduce thread breaks and heat?
  A: Set speed around 600–800 SPM for thick denim satin work instead of running at maximum.
  • Start at about 700 SPM and watch the first 20 stitches closely.
  • Pause immediately if denim lifts or curls, then secure corners as needed before continuing.
  • Keep hands clear of the moving pantograph arm while running.
  • Success check: Stitches form evenly with consistent sound and no repeated thread snapping.
  • If it still fails… change to a fresh sharp needle and confirm the thread cone is not snagging at the base.
• Q: How do I choose between a 5/8" and 3/4" embroidery buttonhole file for denim snaps so the hardware actually passes through?
  A: Choose an embroidery buttonhole design about 2–3 mm larger than the rigid snap/button hardware to account for satin thickness.
  • Measure the actual snap diameter (example shown: 5/8") before selecting the file.
  • Test-stitch both sizes if unsure; denim stiffness often needs the larger option (example: 3/4" worked better).
  • Plan clearance first, then commit to production placement.
  • Success check: The snap passes through snugly without forcing or tearing the slit area.
  • If it still fails… switch to the next size up design and re-test on a scrap or an unseen area.
• Q: How do I prevent cutting into satin stitches when opening an embroidered denim buttonhole with a buttonhole cutter (chisel)?
  A: Seal the slit first, let it dry, and use a physical stop so the chisel cannot run into the satin columns.
  • Apply Fray Check/Fray Block to the center channel before cutting.
  • Wait 5–10 minutes for the sealant to dry before using the chisel.
  • Place a straight pin at the end of the buttonhole as a stop, then cut between the satin columns.
  • Success check: The opening is clean, and no satin threads are sliced or pulled.
  • If it still fails… slow down and re-position the pin stop; consider practicing on a scrap denim stack.
• Q: What are the key safety rules when using a straight pin for scoring stabilizer and a buttonhole chisel near a multi-needle embroidery machine like the Baby Lock Valiant?
  A: Treat pins and chisels as drop hazards—keep them controlled, away from the needle area, and never reach under the presser foot with power on.
  • Power off or stop the machine before handling sharp tools near the needle/presser foot zone.
  • Score stabilizer with light pressure so the pin does not slip or jump into the machine area.
  • Keep sharp tools away from the throat plate area to avoid dropping them into internals.
  • Success check: All scoring/cutting is done with stable hand placement and no tool passing over open machine cavities.
  • If it still fails… reorganize the work surface so pins/chisels have a dedicated, separate spot before continuing.
