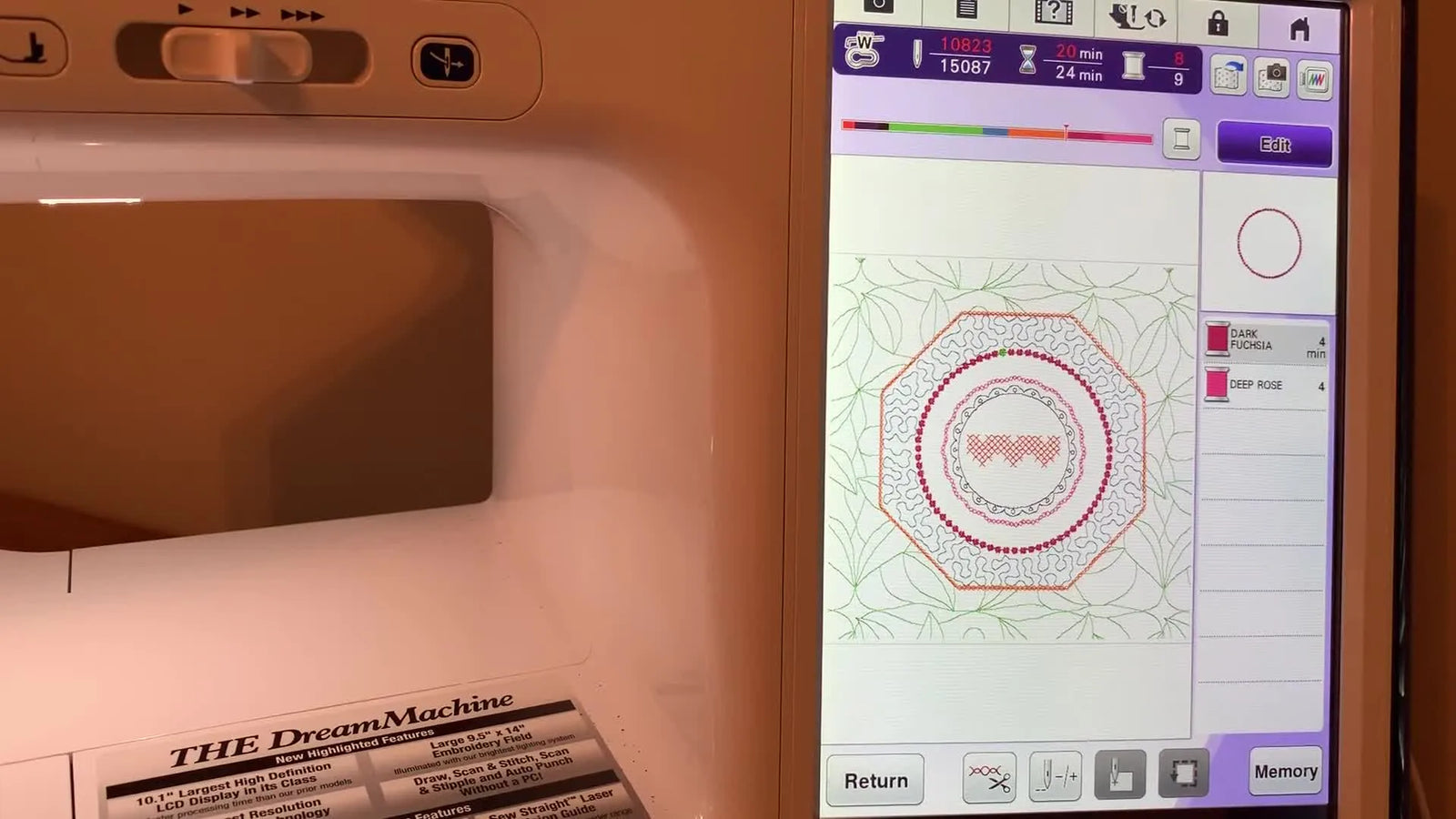

Design a Custom Quilt Block Right on Your Brother Dream Machine/Luminaire: Stamps, Fills, and the “Skip the Black Lines” Trick

If you own a Brother Dream Machine, Destiny, or Luminaire, you’re sitting on a powerful “no-PC” digitizing tool—and quilt blocks are one of the best ways to use it. However, the gap between owning the machine and mastering on-screen digitizing often comes down to one thing: fear of the unknown variables.

This project builds a layered quilt block entirely on the machine screen: you’ll pick a center motif, build boundaries with shapes, turn those shapes into reusable Stamps, assign line stitches (Chain Stitch, Candlewicking, Satin), fill the regions (Stippling + Decorative Fill), then convert to embroidery and clean up the stitch order so you don’t sew construction outlines.

And if you’re like the many stitchers who have a beautiful quilt top… plus a few “life got in the way” UFOs (unfinished objects), this is exactly the kind of workflow that gets you back to finishing—because once you save your Stamps, the next block is dramatically faster.

The “Don’t Panic” Primer: My Design Center Is Forgiving—If You Save Before You Convert

On-screen digitizing feels risky the first time because it’s happening live on your machine. The good news: the workflow is very forgiving as long as you save the editable file before converting to stitches.

In this tutorial, the design is built as vector-style elements first (center motif + shapes), then converted into embroidery stitch data at the end. That conversion is the point of no easy return—so we’ll treat saving as a non-negotiable habit.

A lot of people also worry they’ll “mess up the quilt” by testing. My advice after 20 years: conduct a "Lab Test." Stitch the first block on a practice sandwich (same batting, same fabric scraps). If you hear the rhythmic thump-thump-thump of a smooth fill, you are ready for production. Quilt blocks repeat—your setup work pays you back.

The Hidden Prep Pros Do First: Thread Plan, Hoop Reality Check, and a Clean Screen Workflow

Before you touch the stylus, do three things that prevent 80% of frustration later. Mechanical errors usually happen because we rush the physics.

1) Decide what you’re building:

• Quilt Block: You are stitching through a "sandwich" (Top + Batting + Backing). The batting acts as a stabilizer, but for dense decorative fills, you might still need a layer of tear-away underneath to prevent distortion.
• Stand-alone Doily (Linen): This requires a dedicated stabilizer (Mesh/Cutaway) because linen distorts easily under the pull of 10,000 stitches.

2) Know your frame size: This project is built for a 9-1/2" x 9-1/2" hoop. Ensure your sewing field is clear.

3) Plan your thread colors: The video uses Red (center/chain), Hot Pink (shapes), Blue (candlewicking/fill), Dark Purple (satin), and Orange (stippling).

• Sensory Check: Use quality 40wt polyester or rayon. When pulling thread through the needle path, it should offer smooth resistance, like pulling floss between teeth—not loose, but not snapping tight.


Prep Checklist (do this before you start tapping menus)

• Machine Check: Confirm model (Dream Machine vs Luminaire/Destiny). Processor speeds vary; be patient with the Dream Machine.
• Needle Check: Install a fresh Topstitch 90/14 needle (if quilting) or 75/11 (if working on linen). The larger eye protects the thread during high-speed fills.
• Clean the Bed: Remove the bobbin case cover and check for lint. A single dust bunny can ruin tension on a decorative fill.
• Visual Mapping: Pick 4–5 thread colors so you can visually separate line stitches and fills while designing.
• Tool Check: Have your stylus, curved snips, and a logical file naming system (e.g., "Quilt_Block_A_v1") ready.

Warning: Mechanical Safety. Keep fingers, hair, and loose sleeves away from the needle area during stitch-out. Never attempt to trim a jump thread while the machine is running; a slip near a moving needle moving at 800 stitches per minute can cause severe injury.

Build the Center Motif First: Stitch 160, Max It Out, Then Rotate with Confidence

The center motif sets the “visual anchor” of the block. In the video, Terry selects Stitch 160 from the built-in library:

1. Navigate to Category 5 → Category 1 → Stitch 160.
2. Choose Set, then go to Edit.
3. Resize: Use the Resize tool (the second option). Enlarge it until you hear a sharp beep. That audio cue tells you you've hit the maximum safety limit for that design.
4. Change the thread color to Red.
5. Rotate the design 90° to the left.


Expected outcome: Your center motif is centered and maximized.

Pro tip from the field: When you maximize a center motif, you also increase the gap between stitches. Check the density. If the fabric shows through too much on your test stitch-out, you may need to use a slightly heavier thread or darker batting. Conversely, resizing down increases density—risk of needle jams. Maximizing is generally safe; shrinking requires caution.

Turn Shape #9 into a Scalloped Boundary Stamp: The Distance Setting Is the Secret Sauce

Now you’ll create the first boundary using a built-in shape. This step teaches the concept of "Offset" vs. "Resize."

1. Tap Add → Shapes.
2. Select Shape #9 (the scalloped eyelet look).
3. Choose Set.
4. Go to Edit and resize it larger using the arrow keys until it frames the center.
5. Recolor it Hot Pink (for design clarity).
6. Tap Stamp.
7. Critical Step: Increase the “Distance” parameter (offset) before saving to My Design Center memory.




Expected outcome: A scalloped boundary that has "breathing room" around the center motif.

Why this matters: The "Distance" setting creates an equidistant negative space around your object. If you simply resized the shape manually, the corners might get too close while sides stay far away. The Distance tool ensures mathematical perfection in your spacing.

Create the Double Circle Boundary: When Distance Stays at 0.0 mm on Purpose

Next comes a circle boundary that creates a second region for fills.

1. Tap Add → Shapes → Circle.
2. Choose Set.
3. Go to Edit → Size. Enlarge it so there’s a clear area between the scallop and the circle.
4. Tap Stamp.
5. Leave Distance at 0.0 mm and save.

Expected outcome: A clean circle boundary positioned by your eye, not by automatic offset.

Why this matters: Offsets are powerful, but sometimes you want manual control over the visual weight of the block. Mixing “resize spacing” (manual) and “distance spacing” (automatic) gives you the dynamic look of a custom-digitized pattern.

Lock in the Outer Frame with Octagon Shape #8 (Style 10): Make It Fit the 9.5" Hoop Reality

Now you’ll build the outer frame that defines the block's physical edge.

1. Tap Add → Shapes.
2. Select Octagon Shape #8, then switch to Style 10.
3. Choose Set.
4. Go to Edit and resize it to fill the 9-1/2" x 9-1/2" hoop area.
5. Tap Stamp and save it.


Expected outcome: An octagon that acts as the "container" for your entire project.

Set Up My Design Center the Right Way: Inches, 9.5" Frame, and the “No Sew” Safety Switch

Now you move into My Design Center to assemble the layers. This is the "Canvas Setup" phase.

1. Exit to home; open My Design Center.
2. Settings Check: Go to Settings → Page 8 (varies by model) and ensure units are Inches.
3. Set the frame size to 9-1/2" x 9-1/2".
4. Critical Safety Step: For your base layer line property, select “No Sew” (the icon with an X).


This “No Sew” choice is massive. It creates a "ghost line" that allows you to pour paint bucket fills without stitching a thick black outline around everything.

Setup Checklist (Before applying stitches)

• Units: Inches.
• Frame: 9-1/2" x 9-1/2".
• Line Property: "No Sew" (Safety lock enabled).
• Memory: Confirm the 3 Stamps (Scallop, Circle, Octagon) are saved.
• Strategy: Commit to working Inside-Out. This prevents layering errors where a fill might accidentally cover a line.

Recall Your Stamps Inside-Out: Chain Stitch, Candlewicking, Satin—Applied with the Bucket Tool

Now you’ll retrieve the saved Stamps and assign line stitches.

• Open Stamp memory and retrieve the Stamps from the inside out.


Apply line stitches (using the Fill Bucket tool)

1. Scallop line:
   • Choose Chain Stitch.
   • Pick Red.
   • Tap the scallop line with the bucket.
   • Visual Check: Line turns Red.


2. Circle line:
   • Choose Candlewicking (looks like French Knots).
   • Pick Blue.
   • Tap the circle line.
3. Octagon line:
   • Choose Satin Stitch.
   • Pick Dark Purple.
   • Tap the octagon line.

Expected outcome: Your grey construction outlines become colored stitch previews.

If you are struggling with precise placement because your fabric is shifting in a standard hoop, researching techniques for hooping for embroidery machine setup is vital. Standard hoops rely on friction; if the fabric slips 1mm, your concentric circles will look off-center.

Fill the Regions Like a Quilter: Stippling Inside, Decorative Fill Outside

Now you’ll add texture to the negative space.

1. Inner Region (Center to Scallop):
   • Select Region property -> Stippling.
   • Color: Orange.
   • Tap the area between the scallop and the circle.


2. Outer Region (Circle to Octagon):
   • Select Decorative Fill.
   • Pattern: 012 (or similar geometric).
   • Color: Blue.
   • Tap the area between the circle and the octagon.




Expert insight (Physics of Fills):

• Stippling: Non-directional. Very safe for beginners. It tacks down the fabric evenly.
• Decorative Fills: Highly directional. If you use a dense fill on loose linen without strong stabilizer, the fabric will pull inward, causing an "hourglass" distortion.
• Asset Management: Once you create a combination you love, saving these setups in Brother My Design Center allows you to replicate the exact density and pattern on future projects without reinventing the wheel.

Dial in the Technical Settings: 3.5 mm Satin, 5.0 mm Candlewicking, Chain Repetition 3x

Default settings are rarely perfect for quilting. Here is your "Pro Parameter" guide.

Terry adjusts stitch attributes in the settings menu:

1. Satin Stitch (Octagon): Increase width to 3.5 mm.
   • Why: A wider satin stitch slides over seam allowances better than a narrow one, reducing needle deflections.


2. Candlewicking (Circle): Increase size to 5.0 mm and decrease spacing to ~2.0 mm.
   • Performance Note: Candlewicking creates high bumps. Use a Curve Foot or Open Toe Foot so the foot doesn't snag on the previous knot.
3. Chain Stitch (Scallop): Set repetition to 3.
   • Why: Single run chain stitch gets lost in quilt batting. Triple run stands up proud and visible.


4. Decorative Fill: Turn OFF the outline for the blue fill. This prevents a hard edge involved in the fill itself.

Pro Tip (The "Hooping Station" Factor): Candlewicking requires high precision. If your hoop isn't perfectly flat, the needle can deflect on the knots. Many users find that using a hooping station for brother embroidery machine ensures the fabric is drum-tight before it ever reaches the machine. For larger production runs, upgrading to a magnetic hooping station can reduce hand strain and improve tension consistency.

Save to Pocket, Then Convert: The One Habit That Saves Hours of Rework

Before converting to embroidery stitches:

1. SAVE the editable vector file to the machine memory (Pocket icon).
2. Only then press Next/Set to convert vector data into stitch data.

The Golden Rule: Once you convert, the vector paths are gone. You cannot change the "Distance" offset or the "Fill Pattern" easily. You can only edit stitches. Always save the source file.

The “Skip the Black Lines” Cleanup: Remove Construction Outlines Without Ruining the Block

After conversion, you enter the embroidery edit screen.

The Trap: You may see stitch steps that correspond to the original "No Sew" lines or construction shapes that mistakenly got converted (often black outlines).

The Fix:

1. Scroll through the color steps.
2. Identify any step that is just a thin outline you didn't intend to sew.
3. Use the Skip/Un-sew function (bucket with arrow icon or similar depending on model) to bypass them.


Expected outcome: The machine jumps right to the Red center motif, skipping the skeleton lines.

Decision Tree: Stabilizer Choice (The Foundation of Success)

Use this logic flow to determine your consumables.

START: What is your base material?

• A. Quilt Sandwich (Cotton + Batting + Backing)
  • Is the batting high-loft (fluffy)?
    • YES: Use a Water Soluble Topping to prevent stitches from sinking. Use a Magnetic Hoop to avoid crushing the loft.
  • Is the block dense (heavy fills)?
    • YES: Float a layer of Medium Tear-away under the hoop for extra skeletal support.
  • Is it standard cotton batting?
    • YES: The batting itself usually acts as sufficient stabilizer.
• B. Single Layer Fabric (Linen/Cotton for Doily)
  • Is it a loose weave (Line)?
    • YES: MUST use Medium Cut-Away Mesh. Tear-away will result in gaposis (outlines not meeting fills).
  • Is it standard cotton?
    • YES: Medium Tear-away is acceptable, but Cut-Away yields a flatter result after washing.
• C. Production Mode (10+ Blocks)
  • Consistency is king. Using magnetic embroidery hoops allows you to pop fabric in and out without adjusting screws, ensuring every block has identical tension and grain alignment.

Troubleshooting the Two Most Common “Scary Moments”

Symptom 1: "Ghost Outlines"

• The Look: The machine starts stitching a thin black line before the main design.
• Likely Cause: Construction lines from My Design Center weren't set to "No Sew" or weren't skipped in Edit.
• Quick Fix: Press Stop. Forward through the current color step until you reach the Red center.
• Prevention: Use the "No Sew" line property in setup.

Symptom 2: "The Hourglass Effect" (Puckering)

• The Look: The square block looks pulled in at the waist (sides curve inward).
• Likely Cause: Decorative fill density is too high for the stabilization used.
• Quick Fix: You cannot fix this mid-stitch. Abandon the block.
• Prevention for next time: Use a Cut-Away stabilizer (even on quilts) or switch to a Magnetic Hoop which holds the fabric grain straighter than a round hoop.

The Upgrade Path: From Hobbyist to Production

Once you’ve built one block, the real question becomes: how fast can you stitch the next 20 without losing accuracy or motivation?

Here is the realistic progression for upgrading your toolkit:

1. Level 1: The Frustrated Hobbyist (Hoop Burn Issues)
   • Problem: Traditional plastic hoops leave harsh shiny rings ("hoop burn") on velvet or delicate quilt blocks.
   • Solution: A brother embroidery machine magnetic hoop. These clamp fabric without crushing the fibers, eliminating hoop burn and the need to iron/steam blocks afterward.
2. Level 2: The High-Volume Quilter (Fatigue Issues)
   • Problem: Creating a King Size quilt requires 60+ hoopings. Your wrists hurt from tightening screws.
   • Solution: If you are on a Dream Machine, a magnetic hoop for brother dream machine creates a snap-and-go workflow. No screws, no pain. For Luminaire users, specific magnetic hoops for brother luminaire ensure you maintain the large field size without the physical struggle.
3. Level 3: The Business Owner (Profit Issues)
   • Problem: You are spending more time changing threads (Red->Blue->Orange) than stitching.
   • Solution: Single-needle machines are great for learning, but Multi-Needle Machines (like SEWTECH production models) allow you to set all 5 colors at once. The machine automatically switches threads. If you plan to sell these blocks, a multi-needle machine cuts production time by 40-50%.

Warning: Magnet Safety. Magnetic hoops use strong industrial magnets. Keep them away from pacemakers, implanted medical devices, and sensitive electronics. Watch your fingers—the "snap" is powerful enough to pinch skin painfully.

Operation Checklist (The Final Go/No-Go)

• Test Stitch: Run one full block on scrap fabric.
• Pocket Saved: Verify the vector file is in machine memory before conversion.
• Cleanup: All construction outlines are set to "Skip".
• Stabilizer: Match the stabilizer to the fabric (refer to Decision Tree).
• Sound Check: Listen to the machine. A consistent hum is good; a rhythmic clack-clack means a dull needle or burred thread path.

When you follow this workflow, you don't just get a pretty block—you get a repeatable recipe. And that’s how unfinished quilts finally become finished heirlooms.

FAQ

• Q: On a Brother Dream Machine, Destiny, or Luminaire, what is the correct “save before convert” workflow in My Design Center to avoid losing editable shapes and Distance offsets?
  A: Save the editable file to Pocket before converting, because conversion removes easy access to vector-style edits like Distance and fill choices.
  • Tap the Pocket/Save icon while the design is still editable in My Design Center.
  • Name the file clearly (for example, a versioned name) so the correct source is easy to find later.
  • Convert to embroidery stitches only after confirming the file is saved in machine memory.
  • Success check: the saved file reopens as editable shapes (not just stitch data) before conversion.
  • If it still fails: rebuild the shapes and Stamps, then repeat the “save first, convert second” habit every time.
• Q: On a Brother Dream Machine, Destiny, or Luminaire, how can My Design Center construction lines be prevented from stitching as unwanted “ghost outlines” at the start of the embroidery?
  A: Set the base line property to “No Sew,” and after conversion use Skip/Un-sew to bypass any outline steps that still appear.
  • Set “No Sew” (X icon) for the base layer line property before applying bucket stitches.
  • Convert to embroidery, then scroll through color steps and identify any thin outline step you did not intend to sew.
  • Use Skip/Un-sew (model-dependent icon) to bypass those construction-outline steps.
  • Success check: the stitch-out starts with the intended design (for example, the red center motif) without a thin black outline pass.
  • If it still fails: stop the machine and forward through the current color step to reach the intended first stitched layer, then correct the setup for the next run.
• Q: On a Brother Dream Machine, Destiny, or Luminaire quilt block project, how can the “hourglass effect” puckering be prevented when using Decorative Fill in the outer region?
  A: Reduce fabric distortion risk by matching stabilization to fill density, because dense directional decorative fills can pull fabric inward.
  • Choose stabilizer based on material: quilt sandwich may need extra support when the design is dense; single-layer loose weave needs cut-away mesh.
  • Prefer stippling for safer non-directional stabilization in areas prone to distortion, and be cautious with dense decorative fills on loose fabrics.
  • Run a full “Lab Test” block on a practice sandwich with the same batting and fabric before stitching the real quilt.
  • Success check: the stitched block stays square/true at the sides with no inward waist curve after stitching.
  • If it still fails: switch to stronger stabilization (often cut-away for problematic fabrics) or reduce decorative fill intensity on the next version.
• Q: On a Brother Dream Machine, Destiny, or Luminaire, what needle and basic machine prep should be done before stitching a dense quilt block with stippling and decorative fills?
  A: Start with a fresh needle and a clean bobbin area, because lint and a worn needle quickly ruin tension during high-speed fills.
  • Install a fresh Topstitch 90/14 for quilting through a sandwich, or 75/11 for linen work.
  • Clean the bobbin area and remove lint before starting, especially if decorative fills are planned.
  • Confirm thread pulls through the path with smooth resistance and does not feel jerky or overly tight.
  • Success check: the machine runs with a consistent hum during fills, not a rhythmic clack/clack, and stitch formation looks even on the test block.
  • If it still fails: replace the needle again and recheck for lint or debris affecting tension.
• Q: On a Brother Dream Machine, Destiny, or Luminaire, what stitch-parameter settings in this quilt block workflow are a safe starting point for visible lines (Satin, Candlewicking, Chain Stitch)?
  A: Use the project’s proven starting values—3.5 mm satin width, 5.0 mm candlewicking size with tighter spacing, and chain repetition at 3—then confirm on a test stitch-out.
  • Set Satin Stitch width for the outer octagon line to 3.5 mm.
  • Set Candlewicking size for the circle line to 5.0 mm and reduce spacing to around 2.0 mm.
  • Set Chain Stitch repetition for the scallop line to 3 for better visibility on batting.
  • Success check: lines read clearly at normal viewing distance and do not disappear into batting or become overly bulky.
  • If it still fails: re-test with the same fabric/batting stack and adjust gradually, because results may vary by material and thread.
• Q: On a Brother Dream Machine, Destiny, or Luminaire, what are the key mechanical safety rules during stitch-out and jump-thread trimming for quilt blocks?
  A: Never trim jump threads while the machine is running, and keep hands, hair, and loose sleeves away from the needle area during stitching.
  • Stop the machine fully before reaching near the needle to trim or handle threads.
  • Keep fingers clear of the needle path at all times, especially during fast runs (around 800 spm can be hazardous).
  • Use appropriate tools (like curved snips) only when the machine is stopped and stable.
  • Success check: thread trimming is done with the needle fully stopped and hands never entering the moving needle area.
  • If it still fails: pause the stitch-out more often and slow down the workflow—rushing is the most common cause of injury near the needle.
• Q: For Brother Dream Machine and Brother Luminaire users making 10+ quilt blocks, what is the “Level 1–3” upgrade path for reducing hoop burn, wrist fatigue, and excessive thread-change time?
  A: Optimize technique first, then upgrade hooping consistency with magnetic hoops, and only then consider multi-needle production if thread-change time is the real bottleneck.
  • Level 1 (technique): run a full test block, match stabilizer to fabric and fill density, and clean up construction outlines so you are not re-stitching mistakes.
  • Level 2 (tooling): use a magnetic hoop to reduce hoop burn on delicate surfaces and to reduce wrist strain from repeated screw-tightening during high hooping counts.
  • Level 3 (capacity): move to a multi-needle machine when frequent color changes (multiple thread swaps per block) are costing more time than actual stitching.
  • Success check: hooping becomes repeatable (consistent tension and alignment), and production time drops without quality losses.
  • If it still fails: identify the biggest time sink (hooping, stabilization, edits, or thread changes) and upgrade only the part that matches the bottleneck.
