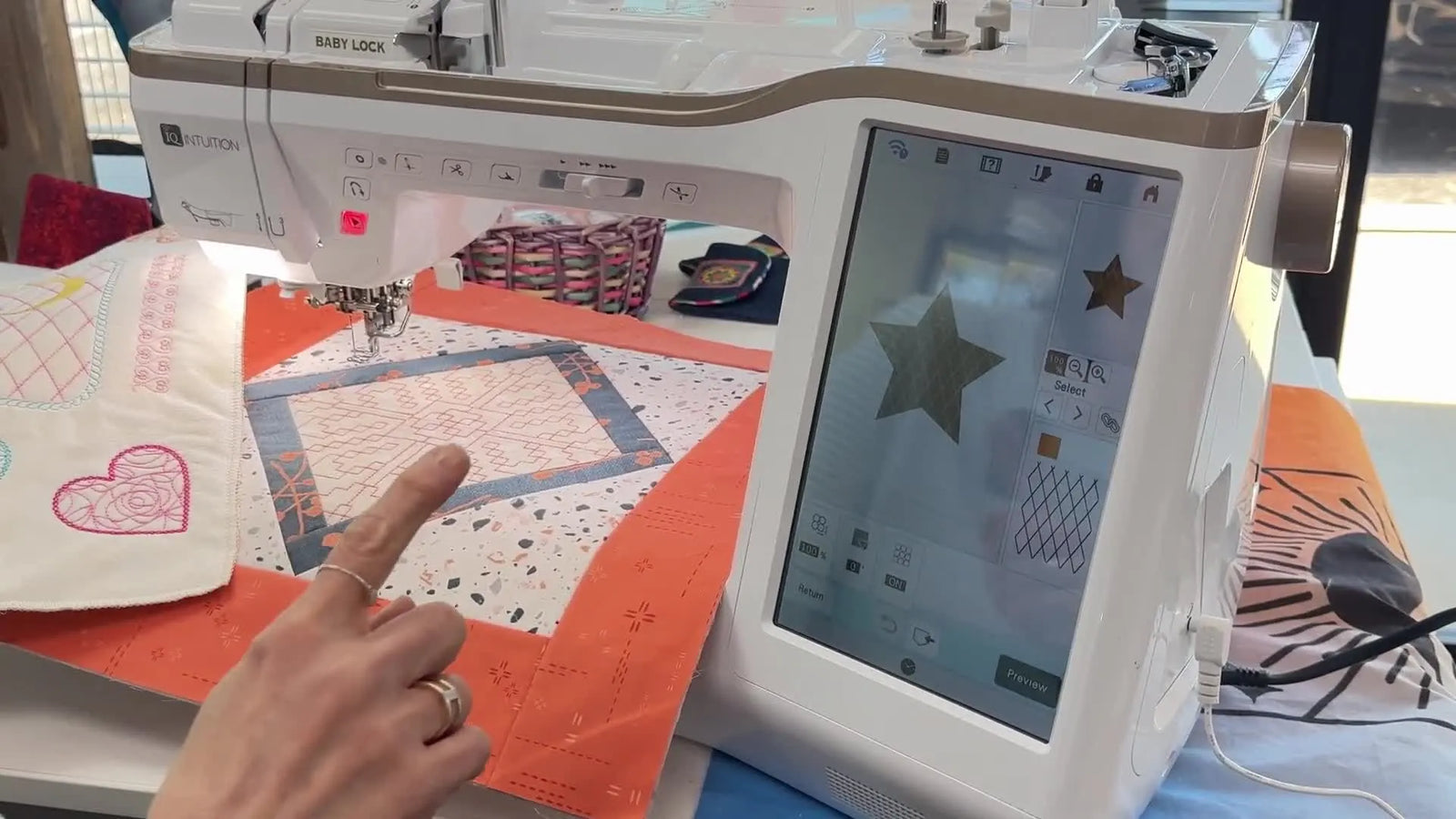

Design a Custom Star on the Baby Lock Altair 2 IQ Designer—No Software, No Panic, Just Clean Stitches

If you’ve ever stared at your Baby Lock screen thinking, “I’m not a digitizer—how am I supposed to make something original?” take a breath. You are experiencing a common friction point: the gap between creativity and technical confidence. IQ Designer on the Baby Lock Altair 2 was built to bridge this gap, allowing you to create stitchable designs without external software or a degree in vector mathematics.

What you’re about to do is simple in clicks—but powerful in mechanics. We will start with a built-in star “stamp,” apply a structural fill, wrap it with a candlewicking outline, and fine-tune the physics of the stitch. Along the way, I’ll point out the sensory checks (what you should hear and feel) that prevent the "trinity of failure": puckering, registration loss, and thread bird-nesting.

The “I’m Not a Digitizer” Moment: Why Baby Lock IQ Designer Is Safer Than It Looks

IQ Designer is often skipped by beginners because it feels like "programming." In reality, it is closer to "zoning." You aren't plotting needle points; you are defining boundaries and assigning properties. The machine’s firmware handles the math.

Your role is to manage the environment. When you are experimenting with on-screen design, you will likely stitch the same test square 3 to 5 times to perfect the fill density. This is where fatigue sets in unless you upgrade your workflow.

This repetitive testing phase is the primary use case for magnetic embroidery hoops. Unlike traditional screw-hoops that require wrist strength and precise re-tensioning for every test, magnetic frames allow you to "snap and stick" in seconds. This speed encourages you to run that extra test stitch, ultimately leading to a better final product.

The “Hidden” Prep Pros Do First: Fabric + Stabilizer + Hooping Checks Before You Touch the Screen

The video focuses on the screen, but 80% of embroidery failures are physical, not digital. Before you touch a pixel, you must secure the canvas.

The Physics of Hooping: Your hoop is not just a holder; it is a suspension system. The goal is Neutral Tautness.

• Tactile Check: Rub your thumb over the hooped fabric. It should not feel rock-hard like a table, nor loose like a bedsheet. It should have the bounce of a snare drum.
• Visual Check: The weave of the fabric must be square. If the vertical grain curves like a banana, your final star will stitch out distorted.

Stabilizer Strategy (The "Foundation"):

• Woven Cotton (Quilting weight): Use a Medium Weight Tearaway (1.5 - 2.0 oz) if the design is light. If the fill is dense (over 10,000 stitches), switch to Cutaway to prevent "dishing."
• Knits/Stretchy fabrics: Mandatory Cutaway stabilizer. No exceptions.
• Hidden Consumable: Use a temporary spray adhesive (like 505) to bond the fabric to the stabilizer. This prevents the "shifting sandwich" effect.

If you find yourself constantly fighting hoop burn (the ring marks left on fabric) or struggling to hoop thick quilt sandwiches, this is a diagnostic indicator. Terms like baby lock magnetic embroidery hoop are often the solution professionals turn to. The magnetic force holds thick layers flat without the crushing force of an inner ring, eliminating hoop burn on delicate velvets or bulky batting.

Prep Checklist (Pre-Flight):

• Needle Protocol: Install a fresh Topstitch 75/11 or Embroidery 75/11 needle. (Burred needles shred decorative threads).
• Bobbin Status: Ensure you have at least 50% bobbin thread remaining. A bobbin run-out mid-fill creates a visible seam.
• Thread Path: Floss the upper thread through the tension discs. You should feel a slight resistance, like pulling dental floss between teeth.
• Hoop Clearance: Ensure the hoop arms are locked in with a solid audible click.


Tap Into IQ Designer on the Baby Lock Altair 2—Then Start With a Built-In Star Shape That Won’t Betray You

From the home screen, enter IQ Designer. In the video, we open the Shapes menu (top icon) and select a closed star from the geometry options.

Why Closed Shapes? For beginners, open vectors are dangerous because they cannot hold a fill. Closed shapes act as a watertight container.

The "Gap" Hazard: Once the star is on the canvas, zoom in to 200%. visually inspect the points. A microscopic gap in the vector line will cause your fill to "leak" into the background later. The Baby Lock shapes are closed by default, but if you edit nodes, always verify the closure.

Give the Star a Fancy Fill: Region Properties + Fill Pattern No. 035 (Crisscross/Leaf)

Now we define the "Texture." In the video, Laura uses the stylus to open Region Properties (brush icon), then selects the fancy fills tab and chooses Fill Pattern No. 035.

The Cognitive Trap of "Pretty Fills": Fancy fills look innocent on screen, but physically, they are aggressive. Pattern No. 035 introduces multi-directional pull factors.

• Standard Fill: Pushes fabric in one direction.
• Fancy Fill: Pushes and pulls fabric in complex patterns.

This increases the stress on your hoop grip. If your fabric slips even 1mm, the pattern will misalign. For users doing high-volume blocks where hooping fatigue leads to sloppy tension, a hooping station for embroidery helps ensure that the 50th hoop is clamped just as securely as the first, maintaining consistent fill quality.

Paint the Fill Into the Star: Color for Preview, Then Tap Inside With the Fill Bucket

Laura selects a gold color for visual contrast (remember: the machine doesn't know what thread you actually load). She activates the Fill Bucket Tool and taps inside the star.

Expected Outcome: The inside of the star turns gold. Failure Mode: The entire screen turns gold.

• Cause: You tapped the background, or the shape has a gap.
• Fix: Hit "Undo" immediately. Zoom in and tap precisely in the center.




Visual Anchor: Look at the edge of the fill on-screen. It should stop exactly at the black outline.

Wrap It With a Decorative Outline: Line Properties + Candlewicking (Star Motif) in Red

We now apply a "Candlewicking" stitch—a heavy, knotted decorative stitch—to the outline. Laura opens Line Properties, selects the Line Bucket, chooses the Star Motif, and taps the outline.

The Registration Danger Zone: This is the most critical part of the tutorial.

1. The fill stitches first, potentially shrinking the fabric slightly (The "Pull" effect).
2. The outline stitches last.
3. Result: If the fabric shrunk during the fill, the outline will land outside the fill, leaving a visible fabric gap (the "white line of death").

Mitigation Strategy:

• Stabilizer: Do not scrimp. Use a fusible woven backing.
• Hooping: This is a primary scenario for magnetic embroidery hoops for babylock. The continuous magnetic pressure around the entire frame perimeter often reduces fabric shifting better than standard hoops that only pinch at the corners.

Warning: Mechanical Safety. Keep hands clear of the carriage arm during operation. While creating on-screen is safe, once you hit "Start," the embroidery arm moves rapidly with torque sufficient to bruise fingers or break obstructions.

The Eraser Demo That Saves Projects: Remove Segments Cleanly Without Starting Over

Laura demonstrates the Eraser tool to refine geometry.

Expert Tip: When using the eraser on an outline, you are creating new "endpoints."

• Risk: The machine might tie-off (lock stitch) at every new endpoint, creating clumps of thread knots on the back.
• Action: Use the eraser sparingly. If you need to change a shape significantly, it is often cleaner to delete and redraw the shape than to spot-erase.

The Fine-Tuning That Makes It Look Custom: Rotate Fill Angle + Adjust Candlewicking Size and Spacing

This section differentiates a "stock" design from a "custom" one.

• Rotate Fill Angle: Changing the angle (e.g., to 45 degrees) not only looks better but minimizes "Push" distortion on the fabric grain.
• Size & Spacing: Laura increases the size of the candlewicking stars and the spacing between them.




The "Sweet Spot" Numbers (Beginner Safe Ranges):

• Fill Density: Start at 100% (Default). Do not go above 120% without doubling stabilizer.
• Spacing: If spacing motifs, ensure there is at least 2mm between them to prevent the machine from hammering the same spot repeatedly, which creates holes.

The Pre-Stitch Reality Check on the Baby Lock Altair 2: Size, Stitch Count, and Color Stops

Before stitching, examine the ready screen:

• Stitch Count: 2797 stitches.
• Time: 12 minutes.


Data Interpretation: 2797 stitches in a 6-inch star is a low to medium density. This is safe for quilting cotton. If this number were 15,000+, you would need heavy cutaway stabilizer.

The Workflow Bottleneck: If you are running a business, 12 minutes of stitch time allows you to prep the next hoop. However, if your hooping takes longer than the stitch time, you are losing money. Business owners often analyze their workflow here and identify the magnetic hooping station as the tool to balance prep-time with stitch-time, ensuring the machine never waits on the operator.

Stitch-Out Results and What They’re Quietly Teaching You About Stabilization

Laura shows the finished sample. The goal is a flat star with no puckering around the tips.

Post-Game Analysis:

• Sound Check: During stitching, did you hear a rhythmic "thump-thump" (Good) or a harsh "clack-clack" (Bad/Needle hitting metal or bird-nesting)?
• Visual Check: Look at the back. The bobbin thread (usually white) should be visible as a central column taking up 1/3 of the width of the satin production. This indicates perfect tension.

Decision Tree: Choosing Your Stabilizer

Use this logic flow to prevent puckering:

• Is the fabric stretchy (T-shirt/Jersey)?
  • YES: -> Cutaway Stabilizer (Must use).
  • NO: -> Go to next step.
• Is the design dense (>10k stitches) or Full Coverage?
  • YES: -> Cutaway or Heavy Tearaway + Spray Adhesive.
  • NO: -> Medium Tearaway.
• Is it a "In-the-Hoop" Quilt Block?
  • YES: -> Poly-mesh (No Show Mesh) to reduce bulk in seams.

Project Inspiration That Actually Sells: Quilt Blocks, Coasters, and Giftables You Can Batch

Laura shows coasters and "Merry Christmas" items. These repetitive, geometric items are high-margin products for small embroidery businesses.

Production Reality: When batching 50 coasters, the physical strain on your wrists from screwing and unscrewing hoops is real. This physical pain point is the most common reason embroiderers switch to babylock magnetic hoops.

• Scene Trigger: Wrist fatigue or blisters after a production run.
• Criteria: If you stitch >10 items a day.
• Solution Level: Magnetic frames reduce hooping time by ~40% and eliminate wrist strain.

Warning: Magnetic Pinch Hazard. Magnetic hoops use industrial-grade neodymium magnets. They snap together with immense force. Do not place fingers between the magnets. Do not use if you have a pacemaker (magnets can interfere with medical electronics). Keep away from children.

The “Why It Works” So You Don’t Waste Thread: Fills, Outlines, and the Two Failure Modes

Understanding the "Why" prevents future errors.

1. Pull Compensation: Stitches pull fabric in towards the center.
2. Push Compensation: Stitches push fabric out perpendicular to the stitch.

In IQ Designer, when you add a heavy outline (Candlewicking) to a heavy fill, you are stressing the fabric in two directions.

• The Fix: If you see gaps, do not just keep tightening the hoop. Increase your stabilizer. Stiffness controls the physics of Push/Pull better than hoop tightness.

Setup Checklist (The "Save Your Sanity" List)

• Design size matches Hoop size: Ensure the foot won't hit the frame.
• Bobbin Check: Is it full? Is it wound evenly?
• Needle: Is it new? Is it the right type (Sharp vs Ballpoint)?
• Upper Thread: Is the spool cap tight? (Loose caps cause thread jams).
• Hoop: Is it cleared of obstacles behind the machine?

Operation Checklist (During and After)

• Watch Layer 1: Watch the first 100 stitches. If the underlay doesn't grab, stop immediately.
• Listen: Listen for the "clicking" of a thread break before the sensor alerts you.
• Trim as you go: Pause and trim jump stitches if your machine doesn't auto-trim, to prevent them from being stitched over.
• Un-hoop gently: Do not "pop" the fabric out. Release pressure first to avoid distorting the bias.

If you are looking to scale this process—moving from one test star to 20 blocks—standardize your tools. Using an embroidery magnetic hoop ensures that the tension applied to block #1 is identical to block #20, removing "human error" from your tension variable list. Consistency is the hallmark of a professional.

FAQ

• Q: How can Baby Lock Altair 2 IQ Designer users prevent puckering and registration loss when stitching a fancy fill (Fill Pattern No. 035) with a candlewicking outline?
  A: Use stabilization first—do not “over-tighten” the hoop to fight gaps or puckers.
  • Choose stabilizer by fabric and density: use medium tearaway for light designs on quilting cotton; switch to cutaway if the fill is dense (over 10,000 stitches) or full coverage; use cutaway on knits with no exceptions.
  • Bond fabric to stabilizer with temporary spray adhesive to stop the “shifting sandwich” during multi-directional fancy fills.
  • Hoop for neutral tautness, not drum-tight; keep fabric grain square before stitching.
  • Success check: after stitch-out, the star tips lie flat with no ripples, and the candlewicking outline lands cleanly without a visible fabric “gap.”
  • If it still fails, reduce design density/complexity or upgrade hoop control (magnetic hoop) to minimize fabric shifting during testing.
• Q: What does “neutral tautness” mean when hooping fabric for Baby Lock Altair 2 embroidery, and how can users tell if hooping tension is correct?
  A: Neutral tautness means the fabric is secure but still has a slight bounce—tight enough to resist shifting, not stretched like a drumhead.
  • Rub your thumb across the hooped fabric; aim for a snare-drum bounce rather than rock-hard tightness or bedsheet looseness.
  • Inspect fabric grain: the vertical grain should stay straight (not curving like a banana) to avoid a distorted star shape.
  • Lock the hoop arms fully and confirm a solid audible click before stitching.
  • Success check: the hooped fabric stays flat and square during the first stitches with no visible creeping or distortion.
  • If it still fails, re-hoop and add better stabilizer/support rather than tightening harder.
• Q: Why does the Baby Lock Altair 2 IQ Designer Fill Bucket sometimes turn the entire screen gold instead of filling only inside the star shape?
  A: This usually happens because the background was tapped or the star outline is not fully closed.
  • Hit Undo immediately to avoid saving a messy region.
  • Zoom to 200% and visually inspect the star points for any tiny gap created by editing nodes.
  • Tap the Fill Bucket clearly inside the star center, not near the outline edge.
  • Success check: on-screen, the fill stops exactly at the black outline and only the star interior changes color.
  • If it still fails, delete and reinsert a built-in closed star shape (closed shapes are safer for fills).
• Q: What is the correct Baby Lock Altair 2 pre-flight checklist before stitching an IQ Designer test design (needle, bobbin, thread path, hoop clearance)?
  A: Do the physical checks first—most embroidery failures are mechanical, not screen-related.
  • Install a fresh Topstitch 75/11 or Embroidery 75/11 needle to reduce shredding and skipped stitches.
  • Confirm the bobbin is at least 50% full to avoid a run-out seam mid-fill.
  • Re-thread (“floss”) the upper thread through the tension discs and feel slight resistance like dental floss.
  • Verify hoop clearance and ensure the hoop is fully locked on the arm with a clear click.
  • Success check: the first 100 stitches form clean underlay with steady stitch sound and no sudden tension changes.
  • If it still fails, stop and re-check threading and hoop lock before adjusting design settings.
• Q: How can Baby Lock Altair 2 users judge correct embroidery tension from the back of the design and from machine sound during stitching?
  A: Use a fast two-sense check: listen during stitching and inspect the back after.
  • Listen for a rhythmic “thump-thump” (normal) rather than harsh “clack-clack” (possible needle strike, obstruction, or bird-nesting).
  • Inspect the back: bobbin thread should appear as a central column about 1/3 the width of the satin/outline area.
  • Watch the first 100 stitches; stop immediately if the underlay does not grab and stabilize the fabric.
  • Success check: smooth stitching sound plus an even bobbin column on the reverse with no bulky nests.
  • If it still fails, re-thread the top path and confirm the hoop is seated and stable before changing tension settings.
• Q: What safety precautions are required when running a Baby Lock Altair 2 embroidery stitch-out after designing in IQ Designer?
  A: Keep hands and objects away from the embroidery arm—the carriage moves fast with enough torque to injure fingers or hit obstructions.
  • Clear the hoop path behind and beside the machine before pressing Start.
  • Keep hands off the carriage area while the machine is running; do not reach in to trim unless the machine is paused/stopped.
  • Confirm the design size matches the hoop size so the foot cannot strike the frame.
  • Success check: the stitch-out runs without frame strikes, sudden clacking, or emergency stops.
  • If it still fails, stop immediately and re-check hoop clearance and that the hoop arms are fully locked.
• Q: What safety rules should embroiderers follow when using magnetic embroidery hoops for repetitive Baby Lock-style test stitch runs and production batches?
  A: Treat magnetic hoops as pinch hazards—neodymium magnets can snap together with serious force.
  • Keep fingers completely clear when closing the magnetic frame; let the magnets “snap” shut without guiding between them.
  • Do not use magnetic hoops if the operator has a pacemaker, and keep magnets away from children.
  • Use magnetic hooping to reduce repeated screw-hoop strain when stitching many items daily, especially during test-and-adjust cycles.
  • Success check: hooping is fast and consistent with no hoop burn on delicate fabrics and no hand fatigue after a run.
  • If it still fails, slow down the closing motion and reposition fabric/stabilizer first—never force magnets together when misaligned.
• Q: When should an embroidery business upgrade from technique changes to a magnetic hoop or hooping station for Baby Lock Altair 2 style test stitching and batching?
  A: Upgrade when prep-time or operator fatigue becomes the bottleneck—fix process first, then tools, then capacity.
  • Level 1 (technique): standardize neutral tautness, stabilize correctly, and always watch the first 100 stitches to avoid wasting thread.
  • Level 2 (tool): move to magnetic hoops if wrist fatigue, hoop burn, or repeated re-hooping for test squares is slowing output.
  • Level 2 (process): add a hooping station if the 50th hoop is noticeably looser than the first and fill alignment becomes inconsistent.
  • Success check: hooping time stays shorter than stitch time so the machine is not waiting on the operator.
  • If it still fails, track where time is lost (hooping vs trimming vs re-threading) before considering a higher-capacity multi-needle setup.
