Design an ITH Bunny Mug Rug in Brother My Design Center (8x8 Hoop) Without Guesswork or Rework

If you’ve ever stared at your Brother screen thinking, “I know this should be simple… why does it feel fiddly?”, you’re not alone. My Design Center (MDC) is powerful, but it rewards a disciplined build order—especially for In-The-Hoop (ITH) projects where one sloppy placement line can snowball into puckers, bulky edges, or a backing that won’t close neatly.

In this project, you’ll create an Easter-themed Bunny Mug Rug (egg-shaped) completely inside Brother My Design Center using built-in shapes, designs, and text—then stitch it as a true ITH piece with batting and an envelope backing.

Calm the Panic: What This Brother My Design Center ITH Mug Rug Is *Really* Doing (and Why the Order Matters)

This design is essentially a controlled stack-up of layers. Think of it like making a sandwich where the machine tells you exactly when to put the cheese on.

1. A full-size egg outline (7.25"): This is your "Truth Line." It defines the final footprint.
2. A slightly smaller egg outline (7.00"): This is the "Trim Line." It ensures batting gets trimmed back so it doesn't bulk up your final seam.
3. A fabric tack-down outline: Same size as the full egg, but a different color to force the machine to stop so you can lay down fabric.
4. A background fill: A fancy pattern that sits safely inside the footprint.
5. Decorative elements: Bunny + flower + curved text.
6. A final backing/closure line: Uses the smaller egg line again to seal the envelope.

That “two-outline” approach (7.25" vs 7.00") is the difference between a professional mug rug that turns crisp and a lumpy one that fights you at the ironing board.

If you’re stitching in a standard brother 8x8 embroidery hoop, the sizing in this tutorial lands comfortably in the "sweet spot," leaving enough safety margin for the presser foot to move without hitting the frame.

The Hidden Prep Pros Do First: Stabilizer, Batting, and a Hooping Plan That Won’t Shift Mid-Run

Before you touch the screen, decide how you’ll control tension + friction + movement. ITH projects fail more from fabric physics than from “wrong buttons.”

Stabilizer & Batting Strategy

• The Stabilizer: Use No Show Mesh (Poly Mesh). It must be hooped "drum-tight"—tap it, and you should hear a dull thud, not a hollow ring.
• The Batting: Standard cotton or poly batting creates the loft.
• The Fabric: White tone-on-tone quilting cotton is recommended for the top so the design pops.

The Physics of the "Batting Line" Why make the batting line smaller? Batting compresses. If your batting reaches the very edge (the 7.25" line), your final seam will be four layers thick instead of two. This causes:

• An uneven, "ropey" edge.
• Increased drag on the needle (listen for a thump-thump sound).
• Potential for skipped stitches.

Tool Upgrade Path (When Hooping is the Bottleneck) If you find yourself losing 10 minutes just trying to get the stabilizer flat, or if you struggle with "hoop burn" (creases) on delicate fabrics, this is where professionals switch tools. A magnetic hoop for brother isn't just a luxury; it’s a consistency tool. By using magnets instead of screws, you get even clamping pressure around the entire ring, preventing the "pull-in" distortion common in ITH projects.

Warning: Mechanical Safety. Keep fingers strictly clear of the needle area when trimming batting in the hoop. Never trim while the machine is capable of moving—fully stop the machine or engage "Lock Mode" so an accidental elbow on the start button doesn't send a needle through your finger.

Prep Checklist (Do this BEFORE you start designing)

• Hoop Check: Confirm you are using an 8x8 hoop (or larger).
• Stabilizer: Hoop No Sew Mesh smoothly. Run your hand over it; there should be no ripples.
• Material Prep: Pre-cut batting and top fabric to approx 9" x 9" (give yourself a generous margin).
• Hidden Consumables: Have Painter’s Tape or embroidery tape ready for the envelope step.
• Tool Check: Ensure you have sharp curved appliqué scissors or small snips. Standard kitchen scissors are too bulky for the trim steps.


Build the “Truth Line”: Creating the 7.25" Egg Placement Line in My Design Center (Running Stitch, Red)

On the machine:

1. Enter My Design Center.
2. Go to Shapes and select the Egg shape.
3. Go to Size and set the egg height to 7.25".
4. Center the egg (Press the center grid icon).
5. Go to Line Properties and select Running Stitch.
6. Set the line color to Red. (This color is arbitrary, but using Red helps you identify it as the "Placement Line").
7. Use the Paint Bucket tool to tap the egg outline.
8. Save this outline to the machine pocket memory. (You will need to recall this exact shape later).
9. Stitch Setting: In the settings, increase the Stitch Length (Run Pitch) by five clicks (approx 0.100" or 2.5mm depending on your unit). Why? Longer stitches are easier to remove if you make a mistake, and they don't perforate the stabilizer as aggressively.

This red egg is your master footprint.

Comment-to-real-life pro tip: Why not just use "Duplicate"? Because reloading from the memory bank ensures the center point remains absolute. Duplicating and dragging can sometimes introduce micro-shifts that ruin your symmetry.

The Batting Trick That Prevents Bulky Edges: Create the 7.00" Green Egg Cutting Line (Running Stitch)

Now you’ll create the smaller egg line used to tack and trim the batting.

1. Add another shape from Shapes → Egg.
2. Go to Size and set height to 7.00". (Video notes width will auto-adjust to approx 5.74").
3. Center it.
4. Set Line Properties → Running Stitch.
5. Set line color to Green.
6. Use the Paint Bucket fill the outline.
7. Save this green egg to pocket memory immediately.
8. Adjust stitch length: five clicks up again for consistency.

Expected Outcome: Look at the screen. You should clearly see the Green Egg sitting inside the Red Egg with a uniform gap. That gap is your "safety zone" for turning the fabric later.

Force a Clean Stop: Recall the Red Egg and Turn It Purple for the Fabric Tack-Down Line

This is where experienced ITH stitchers quietly win: you must force a "Color Change" command. The machine stops when it sees a new color.

1. Go to Pocket Memory and recall the Red Egg (7.25").
2. Keep it as a Running Stitch.
3. Change line color to Purple.
4. Use the Paint Bucket to apply it.
5. Adjust stitch length: five clicks up.

Why Purple Matters: It’s not about the thread color you use; it's about the data. By commanding "Purple," you force the machine to stop after the Green line, giving you time to place your top fabric.

Pro Tip: Physically write down the file numbers (e.g., "Red=001, Green=002"). It saves you from guessing which egg is which later.

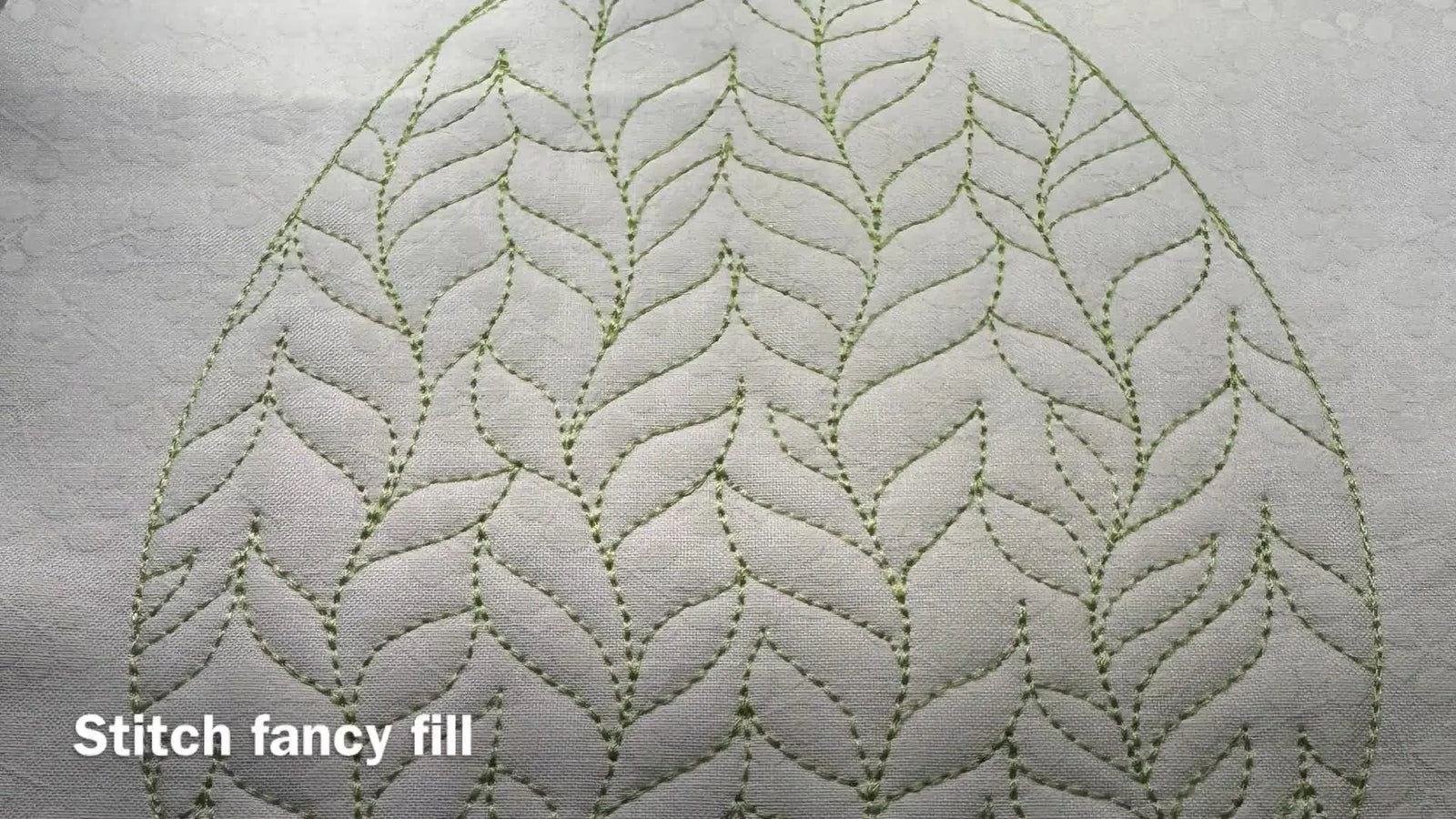

Make the Background Look Expensive: Fancy Fill Pattern #027 (Ferns) at 125% Scale (No Sew Outline)

Now you’ll turn the footprint into a textured background.

1. Recall the Red Egg (7.25") from memory again.
2. In Line Properties, select No Sew (the icon usually looks like a circle with a slash). You do not want a thick satin border here.
3. Tap the outline with the bucket to remove the stitch line.
4. Go to Fill Properties (Region properties) -> Select Pattern #027 (Ferns).
5. Set Fill Color to Light Green. Apply with bucket to the inside of the egg.
6. Crucial Step: Go to settings and set Fill Scale to 125%.

Why scale matters (The Physics): Standard density fills are often too tight for quilt batting—they create a stiff, "bulletproof" patch. Scaling up to 125% opens the spacing, keeping the rug soft and pliable. If you are using magnetic embroidery hoops, the superior stabilization allows these open fills to lay perfectly flat without pulling the fabric in at the edges.

Drop In the Built-In Bunny: Menu 17, Bunny #003, Enlarged to the Machine’s Max

Time to add the character.

1. Select Add -> Menu 17 -> Bunny #003.
2. Go to Edit → Size.
3. Enlarge the bunny until the machine beeps or stops letting you grow it. (Listen for the "Max Size" alert).
4. Center the bunny.

Visual Check: The bunny should sit comfortably inside the fill, leaving negative space at the top and bottom for your text.

Stop Fighting the Touchscreen: Place the Flower (Menu 5, #002) Using Arrow Keys and 1° Rotation Nudges

Using a finger to drag small elements is a recipe for frustration.

1. Add Flower #002 from Menu 5.
2. Edit → Size -> Maximize it.
3. Rotate 90°.
4. The Pro Move: Do not drag it. Use the on-screen Move Arrows to position it near the paw.
5. Use Rotate in 1-degree increments (tap-tap-tap) until the stem aligns naturally with the paw.

Troubleshooting: If the flower keeps "jumping" too far, you are likely dragging it. Use the arrows for pixel-perfect control. Ensure the green leaves stay well inside the Red Line boundary so they don't get chopped off during the final trim.

Curved Text That Actually Reads: Font #11, Medium Size, Array “HELLO” Down and “SPRING” Up

Curved text often looks "squashed" on the inner radius. Here represents the fix.

1. Text Menu #2 -> Font #11.
2. Type HELLO -> Set Size to Medium.
3. Select Array (Curved Text tool) -> Curve it Downward.
4. Position at the top of the egg.
5. New Text Input: Type SPRING -> Medium.
6. Array -> Curve it Upward.
7. Position at the bottom.

Expert Insight: Look at the letter spacing. If the satin columns are touching at the bottom of the curve, increase the Letter Spacing slightly. Legibility is key.

The Backing Line That Makes the Envelope Close Neatly: Recall the Green Egg and Stitch It in Gold

This final step seals the deal.

1. Add from Memory -> Recall the Green Egg (7.00").
2. Set Line Properties -> Straight Stitch (often Triple Stitch is good for strength, but Single Run works for turning).
3. Set Color to Gold.
4. Adjust stitch length: five clicks up.
5. Save the composite design to machine memory.

Why the Green Egg? You want the backing seam to be slightly inside the outer edge (the bulk) so when you turn it right-side out, the seam rolls underneath cleanly.

This is critical for production. If you are comparing embroidery hoops for brother machines for business use, note that reliable hoops ensure this final line lands exactly on top of your previous batting line, sealing the envelope perfectly every time.

Setup Checklist (Ready to Stitch?)

• Layer Check: Do you have Red, Green, Purple, Fill, Design, Gold?
• Scale Check: Is the Fill set to 125%?
• Memory Check: Did you save the final composite file? (Power outages happen!)


Stitch-Out Like a Pro: The Exact ITH Layer Order (Stabilizer → Batting → Fabric → Backing)

Here is the choreography. Do not deviate.

1. Hoop: Stabilizer (Mesh) only.
2. Stitch 1 (Red): Placement line on stabilizer.
3. Action: Lay Batting over the red line. Tape corners if needed.
4. Stitch 2 (Green): Tacks down the batting.
5. Action: Remove hoop (do NOT unhoop fabric). Trim batting carefully right up to the green stitches.
6. Action: Lay Top Fabric over the batting.
7. Stitch 3 (Purple): Tacks down the top fabric.
8. Stitch 4+: The machine stitches the Fern Fill, Bunny, Flower, and Text. Sit back and watch.
9. Action: Envelope Backing. Place backing fabric Face Down over the design. Tape securely.
10. Stitch Final (Gold): Seams the layers together.
11. Finish: Unhoop. Trim excess fabric (leave 1/4" seam allowance). Cut a slit in the backing stabilizer (if needed) or use the envelope opening to turn right side out. Press with steam.

If you are learning how to use magnetic embroidery hoop systems, this workflow is an ideal training ground. The magnetic hold makes it much faster to remove the hoop for trimming batting and re-attach it without the fabric slipping—a massive time saver on multi-step ITH production.

Warning: Magnetic Hazard. High-quality magnetic hoops are powerful. They can pinch skin severely. Always slide the magnets apart; never pry them. Keep them away from pacemakers and sensitive electronics.

Operation Checklist (During the Stitch-out)

• Trim Check: Did you trim the batting close enough? (Any excess will cause a lump).
• Tape Check: Before the final "Gold" stitch, is the backing fabric taped down? If the foot catches a loose edge, it will flip the fabric and ruin the project.
• Bobbin Check: Do you have enough bobbin thread for the dense fill? Check before starting the Ferns.


Decision Tree: Stabilizer + Batting Choices (Avoid the "Lumpy Edge")

Use this logic to adapt the project to different materials.

Start: What is your Top Fabric?

• Quilting Cotton (Stable Woven):
  • Recipe: Mesh Stabilizer + Standard Batting.
  • Result: Crisp edges, moderate loft.
• T-Shirt Knit (Stretchy):
  • Recipe: fusible No-Show Mesh (ironed on fabric) + Cutaway in hoop.
  • Critical: You must float the fabric or use a specialized clamping system to prevent stretch.
• Flannel (Thick/Fuzzy):
  • Recipe: Mesh Stabilizer + Thin Batting (or skipping batting entirely).
  • Reason: Flannel has natural loft; adding high-loft batting + flannel may be too thick for the envelope turn.

Are you fighting hoop marks?

• If yes, the harsh plastic rings are crushing the fibers.
• Solution: A hooping station for embroidery can help align difficult fabrics, but switching to magnetic frames is the ultimate fix for hoop burn.


Troubleshooting the “Annoying Stuff” Before It Ruins a Whole Stitch-Out

The Upgrade Path: When This Mug Rug Turns Into a Product

Once you stitch one successfully, the question changes from "How do I do this?" to "How do I do 50 of these for the craft fair?"

If you start scaling this project, you will hit two walls:

1. Physical Pain: repetitive screwing/unscrewing of plastic hoops hurts the wrists.
2. Time Loss: Trimming and re-hooping are the slow parts.

This is the trigger point to invest in a magnetic hooping station to align your backing fabrics instantly, and magnetic hoops to snap layers together in seconds.

For those looking to turn this into a serious income stream, this repetitive "Stop-Trim-Start" workflow is where single-needle machines bottleneck. Moving to a multi-needle machine (like the SEWTECH ecosystem) allows you to prep the next hoop while the first one stitches, doubling your output without doubling your effort.

Your Quality-Scaling Roadmap:

1. Master the File: Save your Red/Green/Purple composite.
2. Standardize Consumables: Stick to one batting thickness.
3. Upgrade the Grip: Use magnetic frames to ensure Rug #1 matches Rug #50 perfectly.

Now, go clear that machine memory and build your first "Truth Line." Happy stitching!

FAQ

• Q: How do I set up Brother My Design Center so an ITH mug rug has a crisp edge instead of a lumpy edge?
  A: Use two different egg outlines in Brother My Design Center—7.25" for the final footprint and 7.00" for batting trim and the final closure seam.
  • Create and save a 7.25" running-stitch egg (Placement/“Truth Line”), then create and save a centered 7.00" running-stitch egg (Batting Trim Line).
  • Stitch the 7.25" line first, then tack batting with the 7.00" line and trim batting right up to that stitching before adding top fabric.
  • Stitch the final backing/closure using the 7.00" line so the seam sits inside the bulk.
  • Success check: The 7.00" outline sits evenly inside the 7.25" outline on-screen, and the finished edge turns smoothly without a “ropey” ridge.
  • If it still fails: Trim batting closer to the 7.00" stitches and confirm batting was not extended to the 7.25" footprint.
• Q: How can Brother My Design Center force a clean stop for placing top fabric during an ITH project?
  A: Command a deliberate color change by recalling the 7.25" egg and changing it to a different color for a dedicated fabric tack-down step.
  • Recall the saved 7.25" egg from pocket memory and set it as a running stitch.
  • Change that outline color (example used: Purple) so the machine treats it as a separate color block and stops.
  • Stitch batting tack-down first (7.00"), trim batting, then place top fabric and run the Purple tack-down.
  • Success check: The machine stops between the batting step and the fabric tack-down step, giving a clear “place fabric now” pause.
  • If it still fails: Rebuild the step by recalling from memory (not duplicating/dragging) and verify the tack-down line is a distinct color from the previous step.
• Q: What stabilizer, batting, and hooping standard should be used for a Brother My Design Center ITH mug rug to prevent puckers and wavy fill?
  A: Start with No Show Mesh (Poly Mesh) hooped drum-tight plus standard batting, then control movement with careful taping during the envelope step.
  • Hoop No Show Mesh so it is smooth and tight before any stitching.
  • Pre-cut batting and top fabric larger than the design area (example prep size used: about 9" x 9") to avoid edge pull-in.
  • Tape corners when needed, especially before the final backing seam run.
  • Success check: Tapping the hooped stabilizer gives a dull “thud” and the fill stitches lay flat without ripples.
  • If it still fails: Re-hoop tighter and reduce fabric shifting by securing layers more firmly before stitch-out.
• Q: How do I stop Brother My Design Center fill stitches from looking stiff or causing pull-in on batting in an ITH mug rug?
  A: Increase the fill pattern scale to 125% and avoid adding an unnecessary heavy outline.
  • Set the egg outline to “No Sew” for the background fill step so a thick border is not added.
  • Choose the fill pattern (example used: Pattern #027) and set Fill Scale to 125%.
  • Keep the fill inside the footprint and avoid pushing decorative elements close to the outer placement boundary.
  • Success check: The mug rug stays pliable (not “bulletproof”) and the fill surface looks even without edge draw-in.
  • If it still fails: Confirm stabilizer is hooped drum-tight and re-check that the fill was truly scaled to 125%.
• Q: Why does Brother My Design Center flower placement keep ending up “off,” and how do I place small designs accurately?
  A: Use the on-screen arrow keys and 1° rotation nudges instead of dragging with a finger.
  • Add the flower design, then move it using the Move Arrows for controlled small steps.
  • Rotate using 1-degree taps until the angle looks natural.
  • Keep leaves safely inside the outer placement boundary so they are not cut off during trimming.
  • Success check: The flower sits consistently near the paw and does not “jump” to new positions between adjustments.
  • If it still fails: Stop dragging entirely and reposition using only arrows; re-center the main motif first to rebuild a stable reference.
• Q: What is the safest way to trim batting in the hoop during a Brother ITH mug rug stitch-out?
  A: Fully stop the machine (or use Lock Mode if available) and keep fingers well clear of the needle area before trimming.
  • Stop the machine so it cannot move unexpectedly before hands go near the hoop.
  • Remove the hoop from the arm without unhooping the stabilizer, then trim batting right up to the batting tack-down stitches.
  • Use small curved appliqué scissors or snips for control (bulky scissors increase slip risk).
  • Success check: Batting is trimmed cleanly to the tack-down line with no accidental nicks into the stitching or stabilizer.
  • If it still fails: Switch to smaller scissors/snips and slow down; never trim while the machine is capable of starting or moving.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops for ITH projects?
  A: Treat magnetic hoops as pinch hazards—slide magnets apart, keep hands clear, and keep magnets away from pacemakers and sensitive electronics.
  • Slide magnets apart to release; do not pry them upward where they can snap back.
  • Place fabric layers with fingertips out of the pinch path before bringing magnets together.
  • Store magnets away from devices and medical implants as a precaution.
  • Success check: Magnets are controlled with no sudden “snap,” and there is no skin pinching during loading/unloading.
  • If it still fails: Slow the handling motion and reposition hands to the sides of the magnets before closing.
• Q: When Brother ITH mug rug production feels slow because of repeated stop-trim-start steps, what is the practical upgrade path?
  A: Improve consistency first (process), then reduce hooping friction (magnetic hoops), then consider higher output (multi-needle) if volume demands it.
  • Level 1 (technique): Standardize the saved Red/Green/Purple outline workflow and keep batting thickness consistent.
  • Level 2 (tool): Use magnetic frames to speed re-attachment after trimming and reduce hooping time and hoop-mark issues.
  • Level 3 (capacity): If the single-needle workflow is the bottleneck, a multi-needle setup can let preparation happen while stitching runs.
  • Success check: Time spent on hooping and re-hooping drops and Mug Rug #1 matches Mug Rug #50 in alignment and edge quality.
  • If it still fails: Track where minutes are lost (hooping vs trimming vs stitching) and upgrade the step that is actually limiting throughput.
