Design Doodler on iPad vs PC: The “0,0 + 3-Inch” Trick That Saves Your Artwork Alignment (and Your Sanity)

If you’ve ever reopened an iPad Design Doodler file and felt your stomach drop because the stitches are floating on a blank grid—breathe. Nothing is “corrupted.” You are simply encountering a fundamental architectural difference between PC and tablet environments.

As someone who has trained thousands of embroiderers—from hobbyists working on kitchen tables to production managers running 50-head factories—I see this panic often. It mirrors the fear users feel when a machine makes a new noise. My goal today is to give you the system to handle this software quirk, and then apply that same "systematic thinking" to your physical hoop and machine, turning potential disasters into routine procedures.

The good news: the video source for this guide demonstrates a workaround that is mathematically precise. We are going to break down the exact numbers, the "why" behind them, and how to build a workflow that protects your time.

Don’t Panic When Your iPad .JDS Opens With “Floating Stitches”—It’s Normal, Not User Error

On the iPad, the moment you reopen a saved .JDS file and the background image is missing, the immediate assumption is user error. It is not.

John, the expert in the walkthrough, explains the distinct file logic. The PC version saves as .JDX, a container format that embeds your imported artwork alongside the stitch data. The iPad app, however, saves as .JDS. To keep file sizes lightweight for mobile processors, this format strips the background image upon saving. When you reopen, the stitch coordinates remain, but the visual reference is gone.

Here is the mindset shift that separates amateurs from pros: Treat your background artwork not as a permanent fixture, but as a calibrated reference layer.

In my 20 years of digitizing, I have learned that "freehand" does not mean "imprecise." If you are tracing lettering or specific logo shapes, your alignment must be exact. If your reference shifts by even 1mm, your needle penetration points will miss their target. We solve this not by guessing, but by using coordinates.

The Prep Nobody Mentions: Lock Your Numbers Before You Draw a Single Stitch in Design Doodler

Before you place your first node or draw your first run stitch, you must standardize your canvas. If you skip this, you are building a house without a foundation.

John’s prep is intentional, and we need to verify why it works.

• Unit Standardization: He sets Units to Imperial (inches). Experience Note: While machines read metric (mm), most US-based designers visualize hoop fields in inches (4x4, 5x7).
• Stitch Properties: He keeps stitch length in metric. Standard Rule: A standard running stitch is 2.5mm to 3.0mm. A standard satin column density is 0.40mm. Do not guess these numbers; keep your property settings in mm to match industry standards.
• Image Resizing: He imports artwork that may be huge (e.g., 52 inches) and resizes it to a realistic embroidery scale immediately.

The "Secret Sauce" is the Coordinate Lock. In this tutorial, the project constants are:

• Width: 3 inches (A safe size for almost any left-chest logo).
• Position: Left = 0, Top = 0 (The Cartesian "Origin" point).

By forcing the image to 0,0, you create a mathematical anchor that allows you to re-import the image later and have it land in the exact same pixel location.

Prep Checklist (Do this BEFORE you start doodling)

• Clean the Screen: Use a microfiber cloth. Oil from fingers can make precise stylus placement difficult.
• Set Units: Confirm global units are Imperial (Inches) for layout.
• Import & Lock Aspect Ratio: Ensure the chain-link icon (Maintain Aspect Ratio) is LOCKED before resizing.
• Hard-Code Dimensions: Resize artwork to a specific integer (e.g., 3 inches). Do not drag the corner to "roughly 3." Type the number.
• Zero the Coordinates: Set Left = 0 and Top = 0 in Properties.
• Set Initial Opacity: Lower artwork opacity to 40-50%. You need to see the contrast between your black stitch lines and the background.
• Write It Down: Use a sticky note or phone screenshot: "Zebra Project: Width 3.0, Pos 0/0."


PC .JDX vs iPad .JDS: What Actually Changes (and What Stays the Same)

Let’s clarify the technical divergence so you know what you are saving.

On PC (.JDX):

• Behavior: The file acts like a suitcase. You pack the artwork and stitches inside. When you open it, everything is unpacked together.
• Pros: Easy file management.
• Cons: Larger file sizes.

On iPad (.JDS):

• Behavior: The file acts like a transparency sheet (stitches) laid over a table. When you save and leave, you take the sheet, but the table (artwork) stays behind.
• Pros: Fast performance on tablets.
• Cons: Requires manual setup upon return.

What stays the same is your ability to control Properties. This is critical. Whether you are controlling a digital file or a physical machine, standardization is your safety net.

In the physical world, we use tools like a hooping station for embroidery to ensure that every shirt is hooped in the exact same spot. In the digital world of the iPad, typing "0,0" is your hooping station. Pros standardize inputs so outputs stay predictable.

The “0,0 + 3-Inch” Alignment Ritual on iPad: Re-Import Artwork and Snap It Back Under Your Stitches

This is the core recovery procedure. If you open your file and see floating stitches, follow this strictly.

What you’re solving

You need to slide the "table" (artwork) back under the "transparency sheet" (stitches) so perfectly that you cannot tell they were ever separated.

Step-by-step (The "Snap-to-Grid" Method)

1. Open the .JDS file: Confirm you see only stitches.

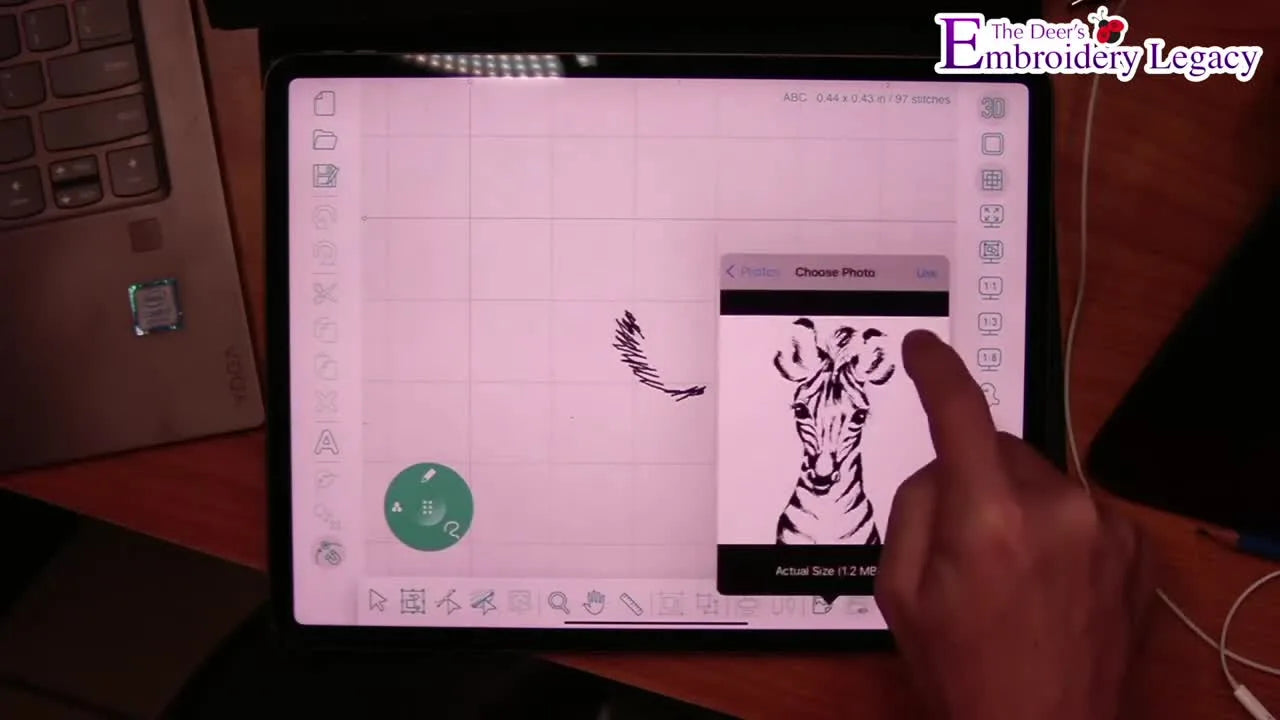

2. Re-import the Source: Go to your library and import the exact same image file. Warning: Do not use a cropped screenshot or a lower-res version saved from a text message. It must be the original file to ensure pixel density matches.
3. Open Properties: Tap the artwork to select it.
4. Verify Aspect Ratio: Ensure the lock icon is ON.
5. Input Width: Select the width value, delete, and type 3. (Or your recorded number).
6. Input Coordinates:
   • Left: Type 0 → Enter.
   • Top: Type 0 → Enter.
7. Visual Audit: Zoom in to 600% (6:1). Look at a sharp corner of your drawing. Does the stitch line sit exactly on the artwork edge?
8. Opacity Adjustment: Lower the opacity back to 40-50%.

Expected outcome: The artwork "snaps" instantly into place. You can now continue adding stitches without any misalignment.

Setup Checklist (So alignment works on the first try)

• File Integrity Check: Are you using the original source image?
• Constraint Check: Is Maintain Aspect Ratio enabled? (Crucial!).
• Precision Entry: Did you type 3 and not stick with 3.01?
• Zero Check: Are Left and Top exactly 0?
• Touch Verification: Be careful not to drag the image with your finger after typing numbers.
• Visual Confirmation: Zoom to 6:1 to verify registration.

This is a precision game. In embroidery, being "off" by 1mm can cause gaps between outlines and fills (registration errors).

Why “0,0” Works So Well (and Why Random Placement Fails Later)

Why do we insist on "0,0"? It removes the variable of human error.

When you drag an image onto the canvas by hand, you might place it at X: 0.12, Y: -0.05. It looks centered, but you will never guess those specific numbers again two days later. By defaulting to the origin (0,0), you utilize a universal constant.

This principle of "Mechanical Zero" applies to your embroidery machine, too. When you turn on your machine, the pantograph moves to find its absolute zero.

In my workshop, we apply this logic to physical hooping. When we transition a client from standard plastic hoops to magnetic embroidery hoops, we are essentially trying to replicate this "0,0" consistency. A magnetic hoop self-aligns the fabric with a satisfying "snap," reducing the variable of hand-tightening a screw and pulling fabric, which often distorts the weave. Reliability—whether digital or physical—comes from removing variables.

The Comment Questions I Hear All the Time—Answered Without the Guesswork

The comment section of tutorial videos is often where the real anxiety surfaces. Let's address the three most common questions with industry-standard answers.

“How do I change the hoop size on only iPad?”

The video focuses on artwork alignment, but users often panic about hoop limits.

• Fact: The software canvas is infinite, but your machine is not.
• Rule: If you have a standard entry-level machine (Brother SE600, PE900, etc.), your limit is likely 4x4 inches (100x100mm) or 5x7 inches (130x180mm).
• Action: Always set your design background size to match your physical hoop minus a safety buffer. I recommend leaving a 10mm margin. If your hoop is 100x100mm, do not design larger than 90x90mm to prevent needle strikes on the frame.

“Do I still need another software? Will it work for a 4x4 machine?”

Design Doodler is an "Applique and Sketch" tool. It is fantastic for organic texture.

• Reality Check: It does not replace a full digitizing suite (like Wilcom or Hatch) for precision logos, small text (under 5mm), or complex density management.
• Workflow: Many pros use Doodler for the creative "art" layer, then export to a PC software to clean up jumps and trims.

“How do I email/transfer my finished design from iPad to PC?”

The "AirGap" issue.

• Workflow: Save > Open Tab > Select File > Share.
• Tip: Emailing it to yourself is the most reliable method if AirDrop is failing. Ensure you export the machine format (DST/PES) and the working file (.JDS).


A Simple Decision Tree: Choose Your Stabilizer and Hooping Method Based on What You’re Stitching (Not Just What You Own)

This video teaches you to manage the digital file, but the file is useless if the physical stitch-out fails. Beginners often blame the software when the issue is actually Physics.

Use this logic flow to determine your physical setup:

START: What is your fabric?

A) Stable Woven (Denim, Canvas, Twill caps)

• Physics: The fabric does not stretch.
• Stabilizer: Tearaway (2.0 oz) is usually sufficient.
• Hooping: Standard hoops work, but are slow.
• Pro Upgrade: This is the ideal scenario for magnetic hoops for embroidery machines. The magnets clamp strong fabrics instantly without leaving the dreaded "hoop burn" (crushed fibers) that plastic rings cause.

B) Unstable Knit (T-Shirts, Polo Pique, Hoodies)

• Physics: The fabric stretches. Stitches will distort the fabric if not locked down.
• Stabilizer: Cutaway (2.5 - 3.0 oz) is MANDATORY. No exceptions.
• Hooping: Do not pull the fabric tight! It should be "neutral flat." If you stretch it in the hoop, it will pucker when unhooped.
• Pro Upgrade: Use a magnetic frame to hold the sandwich gently but firmly. Avoid "screw-tightening" hoops which tend to drag knits out of shape.

C) High Pile / Slippery (Towels, Velvet, Performance Silk)

• Physics: Stitches sink into the pile.
• Stabilizer: Tearaway/Cutaway on bottom + Water Soluble Topping on top.
• Hooping: These are difficult to clamp.
• Pro Upgrade: A true machine embroidery hooping station workflow is critical here to ensure the topping, fabric, and backing stay aligned while you hoop.


The Upgrade Path (Without the Hard Sell): When Your Workflow Outgrows the Couch

If you are doodling for fun, stick to the basics. But if you are using Design Doodler to start a business or fulfill orders, you will eventually hit a wall. That wall is usually Physical Fatigue or Time.

Here is the logical hierarchy of equipment upgrades based on production volume:

Level 1: The "Hobby Plus" Phase (0-10 items/week)

• Pain Point: Hooping is annoying and hurts your wrists. Hoop marks won't iron out.
• Solution: Upgrade your hoop. Learning how to use magnetic embroidery hoop systems can eliminate wrist strain and hoop burn. It makes the process fun again.

Level 2: The "Side Hustle" Phase (10-50 items/week)

• Pain Point: Alignment takes too long. You are measuring every shirt manually.
• Solution: Upgrade your station. Implementing a hoop master embroidery hooping station style workflow (or compatible Sewtech alignment systems) ensures that every Left Chest logo lands exactly 7 inches down from the shoulder seam, repeatable, every time.

Level 3: The "Production" Phase (50+ items/week)

• Pain Point: You are waiting for the machine to finish thread changes. A single-needle machine is too slow.
• Solution: Upgrade your machine. Moving to a multi-needle machine (like the SEWTECH commercial series) increases speed (SPM) and eliminates manual thread changes. When you combine a 15-needle machine with magnetic hoops, you can cycle jobs in seconds, not minutes.

Warning: Physical Safety
Embroidery machines are industrial tools. Never place your hands near the needle bar while the machine is running. If a needle breaks at 800 RPM, the tip can fly with significant velocity. Always wear protective eyewear when testing new designs.

Warning: Magnet Safety
Commercial magnetic hoops use powerful Neodymium magnets. They create a pinch hazard—do not get your skin caught between the brackets. Furthermore, keep these magnets away from pacemakers and sensitive electronics, as the strong magnetic field can interfere with medical devices.

Troubleshooting the iPad Alignment Trick: Symptoms → Likely Cause → Fix

If the realignment trick fails, run this diagnostic.

Operation Checklist: The “Save, Share, Resume” Routine That Prevents Lost Time

To wrap up, integrate this final checklist into your daily habit. This protects your work from the "iPad Format Amnesia."

• Version Control: Save your file as "ProjectName_v1" before major edits.
• Dual Export: If you are done, export both the .JDS (editable) and .DST/.PES (machine) formats immediately.
• Self-Email: Use the Share function to email the files to your PC immediately. Do not rely on local storage alone.
• Screenshot: Take a screenshot of your Properties Panel showing the width and X/Y coordinates. This is your "black box" recorder if you need to restart.
• Hidden Consumables Check: Do you have spray adhesive (for floating stabilizers) and a fresh Titanium Needle (Size 75/11 is the universal starter)? Don't start a project without them.

If you are graduating from digital doodling to physical production, consider how your tools scale with you. A consistent digital start point (0,0) paired with a consistent physical hold (like a magnetic hooping station setup) is the recipe for professional results.

Do you stitch mostly on 4x4 or 5x7 fields? Let me know in the comments, and I can suggest specific stabilizer combinations for your next doodle.

FAQ

• Q: Why does the iPad Design Doodler .JDS file reopen with “floating stitches” and no background image?
  A: This is normal behavior on iPad: the .JDS save keeps stitch coordinates but does not retain the imported background artwork.
  • Re-import the exact same original image file (not a screenshot or messaged copy).
  • Select the artwork and open Properties.
  • Type the recorded Width value and set coordinates to Left = 0, Top = 0.
  • Success check: at 600% zoom (6:1), stitch lines sit exactly on the artwork edges/corners.
  • If it still fails: confirm “Maintain Aspect Ratio” is locked and the width is typed exactly (no 3.01 vs 3.0 drift).
• Q: How do I realign artwork under stitches in iPad Design Doodler using the “Left = 0, Top = 0” method?
  A: Re-import the artwork and hard-code the same Width plus Left/Top = 0 so the image snaps back to the original anchor point.
  • Open the .JDS file showing stitches only.
  • Import the original source image, then select it and open Properties.
  • Turn ON Maintain Aspect Ratio, then type the exact Width (example: 3 inches).
  • Type Left = 0 and Top = 0, then avoid dragging the image afterward.
  • Success check: the artwork “snaps” into place instantly and stays registered when you zoom in.
  • If it still fails: delete the artwork and repeat with the original file (pixel density mismatches often come from screenshots).
• Q: What causes iPad Design Doodler artwork to look “close but slightly off” after re-importing, even when stitches are correct?
  A: The most common cause is a tiny Width mismatch (for example, typing 3.1 instead of 3.0), which shifts registration.
  • Delete the re-imported artwork (don’t try to nudge it by hand).
  • Re-import the original image and type an exact integer Width (example: 3.0).
  • Re-enter Left = 0 and Top = 0, then don’t touch-drag the artwork.
  • Success check: outlines/edges match perfectly at 6:1 zoom with no “shadow” offset.
  • If it still fails: verify Maintain Aspect Ratio is locked; unlocked ratio creates stretch that cannot align cleanly.
• Q: Why does iPad Design Doodler artwork become stretched or squished when I resize it for embroidery tracing?
  A: Maintain Aspect Ratio was unlocked—lock the chain-link icon before resizing to prevent distortion.
  • Select the artwork and confirm the chain-link/lock icon is ON.
  • Type the Width value instead of dragging corners “roughly to size.”
  • Re-enter Left = 0 and Top = 0 after resizing so the anchor stays consistent.
  • Success check: circles stay circular and lettering proportions match the original artwork when zoomed in.
  • If it still fails: re-import the artwork fresh, lock aspect ratio first, then apply width and 0,0 again.
• Q: What is a safe hoop-size rule for iPad Design Doodler designs when stitching on a 4x4 (100x100mm) or 5x7 (130x180mm) embroidery hoop?
  A: Design smaller than the physical hoop and leave a safety buffer—an often-safe starting point is a 10mm margin to reduce frame strikes.
  • Identify the actual hoop limit on the embroidery machine you are using (check the machine manual).
  • Set the design background/working area to match the hoop field minus margin.
  • Keep critical elements away from the edges instead of “filling the whole hoop.”
  • Success check: the finished design stitches without the needle contacting the hoop/frame at any point.
  • If it still fails: reduce the design size further and re-check placement before running at full speed.
• Q: What is the fastest “Save, Share, Resume” routine for iPad Design Doodler to avoid losing editable work and machine files?
  A: Export both the editable .JDS and the machine format (DST/PES) immediately, then share/email to a PC for backup.
  • Save a versioned filename before major edits (example: ProjectName_v1).
  • Export the .JDS (editable) plus DST/PES (machine-ready) the moment the design is finished.
  • Use Share to email the files to yourself if AirDrop is unreliable.
  • Success check: the PC receives both files and the iPad can reopen the .JDS with stitches intact.
  • If it still fails: take a screenshot of the Properties panel (Width + Left/Top coordinates) so the artwork can be re-imported and re-anchored.
• Q: What safety rules should beginners follow for embroidery machine needle movement and magnetic embroidery hoop pinch hazards?
  A: Treat the needle area and strong magnets as pinch/impact hazards—keep hands clear during operation and keep magnetic hoops away from pacemakers and sensitive electronics.
  • Stop the machine completely before reaching near the needle bar or moving parts.
  • Wear protective eyewear when testing new designs, because needles can break at high RPM.
  • Handle magnetic hoops carefully and keep fingers out of the closing gap to prevent pinches.
  • Success check: hoop installation/removal is controlled, fingers stay clear, and no adjustments are made while the machine is running.
  • If it still fails: slow down the workflow and build a habit—hands off moving parts, and magnets stored safely away from medical devices/electronics.
