DesignShop V10 Walk Element Properties: The Clean Lines, Smooth Curves, and “No-Regrets” Settings Pros Actually Use

When a walk line looks wrong on fabric, it’s rarely because you “can’t digitize.” It’s usually because of a fundamental disconnect: your screen shows a vector, but your machine is fighting the harsh physics of thread tension, needle friction, and fabric displacement.

As someone who has spent two decades listening to the rhythm of embroidery machines, I can tell you that the "Walk" element is the most deceptive stitch type. It looks simple—just a line—but it is the skeleton of your design. If the skeleton is weak, the body collapses.

The good news: DesignShop V10 gives you the controls. The better news: I’m going to teach you how to set them not just by the book, but by feel and experience. We will move beyond the default settings to find the "Sweet Spot" where your machine sings rather than struggles.

Calm First: What “Walk Element Properties” Really Control in DesignShop V10 (and Why Your Sew-Out Changes)

A walk element behaves like a chameleon. Depending on the properties you assign, that single line can be a subtle underlay, a crisp cartoon outline, or a thick, hand-stitched effect.

In DesignShop V10, the Walk tab lets you dictate:

• Stitch Type (Normal, Bean, Jump, Decorative, Sequin)
• Stitch Length (The distance between needle penetrations, measured in points)
• Retrace (The machine walks forward, then turns around and walks back)
• Offset (Staggering the needle drops so you don't drill a hole in your fabric)
• Curve Compensation (The "intelligence" that shortens stitches in tight turns)

If you are running production on high-speed equipment like melco embroidery machines, these settings are your primary defense against thread breaks. A machine running at 1000 stitches per minute (SPM) creates immense tension. If your walk properties are weak, that tension will snap the thread or pucker the fabric.

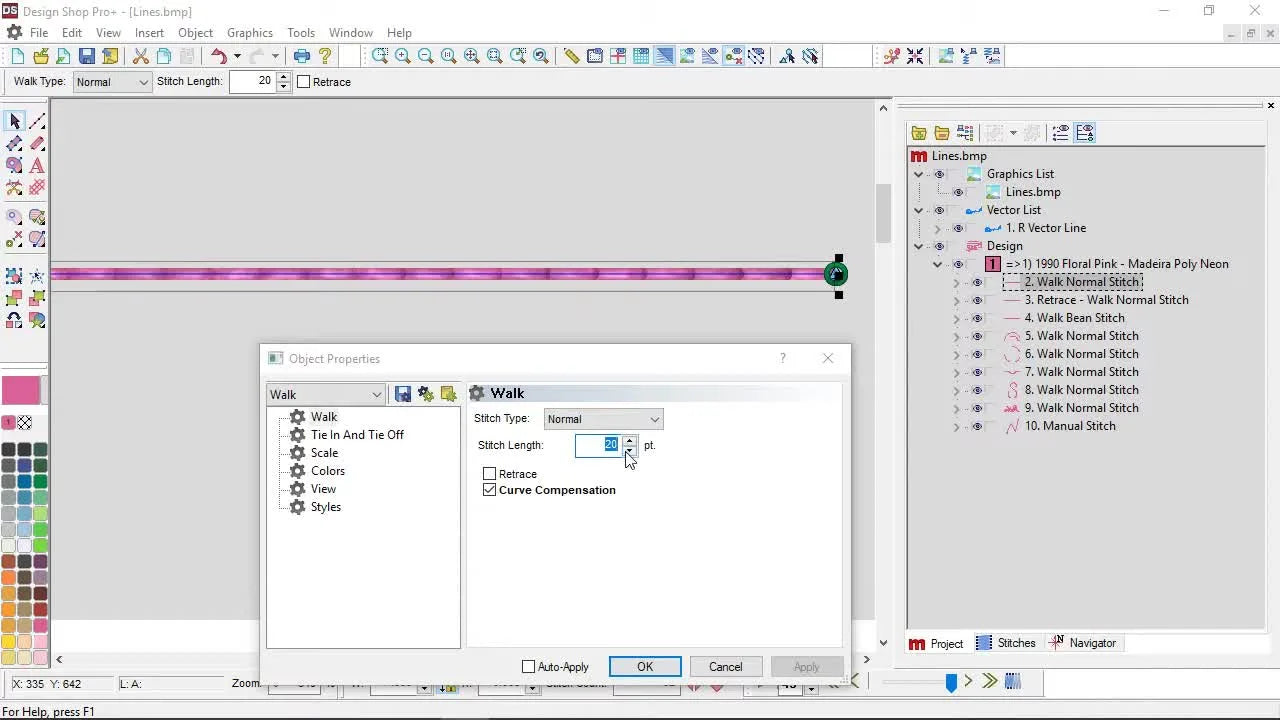

The Right-Click Shortcut: Opening Object Properties on a Walk Element Without Hunting Menus

Efficiency is muscle memory. In a busy shop, you don't have time to hunt through drop-down menus.

The Action Step:

1. Select your digitized walk element line.
2. Right-click either the object in the project tree or directly on the canvas.
3. Choose Properties to launch the Object Properties dialog.

Success Metric (Visual):

• The Object Properties window floats over your canvas.
• You immediately see the Walk tab. If you see "Column" or "Fill," you’ve selected the wrong element type.


The “20 pt vs 40 pt” Reality Check: Stitch Length in DesignShop V10 and What It Does to Needle Penetrations

Here is where beginners often crash. In embroidery software, "Points" behave differently than you might expect.

• 10 Points = 1 Millimeter.
• Therefore, 40 Points = 4mm.

The Experiment (from the video):

1. In the Walk properties, locate Stitch Length.
2. Change the value from 20 pt (2mm) to 40 pt (4mm).
3. Click Apply.

Sensory Check (Visual):

• Watch the needle points on the screen. They spread out. The line looks "lighter" or less dense.


The Master’s Interpretation (The Safety Zone): Why focus on this? Because fabric physics dictates your limits.

• The Danger Zone (< 20 pts / 2mm): If stitches are too short, the needle hammers the same area repeatedly. This causes "birdnesting" (a knot of thread under the throat plate) or cuts the fabric.
• The Snag Zone (> 50 pts / 5mm): If stitches are too long particularly on wearable items, they become "floaters." A finger, a washing machine agitator, or a button can catch the loop and ruin the garment.

My Recommendation: For standard cotton or twill, keep your walk stitches in the 25–35 pt (2.5mm–3.5mm) range. This is the "Sweet Spot"—tight enough to curve, long enough to lie flat.

Warning: Mechanical Hazard. Never force a stitch length below 15 pts (1.5mm) on a standard walk line unless you are using 60wt thread and a 65/9 needle. Standard 40wt thread will bunch up, heat up the needle, and potentially snap the needle tip, sending metal shards flying. Always wear eye protection.

Retrace + Offset: The Pro Move That Prevents “Same Hole” Punching and Sunken Lines

"Retrace" sounds great—it doubles the line thickness! But without "Offset," Retrace is a fabric killer. Imagine hammering a nail, then hammering it again in the exact same spot. You don't get a stronger nail; you just destroy the wood. This is called "Tunneling."

The Fix:

1. Turn on Retrace (The machine sews A to B, then B back to A).
2. Crucial Step: Set Offset to 20 pt (assuming your stitch length is 40 pt).
   • The Rule: Offset ≈ 50% of the stitch length.

Success Metric (Visual):

• Zoom in until you see individual needle points. The return trip should drop needle points exactly halfway between the forward trip points.


The Sensory Anchor (Tactile): Run your finger over a line with Retrace but no Offset. It feels like a gutter or a trench; the thread has sunk into the fabric. Now, feel a line with Retrace + Offset. It feels like a rope laying on top of the fabric. It has dimension and life.

Why this works: Thread creates tension. Fabric is compressible. By staggering the penetrations (Offset), you distribute the stress across different yarns of the fabric weave, preventing the "saw effect" that cuts holes in delicate knits.

Pro Tip for Texture: The instructor highlights using this for organic textures like fur. By offsetting, you avoid the robotic "railroad track" look, creating a softer, more hand-stitched appearance.

Curve Compensation: The Setting That Makes an “S” Curve Look Like a Curve (Not a Polygon)

Embroidery machines run on X and Y axes. They love straight lines. They hate curves. Without help, a curve is just a series of jagged straight lines (a polygon).

The Action Step:

1. Create a tight “S” curve.
2. Duplicate it.
3. On the second copy, enable Curve Compensation.

Success Metric (Visual):

• On the compensated curve, notice that stitch points automatically cluster tighter in the sharp bends and spread out on the straights.




The "Why" (Physics): As a digitizer, you can't curve a piece of thread between two points. It is physically straight. To illusion a curve, you need shorter segments.

• Without Comp: The thread "bridges" the curve, making it look blocky.
• With Comp: The software forces more needle drops to hug the radius.

Commercial Application: This is critical for small lettering and logos on hats. Designing for caps is notoriously difficult because of the curved surface. Searching for terms like melco hat hoop parameters often leads you here: the tightness of the cap driver combined with Curve Compensation is the secret to crisp lettering on the Crown.

Bean Stitch in DesignShop V10: How “Forward-Back-Forward” Builds a Bolder Line (Without Going Full Satin)

The "Bean Stitch" (or Triple Stitch) is the heavy lifter of outlining. It goes: Forward A, Back to B, Forward to C. It builds a bold, unbroken line that stands up on towels and fleece.

The Action Step:

1. In Stitch Type, select Bean.
2. Bean Thickness: Default is usually 3 (Forward-Back-Forward).
   • You can go higher (5, 7, 9...), but tread carefully.






The "Too Thick" Trap: Beginners often leave Retrace ON while switching to Bean.

• Math: 3 passes (Bean) × 2 directions (Retrace) = 6 strands of thread piling up.
• Result: Bulletproof stiffness and broken needles.

Warning: Thread Shredding Risk. A 5-ply or 7-ply bean stitch generates significant friction heat. Synthetic threads (polyester) can melt; natural threads (rayon) can shred. If you hear a "dry snapping" sound or see "fuzz" accumulating at the needle eye, slow down your machine speed (SPM) immediately.

The Pro Habit: Whenever you change a Stitch Type to Bean, automatically glance at the Retrace checkbox. Uncheck it unless you have a very specific, heavy-duty reason.

Jump, Decorative, and Sequin Walk Types: When to Use Them (and When They’re Just Noise)

These are specialized behaviors for specific design needs.

Jump (Movement)

Context:

• Used mainly for vintage machines or specific travel movements where you need the machine to move without dropping a needle.
• Visual: A dotted travel line.


Decorative (Pattern Repeats)

The Action Step:

1. Set Stitch Type to Decorative.
2. Choose a pattern (e.g., Leaves) from the library.
3. Click Apply.




The Hidden Risk: Decorative walks are unforgiving. If your fabric shifts even 1mm, the pattern won't join up correctly at the end of the loop. This usually happens because the fabric is slipping in the hoop. Many operators switch to magnetic embroidery hoops for these types of borders because the magnetic clamping force distributes pressure more evenly than thumbscrews, holding the grain straight for geometric precision.

Sequin (Hardware Dependent)

• Only applicable if your machine has the physical sequin feeder attachment.


The “Hidden” Prep Pros Do Before Testing Walk Properties (So You Don’t Chase Ghost Problems)

You cannot evaluate a software setting if your hardware is compromised. Before you run a test, you must normalize your environment.

Hidden Consumables List (Do you have these?)

• New Needles: Size 75/11 sharp (for wovens) or ballpoint (for knits). A burred needle behaves like bad digitizing.
• Fresh Bobbin: Ensure tension is verified (the "drop test" or tension gauge).
• Scrap Fabric: Must match your final garment type.
• Temporary Spray Adhesive or Solvy: To keep toppings floating.

Prep Checklist (Pre-Flight)

• Scale: Is the design viewed at 100% (1:1)? Zoomed in views hide "jagged" curves.
• Needle Check: Run your fingernail down the needle checking for burrs.
• Thread Path: Floss the thread through the tension disks. You should feel a smooth, consistent resistance (like pulling a tooth from an apple), not jerky or "sandy."
• Bobbin: Is the bobbin case free of lint? A lint bunny the size of a pinhead can ruin your stitch tension.

If you’re running a commercial workflow on a melco amaya embroidery machine, treating this prep like a pilot's checklist works wonders. A 2-minute check saves a 20-minute unpicking nightmare.

Stabilizer Decision Tree: Match Fabric Behavior to Backing Before You Blame Digitizing

A walk stitch has zero structural integrity on its own. It relies entirely on the sandwich it sits on.

The Decision Tree: Fabric vs. Stabilizer

1. Is the fabric stretchy (T-shirt, Performance Knit)?
   • YES: CUT-AWAY. No exceptions. A walk stitch on knit without cut-away will pop when the shirt stretches.
   • NO: Go to Step 2.
2. Is the fabric unstable/hoop-sensitive (Silk, Satin, Velvet)?
   • YES: NO-SHOW MESH (Polymesh) or FUSIBLE. You need stability without the "badge" effect.
   • NO: Go to Step 3.
3. Is the fabric lofty (Fleece, Towel, Pique Polo)?
   • YES: You need a TOPPING (Water Soluble Film). The walk stitch will sink into the pile without it. Use Bean stitch for visibility.
   • NO (Standard Cotton/Denim): TEAR-AWAY is acceptable for simple outlines.

My Analysis: If your walk line looks "drunk" or wobbly, 90% of the time it is not the software properties—it is insufficient stabilization allowing the fabric to shift under the needle.

Setup That Prevents Hoop Burn and Misregistration (Especially on Repeats)

We have all been there: You un-hoop a perfect embroidery, only to find a permanent white "ghost ring" crushed into the fabric. This is "Hoop Burn." It happens when you overtighten standard plastic rings to secure a slippery walk stitch.

The Production Solution: If you are doing frequent rehooping or fighting hoop burn on delicate navies/blacks, consider upgrading your workflow. A hooping station for machine embroidery allows you to place the hoop consistently every time.

Furthermore, many shops are moving away from friction hoops entirely. magnetic hooping station setups combined with magnetic frames allow for "floating" or gentle clamping that eliminates hoop burn while holding the fabric tighter than a thumbscrew ever could.

Setup Checklist (Ready to Launch)

• Tension Check: Tap the hooped fabric. It should sound like a dull drum (thump), not a high-pitched snare (ping). Too tight distorts the fabric molecules.
• Property Confirmation: Did I turn off Retrace if I'm using Bean?
• Offset Verification: Is Offset set to 20 pts if Retrace is ON?
• Obstruction Check: Is the shirt back clear of the needle plate? (Don't sew the shirt closed!)

Stitching the Test: What to Look For While the Machine Runs (Not After It’s Too Late)

Keep your eyes on the needle, not your phone.

Operation Checklist (Auditory & Visual)

• Sound: Listen for a rhythmic purr. A repeated clack-clack-clack usually means the needle is hitting the throat plate (too much density/deflection).
• Sight: Is the fabric "flagging" (bumping up and down) with the needle? If yes, your hooping is too loose, or your backing is too thin.
• Looping: Watch the top thread. If you see loops forming, your tension is too loose or the stitch length is too long for the speed.
• Sinking: Is the line disappearing? Stop. Add a layer of Solvy topping.

Troubleshooting Walk Element Properties: Symptom → Cause → Fix

The Upgrade Path: When Better Hooping and Faster Loading Beat Endless Parameter Tweaks

You can master every setting in DesignShop V10, but if you are fighting your equipment, you will hit a ceiling.

• The Struggle: If your wrists hurt from tightening screws, or you are rejecting 10% of your shirts due to hoop burn or uneven placement.
• The Level-Up: Terms like magnetic embroidery hoop aren't just buzzwords; they represent the industry standard for reducing operator fatigue and fabric damage.
• The Bottleneck: If you are spending 5 minutes changing thread colors on a single-needle machine for a 6-color logo.
• The Commercial Leap: This is when a SEWTECH multi-needle embroidery machine becomes an investment, not an expense. Moving from "monitoring the machine" to "loading the next hoop while the machine runs" is how hobbies become businesses.

Warning: Magnetic Safety. Professional magnetic hoops use N52 Neodymium magnets. They are incredibly powerful.
1. Pinch Hazard: They can crush fingers instantly if handled carelessly.
2. Medical Danger: Keep them at least 6 inches away from pacemakers and insulin pumps.
3. Electronics: Do not place them directly on laptops or monitors.

FAQ

• Q: In DesignShop V10 Walk Element Properties, what stitch length in points should be used to prevent birdnesting and fabric damage on standard cotton or twill?
  A: Use 25–35 pt (2.5–3.5 mm) as a safe working range, and avoid forcing very short stitches.
  • Set Stitch Length to 25–35 pt for most cotton/twill outlines.
  • Avoid the danger zone under 20 pt (2 mm), which can hammer the same area and trigger birdnesting or fabric cutting.
  • Avoid the snag zone over 50 pt (5 mm) on wearables, which can create long “floaters.”
  • Success check: the screen needle points look evenly spaced and the sewn line lies flat without puckering.
  • If it still fails… normalize hardware first (new needle, verified bobbin tension, correct stabilizer) before changing more software settings.
• Q: In DesignShop V10, how do Retrace and Offset settings prevent “same-hole” punching and sunken walk lines?
  A: Turn on Retrace only with Offset, setting Offset to about 50% of stitch length (example: 40 pt length → 20 pt Offset).
  • Enable Retrace to build a thicker line, then immediately set Offset.
  • Set Offset ≈ 50% of the stitch length (the blog example: 20 pt Offset for 40 pt stitches).
  • Zoom in and confirm the return needle drops land halfway between the forward drops.
  • Success check: the line feels like a rope on top of the fabric, not a trench/gutter.
  • If it still fails… reduce density choices (don’t combine heavy settings) and re-check hooping stability to stop fabric shifting.
• Q: In DesignShop V10, why does a Bean Stitch outline become stiff or cause needle/thread problems when Retrace is left ON?
  A: Do not stack Bean Stitch with Retrace unless there is a specific heavy-duty reason—Bean already builds multiple passes.
  • Switch Stitch Type to Bean, then immediately glance at the Retrace checkbox and turn Retrace OFF in most outlining cases.
  • Keep Bean Thickness conservative (default is commonly 3) and increase only if the fabric can handle it.
  • Listen for “dry snapping” sounds or watch for fuzz at the needle eye—those are friction warnings.
  • Success check: the outline looks bold but still flexible, and the machine runs with a steady “purr,” not harsh snapping.
  • If it still fails… slow machine speed and verify the stabilizer “sandwich” is appropriate for the fabric loft (towel/fleece often needs topping).
• Q: In DesignShop V10 Walk settings, how does Curve Compensation prevent thread breaks and jagged outlines on tight “S” curves and small lettering?
  A: Enable Curve Compensation so the software automatically shortens stitches in tight turns instead of forcing ultra-short base stitch length.
  • Duplicate a tight “S” curve and enable Curve Compensation on one version to compare behavior.
  • Keep a reasonable base stitch length (the blog’s sweet spot range is a good starting point) and let compensation add needle drops only where needed.
  • Inspect the compensated curve for clustered points in bends and wider spacing on straights.
  • Success check: curves sew smoothly without a polygon look, and thread stops snapping specifically at bends.
  • If it still fails… check for a burred needle and re-floss the thread path through tension disks to eliminate “sandy/jerky” drag.
• Q: Before testing DesignShop V10 Walk Element Properties, what consumables and hardware checks prevent “ghost problems” like false tension issues?
  A: Standardize the environment first: new needle, verified bobbin, matching scrap fabric, clean thread path, and stable hooping.
  • Install a new 75/11 needle (sharp for wovens, ballpoint for knits) and check for burrs with a fingernail test.
  • Verify bobbin condition/tension and remove lint from the bobbin area (even tiny lint can ruin tension).
  • Use scrap fabric that matches the final garment, and add topping (water-soluble film) when the surface is lofty.
  • Floss thread through the tension disks and confirm resistance feels smooth and consistent, not jerky.
  • Success check: the test run sounds rhythmic and the fabric does not “flag” up and down with the needle.
  • If it still fails… move to the stabilizer decision tree (cut-away for knits; no-show mesh/fusible for hoop-sensitive fabrics).
• Q: What is the stabilizer choice rule for walk stitch outlines on stretchy knits, hoop-sensitive fabrics, and lofty materials?
  A: Match stabilizer to fabric behavior: cut-away for knits, no-show mesh/fusible for delicate hoop-sensitive fabrics, and topping for loft.
  • Choose CUT-AWAY for stretchy knits (walk stitches on knit without cut-away can pop when stretched).
  • Choose NO-SHOW MESH (polymesh) or FUSIBLE for silk/satin/velvet when stability is needed without a heavy “badge” feel.
  • Add water-soluble TOPPING for fleece/towel/pique to prevent the line from sinking into the pile.
  • Success check: the outline stays crisp and does not look “drunk/wobbly,” and the line remains visible on loft.
  • If it still fails… re-check hooping tension (too loose causes shifting; too tight can distort fabric and cause puckering).
• Q: What needle and stitch-length safety warning applies when forcing very short walk stitches in DesignShop V10?
  A: Do not force stitch length below 15 pt (1.5 mm) on a standard walk line unless using 60wt thread and a 65/9 needle, and treat it as a mechanical hazard.
  • Avoid ultra-short stitches with standard 40wt thread, which can bunch, heat the needle, and increase break risk.
  • Stop immediately if the machine begins harsh clacking or the thread starts shredding—do not “push through.”
  • Wear eye protection when testing aggressive density changes.
  • Success check: the machine runs smoothly without excessive heat/fuzz, and the fabric shows no cut holes along the line.
  • If it still fails… back off to the 25–35 pt range and use Curve Compensation and proper stabilizer instead of brute-force density.
• Q: When repeated hoop burn, misregistration, or decorative border misalignment happens, what is the practical upgrade path from technique fixes to magnetic hoops to multi-needle production?
  A: Start with setup technique, then consider magnetic hoops for gentler, more even clamping, and move to a multi-needle machine when changeovers become the bottleneck.
  • Level 1 (technique): verify hoop tension (dull drum “thump,” not tight “ping”), keep fabric from shifting, and use the correct stabilizer/topping.
  • Level 2 (tool): switch from friction hoops to magnetic hoops when hoop burn/ghost rings or border misalignment keeps happening from uneven clamping pressure.
  • Level 3 (production): consider a SEWTECH multi-needle embroidery machine when time is lost to frequent thread/color changes and rehooping throughput limits output.
  • Success check: hoop burn stops appearing on dark/delicate fabrics and repeat placements become consistent with fewer rejects.
  • If it still fails… treat it as a process issue: standardize prep checks (needle/bobbin/lint/thread path) before changing digitizing parameters again.
