Digitize a Clean Appliqué in Embrilliance StitchArtist Level 1 (and Actually Stitch It on a Brother PE800 Without Surprises)

If you’ve ever watched a digitizing video and thought, “Cool… but will it actually stitch clean on my machine?”—you’re not alone. The gap between a sterile computer screen and the violent vibration of an embroidery machine is where dreams usually die. Digitizing is only half the job. The other half is “Experience Engineering”—making decisions that prevent the classic heartbreak: shifting appliqué fabric, chunky whiskers, or a stitch order that forces you to trim in the worst possible places.

This post rebuilds the exact workflow shown in the video—importing a reference image, tracing with points, converting to satin borders for appliqué, refining whisker end-caps, simulating, and exporting a .PES for a Brother PE800—then adds the missing “production reality” checks I’ve taught in professional studios for two decades.

Don’t Panic: StitchArtist Level 1 + Brother PE800 Is Enough to Make a Real Appliqué File

The video creator is working in Embrilliance StitchArtist Level 1 and exporting a .PES for a Brother PE800 Embroidery Machine. That combo matters because it keeps your workflow simple: you’re building clean vector shapes first, then assigning stitch types, then verifying the stitch path with simulation.

If you’re intermediate in crafting but new to digitizing, use this mental model to lower your anxiety: Draw shapes → Assign stitches → Adjust "The Feel" (Properties) → Simulate → Export. You don’t need to master every button in the software to get a professional-looking appliqué outline.

One viewer asked a very practical question: do you need both an iPad and a laptop? The video shows the iPad (Apple Pencil) being used for tracing, then switching to a MacBook for stitch editing. In the industry, we call the iPad a "comfort tool." It frames the art, but the "math" happens on the computer. If you can place points accurately with a mouse/trackpad, you can still complete the same StitchArtist steps.

The Hidden Prep Pros Do First: Image Setup, Hoop Reality, and a “No-Regrets” Plan

Before you place a single node, you must set your "physics" environment. If you don't constraints your design now, the machine will punish you later.

In the video, the workspace shows a 130 x 180 mm hoop (5x7) in the status bar, and the background image transparency is set to 75%.

Here are the expert habits that prevent the "It didn't fit" disaster:

1) Digitize to the hoop you’ll actually stitch. If you plan to stitch on a PE800’s 5x7 field, treat the edge of that hoop like a cliff. A design that “barely fits” on screen (within 1-2mm of the edge) is a nightmare in reality because standard hoops have metal brackets that can obstruct the foot. Safe Zone Rule: Keep your design at least 10mm away from the max hoop edge.

2) Decide early: Appliqué vs. Fill. The video builds an appliqué (felt is the fill). This changes your physics. Satin borders create a "dam" around the fabric. If they are too thin, the fabric frays; too thick, and they bullet-proof the edge.

If you’re also thinking about the physical stitch-out, this is where hooping for embroidery machine becomes more than a beginner keyword—it’s a design constraint. A clean file still fails if the fabric isn’t stabilized and held with drum-tight tension.

Prep Checklist (Pre-Flight):

• Hoop Size: Confirm target is visible (Video: 130 x 180 mm / 5x7) and your design has a 10mm "breathing room" buffer.
• Visuals: Import reference image, set Transparency to 75%.
• Logical Chunking: Decide object breakdown (Head separate from Body? Eyes separate from Face?).
• Risk Spots: Mentally mark “thin detail zones” (whiskers). These are high-risk for thread breaks if digitized poorly.
• Consumables Check: Do you have appliqué scissors (duckbill) and temporary spray adhesive? You will need them.


Trace Like You Mean It: “Draw With Points” on iPad + Apple Pencil Without Wobbly Curves

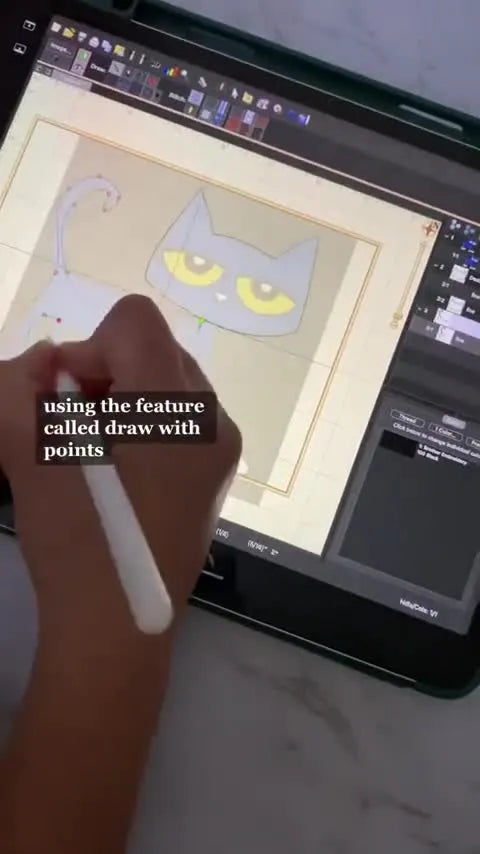

The video uses StitchArtist’s Draw with points tool and an Apple Pencil (via iPad) to place nodes.

The Golden Rule of Tracing: Fewer points = Smoother curves. Beginners try to "trace the pixels" by adding a dot every millimeter. This creates "jagged" data. The machine interprets every dot as a potential instruction change, making the motor sound like it's grinding gravel.

Sensory Check: When you eventually stitch this, you want a rhythmic hum, not a stuttering grind. To achieve that, place nodes only at the "peaks" and "valleys" of curves. Let the software calculate the smooth arc between them.

The Fastest Win in Digitizing: Copy, Paste, Invert (So Symmetry Doesn’t Eat Your Time)

At 01:48–02:04, the creator duplicates the first eye: copy → paste → invert (mirror) to create the second eye instead of redrawing it.

This isn't just about speed; it's about visual balance. The human eye is incredibly good at spotting even 1mm of asymmetry in animal faces. By mirroring, you guarantee perfection.

Pro-Tip: If you are building a library for sale or repeated use, standardizing your "Eye" size allows you to re-use that asset in future designs, compounding your time savings.

Switch to Stitching Mode: Turn Vectors Into Appliqué Satin Borders (Without Overbuilding)

In the video, after tracing, the creator moves to the MacBook to focus on stitch assignment. They convert outlines into Satin Border objects (Video: 02:22).

This is the "Danger Zone." A vector line has no width; a satin stitch has physical mass.

• Too Thick: The stitches bunch up, causing needle deflection (broken needles).
• Too Thin: The appliqué fabric (felt) pokes through the gaps.
• Too Dense: You cut the fabric like a perforated stamp.

The Sweet Spot Data: For standard appliqué on felt using 40wt thread:

• Width: Start at 3.0mm to 3.5mm. This covers the raw edge safely.
• Density: Start at 0.40mm to 0.45mm spacing. (Note: Many software defaults are 0.40mm. Do not go tighter than 0.35mm on felt or you risk cutting it).






The Satin Border “Feel Test”: Thickness, Density, and Why Felt Behaves Differently Than Fabric

The creator uses navy blue felt for the body and yellow felt for the eyes.

Sensory Science: Felt is a "sponge." When a satin stitch lands on felt, it sinks. A 3mm satin column on screen will look like a 2.5mm line on felt because the edges bury themselves.

This compression causes another issue: Hoop Burn. Because felt is thick, clamping it in a traditional plastic hoop requires simpler brute force. This often crushes the fibers permanently, leaving a ring mark that ruins the project.

This is where a practical upgrade path saves frustration. If you are constantly fighting hoop marks (hoop burn) or struggling to close the plastic ring over thick felt, a magnetic hoop for brother pe800 can use strong magnets to hold the fabric flat without the crushing friction of an inner ring. It’s a massive quality-of-life upgrade for felt projects.

Warning: Needle Safety. When the machine is moving, keep hands 6 inches away. If a needle mimics a "machine gun" sound (loud, metallic rapid-fire), hit STOP immediately. You are hitting the hoop or a knot.

Decision Tree: Stabilizer + Hooping Choices for Felt Appliqué

1. Is your Felt firm (stiffened) or soft (limp)?
   • Firm: You can often get away with Tearaway stabilizer (easy clean up).
   • Soft: You MUST use Cutaway stabilizer. The felt will stretch under the needle otherwise, causing outline misalignment.
2. Is hoop burn ruining your final look?
   • Yes: Stop using standard hoops. Switch to magnetic embroidery hoops like those from SEWTECH or Hoop Master to hold without crushing.
   • No: Proceed, but loosen the outer screw slightly to accommodate thickness.
3. Are your satin stitches shrinking/disappearing?
   • Yes: Increase width by 10% or use a water-soluble topping (Solvy) to keep stitches "lofted" on top.


Fix the “Blocky Whisker” Problem: Rounded End Points Make Thin Satin Look Expensive

At 03:13–03:29, the video nails a detail that separates “homemade” from “Professional”: whiskers are adjusted. The End Points are changed from Blocky to Rounded (03:18).

Why this matters: A "Blocky" end creates sharp corners. In thin columns (under 1.5mm), the needle has to place stitches very close together at those corners to make the square. This creates a hard "knot" of thread that looks messy and often breaks.

A "Rounded" end allows the machine to taper the stitches naturally. It flows.

Tactical Advice: For any line narrower than 2mm, always use rounded or tapered caps. It saves thread and looks cleaner.

The Tail Looked Wrong? Here’s the Real Fix: Edit Nodes, Don’t “Fight It” With Stitch Settings

The video shows a classic digitizing moment: the tail shape looked off, so the creator adjusted the vector points (nodes) to reshape the curve.

Principle: You cannot "Stitch Fix" a bad "Vector Shape." If the curve looks kinked, no amount of Pull Compensation or Density adjustment will hide it. Go back to the geometry.

how to smooth a curve:

1. Locate the offending "kink."
2. Delete the node closest to it. often, deleting a node forces the line to relax into a smoother arc.
3. Check the "Handles" (Bezier arms). If one is very long and the other very short, the curve will look warped. Balance them out.


The “Stitch Order Sanity Check”: Simulate First, Then Export .PES for Brother PE800

At the end, the creator runs a stitch simulation to preview the stitch-out path, then saves the file as .PES for the Brother PE800.

The "Cinema" Mode: Watch the simulation like a movie. You are looking for "The Jump Scare."

• Does the machine jump from the left ear to the right foot, then back to the nose? That's bad.
• Does it stitch the detail lines before the appliqué fabric is tacked down? That's a disaster.

Correct Appliqué Order:

1. Placement Line: Shows you where to put the fabric. (Stop)
2. Tack Down: Stitches the fabric down lightly. (Stop & Trim).
3. Satin Border: Factors the raw edge. (Run fast).
4. Details: Eyes, whiskers, etc.

Setup Checklist (The "Pre-Save" Audit):

• Format: Export as .PES (Brother standard).
• Center: Is the design Centered (0,0)? The PE800 defaults to center; if your file is off-center, you might hit the frame.
• Whiskers: Are ends rounded?
• Order: Placement -> Tack Down -> Satin -> Details.
• Consumables: Do you have enough bobbin thread? (Check the window: if the spool looks like it's running on fumes, change it now, not mid-satin).




Hooping and Production Reality: How to Keep Felt Appliqué From Shifting Mid-Run

Digitizing is clean on screen; felt in a hoop is a wrestling match.

Generally, the biggest cause of appliqué misalignment (where the satin stitch misses the fabric edge) isn't the file—it's the Hooping.

The "Drum" Test: When your fabric and stabilizer are in the hoop, tap it with your fingernail.

• Sound: A dull "thud"? Bad. It's too loose. It will shift.
• Sound: A sharp "drum-like ring"? Good. It's tight.

If you struggle to get that tension without distorting the fabric (pulling it into an oval), or if your hands hurt from tightening the screw, consider upgrading your tools. Many users researching embroidery hoops for brother machines eventually migrate to magnetic options. Specifically, a brother 5x7 magnetic hoop allows you to "slap" the fabric in place. The magnets hold the tension evenly across the entire frame, preventing the "pull distortion" common with screw-tightened hoops.

Warning: Magnetic Hazard. These are industrial-strength neodymium magnets. They can pinch skin severely (blood blisters) and wipe credit cards. Pacemaker users: Maintain a safe distance (usually 6+ inches) or consult your doctor before using magnetic hoops.

When to Stop “Hobby Hooping” and Start Using a Station (Yes, Even at Home)

If you are doing a "run" (e.g., 20 patches for a Little League team), manual hooping will destroy your efficiency.

Professional shops use a system. You might see terms like a hoop master embroidery hooping station in forums. The concept is simple: a jig that holds the hoop in the exact same spot for every shirt.

For the home user with a PE800, you don't need a factory station, but you do need consistency. If your wrists scream after the third hoop, look into a brother pe800 magnetic hoop. The reduction in physical strain is the difference between quitting at item #5 and finishing item #20 with a smile. It transforms the "chore" of setup into a 5-second "click-and-go" action.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

Before you blame the digitizing, check the physics.

The Upgrade Path That Actually Makes Sense: Software Skill First, Then Tools That Buy Back Time

The video proves a point I’ve seen for 20 years: You can create magic with "entry-level" software like StitchArtist Level 1 if your logic is sound.

Master the Pathing and Properties first. Once you stop breaking needles and start getting clean results, then invest in speed. The natural progression for a growing hobbyist is:

1. Software: Learn to edit your own files (save $ on buying designs).
2. Stabilizers: Buy a roll of heavy cutaway and decent adhesive spray.
3. Hooping: Upgrade to Magnetic Hoops to save your wrists and reduce hoop burn.
4. Machine: Move to a multi-needle (SEWTECH/Brother options) when you need to do 4+ colors without changing thread manually.

Operation Checklist (The "Go" Button):

• Needle Check: Is it sharp? If it's been in there for 3 projects, change it. Sharp needles pierce felt; dull ones punch it.
• Speed: Dial the PE800 down to 600 SPM or lower for the satin border steps. Speed Kills Quality.
• Observation: Watch the first 100 stitches. If the thread shreds, STOP immediately. Re-thread.
• Figners: Keep them away.
• Enjoy: Listen for the rhythm. If it sounds smooth, let it run.

Happy Stitching. Feel the fear, do the prep, and hit start anyway.

FAQ

• Q: How far from the Brother PE800 5x7 (130×180 mm) hoop edge should an appliqué design be digitized to avoid hoop/foot collisions?
  A: Keep the design at least 10 mm inside the maximum hoop boundary as a safe zone.
  • Set the workspace to 130×180 mm (5x7) before placing nodes.
  • Leave extra margin if the design “barely fits” on screen (avoid the 1–2 mm cliff-edge).
  • Center the design before export so the PE800 doesn’t drive unexpectedly toward the frame.
  • Success check: The outermost stitches never run close to the hoop hardware, and the machine does not “tick” or strike the frame during the first outline.
  • If it still fails: Re-check hoop selection in software and re-save with proper centering before stitching again.
• Q: What satin border width and density are a safe starting point for felt appliqué using 40 wt thread (Brother PE800 / StitchArtist satin border)?
  A: Start at 3.0–3.5 mm width and 0.40–0.45 mm density spacing for felt appliqué borders.
  • Set satin width first (too thin shows felt edges; too thick builds bulk and deflects needles).
  • Keep density at or above 0.40 mm; avoid going tighter than 0.35 mm on felt to reduce “perforating” the edge.
  • Increase width by about 10% if the satin visually “shrinks” into the felt.
  • Success check: The satin fully covers the raw felt edge without puckering, and the machine sound stays like a steady hum (not a harsh grind).
  • If it still fails: Add a water-soluble topping to keep stitches lofted, and slow the machine for border steps.
• Q: How can StitchArtist Level 1 “Draw with points” tracing be smoothed to prevent wobbly curves that stitch rough on a Brother PE800?
  A: Use fewer nodes and place points only at curve “peaks and valleys” so the software can form clean arcs.
  • Remove extra points instead of “pixel tracing” every millimeter.
  • Delete the node closest to a kink to let the curve relax into a smoother line.
  • Balance curve handles (Bezier arms) if one side is much longer than the other.
  • Success check: In simulation, the path looks smooth with no jagged micro-turns, and during stitching the PE800 sounds rhythmic (not stuttering like gravel).
  • If it still fails: Reshape the vector first—stitch settings cannot reliably fix a bad curve.
• Q: What is the correct appliqué stitch order to verify in simulation before exporting a .PES file for the Brother PE800?
  A: Confirm the sequence is Placement Line → Tack Down → Satin Border → Details before saving the .PES.
  • Run the simulation like a “movie” and watch for long, illogical jumps across the design.
  • Ensure details (eyes/whiskers) do not stitch before the appliqué fabric is tacked down.
  • Stop points should exist where trimming is required (after tack down, before satin).
  • Success check: The simulation shows a logical, efficient path with no “jump scare” travel and the appliqué steps appear in the correct order.
  • If it still fails: Re-order objects/layers in the design and simulate again before exporting.
• Q: How can a Brother PE800 user prevent felt appliqué shifting and outline misalignment caused by incorrect hooping tension?
  A: Hoop to “drum tight” tension and match stabilizer type to felt firmness to reduce shifting.
  • Tap the hooped fabric: aim for a sharp, drum-like ring (not a dull thud).
  • Use tearaway stabilizer for firm felt; use cutaway stabilizer for soft/limp felt to prevent stretch.
  • Use temporary spray adhesive when needed so the felt doesn’t creep during stitching.
  • Success check: The satin border lands evenly over the felt edge all the way around without the fabric drifting under the needle.
  • If it still fails: Upgrade hooping method (magnetic hoop) or re-check that the hoop is not distorting the felt into an oval.
• Q: What should a Brother PE800 operator do immediately if the machine makes a loud metallic “machine-gun” needle sound during appliqué stitching?
  A: Press STOP immediately—the needle may be striking the hoop or a thread knot may be forming.
  • Keep hands at least 6 inches away while the machine is moving.
  • Inspect for hoop contact marks and check the design position (centering and safe-zone margin).
  • Check for thread knots/birdnesting around the needle plate area before restarting.
  • Success check: After correction, the machine returns to a smooth, consistent stitching sound with no metallic strikes.
  • If it still fails: Re-hoop with proper clearance and re-run a slow test at reduced speed for the satin border.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops on home or industrial embroidery setups?
  A: Treat neodymium magnetic hoops as pinch hazards and keep them away from sensitive items and medical devices.
  • Separate magnets slowly and deliberately to avoid skin pinches and blood blisters.
  • Keep magnets away from credit cards and magnet-sensitive devices.
  • Maintain a safe distance for pacemaker users (often 6+ inches) and follow medical guidance.
  • Success check: The fabric is held flat without crushed fibers (reduced hoop burn), and hands are never caught between magnet blocks.
  • If it still fails: Switch back to standard hooping temporarily and reassess handling technique before continuing.
• Q: When should a Brother PE800 user upgrade from standard hoops to a magnetic embroidery hoop, and when does it make sense to upgrade to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: optimize technique first, use a magnetic hoop when hoop burn/strain persists, and move to a multi-needle machine when color changes and volume become the bottleneck.
  • Level 1 (Technique): Fix hoop tension (“drum test”), stabilizer choice (tearaway vs cutaway), and verify stitch order in simulation.
  • Level 2 (Tool): Choose a magnetic hoop if thick felt causes hoop burn, the hoop is hard to close, or hooping hurts wrists during repeated setups.
  • Level 3 (Production): Consider a SEWTECH multi-needle machine when runs require frequent color changes (4+ colors) or you need repeatable throughput.
  • Success check: Setup time drops, hoop marks reduce, and stitch-outs stay consistent across multiple items.
  • If it still fails: Audit consumables (needle sharpness, bobbin supply, thread path) and slow speed on satin borders before upgrading again.
