Digitize a Clean USA Flag in Wilcom (and Stitch It on a Ricoma): Fewer Trims, Sharper 3mm Stars, No Stripe Gaps

To the uninitiated, the American flag is just a symbol. To an embroiderer, it is a stress test.

You have 13 parallel stripes acting as a "stress ladder," pulling the fabric in opposing directions. You have 50 stars, often smaller than 4mm, which are notorious for chewing up fabric and creating birdnests on the underside. If you digitize this poorly, you don't just get a bad patch—you get a production nightmare of 50 trims, warped stripes, and broken needles.

But here is the truth experienced digitizers know: Complex designs are just simple shapes with strict rules.

This guide deconstructs the workflow of digitizing a USA flag in Wilcom (applicable to most pro software) and stitching it on a multi-needle machine. We will move beyond "default settings" into the physics of pull compensation, travel paths, and the crucial role of stabilization tools.

The “Don’t Panic” Primer: Why a USA Flag Design Blows Up (and How to Fix It)

A flag fails because digitizers treat it like a vector drawing, not a physical object moving under tension.

1. The Stripes: Long runs of stitching create "Push and Pull." The thread pulls the fabric in, causing the stripes to shrink width-wise. Result: Gaps between red and white.
2. The Stars: At small scales (3-4mm), standard underlay makes the star "bulky" and distorted. Result: Blobs instead of points.
3. The Sequence: Digitizing objects randomly creates a "Trim-Fest." Every trim takes 6-10 seconds and leaves a potential loose thread tail.

The strategy we dissect here frames the job correctly: White Base (Tatami) → Red Stripes (Column C) → Blue Union → Stars (Column A). This sequencing locks the fabric down before adding detail.

The Scale: The project shown is approximately 12,000 stitches. This is the "Sweet Spot" for patches—dense enough for coverage, but light enough to stay flexible.

The “Hidden” Prep Pros Do First: Reference Locking and The "Trim Budget"

Before placing a single node, you must stabilize your digital workspace. This prevents the "drift" that happens when you accidentally nudge your background image.

Prep Checklist: The "Zero-Error" Setup

• Lock the Background: Import your vector/image, center it, dim it to 50% opacity, and LOCK it. (In Wilcom: Press K).
• Set the Stitch Order: Mentally rehearse the path. Bottom to Top, Center to Out.
• Establish a "Trim Budget": You should ideally only trim at color changes. If you are trimming between letters or stripes, your pathing is inefficient.
• Check Vector Hygiene: If you are auto-digitizing (not recommended for flags), ensure your vectors are clean. Dirty vectors = dirty stitches.

Expert Insight: Clean vectors are the blueprint. If your outlines are wobbly on screen, the machine will execute that wobble with perfect precision.

Make the White Stripes Behave: Tatami Fill + Manual Travel Runs

The biggest amateur mistake is digitizing every white stripe as a separate island. This forces the machine to: Stitch → Stop → Trim → Move → Start for all 6 white stripes. This is slow and risky.

The improved workflow: Use Tatami Fill for the texture, but connect the stripes using Manual Walking Stitches.

The Physics of the White Stripe (Object Properties)

• Stitch Type: Tatami (provides a flat, stable base).
• Spacing (Density): 0.36mm. Note: Standard is often 0.40mm. 0.36mm gives better coverage on patches, but ensure your needle isn't too large (use a 75/11).
• Stitch Length: 5.0mm.
• Pull Compensation: 0.40mm. (Crucial for preventing gaps).
• Underlay: Tatami with spacing at 2.0-3.0mm.

The "Travel Run" Technique

To kill the trims:

1. Digitize Stripe 1.
2. Use the Walking Stitch tool to draw a line underneath where the Blue Union or Red Stripe will eventually go.
3. Travel to the start of Stripe 2.
4. Apply Closest Join: (Shortcut J in Wilcom). This tells the software: "Start this object exactly where the last one ended."

The Result: The machine enters a "flow state," stitching all white elements in one continuous hum without the jarring thwack-cut-thwack of the trimmer.

If you are researching hooping for embroidery machine, understand that no amount of tight hooping can fix a design that jumps around too much. Bad pathing distorts the fabric tension from the inside out.

Stop Stripe Gaps Before They Happen: Column C + The 1.6mm Rule

Gaps—seeing the black fabric peeking between red and white stripes—are the #1 defect in flag embroidery. This is caused by the "Pull Effect."

The Physic: As stitches form, they pull the fabric edges inward. You must program the stitches to overlap before this shrinking happens.

The Red Stripe Formula

• Stitch Type: Column C (Capped ends, ideal for consistent width).
• Overlap Strategy: The video instructor measures the overlap and pushes it to 1.6mm to 2.0mm.
  • Beginner Safety Note: If you are nervous, start at 1.0mm overlap. 2.0mm is aggressive but ensures zero gaps on loose fabrics like pique or twill.
• Reference Locking: Use the measuring tool (M) constantly. Do not trust your eyes; trust the numbers.

Warning: Keep Hands Clear. When checking design placement or overlaps on the machine, never put your fingers near the needle bar. A 1000 SPM (Stitches Per Minute) machine does not forgive hesitation.

The “Make-or-Break” Detail: Digitizing 3mm Stars (Column A)

Stars are the enemy. At 3mm, a standard Tatami fill with underlay is like trying to stuff a quilt into a thimble—it builds up too much thread, creating a hard knot.

The "Micro-Star" Recipe

• Stitch Type: Column A (Satin turning stitches).
• Underlay: NONE / OFF. This is critical. At 3mm, the structure of the star itself is enough stability. Adding underlay creates bulk and breaks needles.
• Pull Compensation: 0.15mm (Reduced). Standard pull comp destroys the sharp points of a star.
• Pathing: Do not use "Auto-Star." Digitize manually: Leg 1 → Center → Leg 2.

Commercial Context: If you are running a high-volume ricoma embroidery machine, these settings are vital. Commercial machines run fast; a bulky 3mm star with underlay is a prime candidate for a "birdnest" (thread jam) that forces a machine stop.

The Trim-Slayer Move: Manual Star Pathing

Once one star is perfect, use the power of the array. But don't just copy/paste wildly.

The Logic:

1. Duplicate the star to create a row.
2. Check the travel path. Does the machine jump across the visible white background?
3. If yes, can you route it under a neighbor? (Hard on a separated field).
4. Acceptable Trims: The instructor accepts about 4 trims for the whole star field. This is a mature compromise. trying to force zero trims on a star field often results in visible travel lines that ruin the look.

Pro Tip: If you see "jump stitches" on your screen, use the Trim command to force the machine to cut the thread. It’s better to have a clean cut than a long thread you have to snip by hand later.

If you are evaluating different ricoma embroidery hoops, remember that hoop stability is crucial for these tiny stars. If the hoop vibrates, the 3mm star points will align poorly.

The Global Underlay (Knockdown): The "Foundation Layer"

For patch twill, you generally have a smooth surface. However, to guarantee the red and white stripes don't "sink" or shift differently, a Global Underlay is used.

This is a low-density running stitch or tatami that covers the entire flag area before the colors start. It acts like the primer on a wall—it grabs the fabric and stabilizer, unifying them into a solid board.

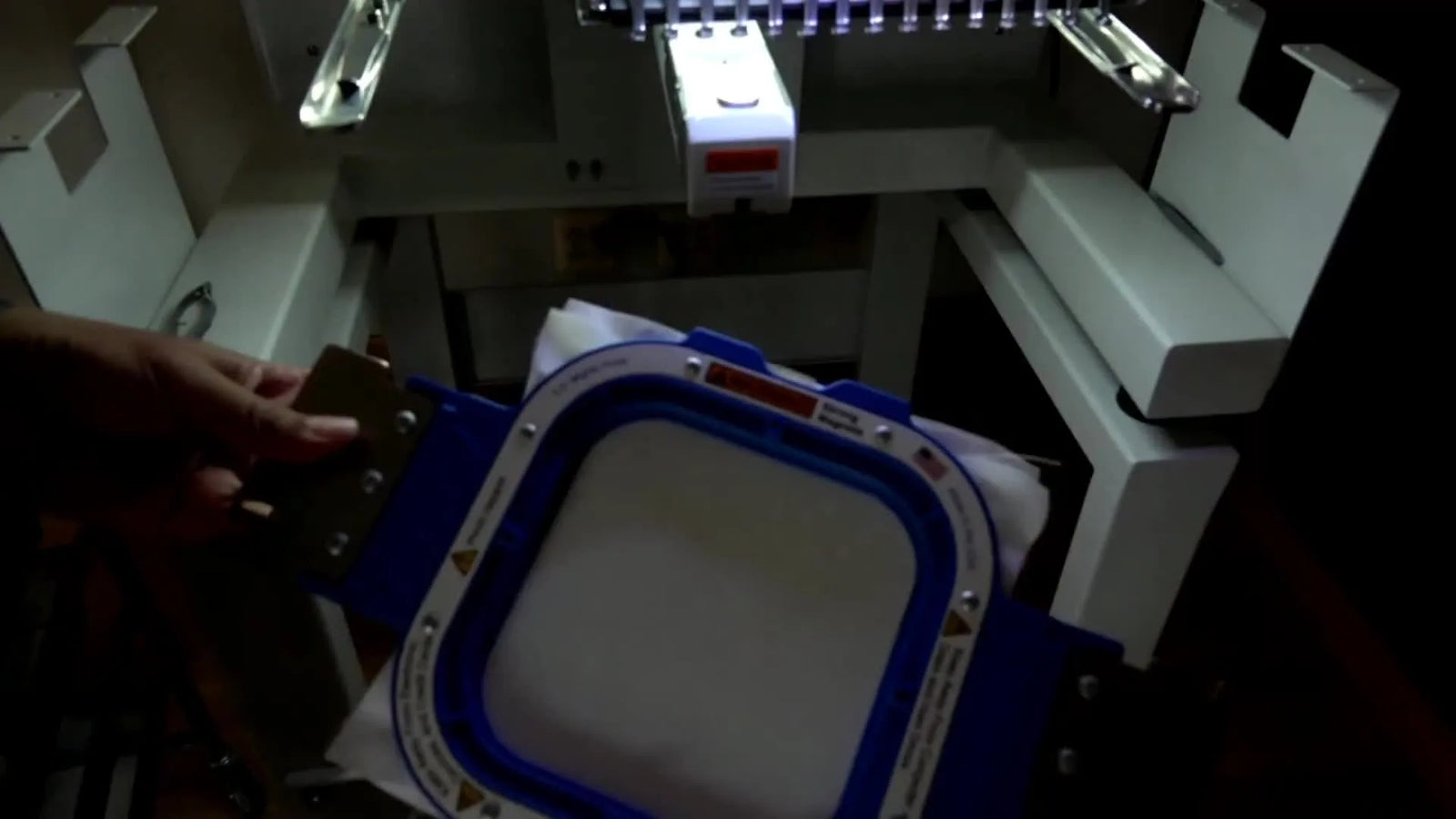

Production Reality: Hooping Twill + Cutaway on the Multi-Needle

Design is theoretical; Stitching is physical. The setup used here is: Twill Fabric + 2 Layers of Cutaway Stabilizer + Magnetic Hoop.

Why Magnetic Hoops? (The Friction Killer)

Traditional screw-tighten hoops are the enemy of speed and ergonomics.

• Pain Point: Tightening a screw hoop 50 times a day causes wrist strain (Carpal Tunnel risk).
• Quality Issue: It is difficult to get even tension all around, leading to "Hoop Burn" (shiny rings on the fabric).
• The Upgrade: Magnetic Embroidery Hoops clamp the fabric instantly with vertical force. This prevents fabric distortion during the hooping process.

For shops moving from hobby to production, searching for magnetic embroidery hoops often marks the transition point where efficiency becomes the priority.

Warning: Magnetic Safety. These commercial magnets are incredibly powerful. Do not place them near pacemakers. Do not wrap your fingers around the rim where the magnets snap together—they can pinch severely.

Setup Checklist: The "Pre-Flight"

• Stabilizer: 2 layers of 2.5oz Cutaway. (Tearaway is NOT recommended for dense flags; the stitches will perforate it and the flag will distort).
• The "Drum Skin" Test: Tap the hooped fabric. It should sound like a dull thud, not a loose flap.
• Needle Check: Use a sharp 75/11 needle. A dull needle will push the fabric down, causing registration gaps.
• Bobbin: Ensure you have a full bobbin. Running out of bobbin thread in the middle of a star field is a nightmare to fix.

Run It Like a Shop: Sensory Troubleshooting

Once the start button is pressed, stop watching the screen and start watching the machine.

The Operation Checklist

1. Auditory Check: A happy embroidery machine makes a rhythmic stitching sound. A loud Clack-Clack-Clack usually means the hoop is hitting something or the needle is blunt.
2. Visual Check (White Stripes): Look closely at the edges. are they straight? If they look "saw-toothed," your tension is too loose.
3. Visual Check (Red Stripes): The moment of truth. Watch the red stripe land next to the white. Is there a gap? If you see a gap now, stop. It will not fix itself.
4. Visual Check (Stars): Watch the first star. If the thread shreds, your density is too high or your speed (SPM) is too fast. Slow the machine down to 600 SPM for the stars.

If you are running a shop, a magnetic hooping station ensures that every operator hoops the patch in the exact same spot, reducing the need for constant laser alignment adjustments.

Decision Tree: Stabilizer & Settings Strategy

Use this logic flow to make decisions based on your specific materials:

Quick Troubleshooting: Symptom → Cause → Fix

The Upgrade Moment: From Hobbyist to Production

You can stitch this flag on a single-needle machine, but the trim time and thread changes (White $\to$ Red $\to$ Blue $\to$ White) will destroy your profit margin.

• The "Hoop" Barrier: If you struggle to hoop thick items or leave "hoop burn" marks, upgrading to a Magnetic Hoop is the most cost-effective Level 1 upgrade.
• The "Needle" Barrier: If you are making 20+ of these patches, the color change time alone warrants a Multi-Needle Machine (like the SEWTECH commercial line).




Addressing Viewer FAQs

• "Why 2 layers of stabilizer?" For a 12,000 stitch design, the needle perforates the stabilizer thousands of times. One layer might disintegrate; two layers create a "plywood effect" of strength.
• "How do I do names?" Pro software like Wilcom has "Team Name" features. For basic users, create a master file for the flag, and separate files for the names, merging them on the machine if supported.


Final Quality Check: The Standard

The final result should handle the "Macro" and "Micro" test.

• Macro: From 3 feet away, the flag looks rectangular, not hourglass-shaped (which indicates poor stabilization).
• Micro: [FIG-16] Up close, the 3mm stars have distinct arms. They are not circles.

When you control the pathing, increase the overlap, and respect the small scale of the stars, the US Flag becomes a reliable, profitable staple in your embroidery repertoire.

FAQ

• Q: On a SEWTECH multi-needle embroidery machine, how do I stop constant trims when digitizing the white USA flag stripes in Wilcom?
  A: Connect the white stripes with manual walking-stitch travel runs so the machine stitches in one flow instead of trim-jumping each stripe.
  • Digitize the white base as Tatami, then draw a walking-stitch travel line under areas that will be covered later (red stripes or the blue union).
  • Apply “Closest Join” between stripe objects so the next stripe starts where the previous one ends.
  • Keep trims mainly for color changes, not between stripes.
  • Success check: The machine runs the white section with a steady rhythm and minimal “thwack-cut-thwack” trim cycles.
  • If it still fails: Re-check stitch order planning (bottom-to-top) and look for unintended jump stitches that force trims.
• Q: On patch twill stitched on a SEWTECH multi-needle embroidery machine, how do I prevent gaps between red and white USA flag stripes?
  A: Increase overlap and pull compensation so the red stitches “land” into the white before fabric pull creates gaps.
  • Use Column C for red stripes and program an overlap around 1.6–2.0 mm (start at 1.0 mm if testing cautiously).
  • Measure overlap with the software measuring tool instead of judging by eye.
  • Keep pull compensation in the normal range used for stripes (the workflow emphasizes pull comp as the key control).
  • Success check: During stitching, the red stripe edge sits tight against the white with no black fabric peeking through.
  • If it still fails: Stop early and adjust overlap/pull comp before finishing the full design—gaps will not “self-correct” later.
• Q: In Wilcom digitizing, how do I keep 3 mm USA flag stars from turning into blobs and causing birdnest risk on a commercial multi-needle embroidery machine?
  A: Digitize 3 mm stars as Column A with underlay turned OFF to avoid bulk and distortion at micro scale.
  • Switch the star to Column A (satin/turning stitches) and disable underlay completely.
  • Reduce pull compensation for stars (the workflow uses a much lower value for micro-stars than for stripes).
  • Digitize the star path manually (avoid auto-star) to protect sharp points.
  • Success check: The first star stitches with distinct arms (not a circle) and no thread shredding.
  • If it still fails: Slow machine speed for the star section (a slower speed is recommended for stars) and re-check density/bulk at the star.
• Q: When hooping twill + 2 layers of cutaway stabilizer on a SEWTECH multi-needle embroidery machine, how do I know the hoop tension and setup are correct before stitching a dense USA flag patch?
  A: Use the “drum skin” hooping test plus needle/bobbin checks before starting—dense flags punish weak setup.
  • Hoop twill with 2 layers of medium cutaway (tearaway is not recommended for dense flags).
  • Tap the hooped fabric and confirm it feels firm like a drum skin (no loose flap).
  • Install a sharp 75/11 needle and confirm the bobbin is full before the star field begins.
  • Success check: The hooped fabric stays flat with no ripples, and the machine sound is rhythmic (not clacking) once stitching starts.
  • If it still fails: Re-hoop (loose hooping causes puckering/registration issues) and inspect for dull needle symptoms.
• Q: What are the key operator warning signs during a USA flag run on a SEWTECH multi-needle embroidery machine that indicate tension, hoop strike, or needle problems?
  A: Watch and listen—sound and edge quality reveal problems faster than the screen does.
  • Listen for loud “clack-clack-clack,” which often indicates hoop strike or a blunt needle.
  • Inspect white stripe edges; saw-toothed edges often indicate tension is too loose.
  • Watch the first red stripe alignment; if a gap appears, stop immediately and correct overlap/pull settings.
  • Success check: The machine runs with a smooth, even stitch sound and clean stripe edges without sudden noise spikes.
  • If it still fails: Reduce speed for sensitive sections (especially stars) and re-check hoop clearance and needle condition.
• Q: What needle-bar safety rule should operators follow on a SEWTECH multi-needle embroidery machine when checking USA flag placement or overlap during stitching?
  A: Keep hands completely away from the needle bar area—never reach in to “check” while the machine can move.
  • Stop the machine before touching or adjusting anything near the needle area.
  • Verify placement/overlap using safe viewing angles and tools, not fingers near moving parts.
  • Resume only after confirming the hoop and garment are clear of the needle path.
  • Success check: No hands enter the needle zone at any time while the machine is capable of motion.
  • If it still fails: Implement a shop rule: “Stop first, then check,” and train operators to treat high-SPM stitching as zero-tolerance for hesitation.
• Q: What magnetic safety precautions are required when using SEWTECH magnetic embroidery hoops for dense USA flag patches?
  A: Treat magnetic hoops as high-force clamps—keep them away from pacemakers and protect fingers from pinch points.
  • Keep magnetic hoops away from pacemakers and sensitive medical devices.
  • Avoid wrapping fingers around the rim where magnets snap together; place and lift from safe grip points.
  • Clamp fabric with controlled, vertical placement to prevent sudden snapping.
  • Success check: The hoop closes without finger pinches and the fabric is clamped evenly without distortion marks.
  • If it still fails: Slow down the hooping motion and re-train the hand placement—most pinches happen from rushed alignment.
