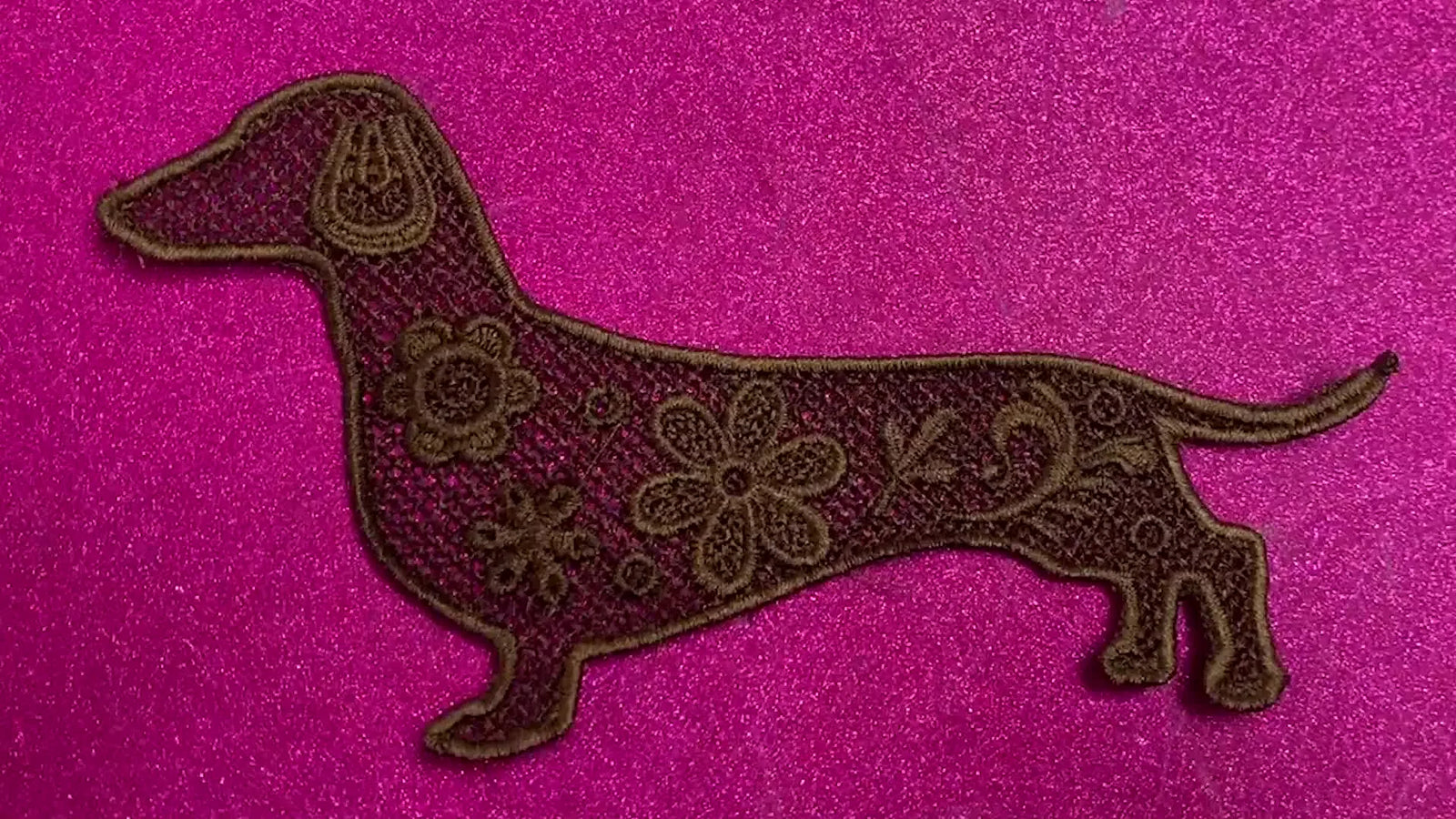

Digitize a Freestanding Lace Dachshund in My Lace Maker—Clean Borders, Zero “Hole-Cutting” Disasters, and a Stitch-Out That Actually Holds Together

Freestanding lace (FSL) is the alchemy of the embroidery world. It turns thread into structure, creating something out of nothing. But let’s be honest: that first attempt often feels less like magic and more like a crime scene. You rinse the stabilizer, and your cute dachshund dissolves into a tangled bird's nest of loose threads.

If you are here because you want an FSL dachshund that stays together, survives the rinse, and looks professional enough to sell, you are in the right place.

We are going to rebuild the workflow from the "My Lace Maker" video, but I’m going to layer in the 20 years of production experience that the software manual doesn't tell you. We will import a silhouette, trace it with a specific run stitch technique, convert it to a structural satin border, and—crucially—fill it without using the "hole cutting" tools that destroy structural integrity.

This isn't just about software settings; it's about engineering with thread. We’ll cover the sensory cues of proper tension, the "sweet spot" for underlay, and the equipment upgrades that stop you from throwing your hoop across the room.

The Calm-Down Check: What “Good” FSL Dachshund Digitizing Looks Like Before You Stitch

When beginners panic with FSL, it’s usually because they treat the design like a standard fabric patch. You need to shift your mindset: You are not decorating fabric; you are weaving a net.

Before you touch a single mouse click, visualize the physics of your goal:

1. The Skeleton (Border): A continuous, wide satin column that acts as the frame. If this breaks, the dog loses its shape.
2. The Web (Interior): Lace elements (flowers, swirls) that must physically overlap. They need to weld together.
3. The Foundation (Stabilizer): It must be drum-tight. If your stabilizer sags, your stitches land in the wrong place, and the web fails to connect.

If you are already thinking about production—making 50 of these for a craft fair—this is the moment to consider your workflow. If you struggle to hoop Water Soluble Stabilizer (WSS) tight enough without it slipping, a hooping station for embroidery machine stops being a luxury and starts being a necessity for consistency.

The “Backdrop First” Move: Importing a Dachshund Silhouette That Fits a 5x7 Hoop

In the video, the creator starts by bringing in a dachshund silhouette using the Backdrop Tool. This is your blueprint.

Key Actions:

1. File > New.
2. Select Backdrop Tool and import your image.
3. Resize logic: Fit it comfortably within the 5x7 hoop grid. Leave at least a 1/2 inch margin from the edge of the hoop to ensure your presser foot doesn’t hit the frame—a common cause of axis shifts.
4. Dim the image: Adjust brightness so you can see your blue or red tracing lines clearly against the black silhouette.

The "Hidden" Expert Insight: Why use a silhouette instead of a photo? Clarity. A clean edge reduces "decision fatigue" when tracing. If you zoom in on a fuzzy photo, you’ll place nodes erratically, creating a jagged border. A jagged border creates stress points where the lace will snap later.

Prep Checklist (Do This Before You Trace Anything)

• Boundary Check: Is the design fully inside the 5x7 safety zone? (Visual check: heavy grid lines).
• Structural Scan: Look at the dachshund's tail and neck. Are they too thin? Mental Note: You will need to trace these slightly wider than the image to prevent them from being weak points.
• Consumables Check: Do you have Heavy Weight Water Soluble Stabilizer (like Badgemaster or similar film)? Standard tear-away or cut-away will not work here.
• Needle Check: Install a fresh 75/11 Ball Point or Sharp needle. A burred needle will shred WSS, causing the design to pop out of the hoop mid-stitch.


The Smooth-Curve Trick in My Lace Maker: Tracing the Dachshund Outline with Run Stitch (Shortcut 2)

The video demonstrates the Run tool (Shortcut 2). The creator uses the Control key while clicking to generate curves rather than sharp angles.

The Tracing Rhythm: Think of this like driving a car.

• Straightaways (Back/Belly): Left Click.
• Curves (Ears/Paws): Hold Control + Click.

The "Goldilocks" Node Spacing:

• Too many clicks: Your line looks lumpy and machine-gunned.
• Too few clicks: The curve becomes a hexagon.
• The Sweet Spot: Place a node every 10-15mm on gentle curves, and every 3-5mm on tight turns like the paws.

The Tail Strategy: The video creator does something subtle but vital: they intentionally trace the tail wider than the artwork.

• The Physics: A 1mm wide tail on screen will shrink to 0.8mm when stitched. That's a thread break waiting to happen.
• The Fix: Exaggerate the width of thin appendages by 20-30%. It might look chunky on screen, but it looks robust in the hand.


Fixing the “Oops, I Finished the Line” Problem (Without Starting Over)

We have all been there: your finger slips, you double-click, and the line ends halfway down the dog's back.

The 10-Second Fix:

1. Don't panic. Don't delete.
2. Select the Run Tool again.
3. Start exactly where you left off (snap to the last node) and finish the shape.
4. Select both line segments.
5. Right-click > Combine Selected Paths.

This ensures the machine sees one continuous road, not a road with a cliff in the middle. Continuous stitching means fewer trims, and fewer trims means a stronger FSL structure.

Warning: Physical Safety Alert. FSL designs are dense and run at high speeds. Keep fingers clear of the needle bar area. If a needle breaks on a dense knot of thread, the tip can fly with significant velocity. Always wear glasses or use the safety shield if your machine has one.

The Border That Holds the Lace Together: Converting the Outline to Satin/Style at 3.0 mm (and Choosing Underlay Wisely)

Your outline is currently a single thread run. If you stopped now, it would dissolve. We need to turn that line into a steel beam.

The Critical Conversion:

1. Select the outline.
2. Press Ctrl+B to remove the background image (visual clutter).
3. Convert to Satin/Column (Style stitches).

The "Magic Numbers" for Stability:

• Width: Set to 3.0 mm.
  • Why? Anything less than 2.5mm is risky for structural FSL. 3.0mm provides enough surface area for the interior lace to "grab" onto.
• Underlay - Center Line: OFF.
  • Expert Why: A center run stitch acts like a perforation on a stamp (the postage stamp effect). If your needle hammers a straight line down the middle of the WSS, it might slice the stabilizer right out of the hoop.
• Underlay - Edge Run / Zigzag: ON.
  • Expert Why: This is your rebar. It travels across the column width, binding the left and right rails together without cutting the stabilizer in a straight line.




The Fun Part (That Can Still Ruin Your Lace): Filling the Dachshund with Lace Elements Without Making Them Too Small

Now we decorate. The creator drags in flowers, leaves, and swirls from the library.

The Density Trap: When you shrink a lace flower to 50% of its size, you don't reduce the thread count by 50%. You pack the same amount of thread into half the space.

• Result: A "bulletproof" knot that breaks needles and feels like hard plastic.
• Rule of Thumb: Try not to scale elements down more than 10-15%. If it doesn't fit, choose a different, smaller element rather than shrinking a big one.

The Stability Factor: As you fill the shape, the stitch count skyrockets. Every needle penetration pushes the stabilizer slightly. By the time you reach the 10,000th stitch, standard hoops often lose their grip, causing the stabilizer to "trampoline" or sag.

This is where the hardware matters. If you notice your outline doesn't match your fill at the end of the sew-out, your hoop slipped. Many users switch to a magnetic embroidery hoop for FSL because the magnetic clamping force distributes pressure evenly across the entire frame—unlike thumbscrews which only pinch one corner—keeping the WSS tight from start to finish.

Setup Checklist (Before You Touch “Stitch” on Any FSL File)

• Border Width verification: Is it at least 3.0 mm?
• Underlay Audit: Is Center Line OFF? Is Zigzag ON?
• Overlap Check: Look at where the flowers touch the border. Do they just kiss the edge, or do they overlap by 1-2mm? They must overlap.
• Bridge Check: Look at the neck and tail. Is there at least one solid lace element bridging the gap between the top and bottom border? If not, add one.

The Trap That Destroys FSL: Why “Remove Overlap / Cut Holes” Creates Trims, Jumps, and Weak Lace

The video demonstrates the most common rookie mistake: using the "Remove Overlap" tool.

The Logic of Failure: In standard appliqué, we remove overlaps to prevent bulk. In FSL, overlap is life.

• If you tell the software to "Remove Overlap," it cuts the thread, jumps over the flower, and starts again.
• Result: A dachshund made of 50 separate islands of thread. When you rinse the stabilizer, you will be left with a pile of wet confetti.

The Fix:

• Ignore the "Bulk" Fear: FSL is supposed to be textured.
• Keep the Overlaps: When a leaf stitches over a flower, it "welds" the two shapes together.
• Video Lesson: If you accidentally cut holes, use Undo (Ctrl+Z) immediately.

Your goal is a web, not a puzzle. Puzzle pieces fall apart; webs hold together.

The Housekeeping That Prevents Surprise Trims: Reordering Lace Elements for Logical Stitch Flow

The creator touches on Stitch Order. This separates the amateurs from the pros.

If you drag elements in randomly, the machine might stitch the Tail $\rightarrow$ Nose $\rightarrow$ Rear Leg $\rightarrow$ Ear.

• The Cost: Massive jumps across the design. These long jumps leave tails that are hard to trim without cutting the structural knots.

The Optimization Strategy:

1. Open your Object List / Sequence View.
2. Reorder the interior elements to flow logically (e.g., Tail $\rightarrow$ Rump $\rightarrow$ Body $\rightarrow$ Head).
3. Minimize Trims: If two elements are touching, ensure they stitch consecutively. The machine can flow from one to the other without cutting the thread.

Pro Tip: If you are running a business and making 100 of these, every trim takes 4-7 seconds. Reducing 20 trims saves 2 minutes per dog. If you are scaling up, this is also when you look at multi-needle embroidery machines, which handle trims and color changes significantly faster than single-needle domestic units.

Stabilizer Decision Tree for Freestanding Lace (So Your Dachshund Doesn’t Warp or Shred)

The video assumes you know which stabilizer to use. Let's make sure you actually do.

Decision Tree: The FSL Foundation

1. What is the "Use Case"?
   • Ornament/Decor: Use 2 Layers of Water Soluble Stabilizer (WSS) - fibrous type (Vilene/Badgemaster).
   • Jewelry/Earrings: Use 2 Layers WSS + 1 Layer Organza (if you want a shimmer effect and ultra-durability).
   • Test Run: 1 Layer Heavy WSS (Riskier, but okay for testing).
2. The "Drum Skin" Test (Sensory Check)
   • Hoop your stabilizer.
   • Flick it with your finger.
   • Does it sound like a dull thud? Tighten it.
   • Does it sound like a sharp "thwack" or ping? Good.
3. The Slippage Problem:
   • WSS is slippery. It feels smooth and plastic-like. Standard wooden or plastic hoops struggle to grip it.
   • Solution: Wrap your inner hoop with bias binding tape for friction, OR use magnetic embroidery hoops for brother (or your specific machine brand). The strong magnets bite through the slippery layers and hold them immovable.

Warning: Magnet Safety. Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers away from the contact zone when snapping them shut.
* Medical Device: Keep at least 6 inches away from pacemakers.

The “Why It Works” Layer: Structural Integrity, Density, and the Overlap Mindset

Let's synthesize the "Why" so you can apply this to any Design, not just a dog.

1. The Border is the Anchor: The 3.0mm Satin border is the frame of the house. Without it, the roof collapses.
2. Zigzag is the Nails: The zigzag underlay locks the satin stitches to the stabilizer/thread mesh.
3. Density is Structure: In FSL, high density is actually good (to a point). It creates stiffness.
4. Tension is Critical:
   • Top Tension: slightly looser than normal.
   • Bobbin Tension: slightly tighter (or use a matching bobbin thread).
   • The Goal: You want the bobbin thread and top thread to knot inside the lace, not pull to the back.

Troubleshooting the Scary Stuff: What to Fix When Your FSL Dachshund Misbehaves

If your first run fails, don't quit. Diagnose it using this table.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Cleaner Runs, and Real Production Potential

Beginners trade time for results. Professionals trade money for time.

When you start effectively creating FSL, you will hit physical barriers. Here is when you should consider upgrading your toolkit:

• Pain Point: "My wrists hurt from tightening screws, and I get 'hoop burn' marks on my fabric projects."
  • Solution: embroidery hoops magnetic. They snap on without screws, saving your wrists and eliminating fabric burn marks.
• Pain Point: "I want to make 50 Christmas ornaments, but re-hooping takes forever."
  • Solution: A hooping station speeds up alignment.
• Pain Point: "I spend half my time changing thread colors."
  • Solution: If you are serious about selling, a multi-needle machine is the only way to scale FSL production profitable.

Operation Checklist (Right Before You Commit to the Final Stitch-Out)

The "Pre-Flight" Check:

1. Bobbin: Is it full? (FSL eats bobbin thread; running out mid-design is a disaster).
2. Bobbin Color: Does it match the top thread? (Crucial for FSL since both sides are visible).
3. Hoop Integrity: Tap the stabilizer. Do you hear the drum sound?
4. Needle: Is it fresh? A dull needle pushes the stabilizer down rather than piercing it, causing registration errors.
5. Speed: Turn it down. For your first FSL run, set your machine to 500-600 SPM (Stitches Per Minute). Speed kills quality until you are sure the design is solid.

Now, press start. Listen to the rhythm of the machine—a steady thump-thump-thump is the sound of a solid structure being built. When you wash that stabilizer away and hold a perfect lace dachshund, you’ll know you didn't just stitch a file; you engineered a product.

FAQ

• Q: In My Lace Maker, how do I prevent a freestanding lace (FSL) dachshund outline from snapping by setting the satin border to 3.0 mm?
  A: Use a continuous satin/column border at 3.0 mm because narrower borders are a common structural weak point in FSL.
  • Convert: Select the traced outline and convert it to Satin/Column (Style stitches).
  • Set: Adjust border width to 3.0 mm and keep the outline as one continuous path.
  • Reinforce: Trace thin areas (tail/neck) slightly wider than the artwork so they don’t stitch too thin.
  • Success check: The border looks like a smooth, even “frame” with no skinny pinch points at the tail or neck.
  • If it still fails: Re-check that interior lace elements overlap the border by 1–2 mm so the “web” can weld to the frame.
• Q: In My Lace Maker, which underlay settings stop Water Soluble Stabilizer (WSS) from getting “bullet holes” on freestanding lace (FSL) dachshund borders?
  A: Turn OFF Center Line underlay and keep Edge Run/Zigzag ON to avoid a perforation line that can slice WSS.
  • Open: Underlay settings for the satin/column border.
  • Disable: Center Line underlay.
  • Enable: Edge Run and/or Zigzag underlay.
  • Success check: After stitching, the WSS around the border is intact (no straight perforation tear line down the center).
  • If it still fails: Hoop WSS tighter and slow down for the first run, because dense FSL can amplify any stabilizer movement.
• Q: How do I hoop Water Soluble Stabilizer (WSS) for freestanding lace (FSL) so the stabilizer passes the “drum skin” test and doesn’t slip during a 10,000+ stitch dachshund run?
  A: Hoop WSS drum-tight (two layers for most lace) because WSS is slippery and standard hoops can lose grip mid-design.
  • Choose: Use 2 layers of WSS for ornaments/decor; use 1 heavy layer only for test runs.
  • Tighten: Hoop and “flick test” the WSS until it gives a sharp “thwack/ping,” not a dull thud.
  • Stabilize: Avoid pulling or repositioning once stitching starts; movement causes late-stage misalignment.
  • Success check: The hooped WSS sounds sharp when flicked and stays flat (no trampoline sag) through the stitch-out.
  • If it still fails: Add friction (wrap the inner hoop) or switch to a magnetic hoop to hold WSS evenly across the frame.
• Q: In My Lace Maker, how do I fix an accidental double-click that ends a Run stitch outline early without re-tracing the freestanding lace (FSL) dachshund?
  A: Continue the Run stitch from the last node and combine the paths so the machine reads one continuous outline.
  • Select: Choose the Run tool again and start exactly on the last node where the line ended.
  • Finish: Trace the remaining outline to complete the shape.
  • Merge: Select both segments and use Combine Selected Paths.
  • Success check: The outline highlights/behaves as one single object/path (not two separate road segments).
  • If it still fails: Zoom in and confirm the restart point snapped to the last node; gaps can create trims and weak lace.
• Q: Why does using “Remove Overlap / Cut Holes” in My Lace Maker make a freestanding lace (FSL) dachshund fall apart after rinsing Water Soluble Stabilizer (WSS)?
  A: Avoid Remove Overlap for FSL because FSL needs intentional overlaps to weld elements into one connected web.
  • Keep: Allow flowers/leaves/swirls to stitch over each other and into the border.
  • Check: Ensure interior elements overlap the border by about 1–2 mm instead of just touching.
  • Undo: If holes were cut, Undo immediately and restore overlaps before stitching.
  • Success check: In the preview/object layout, the interior lace clearly crosses into neighboring elements and into the border (no “separate islands”).
  • If it still fails: Add a bridging element at weak zones like the neck or tail so top and bottom borders are physically connected.
• Q: What causes thread breaks and “hard plastic” stiffness when shrinking lace flowers in an FSL dachshund fill, and what scaling limit prevents over-density?
  A: Don’t shrink lace elements more than about 10–15% because heavy downscaling packs stitches too tightly and can break needles/thread.
  • Replace: Choose smaller library elements instead of forcing large elements to fit by shrinking too far.
  • Reduce: Slow the machine to 400 SPM as a short-term rescue if breaks start mid-run.
  • Verify: Keep the design within the hoop safety margin so nothing forces extreme element scaling.
  • Success check: The stitched lace feels firm but not like a rigid “bulletproof” knot, and the machine runs without repeated breaks.
  • If it still fails: Use a larger hoop/design layout so elements can stay closer to their original size.
• Q: What safety precautions should be used when running dense freestanding lace (FSL) designs at high speed to prevent injury from needle breaks?
  A: Keep hands clear and protect eyes because dense FSL can snap needles and send tips flying.
  • Lower: Reduce speed for first tests (about 500–600 SPM) to limit shock during dense stitching.
  • Clear: Keep fingers away from the needle bar area while the machine is running.
  • Protect: Wear glasses or use the machine safety shield if available.
  • Success check: Stitching runs without you needing to “guide” material by hand, and you can observe safely from a clear distance.
  • If it still fails: Stop the machine, inspect for a damaged needle, and replace the needle before restarting.
