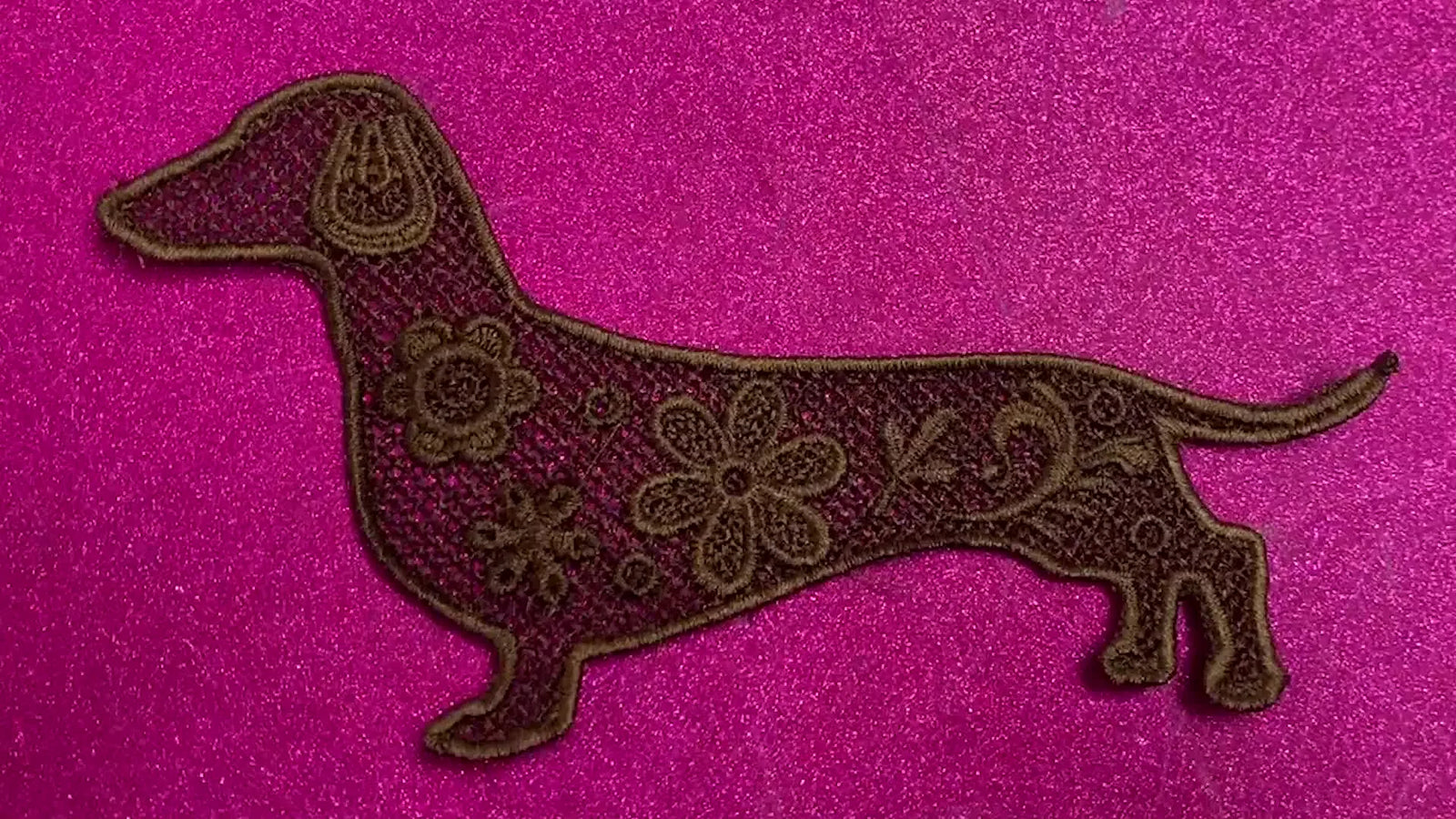

Digitize a Freestanding Lace (FSL) Dachshund That Actually Holds Together: My Lace Maker Settings, Layering, and the “Holy Trims” Trap

Freestanding lace (FSL) is the ultimate tightrope walk of machine embroidery. It feels like magic—right up until your stitch-out turns into a fragile spiderweb that snaps the moment the stabilizer rinses away. If you are staring at a cute dachshund silhouette and thinking, “I can’t possibly digitize that into lace that holds together,” take a breath.

The method Sue demonstrates in My Lace Maker is straightforward, but as your Chief Education Officer, I want to take you deeper. We aren’t just making a pretty picture; we are engineering a textile structure. The difference is everything: structure means fewer trims, fewer weak spots, and a dachshund that survives the wash-away stage without turning into thread spaghetti.

The “Don’t Panic” Primer: The Physics of FSL Preservation

FSL is unforgiving because there is no fabric backing to hide your mistakes. Your lace mesh and borders must interlock like a tiny bridge truss. If you accidentally create isolated islands of stitching, the piece will distort, shred, or simply float away down your sink drain when the stabilizer dissolves.

The Golden Rule: Soluble stabilizer washes away to leave the design behind—but only if the lace is connected well enough to be self-supporting.

When you are planning to stitch this out, remember that the choices you make in the software (underlay type, border width, layering order) are actually physical structural decisions.

Phase 1: The “Hidden” Prep Pros Do First

Sue starts with a silhouette image as a backdrop, sizing it to fit inside a 5x7 hoop boundary. That boundary box is your guardrail. Ignore it, and you will end up resizing later, which pushes stitch density into the danger zone (too dense = needle breaks; too loose = lace falls apart).

However, before you click a mouse, we need to talk about your physical canvas.

The Stabilizer Strategy: For FSL, your stabilizer is the only thing existing between success and a bird's nest. You need a Heavy Water Soluble Stabilizer (WSS)—fibrous, not just the thin plastic film (Solvy). It must be hooped "drum-tight."

When you tap the hooped stabilizer, it should sound like a dull thump. If it ripples, your lace borders will not align. If you are experimenting with a hooping station for machine embroidery, use it here to ensure equal tension on all four sides of the hoop. The station treats the stabilizer with the respect of fabric, preventing the "sag" that kills FSL.

Prep Checklist (Pre-Digitizing):

• Boundary Check: Confirm design fits the 5x7 hoop boundary (leave 20mm margins for safety).
• Visual Contrast: Load silhouette via Backdrop tool; adjust darkness so you can see contrast.
• Path Planning: Mental walkthrough—where will you start and stop to ensure a closed loop?
• Structural Allowance: Plan for a slightly wider tail area. Lace shrinks slightly; give yourself 3mm of extra width on thin parts.


Phase 2: Clean Curves, Fewer Headaches

Sue digitizes the base shape manually using the Run tool (Shortcut 2). This is the foundation of the house.

The Technique:

• Hold Control key for curves.
• Release Control key for sharp corners.

Expert Tip: Do not click too many nodes. "Node bloat" makes the machine stutter, creating a jagged edge. Use the minimum number of points required to create the curve. A smooth machine sound (hummmm) creates better lace than a jerky machine sound (k-chunk, k-chunk).

Sue also widens the tail outline slightly beyond the silhouette. This is a critical structural buffer. FSL pulls inward as it stitches (the "pull compensation" effect). If you digitize exactly to the line on thin areas, you may end up with a thread width too narrow to support itself.

Phase 3: The Transformation (Outline to Mesh)

Once the outline is closed, Sue hides the backdrop (Ctrl + B). Never skip this. You must judge the lace object naked, without the silhouette tricking your eye into thinking gaps are filled.

Select the outline and click the lace fill icon. The empty outline becomes a mesh.

The Workflow Upgrade: If you find mouse-clicking tedious for organic shapes, a drawing tablet can be a game-changer. However, for most of us using a mouse, the secret is zooming in. Zoom in 200% to ensure your start and end points perfectly overlap.

Phase 4: The Two Settings That Decide Survival

This is the most critical section of the entire process. In the Object Properties, we must change two defaults.

1. Satin Border Width: 3.0 mm

Standard borders are often 1.5mm or 2.0mm. For FSL, that is too thin. We bump it to 3.0 mm.

• Why: This border acts as the "frame" for the mesh. It needs bulk to hold the shape when wet.

2. Underlay: Zigzag (Change from Center Line)

Sue is very direct here: Center Line underlay cuts FSL.

• The Physics: A center run stitch is a row of needle penetrations in a straight line. On water-soluble stabilizer, this acts like a perforation stamp, literally slicing the stabilizer.
• The Fix: Zigzag underlay. The needle lands left, then right, bridging the gap and anchoring the satin column to the mesh without creating a perforation line.

The Hooping Connection: Even with perfect settings, if your hoop slips, the border will detach from the mesh. This is known as registration error. Many professionals utilize magnetic embroidery hoops for FSL.

• Why? Traditional hoops require you to screw the inner ring tight, which can warp the delicate WSS or leave "hoop burn." Magnetic hoops clamp vertically, holding the WSS perfectly flat without distortion, allowing the zigzag underlay to grip exactly where it should.

Warning (Safety): High-quality magnetic frames are powerful. Keep magnets away from pacemakers/medical implants. Watch for pinch hazards—never let magnets snap together near your fingers or the machine screen.

Phase 5: Make It "Groovy" Without Weakening It

Now we add the "Dachshund" personality. Sue drags in pre-digitized lace elements (swirls, flowers) from the library.

She places a teardrop shape for the ear and layers flowers over the body.

The Rules of Engagement:

1. Do not scale below 80%: If you shrink a lace flower too much, the density doubles, creating a hard "bullet" of thread that breaks needles.
2. Overlap is Mandatory: Do not place elements next to each other; place them on top of the mesh.

Production Thought: If you are making 25 of these for a craft fair, efficiency matters. A magnetic hooping station allows you to prep the next hoop while the machine is running the current one, keeping your production line moving.

Phase 6: The "Holy Trims" Mistake

Sue demonstrates a trap that catches 90% of intermediate digitizers: using the Remove Overlap (or "Cut Holes") function behind layered elements.

Do NOT clean up the background mesh.

• The Mistake: You cut a hole in the base mesh to fit the flower.
• The Result: You have severed the tension trusses. The flower is now floating, held only by its edges. When the stabilizer dissolves, the flower often falls out or sags. Plus, you have added unnecessary trims.
• The Fix: Let the flower stitch over the base mesh. The base mesh acts as the foundation (or "underlay") for the decorative element.


Phase 7: Simulation and "Housekeeping"

Before exporting, run the Stitch Simulator. You are looking for:

1. Order: Base mesh first $\rightarrow$ Borders $\rightarrow$ Decor.
2. Connectivity: No jump stitches across open space.
3. Efficiency: Re-sequence elements so the machine flows from head to tail, rather than jumping head-tail-head.

Setup Checklist (Pre-Flight):

• Needle: Install a new Size 75/11 Sharp or Topstitch needle. (Ballpoint needles can struggle to pierce fibrous WSS cleanly).
• Thread: Load Matching Bobbin Thread. For FSL, the bobbin thread is visible. Use the same thread in the bobbin as the top, or a matching color pre-wound.
• Tension Check: FSL requires slightly tighter tension than fabric. Pull your top thread—it should feel like flossing your teeth, not loose.
• Simulation: Confirm no "Trim Explosions" (excessive cutting).

Phase 8: The Physical Stitch-Out & Consumables

You have the file. Now you need the tactility.

Decision Tree: Choosing Your Stabilizer Support

FSL success is 50% digitizing and 50% stabilization.

1. Is the design dense (lots of satin)?
   • Yes: Use 2 layers of fibrous Water Soluble Stabilizer (WSS). Cross the layers at 90 degrees.
2. Are you producing volume (10+ items)?
   • Yes: Move to an embroidery hooping station. It guarantees that every single dog is hooped at the exact same tension, eliminating variables.
3. Is hoop burn a concern?
   • Yes: Use an how to use magnetic embroidery hoop strategy. The flat clamping mechanism prevents the "ring marks" that can weaken the WSS fibers at the edge of the design.

Hidden Consumables

Don't start without these:

• Curved Appliqué Scissors: For trimming threads close to the lace without snipping a structural knot.
• Tweezers: For holding the WSS down if it lifts during the first few stitches.
• Needle Disposal Container: FSL is hard on needles; change them every 4-6 hours of stitch time.

Warning (Machine Safety): Never reach under the presser foot while the machine is running. FSL patterns can have sudden long jumps. If the machine sounds like it is "hammering" (a loud, sharp BANG), STOP immediately. You may be hitting a buildup of thread nests.

The Upgrade Path: From Hobby to Production

This dachshund project is a perfect example of how hobby workflows evolve.

• Level 1 (Technique): You learn to trace and set parameters correctly.
• Level 2 (Tooling): You realize hooping WSS is slippery and frustrating. You upgrade to an embroidery magnetic hoop to hold the stabilizer tight without hand strain.
• Level 3 (Scale): You start selling patches. A single-needle machine requires you to change thread colors manually (even if the lace is one color, the machine stops). A multi-needle machine allows you to set it and walk away, trusting the machine to handle the tension and speed (standard FSL speed: 600-750 SPM).

Operation Checklist (During Stitch-Out):

• Listen: A rhythmic chug-chug is good. A sharp click or grinding is bad.
• Watch: Ensure the WSS isn't pulling away from the hoop edges (a sign of poor hooping).
• Finish: Rinse gently in warm water. Do not wring it out. Lay flat to dry to preserve the shape.

By following Sue’s digital workflow—trace, mesh, thick satin, zigzag underlay, no holes—and pairing it with the right physical tools, you won't just hope for a good result. You'll engineer it.

FAQ

• Q: How do I hoop heavy water-soluble stabilizer (WSS) correctly for freestanding lace (FSL) on a home single-needle embroidery machine?
  A: Hoop heavy fibrous WSS drum-tight and perfectly flat; most FSL failures start with stabilizer slack.
  • Tap-test the hooped WSS and re-hoop until it gives a dull “thump,” not a ripple.
  • Keep even tension on all four sides of the hoop; do not over-tighten in a way that warps the WSS.
  • Leave safe margins around the design so the hoop edge does not distort the border area.
  • Success check: the WSS looks glass-flat with no waves, and the first border stitches land evenly without gaps or drifting.
  • If it still fails, switch to two layers of fibrous WSS crossed at 90° for dense satin-heavy lace.
• Q: What object property settings prevent freestanding lace (FSL) borders from breaking when water-soluble stabilizer rinses away in embroidery digitizing software?
  A: Set a thicker satin border and use zigzag underlay; center-line underlay commonly “cuts” WSS like perforation.
  • Increase satin border width to 3.0 mm to give the lace frame enough structure.
  • Change underlay from Center Line to Zigzag so needle penetrations do not form a single perforation row.
  • Stitch base mesh first, then borders, then decorative elements to keep everything mechanically connected.
  • Success check: borders stay bonded to the mesh during stitch-out and the piece stays intact after rinsing.
  • If it still fails, check hoop stability for registration error (border separating from mesh often indicates hoop slip).
• Q: How do I prevent freestanding lace (FSL) flowers or swirls from falling out when using “Remove Overlap / Cut Holes” in embroidery digitizing software?
  A: Do not cut holes in the base mesh behind layered lace elements; stitch decorative pieces directly over the mesh.
  • Keep the background mesh continuous so it acts like a structural foundation under the decoration.
  • Overlap decorative elements onto the mesh instead of placing them edge-to-edge.
  • Re-sequence to minimize jumps so elements connect without floating islands.
  • Success check: the decorative flower remains supported after rinse and does not sag or detach at the edges.
  • If it still fails, inspect the stitch simulator for isolated “islands” that are not physically connected to the main lace.
• Q: Which needle and bobbin thread setup reduces thread breaks and improves stitch quality for freestanding lace (FSL) on a single-needle embroidery machine?
  A: Use a fresh 75/11 Sharp (or Topstitch) needle and matching bobbin thread, because the bobbin will show in FSL.
  • Install a new needle before the run; FSL is hard on needles and dull points can cause shredding.
  • Load matching bobbin thread (same or closely matching color as top thread) to avoid visible contrast.
  • Tighten tension slightly compared to fabric as a safe starting point (confirm with the machine manual).
  • Success check: stitch formation looks balanced on both sides and the machine sound stays smooth rather than “hammering.”
  • If it still fails, stop and look for early thread nesting under the work (nesting can mimic “tension problems”).
• Q: How do I keep freestanding lace (FSL) lace elements from turning into a dense “bullet” that causes needle breaks when resizing lace motifs in embroidery digitizing software?
  A: Avoid shrinking lace elements too far; scaling down often makes density spike and triggers needle breaks.
  • Do not scale lace motifs below 80% when importing library elements.
  • Overlap motifs onto the mesh rather than trying to “fit” them by shrinking.
  • Run stitch simulation before export to catch overly dense segments and excessive trims.
  • Success check: stitch-out stays flexible (not rock-hard) and the needle does not start punching loudly or snapping.
  • If it still fails, reduce the number of tiny decorative elements and prioritize a stronger base mesh and border first.
• Q: What are the safety rules for using magnetic embroidery hoops/frames with powerful magnets during freestanding lace (FSL) hooping?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical implants; control the magnets—do not let them snap.
  • Keep magnets away from pacemakers/medical implants and follow medical guidance before use.
  • Separate and place magnets deliberately to avoid finger pinch injuries and impact damage to machine screens.
  • Ensure the stabilizer is clamped flat (not warped) so the lace border registers correctly.
  • Success check: magnets sit evenly, the stabilizer stays flat, and the hoop does not creep during stitching.
  • If it still fails, revert to a standard hoop temporarily to confirm whether the issue is hooping stability or digitizing structure.
• Q: When freestanding lace (FSL) production keeps failing due to hoop slip, inconsistent hooping tension, or slow output, what is the staged upgrade path from technique to tooling to a multi-needle machine?
  A: Start by stabilizing technique, then upgrade hooping tools, and only then consider a multi-needle machine for volume.
  • Level 1 (Technique): correct WSS hooping tension, stitch order (mesh → border → decor), 3.0 mm border, zigzag underlay, and no cut-holes behind decor.
  • Level 2 (Tooling): switch to magnetic hoops/frames to clamp WSS flat and reduce hoop distortion/registration error; add a hooping station to repeat tension and prep the next hoop while stitching.
  • Level 3 (Scale): move to a multi-needle machine when making batches and you need consistent running and less hands-on stopping.
  • Success check: repeat runs produce the same border alignment and survive rinsing with minimal trims and no “floating” parts.
  • If it still fails, slow down and stop immediately if the machine begins “hammering” or nesting—clear the nest and re-check hooping before restarting.
