Digitize a Honey Pot Clipart the Clean Way: Smoother Nodes, Better Stitch Previews, and a Faster Path to a Perfect Sew-Out

When you’re digitizing from clipart, the software makes it look fast and easy—until the first sew-out reveals wavy edges, unexpected gaps, or a jagged outline that looks nothing like the screen.

Donna’s session on digitizing this honey pot is a perfect masterclass in the "Real Craft." It reveals that embroidery is not just about drawing shapes; it is about engineering—controlling how those shapes pull against the fabric, and how cleanly they will stitch when hoop tension and thread physics enter the picture.

Whether you are a hobbyist tired of ruined shirts or a business owner looking to scale, understanding the bridge between digital design and physical production is your key to profitability. Below is the workflow, rebuilt into a sensory, safety-conscious, and commercially viable guide.

Import the Honey Pot Clipart Artwork in Embroidery Digitizing Software Without Setting Yourself Up for Distortion Later

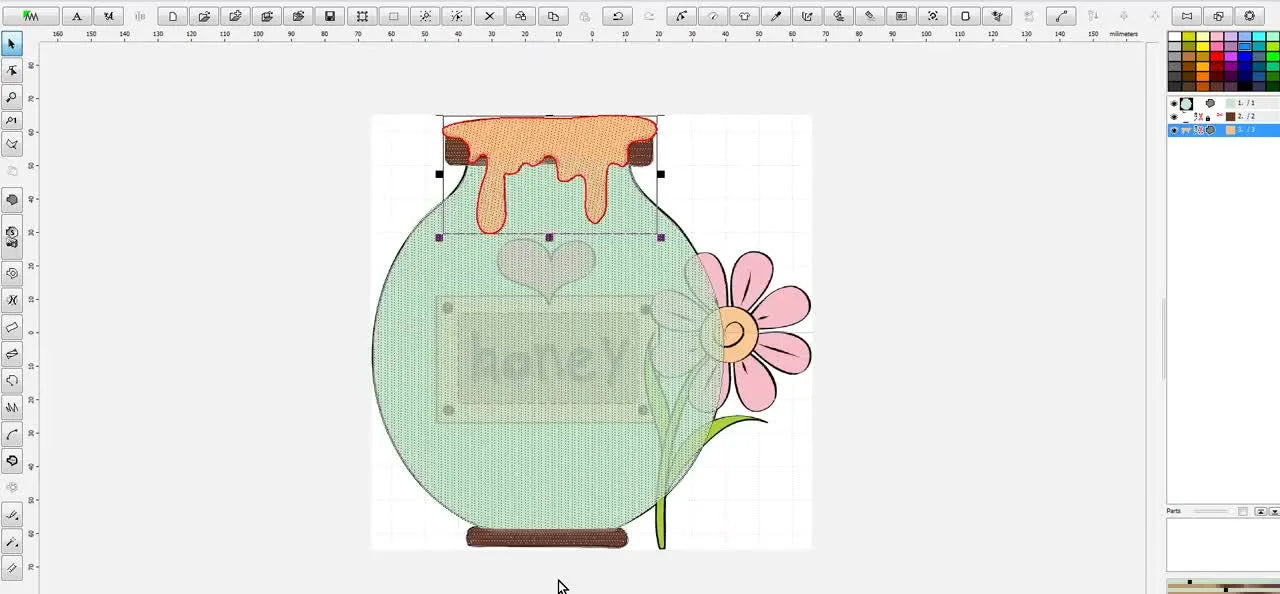

Donna starts with the honey pot clipart loaded on the canvas. This is your foundation. If your foundation is pixelated or shaky, your stitches will be too.

What you’re aiming for at this stage

• Clarity: The artwork must be high-resolution enough that you don't have to guess where an edge begins or ends.
• Scale: Verify the size now. If this jar is for a hat (2.5 inches tall) versus a jacket back (10 inches tall), your density settings will differ wildly.
• Mental Mapping: You are separating the image into "Physical Objects" (Jar Body, Lid, Drip, Label).

Pro tip (The "3-Layer" Rule): Before clicking anything, imagine the design in layers. The Label sits on the Jar; the Drip sits on the Jar; the Lid sits above all. Embroidery has thickness. If you don't plan this stacking order, you'll end up with a bulky, bulletproof patch that breaks needles.

The Jar Body Fill Object: Generate Stitches and Lock in the Misty Jade Thread Color (Marathon 2260)

Donna defines the jar body as a fill object and converts it to stitches. This transitions the shape from a "Vector" (mathematically perfect line) to a "Stitch Packet" (physical instructions for the machine).

Immediately after, she opens the color catalog to assign the correct thread profile.

She selects Misty Jade (2260).

Expert Calibration (Stitch Physics):

• Stitch Type: For a jar this size, a Tatami (Fill) stitch is standard. Satin stitches are too long for wide shapes and will snag or loop.
• Safe Density: A standard novice "sweet spot" for Tatami density is 0.40mm to 0.45mm.
  • Too dense (<0.35mm): The fabric will stiffen, potentially causing needle deflections or thread breaks.
  • Too loose (>0.50mm): The fabric color will peek through.
• Underlay: This is non-negotiable. You need an Edge Run (contour) and a Tatami underlay to stable the fabric before the top stitches land. Without this, the jar will warp into an oval.

Expected sensory outcome: On screen, the fill should look uniform. When stitched, you want to hear a consistent hummmmm from the machine, not a laboring thump-thump (which indicates density is too high).

Prep Checklist (before you digitize the first object)

• File Hygiene: Is the artwork centered on the grid (0,0)?
• Scale Lock: Have you locked the image size so you don't accidentally drag it 10% larger while working?
• Consumables Check: Do you actually have Misty Jade thread (or a match)? Don't trust screen colors—hold the physical spool against your fabric.
• Object Plan: Write down your sewing order: 1. Underlay -> 2. Jar Body -> 3. Honey -> 4. Lid -> 5. Label.

The “Sharp Corner” Problem: Use Reshape Node Editing to Smooth the Jar Outline Before It Becomes a Stitch-Out Headache

Donna notices the jar shape looks “sharp” on the side. In vector drawing, a sharp node is just a corner. In embroidery, a sharp node creates a High-Density Point.

When stitches fan out from a sharp corner, the needle hits the same spot repeatedly. This can punch a hole in delicate knits or break the thread.

The Fix: She enters Reshape mode and drags the yellow nodes to smooth the curve.

Checkpoint: what you should see

• The wireframe transitions from angular to organic.
• The stitches should flow around the curve, not pile up in a knot.

Safety Insight: If you see a "starburst" pattern of stitches converging on a single tight point, Stop. That is a danger zone for needle heat and thread shredding. Add nodes to broaden the turn.

Warning: Node editing requires a light touch. If you drag nodes too far, you may create "loops" in the wireframe that confuse the software, leading to machine errors or skips during the sew-out.

TrueView / 3D Stitch Preview: Catch the Ugly Stuff While It’s Still Cheap to Fix

Donna toggles to 3D/TrueView. This is your "Digital Twin" simulation.

Checkpoint: Visual Mechanics

• Push/Pull Check: Look at the edges. In reality, Tatami stitches will push the fabric out in the direction of the stitch. Does the preview look like the shape is expanding? You may need to tuck the outline in slightly (Pull Compensation).
• Gaps: Zoom in 200%. Do you see white space between outline and fill? Fixing it here costs $0. Fixing it on a finished garment costs the price of the garment.

Expert habit: Don't just look at the colors. Look at the texture. Does the stitch direction follow the curve of the glass? If the stitches run horizontally, does that make the jar look flat? Consider changing the stitch angle to 45 degrees or 60 degrees for a more dynamic look.

The Honey Drip Object: Manually Trace the Irregular Curve So It Looks “Drippy,” Not Like a Cartoon Blob

Donna manually digitizes the honey drip. This object sits on top of the jar.

She zooms in to refine the viscosity—making it look fluid.

She adjusts the bottom edge to match the jar's curvature.

The "Gravity" Factor: To make honey look real, avoid perfect circles. Vary the width of the drips.

• Crucial Setup: Because the drip sits on top of the jar stitches, you must increase the density slightly or use a heavy underlay on the drip. If you don't, the honey stitches will sink into the jar stitches and disappear (the "sinking into the mud" effect).
• Overlap: Ensure the honey object overlaps the jar object by at least 1.0mm - 1.5mm. If they just touch edges, the fabric will pull them apart during stitching, leaving a gap.

Checkpoint: The honey object should clearly sit "proud" (higher) than the jar surface in the 3D preview.

Lid Pieces in One Move: Group the Top Elements and Assign Dark Brown So Color Changes Stay Simple

Donna groups the lid elements and assigns Dark Brown.

The lid becomes a coherent unit.

Efficiency & Profitability Note: On a single-needle home machine, every color change is a manual intervention: Stop machine -> Cut thread -> Remove spool -> Insert new spool -> Thread needle -> Thread eye -> Start. This takes ~2 minutes per change.

• Hobbyist: Grouping reduces this frustration.
• Pro: If you are running a production shop, multiple color changes are precisely why you upgrade to a defined multi-needle system, like the SEWTECH multi-needle machines. A 15-needle machine does this color swap in 3 seconds automatically. Grouping is good practice; upgrading your gear is the ultimate solution to color-change fatigue.

Honey Color Selection: Choose an Apricot/Peach Tone That Plays Nice With Misty Jade

Donna selects a peach tone.

Checkpoint: Contrast check.

• Visual: Does the peach stand out against the Jade?
• Real World: Thread has sheen (luster). If the colors are too similar in value (lightness/darkness), they will blend together under workshop lights. Always aim for higher contrast than you think you need.

Expert Reality Check: If sewing on a dark garment, use a lighter honey color. The dark fabric will absorb light and make the thread appear darker.

The Label Block: Create the Rectangle Object and Assign Emily Pink (2242) for Contrast

Donna creates the label fill.

Assignments are made: Emily Pink (2242).

Design Architecture: The label is the "top floor" of the building.

• Stitch Angle: Ensure the label stitches run at a different angle than the jar body behind it.
  • Jar: 45 degrees.
  • Label: 135 degrees.
  • Why? If angles match, the label will sink. Contrasting angles create light reflection that separates the objects visually.

The “Pop-Up Went Missing” Moment: What to Do When a Dialog Box Opens Off-Screen

Donna notes a UI glitch where a window opens off-screen.

Practical Takeaway: Embroidery software is complex and heavy on RAM.

• Don't Panic: If screens freeze or disappear, do not mash buttons.
• Safe Mode: Save your design (Ctrl+S) immediately before opening complex dialogs like "Auto-Digitize" or "Font Manager." These are crash-prone areas.

Final Progress Check: Confirm the Jar + Honey + Lid Read Cleanly Before You Add More Details

Donna reviews the composition.

The full assembly is visible.

Checkpoint: what you should see

• No gap between the lid and the jar.
• No gap between the drip and the jar.
• The colors follow a logical sequence (Lightest to Darkest, or Background to Foreground).

Setup Checklist (before you export and stitch this design)

• Pathing Check: Watch the "Slow Re-draw" simulator. Does the machine jump across the design unnecessarily? (Trims take time; jumps leave tails).
• Consumables: Do you have the right bobbin? (White for light fabric, Black for dark).
• Needle Check: Is your needle fresh? A burred needle will shred the thread on the dense fill of the jar.
  • Rule of thumb: Change needles every 8-10 hours of machine time.
• Export Format: Ensure you export to the machine's native language (e.g., .DST, .PES, .JEF).

The “Why It Warps” Explanation: Nodes, Curves, and Real-World Hooping Pressure Are Connected

Software is perfect; physics is messy.

When you stitch a large fill area (like the Honey Pot body), the thousands of stitches pull the fabric inward. This is called the "Accordion Effect." If your hooping is weak, the fabric creates a wave, and your perfect circle becomes an oval.

The Commercial Solution to Physical Problems: If you are fighting hoop burn (shiny rings texturing the fabric) or struggling to hoop thick items (towels, jackets), this is typically a hardware limitation, not a skill issue.

• The Problem: Traditional compression hoops require significant hand strength and can crush delicate fibers.
• The Upgrade: Professionals often switch to magnetic embroidery hoops. These use powerful magnets to hold fabric without forcing it into a plastic ring. This eliminates "hoop burn" and makes adjusting tension easier and safer for the garment.
• The Workflow: If alignment is your enemy (tilted jars), a hooping station for machine embroidery ensures that every shirt is hooped in the exact same spot, drastically reducing rejects.

Warning: Magnetic Safety. Professional magnetic hoops (like those from Sewtech) are extremely powerful. They pose a pinch hazard. Keep fingers clear of the snapping zone. Never place them near pacemakers or sensitive electronics.

Decision Tree: Choosing Stabilizer and Hooping Method for a Clipart Fill Design Like This Honey Pot

Follow this logic path to ensure your Honey Pot doesn't turn into a Honey Puddle.

1) What acts as the canvas? (Fabric Type)

• Stable Woven (Denim, Canvas, Twill):
  • Stabilizer: Medium Tearaway (usually sufficient).
  • Needle: 75/11 Sharp.
• Unstable Knit (T-shirt, Polo, Hoodie):
  • Stabilizer: Cutaway (Mandatory). Tearaway will cause the design to delaminate and sag after one wash.
  • Needle: 75/11 Ballpoint (to push fibers aside, not cut them).
• High Pile (Towel, Fleece):
  • Stabilizer: Castaway underneath + Water Soluble Topping on top (to prevent stitches sinking).

2) What is your volume?

• < 5 items: Traditional hoops are fine. Take your time.
• > 20 items: Fatigue sets in. Consider a machine embroidery hooping station to maintain speed and placement accuracy without wrist strain.

3) Are you dealing with thick seams or zippers?

• Yes: Traditional hoops may pop open. A magnetic embroidery hoop is superior here as it accommodates varying thickness without losing grip.

Troubleshooting the Most Common Sew-Out Problems From a Design Like This

Even perfectly digitized files can fail mechanically. Here is a prioritized drill-down.

Symptom: White bobbin thread is showing on the top (The "Railroad Track" effect)

• Likely Cause: Top tension is too tight, or bobbin tension is too loose.
• Quick Fix: Lower top tension (turn dial/digital setting down).
• Pro Fix: Perform the "Drop Test" on your bobbin case (for industrial bobbin cases).

Symptom: The Jar Outline does not line up with the Jar Fill (Registration Error)

• Likely Cause: Fabric shifted during stitching (Pull distortion).
• Quick Fix: Increase "Pull Compensation" in the software (0.2mm to 0.4mm).
• Better Fix: Use a stronger stabilizer (Cutaway) or ensure the fabric is hooped "drum tight" (but not stretched).

Symptom: Thread breaks repeatedly on the Honey Drip

• Likely Cause: Stitch density is too high in the overlap area, or the needle is gummed up with adhesive spray.
• Quick Fix: Change the needle.
• Design Fix: Reduce density of the underlying Jar body in the area where the Honey sits.

Symptom: Hoop Burn (Shiny ring marked on fabric)

• Likely Cause: Hoop was tightened too aggressively on delicate fabric.
• Prevention: Steam the fabric gently to remove marks. For future runs, use magnetic embroidery hoops which distribute pressure more evenly than inner/outer ring friction hoops.

The Upgrade Path That Actually Makes Sense: From Clean Digitizing to Faster, Cleaner Production

Mastering digitizing is Step 1. Mastering production is Step 2.

As your skills grow, your manual tools will become the bottleneck. Recognizing this transition is key to scaling your hobby into a business.

1. Level 1: Stability Upgrade
   • If you struggle with hooping thick items, zippers, or delicate velours, stop fighting the plastic rings. magnetic embroidery hoops are the industry standard for difficult materials. They pay for themselves by saving garments from hoop burn damage.
2. Level 2: Precision Upgrade
   • If you spend 5 minutes measuring and 1 minute hooping, you are losing money. A embroidery hooping station standardizes your placement, ensuring the Honey Pot lands on the left chest exactly 3 inches down every single time.
3. Level 3: Capacity Upgrade
   • If you are dreading the 4 manual color changes in this design, you have outgrown your single-needle machine.
   • Moving to a SEWTECH multi-needle machine isn't just about speed (though 1000 SPM is nice); it's about autonomy. You set the 15 colors, press start, and walk away. That is how you turn embroidery into a business.

Warning: Mechanical Safety. Embroidery machines involve high-speed moving needles (~1000 stabs per minute). Never attempt to re-thread or adjust a hoop while the machine is in "Red Light" (Active) mode. Keep loose hair and drawstrings away from the take-up levers.

Operation Checklist (your first stitch-out test)

• The "Bird's Nest" Check: Hold the thread tail for the first 3-5 stitches to prevent it being sucked into the bobbin area.
• The Auditory Check: Listen. A rhythmic click-click-click is good. A groaning grrr-grrr or a loud SNAP requires an immediate stop (Emergency Stop button).
• Tension Monitor: After the Hive Body finishes, stop the machine. Flip the hoop over. Do you see 1/3 white bobbin thread in the center of the satin column? If yes, keep going. If no, adjust tension before the Lid starts.
• Finish: Trim jump stitches carefully (if your machine doesn't auto-trim) to avoid cutting a knot.

By following Donna's digital structure and layering it with these physical safety checks and tool upgrades, you move from "hoping it works" to "knowing it will work." Happy stitching!

FAQ

• Q: In Wilcom Hatch (or similar embroidery digitizing software), how do I stop a clipart jar body Tatami fill from warping into an oval during stitch-out?
  A: Use proper underlay plus pull compensation, then fix hooping/stabilizer so fabric cannot wave—this is very common with large fills.
  • Add underlay: enable an Edge Run (contour) plus Tatami underlay before the top Tatami stitches.
  • Set a safe starting density for Tatami at 0.40–0.45 mm; avoid going overly dense because it increases distortion risk.
  • Apply pull compensation (a typical adjustment range is 0.2–0.4 mm) if edges are drifting after sew-out.
  • Success check: the machine sound stays a steady “hummmmm,” and the stitched jar edge looks smooth without ripples or wavy sides.
  • If it still fails… upgrade stabilization (Cutaway for knits) and re-hoop with firm, even tension (drum tight but not stretched).
• Q: In Wilcom Hatch Reshape (node editing), how do I fix a sharp corner on a clipart jar outline that causes thread breaks or a hole in knit fabric?
  A: Smooth the node into a broader curve so stitches do not converge into a high-density point.
  • Enter Reshape mode and gently drag nodes to remove the “pointy” corner.
  • Add nodes to widen the turn if the stitch preview shows a tight convergence area.
  • Stop and correct any “starburst” stitch convergence before sewing, because that area overheats needles and shreds thread.
  • Success check: the wireframe looks organic (not angular), and the stitches flow around the curve instead of piling into a knot.
  • If it still fails… reduce density in that area and re-check the 3D/TrueView preview at high zoom before exporting.
• Q: In Wilcom Hatch TrueView/3D Stitch Preview, how do I detect gaps between a jar outline and jar fill before I waste a garment?
  A: Zoom in and correct gaps in preview using pull compensation and small overlaps—fixing it on-screen is the cheapest stage.
  • Toggle to TrueView/3D and inspect edges for push/pull expansion that will happen on fabric.
  • Zoom to about 200% and look for white space between outline and fill.
  • Tuck edges slightly with pull compensation if the preview suggests the shape will expand during stitching.
  • Success check: the fill meets the outline cleanly in preview with no visible white channels where fabric would show.
  • If it still fails… run a slow re-draw/pathing check and confirm hooping tension and stabilizer match the fabric type.
• Q: In Wilcom Hatch (clipart digitizing), how do I keep a honey drip fill from “sinking into the mud” of the jar fill stitches?
  A: Make the honey drip stand proud by using heavier support and deliberate overlap over the jar fill.
  • Increase density slightly on the honey drip or use a heavy underlay so top stitches don’t disappear into the base fill.
  • Overlap the honey drip onto the jar body by about 1.0–1.5 mm instead of butting edges.
  • Refine the irregular curve manually so drips vary in width (avoid perfect circles).
  • Success check: in 3D preview the honey clearly sits “higher” than the jar surface, and after sewing the drip edge stays continuous with no gap line.
  • If it still fails… reduce density in the underlying jar area where the honey overlaps to prevent an over-dense stack.
• Q: On a single-needle home embroidery machine (PES/JEF/DST workflow), how do I reduce time lost to manual color changes when digitizing a multi-part lid and jar design?
  A: Group same-color elements (like lid pieces) so the design runs with fewer stop-and-rethread interruptions.
  • Assign one color to all lid components and group them so they stitch as one block.
  • Plan a logical sew order (underlay → jar body → honey → lid → label) to prevent unnecessary jumps/trims.
  • Run a slow re-draw to verify the machine isn’t jumping across the design excessively (jumps create tails and waste time).
  • Success check: during the run you see fewer “stop/change thread” events, and the machine path looks continuous rather than hopping back and forth.
  • If it still fails… consider whether production volume justifies moving to a multi-needle system for automatic color changes.
• Q: On an industrial multi-needle embroidery machine, how do I prevent “railroad track” bobbin thread showing on top when stitching dense fills like a jar body?
  A: Adjust tension balance—most often reduce top tension if white bobbin is pulling to the surface.
  • Lower top tension first (small changes), then re-test.
  • Verify bobbin setup and perform a bobbin case “drop test” if using an industrial bobbin case.
  • Re-check after a major fill segment completes, before moving into the next color block.
  • Success check: you see an even stitch with correct balance (not white bobbin dominating the top surface).
  • If it still fails… change the needle (a burred needle can distort tension appearance) and confirm density is not excessively high.
• Q: What safety rules should embroidery operators follow when using Sewtech-style magnetic embroidery hoops and when running a 1000 SPM multi-needle embroidery machine?
  A: Treat magnets and moving needles as pinch-and-puncture hazards—slow down, keep hands clear, and never adjust during active stitching.
  • Keep fingers out of the “snap zone” when closing magnetic hoops; the magnets can pinch hard.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Never re-thread, adjust fabric, or touch the hoop while the machine is in active (running) mode; stop the machine first.
  • Success check: hoop closing is controlled (no finger pinches), and adjustments happen only when the machine is fully stopped.
  • If it still fails… add a routine: pause/stop → hands clear → adjust → verify clearance → restart, and follow the machine manual as the final authority.
