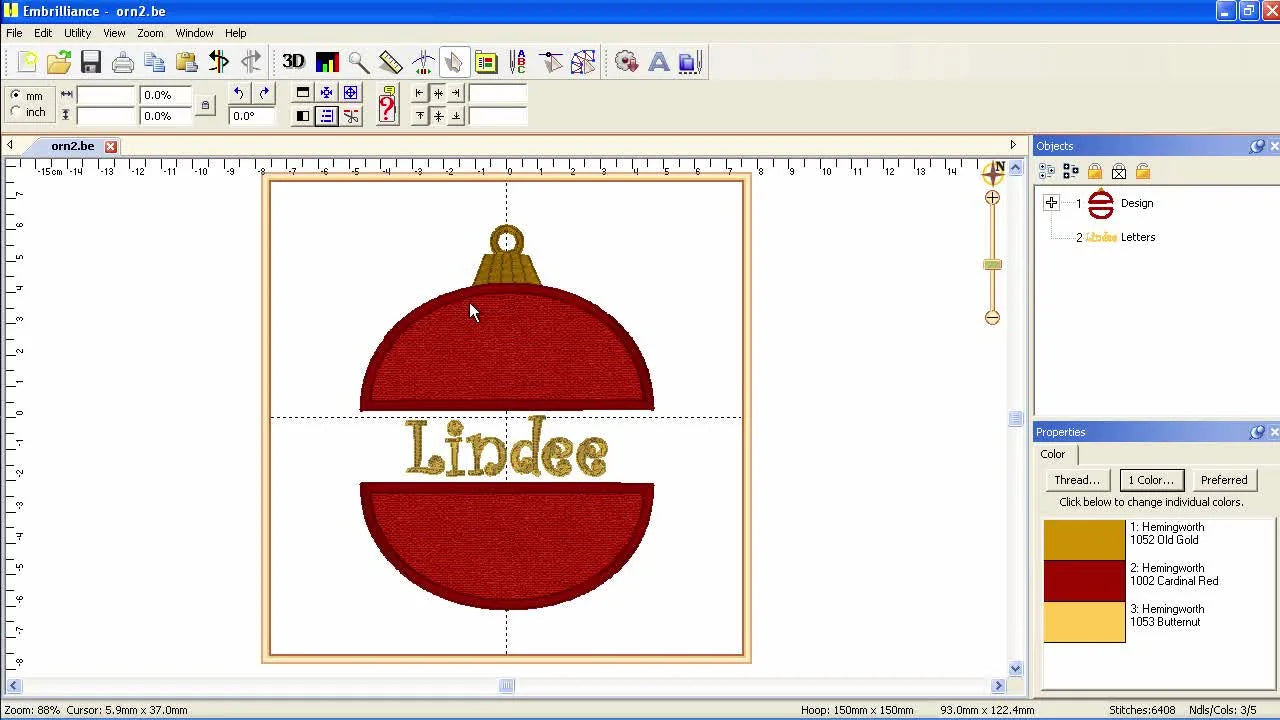

Digitize a Personalized Appliqué Ornament in Embrilliance Stitch Artist (and Make It Actually Stitch Clean)

Master Class: Fearless Digitizing for Beginners (The Ornament Project)

If you are staring at Embrilliance Stitch Artist thinking, “This software looks powerful… but clicking the wrong button feels dangerous,” take a deep breath. You are not alone. In my 20 years of teaching embroidery, I have watched thousands of first-time digitizers hit the same invisible wall: the software demo looks effortless, but your first actual stitchout looks like a bird's nest.

Digitizing isn't just about drawing lines; it is about understanding the physics of thread, tension, and fabric. This guide rebuilds the exact ornament project shown in the video, but with a critical difference: we are adding the "sensory safety checks" that seasoned pros use instinctively.

We will build this design using only built-in shapes (no external art required), add professional lettering, and solve the specific headache of appliqué trimming before it ruins your fabric.

The Calm-Down Moment: What This Project *Really* Teaches

This ornament isn’t just a cute Christmas file. It is a compact "Flight Simulator" for the four skills that separate amateur files from professional production:

1. Vector Stability: Building clean artwork from library vectors rather than messy manual drawing.
2. Satin Physics: Controlling stitch width, ties, and splits so loops don't snag.
3. Appliqué Logic: Setting trim stops so you don't stitch over raw fabric edges.
4. Sequence Integrity: Fixing the "Hidden Layer" problem when the screen lies to you.

If you can execute this project cleanly, you have graduated from "hoping it works" to "knowing it works."

Phase 1: The "Hidden" Prep (Physical & Mental Setup)

Before you touch the software, you must define the physical reality of the stitchout. Beginners skip this; experts obsess over it.

The "Appliqué Anxiety" Factor

This project uses Appliqué. This means the machine will stop, you will place fabric, it will tack it down, you will trim the excess, and then it will satin stitch over the edge.

The Pain Point: The moment of trimming is where 80% of failures happen. If you un-hoop a standard frame to trim the fabric, you will never get it back in with perfect alignment. If you try to trim inside the hoop while it's attached to the machine, you risk popping the fabric loose or distorting the tension.

The Professional Approach:

• Low Volume: Careful hand trimming inside the hoop.
• High Volume (Gift Batches/Orders): If you are making 20+ of these, fighting a standard inner ring screw every time leads to wrist fatigue and "hoop burn" (permanent ring marks). This is where magnetic embroidery hoops change the game. They allow you to lift the top magnet, adjust fabric, and snap it back without distorting the stabilizer or the fabric grain.

Hidden Consumables Checklist

Ensure you have these physical items ready:

• Curved "Duckbill" Scissors: Crucial for trimming appliqué fabric close to the stitches without slicing your stabilizer.
• Fresh 75/11 Needle: A dull needle pushes fabric rather than piercing it, causing alignment shifts.
• Adhesive Spray (Temporary): To hold the appliqué fabric flat before the tack-down stitch.

Prep Checklist (Do this **before** opening software)

• Verify Platform: Confirm you are in Embrilliance Stitch Artist mode.
• Select Palette: We will use Hemingworth in the demo, but ensure you have similar thread weights (40wt standard).
• Plan Sequence: Ring → Cap → Appliqué Body → Mirror Duplicate → Lettering.
• Check Consumables: Duckbill scissors are on your table.
• Stabilizer Selection: For a hanging ornament, use a stiff Tearaway (2 sheets) or a heavy Cutaway if you want it rigid.

Phase 2: Building the Chassis (Library Shapes)

We will not draw by hand. We will use the mathematically perfect shapes inside the software.

1. Create New Page: Open a fresh design page.
2. Access Library: Click the "Gear" icon (Library).
   • Navigate to: Embrilliance Outlines > Shapes 1.
   • Select: Half Oval (Double click to place).
3. Add Components:
   • Select a Trapezoid (for the cap).
   • Select a Circle (for the hanging ring).
4. Batch Resize: Hold Control (Ctrl) to select multiple objects. Resize them down to ornament proportions (Cap and Ring should be small relative to the oval).
5. The "Visual Anchor":
   • Select all vectors.
   • Click Align and Distribute > Center-Vertical.
   • Sensory Check: Visually verify a straight line runs through the center of the ring, cap, and oval.






Phase 3: Color Coding for Machine Behavior

We assign colors now—not for aesthetics, but to force the machine to stop. If two consecutive objects are the same color, the machine will sew them continuously. We need stops.

1. Open Color Panel: Click the color swatch.
2. Set Thread Brand: Choose Hemingworth (or your preferred list).
3. Assign Stops:
   • Cardinal Red 1002 for the Ornament Body.
   • Old Gold 1052 for the Cap and Ring.

Pro Tip: Seeing these distinct colors on your screen is your visual cue that the machine will physically stop, allowing you to trim threads or change cones.

Phase 4: Stitches & Physics (The Ring)

Now we apply the "Satin Border" property. This is where beginners often create thread breaks.

1. Select the Circle (Ring).
2. Click "Satin Border".
3. Key Parameter: Width = 2.0 mm.
   • Why: A satin stitch narrower than 1.5mm often sinks into fabric. 2.0mm sits proudly on top.
4. Safety Setting: Tie at Entry.
   • Why: Without a tie-in (locking stitch), the thread will pull out like a loose tooth when the machine starts fast.
5. Travel Optimization: Drag the Green Bow Tie (Start Point) to the bottom of the ring.
   • Why: This positions the needle closer to the next object (the cap), reducing the length of the jump stitch.




Warning: Mechanical Safety
When the machine performs a "Jump Stitch" (moving from the ring to the cap), it moves at high speed. Keep hands clear of the needle bar area. Never reach in to grab a thread tail while the machine is active.

Phase 5: Pattern Split (The Cap)

The cap is wider than the ring. If we just apply a standard satin stitch, the thread might span 10mm or more. These long threads are dangerous—they snag on buttons, zippers, and washing machine agitators.

1. Select the Cap Vector.
2. Apply Satin Fill.
3. Start Point: Click the top of the cap (closest to where the ring finished).
4. Critical Setting: Pattern Split = 5.0 mm.
   • The Logic: The software will automatically insert a "needle penetration" every 5mm. This breaks up long threads.
   • Visual Check: The fill should look textured, not like long, loose floating lines.


Phase 6: Appliqué Settings (The Body)

This is the most complex step involving fabric interaction.

1. Select the Oval.
2. Click "Appliqué Tool". (This automatically creates three steps: Position, Material, Top Stitch).
3. Refine Properties:
   • Border Type: Satin.
   • Stitch Width: 3.0 mm - 3.5 mm. (Below 3mm risks exposing raw fabric edges; above 4mm looks clunky on small ornaments).
   • Density: 5. (Standard coverage without being bulletproof).
4. Visualize: Turn on "Fabric Preview" to see the simulated texture.






Commercial Insight: The Production Bottleneck

If you are doing this as a hobby, standard hoops are fine. However, if you are planning to sell these at a craft fair, the "Position -> Tack -> Trim -> Stitch" cycle is slow.

• The Problem: The "Hoop Burn". Tightening a standard hoop enough to hold stabilizer taut can leave permanent rings on delicate fabrics like velvet or satin.
• The Upgrade: Many professionals search for how to use magnetic embroidery hoop specifically to solve this. Because the magnet clamps straight down (no friction twisting), it eliminates hoop burn and drastically speeds up the "pop off, trim, pop on" process.

Warning: Magnetic Safety
Magnetic embroidery hoops differ from fridge magnets. They use industrial Neodymium magnets.
1. Pinch Hazard: Do not place fingers between the rings; they snap together with significant force.
2. Medical Device: Keep at least 6 inches away from pacemakers.
3. Electronics: Keep away from credit cards and phone screens.

Phase 7: The "Hidden Layer" Fix (Object Ordering)

The Panic Moment: You look at the 3D preview, and your beautiful gold Cap stitches are behind the red Appliqué stitches. They look buried.

The Physics of Digitizing: The machine sews in the order objects are listed in the "Object Tree" (usually on the right side of the screen). If you created the Cap before the Appliqué, it sews first, and gets covered up.

The Fix:

1. Locate the Appliqué Object in the Object Tree.
2. Right-Click > Move Last.
3. Visual Check: The Gold Cap should now overlay the top of the Red Body.


Phase 8: Duplication & Mirroring

Work smarter, not harder. Don't draw the bottom half; clone it.

1. Select the Appliqué Half Oval.
2. Copy (Ctrl+C) and Paste (Ctrl+V).
3. Click Flip Vertical (Mirror).
4. Drag the duplicate down.
5. Alignment Check: Select both halves > Align Center.
6. Centering: Center the whole design in the hoop.


Efficiency Note: Batch Production

If you are running a batch of 50 ornaments, doing them one by one is painful.

• Level 1: Use software to "Color Sort" so you do all red steps, then all gold steps (if creating a multi-hoop layout).
• Level 2: Use a hooping station for embroidery machine. This tool holds the hoop in a fixed position on your table, allowing you to load stabilizer and fabric identically every single time. Consistent placement = Consistent profit.

Phase 9: Lettering (BX Fonts)

We will use a "BX" font (mapped keyboard font) rather than a built-in block font.

1. Select Lettering Tool "A".
2. Type Text: e.g., "Lindee".
3. Select Font: Look for the Needle Icon next to the font name (indicates BX/native format). The demo uses "Serendipity".
4. Size Check: Drag the lettering to fit.
   • Safety Rule: Keep lettering height above 6mm for legibility. For this ornament, 12mm is the sweet spot.






Troubleshooting: The "Why Is It Ugly?" Matrix

When things go wrong, use this Logic Table before panicking.

Decision Tree: Stabilizer Strategy

Choosing the wrong foundation causes 90% of puckering issues.

START: What material is your base?

• A. Felt / Stiff Fabric (Ornament Base)
  • Recommendation: Tearaway (2 layers).
  • Reason: It shapes well and tears clean for neat edges.
• B. T-Shirt / Stretchy Knit
  • Recommendation: Cutaway (No Mesh).
  • Reason: Knits stretch. Tearaway will shatter, causing the design to distort. You must use Cutaway.
• C. High Pile (Towel/Velvet)
  • Recommendation: Tearaway (Bottom) + Solvy (Top).
  • Reason: The top water-soluble layer prevents stitches from sinking into the fluff.

Setup Checklist (Computer Side)

• Vectors Aligned: Center line is perfect.
• Colors Assigned: Red and Gold are distinct (forcing a stop).
• Satin Width: Ring is > 2.0mm.
• Appliqué: Width is 3.0mm - 3.5mm; Density is 5.
• Layering: Cap is physically on top of the appliqué body in the list.
• Tie-Ins: "Tie at Entry" is checked for all satin objects.

Operation Checklist (Machine Side)

• Bobbin Check: Is there enough bobbin thread for the whole run? (Don't guess).
• New Needle: Fresh 75/11 inserted.
• Hoop Tension: Tap the stabilizer. It should sound like a drum.
• Format: File saved as correct format for your machine (.PES, .DST, .JEF).
• Trace: Run a "Trace" or "Contour" on the machine to ensure the design doesn't hit the hoop frame.

The Path to Pro: When to Upgrade

You can make beautiful things with a basic machine. But if you find yourself spending more time fighting the hoop or changing threads than actually creating, listen to that frustration.

• Pain: "My hands hurt from re-hooping." -> Solution: magnetic embroidery hoop.
• Pain: "I hate changing threads 10 times per design." -> Solution: A multi-needle machine like the SEWTECH series. It handles the color swaps automatically, letting you walk away and do other work.

Start with this ornament. Master the satin width. Master the trim. The confidence you build here applies to everything from hats to jackets. Happy stitching!

FAQ

• Q: In Embrilliance Stitch Artist appliqué ornament projects, how can embroidery appliqué fabric be trimmed without losing alignment in a standard screw hoop?
  A: Keep the fabric and stabilizer held in place during trimming so the design registration does not shift.
  • Trim: Stop at the tack-down step and trim the appliqué fabric close to the stitches using curved duckbill scissors.
  • Avoid: Do not un-hoop a standard frame just to trim, because re-hooping rarely returns to perfect alignment.
  • Stabilize: Use temporary adhesive spray to hold the appliqué fabric flat before the tack-down stitch.
  • Success check: The satin border later covers the raw edge evenly all around with no fabric peeking out.
  • If it still fails… Re-check hoop tension (drum-skin tight) and replace a dull 75/11 needle that may be pushing fabric instead of piercing it.
• Q: For Embrilliance Stitch Artist satin borders on an ornament ring, what satin stitch width and tie-in setting reduces thread breaks and pull-outs?
  A: Use a 2.0 mm satin width on the ring and enable “Tie at Entry” to lock the start cleanly.
  • Set: Select the circle (ring) and apply Satin Border with Width = 2.0 mm.
  • Enable: Turn on “Tie at Entry” so the first stitches do not pull out when the machine accelerates.
  • Optimize: Move the start point (green bow tie) to the bottom of the ring to shorten the jump toward the cap.
  • Success check: The ring stitches sit on top of the fabric (not sinking in) and the start of the satin does not unravel when you tug the thread tail lightly.
  • If it still fails… Reduce jump length further by adjusting start points, and verify the machine is correctly threaded before chasing tension.
• Q: In Embrilliance Stitch Artist, how does Pattern Split = 5.0 mm on a satin-filled ornament cap prevent long floating threads that snag?
  A: Set Pattern Split to 5.0 mm on the cap so the software inserts regular needle penetrations and breaks up long spans.
  • Apply: Select the cap vector and choose Satin Fill.
  • Set: Use Pattern Split = 5.0 mm to avoid long, loose satin “bridges.”
  • Choose: Set the start point at the top of the cap (closest to where the ring finishes) to reduce unnecessary travel.
  • Success check: The cap fill looks textured/segmented rather than showing long floating threads across the width.
  • If it still fails… Confirm the cap is not overly wide for a single satin and re-check the start point to minimize travel stitches.
• Q: On an embroidery machine, what is the safest way to handle jump stitches during the ring-to-cap transition in an Embrilliance Stitch Artist ornament design?
  A: Keep hands completely clear of the needle bar area during jump stitches and never reach in to grab thread tails while the machine is moving.
  • Pause: Wait until the machine fully stops before touching thread tails, fabric, or the hoop.
  • Watch: Expect high-speed movement during jumps between objects (for example, ring to cap).
  • Prepare: Plan trims and thread handling at color-stop moments, not during motion.
  • Success check: No near-misses occur and thread tails are managed only when the machine is stopped and safe to approach.
  • If it still fails… Use the machine’s stop/pause function proactively and reposition yourself so hands never enter the needle path.
• Q: In Embrilliance Stitch Artist, how can incorrect object order in the Object Tree cause the ornament cap stitches to look buried behind appliqué stitches, and how can it be fixed?
  A: Change the sew-out order in the Object Tree so the cap stitches land on top instead of being covered.
  • Find: Locate the appliqué object in the Object Tree.
  • Reorder: Right-click and choose “Move Last” so the appliqué body sews after (or adjust ordering so the cap visually sits on top as intended).
  • Preview: Re-check the 3D/sequence preview after reordering.
  • Success check: The gold cap visibly overlays the red body in preview and in the stitchout, not “trapped” underneath.
  • If it still fails… Verify every related object (ring, cap, appliqué steps, lettering) is ordered the way the machine must sew it—screen position is not the same as sew order.
• Q: When an embroidery stitchout shows “bird’s nest” thread tangles under the needle plate, what is the fastest fix before adjusting tension?
  A: Re-thread the upper thread completely with the presser foot UP, because the thread is often not seated in the tension discs.
  • Re-thread: Raise the presser foot, then re-thread the machine from spool to needle exactly.
  • Restart: Insert the design again and test a small section if possible.
  • Inspect: Confirm the thread path is correct before changing tension settings.
  • Success check: The underside no longer forms a thread wad under the plate and stitches form normally without jamming.
  • If it still fails… Stop and check for other basics from the machine-side checklist, including enough bobbin thread for the run and a fresh 75/11 needle.
• Q: What magnetic hoop safety rules should beginners follow when using industrial neodymium magnetic embroidery hoops for appliqué trimming cycles?
  A: Treat magnetic hoops as high-force tools: avoid pinch points, keep them away from pacemakers, and protect electronics.
  • Protect: Keep fingers out of the gap when bringing the magnetic rings together (pinch hazard).
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Separate: Keep magnetic hoops away from credit cards and phone screens.
  • Success check: The hoop snaps together without finger pinches, and the work area stays clear of sensitive devices.
  • If it still fails… Slow down the “snap-on” motion and reposition hands to grip the outer edges only before closing the magnets.
