Digitize a Shaded Heart in Embird Studio Without “Bulletproof” Bulk: Overlaps, Angles, and the Knife-Tool Trick

The Engineering of Empathy: How to Digitize Shaded Designs That Don't Ruin Your Garments

Author: Chief Embroidery Education Officer Reading Time: 12 Minutes Level: Intermediate to Advanced

If you have ever spent hours digitizing a design, only to stitch it out and watch it turn into a stiff, bulletproof patch that breaks needles and puckers fabric, you have encountered the "Density Trap."

Embroidery is a physical science. It is a battle between tension, friction, and fabric stability. As a digitizer and operator with two decades on the production floor, I can tell you that shading is where art meets engineering. You are managing thread direction, layer order, and—crucially—how the fabric reacts when thousands of stitches start pulling it in different directions.

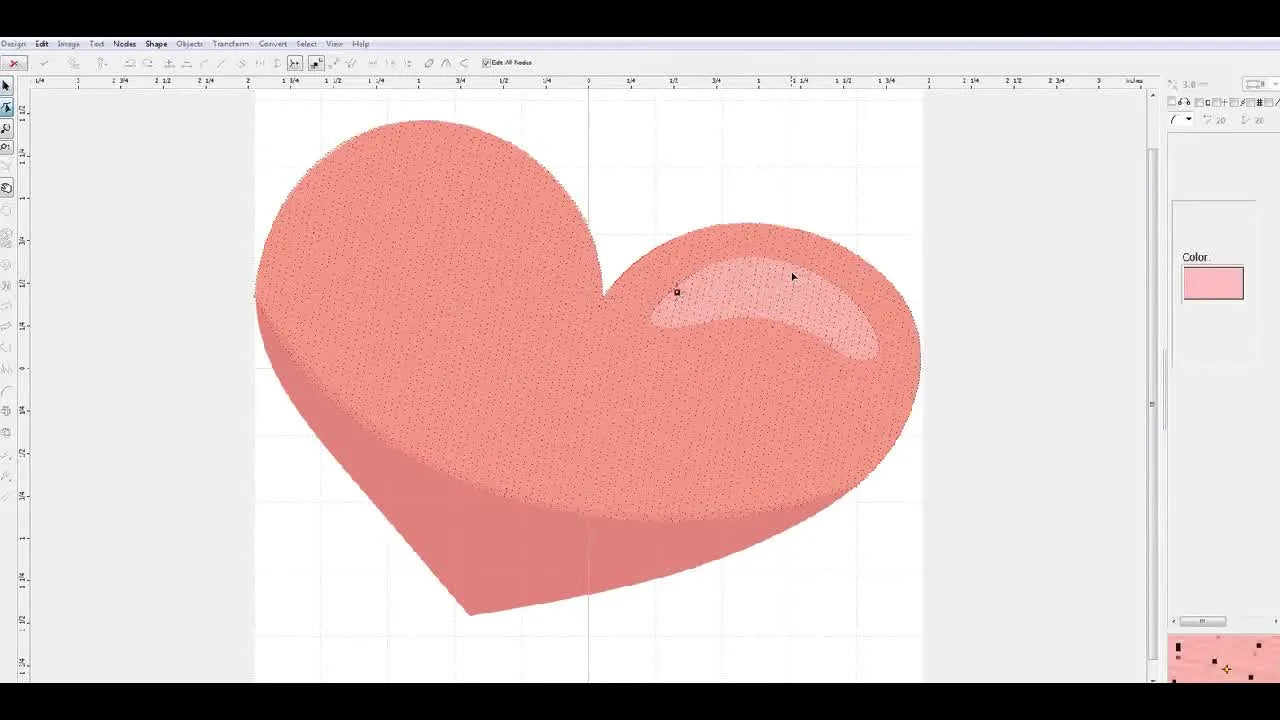

In this masterclass, we will deconstruct an Embird Studio project: digitizing a shaded heart for a 100 x 100 mm (4x4) field. But we won’t just click buttons. We will learn the "Bulk-Killer" technique: cutting a relief hole in background layers while maintaining a safety overlap. This is the difference between a design that flows and one that fights your machine.

1. Calm the Panic: It’s Not Your Tension, It’s Your Stack-Up

When a design feels like cardboard or causes thread breaks, the novice instinct is to blame machine tension. You might grab a screwdriver and start turning knobs. Stop.

If your machine stitches standard text perfectly but jams on this heart, the root cause is Layer Stack-Up.

In the video example, we have a base fill, a highlight, and a shadow. If you let the highlight stitch directly on top of the base (plus the base's underlay), you are forcing the needle to penetrate four or five layers of thread plus stabilizer.

• The Symptom: You hear a rhythmic thump-thump-thump sound (the machine laboring).
• The Risk: Needle deflection, which scars the rotary hook.

The fix is planning. We must engineer the layers so they interlock like puzzle pieces, rather than stacking like dinner plates.

2. The "Hidden" Prep: Real Estate and Physical Constraints

Open Embird Studio. Set your hoop size to 100 x 100 mm (4x4). Import your clipart.

The 4x4 Reality Check

If you are digitizing for a 4x4 field, you are working in "close quarters combat." There is no room to hide errors.

• Visual Check: Zoom out. Does the design touch the safety margins (the dotted red lines)? If it does, your presser foot will hit the hoop edge.
• Color Strategy: The instructor samples colors from the image (Coral, Misty Pink, Rose Leaf). Pro Tip: Always match these to a physical thread chart like the SEWTECH Polyester 40wt chart before you start. Screen colors lie; physical thread does not.

If you are planning to stitch this on a single-needle home machine, your choice of hoop matters right now. If you are using a standard plastic frame, you must account for "Hoop Burn"—the rings left by clamping tight enough to support this density.

Prep Checklist: The "Pre-Flight" Inspection

• Hoop Definition: Is Embird set to 100 x 100 mm (4x4)?
• Scale: Is the artwork scaled to fit within the safety zone (usually 90mm x 90mm for a 4x4 hoop)?
• Consumables on Hand:
  • Needles: Size 75/11 (Sharp for woven, Ballpoint for knits).
  • Thread: 40wt Polyester (can withstand higher tension than Rayon).
  • Measuring Tool: Calipers to measure the actual garment print area.
• Plan: Identify the "Base," "Highlight," and "Shadow" zones mentally.


3. The "Safety Overlap" Rule: Engineering for Shrinkage

Using the Fill tool, digitize the main heart base. Here is the critical nuance: You must overlap the bottom edge into the darker pink area by exactly 1.0 mm - 1.5 mm.

Why 1 mm? The Physics of "Push and Pull"

Embroidery thread has elasticity. When a tatami fill stitches, it pulls the fabric fibers inward (like a corset).

• Without Overlap: The fabric shrinks away from the next color, leaving a visible gap (a "white river") of unstitched fabric.
• With 1 mm Overlap: The shrinkage happens, but the next color still lands on top of the base, creating a seamless join.


Sensory Success Metric: When the design is finished, run your fingernail over the seam between the red and pink. If it catches in a ditch, your overlap was too small. If it feels like a speed bump, it was too large. It should feel like a gentle ridge.

Warning: Never use "Butt-Joints" (zero overlap) in machine embroidery unless you are working on rigid materials like caps with heavy buckram. On polos or t-shirts, a butt-joint is a guaranteed gap.

4. Angle Engineering: The -10° Secret

After closing the shape, the instructor sets the stitch angle to -10°.

Stitch angle is not just artistic; it is structural.

1. Light Reflection: Thread shines differently depending on the light source. Contrasting angles separate objects visually even if they are the same color.
2. Fabric Distortion: If all layers stitch at 90° (vertical), the fabric will pucker into an accordion shape. By setting the base to -10° and the highlight to a conflicting angle (e.g., 45°), you balance the stress on the fabric.

5. The "Bulk-Killer" Move: The Knife Tool Technique

This is the technique that separates amateurs from professionals. We need to place a highlight on top of the heart.

If we just stitch the highlight on top of the base, we get "The Bulletproof Patch." Instead, we will use the Knife Tool to cut a hole in the background layer.

The Procedure

1. Digitize your Highlight shape (Misty Pink).
2. Select the Background Object (the red base).
3. Use the Knife Tool to cut a hole in the red base that matches the shape of the highlight.
4. Critical Step: Do not cut exactly on the line. Leave a 1.0 mm overlap margin inside the highlight boundary.


The Result

You now have a "puzzle piece" fit. The highlight sits in the base rather than on it.

• Needle Safety: The needle penetrates 2 layers (Highlight + Stabilizer) instead of 4 (Highlight + Highlight Underlay + Base + Base Underlay + Stabilizer).
• Touch Test: The embroidery remains flexible and drapes with the shirt.

This approach is vital for production shops. Reduced needle stress means you can run your machine at higher speeds (e.g., maintaining 800 SPM vs slowing to 600 SPM).

6. Artifact Cleanup: "Weird Lines" and Texture Control

When you cut a hole in a fill pattern, you interrupt the algorithmic flow of the stitches. You might see "cornrows" or strange lines.

The Fix

1. Switch to Fill 2: Standard fills often form patterns. "Fill 2" in Embird (or "Random/Structure" in other software) randomizes needle penetrations to hide patterns.
2. Manual Nodes: Insert start and end points manually.
   • Rule of Thumb: Start and End points should be opposite each other to ensure smooth "travel."


Visual Check: Zoom in to 1:1 scale on your screen. If the texture looks like a plowed field, change the angle or partition. It should look like a smooth wash of color.

7. The Shadow: Consistency is King

Digitize the bottom shadow (Rose Leaf) using the same logic: Overlap the base by 1 mm.

Color Theory Note: Thread has a physical sheen. A shadow color that looks distinct on screen might blend into the base thread in real life. Always choose a shadow thread that is two shades darker than you think you need.

8. Batch Export and Shop Workflow

Save as "Shaded Heart 4x4" and batch export (PES, DST, JEF).

For those running a business, consistency is profit. If you are selling designs, never assume the customer has a specific machine. Offering the full suite (PES for Brother, DST for Tajima/SWF, EXP for Bernina) reduces customer support emails by 80%.

Setup Checklist: The "Go/No-Go" Decision

• Bobbin Check: Is your bobbin at least 50% full? (Running out mid-fill creates a visible scar).
• Bobbin Case: Blow out lint. Lint changes tension.
• Needle Orientation: Is the flat side of the needle facing back? (Crucial for home machines).
• Thread Path: Floss the thread through the tension disks. You should feel resistance like pulling a tooth. No resistance = No tension = Bird's nest.

9. Decision Tree: Stabilizer & Hooping Strategy

Your digitizing is perfect. Now, don't ruin it with the wrong physical setup. Shaded fills are heavy; they require support.

Use this logic flow to choose your foundation:

1. Is the fabric stretchy (T-shirt, Hoodie, Performance Knit)?

• YES: You MUST use Cutaway Stabilizer (2.5oz or 3.0oz).
  • Why? Knits stretch. Tearaway will pulverize under a fill stitch, leading to "registration errors" (gaps).
  • Adhesive: Use a light mist of temporary spray adhesive (e.g., 505) to bond fabric to stabilizer.
• NO: Go to Step 2.

2. Is the fabric stable (Denim, Canvas, Twill)?

• YES: You can use Tearaway/Cutaway blend or distinct Tearaway (if the weave is tight).

3. Is the surface textured (Towel, Velvet)?

• YES: You need a Water Soluble Topper (Solvy) on top to prevent stitches from sinking.

10. The Production Bottleneck: Hooping

We have engineered the file to be efficient. Now let's talk about the physical bottleneck: The Hoop itself.

Standard plastic hoops are fine for hobbyists, but they have flaws:

1. Hoop Burn: To hold a shaded heart securely, you must tighten the screw significantly. This crushes velvet or delicate cotton fibers, leaving a permanent ring.
2. Registration Drift: As you stitch 5,000 stitches, the fabric can micro-slip in a plastic hoop, ruining your 1mm overlap alignment.
3. Wrist Fatigue: If you are doing an order of 20 shirts, screwing and unscrewing frames is brutal.

The Upgrade Path

If you encounter these issues, the industry standard solution is an upgrade to magnetic frames.

• For Home Users: If you are using a standard plastic brother embroidery hoop 4x4, consider upgrading to a magnetic hoop for brother. The magnetic force distributes pressure evenly, gripping the fabric without crushing the fibers (Zero Hoop Burn).
• For Efficiency: This is why seasoned pros switch to a magnetic embroidery hoop. You simply lay the fabric, snap the magnets, and slide it onto the machine. It cuts hooping time by 60%.
• For Stability: A hooping station for embroidery paired with machine embroidery hoops that use magnets ensures that your grain line remains perfectly straight—critical for geometric shading effects.

Warning: Magnetic Safety. High-end magnetic hoops use Neodymium magnets. They are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut instantly.
* Medical Devices: Keep strictly away from pacemakers or insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

11. Troubleshooting: Symptom, Cause, Fix

12. Conclusion: The Path to Mastery

Digitizing the perfect shaded heart is not about how well you can trace a line. It is about understanding that you are constructing a 3D object out of flexible materials.

By using the Knife Tool to manage bulk and Magnetic Hoops to manage stability, you turn a frustrating struggle into a repeatable production process.

Operation Checklist (Final Go):

• Fresh Needle installed.
• Correct Stabilizer bonded to fabric.
• Hoop is "Drum Tight" (unless using Magnetic, then "Firmly Gripped").
• Correct Thread Colors staged.
• Hands clear.
• Press Start.

When you are ready to move from "making it work" to "making it profitable," consider how your tools scale. Whether it is upgrading to high-sheen SEWTECH threads, utilizing precise specific magnetic hoops, or even stepping up to a Multi-Needle machine, remember: Great embroidery is 20% art, and 80% engineering.

FAQ

• Q: In Embird Studio shaded fill designs, what causes a “bulletproof patch” feel and repeated needle breaks during stitching?
  A: The most common cause is layer stack-up (multiple fill layers and underlays stitched directly on top of each other), not basic machine tension.
  • Identify: Separate the design into Base, Highlight, and Shadow objects before changing any tension settings.
  • Fix: Use the Knife Tool to cut a relief hole in the background (Base) under the Highlight instead of stacking the Highlight on top.
  • Reduce: Keep a safety overlap margin (about 1.0 mm inside the Highlight boundary) so colors still seal after shrinkage.
  • Success check: The machine should stop “thump-thump-thump” laboring sounds, and the finished area should drape instead of feeling like cardboard.
  • If it still fails: Change to a fresh needle and reduce the highlight density by about 10% as a safe starting point.
• Q: In Embird Studio digitizing for a 100 x 100 mm (4x4) hoop, how much overlap should shaded fill objects use to prevent “white rivers” (gaps) between colors?
  A: Use a 1.0–1.5 mm overlap at color boundaries to absorb push-pull shrinkage and prevent gaps.
  • Set: Overlap the Base into the next darker/lighter area by about 1.0 mm (increase toward 1.5 mm if gaps are common on the fabric).
  • Avoid: Do not use zero-overlap “butt joints” on polos or T-shirts because gaps are very likely after shrinkage.
  • Verify: Run a fingernail across the seam—aim for a gentle ridge, not a ditch (too little) or a speed bump (too much).
  • If it still fails: Switch knit jobs to cutaway stabilizer, because weak support increases registration drift and visible gaps.
• Q: In Embird Studio after using the Knife Tool on a fill object, how can “cornrows” or weird lines in the highlight texture be removed?
  A: Change the fill algorithm and control the stitch flow points so the texture stops forming visible patterns.
  • Switch: Use “Fill 2” (or a randomized/structure fill equivalent) to break up repeating patterns.
  • Adjust: Change the stitch angle by about 15° to prevent alignment with the fabric weave.
  • Control: Insert Start and End points manually, placing them opposite each other for smoother travel.
  • Success check: At 1:1 zoom, the highlight should read like a smooth wash of color, not a plowed-field texture.
  • If it still fails: Partition the fill into smaller sections so the stitch flow does not “fight” around the cut edge.
• Q: For shaded fill embroidery on stretchy knit fabrics (T-shirts, hoodies, performance knit), what stabilizer and bonding method prevents registration errors and gaps?
  A: Use cutaway stabilizer (2.5 oz or 3.0 oz) and lightly bond the fabric to the stabilizer with temporary spray adhesive.
  • Choose: Select cutaway rather than tearaway because knits can stretch and tearaway can break down under heavy fills.
  • Bond: Apply a light mist of temporary adhesive to prevent micro-slipping during long fills.
  • Add: Use a water-soluble topper on textured surfaces (like towel or velvet) to stop stitches sinking.
  • Success check: The design alignment should stay consistent through the entire stitch-out, with overlaps staying sealed and no shifting outlines.
  • If it still fails: Re-check hooping stability—fabric slip in the hoop can undo perfect digitizing.
• Q: What is the fastest “Go/No-Go” checklist to stop a single-needle home embroidery machine from making a bird’s nest due to incorrect thread path and tension disk engagement?
  A: Re-thread correctly so the thread fully seats in the tension disks before stitching, then confirm tension by feel.
  • Re-thread: Raise the presser foot (generally helps open tension disks), then floss the thread into the tension area.
  • Check: Pull the thread—there should be clear resistance “like pulling a tooth”; no resistance usually means no real tension engagement.
  • Prep: Blow out lint from the bobbin case area because lint can change tension behavior.
  • Success check: The machine should stitch without looping on top or thread nesting underneath at the first few dozen stitches.
  • If it still fails: Tighten top tension slightly until top-side loops disappear, and confirm the needle is installed in the correct orientation per the machine manual.
• Q: When stitching dense shaded fills, what needle type and size prevents thread breaks and reduces needle stress on knits vs wovens?
  A: Start with a fresh size 75/11 needle, using Sharp for woven fabric and Ballpoint for knit fabric.
  • Match: Install 75/11 Sharp for denim/canvas/twill, and 75/11 Ballpoint for T-shirts/hoodies to reduce fabric damage and skipped stitches.
  • Replace: Swap to a fresh needle before long shaded fills; a worn needle increases friction and breaks.
  • Upgrade: Consider titanium-coated needles if breaks are frequent (often helps with heat and wear).
  • Success check: The stitch-out should run without repeated highlight-area breaks, and the needle should not sound like it is punching through “hard layers.”
  • If it still fails: Reduce density slightly in the problem object and confirm bulk has been relieved using the Knife Tool method.
• Q: What magnetic embroidery hoop safety rules prevent pinched fingers and device damage when using neodymium magnetic frames?
  A: Treat neodymium magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Keep clear: Hold magnets by the sides and keep fingertips away from mating surfaces because the frame can snap shut instantly.
  • Separate: Keep magnetic hoops strictly away from pacemakers or insulin pumps.
  • Protect: Do not place phones, credit cards, or similar electronics directly on the magnets.
  • Success check: The frame closes in a controlled way with no finger contact in the closing zone, and the fabric remains firmly gripped without over-tightening.
  • If it still fails: Slow down the hooping motion and reposition hands—most pinches happen during rushed alignment.
