Digitize a Two-Color Jellyfish That Looks Like 10 Colors: Redwork Pathing, Satin Tentacles, and a Wave Gradient Fill That Actually Stitches Clean

From "Too Complex" to "Perfect Stitch": The Ultimate Guide to Digitizing the Jellyfish (And Why Mechanics Matter)

When a design looks "too complex," most digitizers—especially those transitioning from hobbyist to pro—make two fundamental mistakes: they overthink the artwork and underthink the physical stitch path.

The jellyfish project demonstrated in this lesson is the perfect antidote to that anxiety. It proves you can achieve a high-end, textured result with just two colors, if your pathing is disciplined and you respect the physics of the machine.

This guide rebuilds the entire workflow, adding the "shop-floor" sensory details and safety margins that software tutorials often skip. We will bridge the gap between clicking a mouse and the rhythmic hum of a perfectly tuned embroidery machine.

Calm the Panic First: Why This Workflow Works in Real Thread

The jellyfish looks intricate, but structurally, it is merely two logical layers:

1. Gold Layer: A connected "Redwork" run-stitch base with Satin tentacles.
2. Purple Layer: A Wave Gradient Fill body with decorative satin lines (and crucially, no underlay).

The "hidden win" here is connectivity. The design is built to stay connected, meaning the machine doesn't stop to trim or jump.

• Hear this: Instead of the annoying clunk-whoosh-clunk of constant trimming, you want to hear a steady, rhythmic thump-thump-thump.
• Why it matters: Fewer trims mean fewer chances for the thread to pull out of the needle eye, fewer "bird nests" underneath, and less chance for the fabric to shift (registration loss) on a small 4x4 hoop.

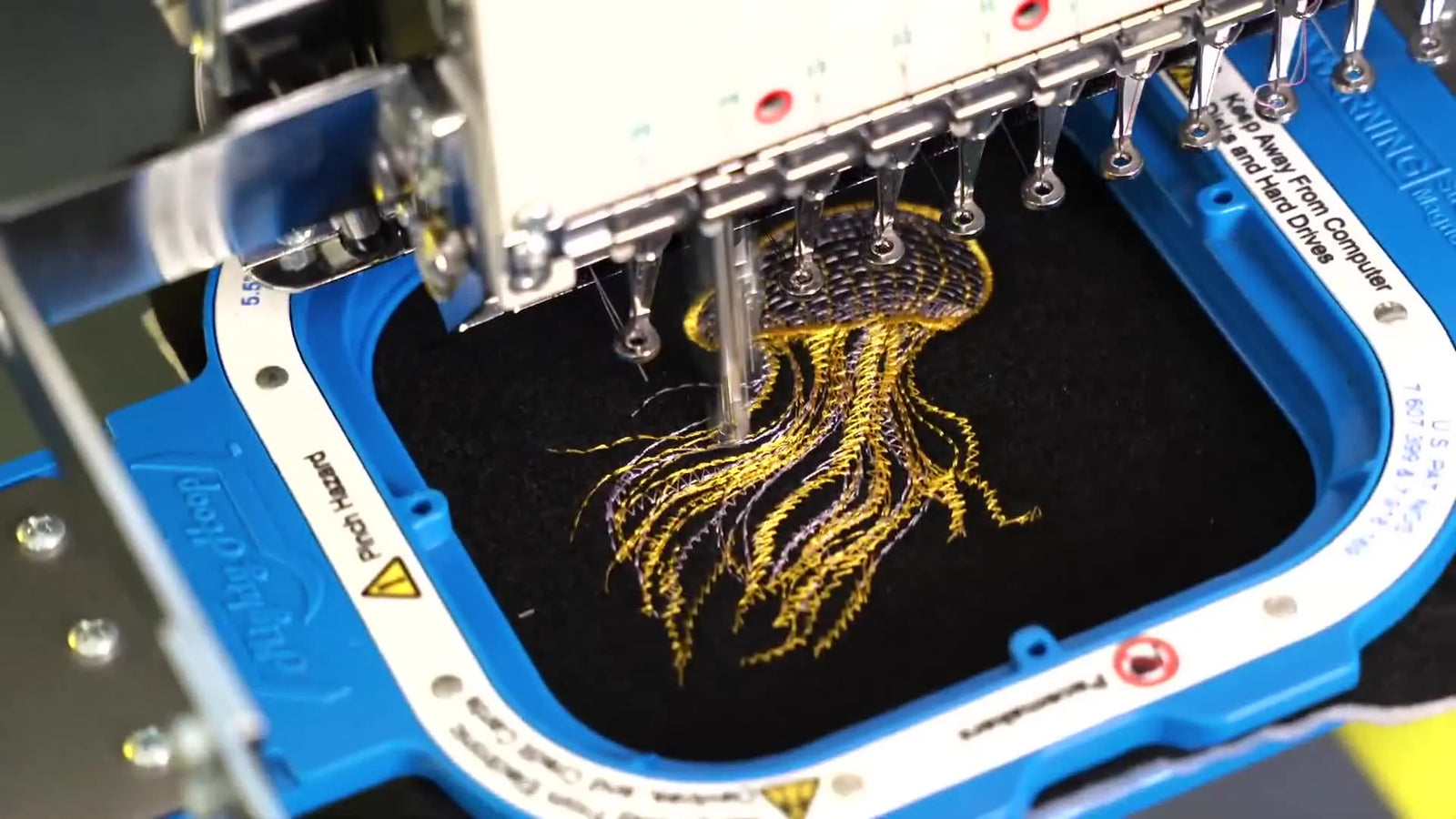

One practical note from the footage: The finished sample is held in a magnetic hoop. If you are already using a magnetic embroidery hoop, you will recognize the advantage immediately: the fabric is held by vertical magnetic force rather than friction, eliminating "hoop burn" on delicate felts and preventing the distortion that ruins geometric fills.

The "Hidden" Prep Pros Do: Backdrop, Fabric Reality, and the 4x4 Lie

Before you place a single node, we must lock down the target size. A 4x4 inch design space is unforgiving—there is no room for error.

Backdrop Setup (The Non-Negotiable Foundation)

1. Load the Image: Import the jellyfish image as a backdrop.
2. Scale Reality: Open Backdrop Properties. Change Image Height to 4 inches (approx. 100mm).
3. Dim the Noise: Reduce Opacity to 50–55%.
   • Visual Check: You should see your stitch colors clearly over the greyed-out artwork. If the art is too bright, you'll miss gaps in your stitching.
4. Navigation: Use the mouse wheel to zoom; hold Spacebar to pan.


Expert Reality Check: The Physics of "Push and Pull"

Software assumes fabric is rigid like wood. It isn't. It's fluid.

• The Risk: On a 4x4 dark felt, a 1mm gap in the software will look like a 2mm gap on the finished patch because the fabric pulls away.
• The Fix: We must digitize with "overlap" in mind.

Prep Checklist: Failure Prevention

• Hoop Target: Confirmed final size is 4x4 inches (100x100mm).
• Visual Clarity: Backdrop opacity set to 50–55%.
• Consumables Check: Do you have the right needle? (Using a 75/11 Sharp is better for felt than a Ballpoint).
• Sequence Strategy: Decided on Gold first, Purple second (avoids unnecessary color changes).
• Fabric Test: Located a scrap of sturdy felt or heavy woven fabric for the test run.

Build the Gold Outline: The "Redwork" Mindset

Ken starts with the Run Tool. We are using a "Redwork" logic here: A to B, then B back to A. This creates a double-pass effect that mimics thicker thread without the bulk of a satin stitch.

Run Stitch Settings: The "Sweet Spot"

• Stitch Length: The video suggests 3.0 mm.
  • Experience Note: For tight curves, 3.0mm can look jagged. If your jellyfish has sharp turns, a length of 2.5mm renders curves smoother.
• Input Method: Fast Draw.
• Color: Set to Red on screen for high contrast while working (change to Gold later).

Technique: Placing Points

• Left-Click: Hard corners/Straight lines.
• Right-Click: Curves.
• Sensory Check: As you click, visualize the needle penetrating. Don't place points closer than 1.5mm to each other, or you'll drill a hole in the fabric.


The "Snap to Anchor" Habit

Enable Snap to Anchor. This acts like a magnet for your cursor, snapping the start of a new line exactly to the end of the previous one. This prevents those microscopic gaps that cause "Jump Stitch" commands.

Warning: Mechanical Safety
When testing your design, keep fingers at least 4 inches away from the needle bar. If a needle hits a hard plastic hoop edge due to a centering error, it can shatter. Always define your "Trace" area before hitting start.

Texture without Destruction: The Snap-to-Anchor Trap

Ken adds a second layer of run stitches for artistic texture. This is where beginners often "break" the file.

The Problem

If Snap to Anchor is ON when you try to change the stitch length for the new object, the software thinks you are editing the old object. You will accidentally change your perimeter outline to the new settings.

The Fix

1. Finish the perimeter object.
2. Turn OFF Snap to Anchor.
3. Change Settings: Increase run stitch length to 4.5 mm (looser, sketchier look).
4. Digitize the random texture path.


This concept applies to hardware too. Just as you separate software objects, you must isolate variables in production. Many operators searching for how to use magnetic embroidery hoop tutorials learn that you cannot simply swap a plastic hoop for a magnetic one without checking your clearance—change one variable at a time.

Satin Tentacles: The "Danger Zone" for Needles

Ken switches to Classic Satin for the tentacles. This is the highest risk part of the design.

Crucial Settings

• Density: 0.6 mm.
  • Context: Standard satin is 0.4 mm. 0.6 mm is lighter and more open. This is correct for this artistic style. If you go too dense (0.3 mm), the felt will perforate and tear.
• Width: Minimum 1.0 mm.

The 1mm Rule

Never digitize a satin column narrower than 1.0 mm.

• Why: A standard needle is roughly 0.8mm - 0.9mm wide. If your column is 0.8mm, the needle is piercing the exact same hole twice. This causes thread breaks and "shredding."
• Visual Check: If the column looks like a hairline on screen, it will disappear or break thread in reality.


Input Method: Point Counterpoint

Ken uses Point Counterpoint (clicking alternating sides of the column). This allows you to control the Click-Click rhythm of the width flow.

Setup Checklist: The "Don't Break My Needle" Check

• Density Safety: Confirmed Satin Density is 0.60 mm (not the default 0.40 mm).
• Width Safety: Verified no part of the tentacle is thinner than 1.5 mm (giving yourself a safety buffer over the 1mm hard limit).
• Flow: Used Point Counterpoint to ensure stitches are perpendicular to the curve (like railroad ties).
• View Mode: Turned on Entry/Exit markers to see logical flow.

The Jellyfish Body: Wave Gradient Fill

For the purple body, we use a Wave Gradient Fill. This is a "Money Stitch"—it looks expensive but uses less thread than a solid fill.

The Workflow

1. Lock the Gold layer (prevent accidental edits).
2. Trace the head shape using the Artwork Tool.
3. Convert to Wave Gradient Fill.
4. Reshape (Q Key): Adjust the "guide line" so the wave flow curves naturally over the dome of the head.
5. Gradient Profile: Select Linear Increasing.
6. Spacing: Set end spacing to 8.0 mm.






Why This Matters for Production

A solid fill (Tatami) puts thousands of stitches into a small area, creating a "cardboard" stiffness. A Wave Gradient breathes.

• Shop Note: If you are running production on a tajima embroidery frame setup, gradient fills reduce the "push" effect, meaning your design is less likely to distort the circle into an oval. It is safer for high-speed running.

Decorative Lines: Why We Disable Underlay

Ken adds thin purple satin lines over the body.

• Action: Go to Object Properties -> Underlay -> Uncheck All.


The "Bulletproof Vest" Effect

If you leave underlay on these top stitches, you are stacking:

• Stabilizer + Fabric + Gradient Fill + Underlay + Top Satin.

This creates a hard, bulletproof lump that can deflect the needle. By removing underlay, the top satin lays flat and blends into the gradient.

Trim Control: The Silent Killer of Efficiency

Nothing kills profit like a machine that stops to trim every 10 seconds.

The "Hidden" Scissors

If you don't see the specific trim points (scissor icons), you must enable Connectors/Start-Stop view in your software preferences.

The Logic of Trims

The software inserts a trim command (scissors) whenever the distance between Object A and Object B exceeds a certain limit (usually 2mm or 6mm depending on settings).

• The Fix: Use the Reshape Tool (Q). Drag the "End Point" (red cross) of the first object closer to the "Start Point" (green diamond) of the next object.
• The Bridge: If they are too far apart, digitize a simple Run Stitch line to bridge the gap. It will be hidden under the satin later.




Stitch-Out Reality: From Screen to Seam

Ken saves the file as .JDX (Editable) and .DST (Machine Format). Now, the physical reality begins.

Hooping: The Foundation of Quality

The video shows the use of a magnetic hoop. This is not just a luxury; it is a problem solver.

• The Problem: Traditional compression hoops force you to pull and stretch the fabric to get it taut ("drum tight"). When you unhoop, the fabric relaxes, and your perfect circle becomes an oval (puckering).
• The Solution: A mighty hoop magnetic style frame clamps the fabric vertically without stretching it. The fabric remains neutral.

Warning: Magnetic Field Safety
Magnetic hoops use industrial strength magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Interference: Keep at least 6 inches away from pacemakers, insulin pumps, and credit cards.

Decision Tree: Select Your Stabilizer

Don't guess. Use this logic for the Jellyfish design:

• Scenario A: Sturdy Felt (as in video)
  • Stabilizer: Tear-away (Medium Weight).
  • Why: Felt is stable. You just need to support the needle penetrations. Tear-away leaves a clean back.
• Scenario B: T-Shirt / Knit / Stretchy
  • Stabilizer: Cut-away (Mesh or 2.5oz).
  • Why: Knits stretch. If you create a hole (needle poke), it expands. Cut-away locks the fibers together forever.
• Scenario C: High Nap (Velvet/Towel)
  • Stabilizer: Tear-away (Back) + Water Soluble Topping (Front).
  • Why: Topping keeps the satin tentacles from sinking into the fluff.

The Upgrade Path: Moving to Production

If you find yourself struggling with hooping consistency or wrist pain from manual hoops, consider the tools used in professional shops.

1. Level 1 (Technique): Use a spray adhesive (like 505) to float fabric on stabilizer.
2. Level 2 (Tooling): Invest in a generic or brand-name magnetic hoop. Many users search for a magnetic hooping station to align garments perfectly every time.
3. Level 3 (Capacity): If you are doing 50 of these jellyfish, a single-needle machine will be a bottleneck because of the thread change (Gold to Purple). A multi-needle machine (like the SEWTECH series) holds both colors ready, cutting run time by 30-40%.

Troubleshooting: The "Quick Fix" Guide

Operation Checklist (Go / No-Go)

• Needle Check: Is the needle straight and sharp? (Run a fingernail down the tip; if you feel a snag, replace it).
• Bobbin Check: Is there enough bobbin thread to finish the design? (Avoid running out mid-tentacle).
• Pathing Check: Did you move the final trim point to a hidden area using Path Edit?
• Stabilizer Match: Did you consult the Decision Tree above?
• Hoop Upgrade: If using a tajima magnetic embroidery hoops system or similar, ensure the magnets are fully seated and not pinching any excess fabric bulk.

Final Thought

Digitizing is 50% art and 50% engineering. By strictly following the pathing rules (Redwork flow, minimal trims) and respecting the material constraints (using the right hoop and stabilizer), you transform a "scary" design into a profitable, repeatable asset.

Don't just watch the screen; listen to your machine. It will tell you if your digitizing is good. A happy machine hums; an unhappy one complains.

FAQ

• Q: How do I stop thread nesting (bird nest) under the needle on a SEWTECH multi-needle embroidery machine during a small 4x4 jellyfish stitch-out?
  A: Re-thread the SEWTECH machine from zero with the presser foot UP, because most bird nests come from an incorrect top-thread path or missing the take-up lever.
  • Stop: Cut the tangled thread, remove the hoop, and clear the bobbin area before restarting.
  • Re-thread: Raise the presser foot, re-thread the entire upper path, and confirm the thread is seated in the take-up lever.
  • Restart: Run a short test section before committing to the full design.
  • Success check: The machine sound becomes steady (no harsh snapping), and the underside shows clean bobbin lines without a “ball” of top thread.
  • If it still fails: Reduce speed and inspect needle condition; a damaged needle can worsen looping and nesting.
• Q: How do I fix white bobbin thread showing on top when stitching a wave gradient fill on a SEWTECH embroidery machine?
  A: Lower the top tension first, because the blog workflow notes white bobbin on top usually means top tension is too tight (or bobbin is too loose).
  • Adjust: Decrease top tension slightly (for example, move a dial setting down one step).
  • Test: Stitch a small sample of the gradient area again instead of re-running the whole design.
  • Observe: Check both the top and underside before changing anything else.
  • Success check: The top surface shows solid top thread coverage, and the bobbin thread is no longer visible on the front.
  • If it still fails: Re-check bobbin threading and seating; an improperly inserted bobbin case can mimic tension problems.
• Q: How do I prevent needle breaks on satin tentacles when using Classic Satin settings (0.60 mm density) on thick felt?
  A: Keep Classic Satin density at 0.60 mm and avoid overly narrow satin columns, because too-dense stitching or needle re-piercing causes breaks and shredding.
  • Verify: Confirm density is 0.60 mm (not tighter like 0.40 mm or less) for this felt-based artistic satin.
  • Enforce: Ensure no satin column is narrower than 1.0 mm (use 1.5 mm as a safer buffer when possible).
  • Remove: Disable underlay on top decorative satin lines that sit over filled areas to avoid a hard “stack” that deflects needles.
  • Success check: The satin runs without repeated “tick-pop” sounds, and thread does not shred near tight curves.
  • If it still fails: Re-check design segments for any hidden ultra-narrow sections and replace the needle if it is not perfectly sharp and straight.
• Q: What is the safest way to test a new jellyfish embroidery design to avoid a needle hitting the hoop edge on a SEWTECH embroidery machine?
  A: Define and confirm the trace area before pressing start, and keep hands at least 4 inches from the needle bar during the test.
  • Trace: Run the machine trace/boundary check to confirm the design stays inside the hoop window.
  • Center: Re-check centering after any hoop change, especially when switching hoop types.
  • Clear: Keep fingers and tools away from the needle path during the first run.
  • Success check: The traced path stays fully inside the hoop perimeter with visible clearance, and the stitch-out begins without the needle approaching the hoop edge.
  • If it still fails: Stop immediately and re-hoop/re-center; do not “force run” a file that is close to the hoop boundary.
• Q: What magnetic hoop safety rules should I follow to prevent finger injuries and interference issues when using a magnetic embroidery hoop?
  A: Handle magnetic hoops by the edges and keep strong magnets away from sensitive medical devices and magnetic-stripe cards.
  • Grip: Separate and join the hoop by holding the outer edges to avoid pinch points.
  • Control: Lower the top ring slowly; do not let magnets snap together uncontrolled.
  • Separate: Maintain at least 6 inches of distance from pacemakers, insulin pumps, and credit cards.
  • Success check: The hoop closes without sudden snapping on fingers, and fabric is clamped evenly without shifting.
  • If it still fails: Use a slower, two-hand placement technique and remove excess bulky fabric from the clamp zone.
• Q: How do I choose the right stabilizer to prevent gaps and distortion from fabric “push and pull” on a 4x4 jellyfish embroidery design?
  A: Match stabilizer to fabric type using the decision logic, because incorrect support makes outlines and fills separate as the fabric moves.
  • Use: Choose medium tear-away for sturdy felt, cut-away (mesh or 2.5oz) for knits/stretch fabrics, and add water-soluble topping for high-nap materials.
  • Test: Stitch on a scrap of the same fabric before final production.
  • Adjust: Add pull compensation in software (0.4 mm is cited) when gaps appear between outline and fill.
  • Success check: The outline meets the fill cleanly after unhooping, without the “1 mm on screen becomes 2 mm on fabric” gap effect.
  • If it still fails: Upgrade stabilizer strength first before changing densities or redesigning the art.
• Q: How can I reduce constant trimming and stops on a SEWTECH multi-needle embroidery machine when stitching a connected two-color jellyfish design?
  A: Keep objects connected by moving entry/exit points closer and bridging gaps with a run stitch, because trim commands appear when gaps exceed the software’s trim threshold.
  • Enable: Turn on the connectors/start-stop view so trim points are visible before exporting.
  • Reshape: Drag the exit point of Object A near the start point of Object B to prevent unnecessary trims.
  • Bridge: Add a simple run stitch connector if the gap cannot be closed cleanly (hide it under later satin when possible).
  • Success check: The machine runs with fewer stop-trim cycles and a steadier rhythm instead of frequent “trim clunks.”
  • If it still fails: Treat it as a scaling problem—optimize technique first, then consider upgrading to a magnetic hoop for more consistent holding, and only then consider multi-needle capacity planning if volume justifies it.
