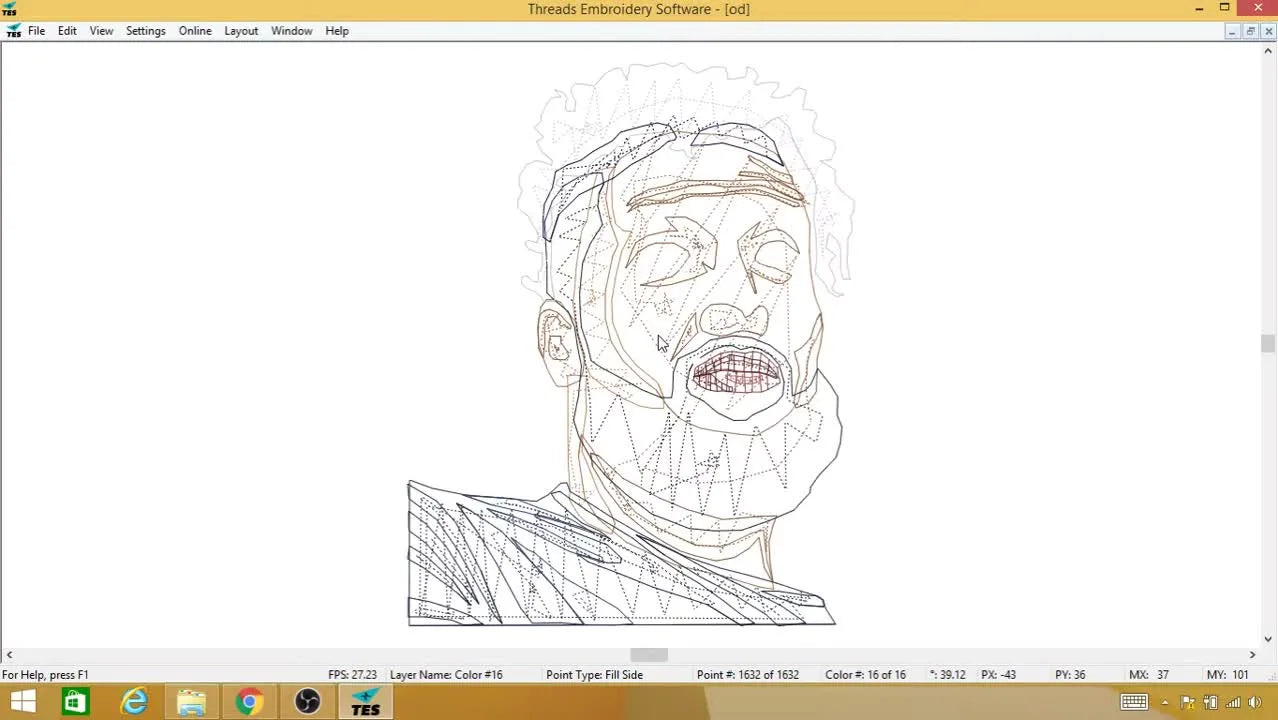

Digitizing Portrait Hair in Thread Embroidery Software: The “Less Detail, Better Stitches” Method That Saves Hours

Portrait hair is one of those areas that makes even experienced digitizers second-guess themselves. You look at a high-resolution photo and see thousands of strands, glowing highlights, and deep shadows. But thread is not pixel data. It has thickness, tension, and physical limitations. If you try to trace every tiny strand you see, you don't get realism—you get a bulletproof vest of thread density and a muddy, distorted patch on your fabric.

In this practical breakdown of a professional digitizing session, we are going to demystify the "highlight" layer. We will walk through digitizing a specific grey section, applying the correct underlay, using Fill objects, and manually plotting points.

The core lesson here is counter-intuitive: To make it look real, you must fake it. You will learn to aggressively omit details from the photo because, in the physical world of embroidery, those details will simply disappear once the stitches pack in.

Calm the Panic: Portrait Hair Fill Stitches Don’t Need Every Strand to Look Real

When beginners look at hair in a photograph, they see "texture." When a master digitizer looks at that same hair, they see "blocks of color." This is the first mental hurdle you must clear.

A 40-weight embroidery thread is roughly 0.4mm thick. If you trace a stray hair that is 0.1mm wide in the photo, the machine cannot physically replicate it without making a mess. The narrator in our reference demo puts it plainly: you should omit a massive amount of photo detail. This isn't laziness; it is physics.

Embroidery is a "low-resolution" medium compared to print. Your job is not to be a photocopier; your job is to be an impressionist painter. You are creating the suggestion of hair using stitch direction and light reflection (sheen). When you accept that stitches will blend together, the panic of "getting it perfect" fades, and you can focus on the flow.

The Hidden Prep Pros Do First: Screen Positioning, Zoom, and a Color Plan Before You Click

Before you place a single node (digitizing point), you need to stabilize your digital workspace. The video demonstrates a critical "Pro Habit": positioning.

If you are zoomed in too close (e.g., 600%), you lose the context of the head shape. If you are zoomed out too far, you can't place points accurately. The "Sweet Spot" is usually zooming until the entire section you are about to digitize just fills the screen. This prevents the need for constant panning, which leads to "Drifting Outlines"—where your wrist gets tired and your points start wandering off the line.

The Color Strategy: In the demo, the digitizer identifies the section as "the last part of his hair" and immediately categorizes it as a highlight. He commits to a specific grey tone before starting. Why? Because looking at the grey block helps your brain separate it from the black base hair effectively.

Prep Checklist (Do this before digitizing the first point)

• Visibilty Check: Pan/Zoom until the entire target hair section is visible without scrolling.
• Role Definition: Ask, "Is this a highlight, a mid-tone, or a deep shadow?" Assign it a mental tag.
• Separation Plan: Identify if any nearby strands are distinct enough to be their own object (the narrator explicitly decides to separate one area).
• Consumable Check: If you were stitching this today, do you have the specific grey thread (e.g., Isacord or Madeira 40wt) and the correct Cutaway Stabilizer (essential for heavy fill on portraits) ready?

Lock in the New Thread Color: Using “Other → Color Change” Without Breaking Your Flow

In the software workflow, the narrator performs a specific sequence: Right-click -> Other -> Color Change.

This might seem trivial, but it prevents "Object Spaghetti" later on. If you digitize everything in default blue and try to recolor later, you risk merging objects that should be separate. By selecting the grey tone now, you provide your eyes with immediate visual feedback.

Pro Tip on Color Selection: Embroidery thread reflects light; photos do not. A grey thread will look lighter on the finished garment than it does on your screen because of the sheen.

• Rule of thumb: Choose a grey that is one shade darker than you think you need for highlights to prevent them from looking like white paint spots.




Underlay for a New Hair Section: The Quiet Setting That Keeps Fill Stitches From Looking Cheap

After selecting the color, the narrator mutters a crucial phrase: "not a lot… just needs underlay… this is a new section."

Why Underlay Matters: Imagine painting on a sponge. If you don't put a primer down, the paint soaks in and looks splotchy. Fabric is that sponge. Underlay is the primer. It attaches the fabric to the stabilizer and raises the top stitches slightly.

For a Fill (Tatami) object in portrait hair, omitting underlay results in:

1. Gapping: The fabric creates valleys between stitches.
2. Flatness: The hair looks like a sticker rather than a texture.

The Safety Zone for Beginners:

• For fills > 5mm wide: Use a Tatami or Edge Run underlay.
• Density: Keep underlay medium density. You want support, not stiffness.

The Main Build: Right-Click → Fill, Then Plot Only the Points That Actually Matter

Now, the "click-click-click" begins. The narrator selects the Fill tool and starts plotting nodes around the perimeter.

This is where the "Experience Gap" shows. A beginner will click 50 times to trace a wiggly line. The pro clicks 5 times to define the curve of the line. Your goal is to define the boundary, not the texture. The texture comes from the stitch parameters (Stitch Length ~4.0mm, Density ~0.40mm), not from your mouse clicks.

What “enough points” looks like in portrait hair

To avoid the "Jagged Edge Effect," follow these rules for node placement:

The Time-Saver That Separates Hobby Digitizing From Production: Deliberately Omitting Detail

The narrator demonstrates "cutting a part out" visually because it won't be seen. This is the "3-Foot Rule" (or 1-Meter Rule).

The Rule: If you cannot see a detail from 3 feet away (the standard distance we look at people), do not digitize it.

• Symptom: Tracing single stray hairs that fly off the head.
• Reality: These will likely result in "thread nests" or simply disappear into the fabric grain.
• Fix: Delete them. Make the hair shape solid and intentional.

He also separates a specific section into a new object. This is smart physics. By making it a new object, the machine triggers a trim (or a jump) and starts a new stitch group. This creates a physical "ridge" of thread that catches light differently, creating separation without needing black outlines.

The “Ctrl+S Habit”: Saving the Project Before the Software Teaches You a Painful Lesson

There is a moment where the narrator emphasizes saving via the File menu or Ctrl+S.

Embroidery software is mathematically intensive. Calculating thousands of stitch vectors in real-time can cause crashes, especially on older PCs. Nothing hurts more than losing 45 minutes of meticulous hair plotting.

Warning: The "Click Trance" Danger
When digitizing portraits, you enter a "Click Trance" where you focus intensely on nodes. You will forget time. Set a timer on your phone for every 10 minutes to remind you to Ctrl+S. Also, save versions (Project_v1, Project_v2) so you can revert if you ruin a section.

The Clean Review: Toggle the Background Off, Then Trust the Stitch Simulation (Not the Photo)

You cannot judge embroidery while the photo is behind it. Your brain plays tricks on you—it fills in the missing texture with the photo's data.

The Reveal:

1. Close the shape (Enter).
2. Hide the Bitmap/Background.
3. Switch to TrueView or 3D Simulation.

Now, look at the grey blob. Does it look like a highlight? Or does it look like a mistake? If it looks like a mistake here, it will look like a mistake on the jacket.

Setup Checklist (Before running a full stitch preview)

• Background Toggle: Turn OFF the reference image.
• Connector Check: Look for long jump stitches. Are they crossing the face? (Move Entry/Exit points if yes).
• Density Check: Does the simulation look solid? If you see background grid through the stitches, tighten density slightly (e.g., from 0.45mm to 0.40mm).
• Edge smoothness: Do the curves look fluid? If they look choppy, delete extra nodes.

Troubleshooting Portrait Hair Digitizing: Symptom → Cause → Fix (Fast, No Drama)

When your test sew-out looks wrong, use this table to diagnose the physical issue.

1) Symptom: The hair looks like "Mud" or a Solid Plastic Patch

• Likely Cause: You digitized too much detail, or your stitch density is too high (e.g., < 0.35mm).
• The Fix: Increase stitch spacing (reduce density) to 0.40mm - 0.45mm. Simplify the outline shapes. Let the fabric breathe.

2) Symptom: White gaps showing between Hair and Face

• Likely Cause: "Pull Compensation" was ignored. Stitches pull inward as they sew.
• The Fix: Overlap your hair object slightly over the skin/background object (about 1mm overlap) to account for the gap that will form when thread tightens.

3) Symptom: The Highlight looks like a distinct "Sticker" sitting on top

• Likely Cause: The underlay is too heavy, or the stitch angles match the base hair exactly.
• The Fix: Change the stitch angle of the highlight by 15-30 degrees relative to the base hair. This helps them blend visually.

A Practical Decision Tree: When to Split Hair Into Multiple Colors vs Keep One Fill

Use this logic flow when staring at a complex photo:

START: Analyze the Hair Section

1. Is this area a major lighting change (Highlight or Deep Shadow)?
   • YES: Create New Object. Change Color (e.g., Dark Grey). Use distinct angles.
   • NO: Continue to next question.
2. Is it a texture change (e.g., hair changing direction)?
   • YES: Create New Object. Keep SAME Color. The change in stitch angle will create a "phantom" line that looks like texture.
   • NO: Keep it as part of the main fill block.
3. Is it a "Flyaway" strand thinner than a hearing aid wire?
   • YES: Delete it. Do not digitize.
   • NO: Proceed to digitize the perimeter.

Operation Checklist (The exact flow from the video, tightened into a repeatable routine)

• Action: Right-click Other → Color Change and select your highlight Grey.
• Action: Verify Underlay is ON (Tatami or Edge Run).
• Action: Select Fill Tool and begin plotting.
• Check: Am I zooming in too much? (Should see whole section).
• Check: Am I clicking too much? (Smooth curves, not jagged lines).
• Decision: Omit small details/strands that clutter the view.
• Safety: Press Ctrl+S.
• Review: Toggle Background Image OFF. Run 3D Simulation.

The Upgrade Path (When Digitizing Meets Real Production): Cleaner Files, Faster Hooping, Fewer Remakes

You can perfect your digitizing software skills all day, but if the physical framing of your garment is poor, that hair highlight will shift, gap, and warp. Portrait embroidery is unforgiving of fabric movement.

If you are moving from hobbyist experiments to doing production runs of 10, 20, or 50 shirts, your bottleneck will quickly shift from designing to hooping. The repetitive stress of tightening traditional hoop screws and the frustration of "hoop burn" (those ring marks left on fabric) are major production killers.

Here is where upgrading your hardware ecosystem bridges the gap between a good file and a perfect finish:

• The Tension Problem: If you find your hair fills are puckering the fabric despite good digitization, the issue is often uneven hoop tension. Professionals often switch to magnetic embroidery hoops. Unlike standard hoops, these clamp fabric automatically and evenly, reducing the tissue-damage that causes puckering on delicate knits.
• The Alignment Problem: Digitizing a perfectly symmetrical face is useless if you hoop the shirt crooked. To fix this, high-volume shops utilize a hooping station for machine embroidery. These stations use jigs to ensure that every single shirt is hooped in the exact same spot, creating a standardized canvas for your work.
• The Scalability Problem: If you have hired help or want to speed up, an embroidery hooping system allows you to hoop the next garment while the machine is running the current one.
• The Hardware Solution: Specific tools like the magnetic hooping station combine the speed of magnets with the precision of a station. Many users often compare the generic options against the hoop master embroidery hooping station to find the right balance of budget and durability for their shop size.

Warning: Magnetic Force Safety
magnetic embroidery hoops use powerful industrial-grade magnets.
* Pinch Hazard: They can snap together with enough force to injure fingers. handle with care.
* Pacemakers: Keep these magnets at least 6-12 inches away from pacemakers or medical implants.
* Electronics: Do not place phones, credit cards, or USB drives directly on the magnets.

Final Thought from the Floor: The "Omit Detail" philosophy you learned in this software tutorial applies to your whole business. Simplify your digitizing to what actually shows up. Simplify your hooping process with magnetic tools to reduce errors. A cleaner process yields a cleaner profit.

FAQ

• Q: In Wilcom EmbroideryStudio portrait hair digitizing, why does tracing every strand create a “muddy” or bulletproof patch of stitches?
  A: Skip most photo-level hair strands and build clean color blocks, because 40wt thread cannot reproduce sub-millimeter details without over-density.
  • Omit micro wiggles and flyaway hairs that would be thinner than the thread width.
  • Reduce complexity by defining only the perimeter shape; let stitch direction and sheen suggest texture.
  • Success check: In 3D/TrueView, the hair reads as a highlight/shadow block instead of a lumpy, plastic slab.
  • If it still fails: Increase stitch spacing (reduce density) into the 0.40–0.45 mm range and simplify the outline nodes.
• Q: In Wilcom EmbroideryStudio portrait hair digitizing, what zoom level and screen positioning prevents “drifting outlines” while plotting Fill nodes?
  A: Keep the entire target hair section visible on screen (the “sweet spot”) so you can place nodes without constant panning.
  • Pan/zoom until the full hair section you are digitizing fills the screen without scrolling.
  • Avoid extreme zoom (e.g., very close) that removes head-shape context and increases wrist drift.
  • Success check: Node placement stays consistently on the intended boundary without creeping off-line over time.
  • If it still fails: Delete extra nodes and redraw the perimeter using fewer points on long curves.
• Q: In Wilcom EmbroideryStudio, how does “Right-click → Other → Color Change” help prevent recolor mistakes when digitizing portrait hair highlights?
  A: Set the highlight grey color before digitizing the object so separate hair sections do not turn into “object spaghetti” later.
  • Right-click the object step and apply Other → Color Change, then select the intended grey.
  • Choose a grey that is often one shade darker than expected because thread sheen stitches lighter than screen color.
  • Success check: The highlight section is visually distinct on-screen while digitizing, and objects remain clearly separated.
  • If it still fails: Re-check that the highlight is a separate object (not merged into the base hair block).
• Q: For a Wilcom Fill (Tatami) portrait hair highlight, what underlay is a safe starting point to stop fills from looking cheap or gapping?
  A: Turn underlay ON for new fill sections so the fabric is anchored and the top stitches stay supported.
  • Use Tatami or Edge Run underlay for fills wider than 5 mm.
  • Keep underlay medium density (supportive, not stiff).
  • Success check: The sew-out looks even with fewer valleys/gaps between stitches and the fill doesn’t look “flat like a sticker.”
  • If it still fails: Re-test with adjusted stitch angle (15–30° difference from the base hair) and confirm stabilizer choice (cutaway is commonly used for heavy portrait fills).
• Q: In portrait embroidery digitizing, how many nodes should a Wilcom Fill hair boundary use to avoid jagged edges?
  A: Use the minimum nodes needed to define the boundary curve; texture should come from stitch settings, not node clutter.
  • Place 2–3 nodes close together only at sharp turns.
  • Use fewer, wider-spaced nodes on long curves so Bezier smoothing can work.
  • Ignore micro wiggles because stitch tension will pull them straight anyway.
  • Success check: The simulated edge looks smooth (not choppy), and the fill boundary doesn’t show “knot-like” bumps.
  • If it still fails: Delete extra nodes and redraw the curve with fewer anchor points, especially away from facial borders.
• Q: In portrait hair digitizing test sew-outs, what causes white gaps between hair and face, and how do you fix it with pull compensation overlap?
  A: Add a small overlap because stitches pull inward during sewing and can open a gap at borders.
  • Extend the hair object slightly over the skin/background by about 1 mm.
  • Prioritize precision on facial borders because small shifts change expression and face shape.
  • Success check: After stitching, the hair-to-skin boundary looks closed with no fabric showing through.
  • If it still fails: Re-check stitch direction and density balance, then re-run a simulation with the background image hidden.
• Q: For production portrait embroidery (10–50 garments), when should a shop upgrade from technique tweaks to magnetic hoops and hooping stations to reduce puckering and remakes?
  A: Upgrade when good digitizing still produces shifting, gapping, or puckering—uneven hoop tension and inconsistent placement are often the real bottleneck.
  • Level 1 (technique): Simplify detail, confirm underlay, run TrueView with the background turned OFF, and fix long jump stitches by moving entry/exit points.
  • Level 2 (tooling): Switch to magnetic hoops when hoop tension is inconsistent or hoop burn and fabric distortion keep appearing.
  • Level 2 (process): Add a hooping station/system when placement accuracy and repeatability are limiting throughput.
  • Level 3 (capacity): Consider a multi-needle setup when downtime from rehooping and frequent color changes limits daily output.
  • Success check: Repeat garments land in the same position with fewer puckers and fewer rejected sew-outs.
  • If it still fails: Do a controlled test sew-out on the same fabric/stabilizer combo and compare results across hooping methods to isolate tension vs. file issues.
• Q: What magnetic embroidery hoop safety rules prevent finger injuries and interference with pacemakers and electronics in an embroidery shop?
  A: Treat magnetic hoops as industrial magnets: keep fingers clear and keep magnets away from medical implants and sensitive electronics.
  • Handle magnets slowly and deliberately to avoid snap-together pinch injuries.
  • Keep magnetic hoops at least 6–12 inches away from pacemakers or medical implants.
  • Keep phones, credit cards, and USB drives off the magnets.
  • Success check: No pinches during hoop assembly, and no unexpected device issues near the hooping area.
  • If it still fails: Re-train the handling routine (two-hand placement, controlled separation) and store magnets with spacers to reduce sudden closure.
