Don’t Let Lint Kill Your Melco EMT16 Plus: A 5-Minute Motherboard & Power Supply Cleanout That Prevents Costly Shorts

Commercial embroidery doesn’t usually die from one dramatic failure—it dies from a thousand tiny “it’ll be fine” moments. If you run a Melco EMT16 Plus (specifically the black cylindrical arm models with the S95 hook), ignoring the motherboard bay is one of those moments that can cost you thousands in replacement boards.

In the reference video, the technician reveals a horror show inside the electronics bay: a motherboard coated in a conductive paste of oil and lint. This isn't just "dirty"—it’s a short circuit waiting to happen.

As someone who has managed production floors for two decades, I can tell you: Clean machines print money. Dirty machines print invoices.

Here is your masterclass on cleaning the "Silent Killer" out of your Melco, calibrated for maximum safety and zero confusion.

Spot the “Silent Killer” on a Melco EMT16 Plus Before It Shorts Something Expensive

The machine in the guide is an EMT16 Plus. You can identify it by the black cylindrical arm and the S95 hook assembly. The technician’s goal was a motor change, but the red flag was the main circuit board—visible through the chassis gap—which was “absolutely filthy.”

The Operator’s Mindset: You are not cleaning for aesthetics. You are cleaning to prevent Conductive Bridging.

Many shop owners believe, "My shop has AC and no smokers, so I'm safe." This is false.

• Fact: Embroidery generates lint internally with every stitch.
• Fact: Lubrication attracts that lint.
• Result: Even in a sterile room, your machine builds its own sweater inside the electronics bay.

If you are running a melco embroidery machine, treat this cleaning ritual like paying insurance premiums: boring when things are working, but it saves your business when the humidity rises and that dust turns conductive.

The “Oil + Lint Sludge” Problem: Why It’s Different Than Regular Dust

Why is the technician so concerned? Because dry dust is mostly an insulator. But Oil + Lint = Circuit Killer.

From a physics perspective, here is why you should be worried:

1. The Anchor Effect: Oil droplets misting from the mechanical head drift onto the PCB (Printed Circuit Board). This makes the board sticky, trapping lint that would otherwise float away.
2. The Bridge: As lint piles up, it spans the tiny gaps between chip legs and capacitors.
3. The Short: Add a little humidity or more oil, and that lint bridge becomes conductive. It sends voltage to pins that shouldn't receive it. Poof.


Pre-Flight: Tools, Safety, and "Hidden" Consumables

Before you touch a single screw, set up your workspace. We want to avoid the "Oops, I dropped a screw into the power supply" scenario.

The Essential Kit:

• Hex Key Set: (Standard SAE/Metric depending on your specific year).
• Canned Air (Compressed Air): Crucial: Do not use an air compressor unless it has a moisture trap; water in the line kills boards.
• Screwdriver: For fan removal.

The "Pro" Hidden Consumables (Get these before starting):

• Headlamp or Bright Task Light: You cannot clean what you cannot see. Shadows inside the chassis hide the worst buildup.
• Magnetic Parts Bowl: Do not put screws on the table where they will roll under the machine.
• Smartphone: Take a "Before" photo of the fan cable routing. Trust me.

Warning (Safety): Disconnect power before opening the bay. While the video shows a technician working, for your safety and the board's safety, kill the power. Also, electronics bays contain sharp metal edges—watch your knuckles.

Prep Checklist (Pass/Fail)

• Machine is powered down (unless performing specific voltage checks, but for cleaning: OFF).
• Validation: Verify you are working on the EMT16 Plus (Black arm/S95 hook).
• Canned air is fresh (low cans spit liquid).
• Lighting is positioned to shine into the bay, not just on the cover.


The Tactical Opening: Remove the Rear Cosmetic Cover

The technician identifies the rear cosmetic cover behind the machine head. There is a specific "feel" to removing this correctly so you don't snap the plastic tabs.

The Motion:

1. Unscrew the retention screws (keep them in your magnetic bowl).
2. Slide Forward: Do not pull out away from the machine immediately. Slide the cover forward (towards the needle case) to disengage the internal locking tabs, then lift away.

Sensory Check: If you have to pull hard, you missed a screw or you are pulling at the wrong angle. It should yield easily.

The "Danger Zone" Inspection: Reading the Motherboard

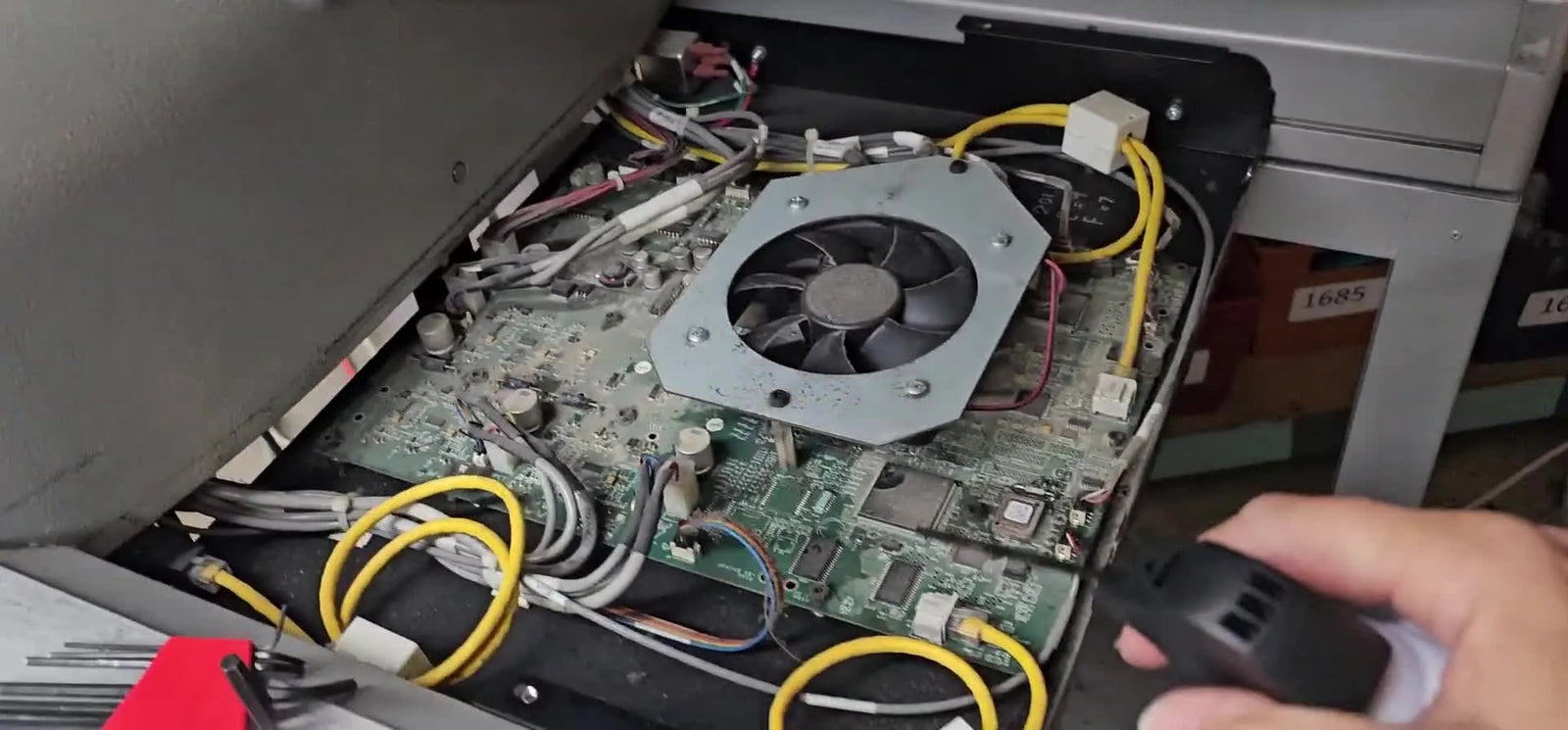

Once the green PCB is exposed, use your light to inspect the surface. The video shows specific "dark spots."

What to look for:

• The "Grey Fuzz": Dry lint. Low risk, easy to move.
• The "Black Sludge": This is oil-saturated lint. High Risk.
• The "Connector Creep": Lint packed into the white plastic plugs where cables connect.

If you see sludge, you are already in the danger zone. As the technician notes, "If you can see it, it's already too much." For owners of melco embroidery machines, this inspection confirms that internal lint generation is real, regardless of your room's ventilation.

The Cleaning Technique: Canned Air Discipline

The video demonstrates the correct use of canned air. This is not about blasting it like a fire hose; it's about surgical strikes.

The Protocol:

1. Hold the can upright. Never tilt it more than 45 degrees, or it will spray freezing liquid propellant.
2. Short Bursts. "Pfft, Pfft, Pfft." Not "Whhhhhhhhhhhhh."
3. Direction: Blast from top to bottom, forcing the dust out of the chassis, not deeper into the corners.

The Standard: The goal isn't microscopic sterility. The goal is Zero Bridges. Ensure there is no debris connecting any two metal points.

The technician mentions these machines were 6 years old and never cleaned. Do not wait that long. This is a Yearly Ritual.

Warning: NEVER use a toothbrush, q-tip, or rag on the circuit board components. A single caught thread can rip a tiny capacitor off the board, turning a free cleaning session into a $1,500 repair. Air only.

Handling the "Frostbite" Error (Liquid Propellant)

In the video, a small burst of liquid propellant hits the board (the "frost"). The technician remains calm, and so should you.

If the can spits liquid:

1. Stop immediately.
2. Wait. Do not wipe it. Let the chemistry do the work—it will evaporate in seconds.
3. Reset: Adjust your can angle or switch to a fresh can (low pressure cans get cold and spit more).

If you are maintaining a fleet of melco emt16x embroidery machine units, buy canned air by the case. Running out halfway through is the number one reason operators skip the deep corners.

Deep Cleaning: Moving the Cooling Fan

The technician unmounts the cooling fan (keeping it plugged in) to access the "blind spots" underneath.

Why this matters: Fans create low-pressure zones. Lint loves to accumulate right behind the fan bracket, forming a thick felt mat that chokes airflow. If you don't move the fan, you haven't really cleaned the machine.

Action Step:

1. Remove fan screws.
2. Gently lay the fan to the side (mind the tension on the wire).
3. Blast the area where the fan sat. You will likely see a cloud of dust.


The Surgical Phase: Pin Connectors

The video zooms in on lint bridging across the connector pins. This is the most critical step.

Technique:

• Attach the red straw to your canned air.
• Get the tip close (1 inch) to the white connectors.
• Blast the gaps between the wires.


Sensory Check: You should see individual dust bunnies flying out. If the dust is stuck in the connector grease, leave it rather than digging with a tool. Air is your only safe tool here.

The Rear Guard: Belts and Power Supply

Finally, the technician addresses the rear housing, pointing out the belt drive and the power supply unit (PSU) box at the bottom.

The Risk: Power supplies generate heat. A coating of lint acts as a blanket, keeping that heat inside. Overheated PSUs fail abruptly.

Action: Direct your air straw through the vents of the metal PSU box. It is a dust magnet.

Maintenance Rhythm: The Annual "Reset"

A specific viewer question clarifies the schedule: Once a Year.

My Recommended Rhythm:

• Daily: Clean bobbin area/hook (standard).
• Monthly: Visual check of fan intake.
• Yearly: The "Open Case" deep clean described in this guide.

Troubleshooting: Symptoms & Solutions

Decision Tree: When to Upgrade Your Tools or Your Machine?

The video comments reveal a secondary struggle: users fighting with hooping hats (Richardson caps) and complex garments. This frustration leads to machine downtime, which often leads to skipping maintenance because "I don't have time."

Use this logic to decide your next move:

Scenario A: You struggle with "Hoop Burn" or Hooping Slowness

• The Problem: Traditional hoops rely on friction and muscle power.
• The Fix: Upgrade to magnetic embroidery hoops. They hold fabric tighter without the "ring" marks and reduce wrist strain.
• Fit: We stock specific embroidery hoops for melco that snap right into your existing arms.

Scenario B: You are cleaning machines more than running them

• The Problem: You are pushing a single-head machine beyond its duty cycle.
• The Fix: Capacity upgrade. If you are producing 50+ items a day, moving to a SEWTECH multi-needle machine changes the math. It allows you to have redundancy—one machine can be down for maintenance while the other generates profit.

Scenario C: Hats are a nightmare

• The Fix: A dedicated melco hat hoop system or a specialized magnetic cap frame driver can turn a 5-minute struggle into a 30-second load.

Warning (Magnets): magnetic hooping station tools and frames use N52 industrial magnets. They are incredibly strong. Keep them away from pacemakers and watch your fingers to avoid blood blisters.

Setup Checklist (Pre-cleaning)

• Machine powered down.
• Rear cosmetic cover removed (screws safe).
• Headlamp on / Light positioned.
• Inspection complete (identified sludge vs. dry lint).

Final Operation Checklist (Post-cleaning)

• Visual: Motherboard is free of visible debris mats.
• Visual: Connector pins are clear of bridging fibers.
• Visual: Fan area (underneath) is clear.
• Chemical: Any propellant frost has 100% evaporated.
• Mechanical: Fan is re-mounted and screws are tight.
• Mechanical: Cosmetic cover is slid back into tabs before screwing down.


Embroidery is a game of variables. By removing "Motherboard Short Circuit" from your list of potential problems, you protect your schedule and your wallet. Clean it today, run it tomorrow.

FAQ

• Q: What tools and “hidden consumables” should be ready before opening the Melco EMT16 Plus motherboard bay for cleaning?
  A: Prepare lighting, screw control, and clean canned air first so the Melco EMT16 Plus bay can be opened and cleaned without dropping hardware or contaminating the PCB.
  • Set up: Use a bright task light or headlamp aimed into the bay so buildup is visible.
  • Control parts: Put all screws into a magnetic parts bowl immediately after removal.
  • Choose air: Use canned air (avoid shop compressors unless a moisture trap is confirmed).
  • Document: Take a phone photo of fan cable routing before moving the fan.
  • Success check: The bay is well-lit, screws are secured, and the air can is upright and spraying dry.
  • If it still fails… Stop and reset the workspace before removing more covers (most “oops” moments happen after the first screw).
• Q: How do I safely power down and open the rear cosmetic cover on a Melco EMT16 Plus without breaking plastic tabs?
  A: Power off completely and slide the rear cosmetic cover forward before lifting to release the tabs safely.
  • Disconnect power: Turn the machine off and unplug before opening the electronics bay.
  • Remove screws: Unscrew retention screws and store them in a magnetic bowl.
  • Slide forward: Push the cover forward (toward the needle case) to disengage locking tabs, then lift away.
  • Go by feel: Stop pulling if resistance is high—do not force it.
  • Success check: The cover “yields” smoothly and the tabs remain intact with no snapping sound.
  • If it still fails… Re-check for missed screws and confirm the sliding direction before applying any force.
• Q: What visual signs on the Melco EMT16 Plus motherboard indicate high risk of a short circuit from oil-and-lint sludge?
  A: Black, oily buildup and packed connector lint are the high-risk signs on a Melco EMT16 Plus PCB because they can create conductive bridging.
  • Inspect with light: Look for grey fuzz (dry lint) versus black sludge (oil-saturated lint).
  • Check connectors: Look for lint “creep” packed into white plugs and around pin areas.
  • Treat visibility as urgency: If buildup is obvious to the naked eye, cleaning is already overdue.
  • Success check: No visible mats of lint/sludge remain on the PCB surface or around connectors.
  • If it still fails… If sludge appears stuck or heavy, do not scrape—move to controlled air-only cleaning or consult a qualified technician.
• Q: How should canned air be used on a Melco EMT16 Plus circuit board to avoid damage and actually remove lint bridges?
  A: Use canned air in short, upright bursts from top to bottom to clear bridging fibers without blasting debris deeper into the chassis.
  • Hold upright: Keep the can vertical and avoid tilting more than about 45 degrees.
  • Pulse air: Use short bursts (“pfft” bursts), not continuous spray.
  • Aim directionally: Blow from top to bottom so debris exits the bay instead of packing into corners.
  • Avoid contact tools: Do not use toothbrushes, q-tips, or rags on components.
  • Success check: No fibers appear to span between metal points (the “bridge” is gone), especially around component legs and connectors.
  • If it still fails… Reposition the light and repeat with shorter bursts; if debris is stuck in connector grease, leave it rather than prying.
• Q: What should I do if canned air spits liquid propellant onto the Melco EMT16 Plus motherboard (the “frostbite” moment)?
  A: Stop spraying and let the propellant evaporate—do not wipe the Melco EMT16 Plus PCB.
  • Stop immediately: Release the trigger as soon as liquid hits the board.
  • Wait and air-dry: Let the frost evaporate naturally in seconds.
  • Reset technique: Adjust can angle or switch to a fresh can if the can is cold/low.
  • Success check: All visible frost is completely gone before restoring power or closing the bay.
  • If it still fails… Replace the can and resume with shorter bursts; persistent spitting usually means the can is too cold or nearly empty.
• Q: Why does the Melco EMT16 Plus cooling fan need to be moved during motherboard-bay cleaning, and how do I do it safely?
  A: Move the cooling fan (without unplugging it) so the hidden lint mat behind the bracket can be cleared and airflow restored.
  • Remove fan screws: Unmount the fan while keeping the connector attached.
  • Lay fan aside gently: Place it to the side without pulling on the wire.
  • Clean the blind spot: Blow out the area where the fan sat; expect a dust cloud.
  • Reinstall firmly: Re-mount the fan and tighten screws before closing the cover.
  • Success check: The area behind the fan bracket is visibly clear, and the fan sits flat and secure when reinstalled.
  • If it still fails… If the wire feels tight or routing is unclear, reference the “before” phone photo and reposition to avoid cable strain.
• Q: When should a shop running a Melco EMT16 Plus consider upgrading to magnetic embroidery hoops or a multi-needle SEWTECH machine instead of just “working harder”?
  A: Upgrade when the operational pain is chronic: first optimize technique, then reduce hooping friction with magnetic hoops, and finally add capacity with a multi-needle SEWTECH machine when volume or downtime becomes the real bottleneck.
  • Level 1 (technique): Commit to a maintenance rhythm (daily hook area, monthly fan intake check, yearly open-case clean) so preventable failures don’t steal production time.
  • Level 2 (tool): Choose magnetic embroidery hoops when hoop burn, hooping slowness, or operator wrist strain is the recurring limiter.
  • Level 3 (capacity): Consider a multi-needle SEWTECH machine when you are cleaning/repairing too often or production volume makes downtime expensive.
  • Safety note: Magnetic hoops use very strong magnets—keep away from pacemakers and protect fingers from pinch injuries.
  • Success check: Hooping time drops and fabric marking decreases (for hoops), or output stays consistent even when one machine is down (for capacity).
  • If it still fails… If hats or complex garments are the main choke point, move to a dedicated cap/hat hoop system rather than forcing standard hoop workflows.
