Double-Stack Poly Twill Appliqué on a Heavyweight Sweatshirt: The Magnetic Hoop Workflow That Saves Your Sanity

If you’ve ever tried to appliqué big Greek letters on a thick sweatshirt, you already know the emotional rollercoaster: the heavy fabric fights you, the hoop slips just enough to ruin alignment, and the cut lines feel like they’re daring you to slice straight through your stitches.

As someone who has spent two decades running production floors, I can tell you that fear is the biggest enemy of good embroidery. When you are scared of the machine, you tense up, you rush, and you make mistakes.

This post completely rebuilds the workflow shown in the video—double-stack poly twill appliqué for a Beta Gamma Nu (BΓN) fraternity sweatshirt. But I’m going to add the "sensory checks" and "safety margins" that videos usually skip. We are going to turn this from a stressful gamble into a predictable science.

Don’t Panic: A Double-Stack Appliqué Looks Complicated, But the Stitch Order Does the Heavy Lifting

The video starts with a quick design sanity check in Hatch Embroidery Digitizer. In my shop, we call this "pre-flighting." It is not optional—especially with appliqué, which requires human intervention mid-stitch.

In the software view, the design is positioned at 4.25" tall and 11.9" wide, with a total of 26,745 stitches.

Why these numbers matter:

• Width: At nearly 12 inches, you are pushing the limits of standard large hoops (often 12x8 or 14x14). You need a physical buffer zone.
• Stitch Count: 26k stitches is a lot of thread penetrating a knit fabric. Without the right support (stabilizer), the sweatshirt will distort.

The stitch sequence you need to verify on your screen is the classic appliqué rhythm. Memorize this beat:

1. Placement Line (Run Stitch): Shows you exactly where the fabric goes.
2. Tack-Down (Zig-Zag or E-Stitch): Locks the fabric down so you can trim it.
3. Finish (Satin Column): The heavy border that covers raw edges.

Expert Tip: Before you export, check the Appliqué Frame-Out setting. Ensure your machine is programmed to stop and move the frame forward (or out) after the placement and tack-down stages. Nothing is scarier than trying to trim fabric while your hands are trapped under the needle bar.

The “Hidden” Prep That Prevents Wasted Sweatshirts: Materials, Adhesive Logic, and a Reality Check on Time

Before you even look at the hoop, you must stage your "mise en place." Once the machine starts, you cannot be hunting for scissors.

In the video, the appliqué fabric is poly twill with PSA (Pressure Sensitive Adhesive) in gold/yellow and black. The garment is a Pro Club heavyweight 13oz black sweatshirt.

The PSA Advantage: PSA twill is basically a sticker. It allows you to stick the fabric to the sweatshirt inside the hoop without using spray adhesive. Spray adhesive is messy, gums up your rotary hook, and is bad for your lungs. PSA is the professional standard for a reason.

Hidden Consumables You Need (But Weren't Told About):

• Needles: Use a 75/11 Ballpoint needle. Sharp needles can cut the knit fibers of a sweatshirt, causing holes that appear after the first wash. Ballpoints slide between fibers.
• Bobbin Thread: Ensure you have a full bobbin. Running out of bobbin thread in the middle of a wide satin column causes a seam that is impossible to hide.

Prep Checklist (do this before you touch the hoop):

• Verify Design Dimensions: Ensure the 11.9" width fits inside your hoop’s safe sewing area (not just the physical hoop size).
• Needle Check: Install a fresh 75/11 Ballpoint needle.
• Material Staging: Pre-cut your Gold and Black twill rectangles slightly larger than the letters.
• Tool Check: Place your 6-inch curved appliqué scissors on the right side of the machine (or left, if dominant).
• Garment Prep: Lint roll the sweatshirt area. Heavy fleece loves to trap dust and lint under the embroidery.


Choose the Right PSA Twill (Sew/Heat Press Question) Without Guessing—and Without Rework

A common question arises: "Which twill do I buy? Sew only or Sew/Heat Press?"

The creator clarifies they use PSA permanent twill (Tackle Twill).

Here is the technical breakdown. The adhesive on PSA twill serves two masters:

1. Temporary Hold: During stitching, it acts like tape, preventing the fabric from shifting under the presser foot.
2. Permanent Bond: After stitching, a heat press activates the glue, fusing the twill to the sweatshirt fibers.

Sensory Check: When peeling the backing paper off PSA twill, you should hear a crisp crackle. If the backing slides off silently or takes the glue with it, the material may be old or heat-damaged.

If you skip the heat press step with PSA twill, the appliqué will look puffy and may ripple after laundering. The heat press is what gives it that "painted on" industrial look.

The Magnetic Hoop Moment: Hooping a 13oz Pro Club Sweatshirt Without Wrinkles or Hoop Burn

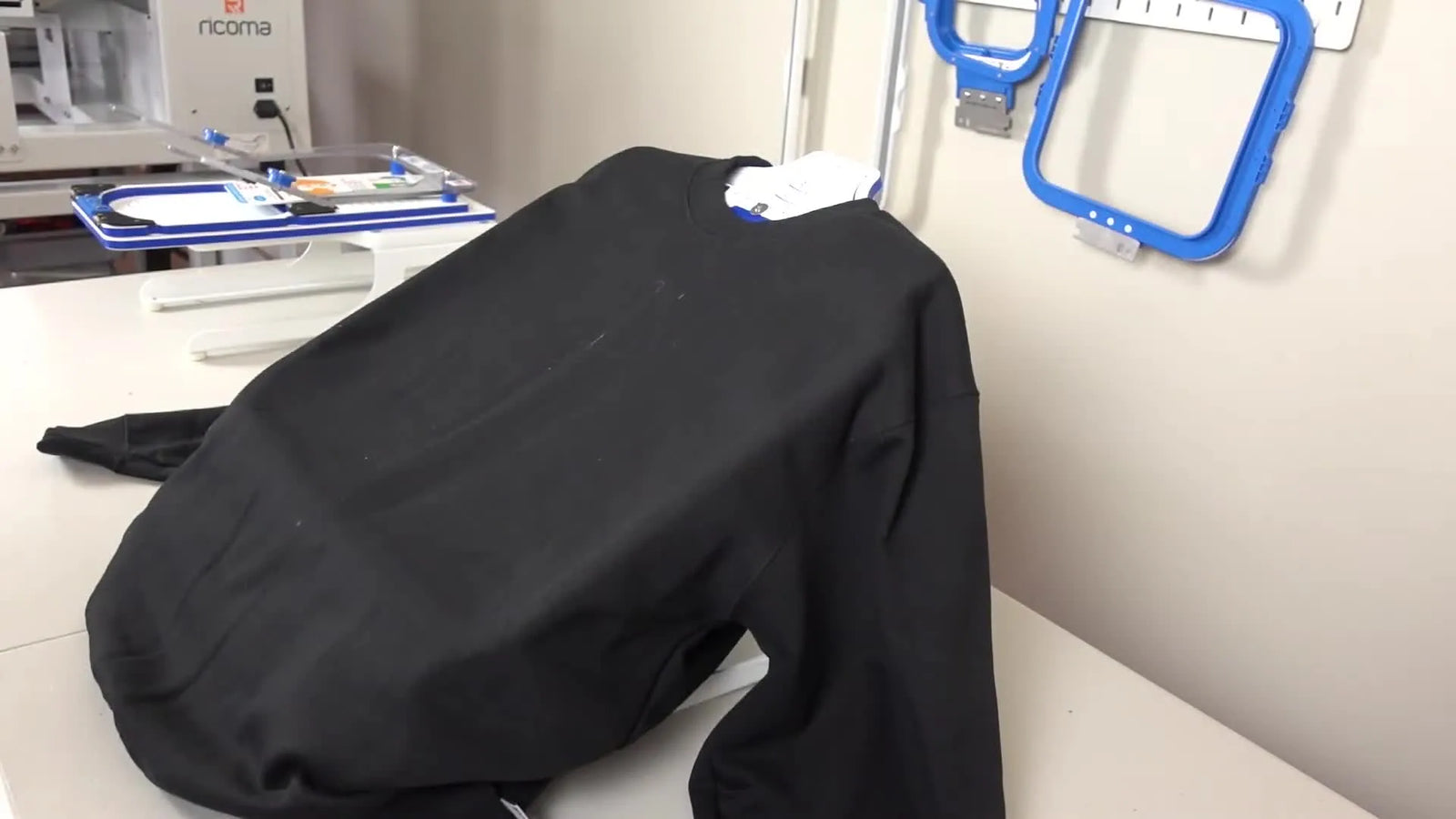

This is the pivotal moment. The video shows hooping a 13oz sweatshirt—which is notoriously thick and spongy—using a 13x16" magnetic hoop.

The "Hoop Burn" Problem: Traditional friction hoops (inner ring + outer ring + screw) rely on friction and brute force. To hold a thick sweatshirt, you have to tighten the screw aggressively. This crushes the fabric fibers, leaving a permanent white ring known as "hoop burn." It also forces you to wrestle the garment, leading to crooked alignment.

The Solution: This is why professional shops have almost entirely switched to using magnetic embroidery hoops. These hoops use powerful magnets to sandwich the fabric without crushing it.

• Zero Distortion: You aren't pulling the fabric; you are simply laying it flat and clamping it.
• No Hoop Burn: Because there is no friction grinding against the fabric velvet, there is no damage.
• Ergonomics: No twisting screws. Your wrists will thank you.

Expert Tension Rule: Novices try to verify tension by drumming on the fabric ("tight as a drum"). Stop doing this on sweatshirts. Knits are elastic. If you stretch them "tight as a drum" in the hoop, they will snap back when released, and your lettering will pucker. Ideally, the fabric in a magnetic hoop should feel taut but neutral—like a freshly made bedsheet, not a trampoline.

Warning: MAGNET SAFETY. Industrial magnetic hoops are extremely powerful. Never place your fingers between the top and bottom frames when snapping them together. They can pinch severely or break fingers. Keep them away from pacemakers, credit cards, and computerized machine screens.

Setup That Feels “Too Simple” (Until You Skip It): Station Positioning, Garment Straightening, and Hoop Size Discipline

The video demonstrates using a hooping station. This tool ensures that the bottom frame stays static while you manipulate the garment.

If you are looking to professionalize your workflow, investing in a systems approach including a magnetic hooping station is the logical next step. It separates the alignment task from the clamping task.

1. Alignment: You slide the sweatshirt over the board. You can see the vertical rib lines of the fabric. Use the station grid to ensure those lines run perfectly straight up and down.
2. Visual Check: Look at the side seams of the sweatshirt. Are they hanging equidistant from the station edges?
3. Clamping: Once perfect, you simply drop the top magnetic frame.

Hoop Size Science: The video uses a 13x16" hoop for a ~12" wide design. This leaves less than 1 inch of clearance on the sides.

• The Risk: If you use a hoop that is too small, the presser foot might hit the frame (causing a machine crash).
• The Rule: Always aim for at least 0.5" to 1" of "dead air" between your design edge and the hoop edge.

Setup Checklist (The "Snap" Sequence):

• Backing: Place one sheet of Poly Mesh Cutaway Stabilizer on the bottom frame. (Do not use Tearaway for sweatshirts; it provides zero structural support for the stitches).
• Garment: Slide sweatshirt onto the station.
• Align: Smooth fabric from the center outward using flat palms. Feel for wrinkles underneath.
• Snap: Place top frame.
• Tug Test: Gently tug the corners of the fabric. It should not slip.


Run Layer 1 (Gold) Like a Pro: Placement Stitch, Peel PSA, Smooth, Then Tack-Down

Once hooped, load the machine.

Speed Setting: If you are new to this, slow your machine down.

• Placement/Tack-down: 600 SPM (Stitches Per Minute). Precision matters more than speed here.
• Satin: 700-800 SPM.

The Process:

1. Placement Stitch: The machine draws the outline of the letters on the sweatshirt.
2. Apply Twill: Peel the backing off your Gold PSA twill. Stick it down, covering the placement lines completely.
3. The "Rub": Use your fingernail or a hard tool to rub the twill edges down firmly. You want the PSA to grip the sweatshirt fibers so the fabric doesn't bubble up as the needle passes through.
4. Tack-Down: The machine sews the zigzag stitch to lock the gold fabric.

Sensory Check: Listen to the machine. A rhythmic thump-thump is good. A sharp slap or crunch sound usually means the needle is dull or hitting a hoop edge.

The Trim Zone: Using 6-Inch Curved Appliqué Scissors Without Nicking Stitches or Cutting the Sweatshirt

The machine stops. You must now trim the excess gold fabric close to the zigzag line. This is the highest-risk part of the job.

The Tool: You need 6-inch curved appliqué scissors (often called Duckbill or Double Curved scissors).

• Why Curved? The curve lifts the blades away from the sweatshirt surface, preventing accidental snips of the garment.

The Technique:

• Lift: Hold the excess twill up and away from the garment with your non-dominant hand. You should feel slight tension on the fabric.
• Glide: Rest the "paddle" or curved bottom blade of the scissors on the fabric. Glide it along the stitch line.
• Snip: Cut smoothly.

The Safety Margin: Ideally, you want to cut about 1mm to 2mm away from the zigzag stitches.

• Too Close: You might cut the stitches, causing the appliqué to fall off.
• Too Far: The satin border won't cover the raw edge, and "tufts" of fabric will poke out.

Warning: MECHANICAL SAFETY. Never put your hands near the needle bar while the machine is live. Even if it is stopped, accidental foot pedal pressure can trigger it. Always Green-Light/Red-Light your process: Red light (machine off/locked) when trimming; Green light only when hands are clear.

Tight Corners and “Why Can’t I Reach That?”: Fixing Cutting Access Problems Before They Ruin Your Edges

Greek letters often have sharp internal corners (like the inside of a 'Gamma' or 'Nu'). The video correctly notes that cutting access is difficult here.

Troubleshooting Tight Corners:

1. Stop & Rotate: If you can't reach an angle, do not contort your wrist. Rotate the hoop (if your machine allows free-arm trimming) or simply move your body.
2. Point Cutting: For sharp inner "V" shapes, use just the tips of your scissors. Snip into the corner, stop, then cut away from the corner.
3. The "Hairy" Edge: If you see little threads fraying where you cut, don't pull them! Use a lighter (carefully!) to singe them or trim them flush.

Pain diagnostic: If your wrist burns after trimming one sweatshirt, your scissors are too dull or your hoop is too heavy. If you are doing volume, this physical fatigue leads to slipped cuts. This is often the point where hobbyists realize they need magnetic embroidery hoops—not just for hooping speed, but because they are often lower profile and easier to maneuver during trimming.

Layer 2 (Black) Goes Faster—If You Repeat the Same Discipline (Placement, Tack, Trim)

The second layer (Black) works exactly the same way.

1. Machine runs placement stitch on top of the Gold layer.
2. Stick Black PSA twill down.
3. Tack-down.
4. Trim.

The Alignment Trap: Be hyper-critical when placing the Black layer. Since it sits on top of the Gold, any skew will be visibly obvious against the gold background. Visual Check: Look at the margins. Is the amount of gold showing on the left equal to the gold showing on the right?

The Satin Border Is the Truth Serum: Why Density, Stability, and Clean Trimming Matter

This is the final lap. The machine runs a high-density satin stitch to seal everything.

Why Satin Borders Fail: If your satin stitches look "gappy" or registered poorly (not lining up with the edge), it is rarely a machine issue. It is a physics issue.

1. Inadequate Stabilizer: The heavy satin stitches pulled the fabric inward (puckering).
2. Hoop slip: The fabric moved 1mm during the process.

This is why the Cutaway Stabilizer + Magnetic Hoop combo is the "gold standard" for sweatshirts. The magnetic force prevents slippage, and the cutaway prevents distortion.

For those running production, this is where ricoma embroidery machines or similar multi-needle units shine. They allow you to assign specific needles for these high-speed satin runs, reducing thread tension issues that common single-needle machines face with heavy thread loads.

Heat Press Finishing: The Step That Makes PSA Twill Look “Factory Flat”

The sewing is done. Remove the hoop. Carefully tear away any excess stabilizer (if you used tearaway, which you shouldn't have, but cutaway needs to be trimmed with scissors leaving about 0.5" around the design).

Heat Press Parameters:

• Temp: 320°F - 330°F (approx 160°C - 165°C).
• Time: 10 to 15 seconds.
• Pressure: Medium.

The Method:

1. Lay sweatshirt on platen.
2. Cover design with a Teflon sheet (essential to prevent scorching the thread or melting the polyester).
3. Press.

This melts the PSA backing, permanently bonding the applique layers to the sweatshirt. It transforms the stiff embroidery into a flexible part of the garment.

Decision Tree: Pick a Stabilization Strategy for Thick Sweatshirts (So Satin Borders Don’t Ripple)

Correct stabilization is 90% of the battle. Use this logic flow to make the right choice every time.

Decision Tree: Sweatshirt Stabilization

• Is the fabric stretchy?
  • YES: Use Poly Mesh Cutaway (1 or 2 layers). Never use Tearaway.
  • NO (Stiff Carhartt style): You can use Tearaway, but Cutaway is still safer.
• Is the fabric "fluffy" (High pile/Sherpa)?
  • YES: Add a Water Soluble Topper (Solvy) on top before stitching. This prevents stitches from sinking into the fur.
  • NO: No topper needed.
• Is the design dense (25k+ stitches)?
  • YES: Use Heavy Cutaway or bond the stabilizer to the garment with spray/heat.


Comment Questions, Answered Like a Shop Owner: Machines, Lettering, and “Can I Buy the File?”

The comments section is full of people looking for shortcuts. Here is the experienced reality.

“What machine are you using?” The video shows a commercial multi-needle machine. However, machine brand matters less than hoop quality. You can do this on a single-needle home machine if you use the right stabilizer and hoop correctly. The limit is usually the hoop size (minimum 5x7" for small letters, larger for full chests).

“Where do I get the files?” The creator digitizes their own.

• Advice: If you buy files, look for "Appliqué" specifically. Standard tatami fill files cannot be converted to appliqué just by wishing it. They lack the placement and tack-down logic.


“Could You Cut the Twill Letters on a Machine First?” Yes—But Know What You’re Trading Off

A common question: "Why not use a Cricut/laser to pre-cut the letters?"

The Trade-off:

• Pre-Cut (Cricut/Laser): faster at the embroidery machine (no trimming stops), but requires perfect placement accuracy. If you place the pre-cut letter 1mm off, the satin stitch will miss the edge.
• Trim-in-Hoop (Video Method): Slower, but 100% accurate. Because you cut based on the machine's own tack-down line, it is perfectly verified every time. Note: Beginners should stick to the Trim-in-Hoop method until they master placement.


The Upgrade Path (Without the Hard Sell): When Magnetic Hoops and Better Thread Pay for Themselves

If you are doing one sweatshirt for a friend, handle the frustration. Use your standard hoop.

But if you are doing a run of 20 hoodies for a detailed club order, the pain points discussed above (wrists hurting, re-hooping for straightness, hoop burn) will destroy your profit margin.

When to Upgrade:

1. The "Hoop Burn" Trigger: If you ruin one expensive garment ($30-$50 blank cost) due to ring marks, that is the cost of a down payment on a better system.
2. The "Time" Trigger: If hooping takes you longer than 2 minutes per shirt, you are bleeding money. A hooping station brings this down to 30 seconds.
3. The "Volume" Trigger: If you plan to sell these, the consistency of SEWTECH industrial magnetic frames (compatible with many machine brands) ensures that Shirt #1 and Shirt #50 look identical.


Operation Checklist: The Exact Double-Stack Sequence (Gold Layer → Black Layer → Satin → Heat Press)

Print this out. Stick it to your machine. It prevents the "brain fog" mistakes.

Operation Checklist (The Flight Plan):

• Prep: Hoop oversized sweatshirt with Cutaway stabilizer using a Hooping Station (check alignment).
• Stitch 1: Run Placement Line (Gold Layer).
• Action: Place Gold PSA Twill. Rub down firm.
• Stitch 2: Run Tack-Down (Gold Layer).
• Action: TRIM Gold Twill. (Use curved scissors, 1mm margin).
• Stitch 3: Run Placement Line (Black Layer).
• Action: Place Black PSA Twill. Check visual margins.
• Stitch 4: Run Tack-Down (Black Layer).
• Action: TRIM Black Twill.
• Stitch 5: Run Final Satin Border (Slow speed down to 600 SPM).
• Finish: Remove hoop. Trim stabilizer. Heat press at 320°F for 15s.


The Final Reveal Standard: What “Good” Looks Like Before You Hand It to a Customer

Inspect the final piece.

• Tactile Check: Run your hand over the letters. is it scratchy? If so, you trimmed too jaggedly.
• Visual Check: Are the satin columns solid, or can you see the fabric peeking through (gapping)?
• Bending Check: Bend the sweatshirt. Does the embroidery flow with it, or does it feel like a piece of plywood? (If plywood, you used too much stabilizer or adhesive).

Mastering the use of tools like the hoop master embroidery hooping station or alternatives helps you hit this "Good" standard faster. And for those using specific machines, ensuring you have the right ricoma hoops or compatible magnetic frames is the secret variable that separates the amateurs from the pros.

Embroidery is a game of variables. Control the hoop, control the stabilizer, and you control the result. Now go make some dust.

FAQ

• Q: What needle type should be used for sweatshirt appliqué on a heavyweight knit, and why does a sharp needle cause holes after washing?
  A: Use a fresh 75/11 ballpoint needle; sharp needles can cut knit fibers and create wash-out holes.
  • Install: Replace the needle before starting the job (don’t “finish one more hoodie” on an old needle).
  • Confirm: Choose ballpoint specifically for knits so the tip slides between fibers instead of slicing them.
  • Success check: The needle penetrations look clean (no enlarged holes around satin columns) and the sweatshirt surface doesn’t look “picked.”
  • If it still fails… Slow the machine down and re-check stabilizer choice, because dense satin on knits can amplify damage.
• Q: How do you prevent hoop burn on a 13oz Pro Club sweatshirt when hooping large Greek letters with a traditional screw embroidery hoop?
  A: Avoid over-tightening and over-stretching; thick sweatshirts often require a magnetic hoop approach to reduce ring marks and distortion.
  • Reduce: Stop tightening the screw “as hard as possible” just to force grip—this is what crushes fibers into a white ring.
  • Hoop: Keep the fabric taut but neutral (like a bedsheet, not “tight as a drum”) to prevent puckering after release.
  • Upgrade option: Use a magnetic embroidery hoop to clamp without friction grinding and without crushing the nap.
  • Success check: After unhooping, the sweatshirt shows no permanent white ring and the letters stay aligned edge-to-edge.
  • If it still fails… Increase stabilization support (poly mesh cutaway) because slippage and distortion often travel together.
• Q: What stabilizer should be used for dense (25k+ stitches) appliqué satin borders on a stretchy sweatshirt, and why does tearaway fail on sweatshirts?
  A: Use poly mesh cutaway (often 1–2 layers); tearaway provides poor structural support for knit sweatshirts under heavy satin density.
  • Choose: Pick poly mesh cutaway for stretchy fabric; add a second layer if the design is dense (25k+ stitches).
  • Avoid: Do not rely on tearaway for sweatshirts because it does not hold the knit stable during wide satin borders.
  • Add: Use a water-soluble topper only when the sweatshirt surface is high-pile/fluffy to prevent stitch sink.
  • Success check: Satin borders look smooth and registered (no rippling, no “pull-in” puckers around the letters).
  • If it still fails… Re-check hoop stability (slip of even ~1 mm can show up as border misregistration).
• Q: How do you safely trim in-hoop appliqué on a multi-needle embroidery machine without risking the needle bar or accidental start-up?
  A: Lock the machine out before hands go under the needle area; treat trimming as a “machine off/locked” step every time.
  • Stop: Set a strict red-light/green-light habit—red (machine off/locked) for trimming, green only when hands are clear.
  • Position: Keep hands away from the needle bar area even when stopped, because accidental activation can happen.
  • Tool: Use 6-inch curved appliqué scissors so the blade rides above the sweatshirt surface.
  • Success check: Trimming is controlled and calm—no sudden jerks, and no nicks into satin/tack-down stitches.
  • If it still fails… Re-position your body or rotate access rather than contorting your wrist; fatigue causes slips.
• Q: What is the correct trim margin for double-stack PSA twill appliqué after the tack-down zigzag on Greek letters?
  A: Trim about 1–2 mm away from the zigzag tack-down so the satin border covers the edge without cutting stitches.
  • Lift: Pull excess twill up and away to create light tension for a clean cut path.
  • Glide: Rest the curved “paddle” blade on the fabric and follow the tack-down line smoothly.
  • Avoid: Don’t trim too close (risk cutting tack stitches) and don’t leave too much (raw edge tufts will poke out).
  • Success check: After the final satin border, no twill fuzz shows beyond the edge and the border fully covers the cut line.
  • If it still fails… Slow down and use point-cutting with scissor tips for tight inner corners instead of forcing a full-blade cut.
• Q: What sound indicates a dull needle or hoop contact during sweatshirt appliqué stitching, and what speed should be used for placement/tack-down vs satin?
  A: A sharp “slap” or “crunch” is a warning; slow down to ~600 SPM for placement/tack-down and run satin around ~700–800 SPM when stable.
  • Listen: Treat sound as a diagnostic—steady thump-thump is normal, sharp impact noises are not.
  • Slow: Run placement and tack-down at 600 SPM for control; keep satin in the 700–800 SPM range if everything is stable.
  • Inspect: Check needle condition and clearance if noises spike near hoop edges (avoid frame strikes).
  • Success check: Stitching runs with consistent rhythm and the fabric does not show sudden shifts or skipped areas around borders.
  • If it still fails… Verify hoop size clearance (leave ~0.5"–1" dead air around the design) to prevent presser-foot/frame collisions.
• Q: What magnetic hoop safety rules should be followed when hooping thick sweatshirts with industrial magnetic embroidery hoops?
  A: Keep fingers out of the closing gap and keep magnets away from sensitive devices; industrial magnetic force can pinch severely.
  • Keep clear: Never place fingers between the top and bottom frames when snapping together.
  • Control: Lower the top frame deliberately—do not “drop” it from height.
  • Separate: Keep magnetic hoops away from pacemakers, credit cards, and computerized screens.
  • Success check: The hoop closes cleanly with no pinches, and the sweatshirt remains flat and evenly clamped (no pulled stretch).
  • If it still fails… Use a hooping station so alignment happens before clamping, reducing rushed handling near the magnets.
• Q: How do you choose between Level 1 technique changes, Level 2 magnetic hoops, and Level 3 multi-needle machine upgrades when double-stack appliqué keeps causing re-hooping, hoop burn, or puckered satin borders?
  A: Start with technique and stabilization, move to magnetic hoops for consistency, and consider a multi-needle machine when volume and repeatability are the real bottlenecks.
  • Level 1 (technique): Slow placement/tack-down, trim 1–2 mm from tack-down, use poly mesh cutaway, and maintain neutral (not stretched) hooping.
  • Level 2 (tool): Switch to a magnetic hoop + hooping station if hoop burn, slippage, or >2 minutes hooping time is killing consistency.
  • Level 3 (capacity): Consider a commercial multi-needle setup when you need repeatable results across many garments and want fewer tension/production interruptions.
  • Success check: Shirt #1 and Shirt #20 match—same alignment, same border coverage, no rippling, no ring marks.
  • If it still fails… Re-audit the workflow order (placement → apply PSA twill → rub down → tack-down → trim → final satin → heat press) because skipping steps creates “mystery” defects.
