Edit Free .BE Working Files in Embrilliance Express Without Losing Your Mind: Clean Text, Better Stitch Order, Fewer Trims

When you are in the trenches of custom embroidery—whether you are running a single-head home machine or a bank of commercial multi-needles—friction is the enemy of profit. You want to customize a design, get it into the machine, and press start. But often, software becomes the bottleneck.

Embrilliance Express (the free mode) is often misunderstood. Many beginners think it’s "broken" because it won't edit their purchased designs. The reality is that Express is a powerful production tool, but only if you stay within its specific lane: native tools + native working files.

This guide reconstructs the professional workflow for using free .BE working files in Embrilliance Express. We will walk through creating a "No Symbol" style patch with custom text, shaping it to match the geometry, controlling stitch behavior to prevent messy jumps, and—most importantly—managing the stitch order so the text looks professionally "knocked out" behind the slash.

The “Express Isn’t Broken” Reality Check: What Embrilliance Express Can (and Can’t) Open

If you have ever clicked a file, watched your software load, and then stared blankly at a greyed-out screen thinking the program is ignoring you—you are not alone. This is the #1 frustration point for new embroiderers using Express.

Here is the technical reality: Embrilliance Express acts as a player for .BE working files.

Think of a .PES or .DST file like a digital photograph of a building. You can look at it, but you can’t easily move a window or change the bricks because the data is "flattened" into coordinates. Think of a .BE file like the architectural blueprints. You can still move walls, change fonts, and resize elements because the data is "object-based."

Express is designed to edit the blueprints (.BE), not the photograph (.PES). If you are trying to open a standard stitch file directly into Express to add text, the software blocks you because it cannot recalculate the stitches of a foreign file format in free mode.

The Pro Rule: If your goal is to customize a design in Express, you must start with a .BE working file (like the Blank_Busted.be used in this workflow).

The “Hidden” Prep Pros Do First: File Hygiene, Font Choice, and a Quick Plan for Stitch Order

Before you even touch the lettering tool, you need a "Mise-en-place" strategy. In commercial embroidery, 80% of mistakes happen before the first stitch is sewn.

1. The Font Protocols

For this specific "No Symbol" patch, we need to bend and shape the text.

• The Constraint: You cannot shape a standard imported stitch font in Express.
• The Solution: You must use a Native Built-in Font (like the Block font included in Express) or a native BX font. Native fonts allow for "elastic" properties like curving and resizing with automatic stitch recalculation.

2. The Visual Physics (Knockout Effect)

Embroidery has physical depth. If you stitch red thread over black text, it creates a lump. If you stitch black text over a red bar, it looks like a sticker. To achieve a "No Symbol" look where the text appears to be behind the diagonal slash, we must manipulate the Stitch Order:

• Layer 1: Text (Bottom)
• Layer 2: The "No" Symbol (Top)

Pre-Flight Protocol Checklist:

• File Check: Verify you have located the .be file (not a zipped folder).
• Font Strategy: Select the "Block" font (native) to ensure shaping tools are active.
• Physics Check: Visualise the layer stack. Text must be physically sewn before the red slash to appear "behind" it.
• Consumable Check: Do you have temporary spray adhesive? When doing patch work with high density, holding the fabric stable is critical to prevent shifting during the "knockout" alignment.

Open the .BE Working File in Embrilliance Express (and Verify It’s Truly Editable)

Launch Embrilliance Express. Click the Open folder icon on the toolbar. Navigate to your unzipped folder and select the .be file.

Once loaded, you should see the red "No Symbol" circle on the workspace.

Sensory Check: Click on the red circle.

• If you can select it: You are in a working file environment. Success.
• If it is static or unselectable: You may have opened a stitch file by mistake.

Add Text with the Lettering Tool (and Don’t Miss the One Keystroke That “Sets” It)

Click the A icon (Create Letters) in the top toolbar. You will see the default lettering (usually "ABC") appear in the center of the hoop.

The "Enter Key" Trap

Go to the Properties Pane on the right.

1. Select the text field.
2. Type COVID-19 (or your custom text) in all caps.
3. CRITICAL STEP: Press Enter on your keyboard.


If you do not press Enter, the text will simply revert to "ABC" when you click away. This is a user interface quirk that trips up hundreds of beginners.

Visual Confirmation: The text on the screen must update to read "COVID-19" immediately after pressing Enter.

Shape the Block Font with Oval + Curve Sliders (This Is Where Express Feels Like Magic)

This is the step that separates a "hacked together" design from a professional one. We need the text to conform to the curvature of the circle.

1. With the text selected, look at the Properties Pane.
2. Change the ABC Style (Layout) from Line to Oval.


3. Locate the Curve Sliders below the font name.

The Upper Arch:

• Drag the Top curve slider to the right. Watch the text curve upward.


The Lower Arch:

• Drag the Bottom curve slider to the right. This pulls the bottom edges up, rounding the text into a football or oval shape.


Empirical Tip: Do not max out the sliders. Aim for a curve that creates an even "white space" gap between the text and the inner ring of the red circle. If the text touches the red ring, you risk registration errors (gaps) when the fabric pulls during stitching.

The Shift-Key Center-Resize Trick: Keep Text Centered While You Scale

Now we need to fit the text inside the red circle without ruining the alignment.

The Amateur Move: Grabbing a corner and dragging it arbitrarily, then trying to drag the text back to the center. The Pro Move: Hold Shift + Grab a corner handle.

When you hold Shift while resizing, the object scales from the center point. This means your text remains perfectly centered within the red circle while it shrinks.

Action: Drag inward until the text sits comfortably inside the red circle with about 2-3mm of breathing room on all sides.

Make the Text Taller Without Making It Wider (Controlled Vertical Stretch)

Sometimes, the text width is perfect, but the letters look too short and squat. We need to alter the Aspect Ratio.

1. Hold Shift.
2. Grab the Center Top (or Center Bottom) handle (the black square in the middle of the selection line).
3. Drag outward/upward.


The Software Advantage: Because this is a native font, the software automatically adds stitches to compensate for the new height. It doesn't just stretch the existing stitches (which would make them sparse); it recalculates the density.

Stitch Tab Tweaks That Prevent Ugly Jumps: Nearest Point + Underlay Choices

Now go to the Stitch tab in the properties pane (look for the needle icon). This allows us to modify the "physics" of how the machine builds the letters.

1. The "Nearest Point" Controversy

Lisa recommends unchecking 'Nearest Point'. Let's explain why from a machine operator's perspective.

• When Checked (Default): The software tries to find the shortest path between letters to save time. This often results in tiny, tight jump stitches (1-2mm) between letters.
• The Problem: Many multi-needle and domestic machines struggle to trim extremely short jumps. You end up with "bird nests" or thread tails that are impossible to cut without snipping the knot.
• The Fix: By unchecking 'Nearest Point', you force the machine to return to a standard start/stop point. This often creates longer jump stitches. Longer jumps are easier to trim.

2. Underlay: The Foundation

Underlay is the stitching that happens before the visible satin stitch. It staples the fabric to the stabilizer to prevent shifting.

In the demo, Lisa Checks 'Satin' and Unchecks 'Edge Run'.

Calibration Note for Beginners:

• Edge Run walks the perimeter of the letter first. On small letters (under 10mm tall), this can add too much bulk and cause the needle to struggle or break. Turning it off for small text is smart.
• Satin Underlay creates a "railroad track" down the center. This provides loft (3D effect) and stability.

Warning: Be careful reducing density or underlay too much. If you remove all underlay, your satin stitches will sink into the fabric, making the text look jagged. For text over 15mm tall, we highly recommend keeping Edge Run ON to ensure crisp edges.

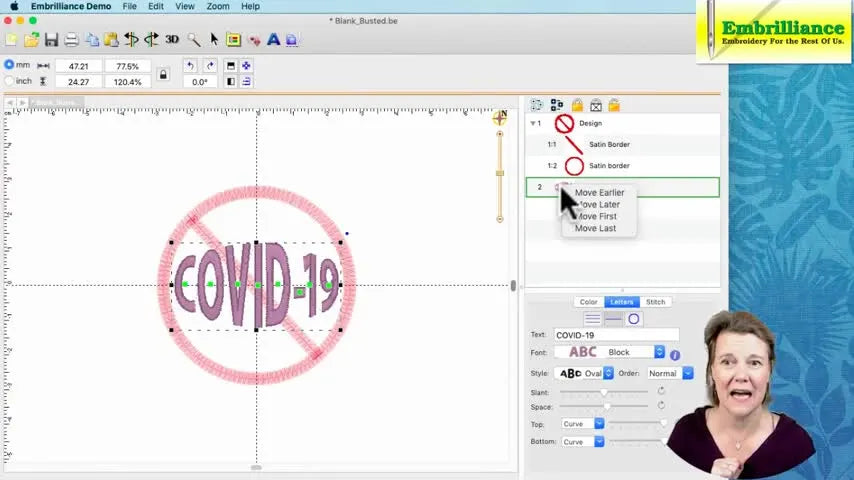

The Knockout Effect That Makes It Look Professional: Move the Lettering First in the Object Pane

Currently, you likely added the text after opening the template. This means the machine will stitch the Red Circle first, and the Text second. The text will sit ON TOP of the red slash.

To create the "Knockout" illusion (Text behind the slash), we must simulate layered depth.

1. Locate the Objects Pane (usually top right).
2. Right-click the "COVID-19" text object.
3. Select Move First.


The Logic:

• Step 1: Machine stitches "COVID-19" (Black).
• Step 2: Machine stitches "No Symbol" (Red).
• Result: The red slash physically sews over the black text, pushing the text into the background.

Pro Tip: This is also how you fix "Design #2" issues. By moving the text into the sequence, it becomes part of the singular production flow, rather than an tacked-on afterthought.

Export the File Your Machine Actually Reads: Save Stitch File

You cannot feed a .BE file to your machine. You must "print" the digital blueprint into a machine-readable format.

1. Go to File > Save Stitch File.
2. Select your machine's format (e.g., .PES for Brother/Babylock, .DST for Tajima/SWF/Commercial).
3. Save it to your USB drive.

Setup Checklist (The "Save" Gate):

• Text Committed: Did you hit Enter?
• Shape: Is it an Oval?
• Physics: Is 'Nearest Point' unchecked for cleaner trims?
• Order: Is the Text listed at the very top of the Object tree?

Troubleshooting the Real-World Problems (The "why isn't it working?" Guide)

When theory meets reality, things break. Here is your structured guide to fixing the most common issues.

The "Why" Behind These Moves: Cleaner Stitching Starts in Software

We aren't just clicking buttons; we are programming a robot.

• Shaping via Sliders reduces the need to "hoop tight" to force alignment.
• Center-Resizing ensures that if you make 50 patches with different team names, they all align to the same center point.
• Stitch Order isn't just aesthetic; it prevents needle deflection. If you stitched the heavy red slash first, then tried to stitch text through that dense red thread, you risk breaking needles. Stitching the text first (Move First) is safer for your hardware.

Decision Tree: From Fabric to Stabilizer (So Your Knockout Text Doesn’t Pucker)

The "No Symbol" is a high-density design (lots of stitches in a small area). This creates "Pull"—the fabric wants to bunch up in the center. Your choice of stabilizer is the only thing stopping this.

Scenario A: Stretchy Knit (T-shirt / Polo)

• Risk: High distortion. The circle will become an oval.
• Stabilizer: 2.5oz - 3.0oz Cutaway. Do not use Tearaway.
• Topper: Use a water-soluble topping (Solvy) to keep the text from sinking into the knit jersey.

Scenario B: Stable Woven (Denim / Twill Patch Material)

• Risk: Low.
• Stabilizer: Medium Tearaway (two layers) or a single layer of specific Patch Backing.
• Needle: 75/11 Sharp (for crisp text).

Scenario C: Thin/Slippery (Performance Wear / Satin)

• Risk: Puckering around the text edges.
• Stabilizer: No-Show Mesh (PolyMesh) Cutaway + Temporary Spray Adhesive (to bond fabric to stabilizer).

Hidden Consumable Alert: Keep Titanium Needles on hand. High-density overlaps (like the slash over the text) dull needles fast. A fresh needle prevents thread breaks.

The Upgrade Path: When "Software Friction" becomes "Hooping Friction"

Once you master this software workflow, you will hit a new bottleneck. You can design the file in 2 minutes, but it takes you 10 minutes to hoop the shirt straight. If you are doing a run of 20 patches or shirts, that hooping time destroys your profit margin.

This is where the physics of your tools matter as much as the software.

• The Problem: Traditional screw-tighten hoops cause "hoop burn" (permanent ring marks) on delicate fabrics and force you to struggle with thick seams (like tech jackets or bags).
• The Production Solution: Professionals switch to magnetic embroidery hoops. These use high-strength magnets to clamp fabric instantly without forcing inner and outer rings together. This eliminates hoop burn and drastically reduces the "wrestling match" with thick items.

If you find yourself wishing you had a dedicated embroidery hooping station to guarantee every logo is placed in the exact same spot on every shirt, you are ready to graduate from "hobbyist" to "producer." A hooping station for machine embroidery allows you to preset the placement, slide the shirt on, and drop a magnetic embroidery frame in seconds.

ROI Calculation: If a repositionable embroidery hoop or magnetic system saves you 3 minutes per shirt:

• 20 shirts = 1 hour saved.
• How much is your hour worth?

Warning: machine embroidery hoops utilizing magnets are incredibly strong. Keep them away from pacemakers, credit cards, and hard drives. Always keep fingers clear of the "snap zone" to avoid painful pinching.

For those hitting the ceiling of what a single-needle machine can do (too many thread changes, too slow), look at the SEWTECH multi-needle ecosystem. Combining a multi-needle machine with embroidery machine hoops designed for speed allows you to load the next garment while the first one stitches—the holy grail of efficiency.

Operation Checklist: Run a Test Stitch Like a Pro

Before you commit to the final garment, you must simulate the run.

The "Sensory" Test Stitch:

1. Hoop a Scrap: Use the exact same fabric and exact same stabilizer you plan for the final.
2. Sound Check: Listen to the machine. A consistent "thump-thump" is good. A grinding or "slapping" sound typically means the fabric is flagging (too loose in the hoop).
3. Tension Check: Look at the back of the satin text. You should see the white bobbin thread taking up about 1/3 of the width of the column in the center. If you see top thread on the bottom, tighten top tension.
4. Knockout Verification: Confirm the red slash sews over the text, not under it.
5. Trim Check: Inspect the jump stitches. Are they long enough to snip easily? If not, go back to the software and verify "Nearest Point" status.

By treating your software setup as the blueprint and your machine setup as the construction site, you eliminate the guesswork. Edit with confidence, hoop with precision, and scale your production when the friction becomes too high.

FAQ

• Q: Why does Embrilliance Express grey out editing when opening a .PES or .DST embroidery design file?
  A: Embrilliance Express free mode can edit .BE working files, but it will not recalculate and edit standard stitch files like .PES or .DST.
  • Open an unzipped folder and select the file ending in .be (not a stitch format).
  • Click the red circle (or any object) and try to select it.
  • Re-download and unzip again if the file browser looks empty or filtered wrong.
  • Success check: the design objects highlight/select individually when clicked.
  • If it still fails: confirm the download is a true .be working file (not just a .pes/.dst set) before trying to add lettering.
• Q: Why does Embrilliance Express lettering stay as “ABC” after typing custom text like “COVID-19”?
  A: This is common—Embrilliance Express requires pressing Enter to “commit” the text change.
  • Click the lettering text field in the Properties pane.
  • Type the exact wording (for example, COVID-19 in caps).
  • Press Enter on the keyboard before clicking anywhere else.
  • Success check: the on-screen lettering immediately changes from “ABC” to the custom text.
  • If it still fails: reselect the text object and repeat the type + Enter step before changing font/style settings.
• Q: Why are Embrilliance Express Oval and Curve shaping tools disabled when using lettering?
  A: Shaping tools work with Embrilliance native built-in fonts (or native BX), not with standard imported stitch fonts.
  • Choose a built-in Embrilliance font such as Block before shaping.
  • Set the ABC Style/Layout to Oval in the Properties pane.
  • Adjust Top and Bottom curve sliders gradually (avoid maxing out).
  • Success check: curve sliders actively reshape the lettering and maintain even spacing inside the ring.
  • If it still fails: delete the current lettering and recreate it using a native built-in font from the start.
• Q: How do you keep Embrilliance Express text perfectly centered while resizing inside a circular patch template?
  A: Hold Shift while resizing so the text scales from the center instead of drifting off-center.
  • Select the text object.
  • Hold Shift and drag a corner handle inward/outward to scale from the center point.
  • Hold Shift and drag the center top/bottom handle to make letters taller without making them wider.
  • Success check: the text stays centered inside the circle while size changes, with about 2–3 mm clearance from the red ring.
  • If it still fails: undo, reselect the text, and resize again while keeping Shift held the entire drag.
• Q: How do you stop thread nests between letters when Embrilliance Express lettering uses very short jump stitches?
  A: In Embrilliance Express, uncheck Nearest Point to avoid ultra-short jumps that many trimmers can’t cut cleanly.
  • Open the text object’s Stitch tab (needle icon).
  • Uncheck Nearest Point for the lettering.
  • Re-save the stitch file and test-stitch on scrap before running production.
  • Success check: jump stitches become longer and are easier to trim cleanly without forming “bird nests.”
  • If it still fails: reduce tiny jumps by simplifying lettering layout/spacing and verify trimming behavior on the specific machine model.
• Q: How do you make Embrilliance Express text look “behind” the red slash in a “No Symbol” patch (knockout effect) using stitch order?
  A: Move the lettering earlier in the sew sequence so the red slash stitches on top of the text.
  • Open the Objects Pane.
  • Right-click the text object (for example, “COVID-19”).
  • Choose Move First so text stitches before the red symbol.
  • Success check: in a test stitch, the red slash visibly sews over the black text (not under it).
  • If it still fails: confirm the text object is at the very top of the object tree before exporting the stitch file.
• Q: What safety precautions are required when using magnetic embroidery hoops and magnetic embroidery frames for faster hooping?
  A: Magnetic embroidery hoops are very strong—keep fingers clear and keep magnets away from pacemakers and magnetic-sensitive items.
  • Keep fingers out of the “snap zone” when the magnets clamp down to prevent pinching.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Set the hoop down flat and control the closure—do not let magnets slam together.
  • Success check: the fabric clamps evenly without a sudden uncontrolled snap or finger contact.
  • If it still fails: stop and reposition slowly; if the garment is bulky, consider a hooping station to control placement and handling.
