Embird Studio User Editors: Build a Seamless Puzzle Piece Motif That Won’t Create Jump Stitches (and Actually Saves)

Master Embird Motifs: From "Jump Stitch Disaster" to Seamless Repeats

If you’ve ever watched a custom fill stitch out and thought, “Why is it jumping right through my beautiful pattern?”—you are witnessing a pathing error. In Embird Studio, motifs behave less like a vector drawing and more like a continuous plumbing system: they need a clean start, a clean end, and a watertight connection.

This guide rebuilds the puzzle-piece workflow into a production-ready protocol. We will cover not just the "clicks," but the physical realities of stitching dense motifs—tensions, stabilization, and hooping dynamics—so your software success translates to the finished garment.

The Mental Model: Why Embird Motifs "Misbehave"

Motifs in Embird are repeatable stitch paths. If the exit point of "Puzzle Piece A" doesn't touch the entry point of "Puzzle Piece B," the machine must trim and jump.

The Golden Rule: Think like your needle. The motif must act as a single continuous line—Head to Tail.

• Visual Check: If you lift your finger (or mouse) while tracing the path, that is where a jump stitch will occur on the machine.


Step 1: Specific Prep in User Editors

Do not just open Embird; open the right engine.

1. Launch User Editors: Look for the icon resembling a needle with a red zigzag line. This opens a separate window.
2. Select Mode: Choose Create a Motif.
   • Warning: Do not select "Outline." An Outline follows a border; a Motif fills an area.
3. Naming Protocol: Name your file immediately (e.g., “Puzzle_Source_v1”).


Pre-Flight Checklist

• Window Check: Are you in the separate "User Editors" window?
• Mode Check: Is "Motif" selected in the dropdown?
• Canvas Check: Is your grid visible? (Press Ctrl+G if the screen is blank).

Step 2: Import & Align (The Anchoring Step)

Most registration errors (gaps between repeats) happen here. The reference image cannot be crooked.

1. Import Image: Select Image > Import and load your Puzzle Piece BMP.
2. The Red Line Rule: Embird provides a horizontal Red Guide Line.
   • Action: Rotate or adjust your image so the "Start" (left ear) and "End" (right socket) of the puzzle piece sit exactly on this line.
   • Why? If the start and end aren't level, the motifs will "staircase" up or down the fabric instead of interlocking.




Warning: Do not skip the rotation step. If you digitize a crooked image, no amount of node editing will fix the final gap. Align the source first.

Step 3: Digitizing the Path (Rhythm & Flow)

You are now plotting the needle penetrations.

1. Start Point: Click exactly on the far left edge of the puzzle piece (on the Red Line).
2. Trace Method: Work Left to Right.
   • Left Click: Creates straight lines (hard points).
   • Right Click: Creates curves (spline points).
3. Node Economy: Use the fewest nodes possible.
   • Novice Mistake: Placing 50 nodes for a simple curve.
   • Expert Fix: Use 3 nodes and adjust the curve handles. Fewer nodes = smoother embroidery movement (less mechanical vibration).


Step 4: The "No-Jump" Secret (The Double Run)

This is the step 90% of beginners miss. If you stop tracing at the right edge, you have a dead end. You must build a road back.

1. Reach the End: Once you reach the far right edge of the shape, do not stop.
2. Backtrack: Continue digitizing backwards along the exact same line you just drew, heading towards the connection point for the next row (usually the bottom or top interlocking tab).
3. The Result: This creates a Double Run (Bean Stitch style). The machine stitches East (to create the shape) then West (to get to the start of the next shape) without trimming.




Sensory Check: Is it right?

• Visual: In 3D Preview mode, the line looks slightly bolder but uniform.
• Logic: Can you trace the entire path with your finger without lifting it off the screen?
• Sound (Simulated): On the machine, this should sound like a consistent hum, not "stitch-stitch-trim-clunk."

Step 5: Bypassing the "Access Denied" Trap

Embird often tries to save into C:Program Files, which Windows protects.

1. Save As: When the logic is done, click File > Save As.
2. Reroute: Navigate to your Documents or a dedicated Desktop folder.
3. File Type: Verify it is an .ESM file.


Step 6: The "Stress Test" (Physical Simulation)

Never put a new motif directly onto a $50 jacket. Test it on a "lab rat."

1. Switch Context: Go back to Embird Editor (Manager).
2. Create Test Subject: Draw a simple 4x4 inch (100mm) circle.
3. Apply Stabilizer Logic: Even for a software test, assume physical parameters.
   • Density: Start standard.
   • Compensation: Add 0.3mm Pull Compensation if testing on knits.


Step 7: Parameters & Application

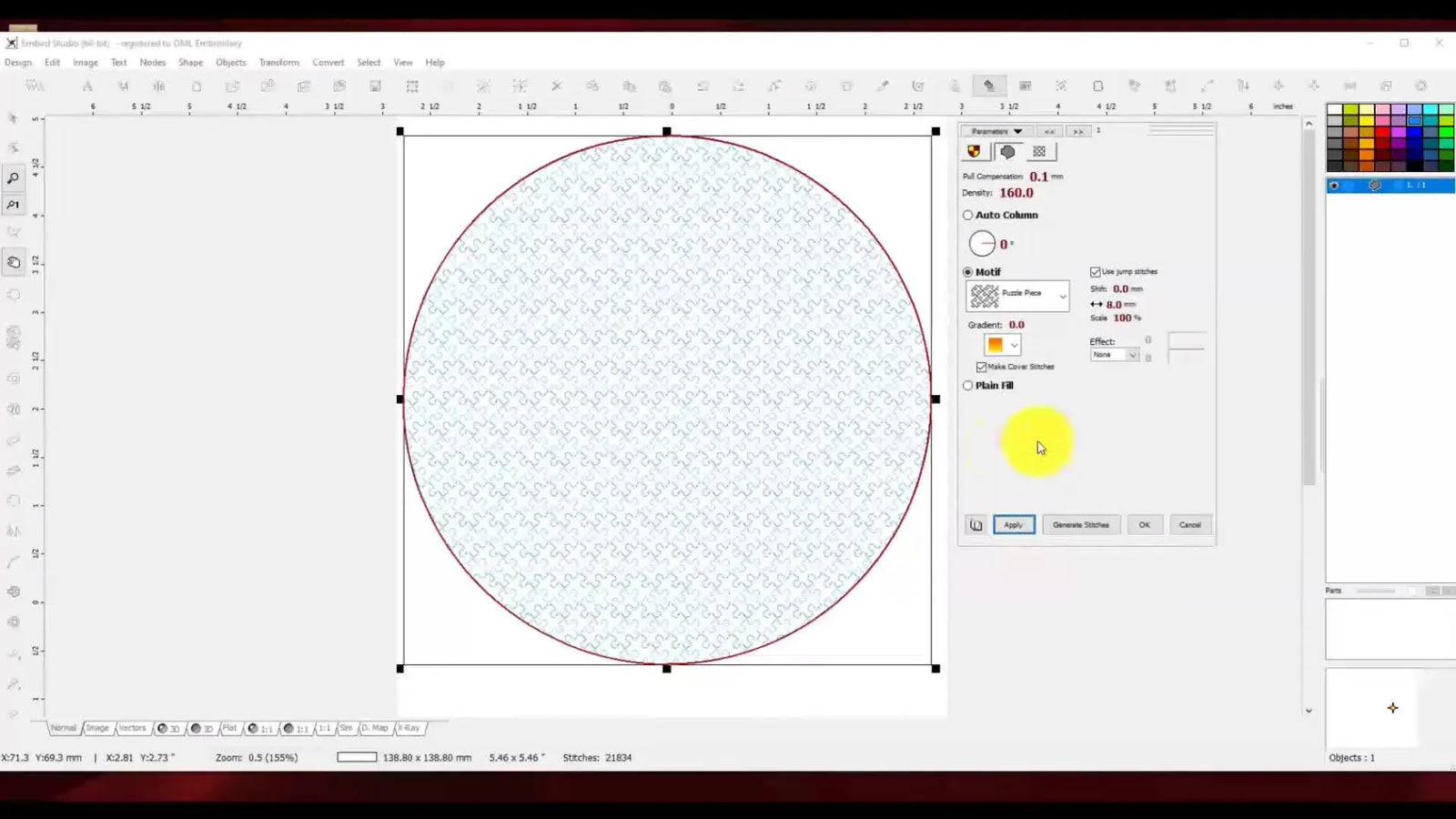

1. Select Fill: Right-click the circle > Parameters.
2. Fill Type: Change from "Plain Fill" to "Motif".
3. Load: Browse for your saved .ESM puzzle file.
4. The "Apply" Discipline: Embird does not update live. You must click Apply after every size adjustment to restart the rendering engine.


Step 8: Adding Texture (The Wave)

To prevent the fill from looking flat and manufactured, add organic movement.

1. Activate Wave: Click the Wave tab in Parameters.
2. Sculpt: Drag the graph line to create a gentle curve.
3. Check Density: Wave effects can compress stitches in the "valleys." Ensure no area becomes a solid block of thread, or you risk needle deflection.






Step 9: Framing the Edge

Fills often have jagged edges due to the shape of the puzzle pieces.

The Fix: Select the circle object, use Create Outline from Selection, and apply a Satin Stitch (3.5mm width) or a triple bean stitch. This hides the raw edges of your motif interrupt.

Troubleshooting: The "Why is this happening?" Matrix

The Hardware Reality: When Software Isn't the Problem

You have designed a perfect motif. But if your machine Setup is flawed, the result will still be crooked. A motif fill requires thousands of stitches, putting immense stress on the fabric.

Scenario A: The "Hoop Burn" Struggle

Repeated patterns require tight hooping. Traditional screw hoops often leave shiny rings ("hoop burn") on velvet, performance wear, or dark cottons.

• The Fix: Many professionals switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, holding the fabric firmly without crushing the fibers. They allow the motif to lie flat, preventing distortion in the geometric puzzle pattern.

Scenario B: Alignment Drift

If your puzzle pattern starts straight but ends crooked, your fabric is shifting inside the hoop during the high-speed fill.

• The Fix:
  1. Better Stabilization: Use fusible woven interlining plus cutaway.
  2. Better Grip: A hooping station ensures your initial placement is square, while a high-quality hoop keeps it there.

Safety Warning: embroidery hoops magnetic contain powerful magnets. Keep them away from pacemakers, insulin pumps, and credit cards. Always slide the magnets apart; do not let them snap together on your fingers.

Decision Guide: Do You Need a Tool Upgrade?

Follow this logic path to determine if you need to practice more or upgrade your gear.

1. Are you stitching 1-5 items for family?
   • Protocol: Stick to your single-needle machine. Use standard hoops. Spend time pinning and basting to ensure stability.
2. Are you running small batches (10-50 items) for an Etsy shop?
   • Pain Point: Re-hooping takes longer than stitching. Sore wrists from tightening screws.
   • Solution: Invest in embroidery machine hoops with magnetic locking. This cuts hooping time by 40% and reduces fabric waste.
3. Are you scaling to commercial production (100+ items)?
   • Pain Point: Single-needle thread changes on a multi-color puzzle design are killing your profit margin.
   • Solution: This is the threshold for a Multi-Needle Machine (like the SEWTECH series). The stability of a tubular arm combined with an embroidery hooping system allows for continuous production of complex motif fills without the "drift" seen on flat-bed domestic machines.

Final Action Plan

1. Digital: Create your .ESM file today. Keep it simple (low node count).
2. Physical: Test sew on denim or stable cotton.
3. Evaluate: If the design is perfect but the sew-out is warped, stop blaming the software. Check your stabilizer and consider upgrading your hooping method for better tension control.

FAQ

• Q: In Embird Studio User Editors, why does selecting Outline instead of Create a Motif cause broken fills and jump stitches in motif repeats?
  A: Use Create a Motif for repeatable fill paths; Outline follows borders and often produces discontinuous paths for motif fills.
  • Switch: Open User Editors (needle icon with red zigzag) and select Create a Motif from the dropdown.
  • Confirm: Name the file early (example: “Puzzle_Source_v1”) so you don’t overwrite versions while testing.
  • Rebuild: Redigitize the path as a single continuous “head-to-tail” route intended for repeats.
  • Success check: You can trace the entire motif path on-screen without lifting your finger (no obvious start/stop gaps).
  • If it still fails… Go to node editing and make the end point overlap the next start point to eliminate trim-and-jump behavior.
• Q: In Embird Studio motif digitizing, how does the Red Guide Line alignment prevent “staircasing” gaps when repeating a puzzle-piece motif?
  A: Align the motif’s start and end points on the Red Guide Line before digitizing, or the repeat will drift up/down and leave registration gaps.
  • Import: Use Image > Import and load the BMP.
  • Rotate: Adjust the image so the left “Start” and right “End” of the puzzle piece sit exactly on the Red Guide Line.
  • Digitize: Start on the far-left edge (on the Red Line) and trace left-to-right.
  • Success check: Repeats look level instead of stepping upward or downward across the fill area.
  • If it still fails… Re-import and re-rotate the source image; node edits cannot fully fix a crooked original alignment.
• Q: In Embird Studio motif creation, what is the Double Run backtrack method to eliminate trim-and-jump between puzzle-piece rows?
  A: Build a “road back” by backtracking on the same line after reaching the right edge, creating a Double Run so the needle can continue without trimming.
  • Trace: Digitize the puzzle piece from left to right to the far-right edge.
  • Backtrack: Keep digitizing backward along the exact same line toward the connection point for the next repeat/row.
  • Preview: Use 3D Preview to confirm the line looks slightly bolder but uniform.
  • Success check: The machine motion would be a steady run instead of “stitch-stitch-trim-clunk” between pieces.
  • If it still fails… Check for any tiny gap between the end of piece A and the start of piece B; even small discontinuities force a jump.
• Q: In Embird Studio on Windows, how do you fix the “Access Denied” error when saving a motif .ESM file?
  A: Save the motif .ESM to a user-writable folder (Documents/Desktop), not to C:Program Files, which Windows protects.
  • Use: Click File > Save As after finishing the motif logic.
  • Reroute: Choose Documents or a dedicated Desktop folder.
  • Verify: Confirm the file type is .ESM before closing.
  • Success check: The file saves without a permissions popup and can be browsed/loaded later in Parameters.
  • If it still fails… Check whether the destination folder is synced/locked by security software and try a plain local folder in Documents.
• Q: In Embird Studio Parameters, why does a motif fill not change after resizing until clicking Apply, and how do you confirm the change actually took effect?
  A: Embird does not update live for motif fills; click Apply after every size adjustment to restart the rendering.
  • Open: Right-click the object (example: a 4x4 in / 100 mm test circle) and go to Parameters.
  • Load: Change Fill Type to Motif and browse to the saved .ESM file.
  • Commit: Resize or adjust, then click Apply every time.
  • Success check: The on-screen fill re-renders immediately after clicking Apply (you can visually see the motif pattern update).
  • If it still fails… Re-check that the correct file was loaded and that the file saved correctly as .ESM in a writable folder.
• Q: When an Embird Studio motif fill causes fabric puckering (3D effect) on knits, what is the fastest stabilization and parameter fix?
  A: Treat puckering as density/stabilization stress: scale up the motif (reduces density) and use a heavier cutaway; add pull compensation if testing on knits.
  • Scale: Increase motif size rather than forcing dense stitches into a small area.
  • Stabilize: Switch to a heavier cutaway stabilizer for the test sew.
  • Adjust: Use a safe starting point of 0.3 mm Pull Compensation when testing on knits (then fine-tune per fabric).
  • Success check: The test sew lies flatter with less tunneling/warping around the filled area.
  • If it still fails… Reduce speed and re-test on a stable “lab rat” fabric (denim or stable cotton) to separate digitizing issues from fabric stretch issues.
• Q: During dense Embird Studio motif fills, how do you reduce thread breakage from friction/heat buildup, and what is the safe operating check?
  A: Lower speed and switch needle type to reduce heat and friction during long dense runs.
  • Change: Use a Titanium needle (75/11) as the stated fix for friction/heat-related breaks.
  • Slow: Reduce machine speed to 600 SPM for the stress-test sew-out.
  • Observe: Run the fill on a test piece before committing to a garment.
  • Success check: The fill completes without repeated breaks and the stitch sound stays consistent rather than “struggling” under load.
  • If it still fails… Re-check density choices and stabilization; persistent breaks often mean the design is too dense for the fabric setup.
• Q: What are the key safety rules for magnetic embroidery hoops when using them to prevent fabric shift and hoop burn on repeated motif fills?
  A: Magnetic embroidery hoops can improve grip and reduce hoop burn, but the magnets are powerful and require strict handling and medical-device precautions.
  • Keep away: Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Separate safely: Slide magnets apart—do not let magnets snap together on fingers.
  • Use for the right trigger: Choose magnetic hooping when screw hoops cause shiny rings (hoop burn) or when high-speed fills cause fabric drift in the hoop.
  • Success check: Fabric stays square in the hoop with less visible ring-marking and less end-to-end alignment drift in the repeat.
  • If it still fails… Upgrade stabilization first (fusible woven interlining + cutaway) and confirm initial placement is square (a hooping station can help).
