Embrilliance Enthusiast Stitch Editing: Split One Tiny Band, Fix Gaps, and Make a Design Sew Cleaner

When a customer says, “I love the design… but can that one band be a different color?” they’re not asking for a software trick—they’re asking for control.

In the world of custom apparel, being able to surgically isolate specific stitches from a flattened design is the difference between saying "I can't do that" and charging a premium for customization. In this "Whitepaper" style guide, we will transform a standard Embrilliance workflow into a professional production protocol.

You will learn to take an existing library design (an anchor) that wasn’t digitized as separate objects, and surgically isolate just the stitches you need. Then you’ll either:

• Split those stitches into a new object (Level 1: Color Control), or
• Keep them in place and adjust properties (Level 2: Structural Repair—fixing gaps or bolding lines).

This is the kind of edit that saves you from re-digitizing—and saves your customer order.

Don’t Panic: “Stitch Points” in Embrilliance Enthusiast Are Your Flashlight, Not a Trap

If you normally work in 3D View, you’re not alone—the 3D preview is comfortable because it looks like a finished patch. But when you need to isolate a tiny section (like the horizontal band on an anchor), the 3D view hides the truth. It masks the individual needle penetrations, making surgical editing impossible.

The Cognitive Shift: Think of 3D view as looking at a house from the street. You can see the Shape. Think of Stitch Points as looking at the blueprints. You can see the Structure.

In the workflow below, we switch views so every stitch point becomes visible as a hard node. That’s the moment you stop guessing and start editing with data-driven confidence.

What you’re trying to accomplish (real-world goal):

• Separate the band stitches so they can be edited without disturbing the structural integrity of the rest of the anchor.

Expected sensory outcome:

• Visual: You lose the "thread texture" and see geometric lines and dots.
• Interaction: Specific dots turn blue when clicked, confirming you have "grabbed" them.


The “Hidden” Prep Pros Do First (So You Don’t Split the Wrong Stitches)

Before you touch Stitch Edit Mode, do two small things that prevent 90% of “why did my design unravel?” moments. This is your "Pre-Flight" check.

1. Zoom in to the "Pixel" Level: Don't squint. Zoom in until you can clearly distinguish the gap between individual needle points. In the tutorial, the instructor zooms in immediately after enabling stitch points.
2. Mentally Trace the "Travel Stitches": When you split stitches, you aren’t just moving the visible satin column; you might accidentally grab a "travel run" (the thread moving underneath to get to the next spot). If you cut a travel run incorrectly, your machine might trim the thread in the middle of a design, causing it to unthread.
3. Decide your intent upfront:
   • Intent A: I need a separate color stop. (Action: Split).
   • Intent B: I need less gapping or a bolder look. (Action: Adjust Properties).

Expert Insight: Edits that look "fine" on screen can still sew poorly if the fabric is unstable. If you make a band denser (to fix gapping) on a stretchy performance tee, the fabric will pull in, creating puckering.

If you are editing designs for difficult substrates (like stretchy knits or slippery performance wear), your software edit is only half the battle. This is where physical tools like magnetic embroidery hoops become critical. Unlike traditional screw hoops that distort fabric grain when tightened, magnetic systems clamp the fabric flat, ensuring that the precision edits you make on screen actually land in the right spot on the garment.

Prep Checklist (Complete BEFORE clicking 'Stitch Edit'):

• Verification: Is the correct design selected in the Object Pane?
• Visualization: Switch View to "Stitch Points" (Yellow dots visible).
• Magnification: Zoom in until individual dots are at least 2mm apart on screen.
• Strategy: Decide "Split for Color" vs. "Adjust for Structure."
• Stabilization: If this is a high-stretch fabric, confirm you have Cutaway stabilizer and ideally a magnetic hoop to prevent distortion.


Flip the Switch: Enable “Stitch Points” View So Every Needle Penetration Shows

To perform surgery, we need to turn on the X-Ray.

Step-by-Step:

1. Go to the top menu bar.
2. Click View.
3. Select Stitch Points.

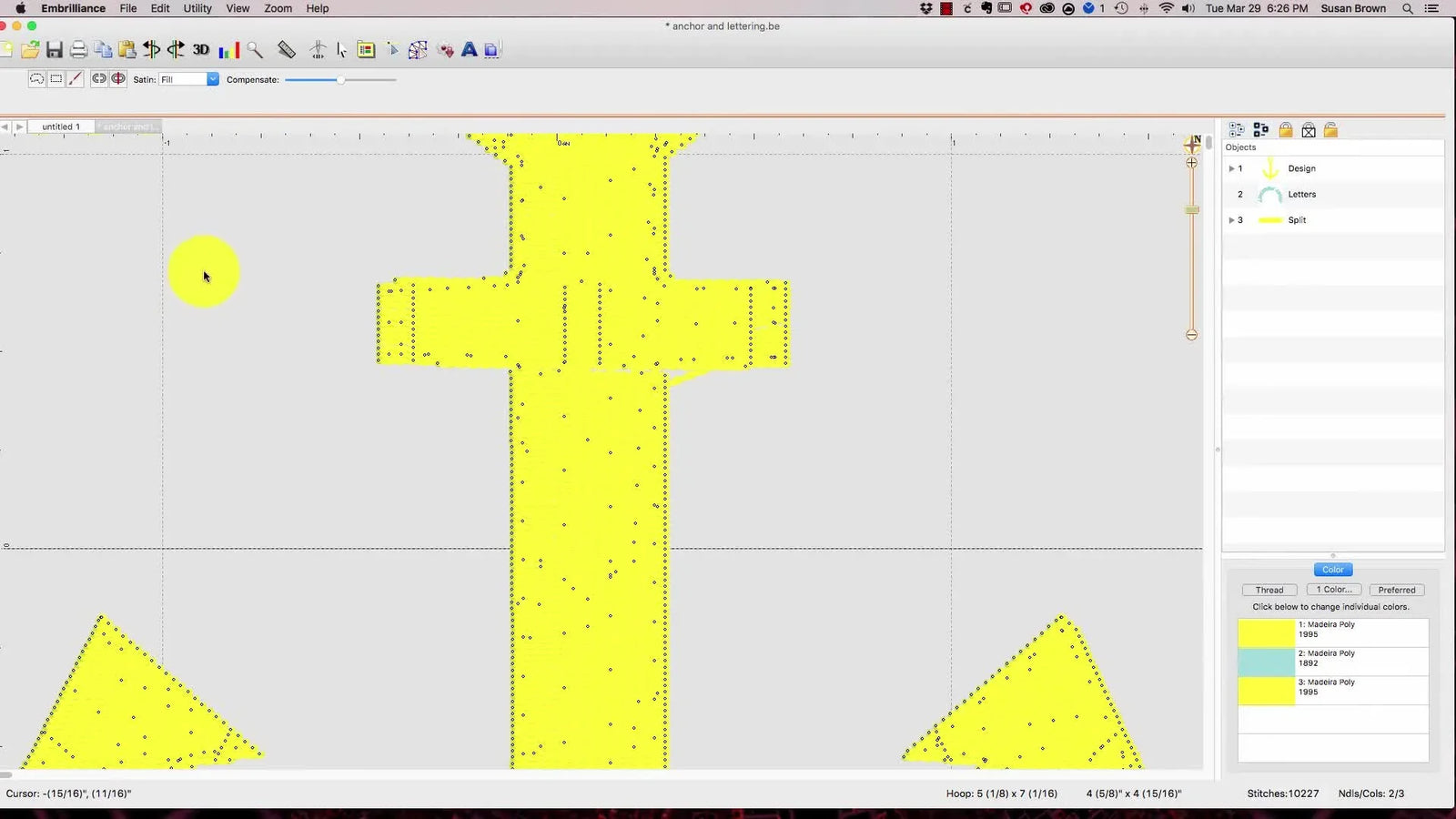

Sensory Check: You will see the artwork change from a solid, glossy 3D look to a wireframe structure populated by small yellow dots. Each dot represents one distinct needle penetration into the fabric.

Checkpoint:

• You should clearly see a cluster of yellow dots defining the shape of the band you want to isolate. If you only see lines without dots, you may be in "Wireframe" mode, not "Stitch Points" mode.


Enter Stitch Edit Mode in Embrilliance: Where Lasso, Box, and Brush Actually Live

Standard "Arrow" selection tools select the entire design. To select parts of a design, we must change modes.

Click the Stitch Edit Mode icon in the toolbar.

• Visual Anchor: It usually looks like a mouse cursor arrow pointing at a line with nodes (dots).

Once active, your selection capabilities expand. You are no longer selecting "files"; you are selecting "nodes."

• Lasso / Freehand
• Box select
• Brush

Checkpoint:

• Watch your mouse cursor. It should change appearance or the toolbar should light up with new sub-options (Lasso, Box, Brush).


Lasso vs Box vs Brush in Embrilliance Stitch Selection: Pick the Tool That Matches the Shape

This is where intermediate users either get fast or get frustrated. Choosing the wrong tool for the geometry leads to selecting unwanted stitches.

Option A: Lasso / Freehand (The Organic Tool)

Best for: Curves, circles, and irregular shapes (like a flower petal).

• Action: Click and hold the left mouse button. Draw a loop around the yellow dots you want.
• Refinement: If you miss a dot, hold Command (Mac) or Control (PC) and click individual points to add them.
• Expert Tip: It acts like a pencil; if your hand shakes, your selection shakes.


Option B: Box Select (The Geometric Tool)

Best for: Rectangles, Bars, and Text.

The instructor uses this for the anchor’s horizontal bar because it is a straight geometric shape.

• Action: Choose the arrow cursor/box tool. Click and drag a rectangle.
• Result: It grabs everything strictly inside that mathematical box. Clean and fast.


Option C: Brush Tool (The Surgical Tool)

Best for: Complex boundaries where shapes overlap.

The brush is the "Production Mindset" tool—slower, but precise.

• Action: Select the Brush tool. Hold Left Click and "paint" over the dots.
• Precaution: Imagine you are painting a wall trim.
  • Don't go too high: You will grab the anchor's vertical shaft stitches.
  • Don't miss the edge: Missing the "turn points" at the edge of satin columns creates messy jumps.


Warning: Mechanical Safety Risk
Stitch editing changes the firing order of the needle. If you accidentally delete a "Tie-in" or "Tie-off" stitch during this process, your machine will not lock the thread.
The Result: The thread will unravel after the first wash.
The Fix: Always verify that the start and end of your new object have "Tie" commands or secure overlapping stitches.

Setup Checklist (Execute right after selection):

• Visual Confirmation: Are the selected dots Blue? (Yellow = unselected, Blue = selected).
• Boundary Scan: Zoom in on the top and bottom edges of the band. Did you grab a stray dot from the background? Deselect it (CMD/CTRL + Click).
• Completeness: Did you grab the travel run leading into the band? (Crucial for smooth sewing).


The Clean Split: Turn Selected Stitches into a New Object (So You Can Change Color Independently)

You have highlighted the target. Now, extract it.

With the dots blue, click the Split button (or Edit > Split).

The Physics of the Split: The software cuts the thread path. It creates a "Jump" command from the main anchor to this new band, and another "Jump" command away from it.

• On Screen: The selected stitches move into a new, independent "Object" in the right-hand properties pane.
• On Machine: The machine will now stop (or trim) before stitching this section, allowing a color change.

Checkpoint:

• Look at the Object Pane on the right. You should see two items where there used to be one.


The “Proof It Worked” Moment: Change the New Object’s Color and Watch Only That Band Update

Never trust the split until you test it visually.

1. Click the new object in the pane.
2. Click the Color Swatch.
3. Select a high-contrast color (e.g., Neon Green or Hot Pink).

Success Metric:

• Pass: Only the horizontal band turns green. The rest of the anchor stays blue.
• Fail: The band and a random chunk of the anchor shaft turn green. (Means you selected too many points—Undo and retry).


The No-Split Alternative: Change Stitch Type or Pull Compensation on Just One Area

Sometimes, you don't want a color change. You want the embroidery to simply look better. Perhaps the band is sinking into a fluffy towel, or the fabric is peeking through the stitches.

In this scenario, do not split. Just select the points and apply property changes.

In the video, the instructor:

1. Selects the band points.
2. Changes Stitch Type via the dropdown (e.g., from Fill to Satin).
3. Adjusts Pull Comp (Pull Compensation).


Why Pull Compensation Works (and why it can also bite you)

Concept: Thread has tension. When a needle punches fabric, the thread pulls the fabric inward (like tightening a shoelace). A column digitized at 4mm wide might sew out at 3.5mm wide because of this tension.

Pull Compensation essentially tells the machine: "Overstitch by X amount to compensate for the shrinkage."

• The Benefit: Increasing Pull Comp makes the band "fatter" and closes gaps.
• The Risk: Too much Pull Comp on a dense design creates a "bulletproof vest" effect—stiff, hard embroidery that can break needles.

Safety Range: For standard satin stitches, a Pull Comp of 0.2mm - 0.4mm is safe. If you go above 0.6mm, be careful of overlapping stitches creating needle jams.

Operation Checklist (Pre-Export):

• Zoom Out: Scan the entire design. Did your edit accidentally shift the position of the band?
• Object List Verify: If you split, line 2 should be your new color.
• Property Verify: If you adjusted Pull Comp, does the preview look slightly wider?
• Test Stitch: Before sewing on a $50 Hoodie, sew on a scrap. Always.


The “Missed Points” Problem: Fixing Incomplete Selections Without Starting Over

You hit "Color Change," and suddenly you see three yellow dots left behind in the old color. It looks like "digital dust."

Symptom: Tiny specs of the original color remain in the gap, or a travel stitch cuts across your new color.

The Fix (60-Second Rescue):

1. Don't Undo everything.
2. Go back to Stitch Edit Mode.
3. Select just those missed stray dots.
4. Cut/Paste them into the new object, or Split them and combine.
5. Pro Tip: Hold Command/Control to surgically add these points to your active selection.


Decision Tree: When to Split Stitches vs When to Adjust Pull Comp

Use this logic flow to determine your action path.

Comment Questions I Hear All the Time (and the Clean Answers)

“Which Embrilliance program are you using?” The instructor is working at the Enthusiast level. The basic "Essentials" version allows some resizing, but Stitch Editing (individual point manipulation) is a feature of Enthusiast.

“Is your Facebook group Embird or Embrilliance?” The channel clarifies the group is OML Embroidery University, covering the software demonstrated.

“Is there a ‘view them in order’ list of your Embrilliance videos?” This is a smart request. Stitch editing requires a foundational understanding of "Objects" vs. "Stitches." Beginners should look for playlists labeled "Embrilliance Basics" before diving into node editing.

The “Why It Sewed Badly” Reality Check: Software Edits Still Need Real Hooping and Stabilizing

You have perfected the file. You split the band, increased the Pull Comp to 0.3mm, and saved it. Why does it still look bad on the garment?

The harsh truth of machine embroidery is that software cannot fix physics. If your fabric shifts 1mm in the hoop, your perfect 0.3mm Pull Comp is useless.

Common Production Failures:

1. Hoop Burn: You tightened the screw hoop so much to prevent movement that you crushed the fabric fibers.
2. Registration Errors: The outline doesn't match the fill because the specific fabric (like jersey knit) stretched while the needle was pounding it.

The Professional Solution: If you find yourself constantly editing software files to "compensate" for bad sewing, look at your hardware. High-volume shops tackle this by upgrading to embroidery magnetic hoop systems. These hoops use magnetic force rather than friction to hold fabric. This eliminates "hoop burn" and significantly reduces fabric distortion, meaning the file you edited on screen is exactly what appears on the shirt.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, treat them as industrial tools.
1. Pacemakers: Keep strong magnets at least 6 inches away from medical implants.
2. Pinch Hazard: These magnets are powerful. Do not let your fingers get caught between the top and bottom frames—it will cause injury.

The Upgrade Path: When This Workflow Turns Into Real Money

Mastering stitch splitting is a "Gateway Skill." It moves you from a passive button-pusher to an active designer.

Once you can micro-customize designs, you face a new bottleneck: Throughput. It takes time to edit, hoop, and sew.

If you are scaling from a hobby to a side hustle, analyze your workflow for these friction points:

1. The Stability Bottleneck

If you struggle with alignment or hoop marks, a magnetic hooping station ensures that every garment is hooped in the exact same spot, every time. Consistency is the key to repeat business.

2. The Fatigue Bottleneck

Standard hooping requires significant wrist strength. A machine embroidery hooping station is not just about speed; it's about ergonomics. Reducing wrist strain allows you to run longer production shifts.

3. The Capacity Bottleneck

When you are editing files to add colors, you increase "thread change" time. On a single-needle machine, a 4-color anchor takes 15 minutes of babysitting. On a multi-needle machine (like the SEWTECH series), it runs automatically.

• Trigger: Are you turning down orders because you "don't have time"?
• Solution: Multi-needle machines combined with standardized hooping for embroidery machine protocols allow you to produce commercial volumes with hobbyist ease.


Quick Troubleshooting Table: Symptoms, Causes, Fixes

Don't lose an hour guessing. Use this matrix to diagnose issues immediately.

Final Reality Check: Your Best Results Come From “Clean Selection + Clean Stitch-Out”

The video’s core lesson is simple: Visibility = Control.

1. Use Stitch Points view to strip away the 3D illusion.
2. Use Box Select for bars, Lasso for curves.
3. Split for color; Adjust Properties for structure.

But remember, the digital file is only the blueprint. The house is built on the hoop. To truly professionalize your output, combine this precise software editing with a stable physical workflow—standardizing your stabilizers and utilizing a robust hooping station for embroidery. When your file is clean and your holding method is secure, you achieve the "Commercial Look" that customers define as quality.

FAQ

• Q: How do I enable Stitch Points view in Embrilliance Enthusiast so every needle penetration shows?
  A: Turn on Stitch Points from the View menu so you see yellow dots (not just lines).
  • Click View > Stitch Points.
  • Zoom in until individual dots are clearly separated on screen.
  • Success check: The design switches from 3D texture to a wireframe look with small yellow dots at penetrations.
  • If it still fails: If you only see lines without dots, switch modes again because the view may be Wireframe, not Stitch Points.
• Q: How do I enter Stitch Edit Mode in Embrilliance Enthusiast to select only part of a flattened design?
  A: Use Stitch Edit Mode so selection works on stitch nodes instead of the whole object.
  • Click the Stitch Edit Mode icon (cursor/arrow pointing at a line with nodes).
  • Choose a selection method (Lasso, Box, or Brush) after the mode activates.
  • Success check: The cursor/toolbar changes and the selected stitch points turn blue (yellow means unselected).
  • If it still fails: Verify the correct design/object is selected in the Object Pane before attempting node selection.
• Q: When should I use Lasso vs Box vs Brush for stitch selection in Embrilliance Enthusiast Stitch Edit?
  A: Match the tool to the geometry to avoid grabbing unwanted stitches.
  • Use Box Select for straight bars/text (fast, clean boundaries).
  • Use Lasso/Freehand for curves and irregular shapes.
  • Use Brush when shapes overlap and you need surgical control—paint only the needed dots.
  • Success check: Only the intended area’s dots are blue, with clean edges and no stray dots above/below the boundary.
  • If it still fails: Zoom in further and switch tools (for tricky edges, Lasso is often safer than Brush).
• Q: How do I split stitches into a new object in Embrilliance Enthusiast so only one area can change color?
  A: Select the exact stitch points, then use Split to create a new independent object for a separate color stop.
  • Select the target stitch points until they are blue.
  • Click Split (or Edit > Split).
  • Test by changing the new object color to a high-contrast swatch.
  • Success check: In the Object Pane, one item becomes two, and only the isolated area changes color in preview.
  • If it still fails: Undo and reselect—most failures come from accidentally grabbing a travel run or missing edge points.
• Q: How do I fix the “missed points” problem in Embrilliance Enthusiast after a split (stray dots left in the old color)?
  A: Re-enter Stitch Edit Mode and surgically capture only the leftover dots—no need to undo everything.
  • Go back to Stitch Edit Mode and zoom into the defect area.
  • Hold Command (Mac) / Control (PC) to add the stray points to the selection.
  • Move them by Cut/Paste into the correct object, or Split and then combine as needed.
  • Success check: No “digital dust” remains—no tiny specs of the old color and no travel stitch cutting across the new color.
  • If it still fails: Re-scan the boundary for a hidden travel run leading into/out of the band and include it for clean sewing order.
• Q: What is a safe Pull Compensation range in Embrilliance Enthusiast when fixing gapping on satin stitches without making embroidery “bulletproof”?
  A: Start conservatively—0.2mm to 0.4mm is a safe range for standard satin stitches, then test stitch.
  • Select the specific area’s stitch points (without splitting if no color change is needed).
  • Adjust Pull Comp slightly and preview for a modest width increase.
  • Test stitch on scrap before running an expensive garment.
  • Success check: The column looks slightly wider and gaps reduce without the embroidery feeling overly stiff.
  • If it still fails: Back Pull Comp down (be cautious above 0.6mm) and review overall density/overlaps because excessive buildup can cause needle jams.
• Q: What safety checks prevent thread unraveling after Embrilliance Enthusiast stitch editing (accidentally deleting tie-in/tie-off stitches)?
  A: After any stitch edit or split, confirm the edited object still has secure starts/ends so the thread locks.
  • Inspect the new object’s start and stop area after splitting to ensure it will stitch cleanly.
  • Avoid deleting stitches that act like tie-ins/tie-offs near entry/exit points.
  • Run a quick test stitch and do a gentle pull test on the start/end area.
  • Success check: The stitched section does not lift or unravel at the beginning/end after handling.
  • If it still fails: Re-edit to add secure overlapping stitches or rework the entry/exit path—stitch order integrity matters as much as appearance.
• Q: What are the key safety rules for using magnetic embroidery hoops during production (pacemakers and pinch hazard)?
  A: Treat magnetic hoops as industrial tools—keep them away from pacemakers and protect fingers during clamping.
  • Keep strong magnets at least 6 inches away from medical implants such as pacemakers.
  • Separate and join the frames slowly—never place fingers between the top and bottom frames.
  • Set the hoop down on a stable surface before engaging magnets to avoid sudden snap closure.
  • Success check: The hoop closes under control without “snapping” onto fingers, and the fabric is clamped flat without over-tightening marks.
  • If it still fails: Stop and reposition hands/fabric; if consistent handling feels unsafe, use a controlled setup method and follow the hoop manufacturer’s instructions.
