Embrilliance Essentials Panic Button: Bring Back the Properties Box & Status Bar (and Stop Guessing Your Stitch Count)

The Invisible Barrier: Why Your Embroidery Software Looks “Broken” and How to Build a Professional Workflow from Day One

You’re not crazy—and your software isn’t “broken.”

I’ve watched hundreds of new Embrilliance users hit the same psychological wall: the right-side Properties layout disappears, the bottom Status Bar vanishes, and suddenly the cockpit of your design software goes dark. You can’t change fonts, you can’t adjust density, and you can’t confirm if your design will actually fit your hoop. That moment feels like a full stop to your creativity.

Here’s the calm truth: in this guide, based on industry best practices and the accompanying video, we aren't just “fixing a menu.” We are restoring your control panel so you can drive the machine safely.

When Embrilliance Essentials “Looks Wrong,” It’s Usually a View Toggle (Not a Reinstall)

If your Embrilliance workspace grid is there but the control panels you rely on are missing, treat it like a visibility problem first, not a corruption of the software.

Beginners often panic because they don’t see the same “cockpit” layout that expert YouTubers have—especially the right-side Properties panel that acts as the nerve center for fonts, colors, and stitch settings. The good news is that Embrilliance lets you show/hide these panels under the View menu.

The Professional Mindset Shift: Don’t troubleshoot software like it's a mystery box; troubleshoot it like a pilot going through a pre-flight checklist. If a panel is missing, assume it’s hidden until proven otherwise. In a busy shop, we don't have time to reinstall software; we assume user error or a toggle switch first.

The “Hidden” Prep Before You Click Anything: Set Yourself Up to See What Matters

This sounds basic, but it prevents 10 minutes of inefficient second-guessing. Before you try to fix the software settings, you need to fix your physical environment.

1. Optical Clarity: In the video, the host physically adjusts the camera angle to reduce glare. You must do the same. If screen glare hides the difference between a 3.0mm and 3.5mm stitch length, you are flying blind. Increase your screen brightness and zoom your OS display if needed.
2. The "Hello World" Test: Create a simple test object (text is perfect) so you can immediately confirm whether the Properties panel is working once restored.
3. Identify the Missing Data:
   • The Properties Panel (Right Side): This is your Editor. It controls the "What" (Lettering, Color, Density).
   • The Status Bar (Bottom): This is your Safety Net. It controls the "Where" (Hoop size, Stitch count, Dimensions).

Hidden Consumables Checklist: Before you sit down for a design session, ensure you have these physical items hand—beginners often forget them until it's too late:

• A physical ruler (mm/inches): To verify screen reality against physical hoop reality.
• Notepad: To record the density settings that worked for specific fabrics.
• Screen Wipes: Smudges on a screen can look like stitch gaps.

Prep Checklist (Pre-Flight Protocol):

• Environment: Room lighting adjusted to remove glare from the monitor.
• Software State: Confirm you are in "Create" mode, not a simulation view.
• Test Plan: Plan to generate a quick “ABC” text object as a diagnostic tool.
• Hand Position: Keep your mouse near the top menu bar (focus on View).
• Mental State: Take a breath. This is a display preference, not a system failure.


Add Text with the “A” Tool So You Can Test the Properties Panel Immediately

In the video, the host demonstrates how to add text to create a "live" variable to test against used settings:

• Click the “A” icon in the top toolbar (Create Letters tool).
• A default text object appears on the grid (shown as “ABC”).

This is a smart diagnostic move. If you don't have an object selected, the Properties panel often looks empty even if it is there. By having an active object, you confirm that the Letters / Color / Stitch tabs are fully responsive.

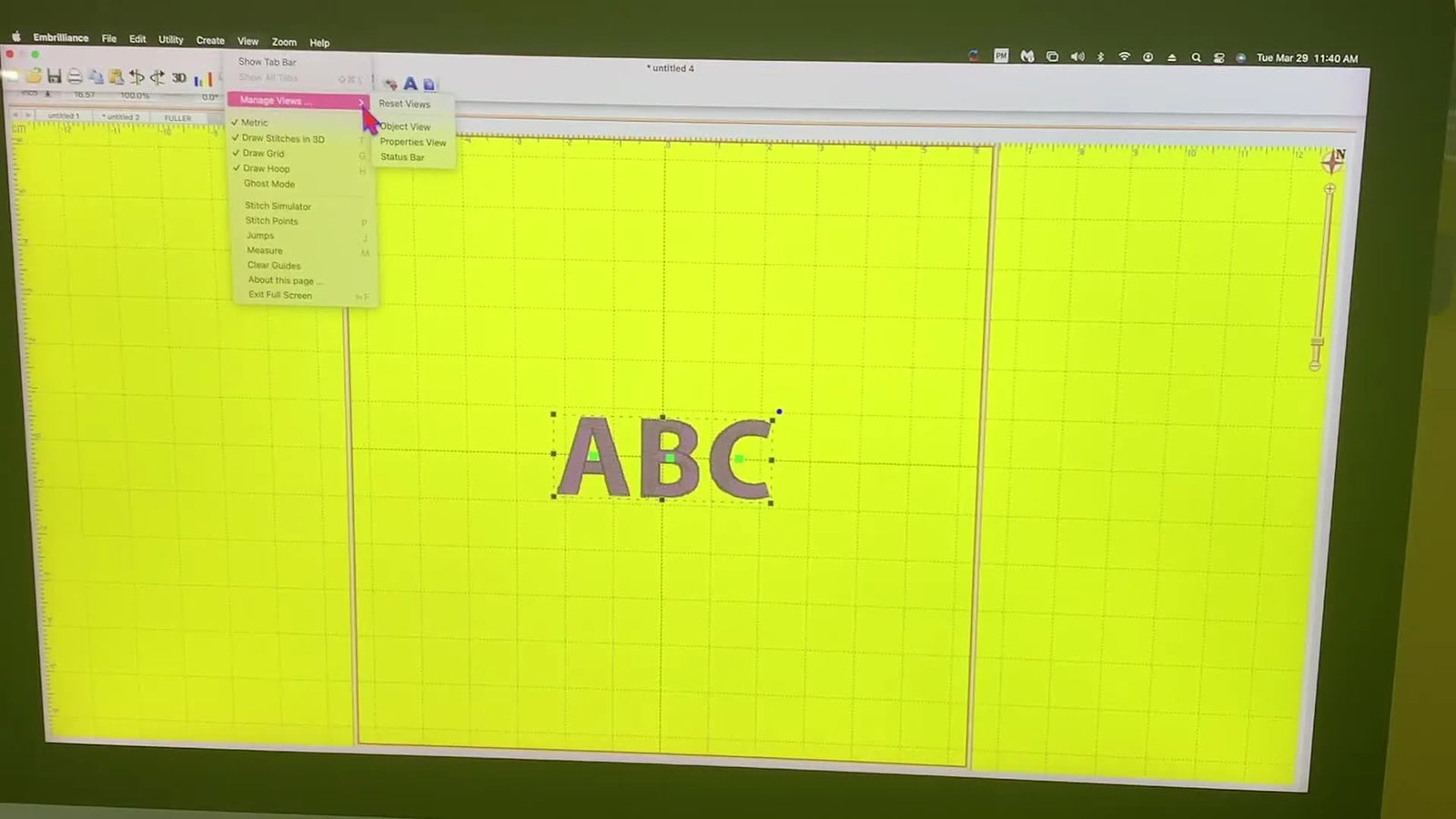

Restore the Missing Properties Box in Embrilliance: View > Manage Views > Property Views

Here represents the "System Reset" for your interface. Follow this exact path shown in the video:

1. Go to the top menu bar and click View.
2. Click Manage Views.
3. Look for Property Views.
4. The Action: If it’s unchecked, check it.

The host demonstrates the behavior clearly: when Property Views is unchecked, the right-side panel collapses; when checked, it expands. Listen for the visual "snap" of the window resizing—that is the sign of success.

Warning: The "Panic Click" Hazard
Don’t “random click” through menus while you’re stressed. One wrong toggle can hide the very panel you need (like the Object Pane), and then you’ll think you deleted your design when you actually just hid the layer list. Rule of thumb: If you don't know what a button does, don't click it until the current crisis is resolved.

What you should see when it’s fixed (Expected Outcome)

• A Properties panel appears solidly on the right side.
• You can access the "Trinity of Control" tabs: Letters, Color, and Stitch.


Use the Properties Panel Like a Pro: Letters, Color, and Stitch Tabs That Actually Matter

Once the Properties panel is back, you have regained control over the physics of the embroidery. The video highlights three core areas, but I will explain why they matter to your finished product.

1) Letters tab (The Input)

• Click the Letters tab.
• Type your custom text into the text field. Tip: Always check spelling here. It is heartbreaking to stitch a misspelled name on a $50 jacket.


2) Color tab (The Roadmap)

• Click the Color tab.
• Choose the thread color for the lettering. This sets the "Stop" command for your machine.


3) Stitch tab (The Engineering)

This is where the battle for quality is won or lost. Click the Stitch tab to view satin stitch parameters. In the video, the host highlights specific numbers. Let's analyze them with safety in mind:

• Satin Density: 4.5 pt (approx 0.45mm spacing)
• Compensation: 0.1 mm
• Edge Run Inset: 0.1 mm


The Expert "Why" (Sensory Guide):

• Density: Think of this as the "crowding" of the thread. A lower number (e.g., 3.5 pt) means stitches are closer together. A higher number (5.0 pt) means they are further apart.
  • Risk: If density is too tight (low number), you will hear a "thud-thud-thud" sound as the needle hammers the same spot, potentially cutting the fabric.
  • Guidance: 4.5 pt is a safe "Sweet Spot" for standard cotton.
• Compensation (Pull Comp): Fabric shrinks when stitched. Compensation adds thickness to fight this. If your letters look skinny or "anorexic" on the fabric, boost this number.
• Underlay: This is the foundation of the house. Never turn it off for lettering larger than 5mm.


Pick BX Fonts Without Regret: What the Video Shows (and What Experienced Shops Watch For)

In the video, the host opens the font dropdown and scrolls through installed fonts, differentiating between purchased fonts and built-in system fonts. She selects a BX font labeled “CA Peanutbutter Smoothies 1.75” and notes the font size shown as 1.75 inch.

The Workflow Efficiency Rule: She gives a critical buying rule: When purchasing fonts for Embrilliance, ensure they are BX format. This allows for a drag-and-drop installation.

From a production standpoint, friction is the enemy.

• Standard formats (PES/DST): You have to drag in every single letter individually (A... then B... then C...). This is agonizing and leads to misalignment.
• BX Format: You type on the keyboard, and the software maps it.

The Commercial Workflow Connection: Efficiency in software is Step 1. Efficiency in hardware is Step 2. Just as you choose BX fonts to save 10 minutes of clicking, many users later search for hooping stations to save 5 minutes of physical setup per shirt. The logic is the same: eliminate repetitive manual struggle.

Fine-Tune Satin Lettering: Density, Compensation, and the “Don’t Overcorrect” Rule

The video demonstrates adjusting satin settings from the Stitch tab. This is a superpower for beginners because it lets you fix physical defects digitally.

What’s shown on screen:

• Satin Density set to 4.5 pt
• Compensation set to 0.1 mm


Expert Calibration (Safe Ranges for Beginners): Do not blindly copy numbers; understand the range.

• Density: Stay between 4.0 pt and 5.0 pt. going below 0.35mm (3.5 pt) significantly increases the risk of thread breaks and needle deflection.
• Compensation: For stretchy knits (polo shirts), you may need 0.2mm - 0.4mm comp because the fabric retreats more.

Setup Checklist (The "Save Your Garment" Protocol):

• Selection: Confirm the text object is highlighted (dashed box around it).
• Font: Confirm the font is mapped correctly (no missing characters).
• Physics Check: are the Stitch tab values within the "Safe Range" (Density > 3.5 pt)?
• Color Logic: Verify color stops match your actual thread rack.
• Backup: Save a .BE (working file) before exporting the .DST/.PES (machine file).

Bring Back the Embrilliance Status Bar: The Bottom Strip That Saves You From Hoop Mistakes

In the video, the host realizes the bottom info bar is missing and restores it via:

1. Click View.
2. Click Manage Views.
3. Click Status Bar.


Once enabled, the Status Bar appears at the bottom. This is your telemetry data. The host emphasizes seeing the total stitch count and hoop dimensions.

Critical Telemetry Data (What to look for)

• Hoop size: 127 mm x 127 mm (5x5 inch)
• Design size: 51.0 mm x 26.4 mm
• Stitch count: 1554

Why this prevents disasters: If your software thinks you represent using a 5x7 hoop, but you attach a 4x4 hoop to the machine, the needle will slam into the plastic frame. This can break the distinct needle bar component or shatter the hoop. The Status Bar is your first line of defense against mechanical collision.

A Simple Decision Tree: If the Design Looks Fine on Screen, What Should You Check Before Stitching?

Use this logic flow to stop errors before you press the start button.

START HERE:

1. Look Down: Is the Status Bar Visible?
   • NO: Go to View > Manage Views > Enable Status Bar.
   • YES: Proceed to step 2.
2. Verify Hoop Reality:
   • Does the hoop size on screen (e.g., 127mm) match the physical hoop currently snapped onto your machine?
   • MISMATCH: Stop. Change hoop in software or change hoop on machine.
   • MATCH: Proceed to step 3.
3. Look Right: Is the Properties Panel Visible?
   • NO: Go to View > Manage Views > Enable Property Views.
   • YES: Proceed to step 4.
4. Check Density Risk:
   • Is your Satin Density below 3.5 pt (0.35mm)?
   • YES: Risk of thread shredding. Increase to 4.0-4.5 pt.
   • NO: You are safe to export.

Troubleshooting the Symptoms: Structured Fixes

When panic sets in, look at this table. We move from low-intervention (easy) to high-intervention (hard).

The Upgrade Path: Fix the Screen First, Then Fix the Bottleneck at the Machine

I’ll say this plainly: most beginners try to buy their way out of a workflow problem before they can even see their stitch count. Don’t do that.

Stage 1: Software Visibility (Zero Cost)

• Properties panel on.
• Status Bar on.
• Text workflow understood exactly as described above.

Stage 2: Physical sampling

• Stitch a sample. Listen to the machine. Does it sound smooth (thump-thump) or strained (crunch-snap)?

Stage 3: Hardware Refinement (The "Pain-Point" Upgrade) Once your software is perfect, your bottleneck will shift to the physical world. You will notice that hooping takes longer than stitching.

• Pain Trigger: "I fight with the inner ring, and my fabric puckers or shows 'hoop burn' marks."
  • Diagnosis: Traditional screw-tightened hoops create uneven tension and rely on hand strength.
  • Tool Upgrade: This is where professionals switch to magnetic embroidery hoops. These use magnets to clamp fabric instantly without forcing an inner ring into an outer ring, eliminating hoop burn and wrist strain.
• Pain Trigger: "I can't get the logo straight on these 50 shirts."
  • Diagnosis: Human error in repetitive placement.
  • Tool Upgrade: A machine embroidery hooping station provides a consistent jig, ensuring that "Center Chest" is in the exact same spot for every single garment.
• Pain Trigger: "I am changing thread every 2 minutes."
  • Diagnosis: You have outgrown the single-needle platform.
  • Tool Upgrade: Consider moving to a multi-needle machine (like the Sewtech/Ricoma classes) to automate color changes.

Warning: Magnetic Hoop Safety
Magnetic embroidery frame systems use industrial-strength magnets (neodymium).
1. Pinch Hazard: Never let the two frames snap together without fabric or fingers in between. The force can cause blood blisters or severe pinches.
2. Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place them directly on laptops or computerized machine screens.

One Last Reality Check: Your Best Teacher Is a Tiny Test Stitch

The video shows how quickly you can restore the panels and start editing text. Take that momentum and do the one thing that separates hobby frustration from shop confidence: Stitch the sample.

Software simulates reality, but it is not reality. Even with perfect density settings (4.5 pt), a cheap thread or a dull needle can ruin the design.

Final Operation Checklist (The "Green Light" Protocol):

• Visual: Status Bar confirms the design fits the hoop size attached to the machine.
• Digital: Density is within the safe zone (4.0 - 5.0 pt).
• Physical: Fabric is hooped drum-tight (tactile check: tap it, it should sound like a drum).
• Mechanical: Needle is fresh (new 75/11 recommended for broadcloth) and bobbin is full.
• Safety: Clearance check—rotate the handwheel or do a "Trace" on the screen to ensure the foot won't hit the hoop.

If you can consistently restore your panels, confirm hoop size via the bar, and execute this checklist, you aren't just "fixing a glitch"—you are operating like a professional.

FAQ

• Q: How do I restore the missing right-side Properties panel in Embrilliance Essentials so I can change Letters, Color, and Stitch settings?
  A: Turn the Properties panel back on in Embrilliance using View → Manage Views → Property Views.
  • Click View on the top menu bar.
  • Click Manage Views, then check “Property Views” if it is unchecked.
  • Select a text object (such as the default “ABC”) so the panel shows editable options.
  • Success check: the right side expands and the Letters / Color / Stitch tabs are visible and clickable.
  • If it still fails: avoid random toggles and re-check that “Property Views” stays checked after you click back into the workspace.
• Q: Why does the Embrilliance Essentials Properties panel look empty or show no text edit options even after Property Views is enabled?
  A: The Embrilliance Properties panel often looks blank when no object is selected, so select the lettering object on the grid.
  • Click the “A” (Create Letters) tool to generate a simple text object (often “ABC”).
  • Click directly on the text object so it shows the active selection (dashed box).
  • Open the Letters tab and type to confirm the panel is responding.
  • Success check: typing in Letters changes the on-screen text immediately.
  • If it still fails: switch back to the Select (cursor/arrow) tool and then re-select the lettering object.
• Q: How do I bring back the bottom Status Bar in Embrilliance Essentials to confirm hoop size, design dimensions, and stitch count before stitching?
  A: Re-enable the Embrilliance Status Bar using View → Manage Views → Status Bar so hoop and stitch telemetry shows again.
  • Click View on the top menu bar.
  • Click Manage Views, then check “Status Bar”.
  • Read the bottom strip for hoop size, design size, and stitch count before exporting.
  • Success check: the bottom bar is visible and shows values (for example hoop dimensions and stitch count).
  • If it still fails: re-open Manage Views and confirm “Status Bar” remains checked.
• Q: What is the safest way to prevent hoop collision when Embrilliance Essentials shows one hoop size but a different hoop is attached to the embroidery machine?
  A: Do not stitch until the Embrilliance Status Bar hoop size matches the physical hoop mounted on the machine.
  • Look at the Status Bar and note the displayed hoop size.
  • Compare it to the actual hoop snapped onto the machine (do not guess).
  • Change the hoop selection in software or swap the physical hoop so both match before starting.
  • Success check: the hoop size on screen matches the hoop you can physically see on the machine.
  • If it still fails: stop and perform a clearance check (Trace/on-screen trace or slow handwheel rotation) before pressing Start.
• Q: What satin density and compensation settings are a safe starting point for Embrilliance Essentials lettering to reduce thread breaks and distorted letters?
  A: For beginners, keep Embrilliance satin lettering density in a safe range (often 4.0–5.0 pt) and use modest compensation (commonly around 0.1 mm, higher on stretchy knits).
  • Open Properties → Stitch and locate Satin Density and Compensation.
  • Keep Density above 3.5 pt to reduce the risk of shredding and needle deflection.
  • Increase Compensation if letters stitch out too skinny on fabric (knits may need more).
  • Success check: the machine sounds smooth (not hammering) and letters look properly filled without cutting or excessive pull-in.
  • If it still fails: stitch a small test sample and adjust gradually—avoid big jumps that “overcorrect.”
• Q: Why should Embrilliance Essentials users buy BX format fonts instead of PES/DST style alphabet files for lettering work?
  A: BX fonts in Embrilliance Essentials support true keyboard typing and faster setup, while PES/DST-style alphabets often require placing letters one-by-one.
  • Choose BX format when purchasing fonts so installation and typing are streamlined.
  • Type text normally in the Letters tab instead of importing individual characters.
  • Save the working file (such as a project file) before exporting the machine file format.
  • Success check: you can type a full word and Embrilliance updates the lettering as a single, editable object.
  • If it still fails: confirm the selected font is actually a BX font and try the “ABC” test object again.
• Q: What are the key safety rules for using magnetic embroidery hoops to avoid finger injuries and device interference?
  A: Treat magnetic embroidery hoops as industrial clamps—keep fingers clear, control the snap, and keep magnets away from medical devices and sensitive electronics.
  • Keep hands and fingers out of the closing path; do not let frames snap together uncontrolled.
  • Maintain distance from pacemakers or insulin pumps (follow the minimum distance guidance).
  • Do not place magnetic hoops directly on laptops or computerized machine screens.
  • Success check: the hoop closes smoothly under control with no sudden snap and no pinched skin.
  • If it still fails: stop using the hoop until a safer handling routine is established (two-hand control and deliberate placement).
• Q: If Embrilliance Essentials is set up correctly but hooping and placement are still the bottleneck, what is a practical upgrade path from technique to tools to production capacity?
  A: Fix the screen setup first, then reduce physical bottlenecks with hooping tools, and only then consider higher-capacity equipment if color changes and throughput are limiting.
  • Level 1 (Technique): enable Property Views and Status Bar, then run a small test stitch before production.
  • Level 2 (Tooling): if hooping causes puckers or hoop burn, consider magnetic hoops to clamp faster and more evenly.
  • Level 2 (Consistency): if placement varies across many garments, use a hooping station for repeatable alignment.
  • Level 3 (Capacity): if thread changes dominate the job, consider moving to a multi-needle machine workflow.
  • Success check: time per garment drops due to fewer re-hoops, fewer placement re-dos, and fewer stops.
  • If it still fails: identify the single biggest time-waster (visibility, hooping tension, placement repeatability, or color-change downtime) and address only that next.
