Embrilliance Express Lettering That Actually Stitches: Install BX Fonts, Fix Script Gaps, and Save the Right Machine File

If you’ve ever bought a beautiful script font, typed a name, hit “save,” and watched it stitch out with awkward gaps (or worse—pucker the fabric until it looks like a raisin), you’re not alone. The gap between "it looks good on screen" and "it looks professional on a sweatshirt" is where most beginners quit.

The good news: Embrilliance Express (the free mode) can bridge that gap. But software is only half the battle. As someone who has overseen thousands of production runs, I can tell you that successful lettering is a marriage between digital precision and physical stability.

This guide rebuilds the workflow from the popular Embrilliance tutorial, but I’ve added the "shop floor reality checks"—the hidden steps regarding hoop tension, machine speed, and stabilizer choices that ensure your machine doesn't eat your shirt.

Download Embrilliance Express Without the Headache

The video demonstrates starting at the Embrilliance website to grab the Express Mode. It sounds simple, but here is where technical friction often starts.

The Exact Steps:

1. Go to the Embrilliance downloads page.
2. Select Express Mode (you do not need the paid Essentials version to type BX fonts).
3. Crucial: Download the installer specifically for your OS (Mac or Windows).
4. Install and launch.

Sensory Check: When you open the program, you should see a clean grid. If you are asked for a serial number, simply click the button that says "Express Mode" to bypass it.

Warning: Physical Safety Alert. Before you start test-stitching your new design, tie back long hair and secure loose sleeves. When a machine is running at 600+ stitches per minute, you do not want your hand near the needle bar. A "quick instinctual grab" to fix a loose thread is the #1 cause of needle puncture injuries.

The “Hidden” Prep: Physics Before Pixels

The video jumps straight to software, but as an educator, I must stop you here. Lettering is the most unforgiving type of embroidery because it involves high stitch counts in small areas. If your physical setup is weak, no amount of software clicking will save the project.

The "Hooping Reality": Traditional plastic hoops rely on friction and screw torque. If you over-tighten, you get "hoop burn" (permanent rings on the fabric). If you under-tighten, the fabric shifts, and your letters won't align.

• The Fix: Experienced embroiderers know that proper tension should feel taut, like a drum skin—tap it, and you should hear a dull thump.
• The Upgrade: If you are doing production runs or struggle with wrist strength, this is where a hooping station for machine embroidery shines. It holds the hoop in a fixed position, allowing you to slide the garment on straight and consistent every time.

Prep Checklist (The "Or Else" List):

• Consumables: Have you checked your needle? A burred needle will shred script lettering (Run your fingernail down the tip; if it catches, toss it).
• Adhesion: Have temporary spray adhesive (like 505) or a sticky stabilizer ready for slippery fabrics.
• Measurement: Measure the actual wearable area. A name that looks great on screen might end up in the armpit if you don't measure the chest placement first.
• Stabilizer Strategy: Have you matched the backing to the fabric elasticity? (See the Decision Tree below).


Click the “A” button: Starting Your Design

The software workflow begins with the Create Letters tool.

What you do:

1. Look for the blue "A" icon on the top toolbar.
2. Click it once.

Success Metric: You will see a default "ABC" object appear in the center of the hoop grid.

Type Your Text (And Why "Happy Birthday" is a Trap)

In the video, they type "Happy Birthday."

What you do:

1. Navigate to the Properties panel on the right side.
2. Clear the text box.
3. Type your phrase.
4. Press Enter (Vital step: the screen won't update until you do this).

Expected outcome: The text updates on the canvas.

The Expert's "Sweet Spot": If you are new to this, do not start with 10mm high text. Small text requires slowing your machine speed (SPM) down drastically (think 400 SPM) and using a smaller needle (75/11 or 65/9). If you are struggling with proper hooping for embroidery machine technique on a stretchy t-shirt, large block letters are much more forgiving than tiny, delicate scripts.

Choosing a Font: Block vs. Script Physics

Embrilliance comes with built-in fonts.

The Physics of Fonts:

• Block Fonts: Generally have vertical columns. They are stable and resist sinking into fabric.
• Script Fonts: Rely on diagonal pulls. They are notorious for puckering if the fabric isn't fused to the stabilizer.

Action: Use the dropdown menu in the Properties panel to swap between styles to see how they fit your hoop.

Manual Kerning: The "Green Handle" Secret

This is the specific technique that separates amateurs from pros. Standard typing almost always leaves gaps that look awkward in thread.

The Sensory Technique:

1. Click on the text object.
2. Click on the Green Square (center handle) of the specific letter you want to move.
3. The Move: Drag it left/right.
4. The Visual Anchor: For script fonts, you aren't just looking for "closeness"; you are looking for flow. The tail of the first letter should merge seamlessly into the start of the next.


Why this matters for production: If you leave gaps, the machine has to trim the thread between every letter. This adds massive time to the run and leaves "bird's nests" (tangles) on the back. Efficient shops use hooping stations to ensure physical alignment, but they use kerning to ensure the machine runs smoothly without constant stopping and starting.

Saving: The Two-File Safety Net

The tutorial correctly advises saving via File > Save Stitch and Working File.

Why you must do this:

• The Working File (.BE): This is your "source code." You can still edit the text, change spelling, and move letters.
• The Stitch File (.PES/.DST/etc.): This is the "machine code." It is frozen. You cannot change the spelling here without degrading quality.

The Rule: Always keep the .BE file. Clients will change their minds about spelling.

Installing BX Fonts (The Pro Way)

Standard stitch files (.PES) are just pictures made of stitches—you can't type with them. BX fonts are keyboard-mapped fonts that let you type.

The Installation Flow:

1. Unzip your purchased font folder.
2. The trick: Do not drag and drop if it feels clunky. Open the window with the software open.
3. Double-click the .BX file (e.g., "Aubrey_1inch.BX").
4. Success Indicator: A popup window confirms "Font Installed."




Troubleshooting: If the font doesn't appear in the list immediately, you may need to restart the program. Also, ensure you aren't trying to install a .PES file as a font—that won't work.

Applying the New Font

Select your text object and choose the new font (e.g., "Stitchtopia Aubrey") from the list.

The Size Trap: Notice the font usually comes in sizes (0.75", 1", 2"). Do not scale these wildly. If you pick the 1" font and drag it to 3", the density will be destroyed (the stitches will be too far apart). Always pick the size closest to your final output.

Fixing Script Gaps: The "Love" Example

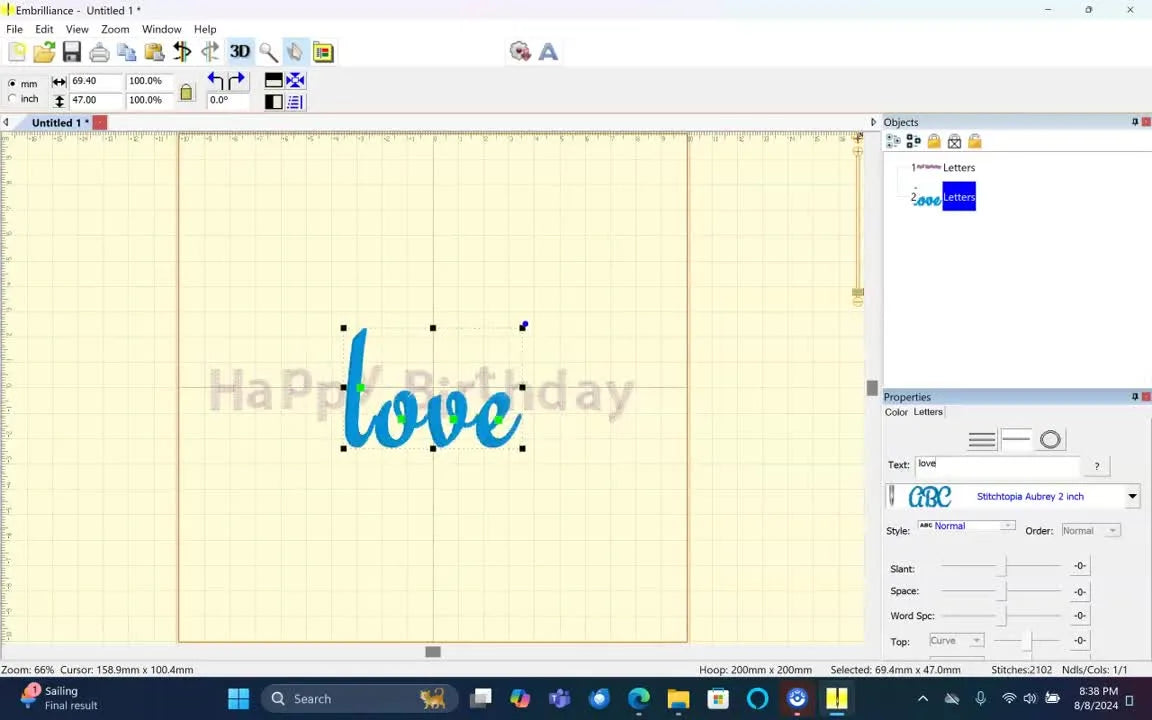

The video zooms in on the word "love." The connection between 'o' and 'v' is broken.

The Fix:

1. Select the 'v'.
2. Use the green handle to slide it left.
3. The Safety Check: Overlap them slightly/just enough to touch.
   • Too far apart: The machine trims; it looks disjointed.
   • Too close: You get a "bulletproof" lump of thread that breaks needles.






The Decision Tree: Fabric, Stabilizer, and Hooping

You have the file, but will it stitch? This decision tree prevents 90% of failures.

1. Is the fabric stretchy (T-shirt/Performance Knit)?
   • Stabilizer: Must use Cut-away (2.5oz or 3.0oz). Tear-away will result in "gaping" holes.
   • Hooping: Do not stretch the fabric. It should be neutral.
2. Is the fabric textured (Towel/Velvet/Fleece)?
   • Stabilizer: Tear-away or Cut-away on bottom + Water Soluble Topper on top.
   • Why: Without the topper, the stitches sink into the pile and disappear.
3. Is cramping/alignment an issue?
   • If you struggle to get thick items into standard hoops, standardizing your machine embroidery hoops to magnetic versions can solve the "pop-out" frustration instantly.

Operation Checklist: The "Pre-Flight"

Before you press the green button on your machine:

• Needle Check: Is it new? (75/11 Ballpoint for knits, Sharp for wovens).
• Bobbin Check: Do you have enough thread to finish the name?
• Speed Check: For script lettering, set your machine to middle speed (600 SPM). High speed (1000+) on tight curves causes thread shredding.
• Obstruction Check: Ensure the hoop arms won't hit the wall or extra fabric.

Troubleshooting: Symptoms & Solutions

The Upgrade Path: Moving from Hobby to Production

Creating the file is Step 1. Producing it repeatedly without losing your mind is Step 2.

If you find yourself spending more time fighting the hoop than stitching:

1. Alignment Games: A hooping station for embroidery removes the guesswork of "is this straight?"
2. Hoop Burn & Efficiency: Many advanced hobbyists and business owners switch to magnetic embroidery hoops.
   • Why? They clamp instantly without screwing/unscrewing. They handle thick hoodies that snap plastic clips. They leave zero hoop burn on delicate performance wear.
3. Speed & Scale: If you are doing 50+ shirts, a single-needle machine is a bottleneck. High-speed multi-needle machines (look into SEWTECH's gear for cost-effective scaling) allow you to queue colors and run continuously.

Warning: High-Strength Magnet Safety. Magnetic hoops are industrial tools. They carry a severe pinch hazard. Keep standard magnetic hoops away from pacemakers and implanted medical devices. Keep fingers clear of the "snap zone" when bringing the top and bottom frames together.

Quality Gate Checklist (Before you Save)

• Spelling is double-checked (Read it backward to catch errors).
• Font size is appropriate for the fabric texture (min 5mm for clear legibility).
• Script joins are connected but not clumping.
• Correct format chosen (PES for Brother/Babylock, DST for Commercial, etc.).
• Hidden Consumable Check: Do you have your fabric scissors and thread snips nearby?


By following this workflow, you aren't just "using software"—you are thinking like a digitizer. The software creates the path, but your choice of stabilizer, hoop, and machine speed determines the journey. Happy stitching.

FAQ

• Q: In Embrilliance Express, why does the program ask for a serial number when installing Embrilliance Express Mode on Windows or Mac?
  A: Use Express Mode to bypass activation—no serial is required for typing BX fonts in free mode.
  • Click the button labeled “Express Mode” on the serial prompt screen.
  • Confirm the correct installer was downloaded for the operating system (Mac vs. Windows) and reinstall if needed.
  • Restart Embrilliance after first launch if the screen did not load cleanly.
  • Success check: a clean grid opens without requiring a serial number entry to continue.
  • If it still fails: download the installer again from the official downloads page and reinstall using the OS-matching file.
• Q: For machine embroidery lettering, how tight should fabric be in a traditional plastic embroidery hoop to avoid hoop burn or shifting?
  A: Aim for firm, drum-tight tension without over-torquing the screw—too tight causes hoop burn, too loose causes shifting.
  • Tighten the hoop until the fabric feels taut, not stretched.
  • Tap the hooped area to confirm tension before stitching.
  • Avoid cranking the screw harder to “fix” slipping; improve stabilization instead.
  • Success check: tapping the fabric gives a dull “thump,” and the fabric surface stays smooth without ring marks.
  • If it still fails: switch to floating the garment with adhesive/sticky stabilizer or consider a magnetic hoop to reduce distortion.
• Q: In Embrilliance Express Create Letters, why does typed text not update on the canvas after editing the Properties panel text box?
  A: Press Enter after typing—Embrilliance Express often will not refresh the lettering until Enter is pressed.
  • Click the text object once to ensure it is selected.
  • Edit the text in the Properties panel.
  • Press Enter to force the update.
  • Success check: the lettering on the hoop grid changes immediately to the new phrase.
  • If it still fails: reselect the text object and try again, or restart the software.
• Q: In Embrilliance Express, how do you fix gaps between script letters using the green handle kerning method (for example, the “o” to “v” connection in “love”)?
  A: Manually kern by dragging the green square handle so script strokes touch with a slight overlap—close the gap without creating a thread lump.
  • Click the text object, then select the specific letter to adjust.
  • Drag the green square (center handle) left/right until the join flows.
  • Stop as soon as the connection touches; avoid heavy overlap that can build a “bulletproof” bump.
  • Success check: the script looks continuous with no visible breaks between connecting strokes.
  • If it still fails: check for fabric shifting (improve hooping/stabilizer) because software kerning cannot fix movement during stitching.
• Q: When installing BX fonts in Embrilliance Express, why does a BX font not appear in the font list after double-clicking the .BX file?
  A: Install by double-clicking the .BX file and then restart Embrilliance if the font list does not refresh.
  • Unzip the font folder first so the .BX file is accessible.
  • Double-click the .BX file (do not try to “install” a .PES as a font).
  • Restart Embrilliance after the confirmation popup.
  • Success check: the new font name appears in the font dropdown when the lettering object is selected.
  • If it still fails: verify the file extension is .BX (not .PES/.DST) and repeat the install with Embrilliance closed, then reopen.
• Q: For embroidery lettering on stretchy T-shirts or performance knits, which stabilizer and hooping approach prevents puckering and misaligned letters?
  A: Use cut-away stabilizer and hoop the fabric neutrally (do not stretch it)—stretching during hooping is a top cause of puckering.
  • Choose cut-away stabilizer (2.5 oz or 3.0 oz) for stretchy knits.
  • Hoop without pulling the shirt tight; keep the fabric relaxed and flat.
  • Use temporary spray adhesive or sticky stabilizer if the knit wants to drift.
  • Success check: after stitching, the area around the lettering stays flat without “raisin” wrinkles or wave distortion.
  • If it still fails: float the garment instead of hooping it tightly, or use a magnetic hoop to reduce hooping tension distortion.
• Q: What are the two most important embroidery safety rules when test-stitching lettering at 600+ stitches per minute, including magnetic hoop pinch risks?
  A: Keep hands, hair, and sleeves away from moving parts, and treat magnetic hoops as high-pinch tools.
  • Tie back long hair and secure loose sleeves before running the machine.
  • Never make a quick “grab” near the needle bar to catch a loose thread while stitching.
  • Keep fingers clear of the snap zone when bringing magnetic hoop halves together.
  • Success check: hands stay clear during operation, and hooping is done without finger pinches or near-needle adjustments.
  • If it still fails: stop the machine completely before touching thread paths or the hoop, and follow the machine manual’s safety guidance.
