Embroider a Baseball Cap on a Brother PE800 (No Cap Driver): The Floating Method That Actually Stays Put

Mastering Hat Embroidery on the Brother PE800: The "Float" Method Guide

Hats can make even confident home embroiderers feel nervous—because the moment a stiff brim hits the machine bed or the crown shifts mid-stitch, you’re not just "learning," you’re ruining a cap you paid for.

The fear is valid. Flatbed machines like the PE800 weren't originally designed for 3D objects. However, the video method works because it uses a controlled "float" setup—sticky tear-away stabilizer in a standard hoop, with the hat aligned and secured on top. Done carefully, it’s a clean, repeatable way to stitch a front-panel design on a single-needle machine.

The Calm-Down Check: What the Brother PE800 Can (and Can’t) Do on a Baseball Cap

Before you start, we need to manage expectations to avoid frustration. This technique is specifically for front-panel embroidery on a cap using a flatbed machine—without a dedicated cap driver. That’s why the prep is so specific: you’re creating stability and alignment outside the normal "hoop the fabric" workflow.

If you are expecting factory-style cap embroidery (perfectly shaped crown, 270-degree designs, high-volume repeatability), that is the domain of a commercial cap frame on an industrial multi-needle machine. This "floating" method is a hack—a brilliant one—but it requires patience.

The Reality Trade-off: To clear the needle bar, you must flatten the brim. This isn't a failure; it is physics. It enables the flatbed hoop path to move freely without the brim hitting the machine arm.

The Supplies That Make or Break Hat Embroidery: Sticky Tear-Away Stabilizer, Tape, Pins, and a 5x7 Hoop

The video uses a standard hoop and a sticky stabilizer setup. Here involves the exact tool stack, plus the "Hidden Consumables" pros use to save the day.

The Essentials:

• Brother PE800 (or similar flatbed machine).
• Standard 5x7 hoop (The 4x4 is often too physically small to maneuver a hat bill).
• Medium weight adhesive tear-away stabilizer (Crucial: standard tear-away + spray adhesive is messy; pre-sticky is safer).
• Blue painter’s tape (For securing the brim without residue).
• 90/14 Embroidery Needle (Stronger than the standard 75/11 to penetrate cap buckram).

A lot of people search for a hat hoop for brother embroidery machine because they assume there’s no other way. This method is the "no-special-attachment" workaround—as long as you respect the physics of adhesion and the limits of a flatbed.

The “Hidden” Prep Pros Do First: Stabilizer Choice, Crown Control, and a No-Regrets Test Fit

Before you peel anything or stick the hat down, you must perform a "Pre-Flight Check." This prevents 90% of the horrors seen in comment sections, like the machine arm knocking the hat off the hoop.

Prep Checklist (Do this BEFORE exposing adhesive)

• Pick the right hat style. Unstructured "dad hats" or soft cotton fronts are forgiving. Stiff, structured trucker hats are difficult to flatten and may stress the machine.
• Check design size vs. brim height. Your design must fit the available height of the cap front (usually 2 to 2.25 inches max for flatbeds).
• The "Brim Clearance Rehearsal." Hold the hat in the hoop path. Visualize the embroidery arm moving. Will the brim hit the machine body?
• Mark the center. Don't trust the seam. Use a ruler to mark the true center with a water-soluble pen or chalk.

Warning: Needle Safety Hazard. If you use pins to secure the bill, they become landmines. Keep pins at least 1 inch away from the stitched area. Never start the machine until you have manually rotated the handwheel to ensure the needle bar clears every pin.

Make the Sticky Surface Work for You: Hooping Adhesive Tear-Away Stabilizer Without Wasting It

The video’s first key move is hooping the stabilizer paper side up, then removing only the top paper layer to reveal the adhesive. This creates a "sticky drum skin."

What to do (Sensory Check)

1. Hoop the medium tear-away adhesive stabilizer. Tighten the screw until the paper sounds like a drum when tapped.
2. Use scissors to lightly score the top paper layer. Feel the scissors glide—you want to slice the paper, not the fiber below.
3. Peel away the paper. You should hear a clean ripping sound, revealing the tacky surface.

Pro Tip: Score an "X" in the middle and peel outwards. This prevents lifting the stabilizer from the hoop edges.

If you’ve ever fought with a DIY sticky hoop for embroidery machine setup, the trick is that gentle scoring. If you cut too deep and sever the stabilizer, your hat will pop loose mid-stitch.

The Alignment Grid That Saves Your Sanity: Using the Hoop Template and Center Lines

This is the step beginners skip—and then wonder why the design lands crooked. Because the hat is curved and the hoop is flat, your eyes will lie to you.

The Alignment Action Plan:

1. Place the clear plastic grid template included with your PE800 over the sticky stabilizer.
2. Mark the center dots (Top, Bottom, Left, Right).
3. Remove the template.
4. Draw the Crosshair: Use a ruler to draw a bold vertical and horizontal line directly on the sticky backing.

Those crosshair lines become your "truth." When the hat is fighting you, align the hat's center seam to the line, not your intuition.

This is also where the brother 5x7 hoop becomes an advantage: the larger surface area gives you room to draw these reference lines and stick the bill down, whereas a 4x4 hoop creates a cramped, unstable workspace.

The 3/4-Inch Rule: Marking Baseball Cap Placement So the Design Doesn’t Look “Too High” or “Too Low”

Placement is the difference between a custom cap and a "home-made" one. The video uses a specific industry-standard measurement.

The Golden Rule:

• Measure exactly 3/4 inch (approx. 2cm) above the brim along the center seam.
• Mark that point. This indicates where the bottom edge of your design should sit.

Why 3/4 inch? This gives clearance for the internal sweatband. If you stitch lower, you will sew the sweatband to the front of the cap, making it unwearable.

The Floating Method on a Brother PE800: Press, Don’t Stretch, and Lock the Brim Only at the Edges

Now comes the physical connection. You are mating a 3D object to a 2D plane.

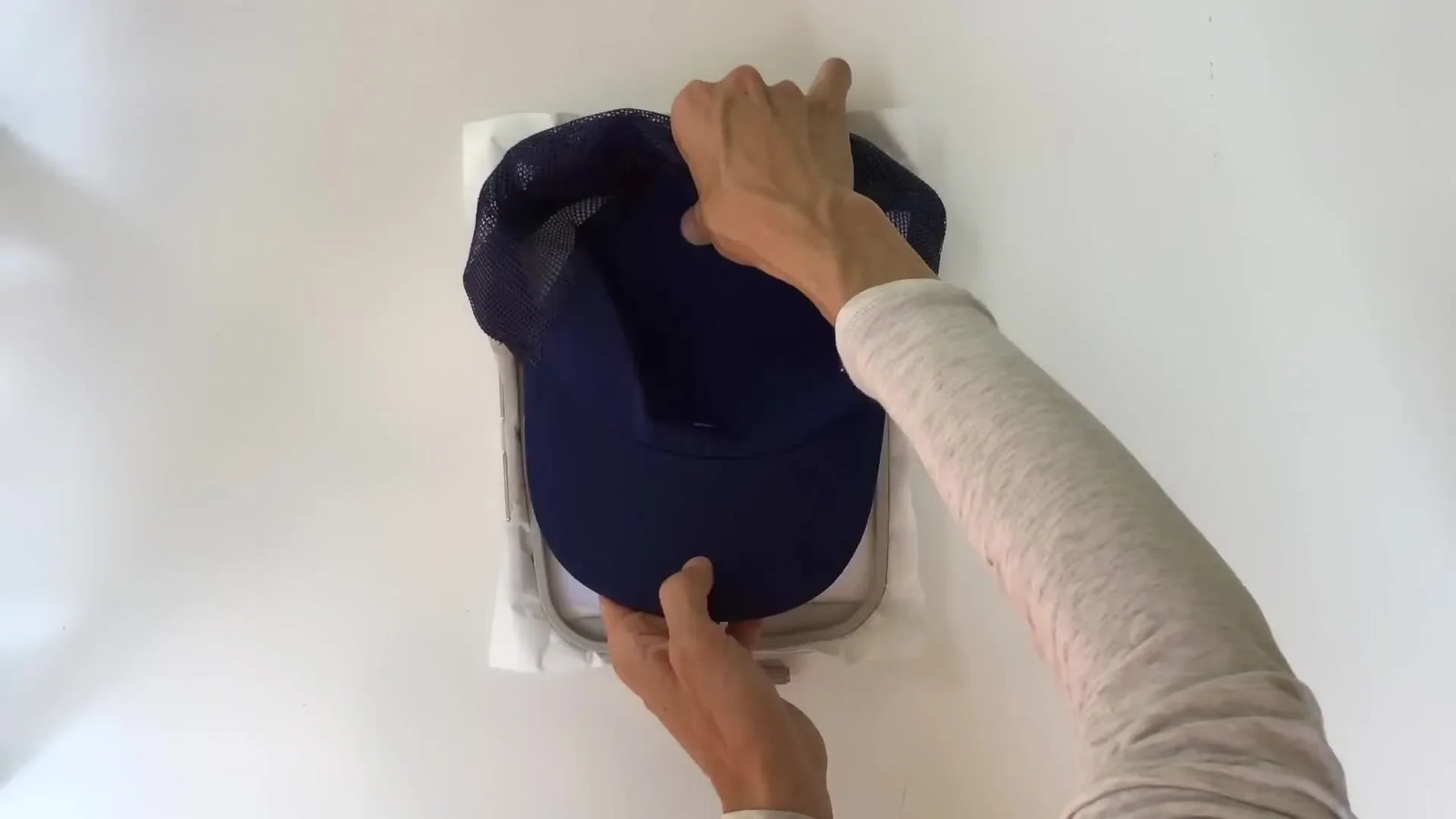

Step-by-Step Floating (The "Rock and Roll" Technique)

1. Tape the Sweatband: Flip the inner sweatband out and tape it to the back of the hat. It shouldn't touch the sticky stabilizer.
2. Align Center: Hold the hat over the hoop. Hover the center seam exactly over your vertical drawn line.
3. The "Rock" Motion: Touch the center seam down first.
4. The "Roll" Motion: smooth the hat outwards from the center to the sides. Press firmly. You should feel the adhesive gripping the fabric.
5. Flatten the Brim: Gently flatten the brim against the hoop's plastic edge.
6. Secure the Edges: Use painter's tape or pins (carefully!) on the far edges of the brim to lock it down.

Stability Check:

Lift the hoop by the frame. Does the hat stay rigidly attached? If it droops or peels up, your adhesive is too hold or the hat is too stiff. Do not proceed to the machine.

If you are doing this often, the physical force required to flatten brims can cause wrist strain. This is exactly where a magnetic hoop for brother pe800 becomes a practical upgrade: magnets clamp thick seams instantly without the physical wrestling match of traditional hoops.

Brother PE800 Screen Positioning: Rotate, Drag, and Make Sure the Design Won’t Hit Pins

Once the hat is floated, carefully slide the hoop onto the embroidery arm.

The Digital Safety Check

1. Rotate: Most caps are hooped "brim down" or "brim up" relative to the user. Rotate your design 90 or 180 degrees on screen to match the hat's orientation.
2. Postion: Drag the design so the bottom edge aligns with your 3/4" mark.
3. Trace (Crucial): Run the machine's "Trace" or "Check Size" function. Watch the needle position.
   • Visual Check: Does the digital foot come dangerously close to the brim?
   • Visual Check: Does it cross over any pins?

A lot of "mystery disasters" on hats are actually clearance issues—the brim hitting the machine body pushes the hoop, causing the motors to skip steps (layer shifting).

If you’re ever unsure about your brother pe800 hoop size limits, remember that the machine knows the hoop limits, but it does not know a hat brim is sitting there. You are the only sensor that matters.

Stitch-Out Reality: Watch the Brim, Listen to the Machine, and Don’t Chase Tension Ghosts

Press start, but strictly govern your speed.

Expert Parameter: Speed Control While the PE800 can stitch faster, slow it down. For hats on a flatbed, run at 350 - 600 SPM (Stitches Per Minute). High speeds cause the heavy hat to vibrate, which weakens the adhesive bond.

Sensory Feedback Loop:

• Sound: Listen for a rhythmic "thump-thump." A sharp "crack" or "grind" means the needle is hitting the needle plate (deflection) or the brim is hitting the machine arm.
• Sight: Watch the brim. If it starts lifting off the stabilizer, pause immediately and re-tape.
• Tension: Standard tension usually works. If you see white bobbin thread on top, the hat thickness is increasing upper thread friction. Lower the top tension slightly (e.g., from 4.0 to 3.0).


Clean Finishing That Looks Professional: Trim Jump Stitches, Tear Away Stabilizer, and Restore the Crown

After the machine plays its victory song, remove the hoop immediately.

The Finishing Workflow

1. Un-hoop: Loosen the screw and remove the stabilizer/hat combo.
2. Release: Tear the stabilizer away from the hat. It should sound like ripping Velcro.
3. Clean Up: Use fine-tip scissors or snips to trim jump stitches flush with the fabric.
4. Reshape: The hat will look flat and sad. Use your hands to round the crown back out. The warmth from your hands helps the buckram "remember" its curve.


“My Hat Got Holes / Creases / Shifted”: The Fixes People Actually Need

When things go wrong, use this structure to troubleshoot before blaming the machine.

The Stabilizer Decision Tree: Match Hat Material to Backing So You Don’t Fight Puckers Later

The video uses medium weight adhesive tear-away. That’s a solid baseline, but hats vary.

Decision Tree: What stabilizer do I need?

1. Is the cap "Unstructured" (soft cotton, floppy)?
   • Yes: Sticky Tear-Away + Float Layer. Floating a layer of regular tear-away under the sticky hoop adds stiffness to prevent puckering.
   • No (It's a stiff Trucker hat): Sticky Tear-Away (Heavy Duty). You need maximum grip.
2. Is the design very dense (thousands of stitches)?
   • Yes: Use Cut-away stabilizer with spray adhesive. Tear-away may disintegrate under high stitch counts, causing alignment loss.
   • No (Simple logo/text): High-quality Adhesive Tear-Away is sufficient.


When a “Hack” Becomes a Workflow: Upgrades That Save Time, Reduce Wrist Strain, and Improve Repeatability

If you do one hat a month, this floating method is perfect. If you do ten hats a week, you will start feeling the "friction": the time spent taping, the wrist pain from flattening, and the anxiety of the brim hit.

This is your trigger to upgrade your toolkit based on your volume:

1. The "Ease of Use" Upgrade (Level 1):
   If the physical act of hooping hurts your hands or leaves "hoop burn," consider a SEWTECH Magnetic Hoop. The magnets snap the stabilizer into place instantly, keeping tension even without the "screw and tug" battle.
2. The "Consistency" Upgrade (Level 2):
   If you are selling hats, inconsistent thread tension kills repeat business. Using premium Polyester Embroidery Thread ensures the 50th hat looks like the 1st.
3. The "Production" Upgrade (Level 3):
   If you have orders for 20+ hats, the PE800 flatbed method is too slow. This is the moment to look at SEWTECH Multi-Needle Machines or similar commercial units. They use a cylindrical arm and a rotating cap driver, allowing you to stitch 270 degrees around the cap without flattening it.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. Keep them away from pacemakers, and watch your fingers—they snap together with bone-pinching force.

Operation Checklist (The "Don't Ruin It" Final Pass)

• Hat center seam is aligned to drawn stabilizer line.
• Sweatband is taped back and clear of the stitch zone.
• Brim is flattened just enough to clear the machine arm.
• Design is rotated correcty on screen.
• TRACE has been run to verify needle clearance.


Finishing Touches That Sell the Work: Clean Backing Removal and a Crisp Front View

The final reveal matters. A clean finish is what separates "home embroidered" from "shop quality."

• Back: Remove all stabilizer bits. Use tweezers if necessary.
• Front: Use a lint roller to remove fuzz.
• Form: Store the hat on a round form (or a melon/ball) for 10 minutes to help it regain shapeliness.

Setup Checklist (Quick Reference)

• 5x7 Hoop Installed.
• New 90/14 Needle Installed.
• Sticky Stabilizer Scored and Peeled.
• Vertical/Horizontal Lines Drawn.
• 3/4" Placement Mark made on Hat.


The Bottom Line: This Brother PE800 Hat Method Works—If You Respect Alignment

The floating approach removes the barrier to entry for custom caps. It lets you embroider a cap on a flatbed machine using tools you already have.

Use the video’s non-negotiables—fresh sticky stabilizer, a real alignment grid, and the 3/4" rule—and you’ll get clean results. And when the orders start flooding in and the taping gets tedious? That’s just a sign you’re ready to graduate to professional magnetic hoops or multi-needle equipment to keep up with your own success.

FAQ

• Q: How can a Brother PE800 embroider a baseball cap front panel without a cap driver using the float method?
  A: Use a standard 5x7 hoop with adhesive tear-away stabilizer, then press the cap onto the sticky surface and secure the brim so the hoop can travel freely.
  • Hoop medium-weight adhesive tear-away stabilizer paper-side up, then score and peel only the paper layer to expose adhesive.
  • Draw vertical/horizontal crosshair lines on the sticky surface and align the cap center seam to the vertical line (do not rely on eyesight).
  • Flatten the brim only enough to clear the machine arm, then tape or pin only the far brim edges to lock it.
  • Success check: Lift the hoop by the frame—the cap should stay rigidly attached without drooping or peeling.
  • If it still fails: Replace with fresh sticky stabilizer and slow the machine speed (high vibration can break the adhesive bond).
• Q: Why does a Brother PE800 baseball cap design stitch out crooked when floating a hat on sticky stabilizer?
  A: Crooked hat embroidery on a Brother PE800 is usually an alignment problem—fix it by using the PE800 hoop template and drawn crosshairs every time.
  • Place the Brother PE800 grid template on the hooped stabilizer, mark reference points, then draw a bold vertical and horizontal line on the sticky surface.
  • Mark the true cap center with a ruler (do not trust the seam placement alone), then align the cap to the drawn vertical line.
  • Use the 3/4-inch (about 2 cm) placement mark above the brim on the center seam to set design height consistently.
  • Success check: Before stitching, run the PE800 Trace/Check Size and confirm the needle path centers over the crosshair placement mark.
  • If it still fails: Re-float the cap and re-press from center outward using the “rock then roll” motion to prevent twist.
• Q: What is the correct Brother PE800 hat embroidery placement to avoid sewing the sweatband and making the cap unwearable?
  A: Set the bottom edge of the design about 3/4 inch (approx. 2 cm) above the brim on the cap center seam.
  • Measure 3/4 inch above the brim along the center seam and mark that point as the design’s bottom-edge reference.
  • Flip the sweatband out and tape it to the back so it stays clear of the stitch zone.
  • Use the PE800 on-screen positioning to drag the design so it matches the placement mark.
  • Success check: After a Trace/Check Size pass, the needle path stays above the sweatband line and does not cross into the band.
  • If it still fails: Re-check that the sweatband is taped fully out of the way before starting the stitch-out.
• Q: How do I prevent Brother PE800 hat embroidery shifting mid-stitch when floating a cap on adhesive tear-away stabilizer?
  A: Hat shifting on a Brother PE800 is most often adhesive failure plus too much speed—use fresh sticky stabilizer, tape edges, and slow down.
  • Replace old adhesive stabilizer with fresh adhesive tear-away and press the cap firmly from center outward to maximize contact.
  • Tape the brim edges (or pin carefully away from the stitch area) to stop the brim from lifting and tugging the hat loose.
  • Reduce stitch speed for hats to about 350–600 SPM to reduce vibration that breaks the adhesive bond.
  • Success check: During stitching, the brim stays flat and the cap fabric does not creep or peel at the edges.
  • If it still fails: Stop immediately when lifting starts, re-tape/re-press, and re-run Trace to confirm clearance before restarting.
• Q: What should Brother PE800 users do if the embroidery needle breaks on a structured baseball cap with tough buckram?
  A: Needle breaks on Brother PE800 hat embroidery usually come from needle deflection in stiff buckram—switch needle type/size and verify clearance.
  • Install a 90/14 embroidery needle for better penetration through cap buckram (a titanium 75/11 is another option mentioned for breakage cases).
  • Manually rotate the handwheel once before starting to ensure the needle bar clears the brim and any pins.
  • Slow the machine down to reduce vibration and sudden impacts on dense or stiff areas.
  • Success check: The stitch-out runs without a sharp “crack/grind,” and the needle does not visibly bend when entering the cap front.
  • If it still fails: Remove any pins near the stitch zone and re-check that the brim is not contacting the machine arm (clearance issues can force deflection).
• Q: What are the key safety rules for using pins on a baseball cap during Brother PE800 floating hat embroidery?
  A: Pins can become a needle-strike hazard on a Brother PE800—keep pins at least 1 inch away from the stitched area and handwheel-check before running.
  • Place pins only on the far brim edges (not near the design area) and never where the needle path could travel.
  • Run a manual handwheel rotation to confirm the needle bar and foot clear every pin and the brim.
  • Use painter’s tape when possible to reduce the risk of metal strikes.
  • Success check: A full Trace/Check Size pass shows the foot never approaching pins, and the hoop travels without snagging.
  • If it still fails: Remove pins entirely and re-secure with tape on the brim edges only.
• Q: When should Brother PE800 hat embroidery users upgrade from the float method to a magnetic hoop or to a multi-needle cap machine for efficiency?
  A: Upgrade when the float method’s pain points become repeatable workflow problems—first reduce strain with a magnetic hoop, then move to a multi-needle cap system for volume.
  • Level 1 (Technique): If taping and flattening are causing hoop burn/creases or frequent shifting, refine pressing, taping, and slow speed first.
  • Level 2 (Tool): If wrist strain or uneven hooping tension is the main bottleneck, a magnetic hoop can clamp quickly with even hold (handle magnets carefully).
  • Level 3 (Production): If orders reach roughly 20+ hats and you need 270-degree cap embroidery without flattening, a multi-needle machine with a cap driver is the practical path.
  • Success check: The chosen upgrade reduces re-hooping/time spent securing brims and improves repeatability across multiple hats.
  • If it still fails: Reassess whether the main constraint is clearance/flatbed limitations (physics) rather than settings—some results require cap-driver geometry.
