Embroidering on Cardstock with the Singer SE9180: The Floating Method That Won’t Shred Your Cards

Cardstock feels innocent—until you put a needle through it.

If you’ve ever tried to stitch on paper and ended up with a torn edge, a warped card, or tape that rips the surface right off, you’re not alone. The physics of embroidery changes the moment you leave woven fabric. Fabric heals; paper remembers. Every needle penetration is a permanent perforation.

The good news: the Singer SE9180 workflow in this project is solid, and the "float it on stabilizer" method is exactly how experienced commercial shops handle anything that can’t (or shouldn't) be hooped directly.

The “Paper Panic” Reset: Why Cardstock Tears (and Why This Singer SE9180 Method Works)

Paper doesn’t behave like fabric. Fabric fibers part ways for the needle and then relax back around the thread. Paper fibers are crushed and cut. Once you punch a hole, it stays a hole—and if those holes are too close together, you’ve basically created a perforation line like a postage stamp. One tug, and the whole design zips right out.

This project avoids the two most common paper disasters through specific displacement physics:

• Perforation tearing is solved by increasing stitch length when sewing the fabric patch onto the card (spreading the holes out).
• Hoop damage and distortion is solved by not hooping the cardstock at all—instead, you hoop the stabilizer "drum tight" and float the card on top using a low-tack adhesive method.

If you’re searching for a clean, repeatable workflow on singer embroidery machines, this is one of the safest “first paper projects” you can run to build your confidence with non-standard materials.

The “Hidden” Prep Pros Do First: Cardstock + Fabric Patch Materials That Don’t Fight You

Bethany’s approach starts with a fabric swatch on the card front. That swatch does two jobs: aesthetically, it looks great; structurally, it acts as a shock absorber, giving the embroidery stitches something purely fibrous to bite into before they hit the paper substrate.

Use the following, but pay attention to the specific qualities listed:

• Cardstock: Aim for 80lb - 100lb cover stock. Sensory Check: Flex the card. If it cracks instantly or feels glossy/brittle, it will shatter under the needle. You want a matte, slightly fibrous feel.
• Cotton Fabric Scraps: Woven cotton (like quilting cotton) is best. Avoid knits for this beginner project.
• Pinking Shears: Essential for stopping fraying without adding bulk (no hem needed).
• Glue: A tiny amount of fabric glue or a temporary spray adhesive (used sparingly).
• Singer SE9180: Unit set to Sewing Mode first.
• Stabilizer: Cutaway Stabilizer (Mesh). Critical: Do not use Tearaway. Removing tearaway often rips the paper. Cutaway remains permanently to support the needle holes.
• Blue Painter’s Tape: Fresh tape (old tape leaves residue).
• Thread: Rayon embroidery thread (40wt) for that professional sheen.
• Needle: Size 75/11 Sharp (ideally) or Universal. Avoid Ballpoint needles; they will mash the paper rather than piercing it cleanly.

Prep Checklist (do this before the machine is even on)

• Fabric Cut Check: Fabric swatch cut with pinking shears? (Prevents fraying).
• Glue Volume Control: Apply only a micro-dot of glue to corners. Too much glue gums up your needle eye, leading to thread shredding during high-speed embroidery.
• Consumable Check: Is the needle fresh? A dull needle blows out the back of the cardstock.
• Layout Viz: lay the card flat and visualize the text rotation. Cardstock isn't cheap; measure twice.


Sewing Fabric Onto Cardstock on the Singer SE9180: The 3.0 mm Stitch-Length Rule

This is the first “make-or-break” setting. In standard sewing, a 2.0mm or 2.5mm stitch length is strong. On paper, that density creates a "tear strip."

Bethany extends stitch length to 3.0 mm (or even 3.5 mm) in sewing mode before stitching the fabric patch down. The physics are simple: longer stitches leave more structural integrity between the holes.

Action Plan:

1. Placement: Tack the fabric patch to the card front with minimal glue.
2. Setting: On the Singer SE9180 screen, tap the Stitch Length icon and slide it up to 3.0 mm.
3. Execution: Sew a straight-stitch box around the fabric edge.
4. Cornering: Stop with the needle DOWN. Lift the presser foot. Pivot the card gently. Lower the foot. Continue. Never force the turn while the needle is moving.

Success Metric:

• Visual: Steps are evenly spaced; paper shows no signs of buckling between holes.
• Tactile: The connection feels firm but not "crimped."

Warning: Physical Safety
Sewing through cardstock can deflect needles if you pull the material. Unlike fabric, cardstock is rigid. If you yank the card while the needle is in the paper, the needle can snap and fly toward your eyes. Always wear glasses and keep hands 6 inches away from the needle bar.

Switching the Singer SE9180 into Embroidery Mode Without Jamming the Arm

Once your fabric patches are sewn, you need to convert the machine from a sewing tool to a CNC embroidery robot. This physical transition is where many errors occur due to rushing.

The Sequence:

1. Clear the Deck: Slide off the accessory tray arm to expose the free arm. Remove any bobbin pins or loose items; the embroidery arm needs a clear path.
2. The Connection: Slide the embroidery unit onto the base.
3. The Anchor: Push firmly until you hear a sharp "Click." Sensory Check: If it feels mushy or doesn't click, pull it off and check for lint blockage. It must lock mechanically.
4. Software Handshake: The screen switches into embroidery mode.
5. Calibration: A pop-up appears. The arm will move roughly left and right to find its "Zero" point. Stand back and let it finish.

If you’re using a modern combination sewing and embroidery machine like the SE9180, interrupting this calibration dance causes "axis slip," meaning your design will stitch out centered on the screen but off-center on the hoop.

Text Setup on the Singer SE9180 Screen: Rotate 90° and Choose the 170×100 Hoop

Bethany keeps the design simple: built-in font, a name, and a rotation to match how the hoop will be oriented. Digital prep is cheaper than physical failure.

On-screen steps:

1. Font Selection: Choose a built-in sans-serif or bold serif. Expert Tip: Avoid thin script fonts on cardstock; they punch too many holes in a small area.
2. Input: Type the name.
3. Orientation: Rotate the text 90 degrees. Why? Because the SE9180's long hoop loads horizontally, but your card layout is likely vertical.
4. Hoop Definition: Select the hoop size 170×100 (the Large Hoop) in the settings. This ensures the machine knows your physical boundaries.
5. Confirm: Tap the green checkmark.

Success Metric:

• On screen, the text appears sideways relative to the vertical axis of the screen, which matches the physical reality of the hoop.


The Embroidery Foot Swap That Prevents Skipped Stitches: Get the Top Bar Over the Needle Clamp Screw

This is the second “silent failure” point. Beginners often attach the embroidery foot low, missing the mechanical linkage that lifts the foot to let the thread pass.

The Install Visualized:

1. Remove: Unscrew and remove the standard sewing ankle/foot.
2. Position: Hold the embroidery foot (the one with the spring). Look for the white plastic arm or metal lever sticking out the top right.
3. Engage: This arm must sit ON TOP of the needle clamp screw. As the needle goes up, the screw pushes the arm up, which lifts the foot.
4. Tighten: Use a coin screwdriver. Tactile Check: Wiggle the foot. It should have zero play.

Self-Check: hand-crank the wheel (toward you). Does the foot hop up and down rhythmically? If it drags flat on the plate, you missed the needle clamp screw.

Hooping Cutaway Stabilizer in the 170×100 Hoop: “Drum Tight” Is the Only Acceptable Feel

For paper projects, stabilizer choice isn't just about backing—it's the only thing holding your project in the machine.

Bethany uses cutaway stabilizer (Poly mesh or medium weight). Why Cutaway? Tearaway perforation lines weaken the stabilizer itself. Cutaway maintains tension even after 5,000 needle penetrations.

The Hooping Ritual:

1. Loosen the outer hoop screw (don’t remove it).
2. Lay a single sheet of cutaway stabilizer over the outer hoop.
3. Press the inner hoop down firmly until flush.
4. The Tension Pull: Tighten the screw slightly, then pull the edges of the stabilizer to remove wrinkles. Tighten the screw fully.

Sensory Success Metric: Flick the stabilizer with your finger. It should sound like a drum skin: Thwack, not thud. If it's loose, your card will shift, and your letters will be crooked.

The "Hoop Burn" Reality: If you find yourself fighting hoop tension every time or getting "hoop burn" (shiny rings) on fabric projects, this is a sign your tools might need upgrading. Many serious hobbyists eventually switch to magnetic embroidery hoops, which use powerful magnets to clamp materials instantly without the friction-fit struggle. They are safer for delicate items and drastically reduce wrist strain during long sessions.

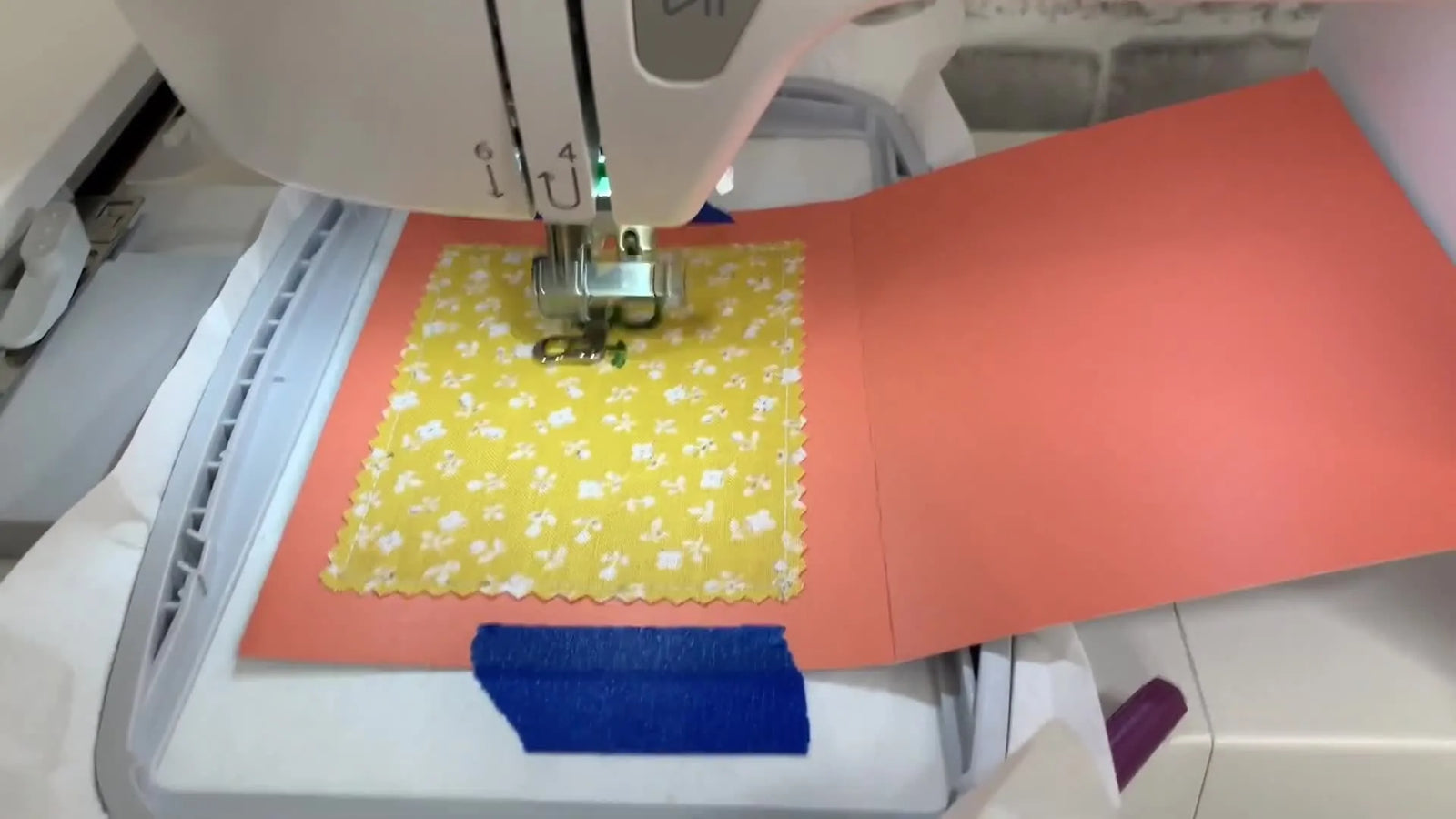

Floating Cardstock on Stabilizer with Blue Painter’s Tape: The Alignment Trick That Saves the Whole Project

You cannot hoop cardstock the way you hoop fabric—the hoop rings would crease the paper permanently. So we "float" it.

The Floating Technique:

1. Grid Mark: Use the plastic template grid included with your hoop to find the absolute center of the hooped stabilizer. Mark with a water-soluble pen.
2. Card Mark: Mark the center of your card (light pencil).
3. Mating: Open the card and lay it flat on the stabilizer. Align your crosshairs.
4. Securing: Tape the corners of the card down using Blue Painter’s Tape.
   • Why Blue Tape? It has lower adhesion than masking tape.
   • Pro Tip: Stick the tape to your jeans first, then peel it off. This removes some tackiness, making it even safer for paper.

Why this works (The Physics): The hooped stabilizer provides the X/Y tension. The cardstock rides on top, held by friction and tape. This eliminates the crushing force of the hoop rings.

If you are doing a lot of floating projects, a consistent work surface matters. Commercial shops build dedicated areas for this; that includes specialized fixtures where hooping stations allow for repeatable placement, turning a 5-minute struggle into a 30-second task.

Setup Checklist (right before you mount the hoop)

• Tension Check: Is stabilizer drum-tight? (Loose stabilizer = distorted text).
• Clearance: Is the card opened flat? If the back of the card folds under, you will stitch the card shut (a classic tragedy).
• Adhesion: Is the tape secure but outside the stitching area? Sewing through tape gums up the needle.
• Safety: Tape is low-tack? (Test on a scrap card first).

Warning: Magnetic Safety
If you upgrade to magnetic frames for floating work (a great choice for cardstock), treat them with respect. Strong neodymium magnets can pinch skin severely and can affect pacemakers. Keep magnets at least 6 inches away from computerized screens and medical devices.

Mounting the Hoop on the Embroidery Arm: The “Click-In” Moment You Must Feel

Bethany shows the correct loading sequence. This connects your physical canvas to the digital brain.

1. Clearance: Make sure the presser foot is UP to give the hoop room to slide.
2. Slide: Slide the hoop connector onto the embroidery arm carriage.
3. Engage: Push until it clicks.
4. Verification: Give the hoop a tiny horizontal wiggle. It should move the entire carriage arm, not just the hoop. If the hoop wiggles independently, it is not locked.

This repetitive clicking and clamping is where fatigue sets in during production runs. If you’re taping dozens of cards for holiday greetings, pairing magnetic frames with a consistent station (pros often use a specific magnetic hooping station) can reduce handling time and preserve your wrists.

Stitching on Cardstock Without Breaking Needles: Use the Scissor Button and Keep Speed at Medium

Bethany threads the machine with Rayon thread. Rayon is softer and has less tension memory than Polyester, which helps it lay flat on paper without puckering.

The "Go" Sequence:

1. Edit Mode: Confirm design placement.
2. Ready: Hit play. The machine prompts "Lower Presser Foot." Do so.
3. The Auto-Trim: Press the Scissor Button (if available) or hold the tail thread. This pulls the bobbin thread up or trims the start so you don't get a "bird's nest" on the back.
4. Speed Regulation: Do NOT use Max Speed. Slide the speed controller to Medium (approx. 400-500 SPM).
   • Why? High speed creates heat (needle friction) and high impact force. This can burn or shatter paper fibers. Medium speed allows for cleaner penetration.

Sensory Monitoring: Listen to the machine.

• Soft Thump-Thump: Good. The needle is piercing cleanly.
• Loud Bang or Crunch: Stop immediately. The needle may be dull, or you hit a thick glue spot.

Operation Checklist (while it’s stitching)

• The Lift Check: During the first 10 stitches, watch the card edges. Is the tape holding? If the card lifts, pause and add more tape.
• Sound Check: Rhythm is steady.
• Hand Safety: Hands are clear of the moving hoop.
• Card Fold: Ensure the back flop of the card hasn't curled under the hoop.


Finishing the Card Cleanly: Peel Tape Slowly, Trim Cutaway Close, and Hide the Back Like a Pro

The stitch-out is done. Now, finesse is required.

The Retrieval:

1. Raise the presser foot.
2. Release the hoop lever and slide the hoop toward you.
3. Do NOT pop the paper out yet. Take the hoop to a flat table.

The Release:

1. Peel the blue tape off slowly and at a sharp angle (fold the tape back on itself). Pulling straight up lifts the paper fibers; pulling back sheers the adhesive bond gently.
2. Remove the stabilizer/card assembly from the hoop.
3. Trimming: Use curved appliqué scissors or precise snips. Trim the cutaway stabilizer on the back of the card. Get close to the letters (about 1/8 to 1/4 inch) but do not nip the knot. The stabilizer must stay there to hold the stitches.

The Pro Finisher: The back of embroidery is messy ("the ugly side"). Bethany suggests gluing a second piece of fabric or a high-quality paper liner over the inside back of the card to hide the stabilizer and bobbin tracks. This elevates the project from "homemade" to "handcrafted."

Quick Decision Tree: Stabilizer + Holding Method for Paper and “Not-Quite-Fabric” Projects

Use this logic flow when deciding how to support your next unconventional stitch-out.

Start: What is the substrate?

1. Cardstock / Paper (Cannot be hooped)
   • Stabilizer: Cutaway (Mesh) hooped tight.
   • Method: Float + Blue Tape.
   • Why: Paper tears if hooped; Cutaway provides permanent structure.
2. Thin Fabric Glued to Cardstock (This Project)
   • Stabilizer: Cutaway hooped tight.
   • Method: Float + Tape corners.
   • Why: The fabric patch adds stability, but the cardstock base still dictates the rules.
3. Stretchy Knits (T-Shirts)
   • Stabilizer: Cutaway (Fusible preferred).
   • Method: Hoop gently inside standard hoop OR use Magnetic Hoops to avoid stretching.
   • Why: Knits stretch; if you stretch them while hooping, they pucker when released.
4. Production Repeats (Place cards, patches, 50+ items)
   • Tool Upgrade: magnetic embroidery hoops + hoop master embroidery hooping station.
   • Why: Consistency. Manual alignments vary; stations do not.

The Two Most Common Failures (and the Fixes That Actually Work)

Even if you follow the guide, variables happen. Here is your structured troubleshooting table.

The Upgrade Path (When You’re Ready): Faster Setup, Cleaner Results, Less Hand Strain

If you only make a few cards a year, painter’s tape and a standard hoop are perfectly fine.

However, if you start doing holiday place cards for big gatherings, small product tags, or craft-fair personalization, you’ll feel the bottleneck fast: taping, re-taping, measuring, and fighting hoop tension.

Here’s the practical “tool ladder” I recommend for growing studios:

Level 1: Consumables Upgrade (Immediate Quality)

• Better Stabilizer: Buy heavy-duty rolls of cutaway, not the small folded packets.
• Needles: Buy bulk boxes of Organ or Schmetz 75/11 Sharps.
• Thread: High-sheen Rayon for paper (it sits flatter than poly).

Level 2: Holding Upgrade (Time Saver)

• Magnetic Frames: These reduce handling time and eliminate the risk of "hoop burn" or paper crushing. When you use specific magnetic frames, you simply click the magnets on. No screws, no wrist pain.

Level 3: Production Upgrade (Scale & Profit)

• If you move from "one-off gifts" to batches of 50+, the single-needle machine becomes the choke point (constant thread changes). This is where a SEWTECH Multi-needle ecosystem becomes the lever for profit—allowing you to queue up colors and stitch continuously while you prep the next hoop.

If you’re already researching systems like hoopmaster or the hoopmaster hooping station, treat it as a workflow decision: you are buying repeatability and speed, not just a gadget.

Final Pro Thought: Embroidery on paper is high-stakes—you get one shot per card. If you follow the exact sequence Bethany demonstrates—3.0 mm stitch length for the fabric patch, bar-over-screw foot placement, drum-tight cutaway, and a careful floating alignment—you’ll get crisp lettering on cardstock without the heartbreak of torn corners.

FAQ

• Q: What stitch length should the Singer SE9180 use when sewing a fabric patch onto cardstock to prevent perforation tearing?
  A: Set the Singer SE9180 stitch length to 3.0 mm (up to 3.5 mm) before sewing the fabric patch onto the cardstock.
  • Increase stitch length on the SE9180 screen before stitching the straight-box border.
  • Stop with the needle DOWN at corners, lift the presser foot, then pivot the card—do not force the turn.
  • Success check: Holes look evenly spaced and the cardstock edge does not “zip” or tear when gently flexed.
  • If it still fails: Switch to heavier cardstock and/or reduce stitch density by choosing a less hole-heavy font for the embroidery step.
• Q: Which stabilizer should be hooped on the Singer SE9180 for embroidery on cardstock, and why should tearaway stabilizer be avoided?
  A: Hoop cutaway stabilizer (mesh/medium weight) drum-tight on the Singer SE9180, because tearaway removal can rip cardstock and cutaway keeps support permanently.
  • Hoop one sheet of cutaway, tighten the screw, then pull the stabilizer edges smooth before fully tightening.
  • Avoid tearaway for paper projects because tearing it away often pulls paper fibers and weakens the backing.
  • Success check: Flick the hooped stabilizer—it should sound like a drum “thwack,” not a loose “thud.”
  • If it still fails: Re-hoop for higher tension; loose stabilizer is a common cause of shifted, distorted lettering.
• Q: How should cardstock be mounted for embroidery on the Singer SE9180 without hooping the paper and creasing it?
  A: Float the cardstock on top of drum-tight hooped cutaway stabilizer and secure only the corners with fresh blue painter’s tape.
  • Mark centerlines on the hooped stabilizer (using the hoop template grid) and lightly mark the card center with pencil.
  • Open the card fully flat and align the center marks before taping the corners outside the stitch area.
  • De-tack painter’s tape on jeans first if the paper surface is delicate.
  • Success check: During the first stitches, the cardstock edges stay flat and do not lift or drift under the presser foot.
  • If it still fails: Add tape to all four corners and confirm stabilizer tension is still drum-tight.
• Q: How do you install the Singer SE9180 embroidery foot correctly to prevent skipped stitches during lettering on cardstock?
  A: Install the Singer SE9180 embroidery foot so the top bar/arm sits ON TOP of the needle clamp screw, allowing the foot to hop with the needle.
  • Remove the standard sewing foot/ankle, then position the embroidery foot with the spring mechanism aligned.
  • Place the foot’s arm over the needle clamp screw and tighten firmly with a coin screwdriver.
  • Hand-turn the wheel toward you to confirm the foot lifts rhythmically.
  • Success check: The embroidery foot “hops” up and down; it does not drag flat on the needle plate.
  • If it still fails: Reinstall the foot and re-check the arm position; missing the clamp-screw linkage is a common beginner error.
• Q: What is the correct Singer SE9180 sequence for attaching the embroidery unit so the embroidery arm does not jam during calibration?
  A: Clear the free arm, slide on the embroidery unit until it clicks, then let the Singer SE9180 finish calibration without interruption.
  • Remove the accessory tray and any loose items so the embroidery arm has a clear path.
  • Push the embroidery unit on firmly until a sharp “click” locks it in place; re-seat if it feels mushy.
  • Stand back and let the arm move left/right to find its zero point.
  • Success check: The SE9180 completes the calibration “dance” smoothly and the screen stays in embroidery mode without warnings.
  • If it still fails: Remove the unit and check for lint/blockage at the connection; a poor mechanical lock can cause misalignment.
• Q: What should be adjusted on the Singer SE9180 if the cardstock tears along the stitch line after embroidery or sewing?
  A: Treat cardstock tearing as a stitch-density/perforation problem: increase stitch length for the sewn fabric patch and reduce hole-heavy choices for the embroidery text.
  • Set sewing-mode stitch length to 3.0–3.5 mm for the fabric patch border so holes are spaced farther apart.
  • Avoid thin script lettering on cardstock because it concentrates needle penetrations in tight areas.
  • Use cutaway stabilizer so the holes stay supported instead of pulling open.
  • Success check: The stitched area stays intact when handled; no “postage-stamp” tear line forms along the seam.
  • If it still fails: Move to heavier cardstock and consider a lighter thread weight as a safer starting point (always confirm with the machine manual).
• Q: What safety precautions should be followed when sewing or embroidering through cardstock on the Singer SE9180 to avoid needle snap injuries?
  A: Keep hands well away and never pull cardstock while the Singer SE9180 needle is inside the paper, because rigid paper can deflect and snap needles.
  • Wear eye protection and keep hands at least 6 inches from the needle bar area.
  • Pivot only with the needle DOWN and the presser foot lifted; do not twist while the needle is moving.
  • Stop immediately if you hear a loud bang/crunch and replace the needle with a fresh 75/11 sharp before restarting.
  • Success check: The machine sound is a steady, softer “thump-thump,” not sharp impacts.
  • If it still fails: Slow to medium speed and check for thick glue spots or material lift that could be forcing the needle sideways.
