Fabric ITH Key Fobs That Don’t Shift: A 6x10 Hoop Method (and the Tiny Measurements That Make or Break It)

The Definitive Guide to Converting Vinyl ITH Key Fobs to Fabric (Without Failing the "Catch Zone")

If you’ve ever tried to run an In-The-Hoop (ITH) key fob file designed for vinyl using woven fabric, you know the sinking feeling of the "near miss." The top looks perfect, but flip it over, and the final outline stitch has missed the back layer/strap by a single millimeter. You are left with a floppy strap, wasted stabilizer, and the frustration of a ruined hooping.

While this project can work beautifully with woven fabric—giving you endless print options—it is an "unforgiving" design. The margin for error is razor-thin. Unlike vinyl, which is stiff and stays put, fabric compresses, shifts, and frays.

The good news? Once you understand the mechanics of the float and the physics of the fold, you can replicate this success reliably. Whether you are a hobbyist making one or a business owner looking to batch-produce these, this guide will serve as your operational standard operating procedure (SOP).

The Calm-Down Moment: Why This ITH Key Fob “Hack” Feels So Fussy (and Why It’s Still Worth It)

The source video demonstrates a fabric conversion of the Parker on the Porch blank key fob design (originally intended for rigid vinyl/faux leather) stitched in a 6x10 hoop. The stitch count is low—around 1761 stitches—and the workflow seems deceptively simple: placement stitch, float fabric top, float fabric bottom, final stitch.

So, why is it stressful? The stress comes from the "Catch Zone." Your folded fabric strap acts like a beam. It must land in a very narrow channel to be caught by the needle on both the left and right sides simultaneously.

• Too Wide: The strap looks bulky, won't fit inside the 1.25" hardware, and rubs against the presser foot.
• Too Narrow: The final running stitch falls off the edge, leaving raw fabric exposed and unsecure.
• Off-Center: You catch one side securely, but miss the other side entirely.

If you are using a standard embroidery machine 6x10 hoop, this is the exact type of project where "measure twice, cut once" is a survival skill, not just a saying.

The “Hidden” Prep That Saves the Project: Stabilizer, Interfacing, and Straight Cuts That Actually Matter

The creator hoops one sheet of tearaway stabilizer and runs the placement stitch directly onto it. Then, the fabric is prepared like bias tape and "floated" on top and bottom.

The Professional Insight: When you replace vinyl with woven fabric, you are swapping a stable, non-fraying material for a dynamic one. Cotton fabric has a grain. It stretches on the bias. It compresses under the foot. This is why Lightweight Fusible Interfacing is non-negotiable. It transforms your fabric from a "floppy sheet" into a "structure" that behaves more like paper, ensuring it feeds smoothly under the foot without rippling.

Materials & Tools Audit

• Embroidery Machine: (Brother/Baby Lock style shown, but applies to all).
• Hoop: Standard 6x10 or suitable size for the fob length.
• Stabilizer: Tearaway (Medium weight recommended for crispness).
• Fabric: Woven cotton, cut into two precise strips.
• Structure: Lightweight fusible interfacing (e.g., Pellon Shape-Flex or similar).
• Adhesion: Painter’s tape or specialized embroidery tape (Must hold tight but peel clean).
• Cutting: Rotary cutter, self-healing mat, acrylic ruler (Scissors are not precise enough here).
• Hardware: 1.25" Key Fob Hardware + Key Ring.
• Tools: Needle-nose pliers + a scrap towel (to prevent scratching).

The "Hidden" Consumables (Don't start without these)

• Fresh Needle: A 75/11 Universal or Embroidery needle. A dull needle will push the fabric strap rather than piercing it, causing alignment errors.
• Ironing Spray/Starch: Optional but helpful to get crisp folds before fusing.
• Fine-Tip Tweezers: For positioning the strap without getting your fingers near the needle.


Prep Checklist (Do this before touching the machine screen)

• Hardware Verification: Measure your metal clamp. Is it exactly 1.25"? Verify your fabric fold will fit inside it before you stitch.
• Precision Cutting: Cut two fabric strips at 2.5" x 10.5". The 10.5" length is crucial to give you "handle room" for taping.
• Interfacing Prep: Cut fusible interfacing slightly smaller than the fabric (2.25" x 10.25") to avoid gumming up your ironing board cover.
• Surface Check: Clean your ironing surface. Any bump or crumb will imprint on your strap.
• Tape Test: Stick a piece of your chosen tape to the back of the hoop and peel it off. If it leaves residue, find different tape. You don't want gum inside your machine's hook assembly.

Warning: Rotary Cutter Safety. Rotary cutters are essentially razor blades on wheels. They are unforgiving. Always close the safety latch immediately after the cut. Never cross your arms while cutting. Keep your stabilizing hand well away from the ruler's edge.

The Placement Stitch on Tearaway Stabilizer: Your Only True “Map” for Alignment

Video Step: Hoop one sheet of tearaway stabilizer tight as a drum. Load the design. Run Step 1 (Placement) directly onto the stabilizer.

Why this matters: This placement rectangle is the only objective truth you have. It defines the exact boundary of the "Catch Zone." The creator emphasizes measuring across and doubling to determine fabric needs, but for us, the placement line is the ruler.

Sensory User Check:

• Visual: Look closely at the stitch quality on the stabilizer. Is it loose? Is the bobbin thread looping up?
• Tactile: Run your finger over the stabilizer. It should be taut.
• Action: If the placement stitches are skipping, stop. Change your needle now. If you can't lay a straight line on stabilizer, you won't lay a straight line on a thick strap.


Pressing Fabric Like Bias Tape (Without the Ugly Center Crease)

Video Step: Cut fabric to 2.5" x 10.5", fuse interfacing, then fold.

The creator uses a specific technique: Finger-creasing the center line instead of ironing it hard. This prevents a permanent, visible ridge down the exact center of your finished key fob, which can ruin the aesthetic.

The Folding Protocol (Execute exactly in order)

1. Fuse: Iron the interfacing to the wrong side of your fabric strips. Ensure a solid bond; bubbles here mean wrinkles later.
2. Find Center: Fold the strip in half lengthwise (hot dog style) and gently finger-press the fold to mark the center. Do not iron yet.
3. Open: Open it back up. You now have a faint guide line.
4. Fold In: Fold both long raw edges inward to meet that centered guide line.
5. Set the Memory: Now, use your iron with steam. Press these side folds flat and crisp.
6. Final Fold: Fold the strip in half again so the raw edges are hidden inside. Press flat.

The Error Trap: The video warns: Do not overlap the folded edges in the center.

• Why? If the raw edges overlap, you create a "hump" in the middle of the strap. The embroidery foot will slide off this hump, causing crooked stitching. Leave a tiny hairline gap (1mm) between the raw edges inside the fold.


Why This Fold Works (The Physics of the "Beam")

Woven fabric has thickness, known as "loft." When you fold fabric four layers thick with interfacing, you create a structural beam.

• Without Interfacing: The beam collapses under thread tension, causing puckering.
• With Interfacing: The beam resists the "pull" of the bobbin thread, keeping your key fob straight and consistent width (approx 0.625" to 0.75" depending on fabric weight).

Centering the Top Strap Over the Placement Stitch: The Eyeballing Trick That’s Actually a Skill

Video Step: Place the prepared top fabric strip over the placement stitch area.

The Mental Shift: Do not look at the fabric. Look at the Placement Lines peeking out from underneath.

• Goal: You want to cover the placement box so that an equal amount of excess fabric hangs over the Left and Right sides.
• Technique: Use your fingers to feel the ridge of the placement stitch through the fabric. Center the strap based on touch, then confirm visually.

If you are currently learning floating embroidery hoop techniques, this project is the ultimate training ground. It forces you to respect the geometry of the hoop before the machine takes over. If you assume "close enough is good enough," this project will fail.

The Underside Tape Job: How to Float the Back Strap Without It Creeping

Video Step: Remove the hoop from the machine (placing it upside down on a flat surface). Align the second prepared strap over the bobbin-side placement stitches. Tape firmly.

The "Gravity Problem": When you flip the hoop back over to stitch, gravity wants to pull that bottom strap down. The machine's feed arm (or bed) will create friction against it. If your tape is weak, the strap will shift.

The "Tape & Secure" Protocol

1. Alignment: Lay the strap over the placement rectangle on the underside.
2. The "Hinge" Method: Tape one end first. This acts as a hinge.
3. Smooth: Smooth the strap down to the other end. Ensure it isn't twisted.
4. Tension: Pull it slightly taut (like a guitar string, but looser). You want zero sag, but don't warp the tearaway stabilizer.
5. Secure: Tape the second end.
6. Reinforce: Add a second piece of tape perpendicular to the strap ends if you are paranoid (and you should use painter's tape to avoid residue).

Warning: Magnet Safety. If you choose to upgrade to magnetic embroidery hoops to make this clamping process faster, be aware that these magnets are industrial strength. Keep them away from pacemakers, insulin pumps, and credit cards. Watch your fingers—the "pinch hazard" is real and can cause blood blisters.

The Commercial Upgrade Path (When Tape Becomes the Bottleneck)

For a hobbyist making 5 gifts, tape is fine. But if you are doing a production run of 50 key fobs, the "Taking hoop off -> Flipping -> Taping -> Flipping back" cycle kills your profitability. It also puts strain on your wrists and causes "Hoop Burn" on delicate fabrics.

In professional shops, operators often switch to magnetic embroidery hoops. These allow you to float materials quickly without screwing and unscrewing the outer ring. For single-needle machines, a magnetic frame can drastically reduce the time it takes to get ready for the next run, which acts as a force multiplier for your time.

Setup Checklist (The "Pre-Flight" Check)

Before you press the green button for the final stitch, verify these 5 points:

• Top Alignment: Is the top strap centered effectively over the placement lines?
• Bottom Security: Peek underneath. Is the bottom strap still taped? Did it wrinkle when you put the hoop back in?
• Clearance: Is the tape outside the stitch path? (Stitching through tape gums up the needle).
• Orientation: Are the raw ends of the straps at the correct end for the hardware (usually the top/tab)?
• Bobbin Check: Do you have enough bobbin thread? Running out in the middle of the final satin/bean stitch is catastrophic for this specific project.


The Final Stitch Pass: Slow Down, Peek Underneath, Then Commit

Video Step: The creator recommends slowing the machine down to 300–600 SPM (Stitches Per Minute).

The Expert Recommendation: For this step, set your machine to its lowest possible speed (usually 350 or 400 SPM).

• Why? You are punching through: Fabric + Interfacing + Stabilizer + Interfacing + Fabric. That is a dense sandwich. High speed causes needle deflection (bending), which causes the needle to miss the bobbin hook or hit the throat plate.
• Auditory Check: Listen to the machine. A rhythmic "thump-thump" is good. A struggling "grind-chunk" means you need to stop and check if the layers are too thick or the needle is dull.

Verification Loop

1. Start: Press start. Watch the first 3-4 stitches.
2. Pause: Stop the machine immediately after the first tack-down stitches.
3. Peek: Look underneath. Did the bobbin catch? Is the bottom strap still there?
4. Resume: If yes, finish the stitch out.




Clean Removal and Edge Reality: What to Trim, What to Ignore

Video Step: Remove from hoop. Tear away the stabilizer.

Technique: Support the stitches with your thumb while tearing the stabilizer with your other hand. Do not just rip it like a bandage; you can distort the stitches you just made.

• Fuzz Management: You might see some white fuzz from the tearaway stabilizer trapped in the side stitches. Use tweezers to pick this out, or touch it briefly with a lighter (carefully!) if you are using natural cotton thread (Poly thread will melt, be careful).
• End Trimming: Trim the raw ends of the fabric/stabilizer sandwich. They don't need to be pretty, they just need to be square so they seat deeply into the metal clamp.

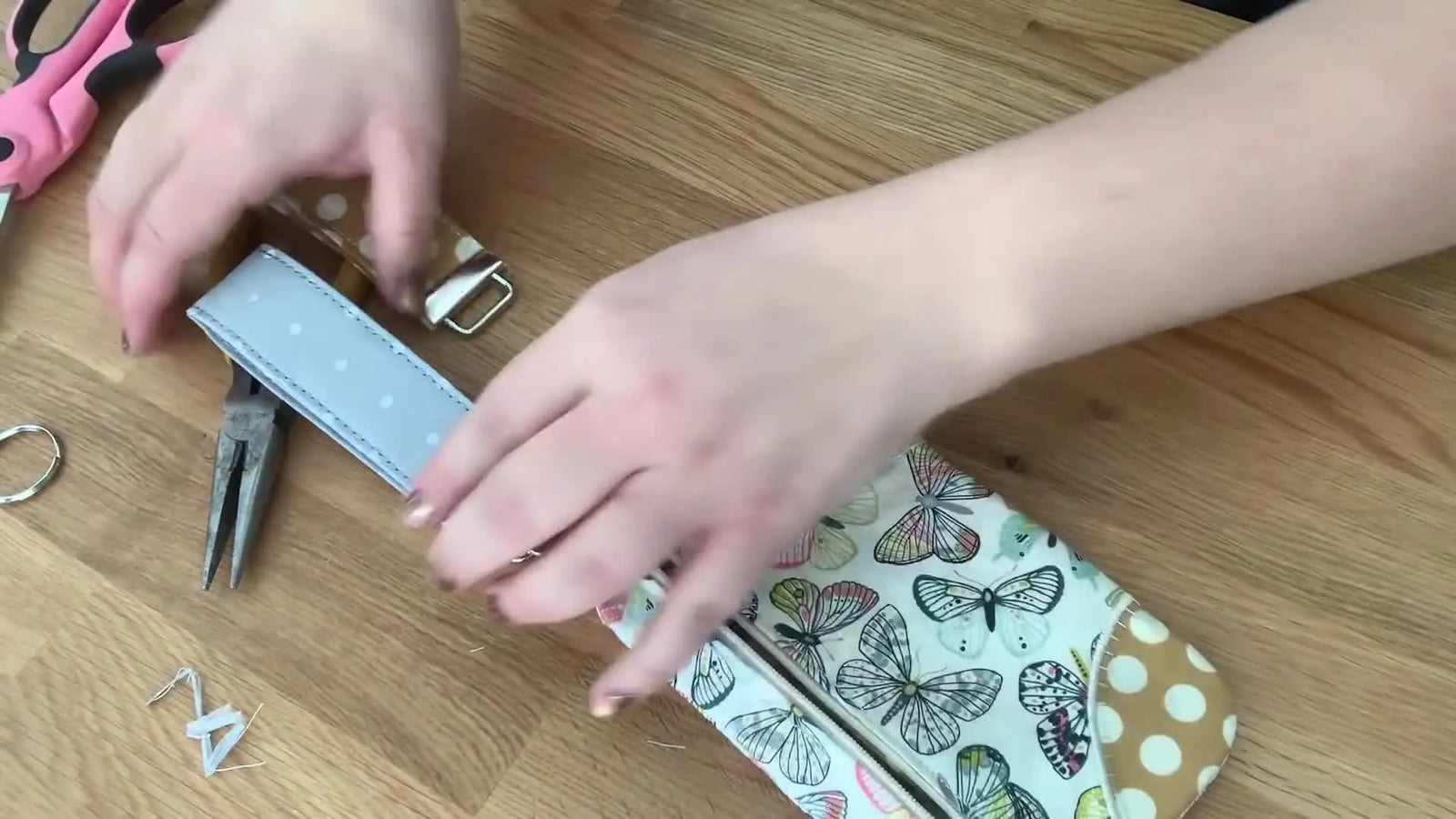

Hardware Installation with Needle-Nose Pliers: Get a Tight Clamp Without Scratching

Video Step: Fold the strap in half to form the loop. Insert raw ends into the clamp. Squeeze.

The "No-Slip" Pro Tip

Hardware installation is where 20% of beginners fail—one side of the strap slides out as you squeeze the pliers.

• The Fix: Before inserting into the metal clamp, take the two raw ends of your strap and sew a quick straight stitch across them on your sewing machine (or hand tack them). This bonds the two ends together. Now they act as a single unit, making it impossible for one side to slip out while you are focusing on the pliers.

The "Scratch-Free" Method

• Symptom: Ugly teeth marks on your shiny hardware.
• Cause: Metal-on-metal contact.
• Prevention: Wrap the jaws of your pliers in masking tape, or use a scrap of heavy fleece/towel between the pliers and the key fob.
• Action: Squeeze firmly until you hear a "Crunch/Click" or feel the teeth of the clamp bite fully into the fabric internal layers.

Operation Checklist (Post-Production Quality Control)

• Rail Check: Look at the side stitching. Did it catch the back layer along 100% of the length?
• Pull Test: Yank on the key ring hardware. Does it hold? (Better it breaks now than with your customer's car keys).
• Cleanliness: Is all visible stabilizer removed? Are jump threads trimmed flush?
• Symmetry: When holding the fob up, is the hardware centered, or is the loop twisted?


When the Strap Doesn’t Catch: Fast Fixes for the Two Most Common Failures

Want Two (or More) Key Fobs Per Hooping? Scaling Up.

The creator confirms in the comments: Yes, you can batch these. If you have software like Embrilliance or Wilcom Hatch, you can Copy/Paste the design to fit 2 or 3 fobs in a standard 6x10 hoop.

• The Workflow: Use "Color Sort" to combine the steps. (e.g., Run all placement stitches at once -> Stop -> Place all tops -> Run all tack downs -> Stop -> Place all bottoms -> Final Stitch).

The Risk of Batching: This is effectively multi hooping machine embroidery logic applied to a single hoop. The risk is that if your stabilizer isn't drum-tight, the weight of multiple fabric strips will sagging it, causing registration errors on the 2nd and 3rd fob.

Optimization: If you start doing this daily, consistency becomes your new god. Users often look for a hooping station for machine embroidery to ensure their stabilizer is perfectly tensioned every time, reducing the "sag" that ruins multi-fob batches.

Decision Tree: Fabric + Stabilizer + “Do I Need an Upgrade?”

Use this logic flow to determine your setup for the day.

1. What Fabric are you using?

• Quilting Cotton / Woven: -> Must use Interfacing + Tearaway Stabilizer.
• Vinyl / Faux Leather: -> No interfacing needed + Tearaway (or Cutaway for heavy usage).

2. What is your production volume?

• The "One-Off" Gift: -> Standard hoop + Tape is sufficient. Cost $0.
• The "Etsy Drop" (20+ units): -> The friction of taping the underside will hurt required cycle time.

3. What is the solution to your bottleneck?

• Issue: "I hate flipping and taping." -> Consider upgrading to [KWD: magnetic embroidery hoops]. They clamp faster and hold thick setups securely without hoop burn.
• Issue: "My alignment is always crooked." -> You need mechanical aid. A [KWD: hoop master embroidery hooping station] or similar fixture standardizes your placement so repeat jobs are identical.

The “Upgrade” Reality: Making the Business Case

This key fob method is entirely possible with a standard plastic hoop and patience. However, the labor is hidden in the prep and the float. In a commercial environment, time is inventory. If you struggle with the dexterity required to hold the back strap while hooping, or if standard hoops leave "burn marks" on your velvet or sensitive fabrics, tools like Magnetic Hoops shift from being "nice to have" to "essential PPE" for your sanity and your profit margins.

Final Thought: Start with the tape. Master the fold. Once you have sold your first 10 key fobs, invest that profit back into tools that remove the tape from the equation. Happy stitching!

FAQ

• Q: Which stabilizer and interfacing should be used to convert a vinyl ITH key fob embroidery file to woven cotton fabric?
  A: Use medium-weight tearaway stabilizer in the hoop and lightweight fusible interfacing on the fabric strips to make the fabric behave more like vinyl.
  • Fuse: Iron lightweight fusible interfacing to the wrong side of both fabric strips before any folding.
  • Hoop: Hoop one sheet of tearaway stabilizer drum-tight and stitch the placement line directly on the stabilizer.
  • Avoid: Skip “fabric only” setups; woven fabric may shift and fray without structure.
  • Success check: The strap feels crisp and holds its width like a “beam,” and the placement stitch on stabilizer looks clean (no loops/skips).
  • If it still fails: Replace the needle and re-check that the stabilizer is truly tight before restarting.
• Q: How can a Brother or Baby Lock single-needle embroidery machine user prevent the final outline stitch from missing the back strap on a fabric ITH key fob?
  A: Treat the placement stitch on the hooped tearaway stabilizer as the only alignment “map,” then center both straps to that stitched box before the final pass.
  • Stitch: Run the placement stitch on tearaway stabilizer first and use that rectangle as the boundary for the “catch zone.”
  • Center: Place the top strap so equal excess hangs left and right; confirm by feeling the placement ridge through the fabric and checking visually.
  • Tape: Flip the hoop, align the bottom strap to the bobbin-side placement stitches, and tape using a hinge-first method (one end, smooth, then the other end).
  • Success check: Before committing, pause after a few stitches and peek underneath to confirm the needle is catching the bottom strap.
  • If it still fails: Re-cut strips to the exact width and slightly widen the folds (reduce center overlap) so the stitch lands fully on both sides.
• Q: What is the correct machine speed and verification routine for the final stitch pass on a thick fabric ITH key fob “sandwich”?
  A: Run the final pass at the lowest practical speed (often 350–400 SPM) and do a pause-and-peek verification after the first few stitches.
  • Set: Reduce speed into the 300–600 SPM range, then choose the lowest setting your machine allows for this step.
  • Start: Watch the first 3–4 stitches closely, then stop immediately.
  • Peek: Check the underside to confirm the bobbin caught correctly and the bottom strap has not shifted.
  • Success check: The machine sound stays steady (“thump-thump”), not a struggling grind, and the underside shows clean, consistent catching.
  • If it still fails: Change to a fresh 75/11 universal or embroidery needle and confirm the layer stack is not excessively thick.
• Q: How do you fix a “bird’s nest” thread wad underneath when stitching an ITH key fob on a home embroidery machine?
  A: Stop immediately, cut the thread mass free, and rethread the upper thread with the presser foot UP so the tension discs engage.
  • Stop: Do not keep running; continued stitching can lock thread into the hook area.
  • Remove: Cut away the nested threads and clear the area before restarting.
  • Rethread: Thread the machine again with the presser foot raised (common cause of lost upper tension).
  • Success check: The underside returns to even stitches instead of a growing wad, and the top thread no longer pulls loose.
  • If it still fails: Inspect needle condition and stitch the placement line on stabilizer first to confirm basic stitch formation is stable.
• Q: What causes a fabric ITH key fob strap to come out curved like “the banana,” and what is the fastest prevention method?
  A: The strap usually curves because the fabric was stretched while taping, distorting the grain; tape the strap flat with zero sag but without pulling.
  • Align: Lay the strap onto the placement area without tension—do not “guitar-string” it.
  • Tape: Use the hinge method (tape one end first, smooth flat, then tape the other end).
  • Support: Keep the hooped stabilizer drum-tight so the added strap weight does not sag the hoop.
  • Success check: The strap edges stay parallel to the placement box, and the finished fob lies straight without a bow.
  • If it still fails: Re-press the folds (with interfacing fused) and restart; stretched fabric rarely recovers after stitching.
• Q: What needle and cutting tools are required to reliably sew the placement stitch and prevent alignment errors on fabric ITH key fobs?
  A: Use a fresh 75/11 universal or embroidery needle and precision cutting tools (rotary cutter + ruler + mat) because scissors often create width errors that cause “near-miss” catches.
  • Replace: Install a fresh needle before starting; dull needles can push the strap and shift alignment.
  • Cut: Use a rotary cutter, acrylic ruler, and self-healing mat to cut two identical strips to the specified dimensions.
  • Inspect: Stitch the placement line on stabilizer and stop if you see skipping or loose stitches.
  • Success check: The placement stitch forms a straight, even rectangle on stabilizer with no skips, and the cut strips match precisely.
  • If it still fails: Re-check that the fabric edges inside the fold are not overlapping (leave a tiny gap) to prevent a center “hump” that deflects the foot.
• Q: What safety precautions should be followed when using a rotary cutter and when upgrading to magnetic embroidery hoops for ITH key fob production?
  A: Treat the rotary cutter like an exposed razor and treat magnetic embroidery hoops as industrial pinch hazards—both require deliberate handling.
  • Lock: Close the rotary cutter safety latch immediately after each cut and keep the stabilizing hand well away from the ruler edge.
  • Control: Avoid crossing arms while cutting; reposition materials instead of reaching over the blade path.
  • Separate: Keep magnetic hoop magnets away from pacemakers, insulin pumps, and credit cards, and keep fingers clear during clamping.
  • Success check: Cuts are straight without “wander,” and magnetic clamps seat without finger pinches or sudden snaps.
  • If it still fails: Slow down the workflow and set up a dedicated flat cutting area and a consistent hooping surface to reduce rushed mistakes.
• Q: When fabric ITH key fob production becomes slow due to flipping hoops and taping straps, what is the step-by-step upgrade path for efficiency?
  A: Start by optimizing taping technique, then consider magnetic hoops to reduce clamping time, and only then consider a multi-needle machine if volume demands it.
  • Level 1 (Technique): Standardize the hinge-tape method, run a pre-flight checklist (alignment, tape clearance, bobbin supply), and slow the final stitch speed.
  • Level 2 (Tool): Switch to magnetic embroidery hoops to reduce repeated flipping/taping friction and help clamp thick stacks with less hoop burn.
  • Level 3 (Capacity): If daily batching becomes routine, a multi-needle embroidery machine may be the next step for consistent throughput.
  • Success check: Cycle time drops (less handling per fob) and the “miss” rate falls because straps shift less during setup.
  • If it still fails: Stop batching and return to single-piece verification until placement accuracy is consistent again.
